What Are the Differences Between IEC and NEMA Standards, and Can They Be Used Interchangeably?

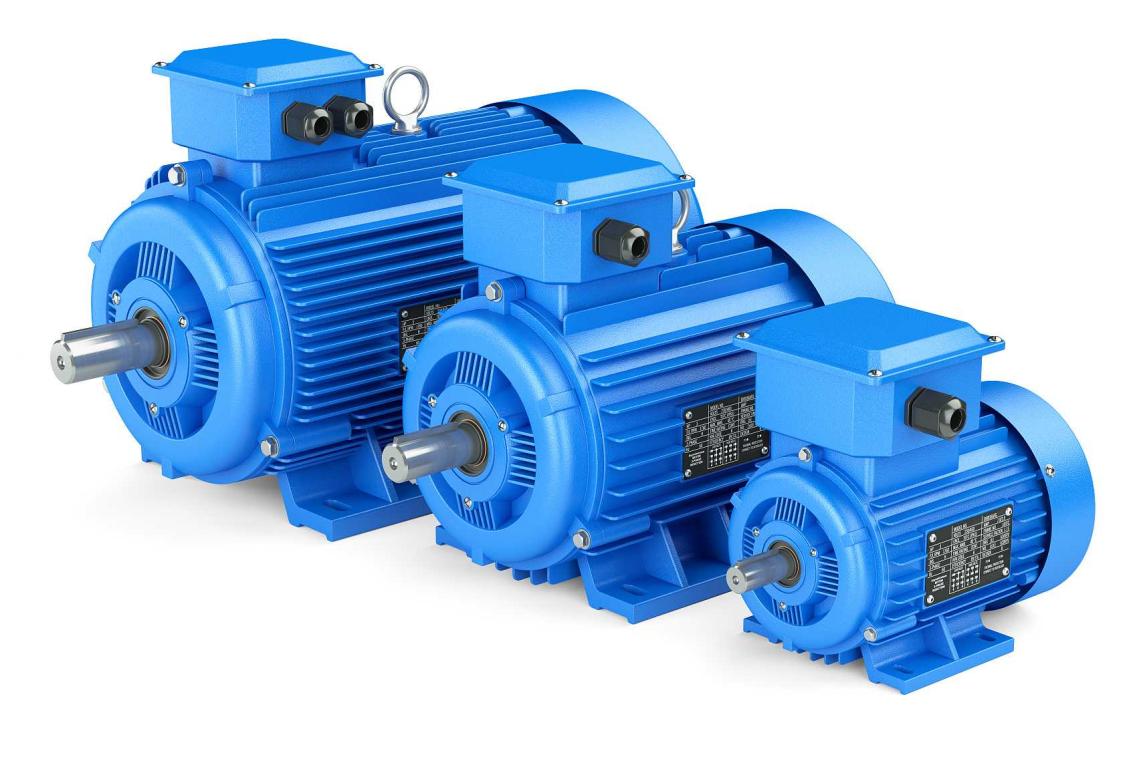

Three-phase induction motors are among the most widely used drive solutions in industrial applications, including pumps, fans, conveyor systems, compressors, and gear reduction equipment.

Globally, these motors are mainly designed and manufactured according to two major technical standard systems: IEC standards and NEMA standards. Due to differences in regional markets, power supply systems, and engineering practices, users often face challenges when selecting, replacing, or interchanging motors between these two standards.

This article provides a clear technical comparison between IEC and NEMA standards for three-phase induction motors and offers practical recommendations for North American customers considering IEC motors as replacements for existing NEMA motors.

Common Foundations of IEC and NEMA Standards

Although IEC and NEMA standards differ in many details, they share the same fundamental motor theory and industrial purpose.

Identical Operating Principle

Both IEC and NEMA three-phase induction motors operate based on the electromagnetic induction principle.

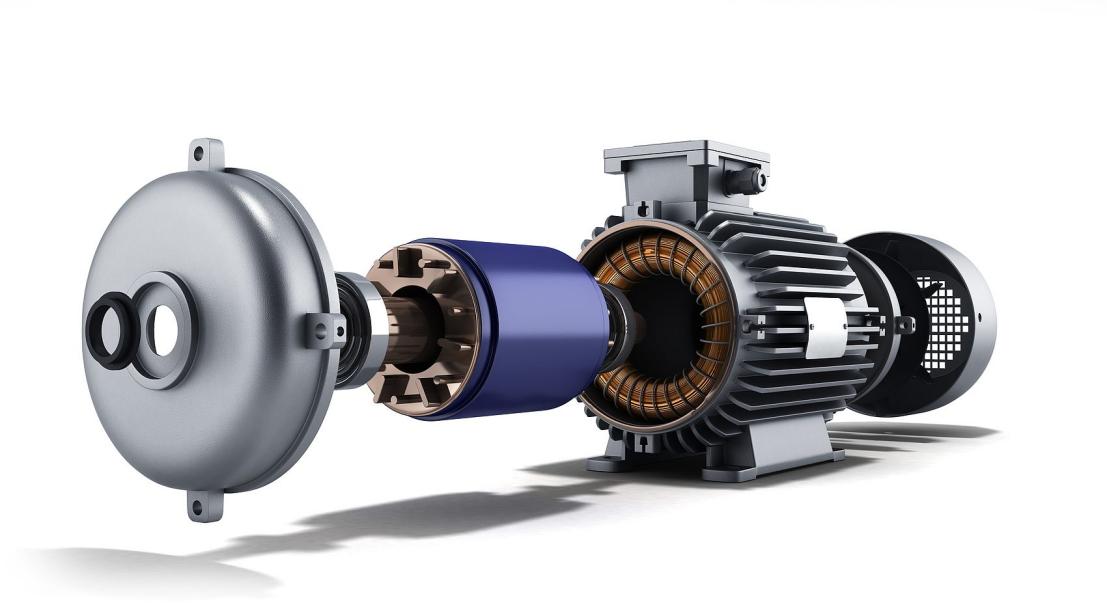

When three-phase alternating current flows through the stator windings, it generates a rotating magnetic field. This field induces current in the rotor, producing torque and mechanical output. From a theoretical and functional standpoint, the operating principle of IEC and NEMA motors is completely identical.

Similar Industrial Applications

Motors manufactured under IEC and NEMA standards are widely used across the same industrial sectors, including but not limited to:

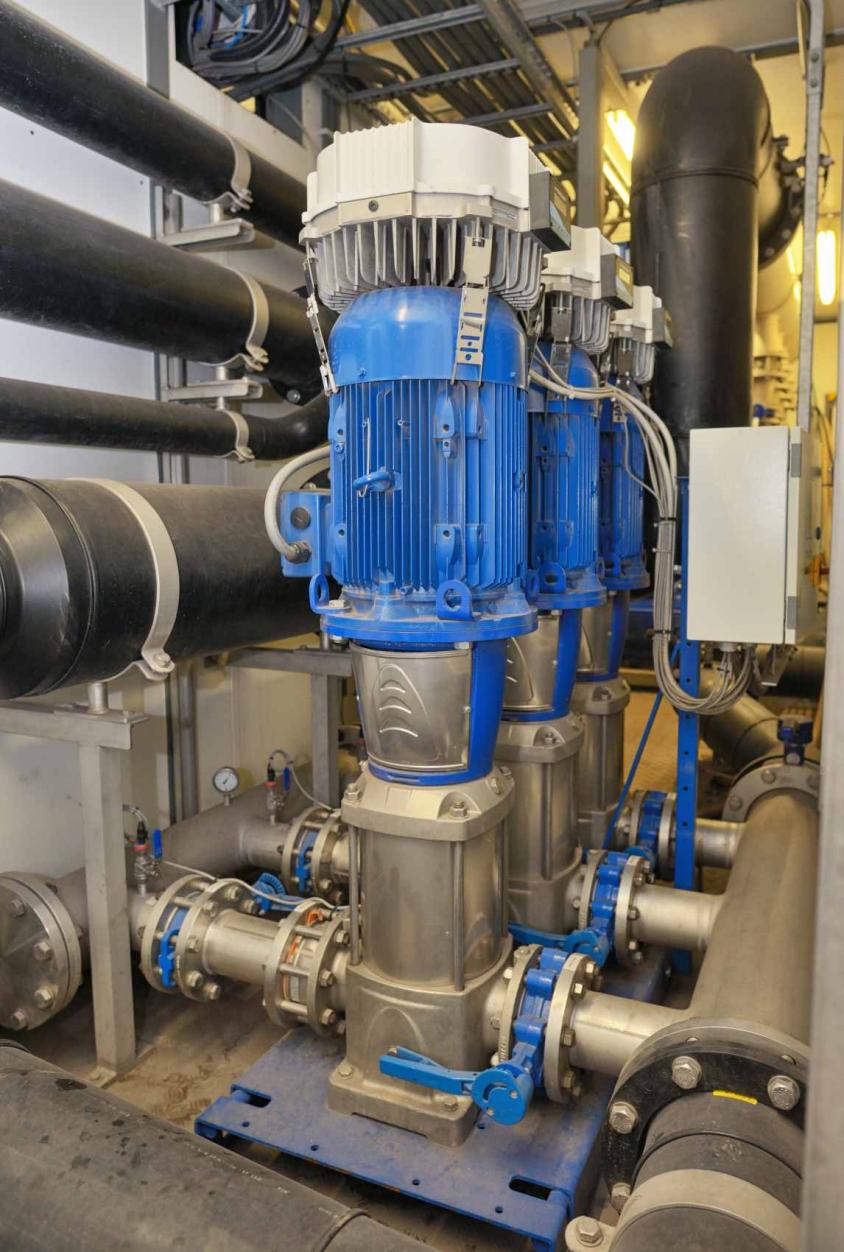

• Centrifugal pumps and industrial fans

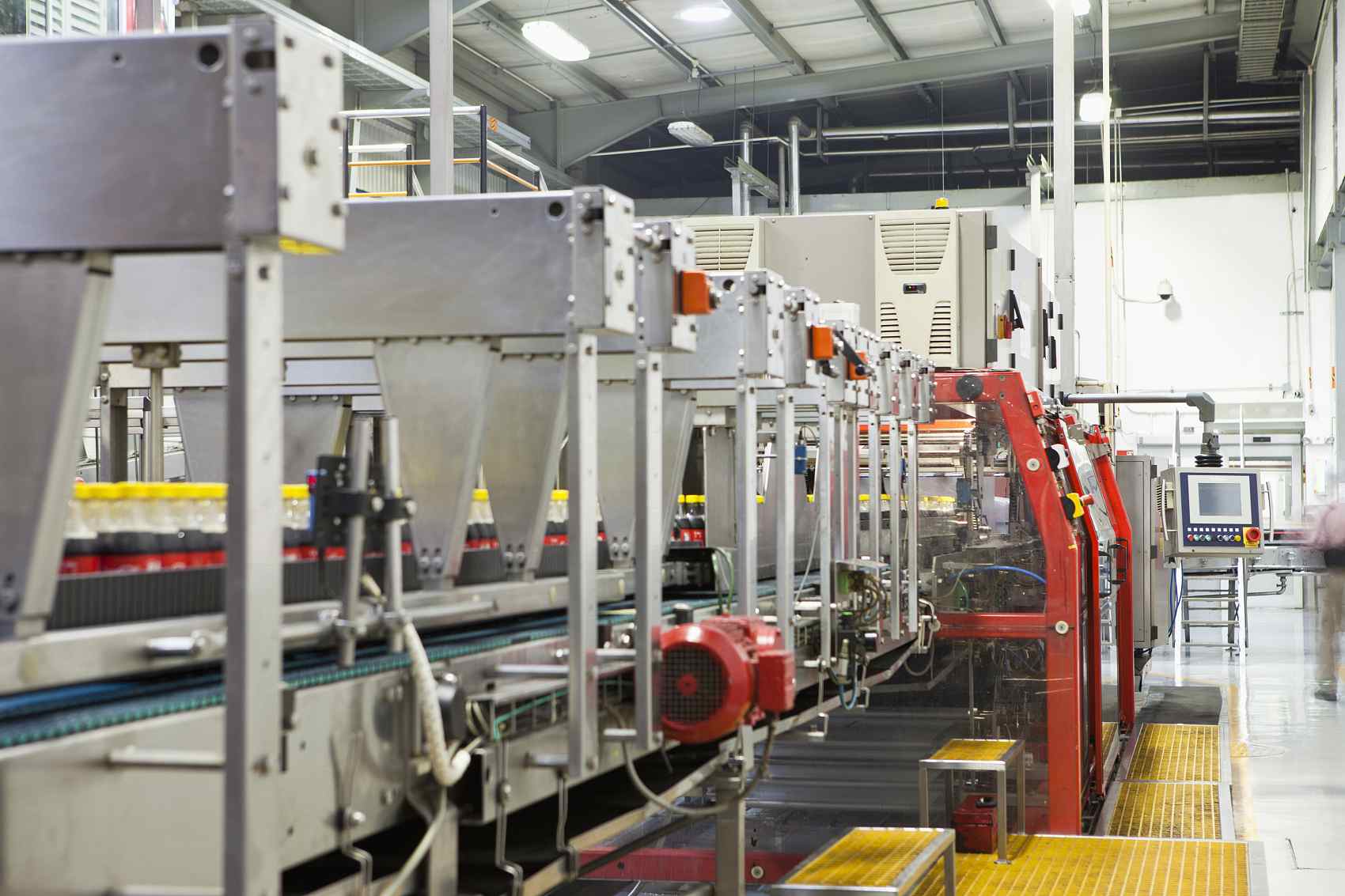

• Conveyor systems and mixing equipment

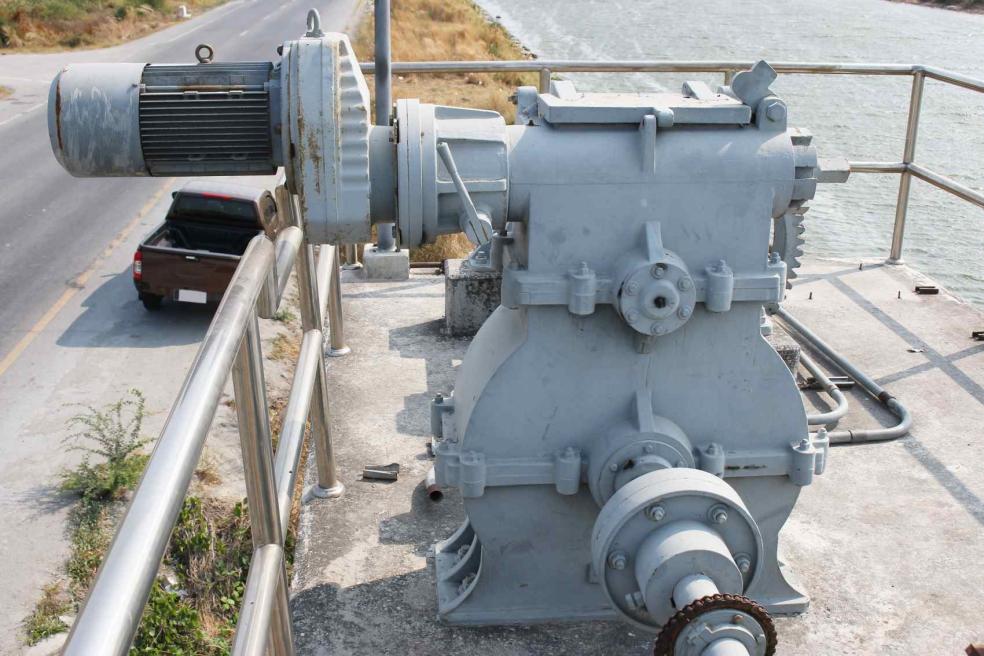

• Gear reducers and mechanical transmission systems

•  Automated production lines and processing equipment

The application environment and load characteristics are essentially the same under both standards.

Core Performance Parameters

Both IEC and NEMA standards define similar core technical parameters, such as:

• Rated power and rated speed

• Voltage, frequency, and current

• Efficiency and power factor

• Temperature rise and insulation class

These shared parameters make cross-standard comparison technically possible, provided correct conversions and engineering checks are applied.

Major Differences Between IEC and NEMA Standards

Despite their common foundations, IEC and NEMA standards differ significantly in system structure, parameter expression, and mechanical design.

Standard Systems and Market Focus

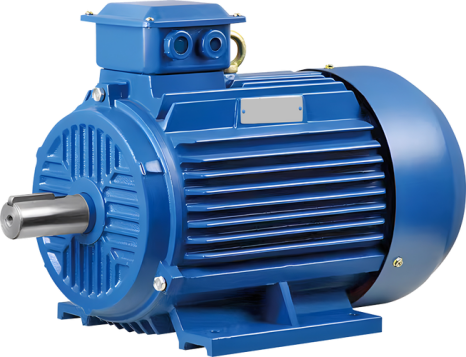

IEC standards are issued by the International Electrotechnical Commission and are widely adopted in Europe, Asia, South America, and many global markets.

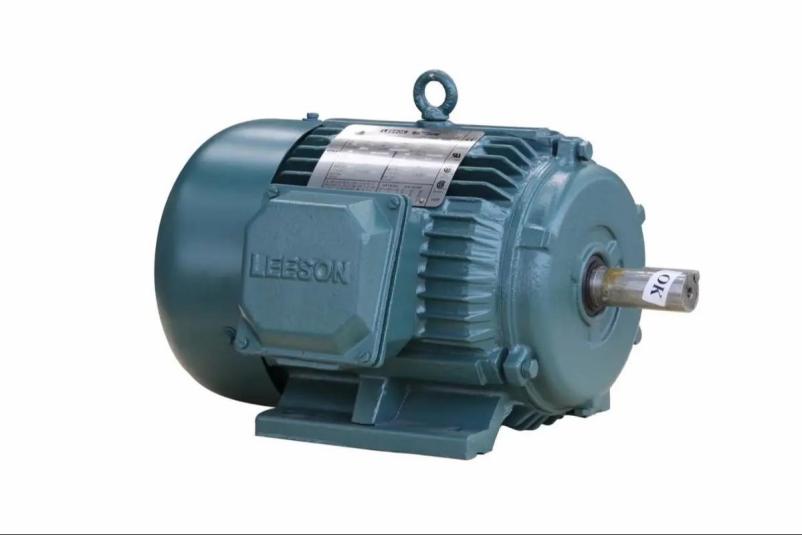

NEMA standards are developed by the National Electrical Manufacturers Association and are primarily used in the United States and Canada.

Because of these different market focuses, IEC standards emphasize international uniformity and compact design, while NEMA standards prioritize application-oriented performance and robustness for North American industrial conditions.

Power Supply Requirements

Typical Rated Power Supply

• IEC motors: 50 Hz, 380–415 V

• NEMA motors: 60 Hz, 460 V

The frequency difference directly affects motor speed. For the same number of poles, a 60 Hz motor will run faster than a 50 Hz motor. Therefore, IEC motors cannot be directly substituted for NEMA motors without considering frequency, speed, and torque changes.

Power and Speed Representation

IEC standards express motor power in kilowatts (kW), while NEMA standards use horsepower (HP).

At 60 Hz, NEMA motors typically have higher rated speeds than 50 Hz IEC motors. To ensure sufficient torque output, NEMA motors are often specified with higher power ratings.

Power Conversion Reference

• 1 HP = 0.7355 kW

• 1 kW ≈ 1.341 HP

Frame Sizes and Mechanical Dimensions

Frame System Differences

• IEC frame sizes: 63 to 355 (metric-based)

• NEMA frame sizes: 143T to 449T (inch-based)

Shaft diameter, shaft height, mounting hole spacing, and flange dimensions differ significantly between IEC and NEMA frames. As a result, IEC and NEMA motors are not mechanically interchangeable without modification or adapters.

Starting Performance and Design Philosophy

IEC motors describe starting characteristics using parameters such as starting torque ratio and starting current.

NEMA motors, however, are classified into Design A, B, C, and D, each corresponding to specific load types:

• Design B: general industrial loads

• Design C: high starting torque loads

• Design D: heavy or shock loads

This design-based classification makes NEMA motors highly application-oriented in North American engineering practice.

Efficiency Ratings

Efficiency Classification Systems

• IEC efficiency levels: IE1, IE2, IE3, IE4

• NEMA efficiency levels: Standard Efficiency, Energy Efficient, Premium Efficiency

IE3 efficiency is generally close to NEMA Premium Efficiency, but testing methods and regulatory frameworks differ. Therefore, direct equivalence should always be verified rather than assumed.

Application Recommendations for the North American Market

With increasing globalization and supply chain diversification, many North American customers are evaluating IEC motors as alternatives to NEMA motors. The following recommendations help ensure safe and reliable motor selection.

Re-selection Based on Load Conditions

When replacing a NEMA motor with an IEC motor, selection should be based on actual load requirements, not just mechanical size.

Recommended Power Margins

• Pumps and fans: increase IEC rated power by approximately 10%

• Conveyors: increase by approximately 15–20%

• Shock or high starting loads: increase by approximately 25–30%

Speed Conversion and Power Supply Adaptation

When applying IEC motors in North America:

• Convert 50 Hz rated speed to 60 Hz operation

• Verify that output torque meets the load requirement

•  Confirm voltage compatibility or plan for transformers or wiring adjustments

Torque and Power Verification

Key Calculation References

• Power conversion: HP = kW ÷ 0.746

• Torque calculation: Torque (N·m) = 9550 × Power (kW) ÷ Speed (rpm)

If calculated torque is insufficient, increase motor power or select a higher efficiency class.

Selecting an Equivalent NEMA Design Type

Although IEC motors do not carry NEMA design labels, selection can follow equivalent load logic:

• Pumps and fans: equivalent to NEMA Design B

• Conveyors: equivalent to Design B or C

• Shock or heavy loads: equivalent to Design C or D

Efficiency and Certification Considerations

• Recommend IE3 or IE4 IEC motors to meet or exceed NEMA Premium efficiency levels

• Verify UL or CSA certification to comply with North American safety and regulatory requirements

Mechanical Interface and Installation

Before installation, always verify:

• Frame size and shaft dimensions

• Mounting type and flange compatibility

If necessary, use base modifications, flange adapters, or flexible couplings to ensure proper alignment and safe operation.

Conclusion

IEC and NEMA three-phase induction motors share the same operating principles and core performance concepts. However, they differ in power supply conditions, mechanical dimensions, power representation, starting performance, and efficiency classification systems.

For North American customers considering IEC motors as replacements for NEMA motors, proper re-selection based on load conditions, torque calculations, power adjustments, and mechanical compatibility is essential. With correct engineering evaluation, IEC motors can provide reliable performance while offering advantages in compact design, high efficiency, and cost-effectiveness.
