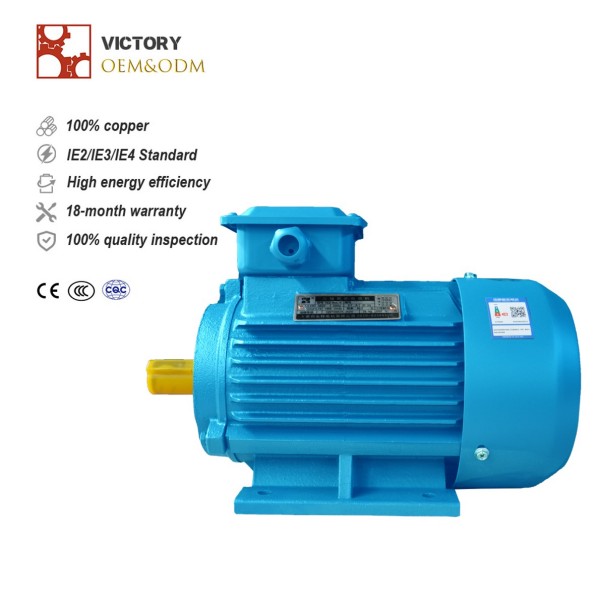

2 HP / 1.5 KW 3 Phase Motor

Introduction to the 2 HP / 1.5 kW 3 Phase Motor

We identify the 2 HP / 1.5 kW 3 phase motor as one of the most practical and widely adopted motor ratings in industrial operations that require dependable power with moderate to high torque output. This motor size is perfectly suited for continuous-duty environments where performance stability, efficiency, and durability are critical. It represents a step up from light-duty motors while remaining compact, cost-effective, and easy to integrate into existing systems.

As industries increasingly prioritize energy efficiency and operational reliability, the 1.5 kW three-phase motor has become a standard choice across manufacturing plants, processing facilities, and infrastructure projects. Its ability to deliver consistent speed, smooth torque, and excellent thermal performance makes it ideal for demanding applications that operate for long hours.

This guide provides a comprehensive overview of the 2 HP / 1.5 kW 3 phase motor, including operating principles, technical specifications, efficiency considerations, applications, advantages, and best practices for selection and maintenance.

---

Understanding the Power Rating: 2 HP and 1.5 kW

Power ratings are commonly expressed in both horsepower (HP) and kilowatts (kW) to ensure clarity across global markets.

• 2 HP ≈ 1.5 kW

• Both values represent the same mechanical output power

• kW is the standard unit in international and industrial specifications

This power class is ideal for equipment that requires higher starting torque and steady output without excessive energy consumption. It is often selected when a 1.1 kW motor is insufficient for load demands, yet larger motors would be inefficient or oversized.

---

How a 3 Phase Motor Works

A 3 phase motor operates using three alternating current phases, each offset by 120 degrees. This configuration creates a uniform rotating magnetic field, which enables smooth and continuous rotor movement.

Core Operating Benefits

• Constant and balanced torque

• Smooth acceleration and deceleration

• Reduced vibration and mechanical stress

• High electrical and mechanical efficiency

Unlike single-phase motors, three-phase motors do not rely on capacitors for starting. This simplicity enhances reliability and makes them suitable for industrial environments requiring continuous operation.

---

Standard Technical Specifications of a 2 HP / 1.5 kW 3 Phase Motor

Rated Power (kW / HP)	Frame Size	Pole	Rated Speed (RPM) 50Hz / 60Hz	Efficiency (100%) IE2 / IE3 / IE4	Power Factor (COS$\phi$) IE2 / IE3 / IE4	Rated Torque (N.m)	Weight (kg)
1.5 / 2	90S	2	2890 / 3468	81.3 / 84.2 / 86.5	0.84 / 0.84 / 0.85	4.96	22
1.5 / 2	90L	4	1420 / 1704	82.8 / 85.3 / 88.2	0.79 / 0.78 / 0.77	10.1	26
1.5 / 2	100L	6	940 / 1128	79.8 / 82.5 / 85.9	0.75 / 0.74 / 0.73	15.2	35
1.5 / 2	112M	8	710 / 852	74.1 / 77.2 / 83.1	0.71 / 0.70 / 0.69	20.2	48

Core Motor Specifications & Performance

✅Environmental & Operational Compatibility

1. Site Conditions

Victory motors operate reliably in most industrial environments:

• Temperature range: -15°C to +40°C (ideal for warehouses, factories, and outdoor shelters)

• Altitude: ≤1000 meters (compatible with urban plants, rural workshops, and low-to-moderate elevation facilities)

This versatility makes them suitable for global applications in non-extreme climates, with custom modifications available for extreme temperatures (-40°C to +50°C) or high-altitude sites (>1000m).

2. Insulation System

The motor’s insulation meets Class F (105K) performance standards (rated for 155°C continuous operation) and is validated via Class B (80K) testing. This dual compliance ensures an extended lifespan (20,000+ operating hours) and consistent reliability in 24/7 continuous-duty scenarios (e.g., manufacturing lines, water treatment pumps). For extreme-heat applications (e.g., foundries), Class H insulation (180°C max) is available as a customization.

3. Vibration & Noise Control

Engineered to Vibration Class A (low noise, minimal mechanical wear), our motors are ideal for precision equipment like packaging machines or medical tools. For quieter environments (e.g., laboratories) or sensitive instrumentation, Vibration Class B (smoother operation) can be requested to reduce operational disturbance.

4. Duty Cycle

Designed for Continuous Duty (S1) operation, our motors run indefinitely at rated load without overheating—perfect for non-stop applications: industrial pumps, ventilation fans, conveyor systems, and heavy machinery.

✅Electrical & Protective Features

1. Voltage & Frequency

Standard specifications: 380V/50Hz (global industrial grid standard). Customization options include:

• Single voltages: 200V–660V (e.g., 220V/60Hz for North America, 230V/50Hz for Europe)

• Frequency: 50/60Hz (or custom tuning for specialized needs like 400Hz aerospace applications)

Motors maintain optimal performance even with ±5% voltage fluctuations—critical for unstable power grids in remote or developing regions.

2. Motor Protection

Enhance safety and reduce downtime with optional PTC thermistors (overheat protection) or PT100 temperature sensors (real-time monitoring). These components trigger alerts or automatic shutdowns during overheating, preventing damage in high-load applications (compressors, conveyors) and lowering long-term repair costs.

3. Protection Class

Standard IP54/IP55 Ingress Protection (dust-tight, water-resistant) safeguards against particles and low-pressure water jets—ideal for humid/dusty workspaces (food processing plants, construction sites). For harsh environments (heavy rain, washdowns), IP65 (full dust tightness + high-pressure water resistance) is available on request.

4. Cooling & Ventilation

Victory-Motor uses Totally Enclosed Fan-Cooled (TEFC) technology (per IEC 60034-6, IC411):

• Seals the motor to block dust, moisture, and debris (critical for farms, mines, or dirty industrial areas)

• External fans ensure efficient heat dissipation, maintaining stable temperatures in high-torque, long-duration tasks

✅Construction & Material Quality

1. Winding

Constructed with 100% high-purity copper wire (not aluminum), our windings offer:

• Superior electrical conductivity (reduces energy loss and utility bills)

• Enhanced heat resistance (extends motor life in continuous operation)

• Better performance in high-load, long-duration tasks compared to alternative materials

2. Output Shaft

Standard cylindrical shaft with keyway; we offer custom shaft diameter/length (e.g., extended shafts for specific couplings, non-standard key sizes) to fit your equipment’s unique requirements.

Victory-Motor’s Manufacturing & Quality Assurance

1. Sufficient Raw Material Inventory

Victory-Motor maintains a robust, high-grade raw material inventory (premium copper windings, high-strength steel laminations, durable aluminum housings) sourced from certified global suppliers. This eliminates production delays, enables quick responses to urgent orders or sudden demand spikes, and ensures your projects stay on schedule—whether you need standard models or custom solutions.

2. Professional Production Equipment & Assembly Lines

Victory-Motor workshop features state-of-the-art equipment:

• CNC machining centers (precision component manufacturing)

• Automatic winding machines (consistent coil quality)

• Intelligent testing systems (real-time performance validation)

Fully automated assembly lines reduce human error, boost production efficiency, and ensure every motor meets international quality standards. We continuously upgrade equipment to align with the latest industry advancements.

3. 100% Quality Inspection

Quality is Victory-Motor cornerstone. Victory-Motor implements rigorous 100% inspection across the entire production process:

• Raw material verification (ensures compliance with specifications)

• In-process checks (monitors component accuracy)

• Final testing (assesses efficiency, torque, vibration, and insulation resistance via dynamometers, testers, and analyzers)

Adhering to the ISO 9001 quality management system, Victory-Motor guarantees defect-free motors that perform optimally in your applications.

Customization & Delivery Solutions

1. OEM/ODM Services

Victory-Motor offers comprehensive OEM/ODM services tailored to your unique needs:

• Collaborate with our engineers from design to final production

• Customize power, speed, size, voltage, housing, or branding (produce under your logo)

• Transparent processes and strict IP protection (confidentiality agreements included)

Leveraging our R&D and production expertise, we deliver cost-effective, high-performance solutions that align with your business goals.

2. Export-Standard Packaging & Delivery

Victory-Motor uses ISPM 15-compliant export-standard wooden boxes (high-density, moisture-resistant plywood) with foam padding and plastic wrapping for internal protection. This packaging:

• Complies with global customs regulations

• Prevents damage from impact, humidity, or rough transit

• Can be customized for large/special-shaped orders

You can trust your motors will arrive on time and in perfect working condition, no matter your global destination.

3. Quality Assurance & Warranty

Every motor is built to ISO 9001 standards, ensuring consistent manufacturing quality and compliance with global industrial regulations. We back our products with an 18-month warranty: if a motor is damaged by non-human factors (e.g., manufacturing defects) within this period, we replace it free of charge.

Item	Specifications	Description	Customized items
Motor Type	Three phase AC motor (squirrel-cage type)
Motor Standard	IEC60034	It is a standard for rotating motors formulated by IEC.
Efficiency Level	IE2 / IE3 / IE4	It meet IE2 IE3 IE4 energy efficiency grade of IEC60034.
Voltage	110/200/220/230/240/380/400/415/440/460/480/ 660/ 690V	The motors can work well within variations of ±5% from rated voltage.	It can be customized according to the voltage in your country
Frequency	50/60Hz	The motors can work in 50Hz or 60Hz.	It can be customized according to the frequency in your country
Degree of protection	IP55	The motor has dust-proof and water-proof performance of level 5. It is suitable for industrial scenarios where there is dust (diameter ≥ 1mm) and low-pressure water spraying.	It can be customized as IP65
Insulation Class	F	The maximum temperature that insulating materials can withstand for a long time is 155℃.	It can be customized as H
Operating mode	S1	Continuous working system
Cooling Method	TEFC	Totally enclosed fan cooled in accordance with IC411 of IEC60034.
Site Conditions	Temperature: -15°C to +40°C Altitude: ≤ 1000 m		It can be customized for environments with higher or lower temperature, and over 1000 meters.
Winding	100% copper wire
Motor Protection	PTC/PT100	PTC: thermistors protection PT100: resistance thormometers protection	As option
Output Shaft	Standard size	Cylindrical with key	The diameter and length of shaft can be customized
Paint color	Blue / Gray		It can be customized
Nameplate	Victory brand standard		It can be customized
Quality Assurance	ISO 9001 Quality System	Strict quality management standard, 100% quantity inspected
Warranty Period	18 months	We offer a new motor for free if the motor is damaged due to non-human factors within 18 months.

Energy Efficiency and Operating Performance

The 2 HP 3 phase motor offers superior energy efficiency compared to single-phase motors of similar output. Key efficiency-related advantages include:

• Lower electrical losses

• Improved power factor

• Reduced operating temperature

• Stable performance under continuous load

• Lower long-term energy costs

Motors compliant with IE3 and IE4 efficiency standards are particularly beneficial for applications running multiple shifts, as they significantly reduce electricity consumption over the motor’s lifecycle.

---

Common Applications of 2 HP / 1.5 kW 3 Phase Motors

We observe this motor size being used across a broad range of industries due to its adaptability and reliability.

Industrial Applications

• Conveyor systems

• Centrifugal and positive displacement pumps

• Air compressors

• Industrial fans and blowers

• Mixers and agitators

• Machine tools and production equipment

Commercial and Infrastructure Applications

• HVAC systems

• Water and wastewater treatment plants

• Cooling towers

• Packaging and material handling systems

Its ability to handle continuous-duty cycles makes it ideal for operations where downtime must be minimized.

---

Speed Selection and Pole Configuration

The operating speed of a 3 phase motor under 50hz depends on the number of poles:

• 2 Pole – approximately 3000 RPM

• 4 Pole – approximately 1500 RPM

• 6 Pole – approximately 1000 RPM

• 8 Pole – approximately 750 RPM

Selecting the correct speed ensures efficient power transmission and prevents unnecessary mechanical wear. Conveyor and pump applications commonly use 4-pole motors, while high-speed fans and compressors often require 2-pole motors.

---

Mounting Options and Installation Flexibility

The 1.5 kW 3 phase motor is available in various mounting configurations to suit different installation requirements:

• B3 (Foot Mounted) – Standard and widely used

• B5 (Flange Mounted) – Direct coupling to gearboxes or pumps

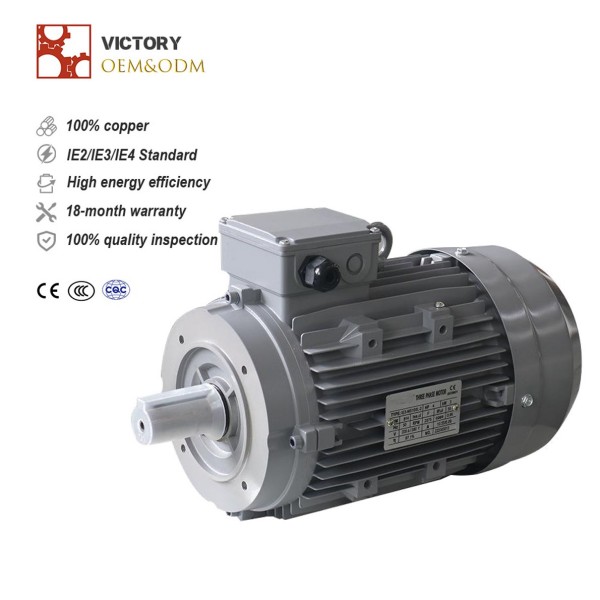

• B14 (Face Mounted) – Compact and space-saving installations

This flexibility allows easy integration into both new equipment and retrofit projects.

---

Key Advantages of a 2 HP / 1.5 kW 3 Phase Motor

We highlight several advantages that make this motor rating highly desirable:

• High starting and running torque

• Smooth, vibration-free operation

• Low maintenance requirements

• Long service life

• Excellent compatibility with VFDs

• Consistent performance under variable loads

When paired with a variable frequency drive (VFD), the motor enables precise speed control, soft starting, and additional energy savings.

---

How to Select the Right 2 HP 3 Phase Motor

Proper motor selection involves evaluating multiple operational factors:

• Load characteristics and torque requirements

• Required operating speed

• Available power supply and frequency

• Environmental conditions such as dust, moisture, or heat

• Duty cycle (S1 continuous or intermittent)

• Efficiency and regulatory compliance

Matching these parameters ensures optimal performance and prevents premature motor failure.

---

Maintenance and Long-Term Reliability

With correct installation and regular maintenance, a 2 HP 3 phase motor can operate reliably for many years. Recommended maintenance practices include:

• Regular bearing lubrication

• Periodic insulation resistance testing

• Cleaning of cooling surfaces

• Monitoring vibration, noise, and temperature

• Ensuring proper alignment and secure mounting

Preventive maintenance significantly reduces downtime and extends motor lifespan.

---

Conclusion

We view the 2 HP / 1.5 kW 3 phase motor as a versatile, efficient, and dependable solution for modern industrial and commercial applications. Its balance of power, efficiency, and durability makes it an excellent choice for equipment requiring continuous operation and consistent performance. When selected and maintained correctly, this motor delivers long-term value, energy savings, and operational reliability.

Installation Methods of 3-Phase Motor

Here’s a structured overview of the 18 3-phase motor mounting types:

1. IM V1 (IM 3011)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (no base feet)

• · Frame size: 63–355

• · Power range: ~0.12 kW to 1,000+ kW

• · Applications: Pumps, mixers, vertical compressors (equipment requiring vertical shaft alignment)

2. IM V3 (IM 3031)

• · Orientation: Vertical (shaft upward)

• · Mounting: Flange (no base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Vertical fans, hoists, small vertical pumps

3. IM V5 (IM 1011)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (with base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Industrial mixers, vertical conveyors, compact vertical processing equipment

4. IM V6 (IM 1031)

• · Orientation: Vertical (shaft upward)

• · Mounting: Flange (with base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Small vertical compressors, lift mechanisms, vertical material handlers

5. IM B14 (IM 3601)

• · Orientation: Horizontal

• · Mounting: Small flange (end-mounted, no base feet)

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Pumps, fans, food processing machines, agricultural equipment

6. IM V15 (IM 2011)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (special base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Heavy-duty vertical pumps, marine equipment, offshore machinery

7. IM V17 (IM 2111)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (side-mounted base feet)

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Compact mixers, vertical conveyors, laboratory processing equipment

8. IM V18 (IM 3611)

• · Orientation: Vertical (shaft upward)

• · Mounting: Flange (side-mounted base feet)

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Small hoists, vertical fans, material lifting systems

9. IM V19 (IM 3631)

• · Orientation: Vertical (shaft upward)

• · Mounting: Flange (special base feet)

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Offshore pumps, compact vertical compressors, marine equipment

10. IM B34 (IM 2101)

• · Orientation: Horizontal

• · Mounting: Base feet + side flange

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Conveyors, industrial mixers, machinery requiring dual mounting options

11. IM V35 (IM 2031)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (extended base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Large vertical pumps, mining equipment, heavy-duty mixers

12. IM V37 (IM 2131)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (offset base feet)

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Compact vertical machinery, medical equipment, precision processing tools

13. IM B3 (IM 1001)

• · Orientation: Horizontal

• · Mounting: Base feet (no flange)

• · Frame size: 63–355

• · Power range: ~0.12 kW to 1,000+ kW

• · Applications: Blowers, compressors, cutting machines, industrial pumps (general heavy machinery)

14. IM B5 (IM 3001)

• · Orientation: Horizontal

• · Mounting: Flange (no base feet)

• · Frame size: 63–280

• · Power range: ~0.12 kW to 500 kW

• · Applications: Pumps, fans, automation equipment, conveyor systems

15. IM B6 (IM 1051)

• · Orientation: Horizontal

• · Mounting: Small flange (end-mounted, with base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Small pumps, laboratory machinery, light industrial equipment

16. IM B7 (IM 1061)

• · Orientation: Horizontal

• · Mounting: Special flange (end-mounted, with base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Precision machinery, textile equipment, small processing tools

17. IM B8 (IM 1071)

• · Orientation: Horizontal

• · Mounting: Extended flange (end-mounted, with base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Food processing machines, packaging equipment, small industrial pumps

18. IM B35 (IM 2001)

• · Orientation: Horizontal

• · Mounting: Base feet + flange

• · Frame size: 63–355

• · Power range: ~0.12 kW to 1,000+ kW

• · Applications: Multi-purpose machinery, compressors, large pumps (flexible installation needs)

Induction Motor & Gear Reducer for Sale – Leading Manufacturer and Supplier

• · Leading AC Electric Motor and Reducer Manufacturer Since 2007

• · Offer one step OEM&ODM service

• · Offer warranty period of 18-month, compared with common 12-month in motor industry

• · More than 15,000 square meters of factory area with more than 50 employees

• · 11 production lines and annual output of 300,000 sets of motors

• · 100% quantity inspection before delivery

• · More than 20 patent certificates and CE, CCC, ISO9001 certificate

• · Trade with customers in more than 80+ countries and 100+ successful cases

Video of Victory-Motor ---- Induction Motor & Gear Reducer Manufacturer

Trust Victory Machinery Technology Co., Ltd. for Your Motor Solutions

Victory Machinery Technology Co., Ltd. offers a wide selection of top-tier AC induction motors and related products designed to provide optimal efficiency, reliability, and performance across various industries. Whether you’re looking for high-efficiency motors, explosion-proof solutions, or customized products, the company stands as a trusted manufacturer capable of meeting the unique needs of the global market. With its commitment to quality, innovation, and customer satisfaction, Victory Machinery Technology Co., Ltd. is your ideal partner for all your motor solutions.

Sufficient raw material inventory

At Victory Machinery Technology Co., Ltd., we maintain a robust and sufficient raw material inventory to ensure uninterrupted production and timely delivery of your AC induction motor orders. We source only high-grade raw materials—including premium copper windings, high-strength steel laminations, and durable aluminum housings—from certified global suppliers, adhering to strict quality standards. This abundant inventory not only eliminates production delays caused by material shortages but also enables us to quickly respond to urgent customer requests and sudden order increases. Whether you need standard motor models or customized solutions, our well-stocked raw material warehouse lays a solid foundation for efficient production, ensuring that your projects stay on schedule.

Professional production equipment and assembly lines

Victory Machinery Technology Co., Ltd. boasts state-of-the-art professional production equipment and fully automated assembly lines, which are the core of our high-quality motor manufacturing. Our production workshop is equipped with advanced CNC machining centers, precision stamping machines, automatic winding machines, and intelligent testing equipment, ensuring every component of the AC induction motor is manufactured with exceptional precision. The automated assembly lines streamline the production process, reducing human error while significantly improving production efficiency. We continuously invest in upgrading our equipment and optimizing production workflows to keep pace with the latest technological advancements in the motor industry. With our professional production capabilities, we can consistently deliver motors that meet or exceed international quality standards, providing you with reliable performance and long service life.

100% quality inspection

Quality is our cornerstone. We implement 100% rigorous quality inspection throughout production—from raw material verification to final product testing. Using advanced equipment (dynamometers, insulation testers, vibration analyzers), our QC team assesses key performance indicators. Adhering to ISO 9001, we guarantee defect-free motors that perform optimally in your applications.

Offer OEM/ODM service

We offer comprehensive OEM/ODM services tailored to your unique needs. Our experienced engineers collaborate with you from design to understand application requirements and branding needs—customizing power, speed, size, voltage or housing, or producing under your brand. Leveraging strong R&D and production experience, we deliver cost-effective, high-performance solutions with transparent processes and IP protection.

Export standard wooden box: Strong packing to ensure good condition on arrival

We use ISPM 15-compliant export-standard wooden boxes for packaging, with foam padding and plastic wrapping for internal protection. This high-density, moisture-resistant packaging complies with global customs regulations and prevents damage during transit. Custom packaging for large/special orders ensures safe delivery. You can trust your motors will arrive on time and in perfect condition worldwide.

Q1: What Information Should I Provide When Choosing a Motor, Gearbox, or Speed Reducer?

A1: The most effective way to select the right motor or gearbox is by providing a motor drawing with relevant parameters. Our engineers will review this information and recommend the most suitable model for your application. Alternatively, you can provide the following specifications:

1. 1. Type, model, power, and torque.

2. 2. Desired ratio or output speed.

3. 3. Working conditions and connection method.

4. 4. Quantity and machine name for installation.

5. 5. Input mode and input speed.

6. 6. Motor brand/model or flange and motor shaft size.

Q2: Are You a Manufacturer?

A2: Yes, we are a professional manufacturer of motors and reducers with 20 years of experience, located in Changzhou, Jiangsu, China.

Q3: What is Your Delivery Time?

A3: Our delivery time is approximately 10 days for sample orders and 15 days for bulk container orders.

Q4: Can I Get a Sample First?

A4: Absolutely! We would be happy to provide a sample for testing before you place a formal order.

Q5: What is Your Minimum Order Quantity (MOQ)?

A5: The MOQ is 1 piece per model for factory-branded products and packaging. For OEM branding and packaging, the MOQ is 50 pieces per model.

Q6: Do You Provide OEM/ODM Services?

A6: Yes, we are a premium OEM/ODM manufacturer, certified by independent third-party assessments.

Q7: How Does Your Factory Ensure Quality Control?

A7: Quality is our top priority. We follow a strict quality control system throughout the production process. Our QC team monitors quality at every stage and performs tests before each shipment to ensure high standards.

Q8: What Are Your Warranty Terms?

A8: We offer 18 months warranty, starting from the shipping date, as specified in the Bill of Lading (B/L).

Q9: How Do You Maintain Long-Term and Strong Business Relationships?

A9: We value our customers and ensure long-term relationships by:

1. · Providing high-quality products at competitive prices to benefit our customers.

2. · Treating each customer as a friend and conducting business with sincerity, regardless of their location.
