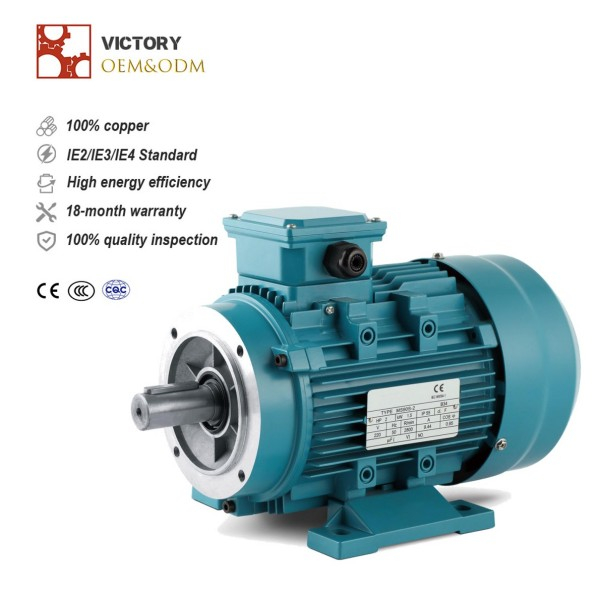

270 HP / 200 KW 3 Phase Motor

Introduction to 270 HP / 200 KW 3-Phase Motors

The 270 HP / 200 KW 3-phase motor belongs to the upper tier of industrial electric motors. Designed to handle demanding workloads, these motors power some of the largest and most critical equipment in industries such as mining, oil and gas, steel production, water treatment, and manufacturing.

When a facility requires reliable performance under continuous heavy loads, a 200 KW motor becomes a trusted solution. Combining substantial torque, energy efficiency, and operational reliability, this motor is built to perform in challenging industrial environments.

Understanding Motor Power Ratings

What is Horsepower (HP)?

Horsepower is a traditional unit used to measure mechanical power output.

1 HP = 746 Watts

Therefore:

270 HP × 746 = 201,420 Watts

This equals approximately 200 KW, making the 270 HP and 200 KW ratings essentially equivalent.

What is Kilowatt (KW)?

A kilowatt is the internationally accepted unit for power.

1 KW = 1,000 Watts

Industrial motor manufacturers commonly provide ratings in both HP and KW to meet global standards.

HP to KW Conversion Explained

The conversion formula is:

KW = HP × 0.746

For example:

270 HP × 0.746 = 201.42 KW

This is commonly rounded to 200 KW for motor classification purposes.

How a 3-Phase Motor Works

Electromagnetic Induction Principle

Three-phase motors operate using electromagnetic induction. Electrical current flowing through stator windings creates a rotating magnetic field. This magnetic field interacts with the rotor, generating torque and causing rotation.

This simple but highly effective principle allows electric motors to convert electrical energy into mechanical energy with remarkable efficiency.

The Benefits of Three-Phase Power

Three-phase power systems offer several advantages:

• Smooth and continuous torque

• Higher efficiency

• Better power distribution

• Reduced vibration

• Lower maintenance requirements

These advantages make three-phase motors the preferred choice for industrial applications.

Key Specifications of a 270 HP / 200 KW Motor

Core Motor Specifications & Performance

Environmental & Operational Compatibility

1. Site Conditions

Victory motors operate reliably in most industrial environments:

• Temperature range: -15°C to +40°C (ideal for warehouses, factories, and outdoor shelters)

• Altitude: ≤1000 meters (compatible with urban plants, rural workshops, and low-to-moderate elevation facilities)

This versatility makes them suitable for global applications in non-extreme climates, with custom modifications available for extreme temperatures (-40°C to +50°C) or high-altitude sites (>1000m).

2. Insulation System

The motor’s insulation meets Class F (105K) performance standards (rated for 155°C continuous operation) and is validated via Class B (80K) testing. This dual compliance ensures an extended lifespan (20,000+ operating hours) and consistent reliability in 24/7 continuous-duty scenarios (e.g., manufacturing lines, water treatment pumps). For extreme-heat applications (e.g., foundries), Class H insulation (180°C max) is available as a customization.

3. Vibration & Noise Control

Engineered to Vibration Class A (low noise, minimal mechanical wear), our motors are ideal for precision equipment like packaging machines or medical tools. For quieter environments (e.g., laboratories) or sensitive instrumentation, Vibration Class B (smoother operation) can be requested to reduce operational disturbance.

4. Duty Cycle

Designed for Continuous Duty (S1) operation, our motors run indefinitely at rated load without overheating—perfect for non-stop applications: industrial pumps, ventilation fans, conveyor systems, and heavy machinery.

Electrical & Protective Features

1. Voltage & Frequency

Standard specifications: 380V/50Hz (global industrial grid standard). Customization options include:

• Single voltages: 200V–660V (e.g., 220V/60Hz for North America, 230V/50Hz for Europe)

• Frequency: 50/60Hz (or custom tuning for specialized needs like 400Hz aerospace applications)

Motors maintain optimal performance even with ±5% voltage fluctuations—critical for unstable power grids in remote or developing regions.

2. Motor Protection

Enhance safety and reduce downtime with optional PTC thermistors (overheat protection) or PT100 temperature sensors (real-time monitoring). These components trigger alerts or automatic shutdowns during overheating, preventing damage in high-load applications (compressors, conveyors) and lowering long-term repair costs.

3. Protection Class

Standard IP54/IP55 Ingress Protection (dust-tight, water-resistant) safeguards against particles and low-pressure water jets—ideal for humid/dusty workspaces (food processing plants, construction sites). For harsh environments (heavy rain, washdowns), IP65 (full dust tightness + high-pressure water resistance) is available on request.

4. Cooling & Ventilation

Victory-Motor uses Totally Enclosed Fan-Cooled (TEFC) technology (per IEC 60034-6, IC411):

• Seals the motor to block dust, moisture, and debris (critical for farms, mines, or dirty industrial areas)

• External fans ensure efficient heat dissipation, maintaining stable temperatures in high-torque, long-duration tasks

Construction & Material Quality

1. Winding

Constructed with 100% high-purity copper wire (not aluminum), our windings offer:

• Superior electrical conductivity (reduces energy loss and utility bills)

• Enhanced heat resistance (extends motor life in continuous operation)

• Better performance in high-load, long-duration tasks compared to alternative materials

2. Output Shaft

Standard cylindrical shaft with keyway; we offer custom shaft diameter/length (e.g., extended shafts for specific couplings, non-standard key sizes) to fit your equipment’s unique requirements.

Wiring Methods of 3-Phase Motor

Here’s a clear explanation of the two three-phase motor wiring methods:

Star (Y) Connection

• · Wiring Setup: The motor’s three winding ends (U2, V2, W2) are connected together (forming a "star" center point), while the three start ends (U1, V1, W1) connect to the three-phase power supply.

• · Key Electrical Traits: Line voltage (power supply voltage) is √3x winding voltage; line current equals winding current.

• · Common Use Case: Used for motors designed for high-voltage input (e.g., 380V supply with 220V windings) or to reduce startup current (e.g., in light-load applications like fans or small pumps).

Delta (△) Connection

• · Wiring Setup: The motor’s winding ends are connected in a closed loop: U2 to V1, V2 to W1, W2 to U1. The three-phase power supply connects to the junction points (U1, V1, W1).

• · Key Electrical Traits: Line voltage equals winding voltage; line current is √3x winding current.

• · Common Use Case: Used for motors designed for low-voltage input (e.g., 220V supply with 220V windings) or high-torque applications (e.g., compressors, conveyors, heavy machinery).

Victory-Motor’s Manufacturing & Quality Assurance

1. Sufficient Raw Material Inventory

Victory-Motor maintains a robust, high-grade raw material inventory (premium copper windings, high-strength steel laminations, durable aluminum housings) sourced from certified global suppliers. This eliminates production delays, enables quick responses to urgent orders or sudden demand spikes, and ensures your projects stay on schedule—whether you need standard models or custom solutions.

2. Professional Production Equipment & Assembly Lines

Victory-Motor workshop features state-of-the-art equipment:

• CNC machining centers (precision component manufacturing)

• Automatic winding machines (consistent coil quality)

• Intelligent testing systems (real-time performance validation)

Fully automated assembly lines reduce human error, boost production efficiency, and ensure every motor meets international quality standards. We continuously upgrade equipment to align with the latest industry advancements.

3. 100% Quality Inspection

Quality is Victory-Motor cornerstone. Victory-Motor implements rigorous 100% inspection across the entire production process:

• Raw material verification (ensures compliance with specifications)

• In-process checks (monitors component accuracy)

• Final testing (assesses efficiency, torque, vibration, and insulation resistance via dynamometers, testers, and analyzers)

Adhering to the ISO 9001 quality management system, Victory-Motor guarantees defect-free motors that perform optimally in your applications.

Customization & Delivery Solutions

1. OEM/ODM Services

Victory-Motor offers comprehensive OEM/ODM services tailored to your unique needs:

• Collaborate with our engineers from design to final production

• Customize power, speed, size, voltage, housing, or branding (produce under your logo)

• Transparent processes and strict IP protection (confidentiality agreements included)

Leveraging our R&D and production expertise, we deliver cost-effective, high-performance solutions that align with your business goals.

2. Export-Standard Packaging & Delivery

Victory-Motor uses ISPM 15-compliant export-standard wooden boxes (high-density, moisture-resistant plywood) with foam padding and plastic wrapping for internal protection. This packaging:

• Complies with global customs regulations

• Prevents damage from impact, humidity, or rough transit

• Can be customized for large/special-shaped orders

You can trust your motors will arrive on time and in perfect working condition, no matter your global destination.

3. Quality Assurance & Warranty

Every motor is built to ISO 9001 standards, ensuring consistent manufacturing quality and compliance with global industrial regulations. We back our products with an 18-month warranty: if a motor is damaged by non-human factors (e.g., manufacturing defects) within this period, we replace it free of charge.

Parameter Table

Types of 270 HP 3-Phase Motors

Induction Motors

Induction motors dominate industrial applications due to:

• Simple construction

• Low maintenance

• High reliability

• Competitive cost

Synchronous Motors

Synchronous motors operate at constant speed regardless of load fluctuations and are often used in precision applications.

Explosion-Proof Motors

These motors are specifically designed for hazardous environments containing flammable gases, vapors, or combustible dust.

Major Industrial Applications

Mining Operations

Mining facilities use 200 KW motors for:

• Crushers

• Conveyors

• Grinding mills

• Ventilation systems

Oil and Gas Facilities

Applications include:

• Pipeline pumps

• Compressor stations

• Refinery processing systems

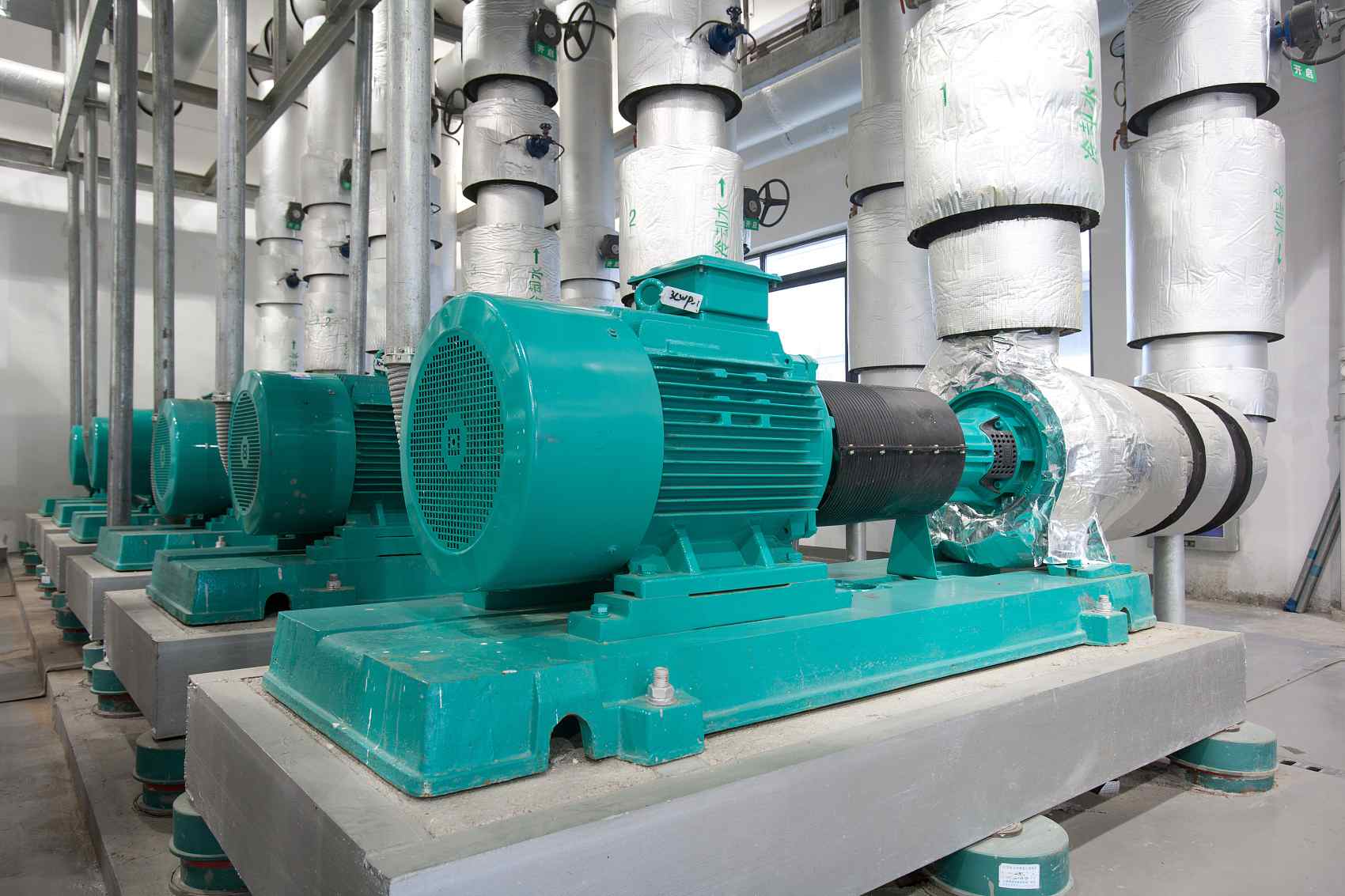

Large Pumping Systems

Water treatment plants and irrigation systems often depend on 200 KW motors to move large volumes of water efficiently.

Cement and Steel Manufacturing

Heavy industrial processing equipment requires the continuous power output that 270 HP motors provide.

Advantages of a 270 HP / 200 KW Motor

Exceptional Power Output

The motor provides substantial torque and mechanical energy for demanding applications.

Continuous Heavy-Duty Operation

Designed for 24/7 operation, these motors can perform under constant load conditions for extended periods.

Improved Energy Efficiency

Modern designs reduce electrical losses and improve overall system efficiency.

Energy Efficiency Standards

IE Efficiency Classes

Motor efficiency standards include:

• IE1 – Standard Efficiency

• IE2 – High Efficiency

• IE3 – Premium Efficiency

• IE4 – Super Premium Efficiency

Most modern industrial motors are manufactured to IE3 or IE4 standards.

Long-Term Cost Savings

Higher efficiency results in:

• Reduced electricity consumption

• Lower operating costs

• Reduced carbon emissions

• Extended equipment lifespan

Installation Requirements

Electrical Infrastructure

Proper installation requires:

• Adequate power supply

• Motor protection systems

• Soft starters or VFDs

• Reliable grounding

Mechanical Installation

Important factors include:

• Solid foundations

• Proper alignment

• Vibration control

• Shaft balancing

Cooling and Ventilation Systems

Large motors generate significant heat and often require:

• Forced-air cooling

• Heat exchangers

• Water-cooled systems

Maintenance Best Practices

Bearing Maintenance

Bearings should be inspected and lubricated regularly to prevent premature failure.

Insulation Testing

Routine insulation resistance testing helps identify electrical issues before major failures occur.

Predictive Maintenance Technologies

Modern monitoring systems use sensors to track:

• Temperature

• Vibration

• Bearing condition

• Power quality

This helps prevent unexpected downtime.

Common Problems and Solutions

Overheating

Possible causes include:

• Overloading

• Blocked ventilation

• Voltage imbalance

Starting Issues

Problems may result from:

• Faulty starters

• Power supply issues

• Damaged windings

Excessive Vibration

Often caused by:

• Misalignment

• Bearing wear

• Rotor imbalance

Selecting the Right 270 HP Motor

Load Requirements

Motor selection should match the actual operating load and starting torque requirements.

Environmental Conditions

Consider:

• Ambient temperature

• Dust levels

• Humidity

• Hazardous locations

Duty Cycle Considerations

Different applications require different duty ratings, including:

• Continuous duty (S1)

• Intermittent duty

• Variable load operation

Safety Guidelines

To ensure safe operation:

• Follow lockout/tagout procedures

• Use proper protective equipment

• Conduct regular inspections

• Verify grounding integrity

• Monitor operating temperatures

Safety should always be a top priority when operating high-power motors.

Future Trends in Industrial Motor Technology

The future of industrial motors includes:

• Smart motors with integrated sensors

• AI-driven predictive maintenance

• Increased IE4 and IE5 adoption

• Enhanced VFD integration

• Improved energy management systems

These innovations help industries reduce downtime and operating costs.

Conclusion

The 270 HP / 200 KW 3-phase motor represents a powerful and efficient solution for demanding industrial operations. Its ability to deliver continuous power, high torque, and long-term reliability makes it indispensable in sectors such as mining, manufacturing, oil and gas, and water treatment.

With proper installation, maintenance, and monitoring, a 200 KW motor can provide decades of dependable service while maximizing productivity and minimizing operating costs.

Frequently Asked Questions

1. What voltage is commonly used for a 200 KW motor?

Most low-voltage versions operate at 380V to 575V, while larger installations may use medium voltages such as 3.3 KV or 6.6 KV.

2. How much current does a 270 HP motor draw?

At 460V, a 200 KW motor typically draws between 260 and 300 amps.

3. What industries commonly use 200 KW motors?

Mining, oil and gas, cement production, steel manufacturing, water treatment, and heavy industrial processing.

4. Can a 200 KW motor operate continuously?

Yes. Most industrial 200 KW motors are designed for continuous-duty (S1) operation.

5. What efficiency class is recommended for a 200 KW motor?

IE3 Premium Efficiency or IE4 Super Premium Efficiency motors are generally recommended for optimal energy savings.

Installation Methods of 3-Phase Motor

Here’s a structured overview of the 18 3-phase motor mounting types:

1. IM V1 (IM 3011)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (no base feet)

• · Frame size: 63–355

• · Power range: ~0.12 kW to 1,000+ kW

• · Applications: Pumps, mixers, vertical compressors (equipment requiring vertical shaft alignment)

2. IM V3 (IM 3031)

• · Orientation: Vertical (shaft upward)

• · Mounting: Flange (no base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Vertical fans, hoists, small vertical pumps

3. IM V5 (IM 1011)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (with base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Industrial mixers, vertical conveyors, compact vertical processing equipment

4. IM V6 (IM 1031)

• · Orientation: Vertical (shaft upward)

• · Mounting: Flange (with base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Small vertical compressors, lift mechanisms, vertical material handlers

5. IM B14 (IM 3601)

• · Orientation: Horizontal

• · Mounting: Small flange (end-mounted, no base feet)

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Pumps, fans, food processing machines, agricultural equipment

6. IM V15 (IM 2011)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (special base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Heavy-duty vertical pumps, marine equipment, offshore machinery

7. IM V17 (IM 2111)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (side-mounted base feet)

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Compact mixers, vertical conveyors, laboratory processing equipment

8. IM V18 (IM 3611)

• · Orientation: Vertical (shaft upward)

• · Mounting: Flange (side-mounted base feet)

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Small hoists, vertical fans, material lifting systems

9. IM V19 (IM 3631)

• · Orientation: Vertical (shaft upward)

• · Mounting: Flange (special base feet)

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Offshore pumps, compact vertical compressors, marine equipment

10. IM B34 (IM 2101)

• · Orientation: Horizontal

• · Mounting: Base feet + side flange

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Conveyors, industrial mixers, machinery requiring dual mounting options

11. IM V35 (IM 2031)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (extended base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Large vertical pumps, mining equipment, heavy-duty mixers

12. IM V37 (IM 2131)

• · Orientation: Vertical (shaft downward)

• · Mounting: Flange (offset base feet)

• · Frame size: 63–132

• · Power range: ~0.12 kW to 75 kW

• · Applications: Compact vertical machinery, medical equipment, precision processing tools

13. IM B3 (IM 1001)

• · Orientation: Horizontal

• · Mounting: Base feet (no flange)

• · Frame size: 63–355

• · Power range: ~0.12 kW to 1,000+ kW

• · Applications: Blowers, compressors, cutting machines, industrial pumps (general heavy machinery)

14. IM B5 (IM 3001)

• · Orientation: Horizontal

• · Mounting: Flange (no base feet)

• · Frame size: 63–280

• · Power range: ~0.12 kW to 500 kW

• · Applications: Pumps, fans, automation equipment, conveyor systems

15. IM B6 (IM 1051)

• · Orientation: Horizontal

• · Mounting: Small flange (end-mounted, with base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Small pumps, laboratory machinery, light industrial equipment

16. IM B7 (IM 1061)

• · Orientation: Horizontal

• · Mounting: Special flange (end-mounted, with base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Precision machinery, textile equipment, small processing tools

17. IM B8 (IM 1071)

• · Orientation: Horizontal

• · Mounting: Extended flange (end-mounted, with base feet)

• · Frame size: 63–160

• · Power range: ~0.12 kW to 110 kW

• · Applications: Food processing machines, packaging equipment, small industrial pumps

18. IM B35 (IM 2001)

• · Orientation: Horizontal

• · Mounting: Base feet + flange

• · Frame size: 63–355

• · Power range: ~0.12 kW to 1,000+ kW

• · Applications: Multi-purpose machinery, compressors, large pumps (flexible installation needs)

Induction Motor & Gear Reducer for Sale – Leading Manufacturer and Supplier

• · Leading AC Electric Motor and Reducer Manufacturer Since 2007

• · Offer one step OEM&ODM service

• · Offer warranty period of 18-month, compared with common 12-month in motor industry

• · More than 15,000 square meters of factory area with more than 50 employees

• · 11 production lines and annual output of 300,000 sets of motors

• · 100% quantity inspection before delivery

• · More than 20 patent certificates and CE, CCC, ISO9001 certificate

• · Trade with customers in more than 80+ countries and 100+ successful cases

Video of Victory-Motor ---- Induction Motor & Gear Reducer Manufacturer

Trust Victory Machinery Technology Co., Ltd. for Your Motor Solutions

Victory Machinery Technology Co., Ltd. offers a wide selection of top-tier AC induction motors and related products designed to provide optimal efficiency, reliability, and performance across various industries. Whether you’re looking for high-efficiency motors, explosion-proof solutions, or customized products, the company stands as a trusted manufacturer capable of meeting the unique needs of the global market. With its commitment to quality, innovation, and customer satisfaction, Victory Machinery Technology Co., Ltd. is your ideal partner for all your motor solutions.

Sufficient raw material inventory

At Victory Machinery Technology Co., Ltd., we maintain a robust and sufficient raw material inventory to ensure uninterrupted production and timely delivery of your AC induction motor orders. We source only high-grade raw materials—including premium copper windings, high-strength steel laminations, and durable aluminum housings—from certified global suppliers, adhering to strict quality standards. This abundant inventory not only eliminates production delays caused by material shortages but also enables us to quickly respond to urgent customer requests and sudden order increases. Whether you need standard motor models or customized solutions, our well-stocked raw material warehouse lays a solid foundation for efficient production, ensuring that your projects stay on schedule.

Professional production equipment and assembly lines

Victory Machinery Technology Co., Ltd. boasts state-of-the-art professional production equipment and fully automated assembly lines, which are the core of our high-quality motor manufacturing. Our production workshop is equipped with advanced CNC machining centers, precision stamping machines, automatic winding machines, and intelligent testing equipment, ensuring every component of the AC induction motor is manufactured with exceptional precision. The automated assembly lines streamline the production process, reducing human error while significantly improving production efficiency. We continuously invest in upgrading our equipment and optimizing production workflows to keep pace with the latest technological advancements in the motor industry. With our professional production capabilities, we can consistently deliver motors that meet or exceed international quality standards, providing you with reliable performance and long service life.

100% quality inspection

Quality is our cornerstone. We implement 100% rigorous quality inspection throughout production—from raw material verification to final product testing. Using advanced equipment (dynamometers, insulation testers, vibration analyzers), our QC team assesses key performance indicators. Adhering to ISO 9001, we guarantee defect-free motors that perform optimally in your applications.

Offer OEM/ODM service

We offer comprehensive OEM/ODM services tailored to your unique needs. Our experienced engineers collaborate with you from design to understand application requirements and branding needs—customizing power, speed, size, voltage or housing, or producing under your brand. Leveraging strong R&D and production experience, we deliver cost-effective, high-performance solutions with transparent processes and IP protection.

Export standard wooden box: Strong packing to ensure good condition on arrival

We use ISPM 15-compliant export-standard wooden boxes for packaging, with foam padding and plastic wrapping for internal protection. This high-density, moisture-resistant packaging complies with global customs regulations and prevents damage during transit. Custom packaging for large/special orders ensures safe delivery. You can trust your motors will arrive on time and in perfect condition worldwide.

Q1: What Information Should I Provide When Choosing a Motor, Gearbox, or Speed Reducer?

A1: The most effective way to select the right motor or gearbox is by providing a motor drawing with relevant parameters. Our engineers will review this information and recommend the most suitable model for your application. Alternatively, you can provide the following specifications:

1. 1. Type, model, power, and torque.

2. 2. Desired ratio or output speed.

3. 3. Working conditions and connection method.

4. 4. Quantity and machine name for installation.

5. 5. Input mode and input speed.

6. 6. Motor brand/model or flange and motor shaft size.

Q2: Are You a Manufacturer?

A2: Yes, we are a professional manufacturer of motors and reducers with 20 years of experience, located in Changzhou, Jiangsu, China.

Q3: What is Your Delivery Time?

A3: Our delivery time is approximately 10 days for sample orders and 15 days for bulk container orders.

Q4: Can I Get a Sample First?

A4: Absolutely! We would be happy to provide a sample for testing before you place a formal order.

Q5: What is Your Minimum Order Quantity (MOQ)?

A5: The MOQ is 1 piece per model for factory-branded products and packaging. For OEM branding and packaging, the MOQ is 50 pieces per model.

Q6: Do You Provide OEM/ODM Services?

A6: Yes, we are a premium OEM/ODM manufacturer, certified by independent third-party assessments.

Q7: How Does Your Factory Ensure Quality Control?

A7: Quality is our top priority. We follow a strict quality control system throughout the production process. Our QC team monitors quality at every stage and performs tests before each shipment to ensure high standards.

Q8: What Are Your Warranty Terms?

A8: We offer 18 months warranty, starting from the shipping date, as specified in the Bill of Lading (B/L).

Q9: How Do You Maintain Long-Term and Strong Business Relationships?

A9: We value our customers and ensure long-term relationships by:

1. · Providing high-quality products at competitive prices to benefit our customers.

2. · Treating each customer as a friend and conducting business with sincerity, regardless of their location.
