As a leading manufacturer for 20 years. Our exquisite craftsmanship can meet all your requirements!
Products

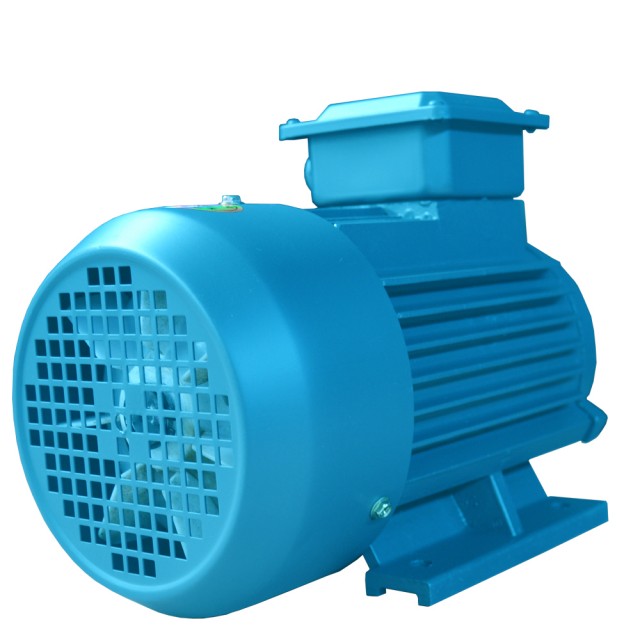

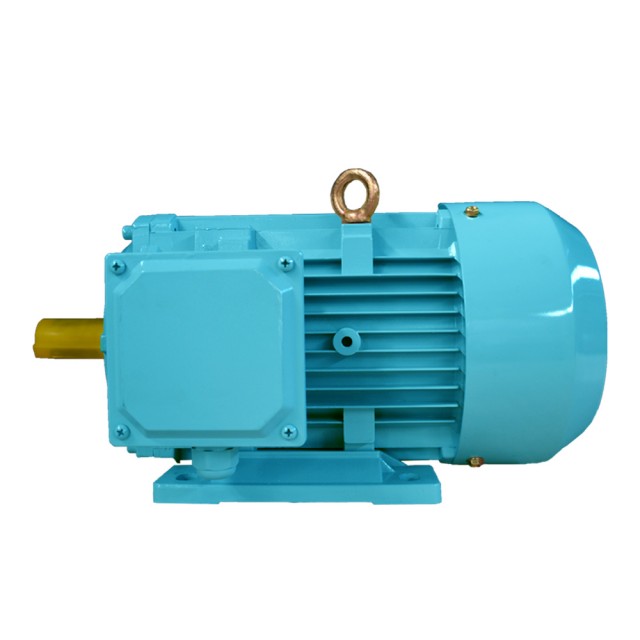

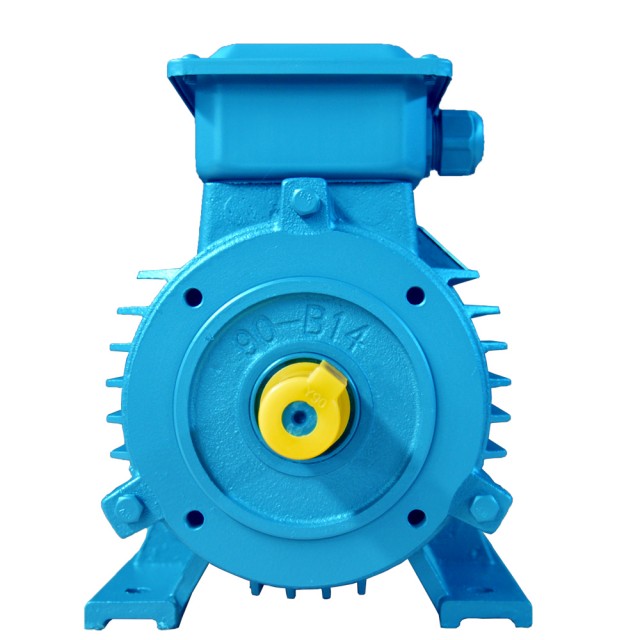

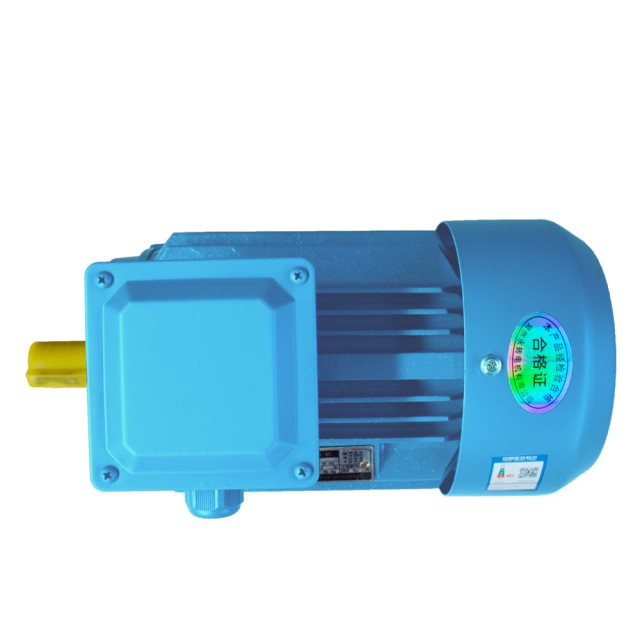

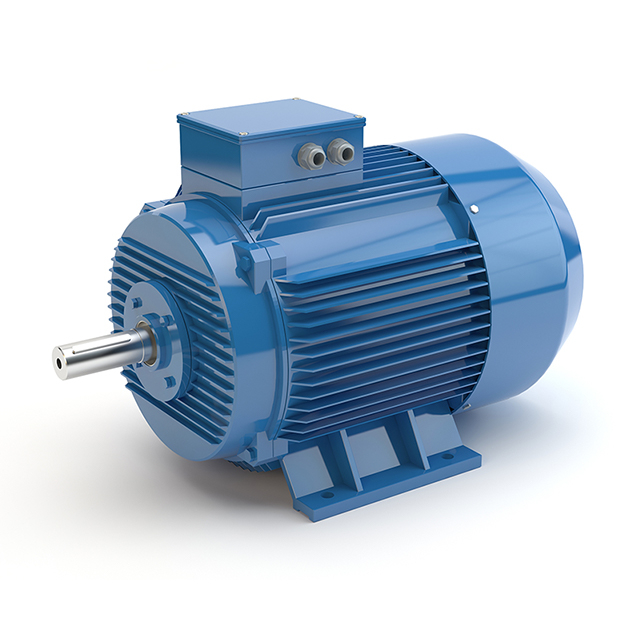

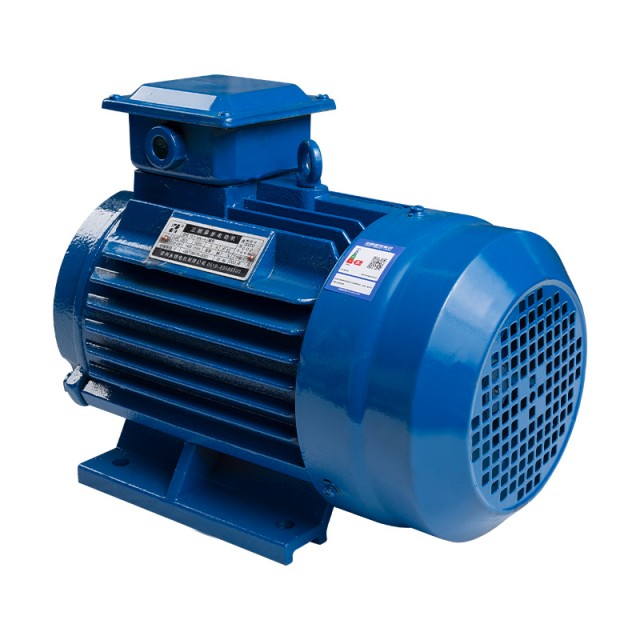

3 Phase AC Induction Motor

A 3 phase AC induction motor is an electrical machine that converts electrical energy into mechanical energy. It operates on the principle of electromagnetic induction, making it highly efficient for industrial and commercial applications.
  • 1

  • 1 year

  • Three Phase Asynchronous Motor

  • Yongzhuan

  • 865rpm 890rpm 950rpm 960rpm 970rpm 975rpm 985rpm

  • 220/380V 230/440V 380/660V 400/690V

  • 3kw/4hp 4kw/5.5hp 5.5kw/7.5hp 7.5kw/10hp

  • 50HZ 60HZ

  • 2P 4P 6P 8P 10P 12P

  • IE3

  • Cast Iron Housing/Aluminium Housing

  • Pumps, Compressors, Mixers, Conveyors, Elevators, Cranes & Hoists...

  • Acceptable

  • Strong Wooden Case or Customized

  • CE CCC

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

What is a 3 Phase AC Induction Motor?

The 3 phase AC induction motor is a vital component in modern electrical and mechanical systems. Its robust design, reliability, and efficiency make it indispensable in industrial, commercial, and even household applications.


what is a 3 phase ac induction motor


Introduction

3 phase ac induction motor is an electrical machine using alternating current (AC), propelled by a magnetic field that rotates, converting electrical energy into mechanical energy. It operates on the principle of electromagnetic induction.


Video of 3 Phase AC Induction Motor


Main Components of a 3 Phase AC Induction Motor


3 phase ac induction motor component


1. Stator

The stator is the stationary part of the motor. It consists of laminated steel cores and windings connected to the 3-phase power supply.

2. Rotor

The rotor is the rotating part inside the stator. It is commonly made of aluminum or copper bars and is responsible for mechanical motion.

3. Housing and Bearings

These components provide structural support and allow smooth rotation of the rotor. Bearings ensure minimal friction during operation.

4. Shaft

The shaft is a cylindrical component connected to the rotor. It transmits mechanical power generated by the motor to the external load.

5. Cooling system

The cooling system prevents the motor from overheating during operation. Mainly are fans and fins.

6. End Shields (End Bells)

The end shields are located at both ends of the motor, supporting the bearings and enclosing the rotor.

7. Terminal Box

The terminal box houses the electrical connections for the stator windings.


Application of 3 phase AC Induction Motor


3 phase ac induction motor pump


1. Industrial Applications: Pumps and Compressors, Conveyor Systems, Cranes and Hoists, Machine Tools


2. HVAC Systems: Blowers and Fans, Refrigeration Units


3. Agricultural Applications: Irrigation Pumps, Threshers and Grinders, Milling Machines


4. Transportation and Infrastructure: Electric Trains and Trams, Escalators and Elevators


5. Renewable Energy Systems: Wind Turbines, Solar Water Pumps


6. Household and Small Commercial Applications: Washing Machines, Air Compressors, Kitchen Appliances


7. Mining and Construction: Drilling Machines, Excavators and Crushers


8. Marine Applications: Winches and Anchors, Propulsion Systems


High Quality 3 Phase AC Induction Motor For Sale

If you're looking for a reliable and efficient 3 phase ac induction motor for your business, look no further than our top-of-the-line electric motor. Our 3 phase ac induction motor for sale is designed to comply with standards of quality and efficiency, we're confident that it will meet all of your needs and exceed your expectations. Depending on the types of efficiency, we can produce various 3 phase ac induction motor:


3 Phase AC Induction Motor for sale


IE2 High Efficiency 3 Phase AC Induction Motor:

Yongzhuan IE2 motors fall under the “High-Efficiency” category as per the IEC 60034-30-1 standard. These motors are designed to operate efficiently under demanding conditions while consuming less energy, which having an efficiency level of around 96%. The IE2 3 phase AC induction motor is a popular choice for industries and applications requiring reliable performance with improved energy efficiency.


IE2 3 Phase ac induction motor


IE3 Premium Efficiency 3 Phase AC Induction Motor:

Yongzhuan IE3 motors belong to the “Premium Efficiency” class as defined by IEC 60034-30-1 standards. These motors are designed to deliver superior efficiency, consuming less energy and offering better performance compared to IE1 and IE2 motors. It has an efficiency level of around 97%. They are now a global benchmark in energy-efficient motor technology.


IE3 3 phase ac induction motor


IE4 Super Premium Efficiency 3 Phase AC Induction Motor:

Yongzhuan IE4 motors belong to the “Super Premium Efficiency” class as defined by IEC 60034-30-1 standards. They offer unparalleled efficiency, significantly reducing energy losses and operating costs compared to IE1, IE2, and IE3 motors. IE4 motors are engineered with cutting-edge materials and design features, making them the most efficient option currently available. Designed to meet and exceed the highest efficiency standards, IE4 motors are ideal for industries that prioritize sustainability, operational cost reduction, and advanced performance.


ie4 3 phase ac induction motor


How to Choose Between IE2, IE3, and IE4 3 Phase AC Induction Motor

When selecting a 3 phase AC induction motor, deciding between IE2, IE3, and IE4 efficiency classes is crucial. Each class offers varying levels of energy efficiency, cost, and performance, making them suitable for different applications.


Comparison Table: IE2 vs. IE3 vs. IE4 Motors

Feature IE2 (High Efficiency) IE3 (Premium Efficiency) IE4 (Super Premium Efficiency)
Energy Efficiency Moderate High Very High
Initial Cost Low Moderate High
Operating Cost High Moderate Low
Applications Light to moderate load Industrial and commercial Energy-intensive and continuous use
Regulatory Compliance Limited Mandatory in many regions Exceeds current standards
Environmental Impact Moderate Low Minimal
Longevity Standard Improved Maximum


How to Decide

1. Assess Your Energy Needs: Determine the energy intensity of your operations.

2. Consider Long-Term Savings: While IE3 and IE4 motors have higher upfront costs, their long-term savings often justify the investment.

3. Check Local Regulations: In many regions, IE3 is now the minimum legal requirement.

4. Factor in Environmental Goals: IE4 motors are the best choice for reducing carbon emissions.

5. Analyze Your Budget: IE2 motors are cost-effective upfront but more expensive to run over time, whereas IE3 and IE4 motors provide better long-term value.


how to decide ie2 ie3 ie4 motor


The Product Parameters of 3 Phase AC Induction Motor

3 phase ac induction motor Product Parameters .pdf


The Product Instructions of 3 Phase AC Induction Motor

3 Phase AC Induction Motor Instruction Manual.pdf


The Catalog of Yongzhuan Motor

Product Catalogue-Yongzhuan Motor.pdf


The Production Process of 3 Phase AC Induction Motor

The production of Yongzhuan 3 phase AC induction motor involves a highly systematic process to ensure efficiency, durability, and optimal performance. Below is our key steps in the manufacturing of 3-phase AC induction motors.


1. Design and Engineering

The production process begins with designing the motor to meet specific performance requirements.

This involves:

Defining Specifications: Power rating, torque, efficiency, voltage, and speed.

Material Selection: Identifying suitable materials for the stator, rotor, and casing to ensure durability and efficiency.

Computer-Aided Design (CAD): Creating detailed 3D models and simulations to verify design performance.


ac motor Design and Engineering


2. Core Manufacturing

The stator and rotor cores are essential components, as they form the electromagnetic framework of the motor.

Stator Core Manufacturing:Thin sheets of electrical steel are punched or cut into precise shapes. The sheets are laminated and stacked to minimize energy losses due to eddy currents. These laminations are then pressed and assembled into the stator frame.

Rotor Core Manufacturing:Similarly, rotor laminations are created and stacked. For squirrel cage rotors, aluminum or copper bars are inserted into the rotor slots, and the ends are welded or die-cast to form a solid, conductive cage.


induction motor Core Manufacturing


3. Winding the Stator

The stator windings are critical for creating the rotating magnetic field.

Copper or Aluminum Wire Coiling: High-precision machines are used to wind the wires into coils.

Insulation Application: Coils are insulated to prevent electrical faults.

Insertion into Stator Core: The windings are carefully placed into the slots of the stator core.

Interconnection: The coils are connected to form the three-phase winding system.


Winding the Stator of 3 phase motor


4. Assembly of Rotor and Stator

The rotor and stator are assembled into the motor housing. This step involves:

Precise Fitting: Ensuring minimal air gap between the rotor and stator to maximize efficiency.

Bearing Installation: Bearings are added to support smooth rotor rotation.

Shaft Alignment: The rotor shaft is aligned and fixed in place.


Assembly of Rotor and Stator of 3 phase ac induction motor


5. Motor Housing and Cooling System

The external housing and cooling components protect the motor and ensure heat dissipation.

Casing Manufacturing: Cast iron, steel, or aluminum casings are produced through casting or machining.

Cooling Fins or Fans: Attached to the housing to improve heat dissipation during operation.

Sealing: Ensures protection against dust, moisture, and external contaminants.


Motor Housing and Cooling System of 3 phase ac induction motor


6. Testing and Quality Control

Rigorous testing is conducted at multiple stages to ensure the motor meets performance standards.

Electrical Testing: Checking insulation resistance, winding integrity, and overall electrical performance.

Mechanical Testing: Verifying rotor balance, shaft alignment, and bearing performance.

Thermal Testing: Monitoring heat generation and dissipation during operation.

Performance Testing: Evaluating efficiency, torque, speed, and noise levels under load conditions.


Testing and Quality Control of 3 phase ac induction motor


7. Surface Finishing

Once the motor passes all tests, it undergoes surface finishing to enhance durability and appearance.

Painting or Coating: Protects the motor from corrosion and environmental damage.

Labeling: Includes the motor's specifications, efficiency class (e.g., IE2, IE3, IE4), and compliance certifications.


Surface Finishing of 3 phase ac induction motor


8. Final Assembly and Packaging

The motor is fully assembled with all its components, including terminal boxes and accessories.

Final Inspection: A thorough check is performed to ensure the motor is defect-free.

Packaging: The motor is securely packed to prevent damage during transportation.


Final Assembly and Packaging of 3 phase ac induction motor


Plenty Stock of 3 Phase AC Induction Motor: Ready for Immediate Delivery

Looking for reliable, energy-efficient 3 phase AC induction motors? With plenty of stock available, we ensure a hassle-free supply for all your industrial, commercial, and residential applications. These motors are essential for powering a wide range of equipment and are known for their durability, efficiency, and excellent performance under various load conditions.


Plenty Stock of 3 Phase AC Induction Motor


Why Choose Yongzhuan 3 Phase AC Induction Motor?

1. Fast Shipping and Delivery

With extensive inventory, we guarantee quick dispatch and delivery to meet your project timelines.

2. Expert Guidance

Our team of professionals is ready to assist you in choosing the right motor for your specific needs.

3. Customization Options

Need a custom configuration? We offer tailored solutions to suit unique application requirements.

4. Warranty and Support

All our motors come with comprehensive warranties and dedicated after-sales support.


Comparison: Why Yongzhuan Stands Out

Feature Yongzhuan Motors Competitor Brands
Energy Efficiency IE2, IE3, IE4 options available Limited availability of IE4 motors.
Durability High-grade materials and robust design Standard durability.
Pricing Competitive with high value Often higher for comparable models.
Customization Flexible configurations available Limited customization options.
Support and Warranty Comprehensive and reliable Basic customer support.


Order Your High Quality 3 Phase AC Induction Motor Today!

Don’t miss the chance to upgrade your systems with high quality 3 phase AC induction motors. Whether you need a motor for an industrial setup, an HVAC system, or a renewable energy project, we’ve got you covered.

Contact us today to explore our inventory and get a personalized quote. Optimize your operations with reliable and energy-efficient motors designed for the demands of the modern world!


Company Profile

3 Phase AC Induction Motor For Sales Manufacturer

Changzhou Yongzhuan Motor Co., LTD is a comprehensive motor design and manufacturing enterprise with 25-years experience. It is located in Changzhou, Jiangsu, China. Our factory cover an area of 10,000 square meters, registered capital of  80 million yuan, and annual production of 3000,000 motors.


We have strong technical and design force, two production line have implemented the use of intelligent robot and automatic production, intelligent motor performance testing equipment has more than 10 sets.


Our main products are YE3(IE3), YE4(IE4) high-efficiency three-phase induction motor, YBX3 explosion-proof three-phase induction motor, gear motor, gear reducer, gearbox, and other special customize motors. The products have passed 3C, CE, authoritative third party quality testing and other certifications. Our products are mainly exported to the United States, Germany, Japan, Italy and other dozens of countries and regions.


We always adhere to the purpose of "careful design, high quality and high efficiency, abide by the credibility, the customer first", to "serve the society, brave innovation, pioneering forward" as the enterprise principle, wholeheartedly serve the customer.


Video of Yongzhuan Motor ---- 3 Phase AC Induction Motor Manufacturer


History of Yongzhuan Motor ---- The global market development for 3 Phase AC Induction motor

1990-2005: Experience accumulation -- The founder served as the chief engineer of state-owned electric machinery Factory for 15 years.


2005-2007: The company was founded - more than ten years of industry cultivation, several people hit it off and decided to start their own business.


2007-2009: At the beginning of establishment - family-style workshops, capital turnover difficulties, no customers, partners have withdrawn.


2009-2019: Vigorous development - With the rapid development of the national economy, with high-quality products and integrity and win-win business model, the order volume ushered in explosive growth, jumped to become Jiangsu leading motor manufacturer.


2019-2024: Challenges and opportunities - The market demand tends to be saturated and the industry competition is fierce. Actively research and develop new products, ensure product quality as the bottom line, improve the added value of products, and develop high-end markets and overseas markets.


FAQ

Q1: What should I provide when I choose Motor/gearbox/speed reducer?

A1: The best way is to provide the motor drawing with parameter.Our engineer will check and recommend the most suitable model for your reference. Or you can also provide below specification as well:

1. Type, model, Power and torque.

2. Ratio or output speed

3. Working condition and connection method

4. Quantity and installed machine name

5. Input mode and input speed

6. Motor brand model or flange and motor shaft size

Q2: Are you a manufacturer?

A2: Yes. We are a professional motor and reducer manufacturer for 20 years located in Changzhou,Jiangsu, China.

Q3: What is your delivery time?

A3: 10 days for sample order, 15 days for container order.

Q4: Can I get a sample first?

A4: Sure, we are honored to offer you sample for test before placing a formal order.

Q5: What is your MOQ ?

A5: 1 pc per model for factory brand and package, 50 pcs per model for OEM brand and package.

Q6: Do you provide OEM/ODM service?

A6: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties.

Q7: How does your factory do regarding quality control?

A7: Quality is priority. All production process strict to follow Quality system, QC team check the quality during the production, and do the test before each shipment.

Q8: What's your warranty terms?

A8: Warranty: 1 year after the shipping date against B/L.

Q9: How do you make our business long-term and good relationship?

A9: 1.We keep good quality and competitive price to ensure our customers benefit ; 2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
