As a leading manufacturer for 20 years. Our exquisite craftsmanship can meet all your requirements!
Foot Mount, Flange Mount, Case Mount
1
1 year
Three Phase Asynchronous Motor
Yongzhuan
1330rpm 1350rpm 1400rpm 1420rpm 1445rpm1485rpm 1490rpm...
220/380V 230/440V 380/660V 400/690V
22kw/30hp 30kw/40hp 37kw/50hp 45kw/60hp 55kw/75hp...
50HZ 60HZ
2P 4P 6P 8P 10P 12P
IE4 IE3 IE2
Cast Iron Housing/Aluminium Housing
Pumps, Compressors, Mixers, Conveyors, Elevators, Cranes & Hoists...
Acceptable
Strong Wooden Case or Customized
CE CCC
Product Description
In industries where explosive gases or dust are present, maintaining the highest safety standards is critical. Variable Frequency Explosion-Proof Motors (VFEPM) provide the perfect solution for these hazardous environments. These motors combine the benefits of variable frequency drives (VFDs) with the inherent safety features of explosion-proof technology, making them ideal for use in applications where controlling motor speed and ensuring safety are equally important.

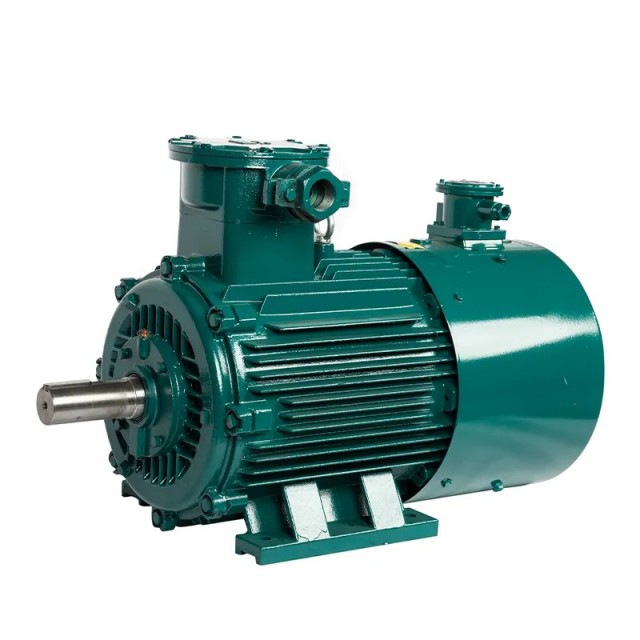

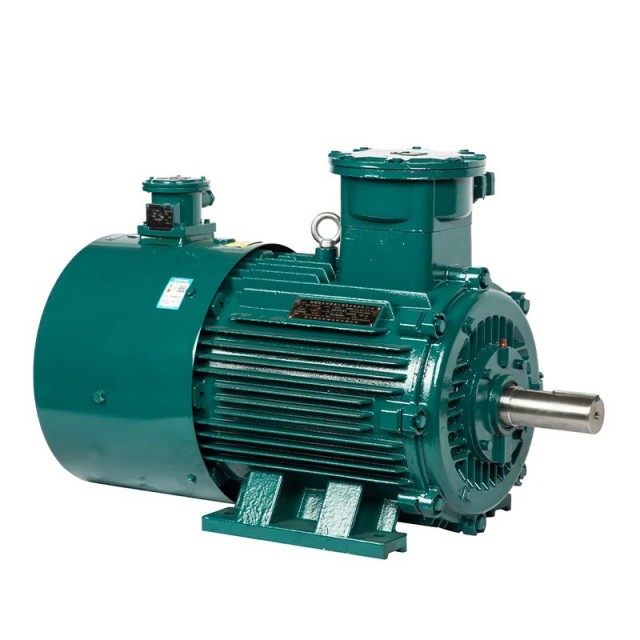

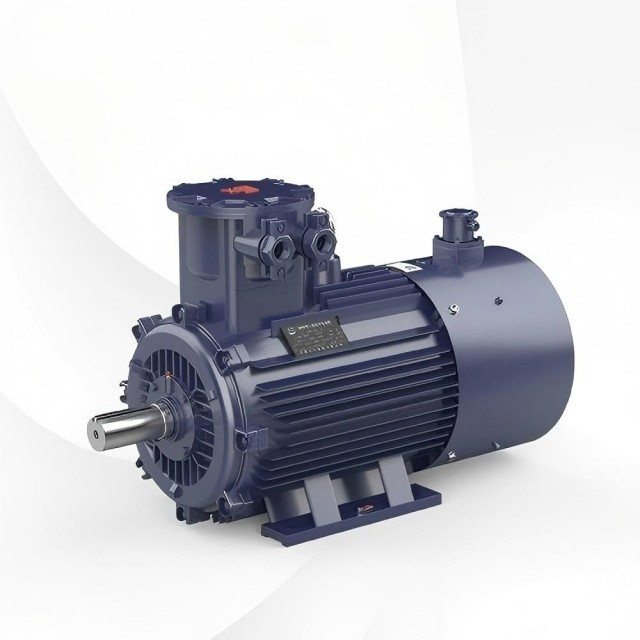

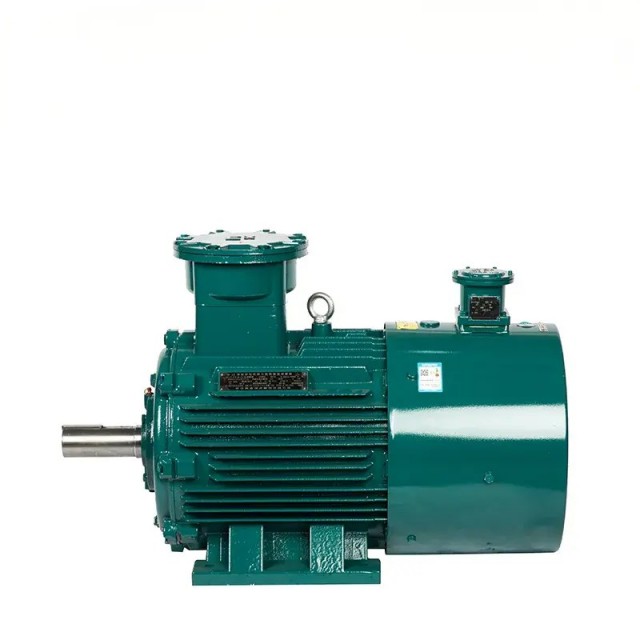

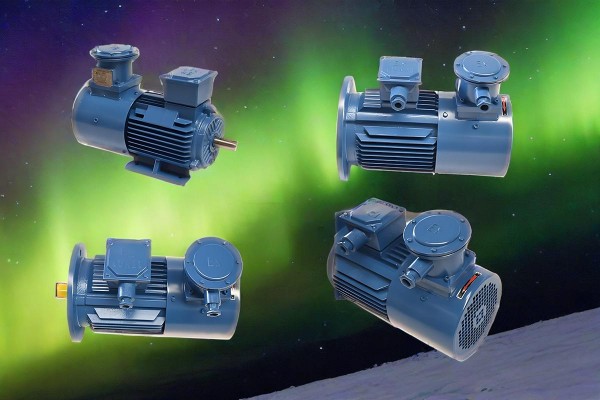

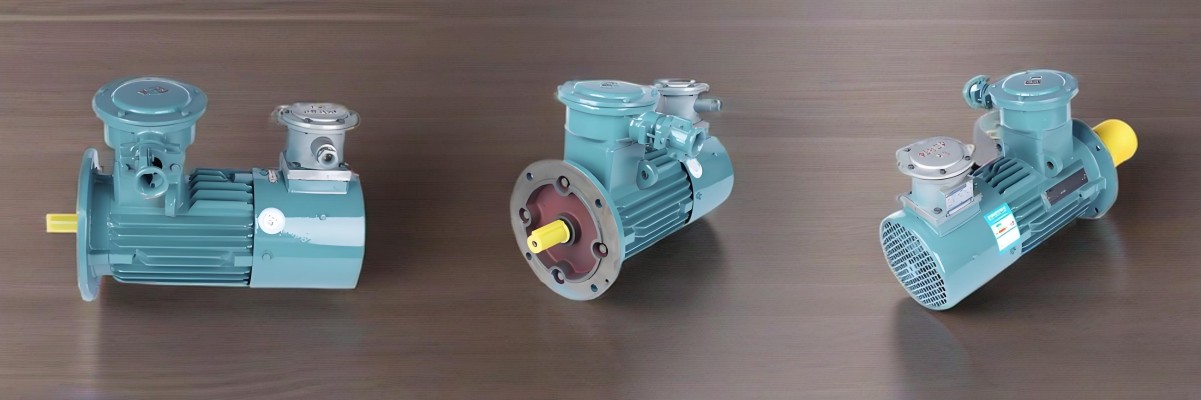

A Variable Frequency Explosion-Proof Motor (VFEPM) is an electric motor specifically designed for environments that are prone to explosive atmospheres due to the presence of flammable gases, vapors, or dust. These motors combine the features of explosion-proof motors with a variable frequency drive (VFD) to offer precise control over motor speed and torque while ensuring the motor’s safe operation in hazardous areas.
Explosion-proof motors are engineered to contain any sparks, arcs, or heat generated inside the motor, preventing them from igniting the surrounding explosive materials. A VFD controls the motor’s speed and adjusts its performance to match the needs of the application, providing higher efficiency, reduced energy consumption, and improved process control.

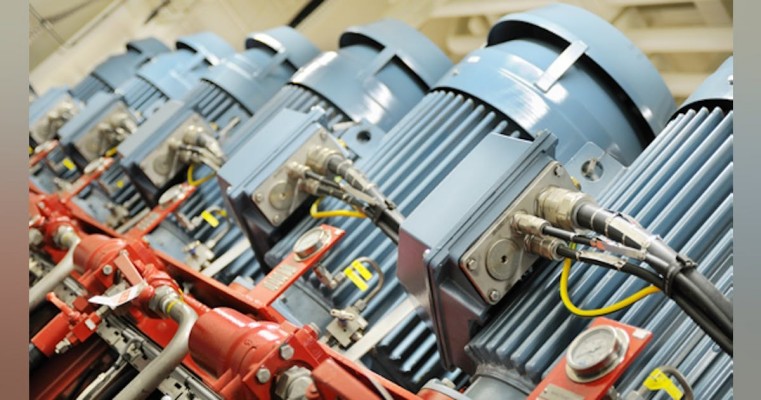

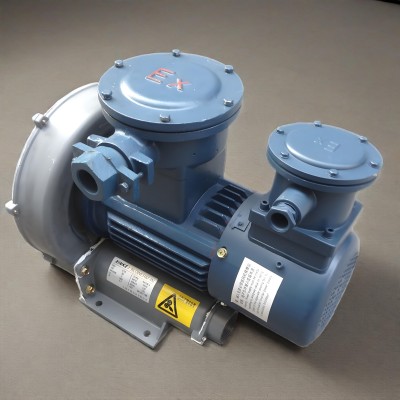

The most important feature of these motors is their explosion-proof design. The motor housing is constructed using reinforced materials to prevent any internal sparks, heat, or electrical faults from escaping into the surrounding environment. This design ensures that the motor operates safely in hazardous areas where flammable gases, vapors, or combustible dust may be present.
The VFD feature allows the motor to adjust its speed and torque according to the specific needs of the application. By varying the frequency of the input power, the motor can provide precise control over the equipment it powers, improving efficiency, process control, and energy savings. This is particularly useful in industries like pumping, ventilation, and compressing, where motor speed often needs to be adjusted based on changing operational conditions.
Variable Frequency Explosion-Proof Motors are built to meet international safety standards like ATEX, IECEx, and UL, which ensure that these motors can be safely used in explosive environments. These standards guarantee that the motor’s design and construction are robust enough to contain any internal explosion or electrical fault, minimizing the risk of an incident in hazardous locations.
The integration of a VFD with an explosion-proof motor ensures that the motor operates at optimal efficiency, adjusting speed based on the load requirements. This flexibility leads to significant energy savings and reduced operational costs, as the motor doesn’t run at full speed when it’s not necessary.
These motors are designed for long-lasting performance in the toughest environments. They are built with corrosion-resistant materials and are capable of withstanding extreme temperatures, high humidity, and mechanical stress, making them highly reliable in demanding industrial settings.

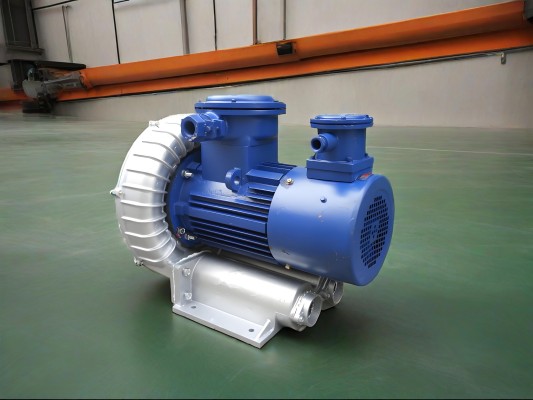

The most significant advantage of these motors is their ability to safely operate in explosive environments. By combining explosion-proof construction with a variable frequency drive, they prevent ignition risks and reduce the potential for catastrophic accidents, ensuring the safety of workers and equipment.
The ability to adjust the motor’s speed according to the needs of the process provides precise control over equipment performance. Whether it’s a pump, fan, or conveyor, the motor can be tuned to operate at the optimal speed, improving efficiency and reducing wear on the motor.
By using a variable frequency drive, these motors allow businesses to optimize their energy use. The motor only draws the necessary amount of power based on the load, leading to energy savings and reduced utility costs.
The integration of a VFD helps to reduce mechanical stress on the motor by gradually ramping up speed and avoiding abrupt starts and stops. This leads to less wear and tear on the motor, extending its lifespan and reducing the frequency of replacements and repairs.
Variable frequency explosion-proof motors are built to require less maintenance than traditional motors. The combination of variable speed control and explosion-proof safety ensures that the motor operates more smoothly, reducing the likelihood of breakdowns and the need for frequent repairs.

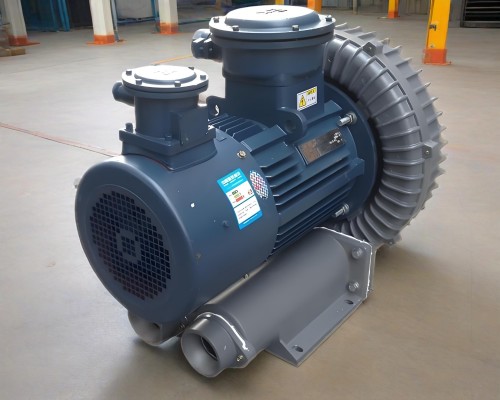

In the oil and gas industry, where explosive gases and vapors are prevalent, variable frequency explosion-proof motors are used to power critical equipment such as pumps, compressors, and ventilation systems. The VFD allows operators to adjust the motor speed to optimize production and reduce energy usage.
In chemical plants, where hazardous chemicals and gases are commonly present, these motors are used to drive equipment like mixers, reactors, and conveyors. The combination of explosion-proof construction and VFD technology ensures both safety and process optimization.
Mining operations often face explosive dust or gases in the atmosphere. Variable frequency explosion-proof motors are used in applications such as ventilation fans, pumps, and conveyors, ensuring both safety and efficiency in these hazardous environments.
In pharmaceutical manufacturing, where combustible powders and chemicals are common, VFE motors are used in equipment like tablet presses, dryers, and milling machines. The ability to control motor speed enhances the precision of the manufacturing process.
Food processing plants often deal with dust or flammable ingredients like flour, sugar, and spices. These motors are ideal for powering machinery like mixers, conveyors, and dryers, reducing the risk of fire or explosion while ensuring efficient operation.

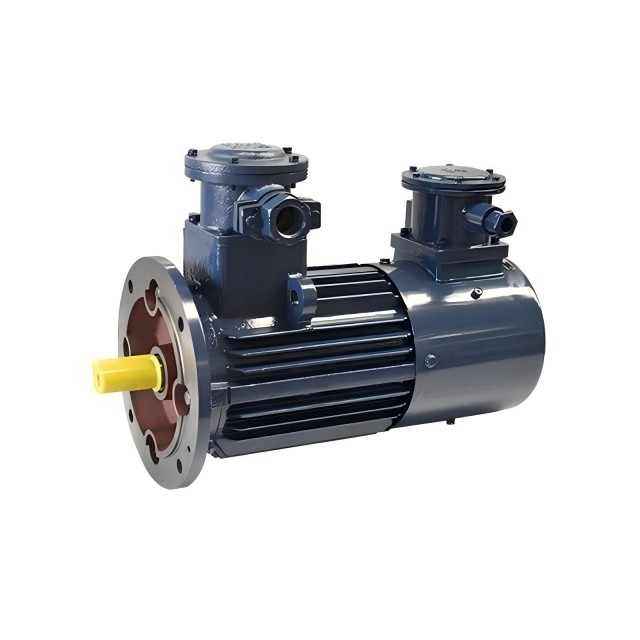

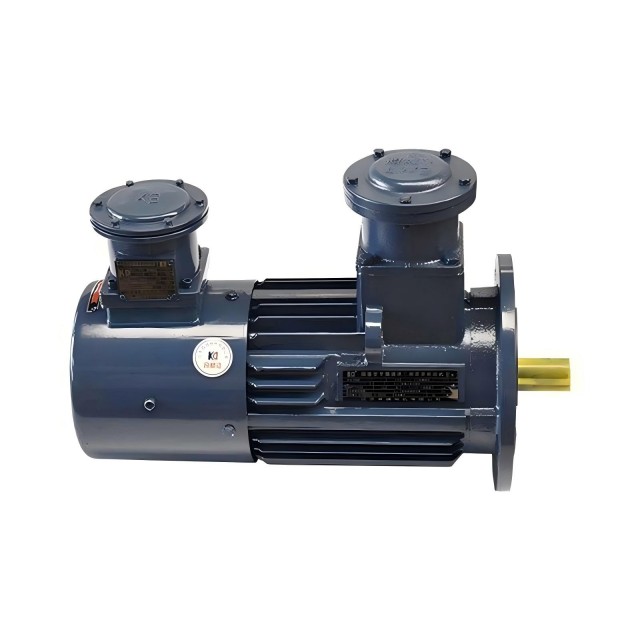

A Variable Frequency Explosion-Proof Motor (VFD Explosion-Proof Motor) is specifically designed for use in hazardous environments, where explosive gases or combustible dusts are present. These motors are equipped with Variable Frequency Drive (VFD) technology that allows for the precise control of motor speed, making them ideal for applications that require speed variation and are subject to strict safety standards. Below is a parameter sheet outlining the specifications of a Variable Frequency Explosion-Proof Motor.
Variable Frequency Explosion-Proof Motor Parameter Sheet.pdf
| Parameter | Specification |
|---|---|
| Motor Type | Induction Motor (Explosion-Proof, with VFD Control) |
| Explosion-Proof Classification | ATEX, IECEx, UL (Region-specific standards) |
| Efficiency Class | IE2, IE3, IE4 (Energy Efficient) |
| Rated Power | 0.75 kW – 400 kW |
| Frequency | 50 Hz / 60 Hz |
| Rated Voltage | 220V, 380V, 400V, 690V / Customized |
| Rated Speed | 600 RPM - 3600 RPM / Customized |
| Rated Torque | 1.5 - 2200 Nm |
| Rated Current | 0.6 A - 450 A (depending on motor size and rating) |
| Insulation Class | Class F, Class H |
| Mounting Type | Foot-mounted, Flange-mounted, Face-mounted |
| Cooling Method | IC411 (Self-Cooling) or IC416 (Forced Ventilation) |
| Service Factor | 1.15 |
| Ambient Temperature Range | -20°C to +40°C |
| Altitude | Up to 1000 m (higher altitudes available on request) |
| Parameter | Specification |
|---|---|
| Rated Voltage | 220V, 380V, 460V (Single-phase or Three-phase) |
| Voltage Tolerance | ±10% |
| Frequency Tolerance | ±1% |
| Motor Current | Variable based on motor size and load |
| Power Factor | 0.85 - 0.98 |
| Starting Method | Star-Delta, DOL, or Soft Start |
| Speed Control Method | Variable Frequency Drive (VFD) with Digital Control |
| Insulation Resistance | ≥ 100 MΩ |
| Vibration Grade | Grade 1 (ISO 10816) |
| Parameter | Specification |
|---|---|
| Frame Size | 71 - 400 mm |
| Shaft Diameter | Up to 150 mm (depending on motor power and size) |
| Shaft Length | Variable (based on mounting configuration) |
| Shaft Material | High-strength Steel, Stainless Steel |
| Bearing Type | Ball Bearings, Roller Bearings (depending on size) |
| Enclosure Type | Explosion-Proof Enclosure, IP55, IP56, IP65 |
| Cooling Method | IC411 (self-cooling) or IC416 (forced ventilation) |
| Weight | Varies based on motor size and specifications |
| Noise Level | ≤ 75 dB(A) |
| Vibration | Grade 1 (ISO 10816) |
| Parameter | Specification |
|---|---|
| VFD Compatibility | Supports 0-100 Hz adjustable speed |
| Control Type | Microprocessor-based control system for speed adjustment |
| Control Panel Features | Digital display, Push-button control, Remote control option |
| Speed Regulation | Precise speed control with 0.5% accuracy |
| Overload Protection | Yes (with adjustable overload settings) |
| Thermal Protection | Overtemperature protection via built-in sensors |
| Dynamic Braking | Available on higher power ratings |
| Motor Protection | Phase failure protection, Overcurrent protection |
| Parameter | Specification |
|---|---|
| Explosion Protection Type | Dust Ignition Proof (DIP), Flameproof (Ex d) |
| Temperature Class | T3 - T6 (depending on application and environment) |
| Ingress Protection | IP55, IP56, IP65 (dust and water protection) |
| Surface Temperature | ≤ 180°C (depending on motor size and temperature class) |
| Certification Standards | ATEX, IECEx, UL, CSA |
| Spark-Free Construction | Yes (non-sparking components for hazardous areas) |
| Overcurrent and Short Circuit Protection | Integrated into VFD Control |
| Parameter | Specification |
|---|---|
| Starting Torque | 150% to 250% of rated torque |
| Breakdown Torque | 200% to 250% of rated torque |
| Slip | 1.5% - 6% (depending on motor size) |
| Efficiency | ≥ 85% (IE3 or higher efficiency classes available) |
| Operating Speed Range | Variable (adjustable from 0 to 100% of rated speed) |
| Speed Stability | ±1% of rated speed |
| Load Variability | Supports variable load conditions with stable speed |
At Yongzhuan, we offer high-quality variable frequency explosion-proof motors that combine the latest safety features with energy-saving technology. Here’s why our motors are the right choice for your business:
Our motors are tested and certified to meet ATEX, IECEx, and UL standards, ensuring safe operation in hazardous environments.
Our motors integrate variable frequency drives that optimize energy usage, providing significant savings on electricity bills while maintaining high performance.
Built with high-quality materials, our motors are designed to withstand extreme conditions, ensuring long-lasting performance in demanding industrial environments.
We offer customized motor solutions to fit your specific needs. Whether you require unique power ratings, sizes, or configurations, we provide tailored solutions that maximize your operational efficiency.
Our expert team is always available to provide professional advice on motor selection, installation, and maintenance. We offer full support to ensure that your operations run smoothly.
A variable frequency explosion-proof motor includes a VFD for controlling the motor's speed and torque, optimizing energy use and performance, while a standard motor operates at a fixed speed.
Yes, as long as the motor is properly protected from the elements, such as rain or extreme temperatures, it can be used outdoors in hazardous environments.
A VFD adjusts the speed and torque of the motor to match the load requirements, improving energy efficiency and process control while reducing wear and tear.
Yes, our motors are designed to meet ATEX, IECEx, and UL certifications, ensuring they are suitable for use in explosive atmospheres.
Yes, variable frequency explosion-proof motors are ideal for food processing industries where combustible dust is present, offering both safety and operational efficiency.
