Introduction to 25 HP / 18.5 KW 3-Phase Motors
In large-scale industrial systems, machines demand reliable power sources capable of handling heavy loads and continuous operation. The 25 HP / 18.5 KW 3-phase motor is designed precisely for this purpose. It delivers strong torque, consistent performance, and long-term durability, making it one of the most widely used motors in medium-to-heavy industrial environments.
From manufacturing plants to irrigation systems, this motor operates behind the scenes to keep equipment running efficiently. Think of it as the engine that powers industrial productivity.
Understanding the Power Rating: 25 HP vs 18.5 KW
Motor ratings describe the amount of mechanical power the motor can deliver.
Both represent nearly the same output power, simply expressed using different measurement systems.
Why 3-Phase Motors Are Ideal for Heavy Industrial Work
Three-phase motors are preferred in industry because they provide:
Continuous and smooth power delivery
Higher efficiency compared to single-phase motors
Better power factor
Reduced vibration and mechanical stress
These advantages allow 3-phase motors to operate heavy equipment reliably for long hours.
Horsepower vs Kilowatt Explained
HP to KW Conversion Formula
The conversion between horsepower and kilowatts is simple:
1 HP ≈ 0.746 KW
So:
25 HP × 0.746 ≈ 18.65 KW
That’s why the motor is typically rated and sold as 18.5 KW.
Relationship Between Torque, Speed, and Power
Power is determined by torque multiplied by rotational speed. A 25 HP motor provides significant torque, enabling it to drive heavy machinery such as crushers, conveyors, and large pumps.
![0.16 HP Motor]( "0.16 HP Motor")
Technical Specifications of a 25 HP / 18.5 KW 3-Phase Motor
| 额定功率 (kW / HP) | 机座号 (Frame Size) | 极数 (Pole) | 额定转速 (RPM) 50Hz / 60Hz | 效率 (100%) IE2 / IE3 / IE4 | 功率因数 (COS$\phi$) IE2 / IE3 / IE4 | 额定转矩 (N.m) | 重量 (kg) (铸铁壳) |
| 18.5 / 25 | 160L | 2 | 2940 / 3528 | 91.2 / 92.4 / 93.7 | 0.89 / 0.89 / 0.90 | 60.1 | 138 |
| 18.5 / 25 | 180M | 4 | 1470 / 1764 | 91.2 / 92.6 / 94.2 | 0.86 / 0.85 / 0.84 | 120.2 | 165 |
| 18.5 / 25 | 200L | 6 | 975 / 1170 | 90.4 / 91.7 / 93.4 | 0.81 / 0.80 / 0.79 | 181.2 | 225 |
| 18.5 / 25 | 225M | 8 | 730 / 876 | 88.6 / 90.0 / 92.1 | 0.77 / 0.76 / 0.75 | 242.0 | 310 |
Core Motor Specifications & Performance
Environmental & Operational Compatibility
1. Site Conditions
Victory motors operate reliably in most industrial environments:
Temperature range: -15°C to +40°C (ideal for warehouses, factories, and outdoor shelters)
Altitude: ≤1000 meters (compatible with urban plants, rural workshops, and low-to-moderate elevation facilities)
This versatility makes them suitable for global applications in non-extreme climates, with custom modifications available for extreme temperatures (-40°C to +50°C) or high-altitude sites (>1000m).
2. Insulation System
The motor’s insulation meets Class F (105K) performance standards (rated for 155°C continuous operation) and is validated via Class B (80K) testing. This dual compliance ensures an extended lifespan (20,000+ operating hours) and consistent reliability in 24/7 continuous-duty scenarios (e.g., manufacturing lines, water treatment pumps). For extreme-heat applications (e.g., foundries), Class H insulation (180°C max) is available as a customization.
3. Vibration & Noise Control
Engineered to Vibration Class A (low noise, minimal mechanical wear), our motors are ideal for precision equipment like packaging machines or medical tools. For quieter environments (e.g., laboratories) or sensitive instrumentation, Vibration Class B (smoother operation) can be requested to reduce operational disturbance.
4. Duty Cycle
Designed for Continuous Duty (S1) operation, our motors run indefinitely at rated load without overheating—perfect for non-stop applications: industrial pumps, ventilation fans, conveyor systems, and heavy machinery.

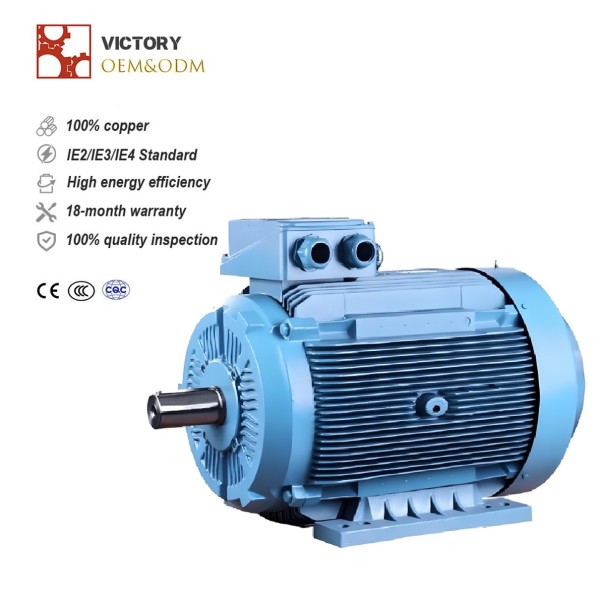

![3 phase motor blue]( "3 phase motor blue")
Electrical & Protective Features
1. Voltage & Frequency
Standard specifications: 380V/50Hz (global industrial grid standard). Customization options include:
Single voltages: 200V–660V (e.g., 220V/60Hz for North America, 230V/50Hz for Europe)
Frequency: 50/60Hz (or custom tuning for specialized needs like 400Hz aerospace applications)
Motors maintain optimal performance even with ±5% voltage fluctuations—critical for unstable power grids in remote or developing regions.
2. Motor Protection
Enhance safety and reduce downtime with optional PTC thermistors (overheat protection) or PT100 temperature sensors (real-time monitoring). These components trigger alerts or automatic shutdowns during overheating, preventing damage in high-load applications (compressors, conveyors) and lowering long-term repair costs.
3. Protection Class
Standard IP54/IP55 Ingress Protection (dust-tight, water-resistant) safeguards against particles and low-pressure water jets—ideal for humid/dusty workspaces (food processing plants, construction sites). For harsh environments (heavy rain, washdowns), IP65 (full dust tightness + high-pressure water resistance) is available on request.
4. Cooling & Ventilation
Victory-Motor uses Totally Enclosed Fan-Cooled (TEFC) technology (per IEC 60034-6, IC411):
Seals the motor to block dust, moisture, and debris (critical for farms, mines, or dirty industrial areas)
External fans ensure efficient heat dissipation, maintaining stable temperatures in high-torque, long-duration tasks

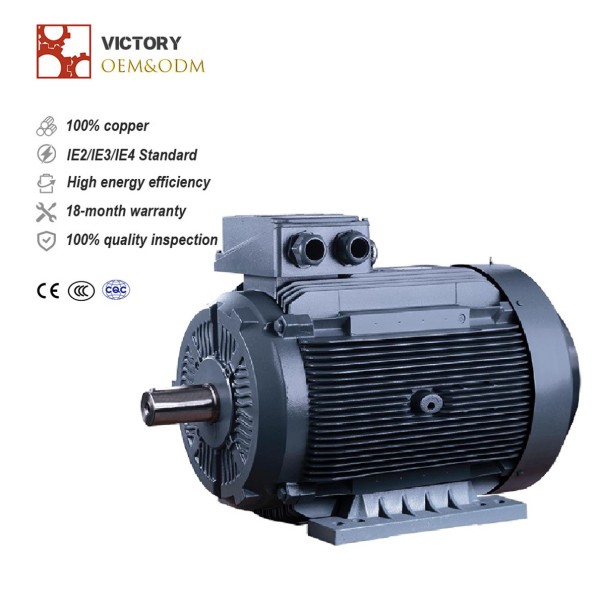

![Motor 3 phase]( "Motor 3 phase")
Construction & Material Quality
1. Winding
Constructed with 100% high-purity copper wire (not aluminum), our windings offer:
Superior electrical conductivity (reduces energy loss and utility bills)
Enhanced heat resistance (extends motor life in continuous operation)
Better performance in high-load, long-duration tasks compared to alternative materials
2. Output Shaft
Standard cylindrical shaft with keyway; we offer custom shaft diameter/length (e.g., extended shafts for specific couplings, non-standard key sizes) to fit your equipment’s unique requirements.
![Wiring Methods]( "Wiring Methods")
Wiring Methods of 3-Phase Motor
Here’s a clear explanation of the two three-phase motor wiring methods:
Star (Y) Connection
· Wiring Setup: The motor’s three winding ends (U2, V2, W2) are connected together (forming a "star" center point), while the three start ends (U1, V1, W1) connect to the three-phase power supply.
· Key Electrical Traits: Line voltage (power supply voltage) is √3x winding voltage; line current equals winding current.
· Common Use Case: Used for motors designed for high-voltage input (e.g., 380V supply with 220V windings) or to reduce startup current (e.g., in light-load applications like fans or small pumps).
Delta (△) Connection
· Wiring Setup: The motor’s winding ends are connected in a closed loop: U2 to V1, V2 to W1, W2 to U1. The three-phase power supply connects to the junction points (U1, V1, W1).
· Key Electrical Traits: Line voltage equals winding voltage; line current is √3x winding current.
· Common Use Case: Used for motors designed for low-voltage input (e.g., 220V supply with 220V windings) or high-torque applications (e.g., compressors, conveyors, heavy machinery).
Victory-Motor’s Manufacturing & Quality Assurance
1. Sufficient Raw Material Inventory
Victory-Motor maintains a robust, high-grade raw material inventory (premium copper windings, high-strength steel laminations, durable aluminum housings) sourced from certified global suppliers. This eliminates production delays, enables quick responses to urgent orders or sudden demand spikes, and ensures your projects stay on schedule—whether you need standard models or custom solutions.
2. Professional Production Equipment & Assembly Lines
Victory-Motor workshop features state-of-the-art equipment:
CNC machining centers (precision component manufacturing)
Automatic winding machines (consistent coil quality)
Intelligent testing systems (real-time performance validation)
Fully automated assembly lines reduce human error, boost production efficiency, and ensure every motor meets international quality standards. We continuously upgrade equipment to align with the latest industry advancements.
3. 100% Quality Inspection
Quality is Victory-Motor cornerstone. Victory-Motor implements rigorous 100% inspection across the entire production process:
Raw material verification (ensures compliance with specifications)
In-process checks (monitors component accuracy)
Final testing (assesses efficiency, torque, vibration, and insulation resistance via dynamometers, testers, and analyzers)
Adhering to the ISO 9001 quality management system, Victory-Motor guarantees defect-free motors that perform optimally in your applications.
![yongzhuan&victory motor]( "yongzhuan&victory motor")
Customization & Delivery Solutions
1. OEM/ODM Services
Victory-Motor offers comprehensive OEM/ODM services tailored to your unique needs:
Collaborate with our engineers from design to final production
Customize power, speed, size, voltage, housing, or branding (produce under your logo)
Transparent processes and strict IP protection (confidentiality agreements included)
Leveraging our R&D and production expertise, we deliver cost-effective, high-performance solutions that align with your business goals.
2. Export-Standard Packaging & Delivery
Victory-Motor uses ISPM 15-compliant export-standard wooden boxes (high-density, moisture-resistant plywood) with foam padding and plastic wrapping for internal protection. This packaging:
Complies with global customs regulations
Prevents damage from impact, humidity, or rough transit
Can be customized for large/special-shaped orders
You can trust your motors will arrive on time and in perfect working condition, no matter your global destination.
3. Quality Assurance & Warranty
Every motor is built to ISO 9001 standards, ensuring consistent manufacturing quality and compliance with global industrial regulations. We back our products with an 18-month warranty: if a motor is damaged by non-human factors (e.g., manufacturing defects) within this period, we replace it free of charge.
![ex motor]( "ex motor")
Parameter Table
Item | Specifications | Description | Customized items |
Motor Type | Three phase AC motor (squirrel-cage type) |
|
|
Motor Standard | IEC60034 | It is a standard for rotating motors formulated by IEC. |
|
Efficiency Level | IE2 / IE3 / IE4 | It meet IE2 IE3 IE4 energy efficiency grade of IEC60034. |
|
Voltage | 110/200/220/230/240/380/400/415/440/460/480/ 660/ 690V | The motors can work well within variations of ±5% from rated voltage. | It can be customized according to the voltage in your country |
Frequency | 50/60Hz | The motors can work in 50Hz or 60Hz. | It can be customized according to the frequency in your country |
Degree of protection | IP55 | The motor has dust-proof and water-proof performance of level 5. It is suitable for industrial scenarios where there is dust (diameter ≥ 1mm) and low-pressure water spraying. | It can be customized as IP65 |
Insulation Class | F | The maximum temperature that insulating materials can withstand for a long time is 155℃. | It can be customized as H |
Operating mode | S1 | Continuous working system |
|
Cooling Method | TEFC | Totally enclosed fan cooled in accordance with IC411 of IEC60034. |
|
Site Conditions | Temperature: -15°C to +40°C Altitude: ≤ 1000 m |
| It can be customized for environments with higher or lower temperature, and over 1000 meters. |
Winding | 100% copper wire |
|
|
Motor Protection | PTC/PT100 | PTC: thermistors protection PT100: resistance thormometers protection | As option |
Output Shaft | Standard size | Cylindrical with key | The diameter and length of shaft can be customized |
Paint color | Blue / Gray |
| It can be customized |
Nameplate | Victory brand standard |
| It can be customized |
Quality Assurance | ISO 9001 Quality System | Strict quality management standard, 100% quantity inspected |
|
Warranty Period | 18 months | We offer a new motor for free if the motor is damaged due to non-human factors within 18 months. |
|
Motor Design and Construction
Stator and Rotor Structure
The stator generates the rotating magnetic field, while the rotor converts electrical energy into mechanical rotation. Most 25 HP motors use a squirrel cage rotor, known for its durability and low maintenance.
Insulation Class and Thermal Limits
Class F insulation is widely used because it can tolerate higher temperatures, improving motor lifespan in heavy-duty applications.
Cooling Methods and Enclosure Types
Common cooling methods include:
Types of 25 HP / 18.5 KW 3-Phase Motors
Induction Motor
The most commonly used motor due to its simplicity, reliability, and cost efficiency.
Squirrel Cage Motor
Offers robust construction and requires minimal maintenance.
Slip Ring Motor
Used when very high starting torque is required for heavy industrial loads.
Common Applications of 25 HP / 18.5 KW Motors
Industrial Manufacturing
Commercial and Infrastructure Systems
Large HVAC installations
Cooling towers
Ventilation systems
Agriculture and Water Management

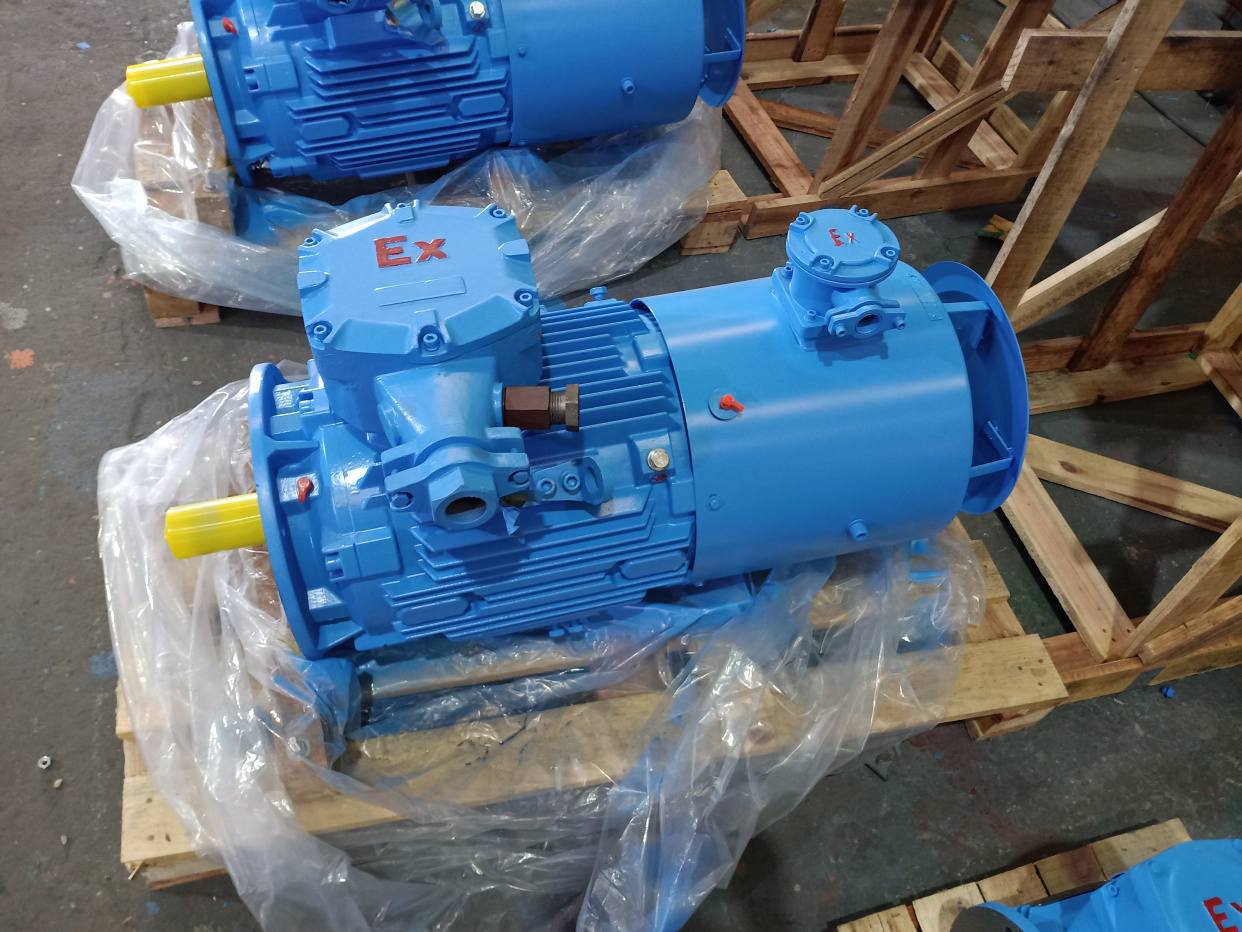

![防爆变频]( "防爆变频")
Advantages of Using a 25 HP / 18.5 KW 3-Phase Motor
High Power and Torque Output
These motors deliver strong torque capable of driving large industrial equipment.
Energy Efficiency
Modern high-efficiency motors reduce energy consumption significantly.
Reliability and Long Operational Life
With proper maintenance, these motors can operate for decades in demanding environments.
Installation and Electrical Considerations
Wiring and Protection Systems
Correct cable sizing, circuit breakers, and overload protection ensure safe operation.
Star-Delta and Soft Starter Methods
Mounting Configurations
Typical mounting arrangements include:
B3 – Foot Mounted
B5 – Flange Mounted
B35 – Foot + Flange
Maintenance and Troubleshooting
Routine Maintenance Practices
Inspect bearings regularly
Check insulation resistance
Clean cooling systems and fans
Common Problems and Solutions
How to Choose the Right 25 HP / 18.5 KW Motor
Load Requirements
Determine the torque and power requirements of the driven equipment.
Operating Environment
Consider dust, moisture, temperature, and hazardous conditions when selecting the motor.
Efficiency Classes (IE2, IE3, IE4)
Higher efficiency motors reduce long-term operational costs and energy consumption.
![Dual-Voltage Motors]( "Dual-Voltage Motors")
Conclusion
The 25 HP / 18.5 KW 3-phase motor is a powerful and reliable solution for demanding industrial applications. With strong torque, efficient operation, and durable construction, it is widely used in manufacturing, infrastructure, agriculture, and water management systems. Selecting the right motor specifications and maintaining it properly ensures long-lasting performance and energy savings.
FAQs
1. Is 25 HP equal to 18.5 KW?
Yes, approximately. 25 HP converts to about 18.65 KW, which is commonly rated as 18.5 KW.
2. What industries commonly use 25 HP motors?
Manufacturing plants, water treatment facilities, agriculture, HVAC systems, and heavy processing industries.
3. Can a 25 HP motor be controlled with a VFD?
Yes. VFDs improve speed control, efficiency, and equipment protection.
4. What frame size is typical for an 18.5 KW motor?
IEC Frame 180M or 200L is commonly used.
5. What is the typical lifespan of a 25 HP industrial motor?
With proper maintenance, these motors can operate for 20–25 years or longer.
