Introduction to 40 HP / 30 KW 3-Phase Motors
If you walk into any modern factory, you’ll quickly notice one thing: machines never seem to stop moving. Conveyor belts glide, pumps push liquids, compressors hum continuously. Behind much of that motion is a powerful piece of equipment—the 40 HP / 30 KW 3-phase motor.
This motor size is considered a mid-to-large industrial motor, commonly used in heavy-duty applications. It delivers enough power to handle demanding workloads while maintaining efficiency and reliability.
But what exactly does 40 horsepower mean? How does a three-phase motor work, and why is it so widely used in industry? Let’s break it all down in a simple and practical way.
What Does 40 HP / 30 KW Mean in Motor Power?
Motor power ratings tell us how much mechanical energy the motor can deliver to drive equipment.
1. Understanding Horsepower (HP)
Horsepower is a traditional unit used to measure mechanical power. The concept originally came from comparing machines to the work a horse could perform.
1 HP equals 746 watts of power. So when we say a motor is 40 HP, it means it can deliver significant mechanical energy capable of driving heavy machinery.
2. Understanding Kilowatts (KW)
Kilowatts are the standard international unit for measuring electrical power.
1 kilowatt = 1000 watts
Industrial motors are often rated in kilowatts, especially in international markets.
3. Conversion Between HP and KW
The conversion is simple:
1 HP ≈ 0.746 KW
Therefore:
40 HP ≈ 30 KW
That’s why you’ll often see motors labeled as 40 HP / 30 KW—both values represent the same power output.
How a 3-Phase Motor Works
Three-phase motors are the backbone of industrial motion systems.
Basic Principle of Electromagnetic Rotation
At the heart of the motor lies electromagnetic induction.
When electricity flows through the stator windings, it creates a rotating magnetic field. This magnetic field interacts with the rotor, causing it to spin.
Think of it like a magnetic tug-of-war that never stops—except instead of pulling back and forth, it spins continuously.
Role of Three-Phase Power Supply
Unlike single-phase power, three-phase power delivers electricity through three alternating currents, each separated by 120 degrees.
This design offers several advantages:
Smooth rotation
Higher efficiency
Greater starting torque
Reduced vibration
That’s why industrial environments prefer three-phase motors for heavy workloads.
Key Specifications of a 40 HP / 30 KW 3-Phase Motor
Understanding motor specifications helps you select the right equipment for your application.
| 额定功率 (kW / HP) | 机座号 (Frame Size) | 极数 (Pole) | 额定转速 (RPM) 50Hz / 60Hz | 效率 (100%) IE2 / IE3 / IE4 | 功率因数 (COS$\phi$) IE2 / IE3 / IE4 | 额定转矩 (N.m) | 重量 (kg) (参考) |
| 30 / 40 | 200L | 2 | 2955 / 3546 | 92.3 / 93.3 / 94.5 | 0.89 / 0.89 / 0.90 | 97.0 | 235 |
| 30 / 40 | 200L | 4 | 1480 / 1776 | 92.7 / 93.6 / 94.9 | 0.86 / 0.86 / 0.85 | 193.6 | 255 |
| 30 / 40 | 225M | 6 | 980 / 1176 | 91.8 / 92.9 / 94.2 | 0.82 / 0.81 / 0.81 | 292.3 | 345 |
| 30 / 40 | 250M | 8 | 740 / 888 | 90.7 / 92.0 / 93.5 | 0.79 / 0.78 / 0.77 | 387.2 | 440 |
Core Motor Specifications & Performance
Environmental & Operational Compatibility
1. Site Conditions
Victory motors operate reliably in most industrial environments:
Temperature range: -15°C to +40°C (ideal for warehouses, factories, and outdoor shelters)
Altitude: ≤1000 meters (compatible with urban plants, rural workshops, and low-to-moderate elevation facilities)
This versatility makes them suitable for global applications in non-extreme climates, with custom modifications available for extreme temperatures (-40°C to +50°C) or high-altitude sites (>1000m).
2. Insulation System
The motor’s insulation meets Class F (105K) performance standards (rated for 155°C continuous operation) and is validated via Class B (80K) testing. This dual compliance ensures an extended lifespan (20,000+ operating hours) and consistent reliability in 24/7 continuous-duty scenarios (e.g., manufacturing lines, water treatment pumps). For extreme-heat applications (e.g., foundries), Class H insulation (180°C max) is available as a customization.
3. Vibration & Noise Control
Engineered to Vibration Class A (low noise, minimal mechanical wear), our motors are ideal for precision equipment like packaging machines or medical tools. For quieter environments (e.g., laboratories) or sensitive instrumentation, Vibration Class B (smoother operation) can be requested to reduce operational disturbance.
4. Duty Cycle
Designed for Continuous Duty (S1) operation, our motors run indefinitely at rated load without overheating—perfect for non-stop applications: industrial pumps, ventilation fans, conveyor systems, and heavy machinery.

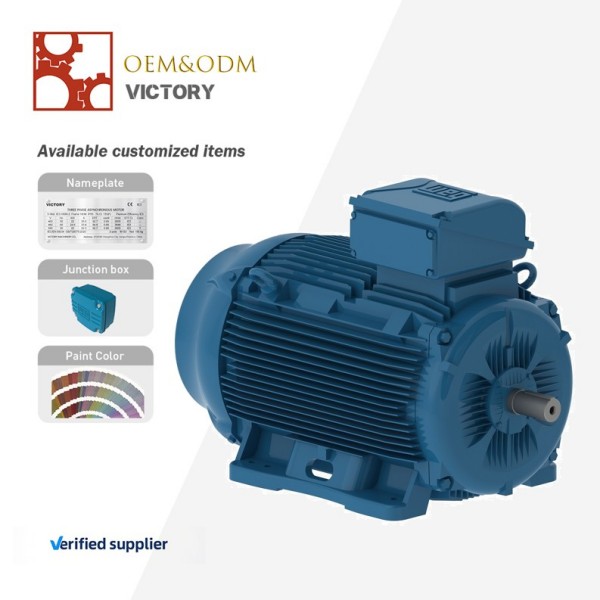

![3 phase motor blue]( "3 phase motor blue")
Electrical & Protective Features
1. Voltage & Frequency
Standard specifications: 380V/50Hz (global industrial grid standard). Customization options include:
Single voltages: 200V–660V (e.g., 220V/60Hz for North America, 230V/50Hz for Europe)
Frequency: 50/60Hz (or custom tuning for specialized needs like 400Hz aerospace applications)
Motors maintain optimal performance even with ±5% voltage fluctuations—critical for unstable power grids in remote or developing regions.
2. Motor Protection
Enhance safety and reduce downtime with optional PTC thermistors (overheat protection) or PT100 temperature sensors (real-time monitoring). These components trigger alerts or automatic shutdowns during overheating, preventing damage in high-load applications (compressors, conveyors) and lowering long-term repair costs.
3. Protection Class
Standard IP54/IP55 Ingress Protection (dust-tight, water-resistant) safeguards against particles and low-pressure water jets—ideal for humid/dusty workspaces (food processing plants, construction sites). For harsh environments (heavy rain, washdowns), IP65 (full dust tightness + high-pressure water resistance) is available on request.
4. Cooling & Ventilation
Victory-Motor uses Totally Enclosed Fan-Cooled (TEFC) technology (per IEC 60034-6, IC411):
Seals the motor to block dust, moisture, and debris (critical for farms, mines, or dirty industrial areas)
External fans ensure efficient heat dissipation, maintaining stable temperatures in high-torque, long-duration tasks
![Motor 3 phase]( "Motor 3 phase")
Construction & Material Quality
1. Winding
Constructed with 100% high-purity copper wire (not aluminum), our windings offer:
Superior electrical conductivity (reduces energy loss and utility bills)
Enhanced heat resistance (extends motor life in continuous operation)
Better performance in high-load, long-duration tasks compared to alternative materials
2. Output Shaft
Standard cylindrical shaft with keyway; we offer custom shaft diameter/length (e.g., extended shafts for specific couplings, non-standard key sizes) to fit your equipment’s unique requirements.
![Wiring Methods]( "Wiring Methods")
Wiring Methods of 3-Phase Motor
Here’s a clear explanation of the two three-phase motor wiring methods:
Star (Y) Connection
· Wiring Setup: The motor’s three winding ends (U2, V2, W2) are connected together (forming a "star" center point), while the three start ends (U1, V1, W1) connect to the three-phase power supply.
· Key Electrical Traits: Line voltage (power supply voltage) is √3x winding voltage; line current equals winding current.
· Common Use Case: Used for motors designed for high-voltage input (e.g., 380V supply with 220V windings) or to reduce startup current (e.g., in light-load applications like fans or small pumps).
Delta (△) Connection
· Wiring Setup: The motor’s winding ends are connected in a closed loop: U2 to V1, V2 to W1, W2 to U1. The three-phase power supply connects to the junction points (U1, V1, W1).
· Key Electrical Traits: Line voltage equals winding voltage; line current is √3x winding current.
· Common Use Case: Used for motors designed for low-voltage input (e.g., 220V supply with 220V windings) or high-torque applications (e.g., compressors, conveyors, heavy machinery).
Victory-Motor’s Manufacturing & Quality Assurance
1. Sufficient Raw Material Inventory
Victory-Motor maintains a robust, high-grade raw material inventory (premium copper windings, high-strength steel laminations, durable aluminum housings) sourced from certified global suppliers. This eliminates production delays, enables quick responses to urgent orders or sudden demand spikes, and ensures your projects stay on schedule—whether you need standard models or custom solutions.
2. Professional Production Equipment & Assembly Lines
Victory-Motor workshop features state-of-the-art equipment:
CNC machining centers (precision component manufacturing)
Automatic winding machines (consistent coil quality)
Intelligent testing systems (real-time performance validation)
Fully automated assembly lines reduce human error, boost production efficiency, and ensure every motor meets international quality standards. We continuously upgrade equipment to align with the latest industry advancements.
3. 100% Quality Inspection
Quality is Victory-Motor cornerstone. Victory-Motor implements rigorous 100% inspection across the entire production process:
Raw material verification (ensures compliance with specifications)
In-process checks (monitors component accuracy)
Final testing (assesses efficiency, torque, vibration, and insulation resistance via dynamometers, testers, and analyzers)
Adhering to the ISO 9001 quality management system, Victory-Motor guarantees defect-free motors that perform optimally in your applications.
![yongzhuan&victory motor]( "yongzhuan&victory motor")
Customization & Delivery Solutions
1. OEM/ODM Services
Victory-Motor offers comprehensive OEM/ODM services tailored to your unique needs:
Collaborate with our engineers from design to final production
Customize power, speed, size, voltage, housing, or branding (produce under your logo)
Transparent processes and strict IP protection (confidentiality agreements included)
Leveraging our R&D and production expertise, we deliver cost-effective, high-performance solutions that align with your business goals.
2. Export-Standard Packaging & Delivery
Victory-Motor uses ISPM 15-compliant export-standard wooden boxes (high-density, moisture-resistant plywood) with foam padding and plastic wrapping for internal protection. This packaging:
Complies with global customs regulations
Prevents damage from impact, humidity, or rough transit
Can be customized for large/special-shaped orders
You can trust your motors will arrive on time and in perfect working condition, no matter your global destination.
3. Quality Assurance & Warranty
Every motor is built to ISO 9001 standards, ensuring consistent manufacturing quality and compliance with global industrial regulations. We back our products with an 18-month warranty: if a motor is damaged by non-human factors (e.g., manufacturing defects) within this period, we replace it free of charge.
![ex motor]( "ex motor")
Parameter Table
Item | Specifications | Description | Customized items |
Motor Type | Three phase AC motor (squirrel-cage type) |
|
|
Motor Standard | IEC60034 | It is a standard for rotating motors formulated by IEC. |
|
Efficiency Level | IE2 / IE3 / IE4 | It meet IE2 IE3 IE4 energy efficiency grade of IEC60034. |
|
Voltage | 110/200/220/230/240/380/400/415/440/460/480/ 660/ 690V | The motors can work well within variations of ±5% from rated voltage. | It can be customized according to the voltage in your country |
Frequency | 50/60Hz | The motors can work in 50Hz or 60Hz. | It can be customized according to the frequency in your country |
Degree of protection | IP55 | The motor has dust-proof and water-proof performance of level 5. It is suitable for industrial scenarios where there is dust (diameter ≥ 1mm) and low-pressure water spraying. | It can be customized as IP65 |
Insulation Class | F | The maximum temperature that insulating materials can withstand for a long time is 155℃. | It can be customized as H |
Operating mode | S1 | Continuous working system |
|
Cooling Method | TEFC | Totally enclosed fan cooled in accordance with IC411 of IEC60034. |
|
Site Conditions | Temperature: -15°C to +40°C Altitude: ≤ 1000 m |
| It can be customized for environments with higher or lower temperature, and over 1000 meters. |
Winding | 100% copper wire |
|
|
Motor Protection | PTC/PT100 | PTC: thermistors protection PT100: resistance thormometers protection | As option |
Output Shaft | Standard size | Cylindrical with key | The diameter and length of shaft can be customized |
Paint color | Blue / Gray |
| It can be customized |
Nameplate | Victory brand standard |
| It can be customized |
Quality Assurance | ISO 9001 Quality System | Strict quality management standard, 100% quantity inspected |
|
Warranty Period | 18 months | We offer a new motor for free if the motor is damaged due to non-human factors within 18 months. |
|
Types of 40 HP / 30 KW Three-Phase Motors
Not all motors are built the same. Several types exist depending on the application.
Induction Motors
Induction motors are the most widely used industrial motors.
They are popular because they are:
Durable
Cost-effective
Easy to maintain
Highly reliable
Most 40 HP motors used in factories are squirrel cage induction motors.
Synchronous Motors
Synchronous motors run at constant speed regardless of load.
They are typically used in:
Precision equipment
Power factor correction
High-efficiency systems
Explosion-Proof Motors
In hazardous industries like oil and gas, explosion-proof motors are essential.
These motors are designed to contain sparks or explosions within the motor housing, preventing ignition in dangerous environments.
Common Applications
A 40 HP / 30 KW 3-phase motor is powerful enough for many industrial systems.
Industrial Pumps
Pumps require continuous torque to move liquids through pipelines.
Common uses include:
Water treatment plants
Chemical transfer
Oil pumping systems
Air Compressors
Compressors demand strong and consistent power.
A 40 HP motor can drive large industrial air compressors used in manufacturing plants.
Conveyor Systems
Factories rely on conveyors for moving products.
A motor of this size easily handles long conveyor lines with heavy loads.
Industrial Fans and Blowers
Ventilation and cooling systems use powerful motors to move air efficiently.
Examples include:
Mine ventilation systems
Steel plant cooling
HVAC equipment
Benefits of Using a 40 HP / 30 KW 3-Phase Motor
Why do industries prefer these motors? The advantages are clear.
Higher Efficiency
Three-phase motors waste less energy compared to single-phase motors.
That means lower electricity bills and better productivity.
Reliable Continuous Operation
These motors are designed for 24/7 operation.
Factories that run around the clock depend on this reliability.
Lower Maintenance
Induction motors contain fewer moving parts, which means fewer mechanical failures.
Less downtime equals higher production.

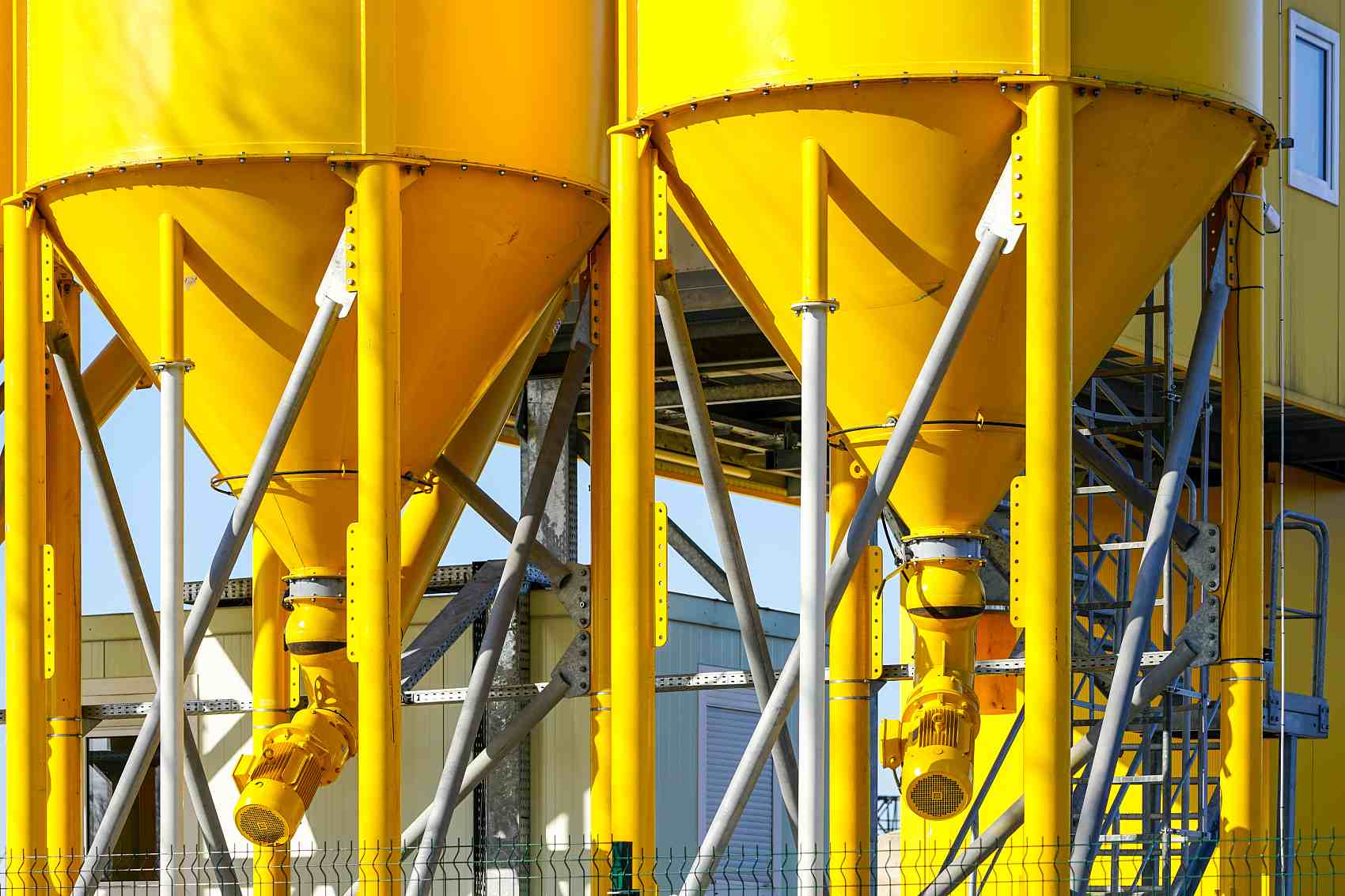

![新建成的现代化固定式混凝土配料厂]( "新建成的现代化固定式混凝土配料厂")
Energy Efficiency and Power Consumption
Energy efficiency is becoming increasingly important in industrial operations.
Energy Saving Motor Designs
Modern motors incorporate technologies such as:
These innovations reduce energy losses.
IE Efficiency Standards
Motors are classified by efficiency levels:
Many industries now require IE3 motors to reduce energy consumption.
Installation Requirements
Proper installation ensures safe and efficient motor operation.
Electrical Requirements
Important considerations include:
Incorrect wiring can damage the motor instantly.
Mounting Considerations
Motors must be mounted securely to avoid vibration.
Common mounting types include:
Foot mounted
Flange mounted
Alignment with the driven equipment is critical.
Cooling and Ventilation
Motors generate heat during operation.
Proper airflow and ventilation prevent overheating and extend motor life.
Maintenance Tips for Long Motor Life
Like any machine, motors perform best when properly maintained.
Lubrication
Bearings must be lubricated regularly.
Without lubrication, friction increases and bearings fail prematurely.
Insulation Checks
Electrical insulation protects motor windings.
Routine testing ensures insulation remains in good condition.
Vibration Monitoring
Excess vibration may indicate problems such as:
Misalignment
Bearing wear
Rotor imbalance
Early detection prevents serious damage.
Troubleshooting Common Problems
Even reliable motors occasionally encounter issues.
Overheating
Possible causes include:
Overloading
Poor ventilation
Voltage imbalance
Motor Not Starting
Common reasons include:
Faulty starter
Low voltage
Broken rotor bars
Excessive Noise
Unusual sounds often indicate mechanical problems such as bearing failure.
How to Choose the Right 40 HP Motor
Selecting the right motor involves more than just matching horsepower.
Load Requirements
The motor must match the torque and load characteristics of the driven equipment.
Environmental Conditions
Harsh environments require special protection such as:
Duty Cycle
Motors can operate under different duty ratings:
Continuous duty
Intermittent duty
Heavy duty
Choosing the correct duty cycle prevents overheating.
Safety Considerations
Industrial motors can be dangerous if improperly handled.
Key safety practices include:
Safety should always be the top priority.
Future Trends in Industrial Motors
Motor technology continues to evolve.
Emerging trends include:
Smart motors with built-in sensors
IoT-enabled predictive maintenance
Ultra-high efficiency designs
Integration with variable frequency drives (VFDs)
These technologies allow industries to reduce downtime and improve efficiency.
![蓝色工业泵]( "蓝色工业泵")
Conclusion
The 40 HP / 30 KW 3-phase motor is a powerful and versatile solution for industrial operations. From pumps and compressors to conveyors and fans, this motor size provides the ideal balance between power, efficiency, and reliability.
Thanks to its durable design, energy efficiency, and ability to operate continuously, it has become a core component in modern manufacturing and industrial systems. When properly selected, installed, and maintained, a 40 HP motor can deliver dependable performance for many years.
In short, it’s not just a motor—it’s the heartbeat of countless industrial processes.
FAQs
1. What is the voltage requirement for a 40 HP 3-phase motor?
Most 40 HP motors operate on 380V, 400V, 415V, 440V, or 460V three-phase power, depending on regional electrical standards.
2. How much current does a 40 HP motor draw?
At 460V, a 40 HP motor typically draws around 52 amps, although the exact value depends on efficiency and motor design.
3. How efficient is a 40 HP motor?
Modern motors usually meet IE3 premium efficiency standards, achieving efficiencies of around 93–95%.
4. Can a 40 HP motor run continuously?
Yes. Most industrial motors are designed for continuous duty operation, meaning they can run 24 hours a day if properly maintained.
5. What industries commonly use 40 HP motors?
Industries such as manufacturing, oil and gas, water treatment, mining, HVAC, and agriculture frequently use motors of this size.
