Product Description
Helical bevel gear motors are essential components in modern industrial machinery. They provide efficient power transmission, high torque output, and reliable performance across a wide range of applications. Whether you need them for conveyor systems, packaging machines, or heavy-duty industrial processes, helical bevel gear motors are the perfect solution for smooth and efficient operations.
Are you looking for a low-maintenance and largely wear-free but high torque drive solution? Then you are making the right decision with our helical bevel gear motor. This is because we offer you gear units and motors combined as compact drive components: perfectly in tune with each other and adapted to your application. It combines the efficiency of helical gears with the angular power transfer of bevel gears, making it a preferred solution across industries.
A helical bevel gear motor is a type of right-angle gear motor that combines helical and bevel gears to achieve superior torque transmission and power efficiency.
✅ The helical gears ensure smooth and quiet operation by gradually engaging the teeth.
✅ The bevel gears change the direction of rotation, making them ideal for right-angle power transmission.
✅ The combination of both gears results in high efficiency, durability, and minimal energy loss.
✅ High Torque and Load Capacity
Ideal for heavy-duty applications requiring high torque transmission.
✅ Energy Efficiency
Minimizes energy loss, reducing power consumption and operational costs.
✅ Quiet and Smooth Operation
The helical gear design reduces noise and vibrations for a seamless working environment.
✅ Durability and Longevity
Made from high-quality materials, ensuring long service life.
✅ Compact and Versatile Design
Suitable for various mounting options, including flange-mounted, foot-mounted, and shaft-mounted configurations.

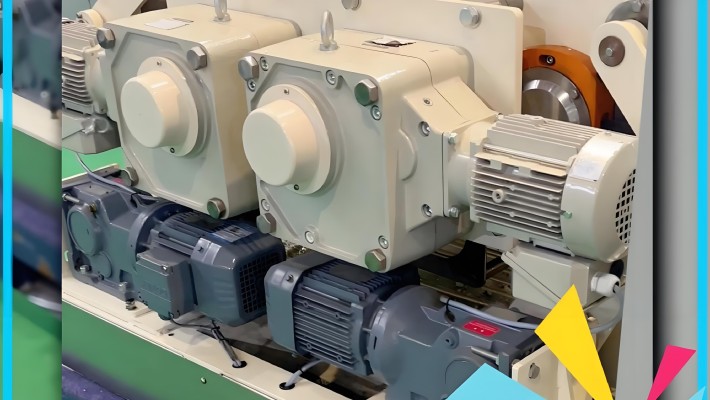

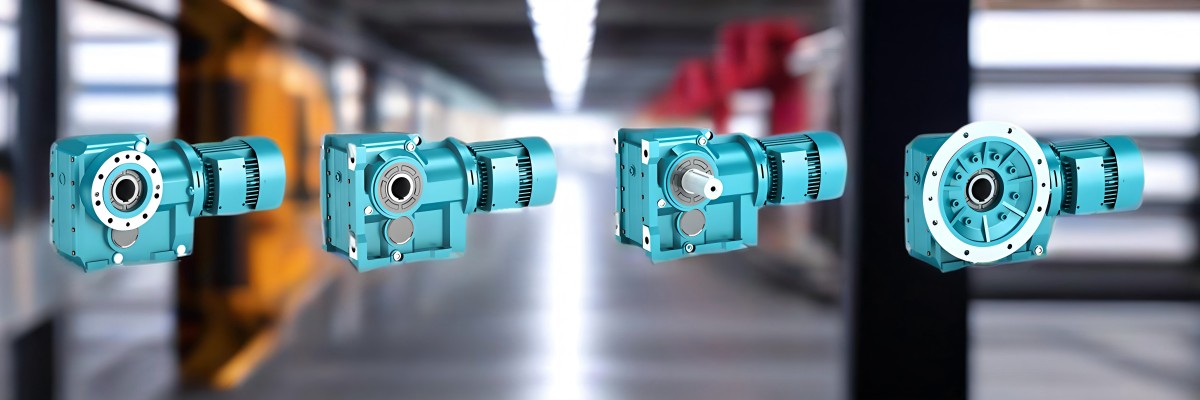

K Series Helical Bevel Gear Motor comes in various mounting options and output configurations, making them highly adaptable to different industrial applications. Below is a breakdown of the different series and their specific features:

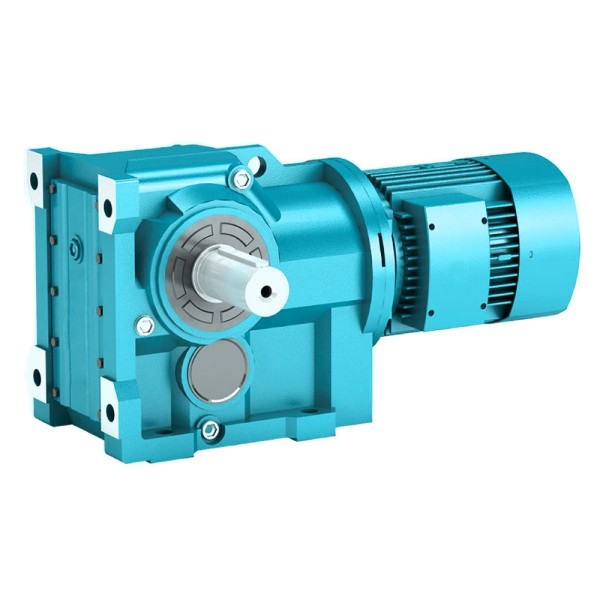

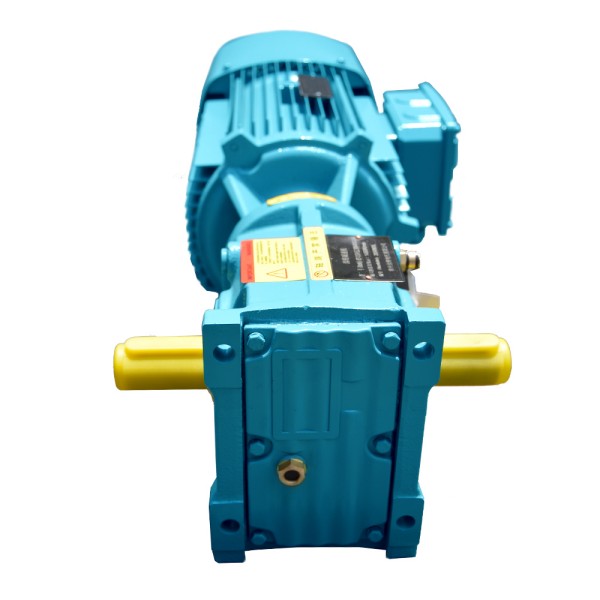

✦Description: Standard foot-mounted version with a solid shaft output.
✦Application: Used in conveyors, crushers, and industrial automation systems where rigid mounting and strong torque transmission are required.

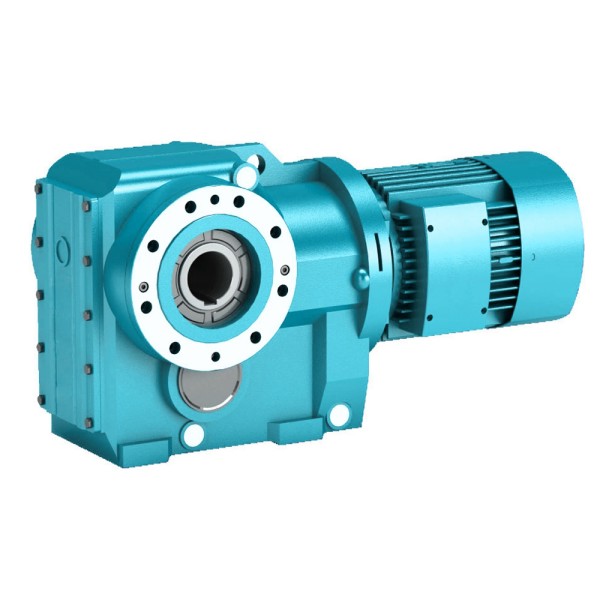

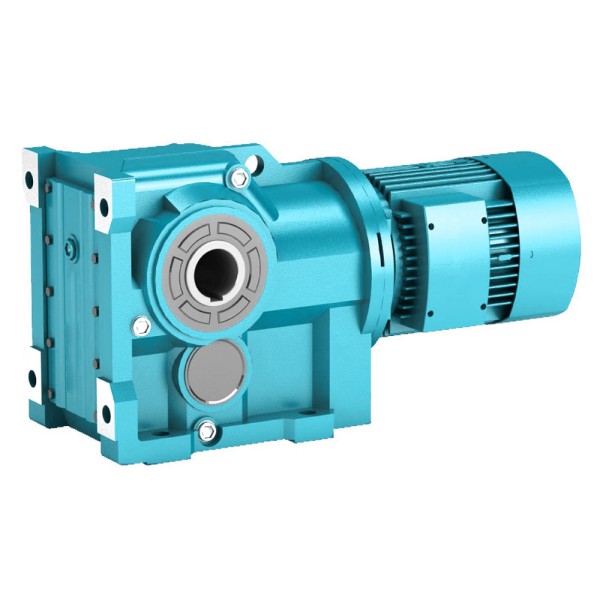

✦Description: Foot-mounted version with a hollow shaft output, offering flexibility in installation.
✦Application: Common in bulk material handling, mixers, and agricultural applications where hollow shaft designs allow for easy assembly with driven shafts.
✦Description: Designed with a keyed hollow shaft, which allows for secure power transmission by directly engaging with the driven shaft.
✦Application: Used in machinery requiring high precision and easy maintenance, such as packaging machines, automated assembly lines, and food processing equipment.
✦Description: B5 flange-mounted design with a solid shaft output, ensuring secure and rigid mounting.
✦Application: Common in pumps, agitators, and ventilation systems, where a compact, high-efficiency gear motor is required.

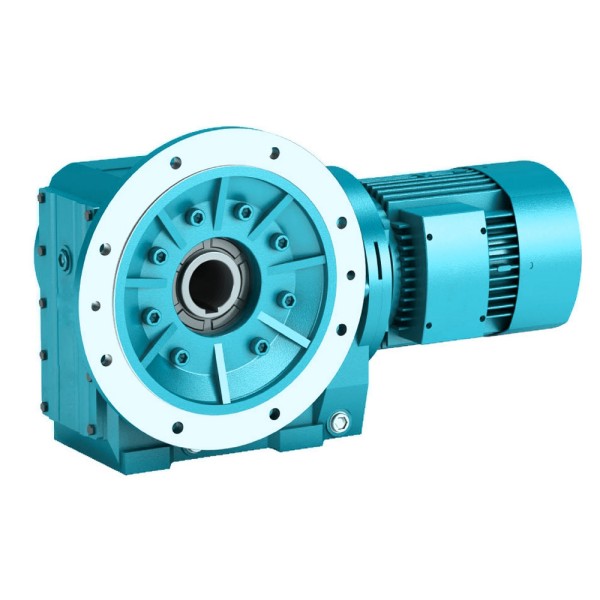

✦Description: Flange-mounted version with a hollow shaft output, allowing easy integration into existing machinery.
✦Application: Used in conveyors, lifting systems, and material processing equipment, where a flange-mounted hollow shaft design provides flexibility.

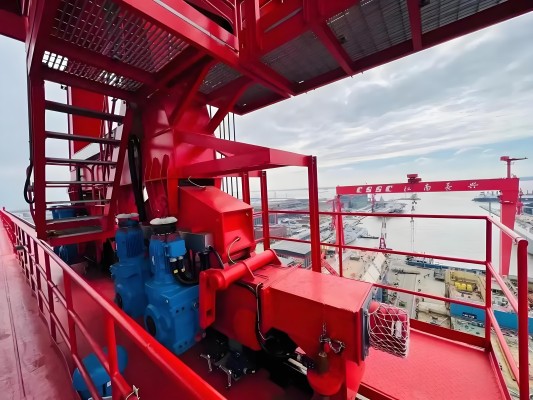

✦Description: B14 flange-mounted design with a hollow shaft output, offering a compact and lightweight solution.
✦Application: Ideal for small automation systems, textile machines, and robotics, where precision and space-saving are priorities.
✦Description: Features a hollow shaft output and a torque arm to provide added stability and control in high-torque applications.
✦Application: Common in belt conveyors, bucket elevators, and large industrial mixers, where torque absorption is crucial.
✦Description: Comes with a hollow shaft output and a shrink disk connection, which provides secure torque transmission.
✦Application: Used in steel production, heavy-duty cranes, and mining operations, where shock loads and high forces require a strong, slip-resistant connection.
✦Description: Designed with a splined hollow shaft, which offers enhanced torque transfer and load distribution.
✦Application: Found in textile production, conveyor belts, and industrial machinery, where splined shafts improve efficiency and reduce wear.
✦Description: This series features a solid shaft input, making it compatible with a variety of motor types and drive systems.
✦Application: Used in industrial automation, robotic arms, and assembly line operations, where a direct motor connection is needed.
Helical Bevel Gear Motor Parameter Sheet K series.pdf

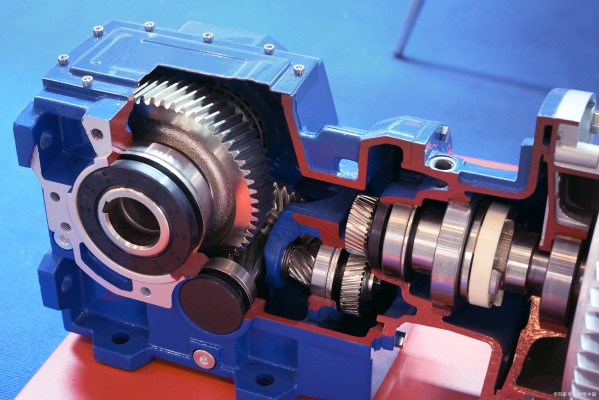

· Torque is the rotational force needed to drive your application.
· Choosing a gear motor with insufficient torque can lead to inefficient performance, overheating, and premature failure.
· Torque (Nm) = Power (kW) × 9550 / Speed (RPM)
· Higher loads require a higher torque output to function properly.
· KH, KHB, KHF, KHZ Series → Ideal for heavy loads and high-torque applications.
· KAH Series → Designed for high-torque industrial processes.
· The gear ratio determines the output speed and torque of the gear motor.
· A higher gear ratio means lower speed but higher torque.
· A lower gear ratio provides higher speed but lower torque.
· If you need precise control at low speeds, select a higher reduction ratio.
· If you need faster rotation with lower torque, opt for a lower reduction ratio.
· KAD Series (Double Reduction) → Ideal for ultra-low speeds and high torque.
· KV, KVB, KVF, KVZ Series (Splined Hollow Shaft Output) → Best for applications requiring smooth power transmission at various speeds.
· The mounting style must fit your machine design and installation space.
· The wrong mounting type can cause misalignment, vibration, and inefficiency.
| Mounting Type | Series | Best For |
|---|---|---|
| Foot-Mounted (Solid Shaft Output) | K Series | Conveyors, crushers, general industrial applications |
| Foot-Mounted (Hollow Shaft Output) | KAB Series | Bulk material handling, mixers |
| Flange-Mounted (Solid Shaft Output) | KF Series (B5 Flange) | Pumps, agitators, fans |
| Flange-Mounted (Hollow Shaft Output) | KAF Series (B5 Flange) | Material processing equipment |
| Compact Flange-Mounted (Hollow Shaft Output) | KAZ Series (B14 Flange) | Small automation systems, robotics |
| Torque Arm Mounted (Hollow Shaft Output) | KAT Series | Belt conveyors, industrial mixers |

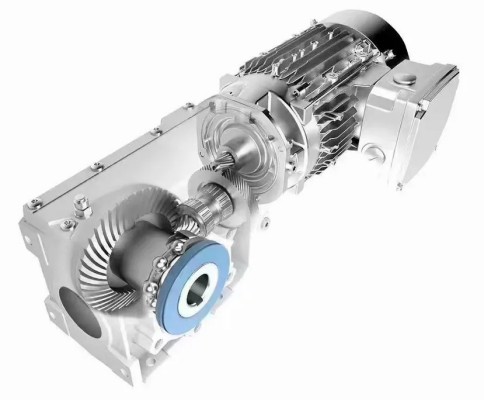

· The gear motor should match the power requirements of your electric motor or drive system.
· Incorrect motor selection can lead to overloading, inefficiency, or mechanical failure.
· Motor Power (kW or HP) → Match the gear motor with your electric motor power rating.
· Voltage & Frequency → Ensure compatibility with AC or DC motor specifications.
· Mounting Compatibility → Check if the motor fits the gear motor's input design.
· K(KA, KF, KAF, KAB, KAZ)S Series (Solid Shaft Input) → Suitable for various motor connections and customization.
· Higher efficiency = Lower operational costs.
· Low-efficiency gear motors waste energy as heat, increasing power consumption.
| Gear Type | Efficiency (%) | Energy Savings |
|---|---|---|
| K Series Helical Bevel Gear Motor | Up to 96% | Very High ✅ |
| Worm Gear Motor | 50% - 70% | Low ❌ |
| Planetary Gear Motor | 90% - 95% | High ✅ |
· KF Series (B5 Flange, Solid Shaft Output) → Offers high torque with minimal power loss.
· KAB Series (Foot-Mounted, Hollow Shaft Output) → Ideal for energy-efficient bulk material handling.
· Operating conditions like temperature, humidity, dust, and exposure to chemicals affect gear motor lifespan.
· Harsh environments require special coatings and corrosion-resistant materials.
| Condition | Recommended Series |
|---|---|
| Heavy Load & Shock Resistance | KH, KHB, KHF, KHZ Series |
| Corrosive Environments | KAB Series (Hollow Shaft Output) |
| High-Temperature Areas | KAH Series (High Torque Design) |
· Proper maintenance reduces downtime and increases the gear motor’s lifespan.
· Choosing a low-maintenance gear motor saves money on repairs and replacements.
· KHB Series (Hollow Shaft Output, Shrink Disk) → No need for frequent realignment.
· KVF Series (Splined Hollow Shaft Output) → Reduced wear due to smooth power transmission.
· Expert Consultation: Our technical experts provide personalized recommendations to help you choose the right motor for your application.
· Fast Delivery: We maintain a large inventory of Yongzhuan K Series motors for quick turnaround times.
· Reliable After-Sales Support: Our dedicated customer service team offers support for installation, maintenance, and spare parts.
· Competitive Pricing: Get high-quality performance at an affordable price, making Yongzhuan a smart investment.
| Feature | Yongzhuan Helical Bevel Gear Motors | Other Helical Bevel Gear Motors |
|---|---|---|
| Efficiency | Up to 96% | Up to 94% |
| Torque Range | 0.18 - 1000 Nm | 0.12 - 900 Nm |
| Mounting Options | Foot, Flange, Shaft-mounted | Foot, Flange-mounted |
| Customization Options | Tailored gear ratio, power, and design | Limited customization options |
| Noise Level | Low noise operation | Moderate noise |
| Construction Material | Hardened steel for long-lasting durability | Standard steel |
| Speed Range | 1:5 to 1:100 speed reduction ratios | 1:5 to 1:80 speed reduction ratios |
| Vibration Level | Minimal vibration due to precise gears | Higher vibration in certain models |
| Application Versatility | Ideal for conveyors, pumps, packaging, and robotics | Best for light-duty applications |
| Energy Efficiency | High energy-saving performance | Moderate energy-saving |
| Service Life | Longer due to superior material quality | Standard service life |
| Warranty | 2-3 years warranty | 1-2 years warranty |
| Maintenance Requirements | Low maintenance due to high precision gears | Higher maintenance |
| Pricing | Competitive pricing with premium features | Generally lower pricing with fewer features |
Foot-mounted gear motors are bolted to a base, while flange-mounted motors are secured using a flange for space-saving applications.
Calculate the required speed and torque using:
· Torque (Nm) = Power (kW) × 9550 / Speed (RPM)
K Series motors achieve up to 96% efficiency, significantly reducing energy consumption.
Yes! KH, KHB, KHF, and KHZ series are designed for heavy-duty applications.
Yes, regular lubrication improves performance and extends lifespan.
Yes, stainless steel versions are available for food-grade applications.
Looking for a high-performance K Series helical bevel gear motor? Contact Yongzhuan today for customized solutions and expert advice!
