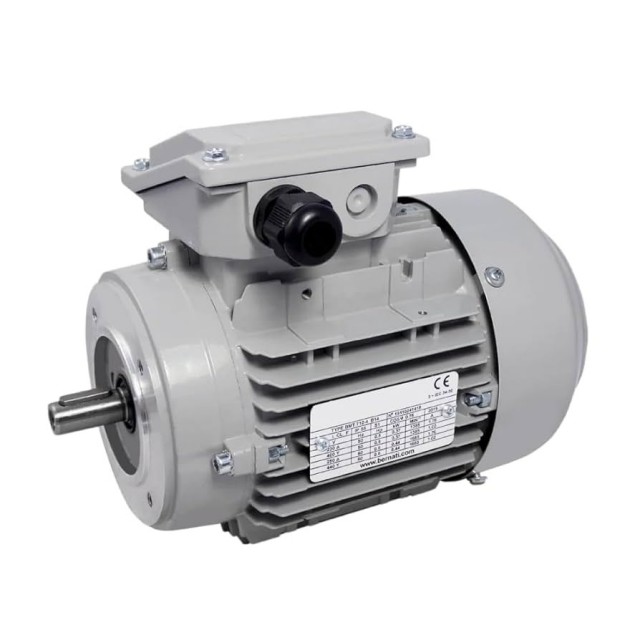

Introduction to 0.16 HP / 0.12 KW 3-Phase Motor
In the world of electric motors, even small ratings like 0.16 horsepower (HP) or 0.12 kilowatt (KW) play a vital role in powering light-duty applications. While these motors may not pack the punch of larger industrial units, they are incredibly useful in scenarios where compact size, efficiency, and reliability are more important than brute force.
A 3-phase motor of 0.16 HP / 0.12 KW is a low-power motor, but thanks to its 3-phase design, it provides smoother operation, higher efficiency, and better torque control compared to single-phase alternatives of similar power(CLICK TO CHECK single-phase vs. three-phase motors). These motors are widely used in small machinery, pumps, fans, laboratory equipment, conveyor systems, and automation setups where consistent performance is required without consuming excessive energy.
But what makes this small motor truly special is its balance between efficiency and practicality. Despite its low power rating, it can operate continuously for long hours without overheating, provided it is installed and maintained correctly.
In this article, we’ll explore the specifications, design, applications, advantages, and buying guide for the 0.16 HP / 0.12 KW 3-phase motor, helping you understand why this compact powerhouse might be exactly what you need.
What Does 0.16 HP / 0.12 KW Mean?
To fully understand the motor’s rating, let’s break it down:
· Horsepower (HP): A traditional measurement of power, often used in the U.S. and some other regions.
· Kilowatt (KW): The SI unit of power, widely used worldwide.
The conversion factor is:
1 HP ≈ 0.746 KW
So, 0.16 HP ≈ 0.12 KW, which confirms that the two values represent the same motor power capacity in different units.
This rating indicates that the motor is designed for low-power applications—not for heavy lifting or running massive industrial machinery, but for precision-driven small systems that need reliability, efficiency, and steady torque output.
Even at this small size, a 3-phase motor outperforms most single-phase motors of the same rating because it offers:
· Constant torque delivery
· Lower current per phase (reducing electrical losses)
· Improved lifespan due to less vibration and wear
Think of it as the difference between a sports car engine finely tuned for efficiency versus a basic scooter engine—both may move you forward, but one does so with greater smoothness, precision, and reliability.
Why Choose a 3-Phase Motor for Small Power Applications?
At first glance, one might think that single-phase motors are more than enough for such a low-power rating. However, in many applications, a 3-phase 0.16 HP / 0.12 KW motor makes far more sense. Here’s why:
1. Smooth Performance:
A 3-phase motor generates a rotating magnetic field, leading to balanced torque without pulsations. This is essential in applications like lab equipment or precision conveyors, where vibration can affect accuracy.
2. Energy Efficiency:
Even at small power levels, 3-phase motors tend to be more energy-efficient, consuming less power over long operational hours.
3. Reliability:
With fewer parts like capacitors (which single-phase motors depend on), 3-phase motors are generally more robust and require less maintenance.
4. Longer Lifespan:
Reduced stress on electrical windings and bearings means the motor can operate for years with minimal servicing.
5. Better Start-Up Torque:
Unlike single-phase motors that sometimes need auxiliary mechanisms to start, 3-phase motors start reliably even under light load conditions.
So, while the power rating may seem small, choosing a 3-phase configuration offers greater durability, stability, and efficiency, making it the smarter option for industrial and commercial users.
Technical Specifications
When evaluating a 0.16 HP / 0.12 KW 3-phase motor, it’s important to look at its technical details, as these determine where and how it can be used effectively. Despite being a compact motor, it offers a surprising amount of performance consistency and efficiency.
Power Rating and Conversion (HP to KW)
The motor is rated at 0.16 HP or 0.12 KW, which equals roughly 120 watts of mechanical output power. This rating makes it suitable for light-duty applications, where minimal but steady power is required.
For perspective:
Its efficiency is usually around 70–80%, which is impressive for such a small motor. That means most of the energy drawn from the supply is successfully converted into useful motion.
Voltage and Frequency Options
Most 0.12 KW 3-phase motors are designed to operate at:
· 220–240V (Δ connection) / 380–415V (Y connection) at 50 Hz
· Or 230V/460V at 60 Hz, depending on the region.
This dual-voltage feature makes them adaptable to international power grids. Users can wire the motor in star (Y) or delta (Δ) configuration based on the available supply.
Efficiency and Performance Characteristics
· Torque Delivery: Smooth and constant torque, even at low power.
· Speed: Standard speeds are 750 RPM, 1000 RPM, 1500 RPM, and 3000 RPM, depending on the number of poles (e.g., 8-pole, 6-pole, 4-pole, or 2-pole designs).
· Thermal Class: Typically Class F insulation, allowing operation in higher temperature ranges (up to 155°C winding temp rise).
· Duty Cycle: Rated for continuous duty (S1), meaning it can run without rest for long hours.
In essence, the technical makeup of this small motor ensures reliability, adaptability, and smooth operation, making it more than capable of handling small but critical mechanical tasks.
Construction and Design
The construction of a 0.16 HP / 0.12 KW 3-phase motor follows the same engineering principles as its larger counterparts, but with compact dimensions that make it ideal for space-constrained installations.
Rotor and Stator Design

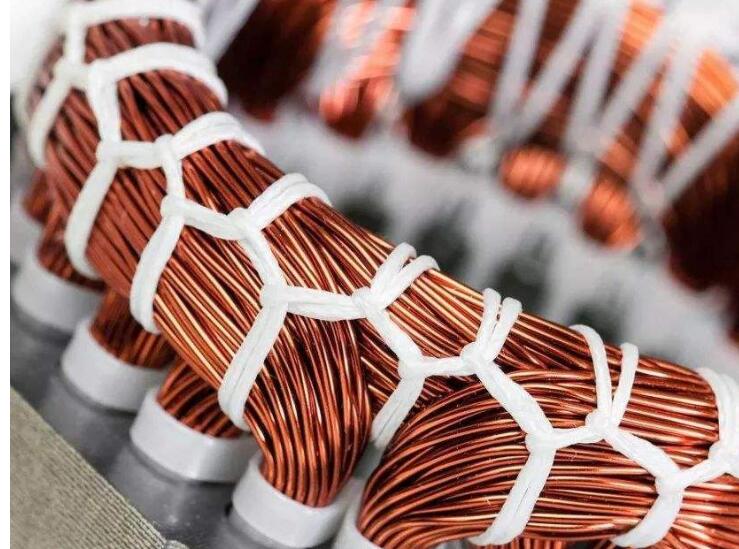

· Stator: Houses the windings, typically made from copper or aluminum conductors embedded in laminated steel sheets to reduce eddy current losses.
· Rotor: Usually a squirrel cage rotor, which is rugged, maintenance-free, and cost-effective.
This combination allows the motor to be self-starting, reliable, and capable of running for long periods without auxiliary mechanisms.
Insulation and Cooling System
To ensure safe operation, the windings are insulated using Class F or Class H insulation materials, protecting against high temperatures.
Cooling is typically achieved via:
A small axial or radial cooling fan attached to the shaft ensures efficient heat dissipation.
Compact Size and Lightweight Features
Since the motor is small, it’s usually housed in a lightweight aluminum frame. This offers:
· Better heat dissipation
· Resistance to corrosion
· Ease of installation (low weight makes handling simple)
Despite being small, the design ensures mechanical strength and thermal efficiency, giving it a service life comparable to much larger motors.
Applications of 0.16 HP / 0.12 KW 3-Phase Motor
While its power rating may seem modest, the applications of this motor are surprisingly diverse. It is commonly used in industries and equipment that require low but continuous power with high efficiency.
Industrial Applications
· Small conveyors: Used in light material handling systems in packaging or food processing.
· Pumps: Perfect for small water pumps, coolant pumps in CNC machines, or dosing pumps.
· Mixers and agitators: For laboratory or light industrial mixing processes.
· Automation systems: Often integrated into pick-and-place robots or assembly line equipment where compact size is essential.
Commercial Applications
· HVAC systems: For driving small fans or blowers in air circulation systems.
· Elevator doors and shutters: Provides smooth and controlled movement.
· Printing and textile machines: Ensures precision movement for lightweight tasks.
Household and DIY Applications
While not common in households directly, small workshops and hobbyists use them in:
This versatility highlights how a small motor can still power essential functions across different industries.
Advantages of Using a Small 3-Phase Motor
So, why would anyone choose a 0.16 HP / 0.12 KW 3-phase motor over other options? The advantages are many:
Energy Efficiency
· Consumes less current per phase compared to single-phase alternatives.
· Higher efficiency translates to lower electricity bills.
· Reduced line losses due to balanced 3-phase operation.
Durability and Low Maintenance
· No starting capacitors or complex mechanisms, meaning fewer parts that can fail.
· Long service life with minimal maintenance if operated under rated conditions.
Smooth Operation and Low Noise
· Provides a constant torque output with minimal vibration.
· Reduced mechanical stress means quieter performance, which is important in labs or commercial environments.
This combination of efficiency, durability, and smooth operation makes it an ideal choice for continuous-duty, low-power applications where reliability is critical.
Comparison with Single-Phase Motors
When choosing between a 0.12 KW 3-phase motor and a single-phase equivalent, it’s important to compare them across several factors.
Efficiency Differences
The difference becomes more significant in long-term operation, where 3-phase motors save energy and reduce costs.
Performance and Load Handling
· 3-phase motors offer better torque and can handle sudden load changes more effectively.
· Single-phase motors struggle with high starting torque unless equipped with extra components like start capacitors.
Cost and Operational Considerations
In simple terms, while single-phase motors may be acceptable for short-term, light-duty tasks, a 3-phase 0.12 KW motor is superior for continuous use, smoother performance, and reliability.
How to Select the Right Motor for Your Needs
Choosing the right 0.16 HP / 0.12 KW 3-phase motor isn’t just about picking the correct power rating. Several practical considerations determine whether the motor will perform effectively and reliably in your application.
Load Type and Duty Cycle
· Continuous Load: If your motor runs for long hours without rest, you need a motor rated for S1 duty (continuous duty).
· Intermittent Load: If the motor only runs for short bursts, like in automatic shutters or small conveyors, then S3 duty cycle may be sufficient.
· Load Type: Consider whether the motor will drive a constant load (like a fan) or a variable load (like a mixer). Motors designed for variable torque loads will last longer under fluctuating demands.
Environmental Conditions
· Temperature: Motors placed in hot environments should have a higher insulation class (Class F or H).
· Dusty or Humid Conditions: Choose a motor with TEFC (Totally Enclosed Fan Cooled) or TENV (Totally Enclosed Non-Ventilated) housing to prevent dust or moisture from damaging the windings.
· Hazardous Areas: If the motor is used in environments with flammable gases or dust, you may need an explosion-proof version.
Installation Space and Mounting Options
Small motors like these are typically available in foot-mounted (B3), flange-mounted (B5), or face-mounted (B14) designs. Choosing the right type ensures:
Tip: Always consider future scalability. If there’s a chance you might need slightly higher torque in the future, opt for a motor model that has a variable frequency drive (VFD) compatibility for speed control and overload handling.
Installation Guidelines
Even the best motor won’t perform well if installed improperly. A 0.16 HP / 0.12 KW 3-phase motor needs to be installed carefully to ensure safety, efficiency, and long life(CLICK TO CHECK HOW TO CONNECT A 3-PHASE MOTOR).
Electrical Wiring Requirements
· Power Supply: Ensure you’re connecting the motor to the correct 3-phase voltage rating (220V Δ / 380V Y at 50Hz, or 230V/460V at 60Hz).
· Star-Delta Wiring: For motors of this size, direct-on-line (DOL) starting is common, but star-delta wiring may be used if required by system design.
· Overload Protection: Always use circuit breakers or thermal relays to protect against short circuits or overloads.
Mounting and Alignment Best Practices
· Ensure the motor is mounted on a rigid, vibration-free base.
· Check alignment with the driven machine using dial indicators or laser alignment tools. Misalignment can cause premature bearing wear.
· Use flexible couplings where slight misalignment cannot be avoided.
Safety Precautions During Installation
· Disconnect the power before connecting or servicing the motor.
· Ensure proper earthing to avoid electric shocks.
· Verify rotation direction before coupling with load—reversing phases can change rotation direction.
Correct installation ensures the motor operates smoothly, efficiently, and safely, reducing long-term repair costs.
Maintenance and Troubleshooting
A 0.12 KW 3-phase motor may be small, but it still requires periodic maintenance to maximize its service life. Neglecting it could result in downtime or costly repairs.
Routine Maintenance Tips
· Lubrication: Bearings in small motors are often sealed-for-life, but if grease nipples are present, lubricate periodically as per manufacturer’s guidelines.
· Dust Cleaning: Use dry compressed air to clean cooling vents and fans to prevent overheating.
· Check Insulation Resistance: Use a megohmmeter to test insulation health at regular intervals.
Common Issues and Solutions
· Overheating: Often due to poor ventilation or overload. Ensure the motor is not overloaded and that cooling fans are functional.
· Excessive Noise: Could be caused by bearing wear, misalignment, or loose mounting bolts.
· Low Torque or Failure to Start: Check for wiring issues, incorrect connections, or defective windings.
Extending the Motor’s Lifespan
· Always run within rated voltage and frequency.
· Avoid frequent start-stop cycles unless designed for that duty.
· Store spare motors in dry, vibration-free environments to avoid damage before installation.
A well-maintained motor can last 10+ years, even with daily use.
Market Availability and Leading Brands
The 0.16 HP / 0.12 KW 3-phase motor is a standard motor rating available from multiple global and regional manufacturers. The choice depends on budget, application, and after-sales support.
Top Manufacturers Offering 0.16 HP Motors
1. Siemens – Known for robust industrial motors.
2. ABB – Offers energy-efficient models with global support.
3. WEG – Popular for compact, durable designs.
4. Victory Motor – The Reliable Underdog of 3-phase Induction Motor
5. Baldor (now ABB) – High-reliability motors for continuous duty.
Warranty and After-Sales Support
· Most manufacturers offer 12–24 months warranty.
· Larger brands provide worldwide spare parts and service networks, which is crucial for industrial users.
· Regional manufacturers may offer customized mounting options at lower prices but may lack global service support.
For buyers, it’s often better to invest in well-established brands, especially if the motor is critical to operations.
Cost and ROI Analysis
The cost of a 0.12 KW 3-phase motor varies depending on brand, features, and region. Typically, the price range is:
Initial Investment vs. Long-Term Savings
Although 3-phase motors are slightly more expensive than single-phase motors of similar power, they save money in the long run by:
Suitability for Energy-Conscious Users
For businesses or workshops that run motors for long hours, even a small energy saving adds up. Over 5 years, a 3-phase 0.12 KW motor can save hundreds of dollars in electricity bills compared to a single-phase equivalent.
Thus, the ROI (Return on Investment) is favorable, especially in industrial and commercial environments.
Future Trends in Small 3-Phase Motors
The world of electric motors is evolving rapidly, and even small motors like the 0.16 HP / 0.12 KW 3-phase motor are being upgraded with advanced technologies.
Integration with Smart Technology
Motors are no longer just mechanical devices. With the rise of Industry 4.0, small motors are being fitted with:
· Sensors that monitor temperature, vibration, and performance in real time.
· IoT connectivity to send data to cloud-based platforms for predictive maintenance.
· Smart controllers that adjust speed and torque automatically based on load conditions.
This means future motors will not only power machines but also communicate and optimize themselves, reducing downtime.
Energy-Efficient Designs
Governments worldwide are pushing for higher IE efficiency classes (IE2, IE3, IE4 motors). Even for small motors, efficiency upgrades can significantly cut overall electricity consumption. Expect 0.12 KW 3-phase motors to become even more eco-friendly with advanced winding materials and better cooling systems.
Eco-Friendly Manufacturing and Sustainability
Motor manufacturers are focusing on:
· Recyclable materials for housings and windings.
· Reduced rare-earth magnet usage, making motors more sustainable.
· Compact, lightweight frames to lower transportation emissions.
In short, the future of small 3-phase motors is moving towards smart, green, and highly efficient designs, ensuring long-term relevance in industries worldwide.
Conclusion
The 0.16 HP / 0.12 KW 3-phase motor may be small in size, but it plays a big role in powering countless machines across industrial, commercial, and even DIY applications. With advantages like high efficiency, durability, low maintenance, and smooth operation, it stands out as the preferred choice over single-phase alternatives for continuous-duty tasks.
Whether used in conveyors, pumps, HVAC systems, or automation equipment, this motor provides reliable performance while keeping energy costs low. Proper selection, installation, and maintenance can ensure it delivers consistent service for over a decade.
As industries shift towards smart automation and sustainable practices, the role of small but powerful 3-phase motors will only grow. They will continue to drive innovation while reducing operational costs and environmental impact.
So, if you’re considering a compact yet reliable power solution, the 0.12 KW 3-phase motor is a smart investment with long-term benefits.
FAQs
1. What is the power rating of a 0.16 HP / 0.12 KW 3-phase motor in watts?
The motor is rated at 120 watts, which is enough to power small industrial and commercial equipment requiring light but continuous torque.
2. Can a 0.12 KW 3-phase motor run on single-phase power?
Not directly. You would need a phase converter or VFD (Variable Frequency Drive) to run it on a single-phase supply.
3. What are the most common applications of this motor?
They are commonly used in small conveyors, pumps, fans, mixers, textile machinery, and light automation systems.
4. How long does a small 3-phase motor last?
With proper maintenance, these motors can last 10–15 years, even with daily operation.
5. Which brands are best for buying a 0.12 KW 3-phase motor?
Top brands include Siemens, ABB, WEG, Victory-motor, and Baldor, known for reliability and global service networks.
