Introduction to 50 HP / 37 KW 3-Phase Motors
In modern industries, powerful machines keep operations moving day and night. Behind many of these machines is a robust piece of equipment: the 50 HP / 37 KW 3-phase motor.
This motor size is widely used in medium to heavy industrial applications. It offers the right balance between power, durability, and energy efficiency. Whether it's driving large pumps, compressors, conveyors, or ventilation systems, this motor delivers reliable performance.
But what exactly makes a 50 HP motor so powerful and dependable? Let’s break it down step by step.

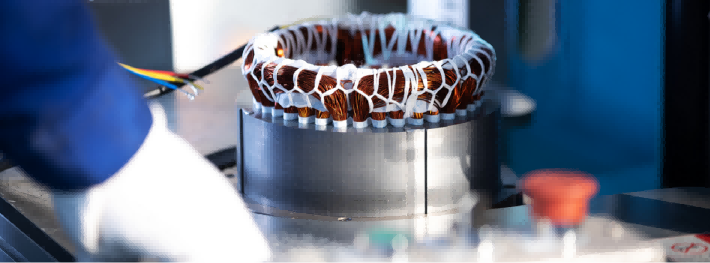

![定子铁芯]( "定子铁芯")
Understanding Motor Power Ratings
Before diving deeper, it’s important to understand what the numbers 50 HP / 37 KW actually represent.
What is Horsepower (HP)?
Horsepower is a unit of power originally used to compare the work done by machines with the strength of horses.
In electrical motors:
1 HP = 746 watts
So a 50 HP motor can produce about 37,300 watts of mechanical power.
What is Kilowatt (KW)?
Kilowatt is the standard international unit for electrical power.
1 KW = 1000 watts
Because of this, industrial motors are often rated in both HP and KW to make specifications clear worldwide.
Converting HP to KW
The general conversion formula is:
1 HP ≈ 0.746 KW
Therefore:
50 HP ≈ 37 KW
This is why motors are labeled 50 HP / 37 KW.
How a 3-Phase Motor Works
Three-phase motors dominate industrial applications because they provide smooth, efficient, and powerful operation.
Rotating Magnetic Field Principle
Inside the motor, the stator contains electrical windings. When electricity flows through these windings, a rotating magnetic field is created.
This rotating field interacts with the rotor, causing it to spin and produce mechanical motion.
Think of it like a magnetic whirlpool pulling the rotor around continuously.
Role of Three-Phase Electricity
Three-phase electricity supplies power through three alternating currents, each separated by 120 degrees.
This results in:
That’s why industrial facilities prefer three-phase motors over single-phase alternatives.
Key Specifications of a 50 HP / 37 KW Motor
Several technical specifications define how the motor performs in real-world conditions.
| 额定功率 (kW / HP) | 机座号 (Frame Size) | 极数 (Pole) | 额定转速 (RPM) 50Hz / 60Hz | 效率 (100%) IE2 / IE3 / IE4 | 功率因数 (COS$\phi$) IE2 / IE3 / IE4 | 额定转矩 (N.m) | 重量 (kg) (参考) |
| 37 / 50 | 200L | 2 | 2960 / 3552 | 92.8 / 93.7 / 94.8 | 0.90 / 0.90 / 0.90 | 119.4 | 260 |
| 37 / 50 | 225S | 4 | 1480 / 1776 | 93.1 / 93.9 / 95.2 | 0.87 / 0.87 / 0.86 | 238.8 | 305 |
| 37 / 50 | 250M | 6 | 985 / 1182 | 92.3 / 93.3 / 94.7 | 0.83 / 0.82 / 0.81 | 358.5 | 455 |
| 37 / 50 | 280S | 8 | 740 / 888 | 91.3 / 92.5 / 94.1 | 0.79 / 0.78 / 0.77 | 477.5 | 560 |
Core Motor Specifications & Performance
Environmental & Operational Compatibility
1. Site Conditions
Victory motors operate reliably in most industrial environments:
Temperature range: -15°C to +40°C (ideal for warehouses, factories, and outdoor shelters)
Altitude: ≤1000 meters (compatible with urban plants, rural workshops, and low-to-moderate elevation facilities)
This versatility makes them suitable for global applications in non-extreme climates, with custom modifications available for extreme temperatures (-40°C to +50°C) or high-altitude sites (>1000m).
2. Insulation System
The motor’s insulation meets Class F (105K) performance standards (rated for 155°C continuous operation) and is validated via Class B (80K) testing. This dual compliance ensures an extended lifespan (20,000+ operating hours) and consistent reliability in 24/7 continuous-duty scenarios (e.g., manufacturing lines, water treatment pumps). For extreme-heat applications (e.g., foundries), Class H insulation (180°C max) is available as a customization.
3. Vibration & Noise Control
Engineered to Vibration Class A (low noise, minimal mechanical wear), our motors are ideal for precision equipment like packaging machines or medical tools. For quieter environments (e.g., laboratories) or sensitive instrumentation, Vibration Class B (smoother operation) can be requested to reduce operational disturbance.
4. Duty Cycle
Designed for Continuous Duty (S1) operation, our motors run indefinitely at rated load without overheating—perfect for non-stop applications: industrial pumps, ventilation fans, conveyor systems, and heavy machinery.

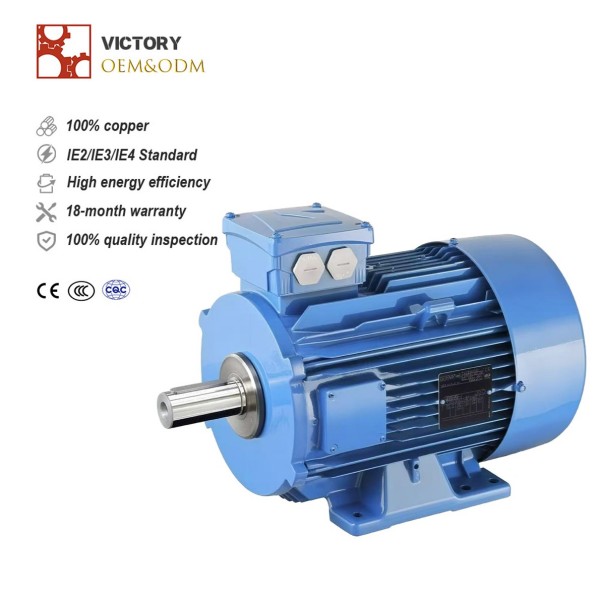

![3 phase motor blue]( "3 phase motor blue")
Electrical & Protective Features
1. Voltage & Frequency
Standard specifications: 380V/50Hz (global industrial grid standard). Customization options include:
Single voltages: 200V–660V (e.g., 220V/60Hz for North America, 230V/50Hz for Europe)
Frequency: 50/60Hz (or custom tuning for specialized needs like 400Hz aerospace applications)
Motors maintain optimal performance even with ±5% voltage fluctuations—critical for unstable power grids in remote or developing regions.
2. Motor Protection
Enhance safety and reduce downtime with optional PTC thermistors (overheat protection) or PT100 temperature sensors (real-time monitoring). These components trigger alerts or automatic shutdowns during overheating, preventing damage in high-load applications (compressors, conveyors) and lowering long-term repair costs.
3. Protection Class
Standard IP54/IP55 Ingress Protection (dust-tight, water-resistant) safeguards against particles and low-pressure water jets—ideal for humid/dusty workspaces (food processing plants, construction sites). For harsh environments (heavy rain, washdowns), IP65 (full dust tightness + high-pressure water resistance) is available on request.
4. Cooling & Ventilation
Victory-Motor uses Totally Enclosed Fan-Cooled (TEFC) technology (per IEC 60034-6, IC411):
Seals the motor to block dust, moisture, and debris (critical for farms, mines, or dirty industrial areas)
External fans ensure efficient heat dissipation, maintaining stable temperatures in high-torque, long-duration tasks
![Motor 3 phase]( "Motor 3 phase")
Construction & Material Quality
1. Winding
Constructed with 100% high-purity copper wire (not aluminum), our windings offer:
Superior electrical conductivity (reduces energy loss and utility bills)
Enhanced heat resistance (extends motor life in continuous operation)
Better performance in high-load, long-duration tasks compared to alternative materials
2. Output Shaft
Standard cylindrical shaft with keyway; we offer custom shaft diameter/length (e.g., extended shafts for specific couplings, non-standard key sizes) to fit your equipment’s unique requirements.
![Wiring Methods]( "Wiring Methods")
Wiring Methods of 3-Phase Motor
Here’s a clear explanation of the two three-phase motor wiring methods:
Star (Y) Connection
· Wiring Setup: The motor’s three winding ends (U2, V2, W2) are connected together (forming a "star" center point), while the three start ends (U1, V1, W1) connect to the three-phase power supply.
· Key Electrical Traits: Line voltage (power supply voltage) is √3x winding voltage; line current equals winding current.
· Common Use Case: Used for motors designed for high-voltage input (e.g., 380V supply with 220V windings) or to reduce startup current (e.g., in light-load applications like fans or small pumps).
Delta (△) Connection
· Wiring Setup: The motor’s winding ends are connected in a closed loop: U2 to V1, V2 to W1, W2 to U1. The three-phase power supply connects to the junction points (U1, V1, W1).
· Key Electrical Traits: Line voltage equals winding voltage; line current is √3x winding current.
· Common Use Case: Used for motors designed for low-voltage input (e.g., 220V supply with 220V windings) or high-torque applications (e.g., compressors, conveyors, heavy machinery).
Victory-Motor’s Manufacturing & Quality Assurance
1. Sufficient Raw Material Inventory
Victory-Motor maintains a robust, high-grade raw material inventory (premium copper windings, high-strength steel laminations, durable aluminum housings) sourced from certified global suppliers. This eliminates production delays, enables quick responses to urgent orders or sudden demand spikes, and ensures your projects stay on schedule—whether you need standard models or custom solutions.
2. Professional Production Equipment & Assembly Lines
Victory-Motor workshop features state-of-the-art equipment:
CNC machining centers (precision component manufacturing)
Automatic winding machines (consistent coil quality)
Intelligent testing systems (real-time performance validation)
Fully automated assembly lines reduce human error, boost production efficiency, and ensure every motor meets international quality standards. We continuously upgrade equipment to align with the latest industry advancements.
3. 100% Quality Inspection
Quality is Victory-Motor cornerstone. Victory-Motor implements rigorous 100% inspection across the entire production process:
Raw material verification (ensures compliance with specifications)
In-process checks (monitors component accuracy)
Final testing (assesses efficiency, torque, vibration, and insulation resistance via dynamometers, testers, and analyzers)
Adhering to the ISO 9001 quality management system, Victory-Motor guarantees defect-free motors that perform optimally in your applications.
![yongzhuan&victory motor]( "yongzhuan&victory motor")
Customization & Delivery Solutions
1. OEM/ODM Services
Victory-Motor offers comprehensive OEM/ODM services tailored to your unique needs:
Collaborate with our engineers from design to final production
Customize power, speed, size, voltage, housing, or branding (produce under your logo)
Transparent processes and strict IP protection (confidentiality agreements included)
Leveraging our R&D and production expertise, we deliver cost-effective, high-performance solutions that align with your business goals.
2. Export-Standard Packaging & Delivery
Victory-Motor uses ISPM 15-compliant export-standard wooden boxes (high-density, moisture-resistant plywood) with foam padding and plastic wrapping for internal protection. This packaging:
Complies with global customs regulations
Prevents damage from impact, humidity, or rough transit
Can be customized for large/special-shaped orders
You can trust your motors will arrive on time and in perfect working condition, no matter your global destination.
3. Quality Assurance & Warranty
Every motor is built to ISO 9001 standards, ensuring consistent manufacturing quality and compliance with global industrial regulations. We back our products with an 18-month warranty: if a motor is damaged by non-human factors (e.g., manufacturing defects) within this period, we replace it free of charge.
![ex motor]( "ex motor")
Parameter Table
Item | Specifications | Description | Customized items |
Motor Type | Three phase AC motor (squirrel-cage type) |
|
|
Motor Standard | IEC60034 | It is a standard for rotating motors formulated by IEC. |
|
Efficiency Level | IE2 / IE3 / IE4 | It meet IE2 IE3 IE4 energy efficiency grade of IEC60034. |
|
Voltage | 110/200/220/230/240/380/400/415/440/460/480/ 660/ 690V | The motors can work well within variations of ±5% from rated voltage. | It can be customized according to the voltage in your country |
Frequency | 50/60Hz | The motors can work in 50Hz or 60Hz. | It can be customized according to the frequency in your country |
Degree of protection | IP55 | The motor has dust-proof and water-proof performance of level 5. It is suitable for industrial scenarios where there is dust (diameter ≥ 1mm) and low-pressure water spraying. | It can be customized as IP65 |
Insulation Class | F | The maximum temperature that insulating materials can withstand for a long time is 155℃. | It can be customized as H |
Operating mode | S1 | Continuous working system |
|
Cooling Method | TEFC | Totally enclosed fan cooled in accordance with IC411 of IEC60034. |
|
Site Conditions | Temperature: -15°C to +40°C Altitude: ≤ 1000 m |
| It can be customized for environments with higher or lower temperature, and over 1000 meters. |
Winding | 100% copper wire |
|
|
Motor Protection | PTC/PT100 | PTC: thermistors protection PT100: resistance thormometers protection | As option |
Output Shaft | Standard size | Cylindrical with key | The diameter and length of shaft can be customized |
Paint color | Blue / Gray |
| It can be customized |
Nameplate | Victory brand standard |
| It can be customized |
Quality Assurance | ISO 9001 Quality System | Strict quality management standard, 100% quantity inspected |
|
Warranty Period | 18 months | We offer a new motor for free if the motor is damaged due to non-human factors within 18 months. |
|
Types of 50 HP Three-Phase Motors
Not all motors are identical. Different designs serve different applications.
Induction Motors
Induction motors are the most widely used industrial motors.
They are valued for their:
Simple construction
Long lifespan
Low maintenance
High reliability
Most 50 HP motors in factories are squirrel cage induction motors.
Synchronous Motors
Synchronous motors run at exact constant speed, regardless of load changes.
They are often used in:
Precision manufacturing
Power factor correction
Large industrial drives
Explosion-Proof Motors
In hazardous environments such as oil and gas plants, explosion-proof motors are essential.
These motors are built to contain sparks or internal explosions, preventing ignition of flammable gases.
Major Industrial Applications
The 50 HP / 37 KW motor powers many types of heavy industrial equipment.
Industrial Pump Systems
Large pumps in water treatment plants and oil pipelines rely on motors of this size.
They move huge volumes of liquid efficiently.
Air Compressors
Air compressors require strong torque to compress air for industrial processes.
A 50 HP motor provides consistent power for these systems.
Conveyor Systems
Manufacturing plants use conveyors to transport materials and products.
This motor size can drive long conveyor lines with heavy loads.
Industrial Fans and Blowers
Large fans used in factories, mines, and ventilation systems require powerful motors to move massive amounts of air.
Advantages of a 50 HP / 37 KW Motor
Why are these motors so widely used in industry?
High Power Output
With 50 horsepower, the motor can drive heavy machinery with ease.
It provides strong torque and reliable operation.
Efficient Energy Use
Three-phase motors convert electricity into mechanical power very efficiently.
This helps reduce energy costs in large industrial facilities.
Reliable Operation
Industrial motors are built for continuous duty operation, often running 24 hours a day.
Durability is one of their greatest strengths.
Energy Efficiency Standards
Energy efficiency is increasingly important in industrial systems.
IE Efficiency Classes
Motors are categorized based on efficiency levels:
Most modern industrial motors meet IE3 efficiency standards.
Energy Saving Benefits
Higher efficiency motors reduce:
Energy consumption
Operating costs
Heat generation
Over time, these savings can be substantial.
Installation Requirements
Proper installation ensures safe operation and long service life.
Electrical Setup
Important considerations include:
Correct voltage supply
Proper grounding
Overload protection
Motor starters or VFDs
Incorrect wiring can damage the motor quickly.
Mechanical Mounting
Motors must be securely mounted to reduce vibration.
Common mounting methods include:
Foot mounting
Flange mounting
Accurate alignment with driven equipment is essential.
Cooling Requirements
Motors generate heat during operation.
Adequate ventilation and cooling prevent overheating and maintain efficiency.
Maintenance Best Practices
Routine maintenance keeps motors operating smoothly.
Bearing Lubrication
Bearings must be lubricated periodically to prevent friction and wear.
Insulation Testing
Electrical insulation protects the stator windings.
Regular testing helps detect problems before failure occurs.
Alignment and Vibration Monitoring
Misalignment can cause excessive vibration and shorten motor life.
Regular inspections help maintain proper alignment.
Common Motor Problems and Solutions
Even the best motors can experience issues over time.
Overheating
Possible causes include:
Overloading
Poor ventilation
Voltage imbalance
Starting Failures
If the motor won’t start, the cause could be:
Faulty starter
Low voltage
Damaged windings
Excessive Noise
Noise often indicates mechanical problems such as worn bearings.
Early diagnosis prevents serious damage.
![业务。]( "业务。")
Selecting the Right 50 HP Motor
Choosing the right motor requires careful consideration.
Load Characteristics
Different machines require different torque profiles.
Always match the motor to the load requirements.
Environmental Factors
Harsh environments may require special features like:
Duty Cycle Considerations
Motors are designed for different operating patterns:
Continuous duty
Intermittent duty
Heavy-duty cycles
Selecting the correct rating ensures reliable performance.
Safety Guidelines for Industrial Motors
Safety should always come first.
Important safety measures include:
These steps prevent accidents and equipment damage.
Future Trends in Industrial Motor Technology
Motor technology continues to evolve rapidly.
Emerging innovations include:
Smart motors with built-in sensors
IoT-based predictive maintenance
Higher efficiency standards
Integration with variable frequency drives (VFDs)
These technologies improve performance while reducing downtime.
Conclusion

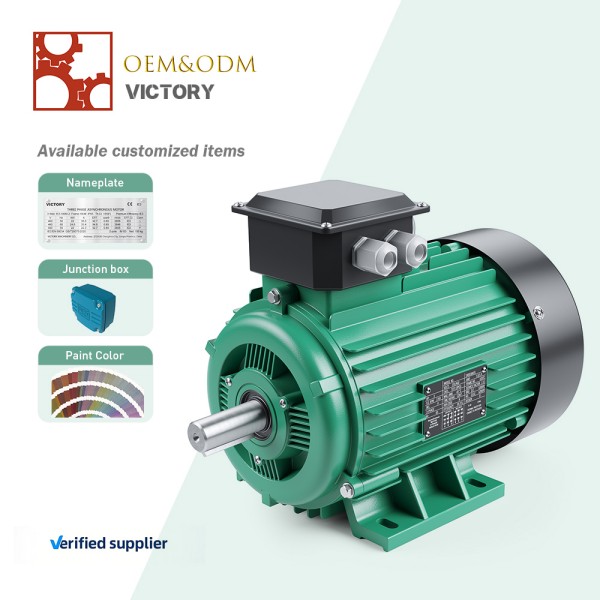

The 50 HP / 37 KW 3-phase motor is a powerful and dependable workhorse in modern industry. Its ability to deliver strong torque, high efficiency, and continuous operation makes it ideal for demanding applications.
From pumps and compressors to conveyors and industrial fans, this motor plays a critical role in keeping industrial systems running smoothly. With proper installation and maintenance, a 50 HP motor can provide years of reliable service and excellent performance.
In many ways, it’s the silent engine driving modern manufacturing and heavy industry.
FAQs
1. What voltage does a 50 HP 3-phase motor use?
Most operate on 380V, 400V, 415V, 440V, or 460V three-phase power, depending on regional standards.
2. How much current does a 50 HP motor draw?
At 460V, a typical 50 HP motor draws approximately 65 amps, though exact values vary by efficiency and design.
3. How efficient is a 50 HP motor?
Modern motors typically achieve 93–96% efficiency, especially those rated IE3 or IE4.
4. Can a 50 HP motor run continuously?
Yes. Most industrial motors are designed for continuous duty operation (24/7) if properly cooled and maintained.
5. What industries commonly use 50 HP motors?
They are widely used in manufacturing, water treatment, mining, oil and gas, HVAC systems, and agriculture.
