Practical Guide To Cycloidal Reducer for Reactor Agitator

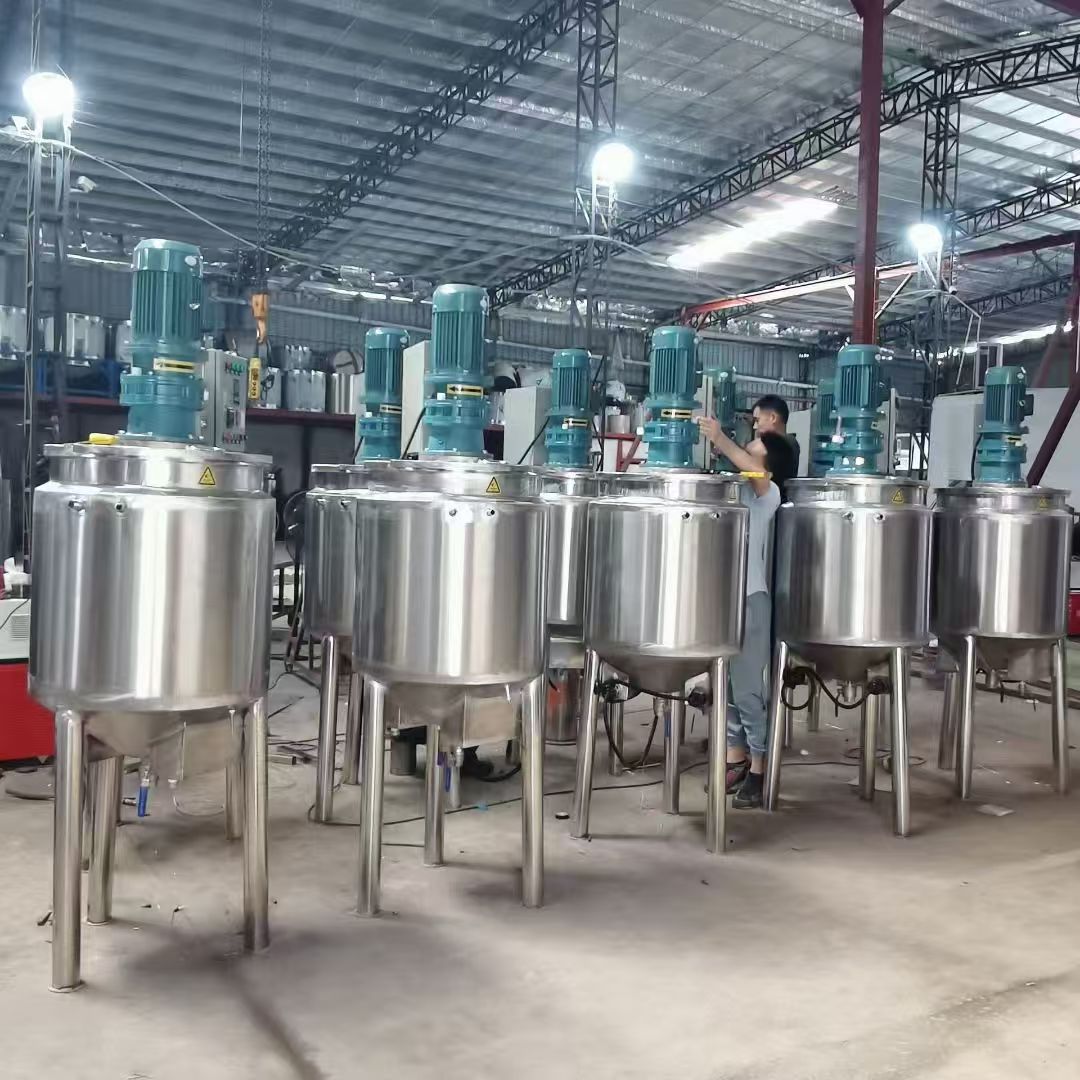

Reactor agitators are widely used in chemical processing, pharmaceuticals, food production, coatings, resins, and many other industrial mixing systems. In these applications, the drive system is not just a supporting component. It directly affects mixing efficiency, equipment reliability, and long-term maintenance cost.

Among different transmission solutions, the Cycloidal reducer is often considered one of the most practical choices for reactor agitator applications. The reason is simple: reactor agitators usually require low output speed, high torque, continuous duty, and strong resistance to shock load. These are exactly the conditions where a Cycloid reducer performs well.

This article is a practical guide for equipment manufacturers, project contractors, distributors, and industrial buyers who are evaluating a Cyclo drive gearbox for reactor agitator systems. We will explain why this reducer is commonly used, what technical points matter most, and how to select the right model for a real project.

Why Reactor Agitator Drive Selection Matters

In a reactor agitator, the motor provides the input power, but the reducer determines whether the system can deliver the right output speed and torque in a stable and reliable way.

A wrong reducer selection can create many problems in real operation. Some of the most common issues include unstable mixing speed, overheating, abnormal vibration, premature bearing wear, oil leakage, and even mechanical failure under heavy load. In industrial plants, these problems do not only increase maintenance cost. They can also interrupt production and affect product consistency.

This is why reducer selection for a reactor agitator should never be based only on price or reduction ratio. It must be based on actual working condition.

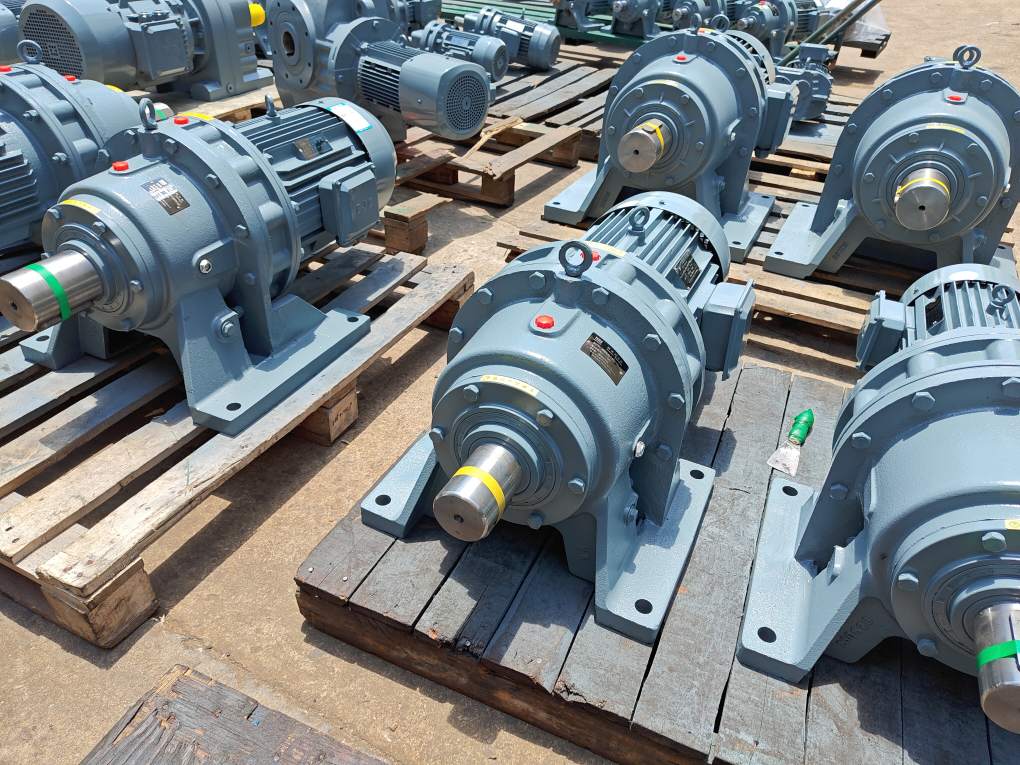

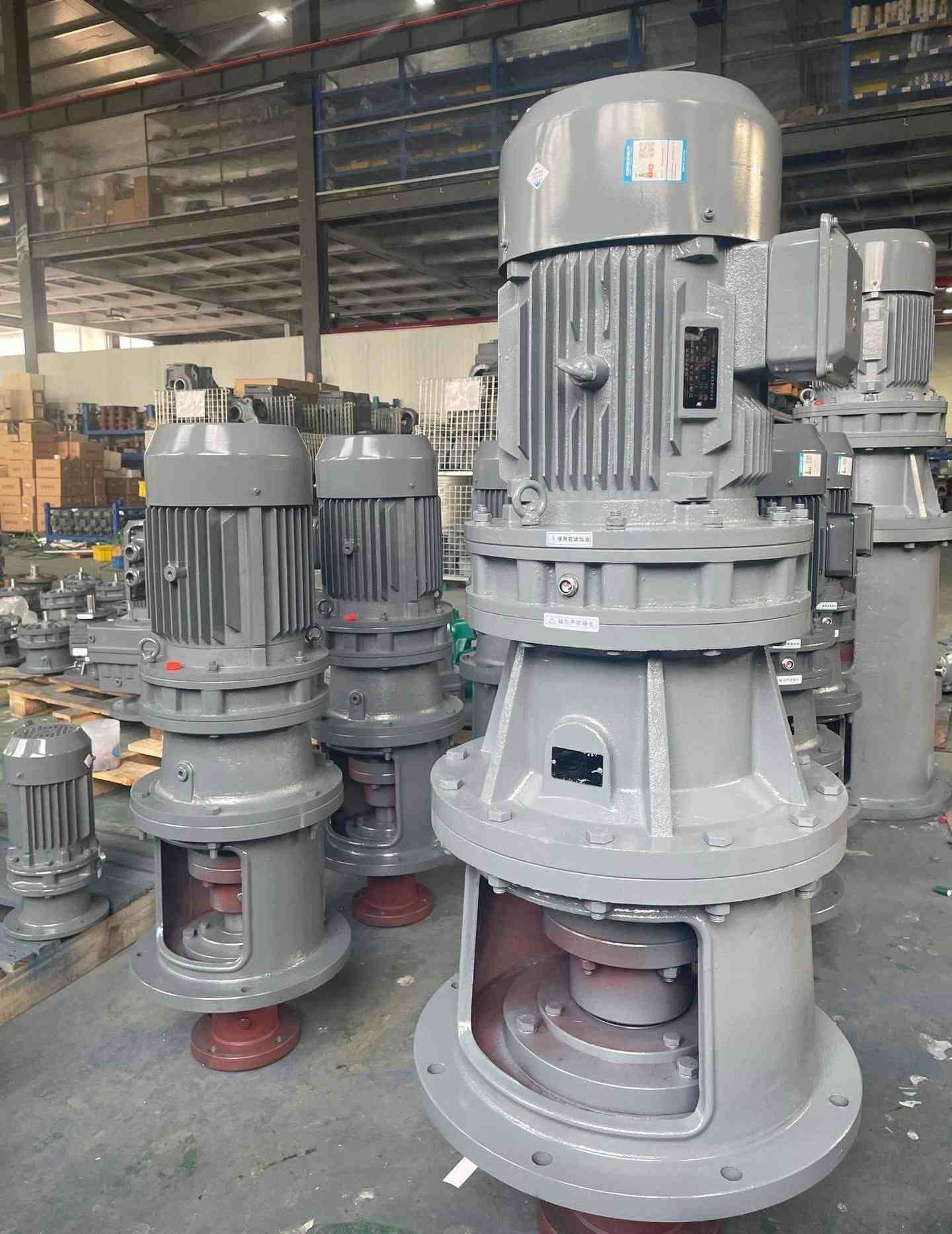

What Is a Cycloidal Reducer

A Cycloidal gear reducer is a type of speed reducer that uses a cycloidal disc and pin wheel transmission mechanism. Unlike traditional gear reducers that rely on tooth-to-tooth meshing, the cycloidal design distributes the load through multiple contact points at the same time.

This design gives the Cycloidal speed reducer several important advantages. It can deliver high torque in a compact body, handle shock load well, and maintain reliable performance in demanding industrial environments.

Because many contact points share the load, the internal stress on each part is reduced. This is one of the key reasons why a Cycloidal transmission is often used in heavy-duty and continuous-duty applications like reactor agitators.

Why Cycloidal Reducer Is Suitable for Reactor Agitator

Reactor agitators are different from light-duty equipment such as fans or simple conveyors. Their load often changes during operation. In many cases, the agitator starts with material already inside the tank. If the medium is viscous, the starting resistance can be high. During the reaction process, viscosity may increase or decrease, which means the torque demand may also change.

A Cycloidal reducer is well suited for this type of working condition for several reasons.

1. First, it provides high output torque at low speed. Reactor agitators usually do not require high speed, but they need enough torque to keep the impeller moving steadily through liquid, slurry, resin, or other materials.

2. Second, a Cycloidal drive has strong shock load resistance. In industrial mixing, load fluctuations are common. If the material becomes thicker or if the agitator faces sudden resistance, the reducer must absorb that load change safely.

3. Third, the compact design of a Cyclo drive unit allows equipment manufacturers to achieve high torque output without needing an excessively large gearbox. This is especially useful when installation space is limited.

Typical Working Conditions of Reactor Agitators

To select the right Cycloidal gear reducer, it is necessary to understand the actual application environment.

• Many reactor agitators work continuously for long periods. Some run 8 hours per day, some 16 hours, and some even 24 hours without interruption. Continuous operation places high demands on reducer durability and thermal stability.

• Another important factor is viscosity variation. In chemical reactors, coating production, resin mixing, or pharmaceutical processing, the material inside the tank may become much thicker during the process. This can significantly increase torque demand.

• Starting condition is also critical. Some agitators start under no-load condition, but many start when the vessel is already filled. This means the startup torque requirement can be much higher than the normal running torque.

• Environmental conditions must also be considered. Reactor agitators may operate in humid workshops, chemical environments, or dusty production areas. In such cases, sealing, mounting orientation, and protective design all matter.

Main Advantages of Cycloidal Reducer for Reactor Agitator

One major advantage of a Cycloidal speed gearbox is its high torque density. It can provide large torque output from a relatively compact housing. This helps save installation space and supports more flexible equipment design.

Another important advantage is overload resistance. A reactor agitator may face temporary overload due to process changes, product viscosity, or startup conditions. A properly selected Cycloid reducer usually performs better in these situations than many standard gear reducers.

Long service life is another reason why industrial buyers choose a Cycloidal drive gear motor or reducer. Because the load is shared by multiple contact points, internal stress is more evenly distributed, which helps improve durability.

Maintenance risk is also lower when the reducer is selected correctly. No industrial reducer is completely maintenance-free, but a robust Cycloidal speed drive can reduce the chance of unexpected failure in demanding mixing applications.

How to Select a Cycloidal Reducer for Reactor Agitator

When selecting a Cycloidal reducer for a reactor agitator:

1. The first step is to confirm the motor power. The reducer must match the input motor correctly. In industrial projects, motor power can vary greatly depending on tank volume, agitator blade design, medium viscosity, and process requirement.

2. The second step is to confirm the required output speed. The reducer ratio must be determined according to the target agitator speed, not just the motor speed. For example, if the motor speed is 1450 rpm and the required agitator speed is 50 rpm, the ratio must be selected accordingly.

3. The third step is to evaluate output torque. This is one of the most important points in the whole selection process. Torque depends on motor power, input speed, transmission efficiency, reduction ratio, and service factor. For heavy-duty reactor agitators, nominal torque alone is not enough. A sufficient safety margin should always be considered.

4. The fourth step is to check the service factor. In applications with continuous operation, high-viscosity materials, frequent starts and stops, or shock load, service factor becomes especially important. A reducer that looks acceptable on paper may still fail early if the service factor is too low for the real operating condition.

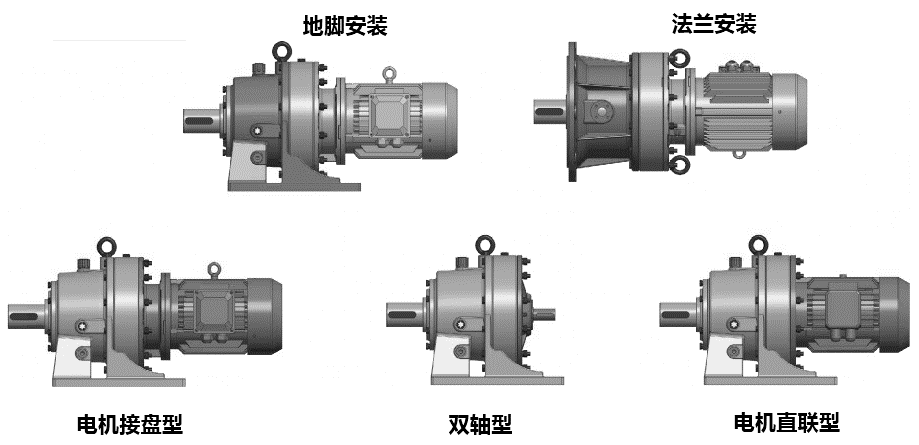

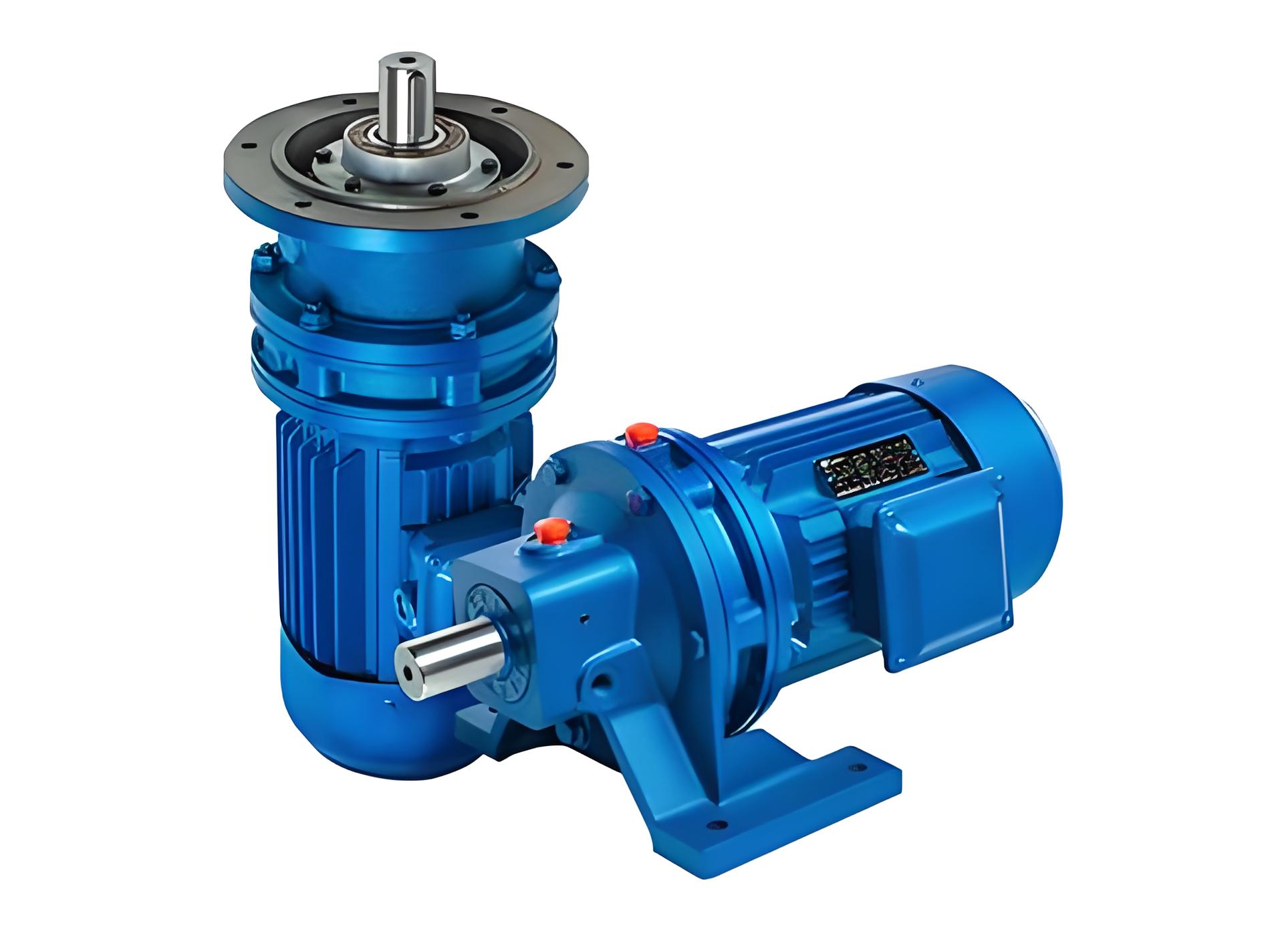

5. The fifth step is to confirm mounting style and dimensional compatibility. Reactor agitators may use vertical flange mounting, horizontal foot mounting, or special shaft arrangements. The reducer must fit the mechanical structure of the equipment.

Important Technical Parameters to Confirm Before Buying

Before asking for a quotation, it is best to prepare complete technical data. This helps the supplier recommend the right Cycloidal gear motor or reducer faster and more accurately.

Important information includes motor power, motor speed, voltage, frequency, required output speed, estimated load or output torque, installation method, and daily working hours.

If the exact torque is not available, it is still helpful to provide application details such as tank size, agitator type, material type, and approximate viscosity. An experienced supplier can use this information to make a more practical recommendation.

It is also important to confirm shaft dimensions, flange type, installation direction, and available installation space. In many projects, dimensional mismatch creates more problems than torque mismatch.

Cycloidal Reducer vs Helical Gear Reducer for Reactor Agitator

Many buyers compare Cycloidal reducer and helical gear reducer when choosing a solution for reactor agitators. Both are widely used in industry, but they are not equally suitable for every application.

A helical gear reducer is often a good choice for applications that require efficient transmission, conventional structure, and relatively smooth operation. However, when the application involves heavy load, variable viscosity, low speed, and shock resistance, a Cycloidal gear reducer often becomes the more practical option.

For reactor agitators with demanding working conditions, the stronger overload resistance and higher torque density of a Cycloidal transmission are major advantages. This is why many industrial mixing applications prefer cycloidal design, especially when reliability matters more than simply choosing the lowest-cost gearbox.

Common Applications of Cycloidal Reducer in Reactor Agitator Systems

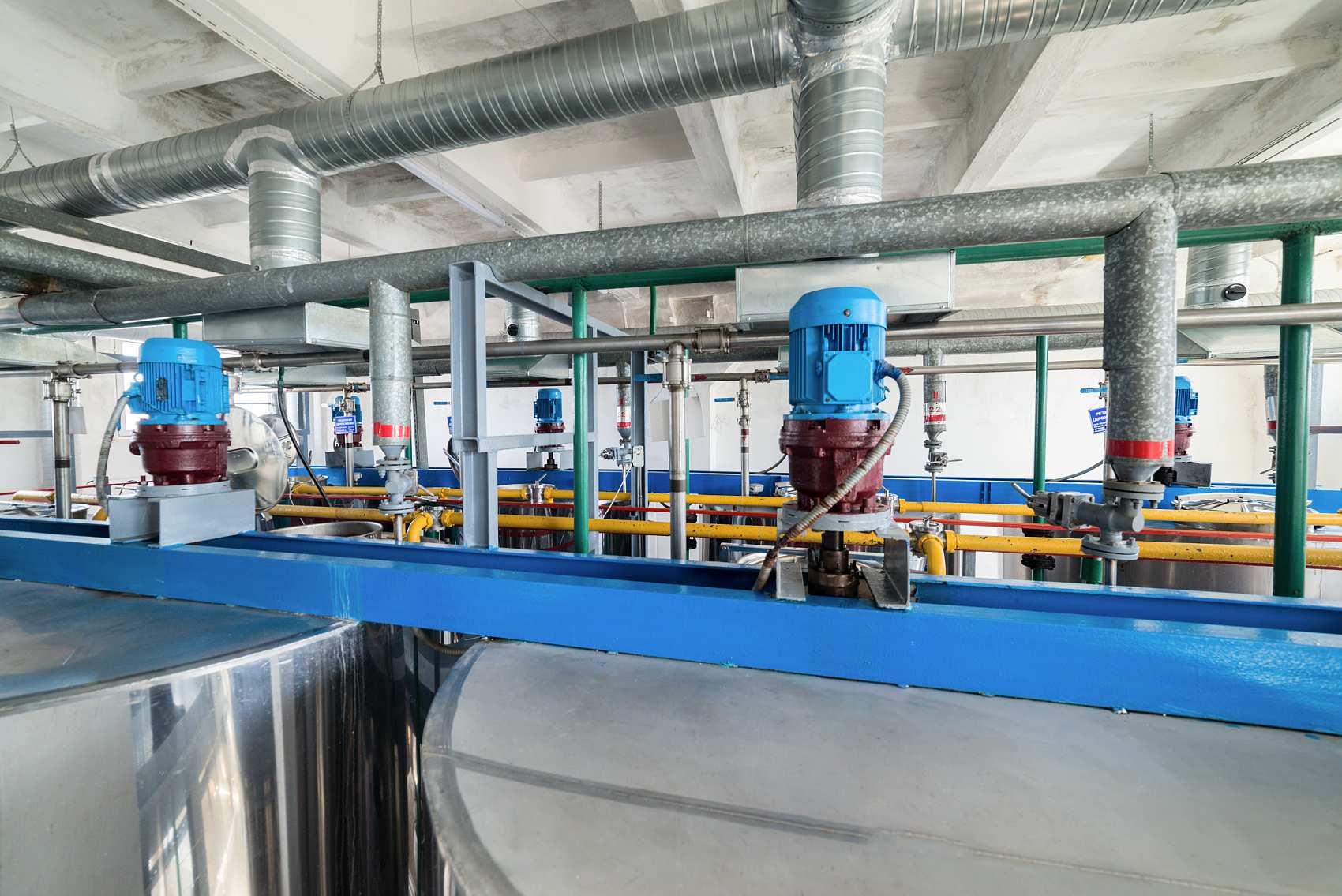

In the chemical industry, a Cycloidal reducer is commonly used for reactors handling acids, alkalis, polymers, solvents, resins, and slurry mixtures. These processes often involve changing viscosity and continuous-duty mixing.

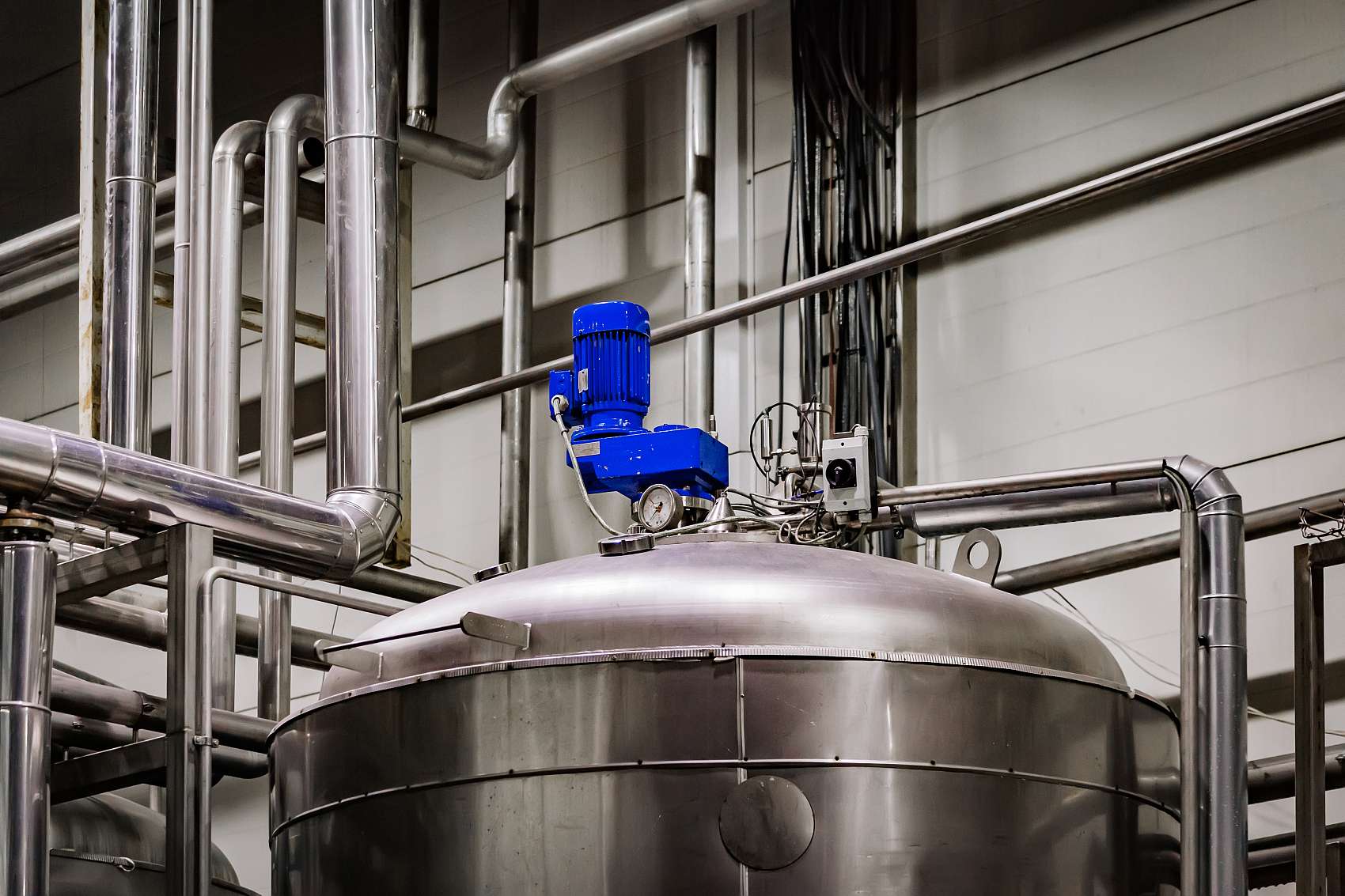

In pharmaceutical production, stable and controlled agitation is essential. A Cycloidal speed reducer can provide the necessary low-speed torque and long-term reliability required for such systems.

In food and beverage processing, mixing tanks for syrup, paste, additives, and high-viscosity liquids also benefit from the high torque and compact structure of a Cyclo drive gearbox.

In coatings, paints, adhesives, and resin industries, the load on the agitator can change significantly during production. This makes a Cycloid reducer a practical and reliable choice.

Common Mistakes When Selecting a Cycloidal Reducer

• One common mistake is selecting only by reduction ratio. Some buyers ask only for a certain ratio, but do not provide torque, load condition, or working hours. This can easily lead to undersized selection.

• Another mistake is ignoring startup torque. In reactor agitators, startup often happens under load. If this is not considered, the reducer may fail prematurely even though the rated torque seems enough.

• A third mistake is failing to check shaft and installation dimensions carefully. Even if the reducer is correct in power and ratio, installation problems can delay the project and increase cost.

• Another frequent problem is underestimating the importance of service factor. For heavy-duty mixing applications, service factor is not just a catalog number. It is directly related to long-term reliability.

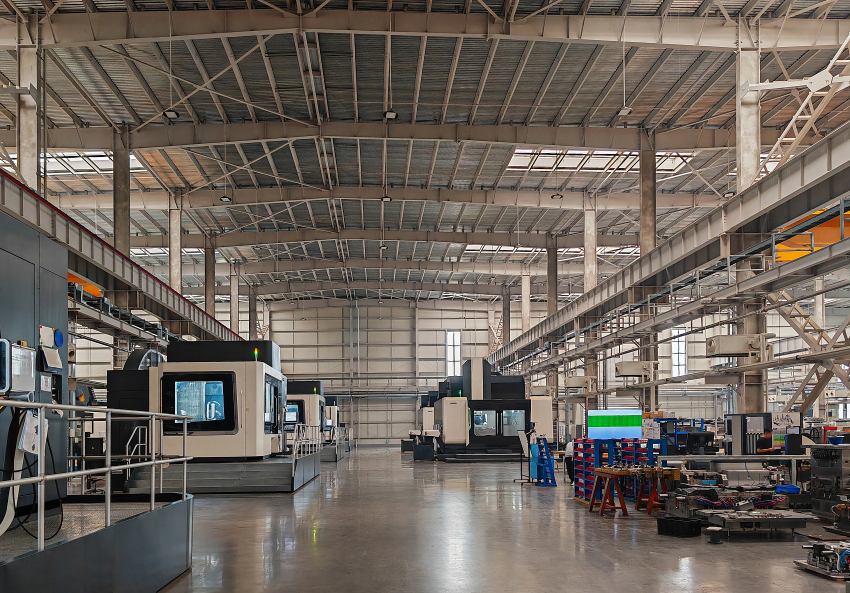

How Victory Supports Reactor Agitator Projects

At Victory, we understand that for industrial customers, choosing a reducer is not only about product specification. It is also about stable quality, technical support, reliable lead time, and reduced after-sales risk.

1. As a direct factory, we can offer competitive pricing without unnecessary trading layers. This helps distributors, OEM customers, and project buyers improve their competitiveness in the market.

2. We use new raw materials from long-term stable suppliers and focus on consistency in manufacturing. For export business, stable quality is more valuable than simply pursuing the lowest initial price.

3. For reactor agitator projects, we can support not only the Cycloidal reducer itself, but also motor matching based on actual application requirement. This helps customers reduce communication cost and avoid mismatch between motor and reducer.

4. We also support customization for mounting style, voltage, frequency, shaft requirements, and other practical details needed in real industrial projects.

5. For long-term customers, we value stable cooperation and practical after-sales support. In heavy-duty industrial applications, this is often one of the most important factors behind a successful supplier relationship.

What Information to Send for Faster Quotation

If you want a faster and more accurate quotation for a Cycloidal reducer for reactor agitator, it is best to send the following information:

• Motor power

• Motor speed

• Required output speed

• Application type

• Material description

• Viscosity if known

• Daily running hours

• Mounting type

• Installation drawing or photo if available

The more complete the information, the easier it is to recommend the right model and avoid repeated communication.

Conclusion

For reactor agitator applications, the Cycloidal reducer is often one of the most practical drive solutions because it combines high torque, compact design, strong overload resistance, and reliable long-term performance.

Compared with many conventional reducer types, a Cycloidal gear reducer is especially suitable for low-speed, heavy-load, variable-viscosity, and continuous-duty mixing systems. These are exactly the conditions commonly found in reactor agitator applications.

For B2B buyers, OEMs, distributors, and project contractors, the key to correct selection is not just choosing a ratio. It is understanding the real working condition, confirming torque requirement, checking service factor, and matching the installation structure properly.

If these points are handled correctly, a Cyclo drive gearbox can provide stable and durable performance for reactor agitator systems and help reduce long-term maintenance and failure risk.

FAQ

What is the main advantage of a cycloidal reducer for reactor agitator?

The main advantage is high torque output with strong shock load resistance, which makes it suitable for heavy-duty and variable-load mixing applications.

Is a cycloidal reducer suitable for high-viscosity materials?

Yes. A Cycloidal reducer is very suitable for high-viscosity reactor agitators because it performs well under high starting load and changing torque demand.

What information is needed to select a cycloidal reducer?

You should provide motor power, motor speed, required output speed, working condition, installation type, and load details if available.

Can a cycloidal reducer be supplied together with a motor?

Yes. Many customers prefer a complete Cycloidal gear motor solution to ensure correct matching between motor and reducer.

Can the reducer be customized for reactor agitator projects?

Yes. Customization can usually include mounting style, shaft dimensions, voltage, frequency, and other application-specific requirements.
