In industries such as mining, quarrying, cement, and aggregate processing, crushers operate under extreme mechanical stress. One of the most critical components determining crusher performance and reliability is the electric motor.
Selecting the right three phase motor is not just about power rating—it directly affects startup stability, operating efficiency, maintenance cost, and equipment lifespan. This practical guide explains how to choose the right three phase electric motor for crusher applications and why working with an experienced motor manufacturer like Victory makes a real difference.
![Semi-automatic band saw in the assembly workshop]()
What Is a Three Phase Electric Motor for Crusher Applications

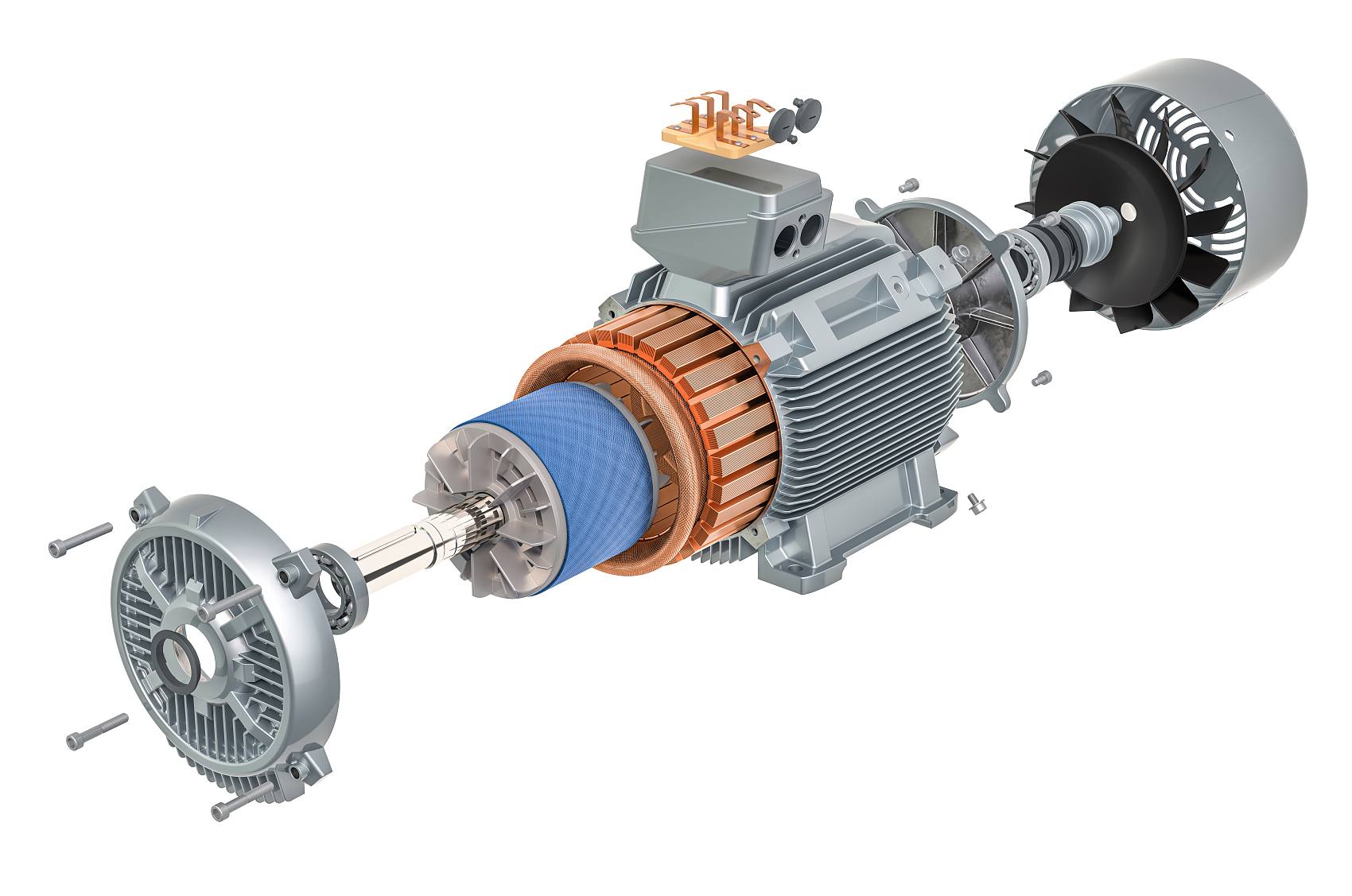

![部分工业电机，3D渲染隔离在白色背景上]()
A three phase electric motor for crushers is typically a 3 phase induction motor designed for heavy-duty industrial use. These motors are built to handle high inertia loads, frequent starting, continuous operation, and harsh environments filled with dust and vibration.
Compared with single-phase motors, three phase AC motors provide:
Higher efficiency
Stronger starting torque
More stable operation
Longer service life
For these reasons, crushers almost exclusively use three-phase asynchronous motors, especially squirrel cage induction motors.
Why Crushers Require Heavy-Duty Three Phase Motors
![2]()
Crushers work with raw materials such as stone, ore, and concrete, which generate:
A standard general purpose AC motor without reinforcement may overheat, vibrate excessively, or fail prematurely. Crusher applications demand a three phase power motor with strong overload capacity, robust bearings, and reliable insulation.
This is why industrial electric motors specifically configured for crusher duty are essential.
Common Types of Crushers and Motor Requirements
![3]()
Jaw Crusher Motor Requirements
Jaw crushers require high starting torque to break material at startup. A 3 phase electric motor with reinforced rotor design and proper service factor ensures smooth and reliable startup.
Cone Crusher Motor Requirements
Cone crushers operate continuously under varying loads. A three phase AC motor with stable speed and efficient heat dissipation is critical to prevent overheating.
Impact Crusher Motor Requirements
Impact crushers experience frequent torque shocks. A 3ph motor with strong mechanical structure and vibration resistance is required.
Hammer Crusher Motor Requirements
Hammer crushers often start and stop frequently. A durable 3-phase motor with high-quality insulation and bearings helps extend service life.
Key Technical Features of Three Phase Motors Used in Crushers
![11]()
High Starting Torque and Load Capability
Crusher motors must overcome high static loads at startup. A 3 phase induction motor naturally provides high starting torque, making it ideal for crushing equipment.
Stable Operation Under Continuous Shock Load
The rotor structure of a squirrel cage induction motor allows it to absorb load fluctuations while maintaining stable operation.
Three Phase Asynchronous Motor Working Principle
A three-phase asynchronous motor operates with controlled slip, ensuring smooth torque output even under heavy and uneven crusher loads.
Motor Protection and Cooling Design for Crusher Duty
Totally Enclosed Fan Cooled Motor (TEFC) Explained
Most crusher motors use a Totally enclosed fan cooled motor (TEFC) design. This structure prevents dust from entering the motor while maintaining effective cooling.
Resistance to Dust, Heat, and Vibration
Crusher environments require motors with:
These features significantly improve the reliability of industrial electric motors.
IP Rating Selection for Crushers
IP55 or higher protection is commonly recommended for crusher motor applications.
Mounting Types for Crusher Motors
![B14-B34]()
Foot Mounted Motor (B3)
A foot mounted motor is the most widely used configuration in crushers, offering stable installation and easy alignment.
Flange Mounted Motor (B5 / B14)
A flange mounted motor is often selected for compact crusher designs or direct-coupled drive systems.
IEC Motor Frame Compatibility
Using an IEC motor ensures compatibility with global crusher equipment and simplifies replacement and maintenance.
Efficiency Classes: IE2, IE3, IE4 — What Crusher Buyers Should Know
IE2 Motor for Cost-Sensitive Projects
An IE2 motor is suitable for projects with limited operating hours and controlled budgets.
IE3 Motor for Long Operating Hours
For continuous-duty crushers, an IE3 motor reduces energy consumption and improves long-term reliability.
High Efficiency Three Phase Motor Considerations
A high efficiency three phase motor lowers total cost of ownership, not just electricity bills.
How to Select the Right Three Phase Motor for Your Crusher
When selecting a three phase electric motor, key factors include:
Rated power and speed
Voltage and frequency (380V/50Hz, 400V/50Hz, 460V/60Hz, etc.)
Duty type (S1, S4)
Bearing quality and lubrication
Cooling and protection level
Choosing the correct three phase motor ensures reliable crusher performance and reduced downtime.
Why Victory Is a Reliable Supplier for Crusher Motors
Strong Manufacturing and Quality Control
Victory specializes in industrial electric motors with strict quality control processes, including electrical testing, vibration testing, and load inspection.
Customized Three Phase Motors for Crushers
![98597854de77be3c08697c3bec84560e]()

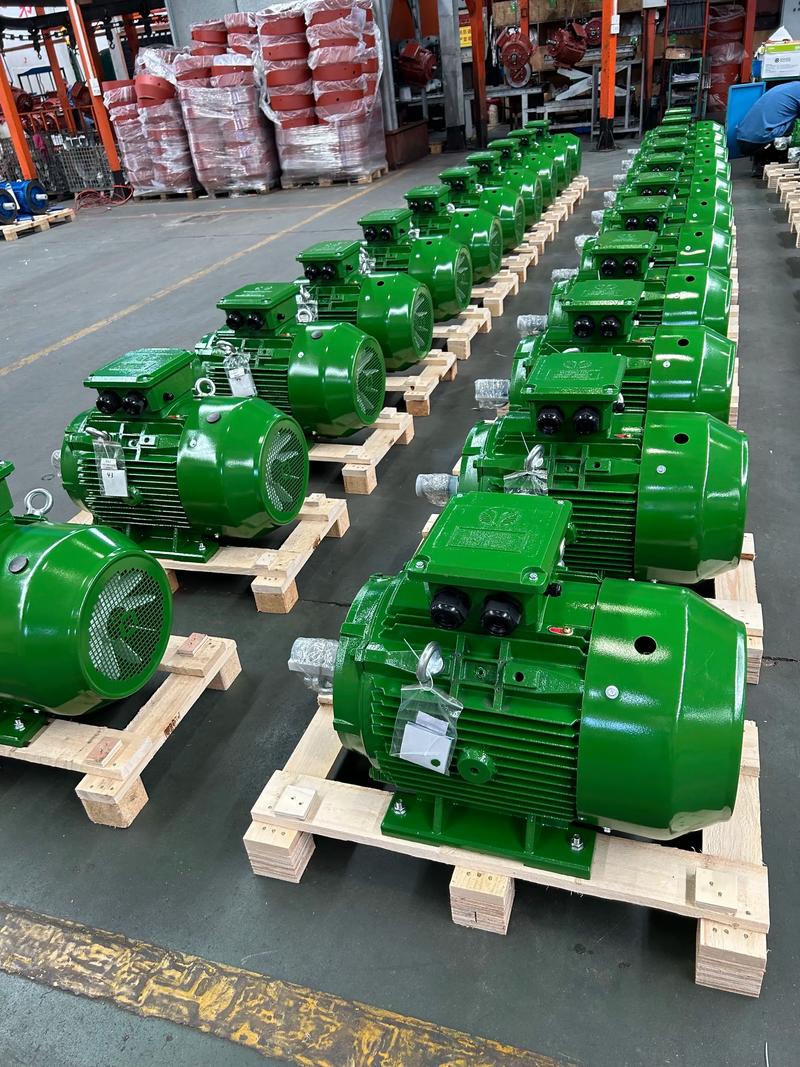

Victory provides customized three phase motors for crusher applications, including:
Shaft size and mounting modifications
Bearing upgrades for heavy loads
Customized voltage and frequency
Global Export Experience
Victory motors comply with IEC standards and are widely supplied to Europe, North America, South America, and Southeast Asia.
Victory Product Range for Crusher Applications
Victory offers a complete range of crusher motors, including:
Three phase electric motor
3 phase AC motor
Three-phase asynchronous motor
Squirrel cage induction motor
High efficiency three phase motor
All motors are available as foot mounted motors or flange mounted motors, with TEFC construction as standard.
After-Sales Support and Services from Victory
![中段的商人握手]()
Victory supports customers with:
Professional motor selection assistance
Installation and technical guidance
Fast response for spare parts
Minimum 12-month warranty
Common Mistakes When Buying Crusher Motors
Selecting motor power without considering startup torque
Ignoring dust and vibration conditions
Choosing suppliers without crusher application experience
Conclusion: Choose the Right Motor, Choose the Right Partner
The performance of a crusher depends heavily on the quality of its motor. Selecting the right three phase electric motor ensures stable operation, longer service life, and lower maintenance costs.
Victory is more than a motor supplier—we are your long-term partner for reliable crusher drive solutions.
Looking for a reliable three phase motor for your crusher project?
![车间-待发货]()
Contact Victory today to get professional motor selection, competitive pricing, and dependable global delivery.
