Application of Three-Phase Electric Motors in Compressors

Introduction

In the industrial world, compressors serve as the backbone of many operations. From powering refrigeration systems to enabling large-scale chemical production, compressors play a vital role in ensuring smooth, uninterrupted processes. At the heart of these machines lies the three-phase asynchronous motor, a powerhouse known for its durability, efficiency, and adaptability across different compressor types.

This article explores how three-phase motors are applied in reciprocating, screw, and centrifugal compressors, highlighting their operational advantages, technical modifications, and energy-saving impacts. A comparative analysis will help industries understand how to maximize performance while reducing energy consumption and operational costs.

Understanding Compressors and Motor Selection

Compressors can be categorized based on their working principles:

• · Reciprocating compressors – operate with a piston-driven mechanism, delivering high-pressure output.

• · Screw compressors – rely on intermeshing rotors, offering smooth and efficient gas compression.

• · Centrifugal compressors – use high-speed impellers to generate centrifugal force for large-volume gas compression.

Each type has unique demands for its driving motor. Choosing the right motor is crucial since it affects efficiency, operational stability, energy consumption, and equipment longevity.

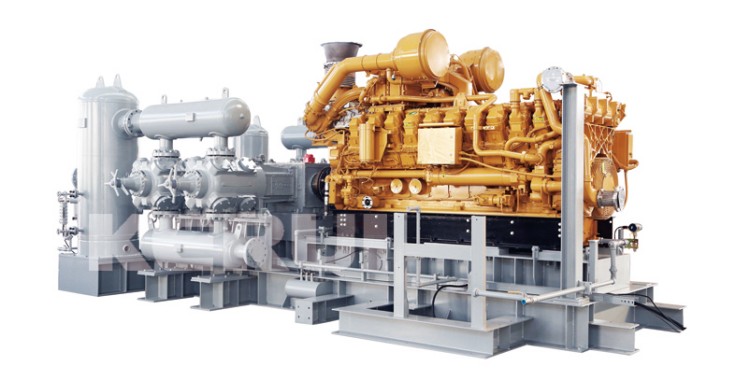

Applications of Three-Phase Motors in Reciprocating Compressors

Reciprocating compressors are widely used in petrochemical and chemical industries due to their ability to generate high pressure with stable displacement.

Challenges Faced with Standard Motors

• · Traditional motors often experience high energy consumption.

• · Starting shocks damage both the motor and power grid stability.

• · Exposure to corrosive gases (like hydrogen sulfide, H₂S) reduces motor lifespan.

Optimized Motor Solutions

The retrofit to YE4 series ultra-high-efficiency motors introduced:

• · 94.3% efficiency (IE4 standard).

• · Hydraulic resistance soft starters that reduce starting current to only 1.8 times the rated value.

• · Corrosion-resistant materials such as stainless steel end caps and bearings for longer life.

Impact on Performance

• · 26.4% energy savings annually.

• · Voltage fluctuations during startup contained within ±3%.

• · Maintenance cycle extended to 18 months, lowering downtime costs.

This makes reciprocating compressors highly reliable and sustainable when paired with optimized three-phase motors.

Applications of Three-Phase Motors in Screw Compressors

Screw compressors are essential in air compression, refrigeration, and industrial cooling. Their compact design and smooth operation make them popular, but motors face specific challenges in these applications.

Issues with Standard Motors

• · Low efficiency at low temperatures (as low as 82% at -15°C).

• · Frequent starts and stops cause insulation breakdown.

• · Exposure to humidity and cold environments affects reliability.

Motor Optimization for Screw Compressors

Improvements included:

• · F-class insulation materials resistant to low temperatures.

• · IP55 protection rating for moisture and dust resistance.

• · Adoption of delta-star starting method, reducing startup current from 7x rated to just 3.5x.

• · Installation of a comprehensive motor protection system for real-time monitoring of overloads, overcurrent, and faults.

Results Achieved

• · Motor efficiency increased to 89%.

• · Annual energy savings of 120,000 kWh.

• · Insulation lifespan extended to over five years.

• · Downtime reduced by 60%, improving operational continuity.

This proves that three-phase motors, when properly enhanced, make screw compressors more efficient and reliable in demanding conditions.

Applications of Three-Phase Motors in Centrifugal Compressors

Centrifugal compressors dominate industries that demand large gas displacement and high operating speeds, such as power plants and large-scale chemical plants.

Common Challenges

• · Starting difficulties due to high power demand.

• · Excessive noise levels (120 dB).

• · Significant energy waste when regulating flow by outlet valves or backflow.

Motor Enhancements with Variable Frequency Drives (VFDs)

• · Soft start capabilities prevent sudden current surges.

• · Frequency regulation allows real-time motor speed adjustment based on load.

• · Precise flow control eliminates the need for inefficient throttling.

Measured Improvements

• · Noise levels reduced from 120 dB to ~75 dB.

• · Inlet and outlet pressure differential optimized.

• · 22% energy savings, equivalent to an annual cost reduction of $43,750.

• · Extended service life of compressor components.

By integrating three-phase motors with VFDs, centrifugal compressors become energy-efficient, quieter, and longer-lasting.

Comparative Analysis of Motor Applications

To better understand how three-phase motors adapt to various compressors, let’s compare their performance across four key dimensions:

This analysis shows that different compressors demand specialized motor enhancements, but all benefit significantly from proper motor selection and retrofitting.

Conclusion

The application of three-phase asynchronous motors in compressors is not just about powering machinery—it’s about enhancing efficiency, reducing costs, and extending equipment life.

• · Reciprocating compressors rely on overload-capable, corrosion-resistant motors.

• · Screw compressors demand efficiency and cold-environment adaptability.

• · Centrifugal compressors benefit most from frequency regulation for precise speed control.

With ongoing innovations in motor technology, compressors are set to become smarter, greener, and more efficient—driving the next wave of industrial productivity.

FAQs

1. Why are three-phase motors preferred in compressors?

They provide higher efficiency, smoother operation, and can handle heavy industrial loads better than single-phase motors.

2. How do soft starters benefit compressor motors?

They reduce startup shocks, minimize current surges, and extend both motor and grid lifespan.

3. Can frequency converters really save energy in compressors?

Yes, by adjusting motor speed to actual load requirements, they prevent unnecessary energy waste.

4. What industries benefit most from screw compressors with optimized motors?

Refrigeration, food processing, and air compression industries where cold and humid environments challenge standard motors.

5. What’s the future of three-phase motors in compressor applications?

The future lies in intelligent, energy-efficient, IoT-enabled motors that maximize performance with minimal energy use.
