Revolutionizing Pump Systems with Three-Phase Asynchronous Motors: Applications And Benefits

Views: 0     Author: Site Editor     Publish Time: 2025-07-30      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Introduction


Three-phase asynchronous motors are the backbone of modern pump systems, powering everything from municipal water supplies to agricultural irrigation and petrochemical processing. Their robust design, cost-effectiveness, and versatility make them the go-to choice for driving centrifugal, axial flow, and submersible pumps across diverse industries.


This comprehensive guide explores the applications, advantages, and real-world impact of three-phase asynchronous motors in pump systems, highlighting their role in enhancing efficiency, reliability, and sustainability. Whether you’re managing a waterworks, irrigating farmland, or handling corrosive chemicals, understanding these motors’ capabilities can transform your operations.

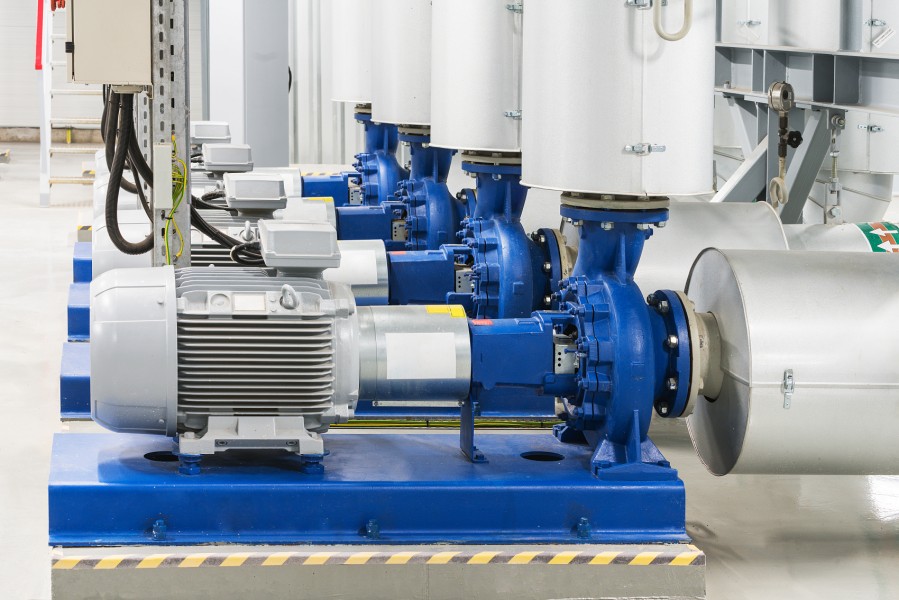

water pump


Why Three-Phase Asynchronous Motors Excel in Pump Systems


Three-phase asynchronous motors, also known as induction motors, dominate pump applications due to their simplicity, durability, and efficiency. These motors convert three-phase alternating current into mechanical energy, driving pump impellers to transport fluids with precision.


Key advantages include:


  • · Simple Design: Minimal moving parts reduce maintenance needs.

  • · Cost-Effective: Affordable upfront costs and low operational expenses.

  • · High Reliability: Robust construction ensures long-term performance in demanding environments.

  • · Flexible Power Range: Available in capacities from 0.75 kW to over 315 kW, suiting various pump sizes.


These attributes make three-phase asynchronous motors ideal for applications ranging from municipal water systems to industrial wastewater treatment. Let’s dive into their specific uses across key sectors.


Municipal Water Supply: Powering Urban Lifelines


How Three-Phase Motors Drive Waterworks


In municipal water supply systems, large centrifugal pumps rely on high-power three-phase asynchronous motors to deliver clean water to urban networks. These motors drive pumps via belt transmission, pressurizing water from sources like reservoirs or rivers for distribution to homes and businesses.



Case Study: Urban Waterworks



Consider a city waterworks deploying 250 kW three-phase asynchronous motors. These motors use reduced-voltage starting (e.g., star-delta or soft start) to minimize grid impact, ensuring smooth startups despite high loads. They operate reliably for extended periods, maintaining consistent water pressure across the network.



Benefits in Water Supply Systems



  • · Stable Operation: Handles continuous high-load conditions without overheating.

  • · Low Maintenance: Requires only periodic checks of bearings and windings, reducing downtime.

  • · Grid-Friendly: Reduced-voltage starting prevents voltage drops, protecting other equipment.


Why It Matters


For municipalities, reliable water delivery is non-negotiable. Three-phase asynchronous motors provide the durability and efficiency needed to keep urban water systems running smoothly, minimizing operational costs and ensuring public access to clean water.

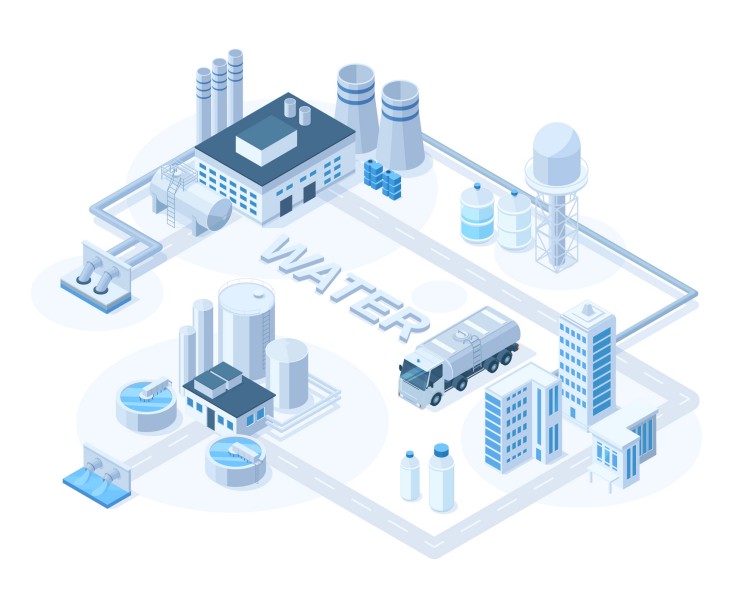

Isometric water purification system, wastewater treatment concept. Vector diagrams of pumping stations and sewage treatment. Industrial water purification technology


Agricultural Irrigation: Sustaining Crop Production


Three-Phase Motors in Submersible Pumps


In large-scale agricultural irrigation, three-phase asynchronous motors power deep well submersible pumps, extracting groundwater from depths of tens of meters. These motors drive impellers to distribute water through pipelines to farmlands, supporting crop growth in diverse climates.


Key Features for Irrigation


  • · Waterproof Design: IP55/IP65 ratings ensure reliable operation in wet environments.

  • · Flexible Power Options: Available in 5–50 kW ranges, matching the needs of small to large farms.

  • · Energy Efficiency: Variable frequency drives (VFDs) optimize power usage based on irrigation demand.


Real-World Impact


In a typical irrigation project, a 30 kW motor powers a submersible pump to irrigate 100 hectares of farmland. The motor’s robust construction withstands damp conditions, while VFDs adjust pump speed to match water requirements, conserving energy and reducing costs.


Why Farmers Choose Three-Phase Motors


These motors deliver reliable water supply for agriculture, ensuring consistent crop yields. Their adaptability to varying power needs and low maintenance requirements make them a cost-effective choice for farmers worldwide.

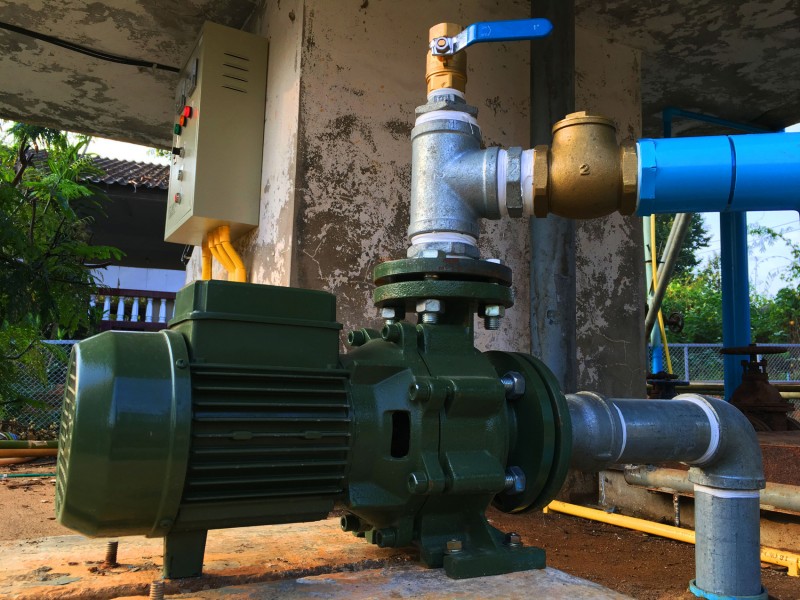

Technology and motor pumps


Petrochemical Industry: Handling Harsh Environments


Explosion-Proof Motors for Chemical Pumps


Petrochemical plants demand motors that can safely handle flammable and corrosive media, such as crude oil or chemical solvents. Explosion-proof three-phase asynchronous motors, like the YBX3 series, meet these needs with specialized designs.


Technical Highlights



  • · Explosion-Proof Certification: Complies with standards like GB3836.1-2010, preventing sparks in volatile environments.

  • · Corrosion Resistance: Housings made of materials like 316L stainless steel withstand harsh chemicals.

  • · Variable Speed Control: VFDs adjust motor speed to optimize flow rates, enhancing efficiency.


Application Example


In a crude oil pipeline, a 160 kW explosion-proof motor drives a centrifugal pump, transporting flammable liquids safely. The motor’s corrosion-resistant casing endures exposure to chloride ions (≤500 mg/L), while VFDs ensure precise flow control, reducing energy waste.


Why Petrochemicals Rely on These Motors


The combination of safety, durability, and energy efficiency makes three-phase asynchronous motors indispensable for petrochemical applications. They ensure reliable fluid transport while meeting stringent safety and environmental standards.

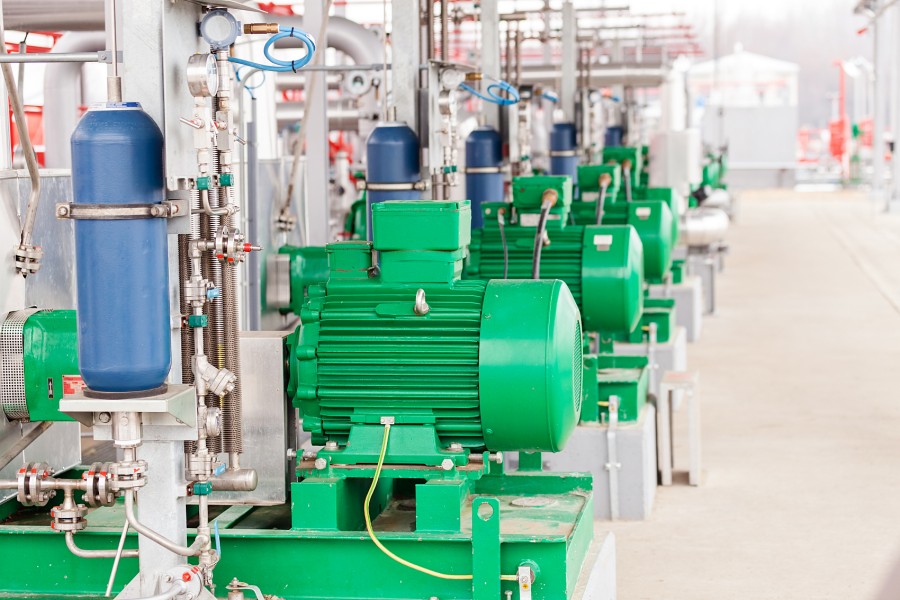

refinery


Sewage Treatment: Tackling Tough Conditions


Submersible Pumps in Wastewater Management


Sewage treatment plants depend on three-phase asynchronous motors to power submersible pumps that transport wastewater containing impurities. These motors excel in harsh conditions, delivering consistent performance without clogging.


Key Advantages


  • · Strong Overload Capacity: Handles variable loads caused by debris in sewage.

  • · Superior Sealing: Prevents leaks, protecting internal components from damage.

  • · Long Lifespan: Robust design extends equipment life, reducing replacement costs.


Practical Example


In a wastewater treatment facility, a 75 kW motor drives a submersible pump, moving 200 m³/h of sewage. The motor’s IP65 sealing prevents corrosion, while its overload capacity ensures reliable operation even during peak flows.


Why Sewage Plants Trust Three-Phase Motors


These motors provide the resilience and efficiency needed for continuous wastewater transport, supporting environmental compliance and operational reliability in treatment facilities.

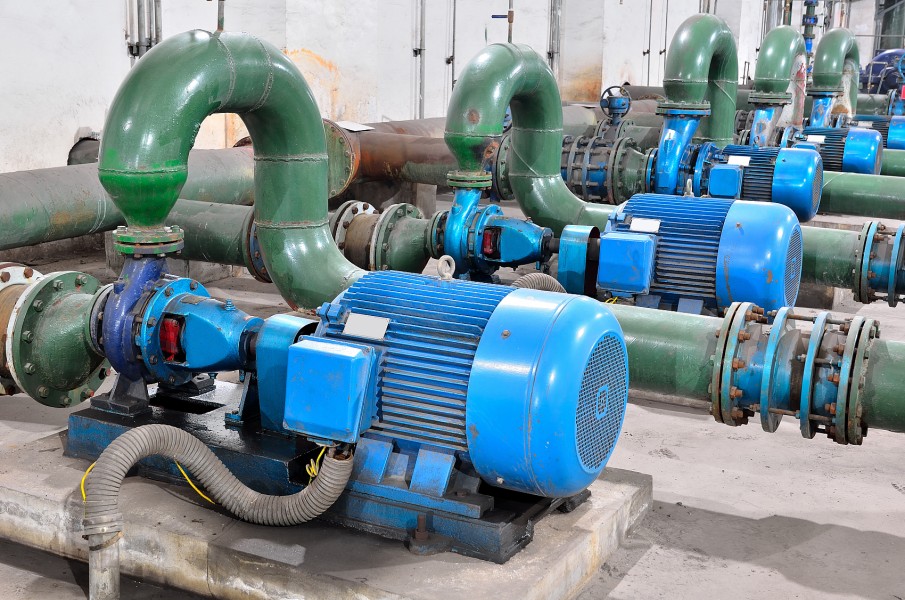

Sewage treatment pumping station


Case Study: Three-Phase Motors in a Chemical Enterprise


A large chemical enterprise producing 500,000 tons of products annually showcases the transformative power of three-phase asynchronous motors in pump systems. The facility handles corrosive media (e.g., strong acids and bases) and high-purity process water, requiring motors with exceptional stability and efficiency.


Equipment Selection and Technical Details


1. Raw Material Transport:


    • · Motor: YBX3-355M2-4 explosion-proof motor (160 kW, 380V).

    • · Pump: Centrifugal chemical pump.

    • · Features: F-class insulation, 316L stainless steel casing, GB3836.1-2010 certified.

    • · Performance: Safely transports flammable materials like methanol, resisting chloride corrosion (≤500 mg/L).



2. Wastewater Treatment:



    • · Motor: YVP2-280S-6 VFD motor (980 r/min).

    • · Pump: Sludge return pump.

    • · Features: Vector control with 1:10 speed ratio, adjusts flow from 80–150 m³/h.

    • · Performance: Precisely controls sludge concentration, adapting to variable treatment needs.

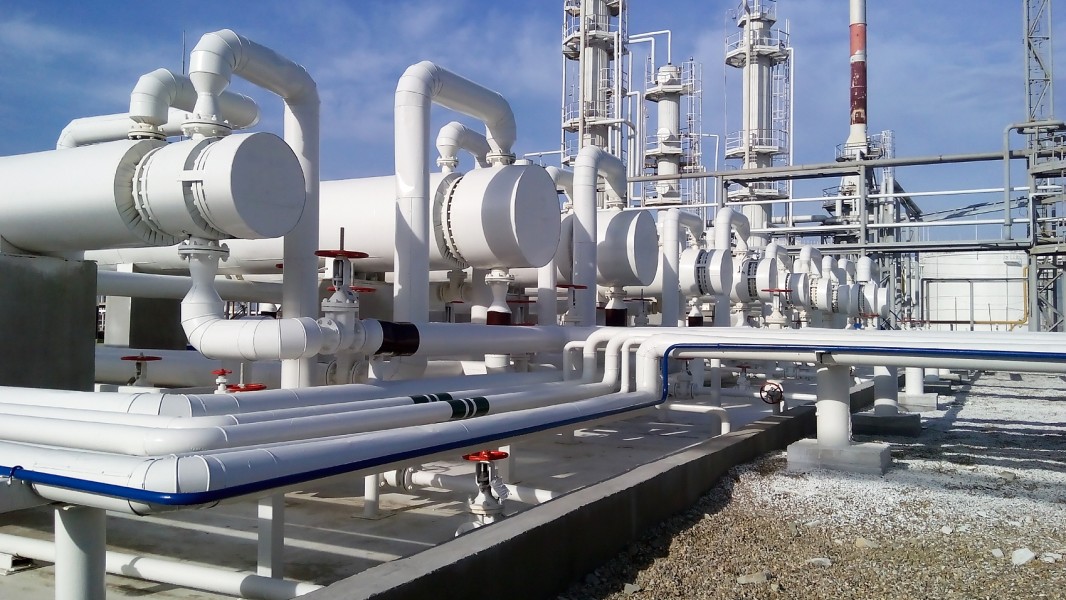

Heat exchangers in refineries


Operational Excellence


  • · Reliability: The raw material pump motor operates 22 hours daily with less than 8 hours of annual downtime. Real-time monitoring (temperature ≤120°C, vibration ≤4.5 mm/s) prevents failures.

  • · Maintenance Success: When bearing temperature rose to 95°C, technicians used infrared imaging to diagnose degraded grease, restoring normal operation (65°C) after replacement.

  • · Energy Savings: VFDs increased motor efficiency from 72% to 89%, boosting the power factor from 0.82 to 0.96. Each motor saves 12,000 kWh annually, recouping investment in three years.


Broader Applications


The enterprise expanded these motors to high-temperature heat transfer oil pumps, using H-class insulation and forced cooling to handle 280°C fluids. Integration with the MES system enables data-driven energy management, aligning with Industry 4.0 trends.


Takeaways from the Case Study


This case demonstrates the versatility of three-phase asynchronous motors in handling complex pump applications. Their adaptability, safety features, and energy efficiency make them a cornerstone of industrial fluid management.

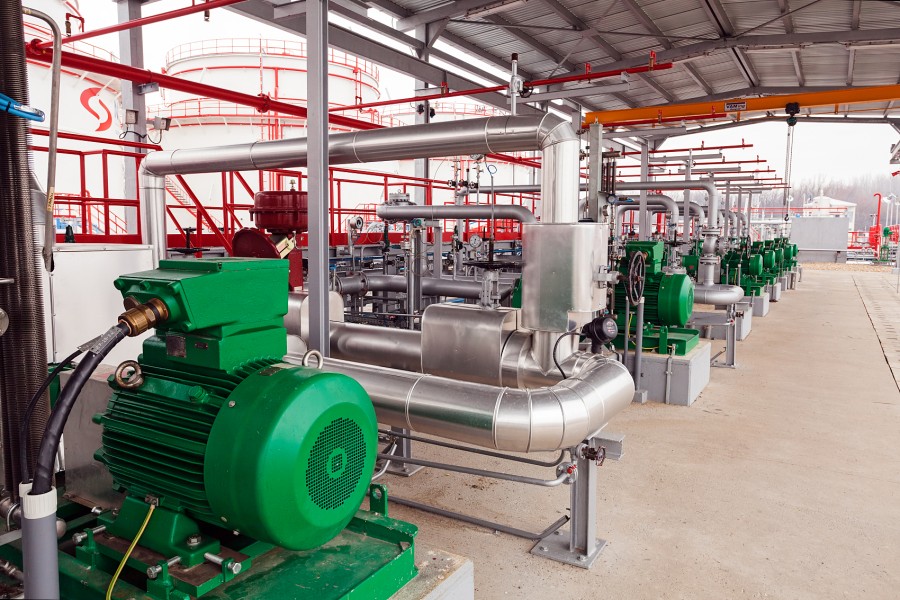

refinery1


Choosing the Right Three-Phase Motor for Your Pump System

Selecting the ideal motor involves evaluating several factors:


1. Application Needs:

  • · Municipal water systems prioritize reliability and grid compatibility.

  • · Agricultural irrigation requires waterproofing and flexible power.

  • · Petrochemicals demand explosion-proof and corrosion-resistant designs.

  • · Sewage treatment needs robust, clog-resistant motors.


2. Power and Efficiency:

  • · Match motor power (0.75–315 kW) to pump requirements.

  • · Use VFDs for energy savings in variable-flow applications.


3. Environmental Conditions:

  • · Ensure appropriate IP ratings (e.g., IP65 for submersible pumps).

  • · Choose explosion-proof models for hazardous settings.


4. Maintenance and Monitoring:

  • · Implement sensors for real-time diagnostics (temperature, vibration).

  • · Schedule regular checks to prevent wear and extend lifespan.

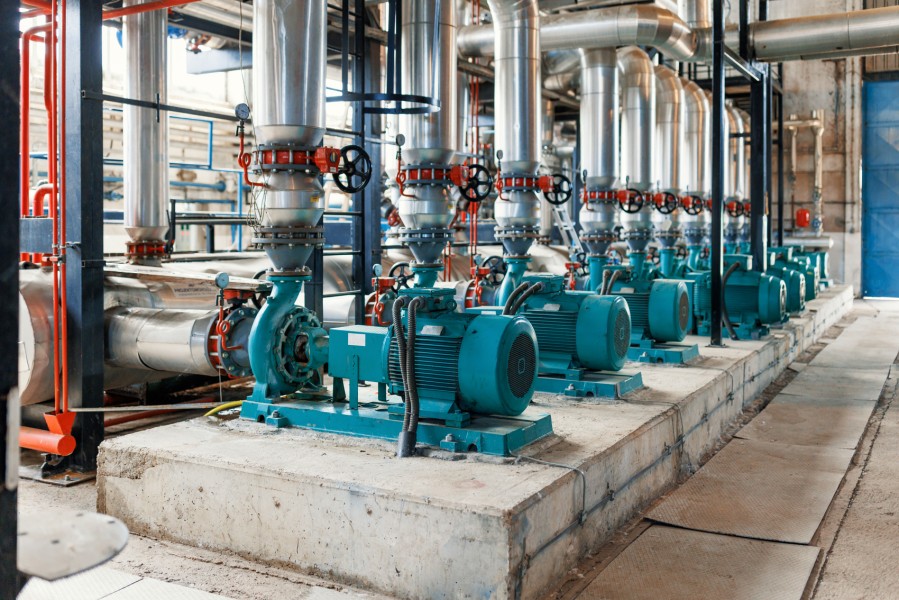

One of the rooms with heating equipment for the greenhouse


Future Trends in Three-Phase Motor Applications

As industries embrace automation and sustainability, three-phase asynchronous motors are evolving to meet new demands:


  • · Smart Integration: IoT-enabled motors connect to MES systems for predictive maintenance and energy optimization.

  • · Enhanced Efficiency: Advances in VFD technology reduce harmonics and improve power factors.

  • · Sustainable Designs: Energy-efficient motors support green initiatives, lowering carbon footprints.


These innovations ensure three-phase motors remain at the forefront of pump system technology, driving efficiency and reliability.

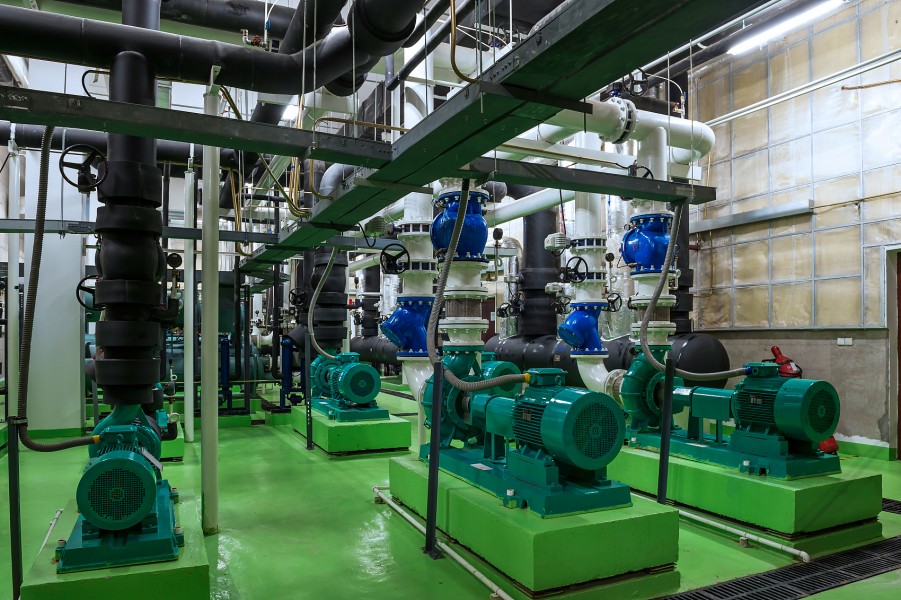

Industrial interiors and pipelines


Conclusion: Powering Pumps with Precision


Three-phase asynchronous motors are the driving force behind efficient, reliable pump systems across industries. From municipal waterworks to agricultural irrigation, petrochemical processing, and wastewater treatment, these motors deliver unmatched performance, durability, and cost-effectiveness. By selecting the right motor and leveraging technologies like VFDs and real-time monitoring, you can optimize fluid transport, reduce energy costs, and enhance system longevity.


Ready to upgrade your pump system? Assess your application’s needs, consult with motor specialists, and invest in a three-phase asynchronous motor tailored to your requirements. With the right choice, you’ll unlock efficiency and reliability that powers your operations for years to come.
