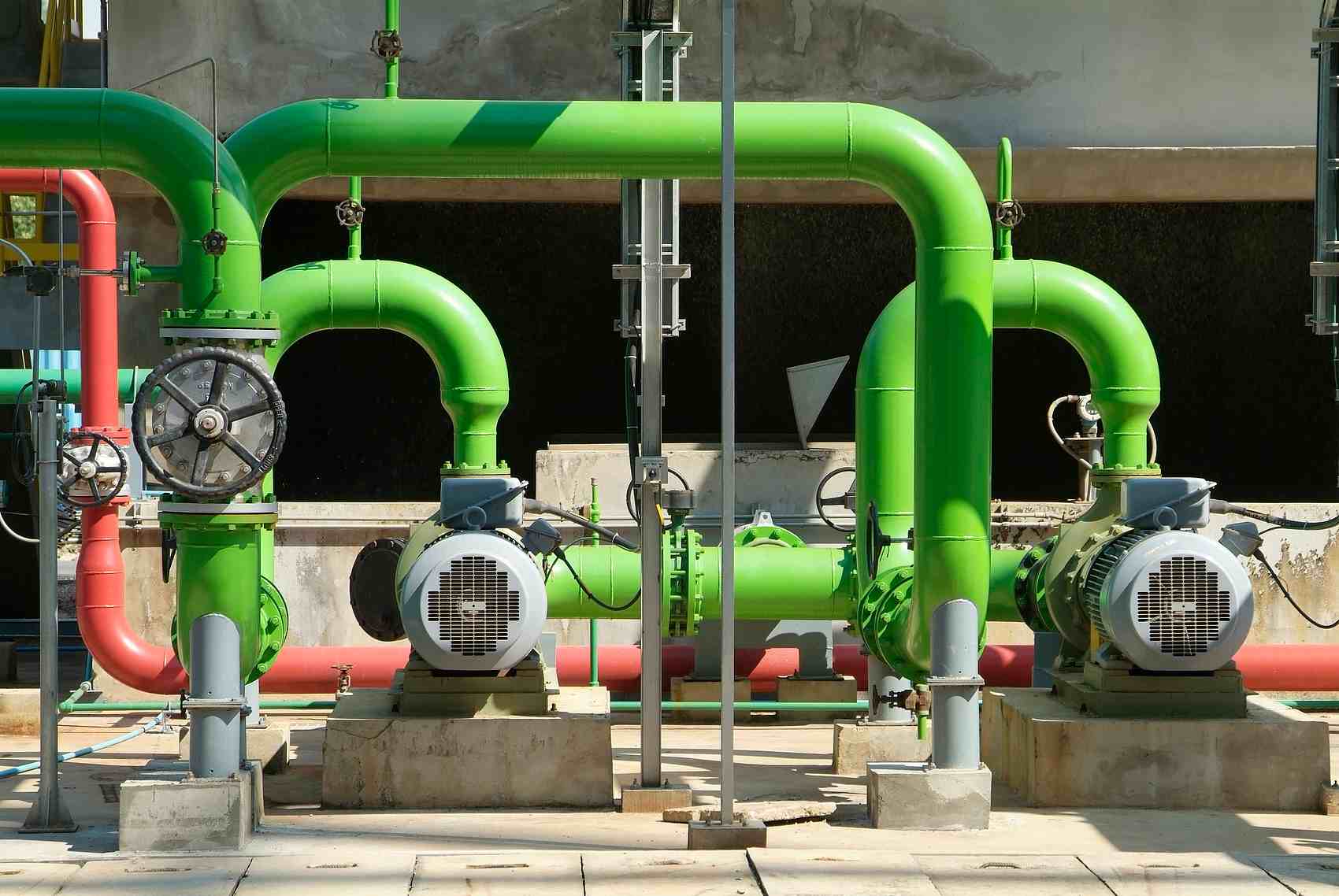

In small cooling tower systems, the fan motor plays a far more critical role than many people realize. A mismatched motor can lead to overheating, excessive noise, unstable airflow, and frequent failures—especially in humid, long-running environments.
![冷却塔水管]()
This practical guide is written for cooling tower manufacturers, motor distributors, OEM buyers, and project engineers who want to understand how to properly select a single phase AC motor for small cooling tower fan applications—without overengineering or unnecessary cost.
We will cover motor types, selection logic, real application considerations, and how working with an experienced manufacturer like Victory Machinery Technology Co., Ltd. can help you build a reliable and competitive product.
What Is a Single Phase AC Motor?

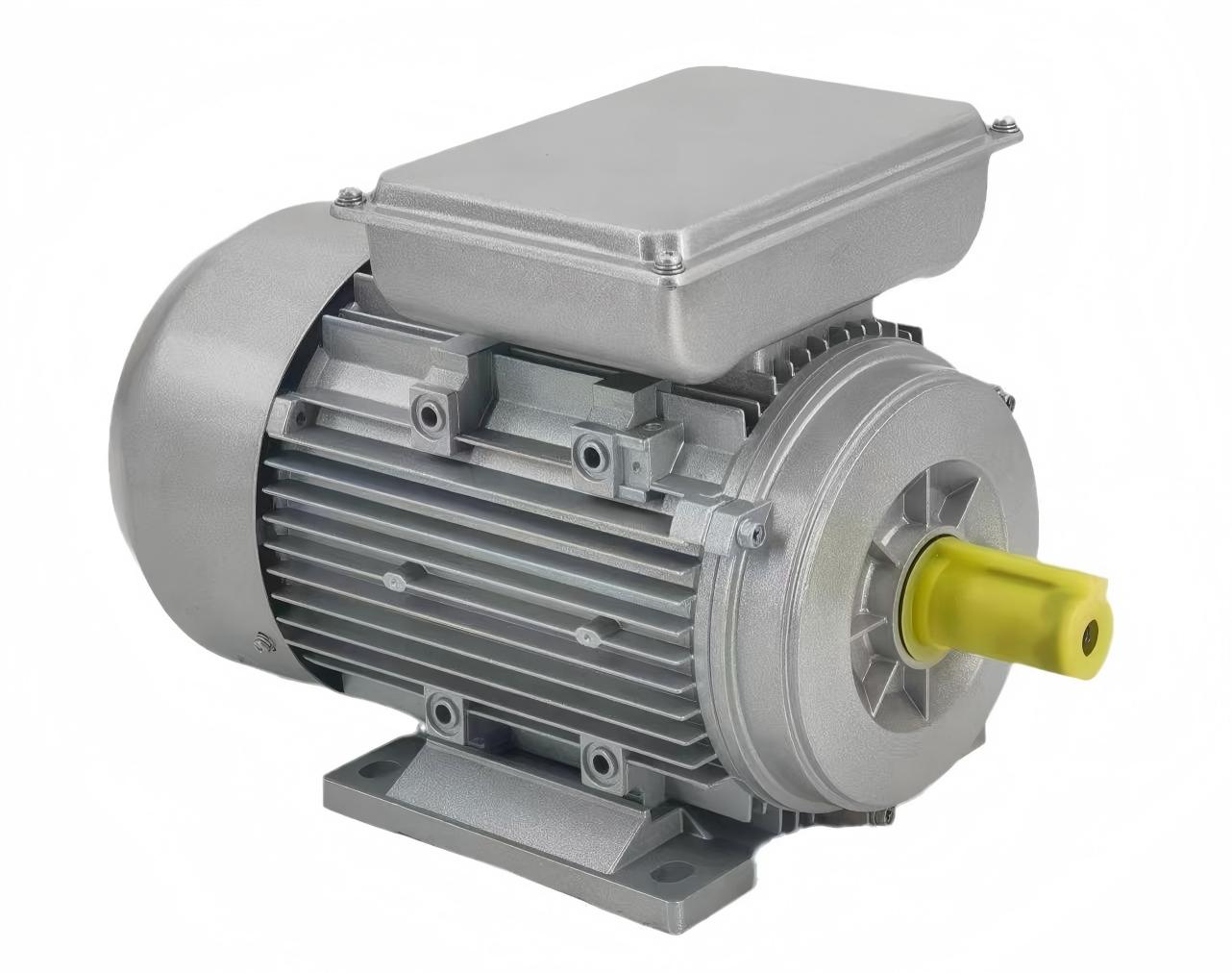

![11]()
A single phase AC motor operates on single-phase alternating current, commonly 110V or 220–240V at 50/60Hz. It is widely used where three-phase power is unavailable or impractical.

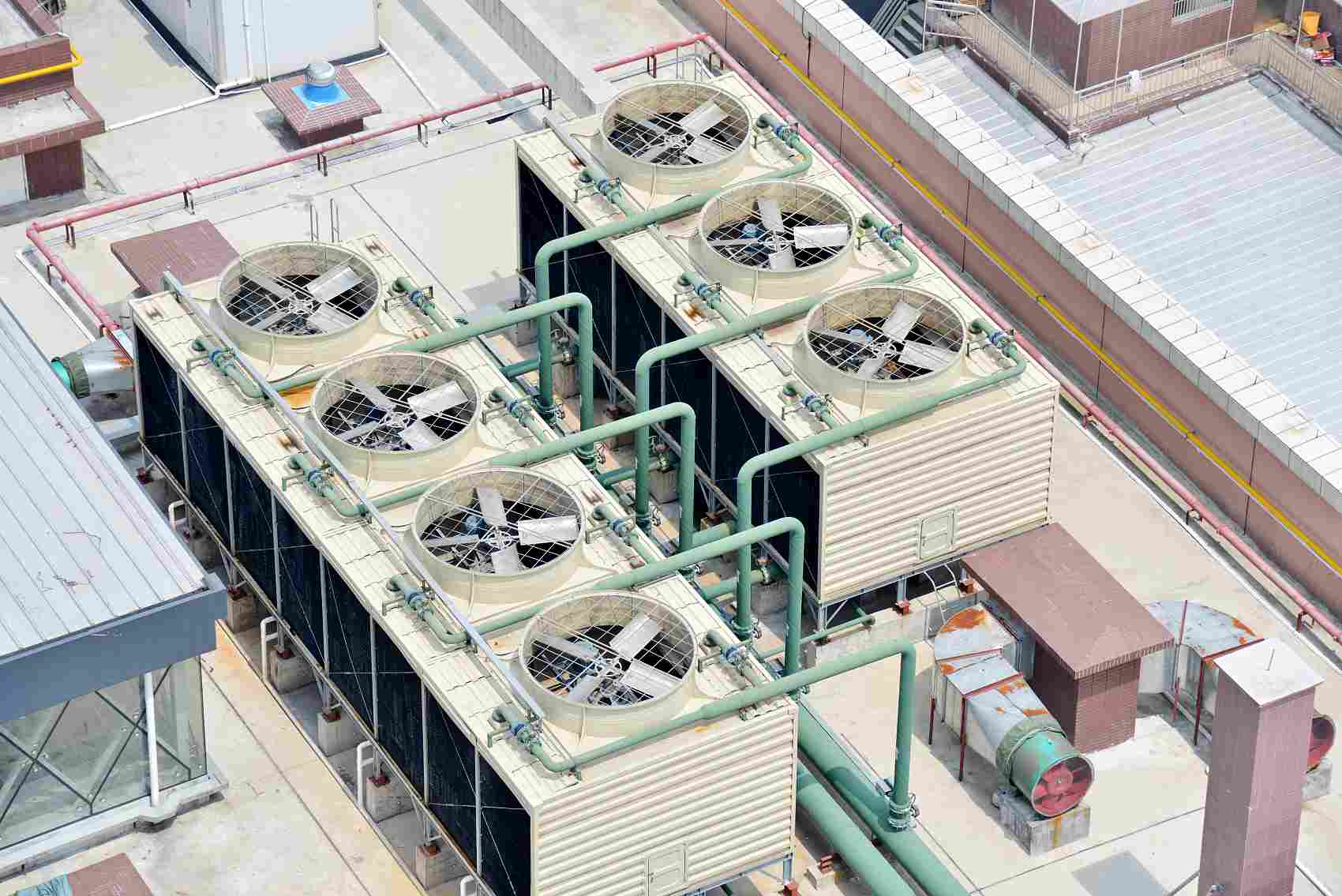

In cooling tower systems, a single phase electric motor is typically used for:
![空调]()
These motors are also known as:
All of them rely on electromagnetic induction and auxiliary starting methods to generate torque.
Why Small Cooling Tower Fans Commonly Use Single Phase Motors
![定子铁芯]()
Simple and Accessible Power Supply
Small cooling towers are often installed in commercial buildings or decentralized facilities where single-phase power is standard.
Reasonable Cost Structure
In low-power ranges, a single phase motor offers a good balance between performance and cost, making it suitable for price-sensitive equipment.
Ease of Installation and Maintenance
Compared with three-phase systems, single phase induction motors feature simpler wiring, easier commissioning, and lower maintenance requirements.
Common Types of Single Phase Motors Used in Cooling Tower Fans
Permanent Split Capacitor (PSC) Motor
A Permanent Split Capacitor (PSC) motor is one of the most commonly used single phase induction motors in small cooling tower fans. In this design, the capacitor remains permanently connected during operation.
Best for:
Small and medium cooling tower fans
Applications with light and stable loads
Systems requiring long, continuous operation
Advantages:
Smooth and quiet operation
Lower starting current
Reduced mechanical stress on fan components
Stable performance over long operating hours
Because cooling tower fans usually start under low load and operate continuously, PSC motors are often a practical and cost-effective solution.

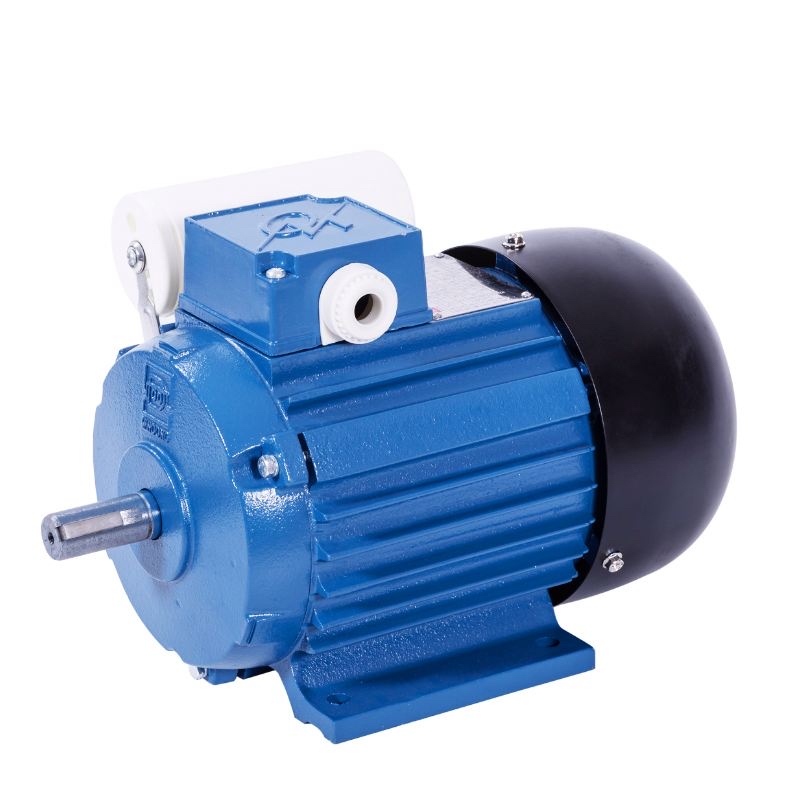

Capacitor Run Motor
![YC白底]()
A capacitor run motor focuses on stable operation rather than high starting torque. The capacitor stays in the circuit during normal running to improve performance stability.
Best for:
Advantages:
Lower noise and vibration
Improved operational stability
Better power factor compared with basic single phase motors
Consistent speed under continuous load
For most small cooling tower fans, a single phase AC motor with capacitor run design offers a good balance between reliability and operating comfort.
Capacitor Start and Capacitor Run Motor (CSCR)

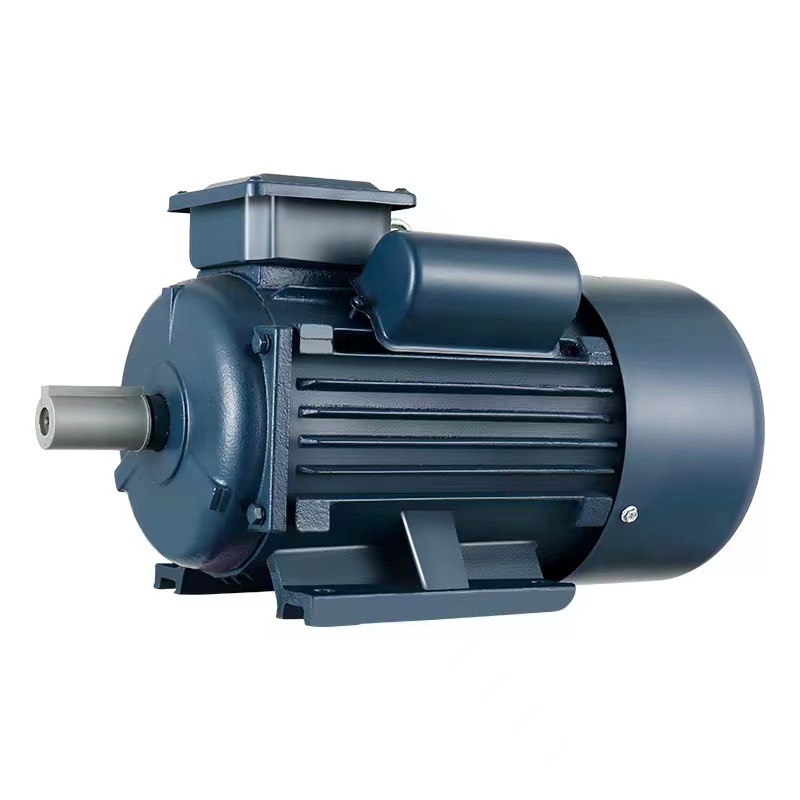

![YCL白底]()
A capacitor start and capacitor run motor combines reliable starting with stable long-term operation.
Why it works well in cooling tower fans:
Smooth and dependable startup
Stable performance during continuous operation
Reduced vibration and temperature rise
Better adaptability to varying load conditions
If your cooling tower fan runs frequently or for extended hours—especially in humid or high-temperature environments—this type of single phase asynchronous motor is often the most robust overall choice.
Key Parameters When Selecting a Single Phase Motor for Cooling Tower Fans
Rated Power (kW / HP)
Motor power must match fan size and airflow requirements. Oversizing increases energy consumption, while undersizing shortens motor lifespan.
Voltage and Frequency
Typical configurations include:
Victory can customize voltage and frequency according to local standards.
Speed (RPM)
Common fan motor speeds include:
900 RPM
1400 RPM
2800 RPM
Correct speed selection ensures proper airflow, low noise, and stable system performance.

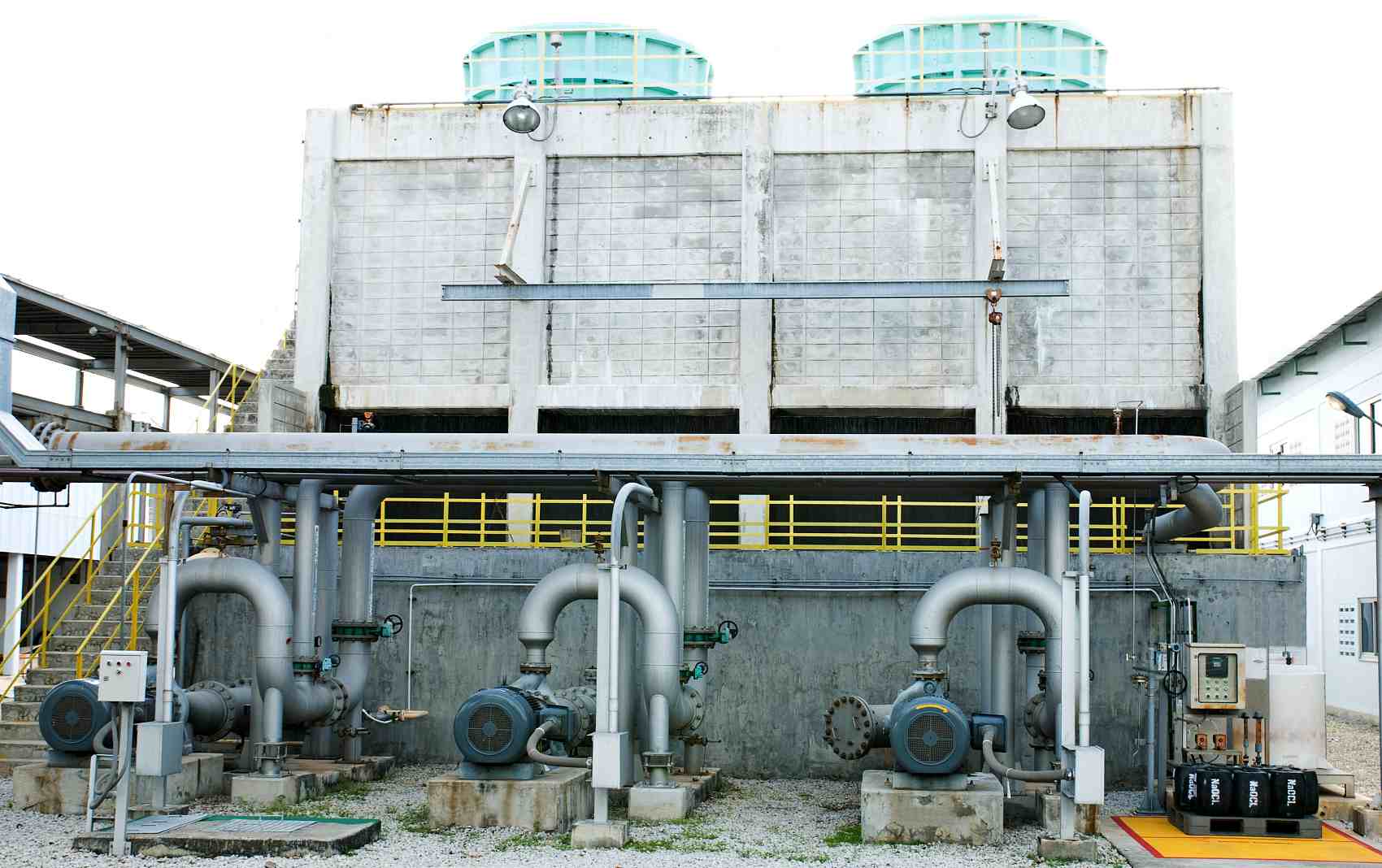

Operating Environment
Cooling tower motors must withstand:
![冷却塔]()
These factors are often more important than nominal efficiency ratings in real-world applications.
Reliable and Application-Focused Motor Design
Victory single phase AC motors are designed with a strong focus on practical application performance rather than theoretical efficiency labels.
For single phase motors, the key priorities are:
Stable torque output during long operation
Controlled temperature rise
Reliable performance under rated voltage and frequency
This application-oriented design philosophy ensures that Victory’s single phase induction motors meet the real demands of small cooling tower fan systems.
High-Quality Materials for Long Service Life

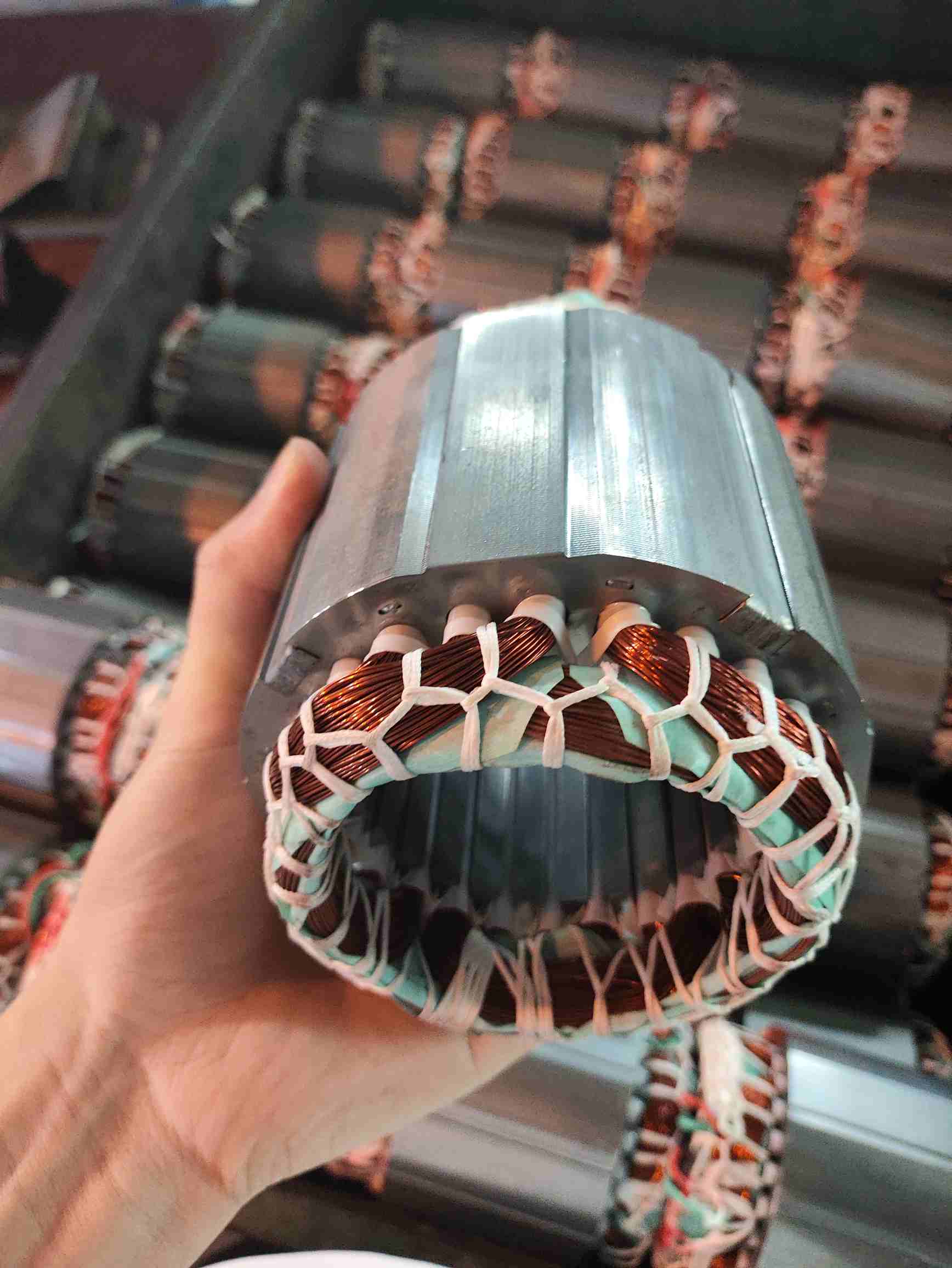

100% Pure Copper Windings
![定子线包]()
All Victory single phase electric motors use 100% pure copper windings, ensuring:
Each batch of copper wire is factory-inspected and traceable.

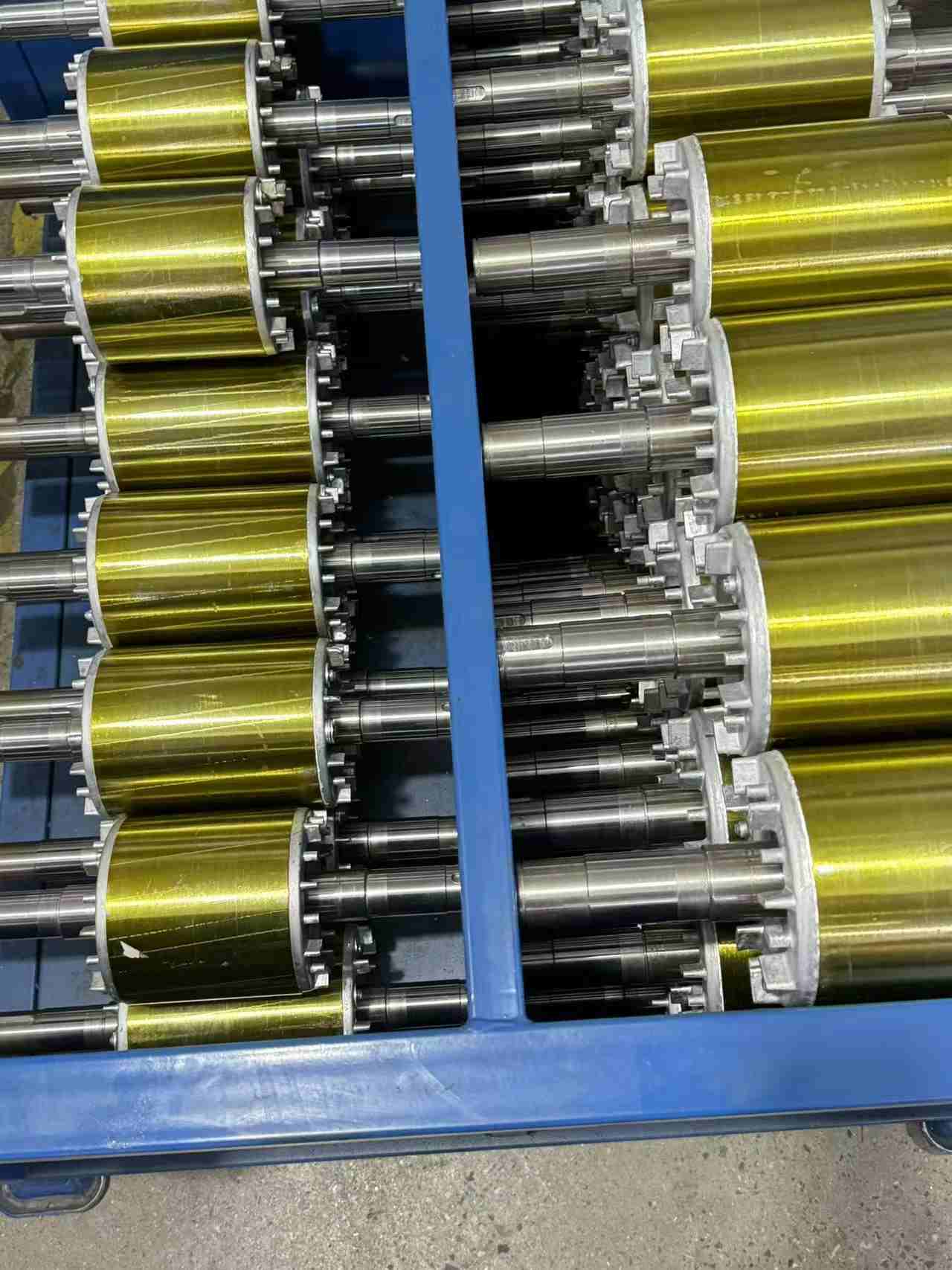

800-Grade Silicon Steel Stator & Rotor
![转子连轴]()
Victory uses high-quality 800-grade silicon steel for stator and rotor laminations, which:
This is especially important in humid cooling tower environments.
Strict Quality Control and Certification
Every single phase motor produced by Victory undergoes:
Our factory is certified with CE, CCC, ISO9001, and TUV, and third-party inspection reports are available upon request.
18-Month Warranty for Added Confidence
While the industry standard warranty is 12 months, Victory provides an 18-month warranty for its motors. This reduces after-sales risk for distributors and OEM partners.
OEM & Customization Support for Cooling Tower Projects
![YL黑色]()
Victory supports OEM and ODM cooperation with flexible customization options, including:
Voltage and frequency customization
Shaft diameter and length adjustment
Customized nameplates with your brand
PTC or PT100 thermal protection
Motors for high-temperature or high-altitude environments
Many customized items support small-batch trial orders, helping partners reduce risk and test new markets.
Packaging and Global Logistics Support
Each single phase AC motor is packed with:
We support FOB, CIF, and DDP door-to-door delivery, depending on your logistics preference.
Common Buying Mistakes to Avoid
Choosing Based on Price Alone
Low-cost 1 phase induction motors often use aluminum wire or inferior steel, leading to short service life and frequent failures.
Ignoring Real Operating Conditions
Humidity, continuous operation, and ambient temperature are critical factors for cooling tower fan motors.
How Victory Helps You Stay Competitive
![YCL-2级]()
Victory helps partners:
Replace expensive international brands
Control procurement cost
Maintain stable product quality
Build long-term customer trust
With over 20 years of manufacturing experience, we understand what works in real cooling tower applications.
Conclusion: Choose Stability Over Spec Sheet Numbers
For small cooling tower fans, motor selection is about stability, durability, and real operating performance—not chasing unrealistic efficiency labels.
If you are looking for a reliable single phase AC motor, single phase induction motor, or capacitor run motor designed for long-term operation, Victory is ready to support your project.
Contact us today to get technical drawings, datasheets, samples, or a customized motor solution for your cooling tower fan application.
