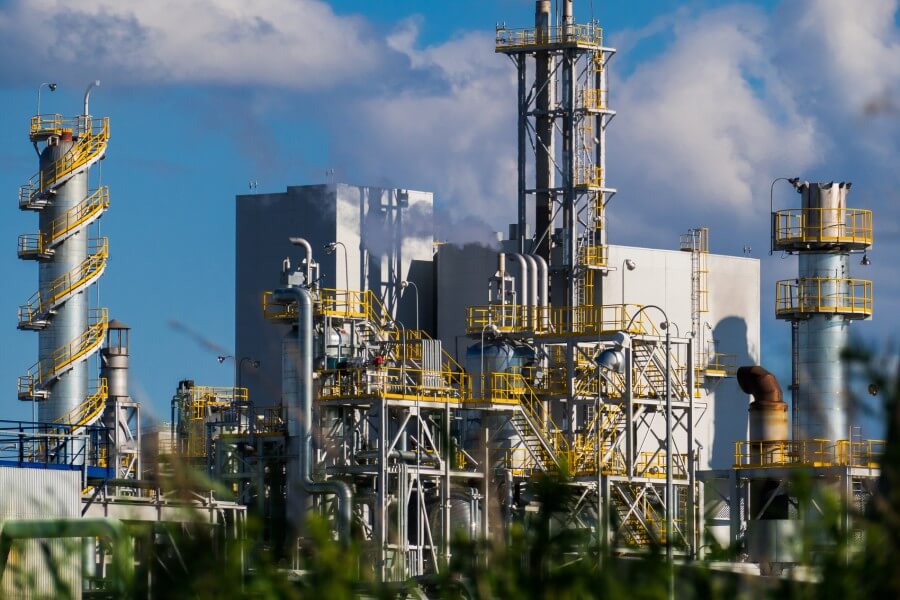

Application of Helical gear motor in chemical reactor


In chemical production, reactors serve as the heart of operations, where precise mixing drives reaction efficiency and product quality. Helical gear motors, with their superior torque delivery and reliable performance, are the go-to choice for powering reactor stirring systems.


This comprehensive guide explores the application of helical gear motors in chemical reactors, by showing Victory-motor’s real case, detailing their benefits, installation processes, and real-world impact.


Why Helical Gear Motors Excel in Chemical Reactors


Helical gear motors stand out for their ability to deliver high torque, maintain stable operation, and withstand harsh chemical environments. Their robust design, featuring high-strength alloy steel gears that undergo carburizing and quenching, ensures durability and precision. With gear accuracy reaching level 6 and transmission efficiency exceeding 96%, these motors handle demanding conditions while minimizing energy loss.


In chemical reactors, where stirring systems require adjustable speeds and consistent torque, helical gear motors provide unmatched reliability. Their ability to operate in high-temperature, corrosive settings makes them ideal for polymerization reactions and other complex processes, ensuring uniform mixing and optimal reaction outcomes.

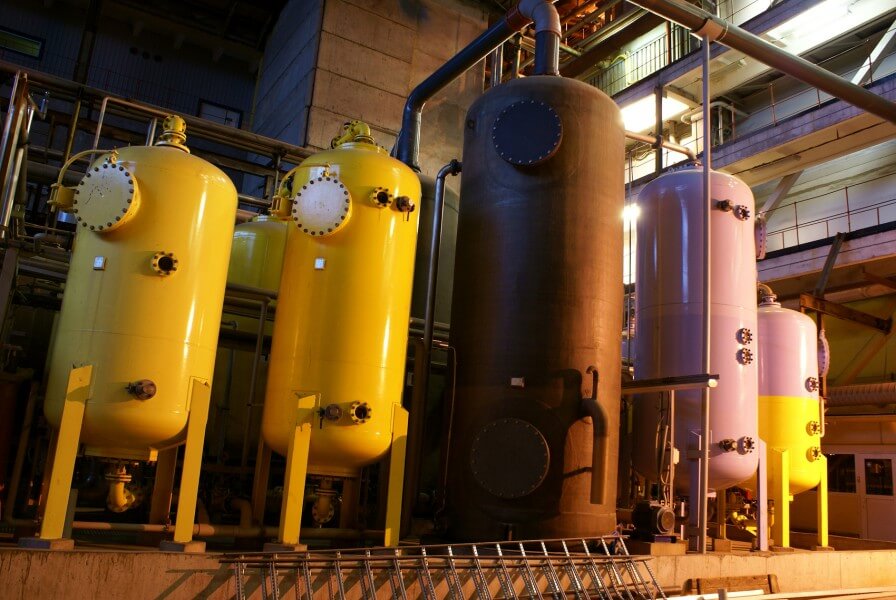

chemical reactors


Key Benefits of Helical Gear Motors


  • · High Torque Output: Deliver up to 8000N·m, ensuring thorough material mixing.

  • · Energy Efficiency: Achieve over 96% transmission efficiency, reducing power consumption.

  • · Durability: Built with wear-resistant materials to withstand corrosive environments.

    · Precision: Maintain stable speeds with minimal fluctuations for consistent results.

  • · Longevity: Reduce maintenance frequency and extend equipment lifespan.


Real-World Application: Polymerization in Fine Chemicals


A leading fine chemical company, specializing in polymer materials, showcases the power of helical gear motors in large-scale reactors. Their polymerization process demands precise stirring speeds between 30–120 RPM and a continuous torque of 8000N·m to ensure uniform mixing and reaction consistency. Operating in high-temperature, corrosive conditions, the company selected a hardened helical gear motor for its exceptional load-bearing capacity, efficiency, and resilience.


This strategic choice transformed their production, boosting reaction conversion rates from 85% to 92%, slashing energy costs by 18%, and cutting maintenance expenses by 30%. These improvements highlight the transformative potential of helical gear motors in chemical manufacturing.

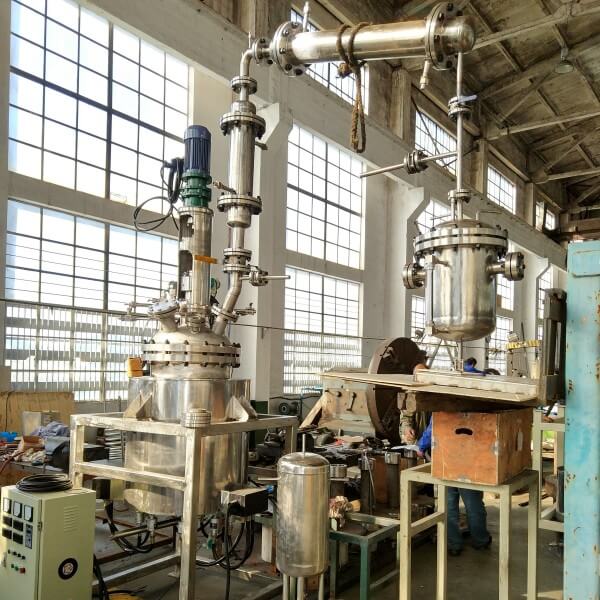

chemical production environments


Step-by-Step Guide to Installing Helical Gear Motors

Proper installation of helical gear motors ensures optimal performance and longevity in chemical reactors. Follow this detailed process to achieve seamless integration and reliable operation.


1. Pre-Installation Preparation


Inspect the Equipment

Before installation, thoroughly examine the helical gear motor for any external damage. Verify that the model, specifications, and included components match the design requirements. Use precision instruments to measure gear meshing clearance and bearing clearance, ensuring compliance with industry standards. This step prevents issues from defective or mismatched equipment.


Prepare the Foundation

Inspect the reactor’s installation foundation to confirm it is level, free of cracks, and clean of oil or debris. The foundation’s dimensions must align with the gear motor’s mounting requirements. If the surface is uneven, grind or repair it to achieve a flatness error of less than 0.5mm per meter, ensuring stable motor performance.


Gather Tools and Materials

Assemble essential tools, including wrenches, jacks, levels, and dial indicators, along with materials like lubricating oil and sealants. Confirm that the lubricating oil matches the motor’s specifications and that all tools are in good condition to streamline the installation process.

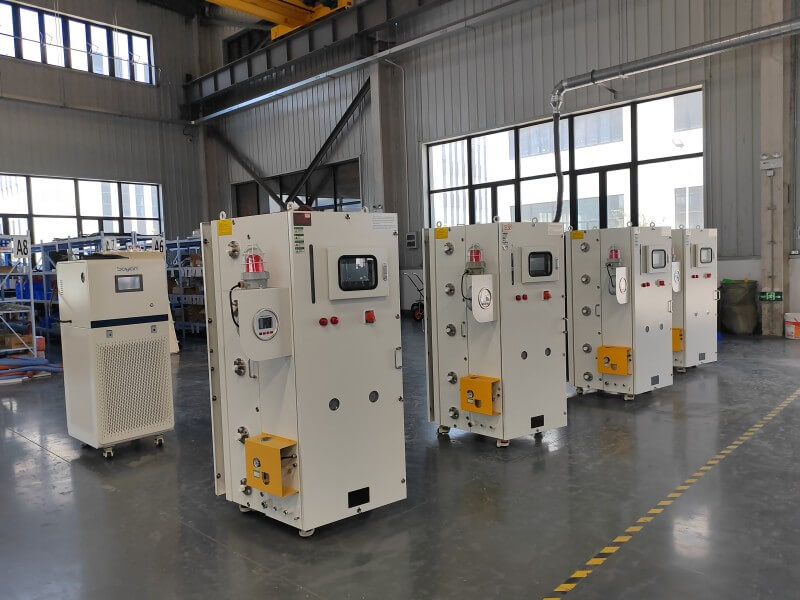

Equipment inspection


2. Installation Process


Hoist and Position the Motor

Use appropriate hoisting equipment to lift the helical gear motor into place on the reactor’s foundation. Protect the shaft extension, flanges, and other components from collisions during hoisting. Once positioned, use jacks or wedges to level the motor, keeping the horizontal error below 0.1mm/m for optimal stability.


Calibrate Coaxiality

Align the gear motor’s output shaft with the reactor’s stirring shaft using a dial indicator. Aim for a coaxiality error of less than 0.05mm to minimize vibration and wear during operation. Adjust the motor’s position or add shims under the base to achieve precise alignment.


Secure the Connection

Fasten the gear motor to the foundation using high-strength bolts, tightening them to the manufacturer’s specified torque for a secure, vibration-resistant connection. Install a flexible coupling between the motor and stirring shaft, adjusting its clearance and centering accuracy to meet technical requirements.


Lubricate and Seal

Fill the gear motor with the recommended type and quantity of lubricating oil, ensuring the oil level falls within the oil gauge’s normal range. Apply sealant to all sealing surfaces to prevent oil leaks and block external contaminants, maintaining the motor’s integrity in harsh environments.

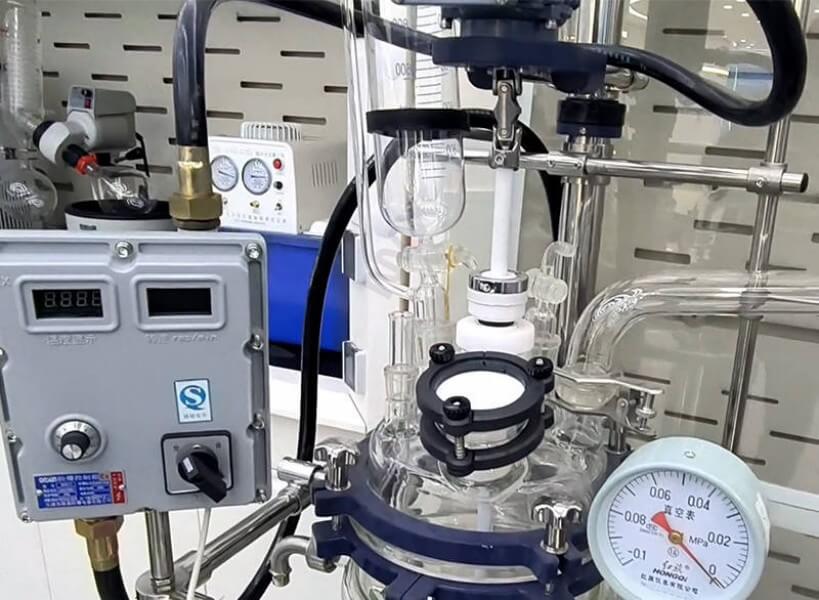

2.Installation process


3. Commissioning and Testing


Conduct a No-Load Trial Run

Power on the gear motor and run it without load for at least two hours. Monitor noise (≤85dB), vibration (≤6.3mm/s), and temperature rise (≤45°C). If abnormalities occur, halt the operation, inspect the motor, and resolve issues before proceeding.


Perform Load Testing

After a successful no-load trial, gradually introduce materials into the reactor for load testing. Track the motor’s torque output, speed stability, and current fluctuations to confirm it meets the stirring system’s demands. Check for loose connections or leaks and address them immediately.


Optimize Parameters

Fine-tune the motor’s settings based on load test results. Adjust the inverter’s output frequency to control stirring speed and calibrate the torque protection device to optimize performance. These adjustments ensure the motor operates at peak efficiency under real-world conditions.

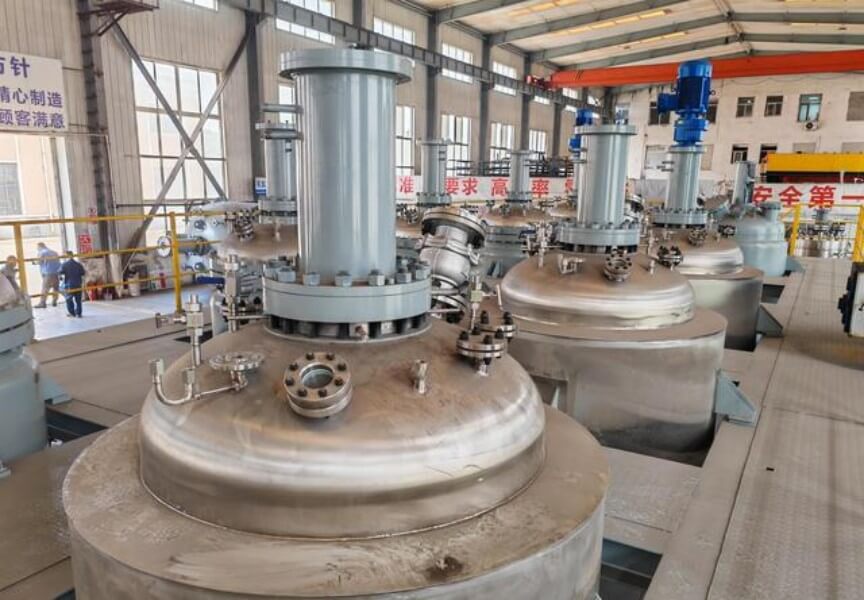

Debugging link


Performance Impact: Efficiency and Cost Savings


The helical gear motor’s integration into the fine chemical company’s reactor delivered measurable results:


  • · Improved Reaction Efficiency: Stable stirring speeds with fluctuations below ±1 RPM increased the polymerization conversion rate from 85% to 92%, enhancing product quality.

  • · Reduced Energy Consumption: The motor’s high transmission efficiency cut unit product power consumption by 18%, saving approximately $500,000 annually in electricity costs.

  • · Lower Maintenance Costs: Superior sealing and wear resistance reduced maintenance frequency by 30% and equipment failure rates by 40%, boosting production continuity.


These outcomes demonstrate how helical gear motors optimize chemical reactor performance, delivering significant cost savings and operational reliability.

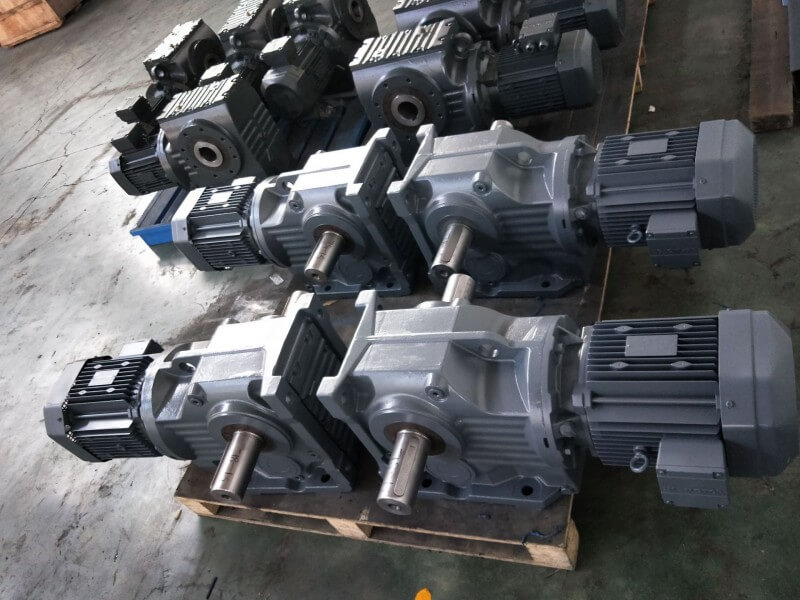

gear reducer


Best Practices for Maximizing Gear Motor Performance

To ensure long-term success with helical gear motors in chemical reactors, adopt these best practices:


Select the Right Motor

Choose a gear motor that matches the reactor’s torque, speed, and environmental requirements. For corrosive or high-temperature settings, prioritize hardened helical gear motors with high-strength materials and precise engineering.


Follow Standardized Installation

Adhere to rigorous installation protocols, including foundation preparation, coaxiality calibration, and secure fastening. Proper installation minimizes vibration, wear, and operational issues.


Monitor and Maintain

Schedule regular inspections to check for wear, leaks, or loose connections. Monitor operating conditions like noise, vibration, and temperature to catch issues early. Maintain proper lubrication to reduce friction and extend motor life.


Optimize for Load Conditions

Adjust motor settings to align with specific load requirements, ensuring efficient operation. For variable loads, use inverters to fine-tune speed and torque, maximizing energy efficiency.

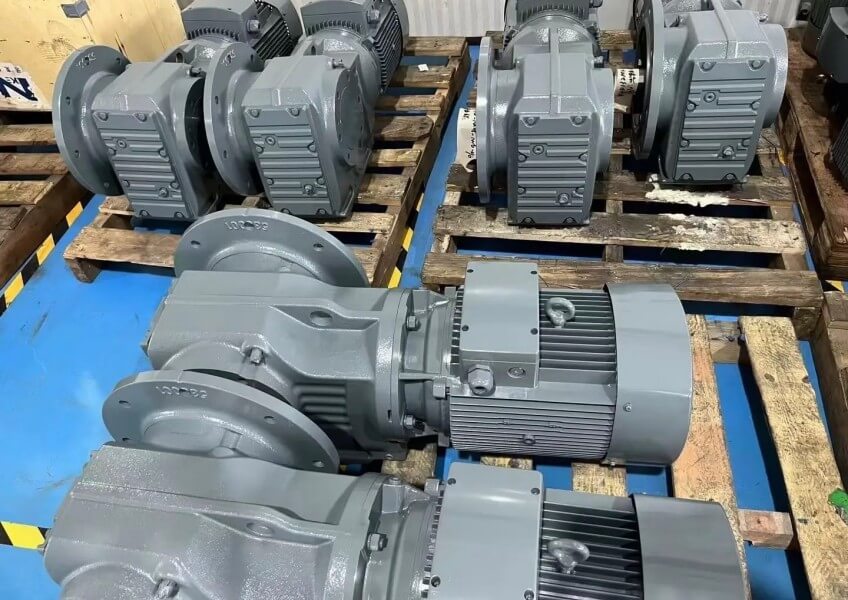

reducer


Troubleshooting Common Issues


Even with proper installation, challenges may arise.

Here’s how to address common helical gear motor issues in chemical reactors:


  • · Excessive Noise or Vibration: Check for misalignment or loose connections. Recalibrate coaxiality and tighten bolts to reduce vibration. Inspect gears for wear or damage.

  • · Overheating: Verify that the motor is not overloaded and that the lubricating oil level is adequate. Ensure proper ventilation around the motor.

  • · Inconsistent Speed: Monitor the inverter settings and adjust the output frequency. Check for electrical issues in the power supply or control system.

  • · Oil Leaks: Inspect seals and reapply sealant if necessary. Ensure the oil type and level meet manufacturer specifications.

  • · Failure to Start: Confirm the power supply is stable and check for faulty wiring or blown fuses. Verify the motor’s compatibility with the load.


Enhancing Chemical Production with Helical Gear Motors


Helical gear motors play a pivotal role in optimizing chemical reactor performance, offering high torque, energy efficiency, and durability. Their ability to maintain stable stirring speeds and withstand harsh environments makes them indispensable for processes like polymerization. By following standardized installation and maintenance practices, manufacturers can achieve significant improvements in reaction efficiency, energy savings, and equipment reliability.


This case study of a fine chemical company illustrates the transformative impact of helical gear motors, with a 7% increase in reaction conversion rates, 18% lower energy costs, and 30% reduced maintenance expenses. By carefully selecting, installing, and maintaining these motors, chemical producers can enhance productivity, cut costs, and strengthen their competitive edge.

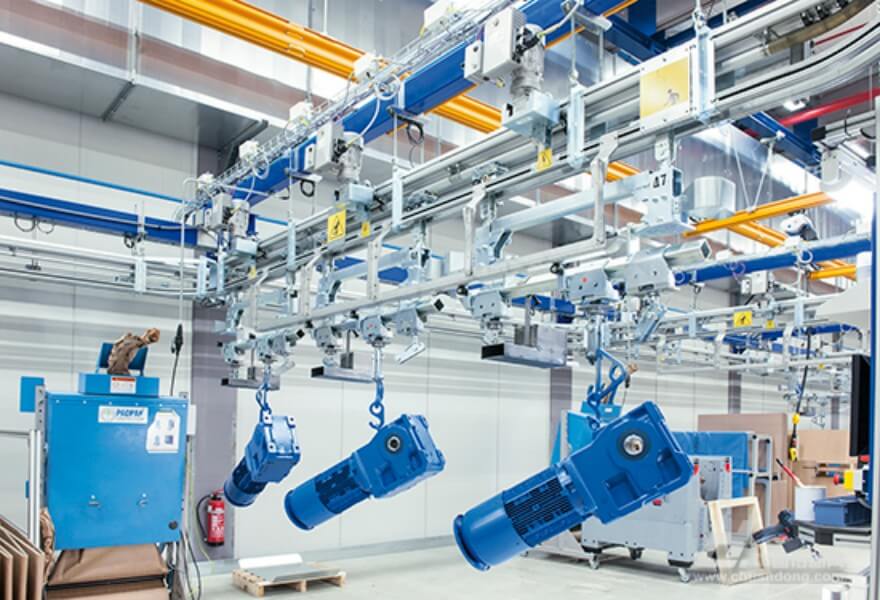

helical bevel gear reducers


Conclusion: Driving Chemical Innovation Forward


Helical gear motors are a game-changer for chemical reactors, delivering precision, efficiency, and resilience in demanding production environments. By understanding their benefits, mastering the installation process, and implementing best practices, manufacturers can unlock significant operational gains. This guide provides the tools to harness the full potential of helical gear motors, ensuring superior performance and long-term success in chemical production.
