A Practical Guide to Cycloidal Reducer for Belt Conveyor

Introduction to Belt Conveyor Drive Systems

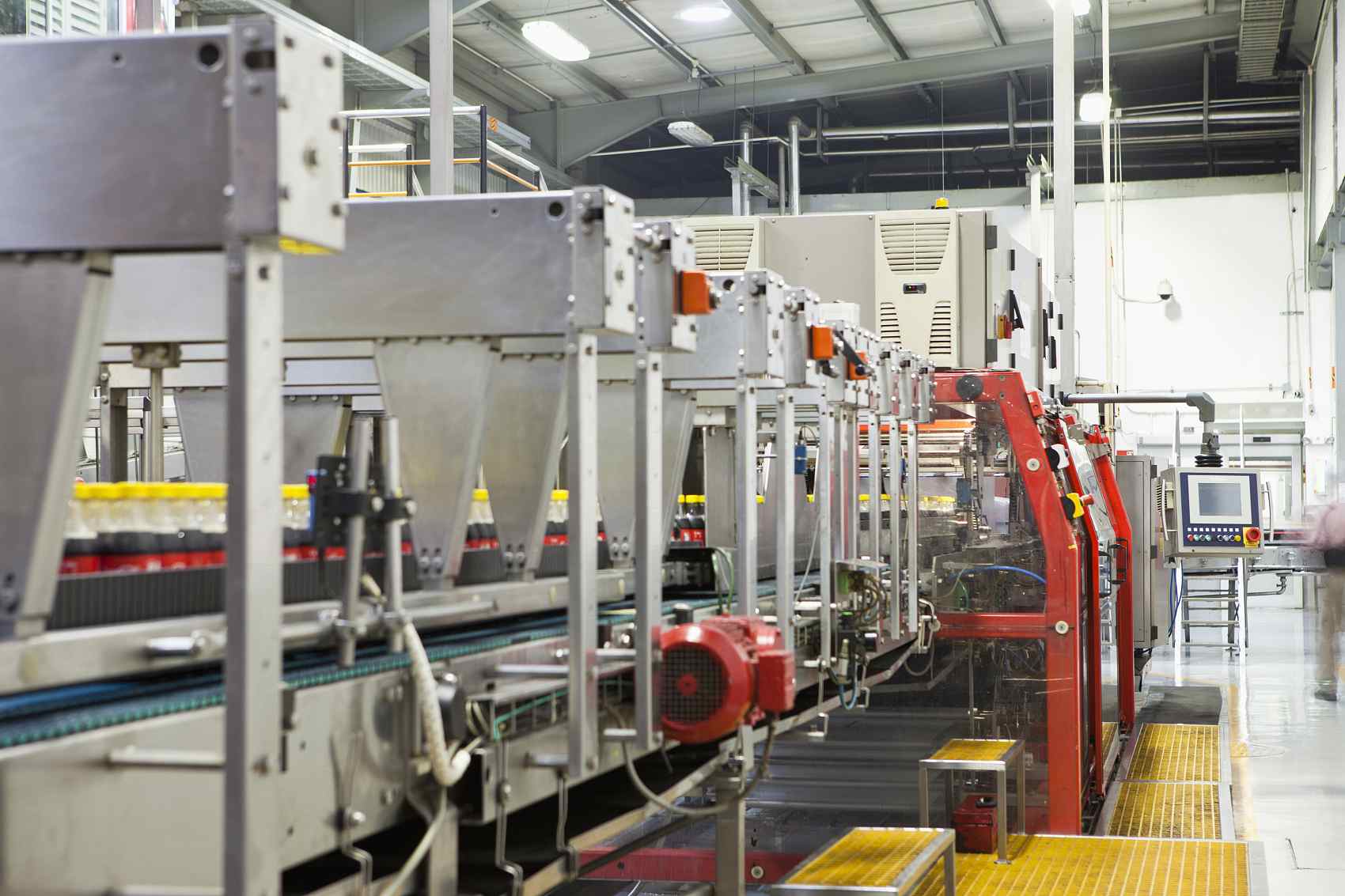

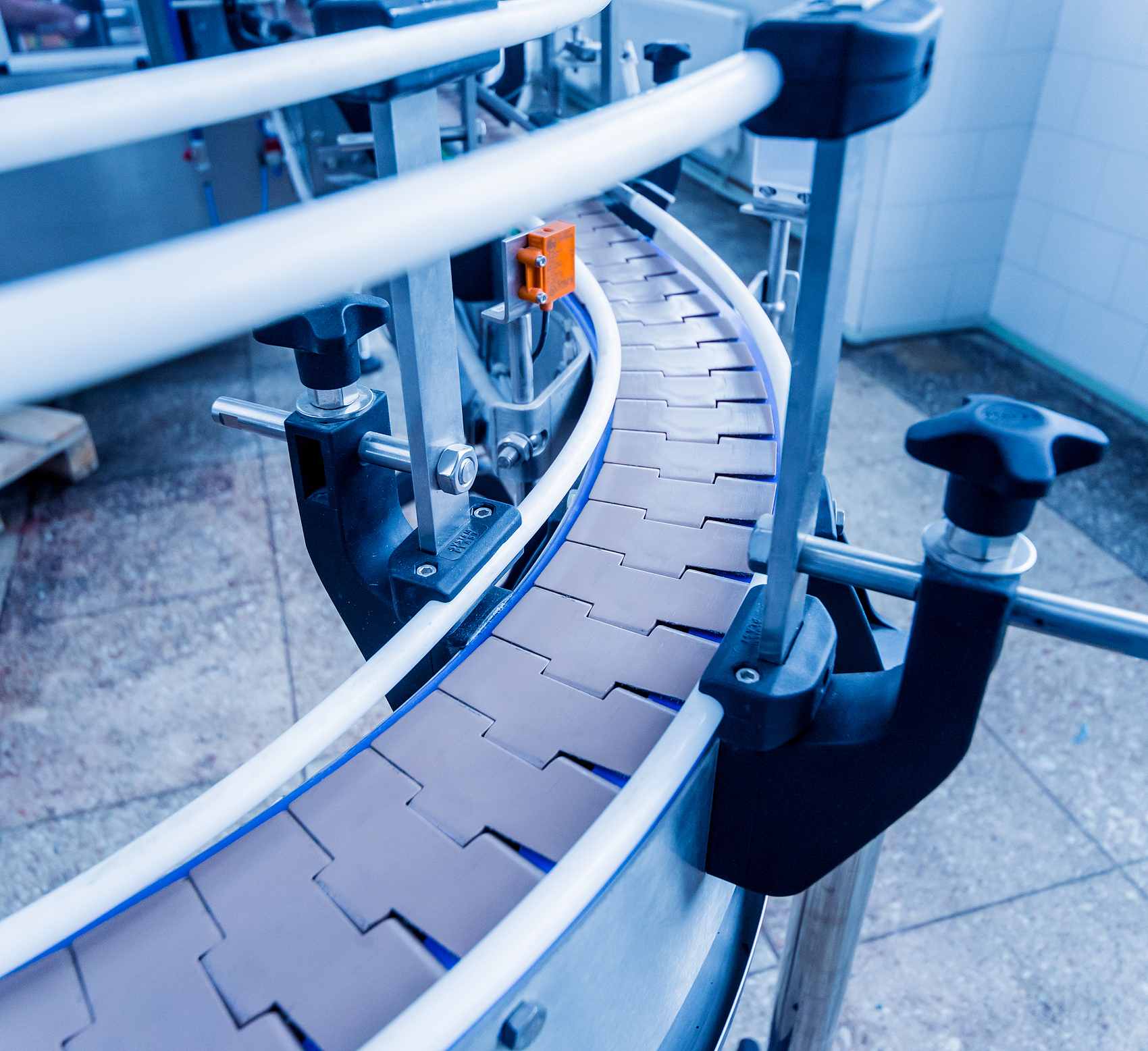

What Is a Belt Conveyor System

A belt conveyor system is widely used in industries such as mining, cement, food processing, logistics, and manufacturing. It is designed to transport materials efficiently over long distances.

The performance of a conveyor system largely depends on its drive system, especially the gearbox used for speed reduction and torque transmission.

Importance of Gear Reducers in Conveyor Systems

Gear reducers are essential components that convert high-speed motor rotation into low-speed, high-torque output required by conveyors. Among various options, the Cycloidal reducer has become one of the most reliable solutions.

What Is a Cycloidal Reducer

Working Principle of Cycloidal Transmission

A Cycloid reducer operates based on cycloidal disc motion and rolling contact. Unlike traditional gear systems, a Cycloidal transmission uses pins and cycloidal discs to achieve speed reduction.

This design ensures smoother operation, higher efficiency, and better shock resistance.

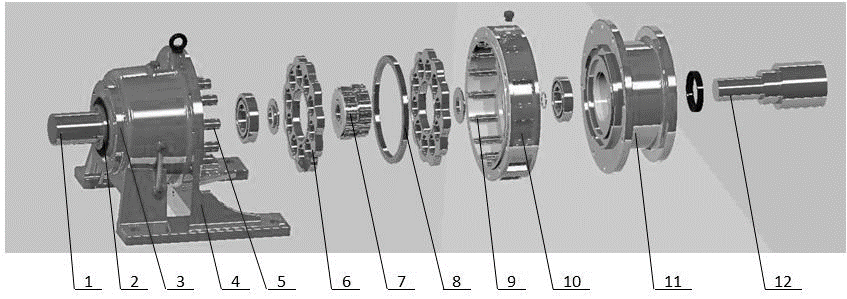

Key Components of a Cycloid Reducer

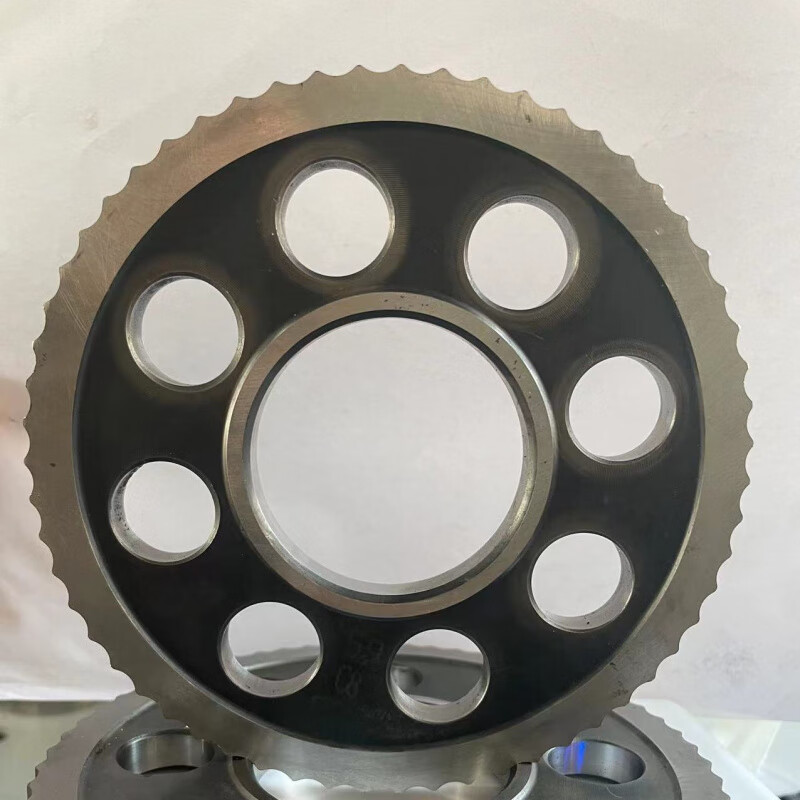

• Cycloidal disc

• Output shaft

• Needle bearings

• Housing

These components form a robust Cyclo drive gearbox capable of handling heavy-duty applications.

Why Belt Conveyors Need Speed Reduction

Torque Requirements

Conveyor systems require high torque at low speeds to move heavy loads. A Cycloidal gear reducer is ideal for such conditions.

Load Characteristics

Belt conveyors often experience:

• Sudden load changes

• Continuous operation

• Heavy starting loads

A Cycloidal speed reducer performs exceptionally well under these conditions.

Advantages of Using Cycloidal Reducer in Belt Conveyor

High Torque Density

A Cycloidal speed gearbox can deliver high torque in a compact size, making it suitable for space-limited installations.

Shock Load Resistance

Thanks to its rolling contact design, a Cycloidal drive can absorb impact loads much better than traditional gearboxes.

Long Service Life

A Cycloidal transmission system minimizes wear and extends service life, reducing downtime.

How to Select the Right Cycloidal Reducer

Load Calculation

To select the correct Cycloidal reducer, you need to determine:

• Conveyor load

• Belt speed

• Operating hours

Speed Ratio Selection

A proper Cycloidal speed drive ensures optimal performance and energy efficiency.

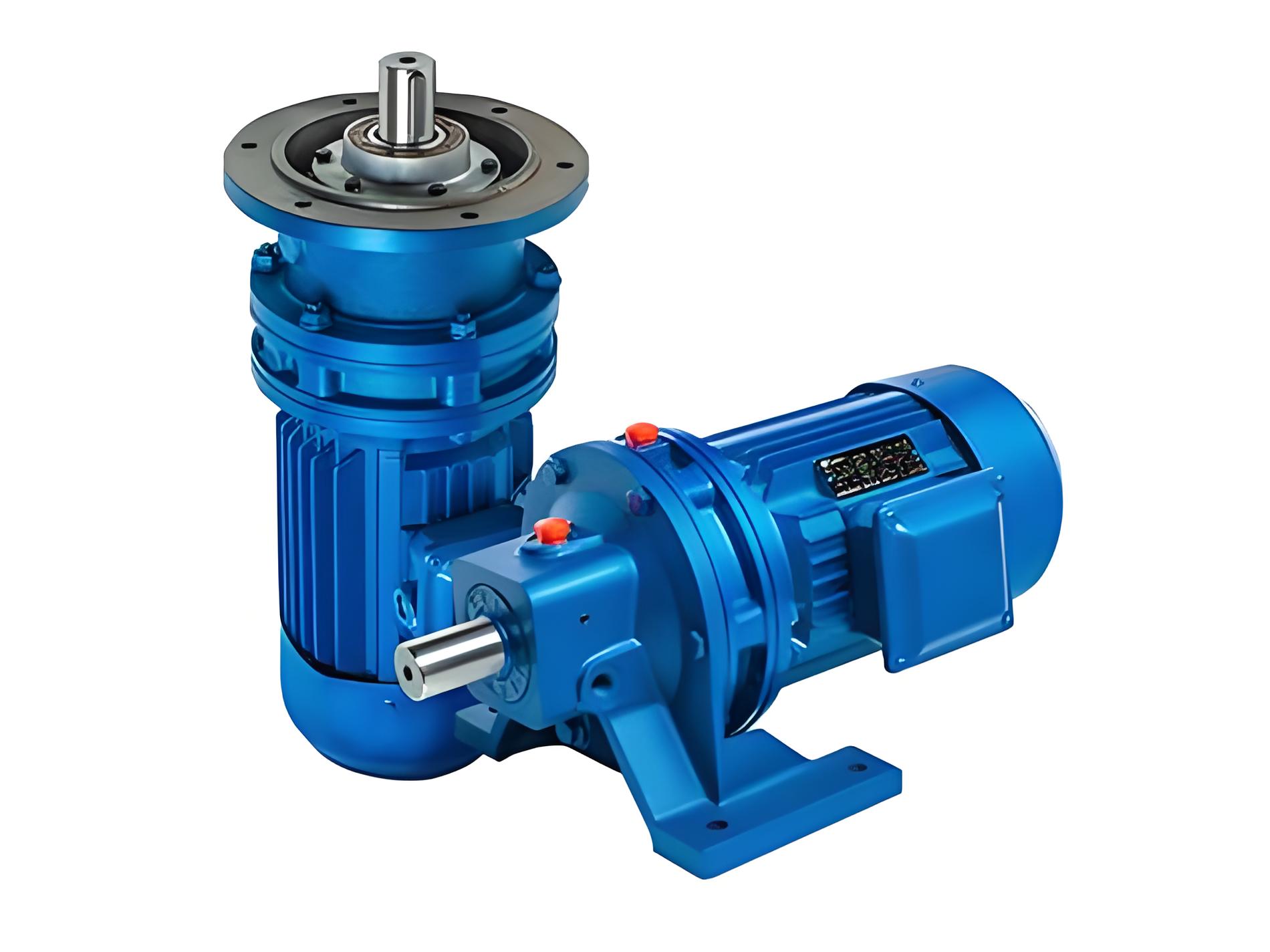

Installation of Cyclo Drive Gearbox

Horizontal Installation

Most conveyor systems use horizontal mounting.

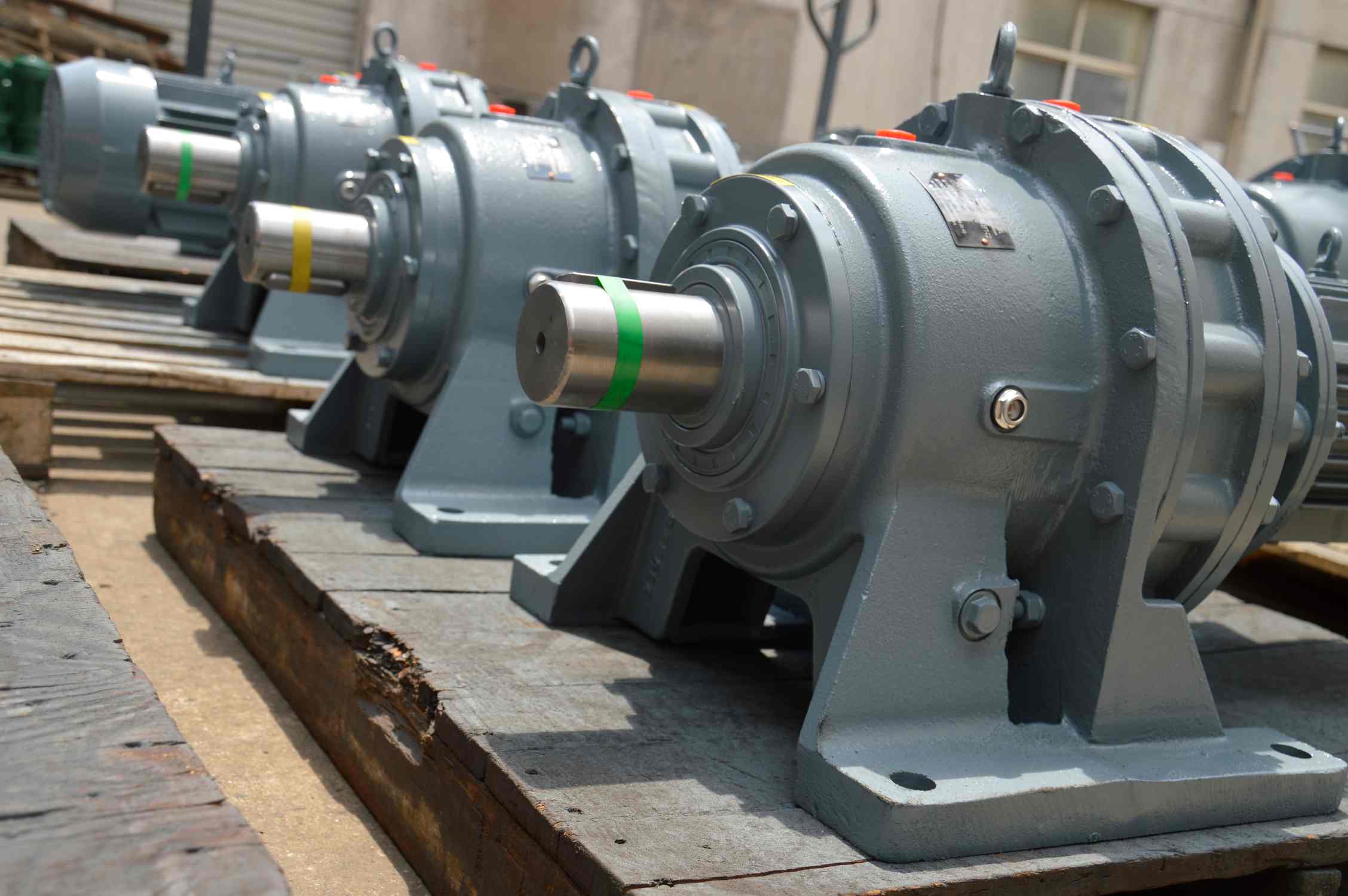

Shaft Mounting

A Cyclo drive motor can be shaft-mounted for direct power transmission.

A complete Cyclo drive unit simplifies installation and improves reliability.

Maintenance and Troubleshooting

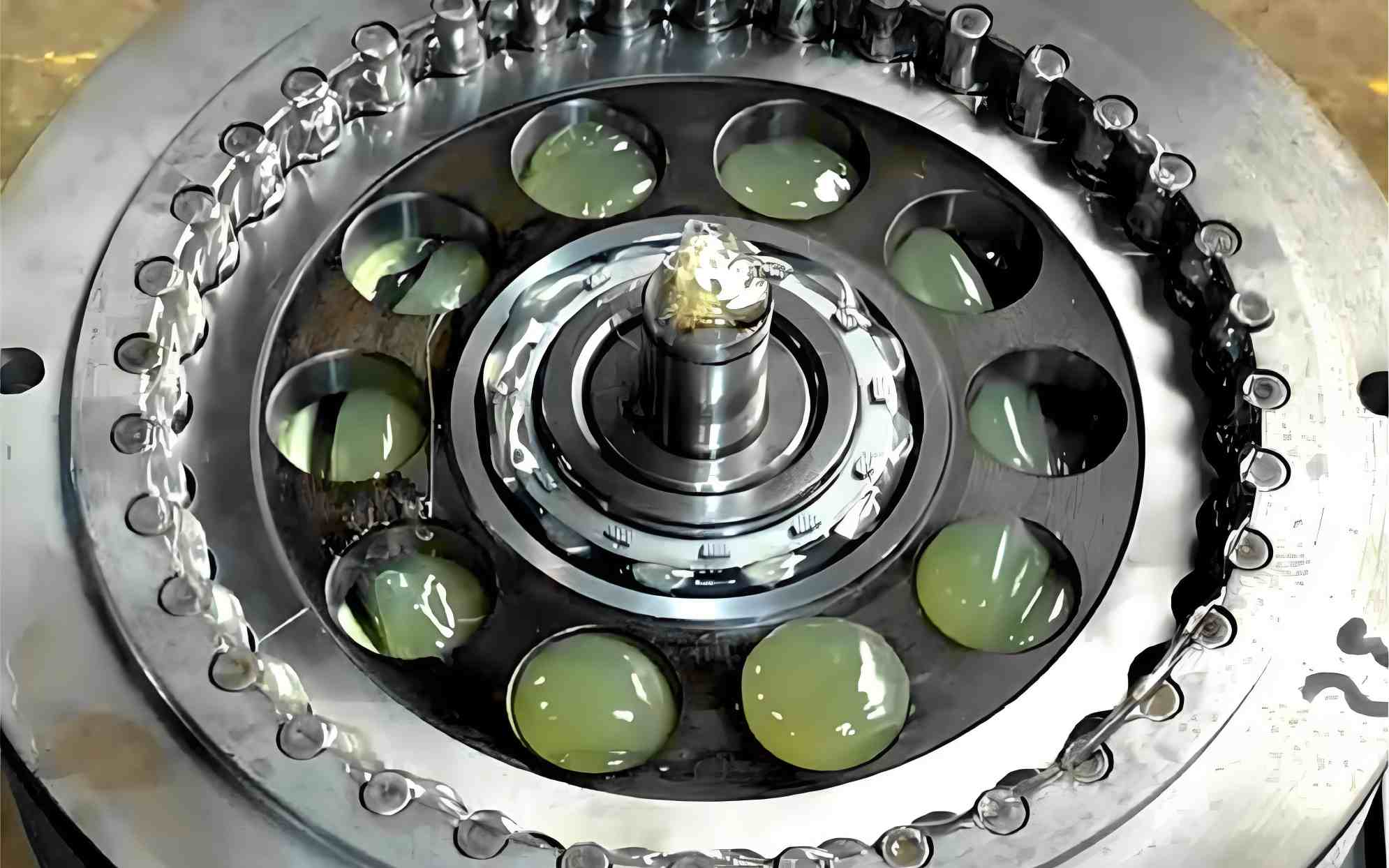

Lubrication

Proper lubrication ensures long-term operation of the Cycloidal speed gearbox.

Noise and Vibration

A Cycloidal gear reducer typically operates with low vibration. Any abnormal noise may indicate misalignment or wear.

Enhancing Conveyor Efficiency with Cycloidal Drive

Using a Cycloidal drive gear motor in belt conveyor systems provides:

• Stable operation

• Reduced downtime

• Improved energy efficiency

A well-designed Cycloidal drive system can significantly enhance production efficiency.

Why Choose Victory as Your Cycloidal Reducer Supplier

This is where many buyers make the wrong decision — they focus only on price, not long-term reliability.

At Victory, we don’t just supply products. We provide complete transmission solutions for global distributors, OEMs, and industrial users.

1. Proven Experience in Global Markets

We have extensive export experience in:

• Europe

• North America

• South America

• Southeast Asia

We understand international standards, packaging, and customer expectations.

2. Stable Quality with Industrial-Grade Durability

Our Cycloidal gear reducer and Cycloidal gear motor are designed for:

• Continuous heavy-duty operation

• High shock load environments

• Long service life

We follow strict quality control to ensure every Cycloidal speed gearbox meets industrial standards.

3. Competitive Pricing with Real Value

Unlike low-cost suppliers, we focus on:

• Long-term reliability

• Lower maintenance costs

• Better lifecycle value

This makes our Cycloidal drive gear motor a more cost-effective choice over time.

4. Flexible Customization Capability

We support:

• Custom shaft dimensions

• Special mounting types

• Voltage and frequency adaptation

• Integrated Cyclo drive motor solutions

This is especially important for conveyor system integrators.

5. Fast Response & Professional Support

We provide:

• Quick quotation (within 24 hours)

• Technical selection support

• Datasheets and drawings

Our goal is to help you close deals faster with your end customers.

FAQ About Cycloidal Reducers for Conveyor Systems

1. Why use a Cycloidal reducer instead of a helical gearbox?

A Cycloidal reducer offers better shock resistance, higher torque capacity, and longer service life.

2. Can a Cycloidal gear motor be used in heavy-duty conveyors?

Yes, a Cycloidal gear motor is ideal for heavy-duty and continuous operation.

3. What is the lifespan of a Cycloid reducer?

A properly maintained Cycloid reducer can last significantly longer than traditional gearboxes.

4. Is a Cyclo drive gearbox energy efficient?

Yes, a Cyclo drive gearbox has high transmission efficiency and reduces energy loss.

5. How do I choose the right Cyclo drive unit?

You need to consider torque, speed ratio, installation type, and working conditions.
