A Practical Guide to Helical Gear Motor for Reactor Agitator
Views: 0 Author: Site Editor Publish Time: 2026-05-14 Origin: Site

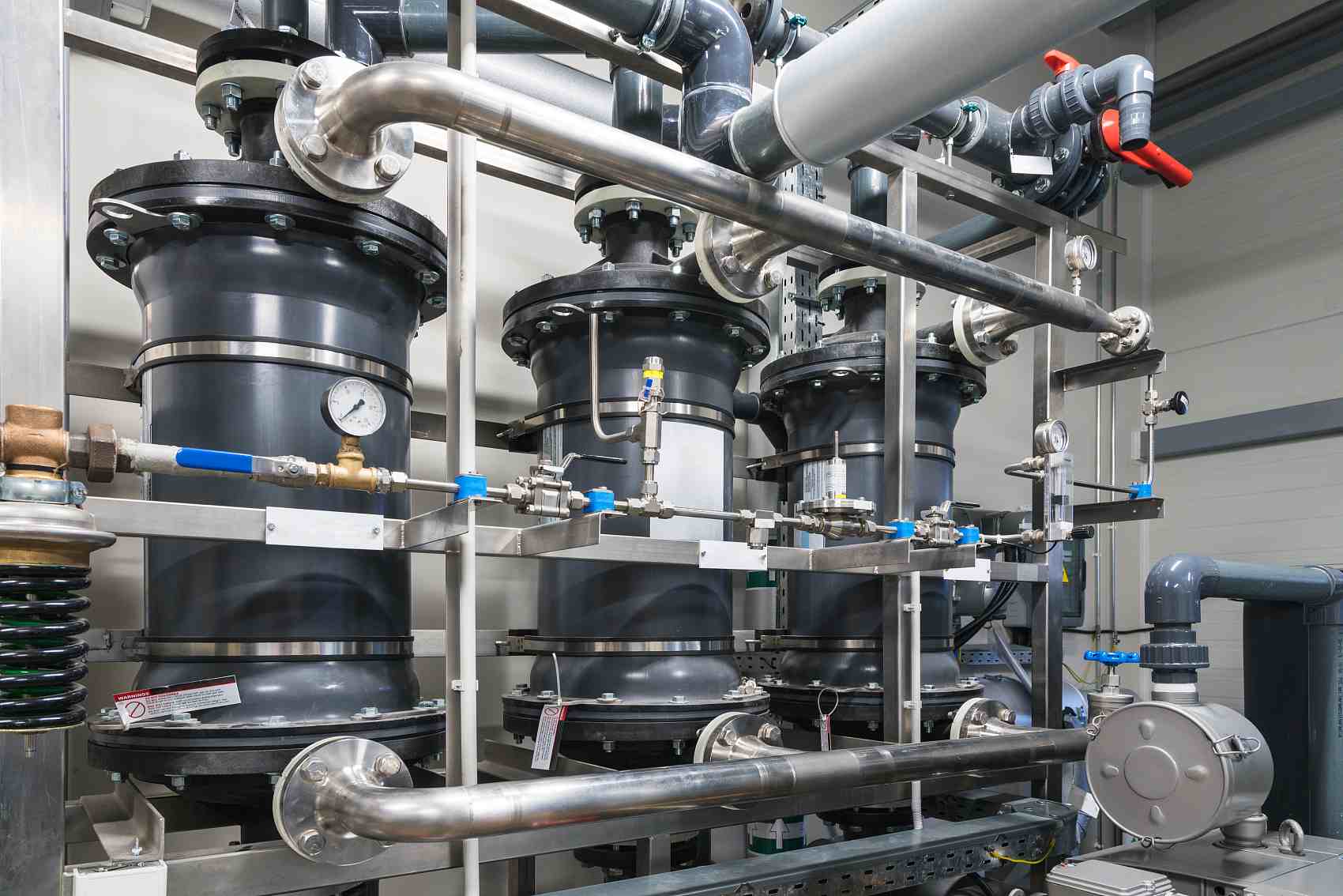

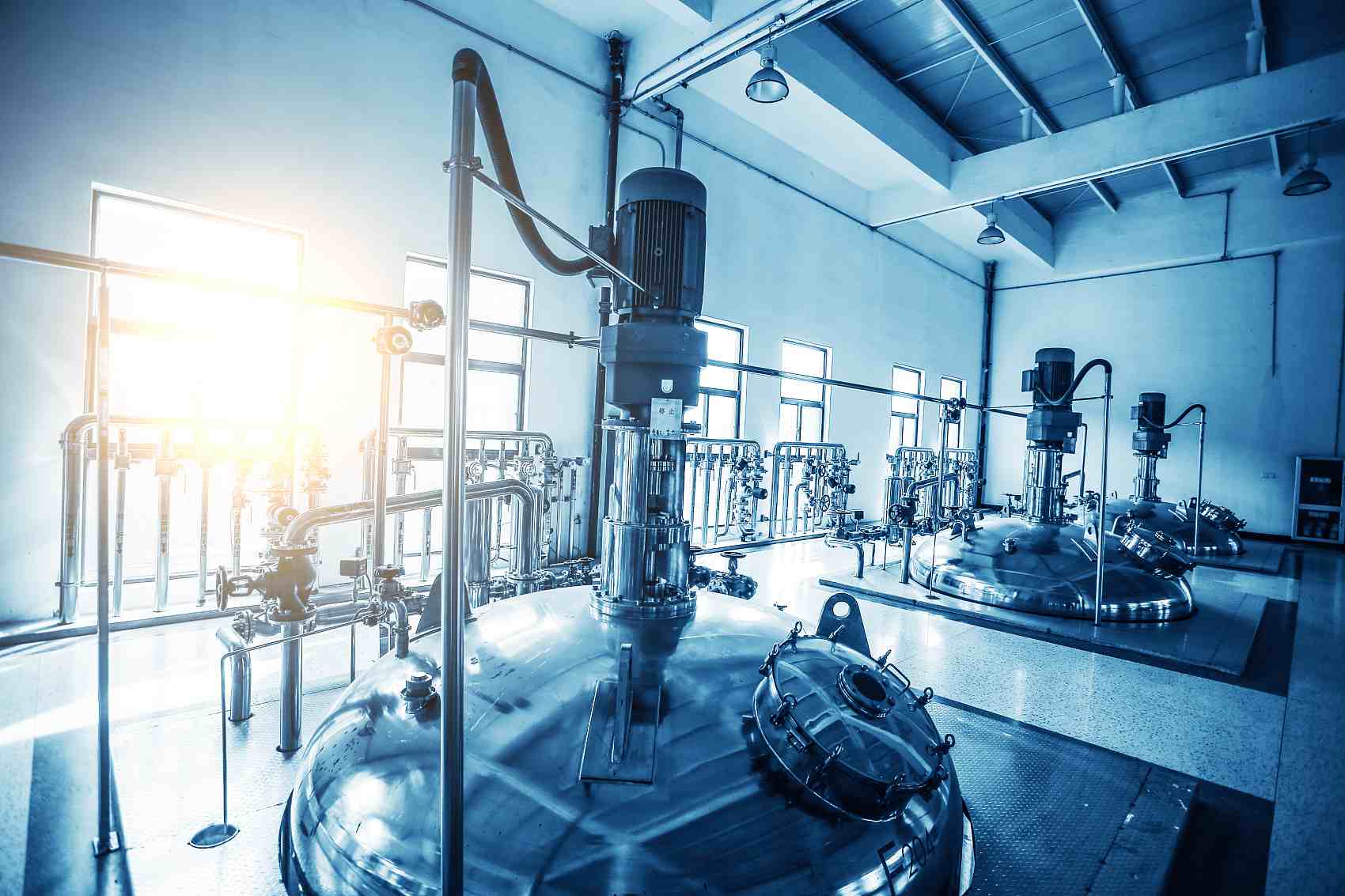

Reactor agitators are widely used in chemical plants, food processing, coating production, wastewater treatment, pharmaceutical equipment, and many other industrial systems.
Their job is simple but important: keeping materials mixed, suspended, heated, cooled, or reacted evenly inside the tank.
Behind every stable reactor agitator, there is one key drive component:
The gear motor.
Choosing the right helical gear motor for reactor agitator applications is not only about motor power. It also depends on output speed, torque, service factor, shaft strength, mounting position, working environment, and daily operating time.
If the gear motor is too small, the agitator may fail to start. If the gearbox is overloaded, it may overheat, leak oil, or wear quickly. If the service factor is too low, the whole mixing system may become unstable.
This guide explains how to select a reliable helical geared motor for reactor agitator applications, especially for B2B buyers, distributors, OEM manufacturers, and industrial project contractors.
Why Reactor Agitators Need the Right Gear Motor
A reactor agitator is not a light-duty machine. It often works under continuous load, high resistance, and difficult working conditions.
In many projects, the agitator runs for many hours per day or even 24 hours continuously. That means the gear motor must be strong enough for long-term operation.
A suitable agitator gear motor should provide:
• Stable torque • Smooth transmission • Good heat dissipation • Reliable bearings • Proper lubrication • Enough service factor • Long service life
For reactor agitators, a gear motor that works well during a short test may still fail during real production if the selection is not correct.

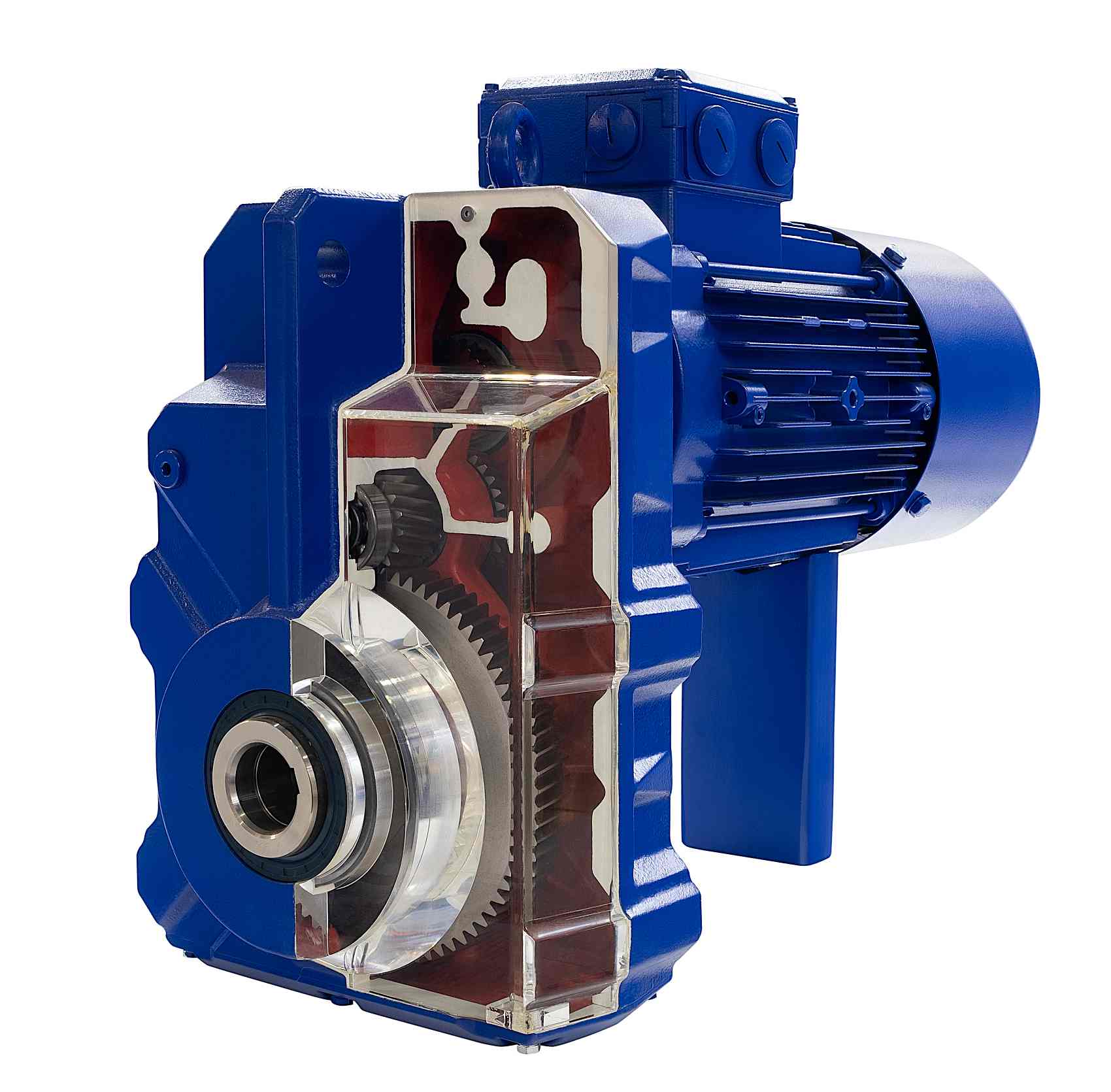

What Is a Helical Gear Motor?

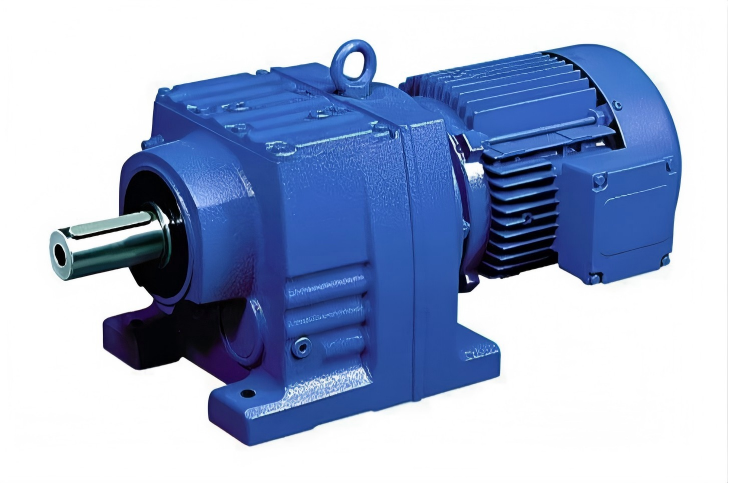

A helical gear motor is a combination of an electric motor and a helical gearbox.
The motor provides power. The gearbox reduces speed. The output shaft delivers higher torque to the agitator.
Compared with straight gears, helical gears have angled teeth. This design allows smoother gear contact, lower noise, and better load capacity.

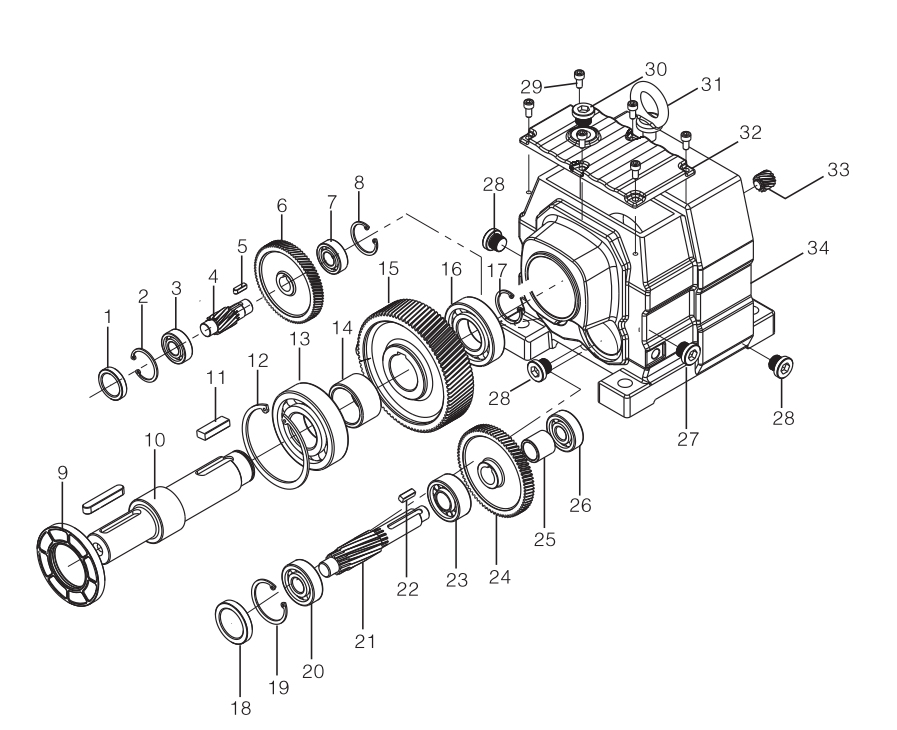

A complete helical geared motor usually includes:
• Three-phase electric motor • Helical gearbox • Gear housing • Input flange or coupling • Output shaft or hollow shaft • Bearings • Oil seals • Lubrication oil • Foot or flange mounting structure
For reactor agitator applications, the motor is usually a three-phase induction motor. Common voltage and frequency options include:
For chemical reactors, resin tanks, slurry mixing, and coating production, this load capacity is very important.
Smooth and Stable Operation
Reactor processes often require stable mixing speed. If the speed changes too much, the final mixing result may be affected.
A helical geared motor provides smooth transmission and stable output speed. When used with a VFD, it can also support speed adjustment for different process stages.
For example:
• Low speed for gentle mixing • Medium speed for uniform blending • Higher speed for dispersion or reaction process
This flexibility makes the helical gear motor suitable for many types of reactor agitator systems.
Longer Service Life
A good helical gear reducer can offer long service life when selected and maintained correctly.
The service life depends on:
• Gear material • Gear machining accuracy • Bearing quality • Oil seal quality • Gearbox housing strength • Lubrication condition • Service factor • Motor quality
For B2B buyers, longer service life means fewer complaints, lower maintenance cost, and better customer satisfaction.
Key Selection Factors for Reactor Agitator Gear Motors
When selecting a helical gear motor for reactor agitator, do not only provide motor power. A complete inquiry should include speed, torque, mounting, load condition, and environment.
Output Speed
Output speed is one of the first parameters to confirm.
Common output speeds for reactor agitators include:
• Tank volume • Material viscosity • Blade type • Mixing purpose • Process requirement • Starting condition
If the speed is too high, it may cause splashing, foam, vibration, or overload. If the speed is too low, the mixing result may not meet the process requirement.
Output Torque
Torque is the real working force of the agitator.
Many buyers only say:
• “I need a 3 kW gear motor.” • “I need a 5.5 kW motor.” • “I need a 7.5 kW agitator motor.”
But motor power alone is not enough.
For the same power, lower output speed means higher output torque. For example, a 5.5 kW gear motor at 50 rpm has higher output torque than a 5.5 kW gear motor at 100 rpm.
That is why professional suppliers always check both power and output speed before selecting the gearbox.
Motor Power
Motor power should match the real mixing load.
Common power ranges for reactor agitator gear motors include:
For small tanks, 0.75 kW to 3 kW may be enough. For medium reactors, 4 kW to 11 kW is common. For large tanks or high-viscosity materials, 15 kW or higher may be required.
The final selection should be based on real working conditions, not only experience.
Service Factor
Service factor is very important for reactor agitators.
Agitators often face:
• Continuous operation • Heavy starting load • Variable viscosity • Shock load • Long working hours • High ambient temperature
For light-duty applications, a lower service factor may be acceptable. But for reactor agitators, a higher service factor is usually safer.
Common service factor references:
• 1.3–1.5 for light-duty mixing • 1.5–1.8 for medium-duty mixing • 2.0 or higher for heavy-duty or continuous operation
If the service factor is too low, the gearbox may work close to its limit for a long time. This increases the risk of overheating, oil leakage, gear wear, and early failure.
Mounting Position
Mounting position affects installation, lubrication, oil level, breather position, and bearing load.
For reactor agitators, top-mounted vertical installation is common. The gearbox is often installed above the tank and connected to the agitator shaft.
Before ordering, the buyer should confirm the mounting position clearly. This helps the supplier prepare the correct oil quantity, oil plug position, breather position, and gearbox structure.
Shaft Type and Dimensions
The shaft connection must match the agitator system.
Important details include:
• Output shaft diameter • Output shaft length • Keyway size • Hollow shaft or solid shaft • Flange size • Coupling type • Center height • Installation hole dimensions
For replacement projects, it is better to provide:
• Old gearbox nameplate • Motor nameplate • Photos • Drawings • Shaft dimensions • Mounting dimensions
This helps avoid installation problems after delivery.
Working Environment

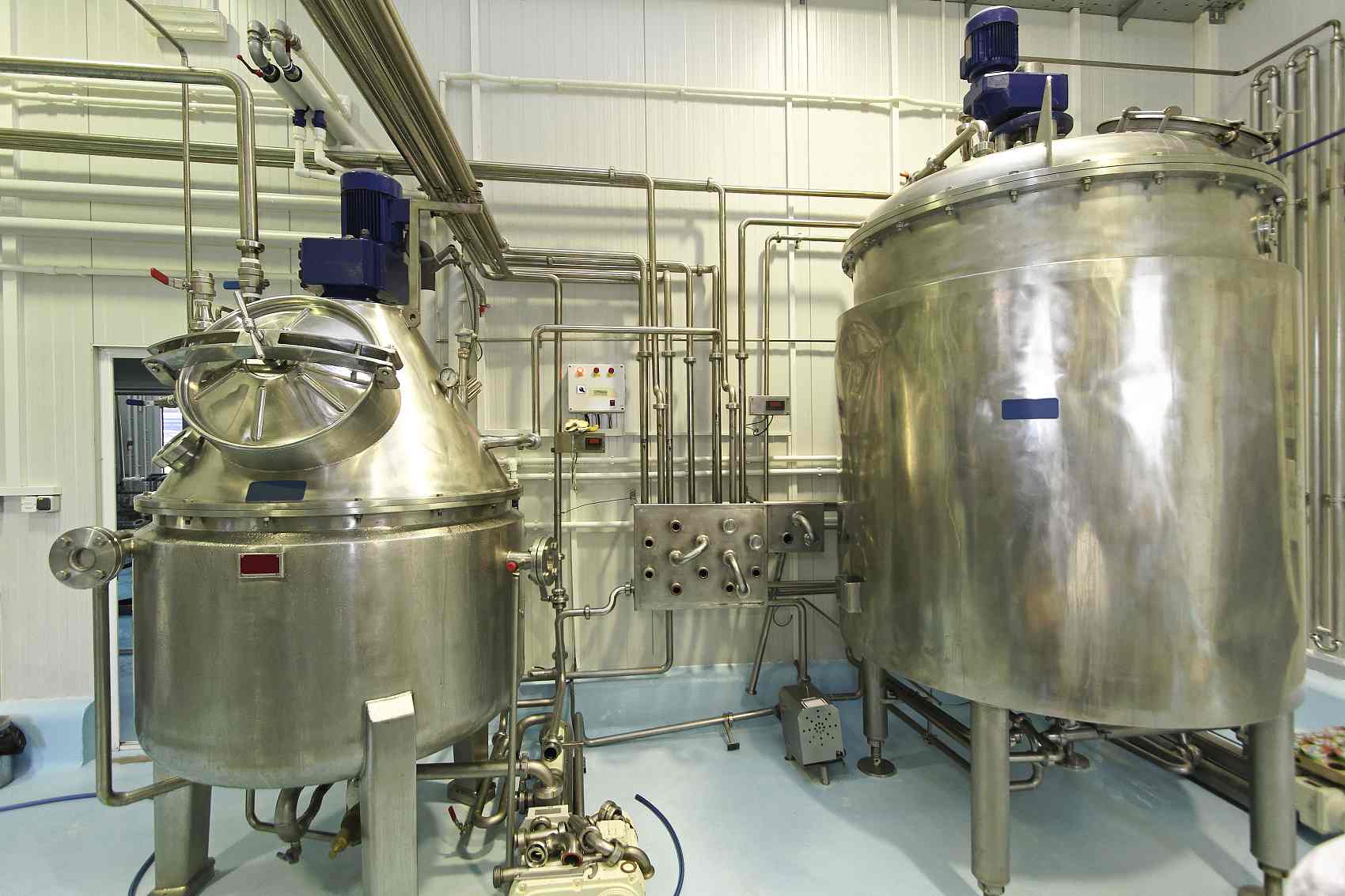

Reactor agitators may be used in different industrial environments, such as:

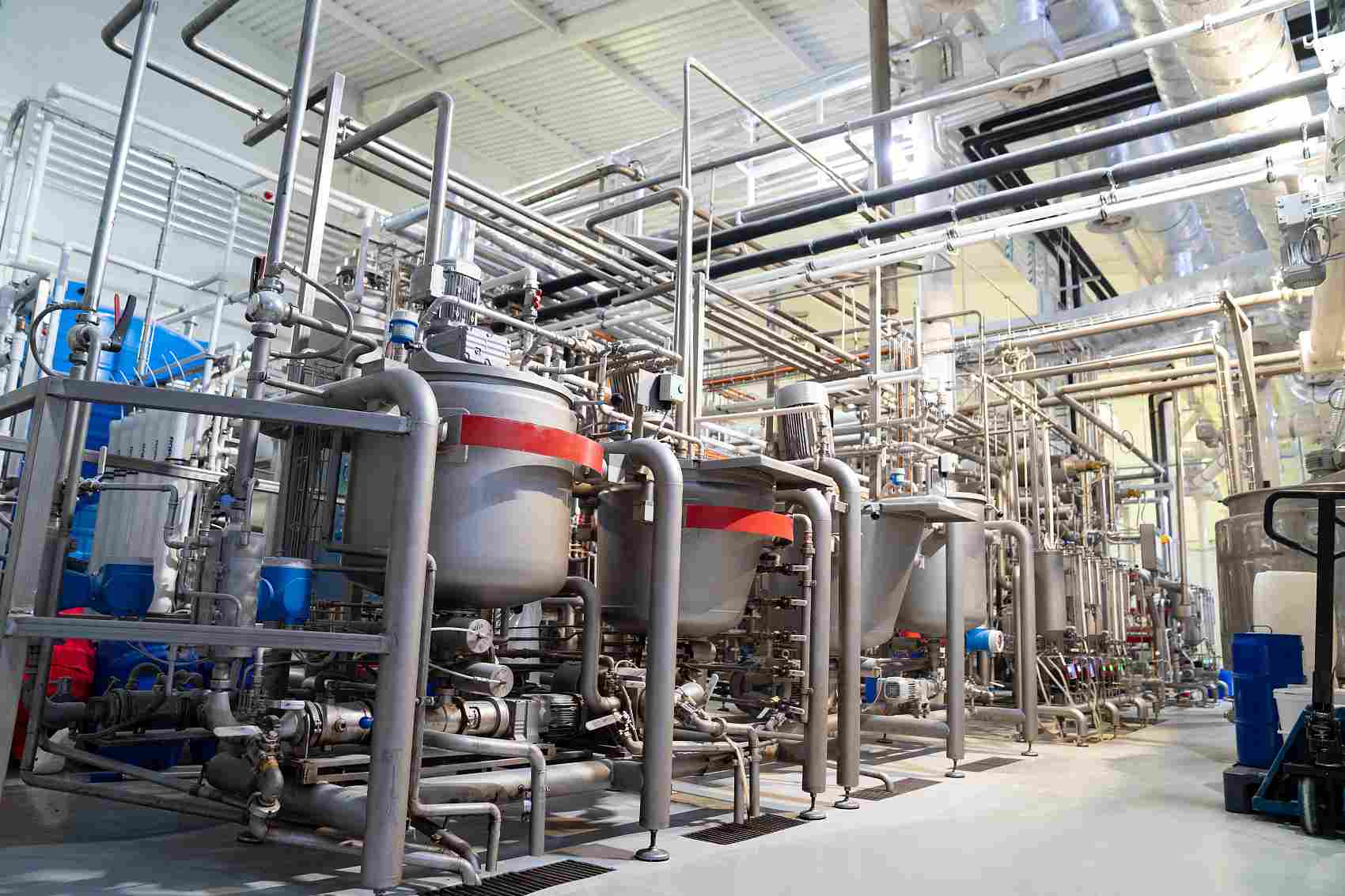

• Chemical plants • Paint factories • Food processing factories • Pharmaceutical workshops • Wastewater treatment plants • Fertilizer production lines • Resin and glue production • Oil and gas-related processes
The supplier should know whether the environment has:
• High humidity • Corrosive gas • Dust • Explosive gas • High temperature • Outdoor installation • Frequent washing • Chemical vapor
For harsh environments, the gear motor may need IP55, IP65, anti-corrosion painting, stainless steel parts, or explosion-proof motor options.

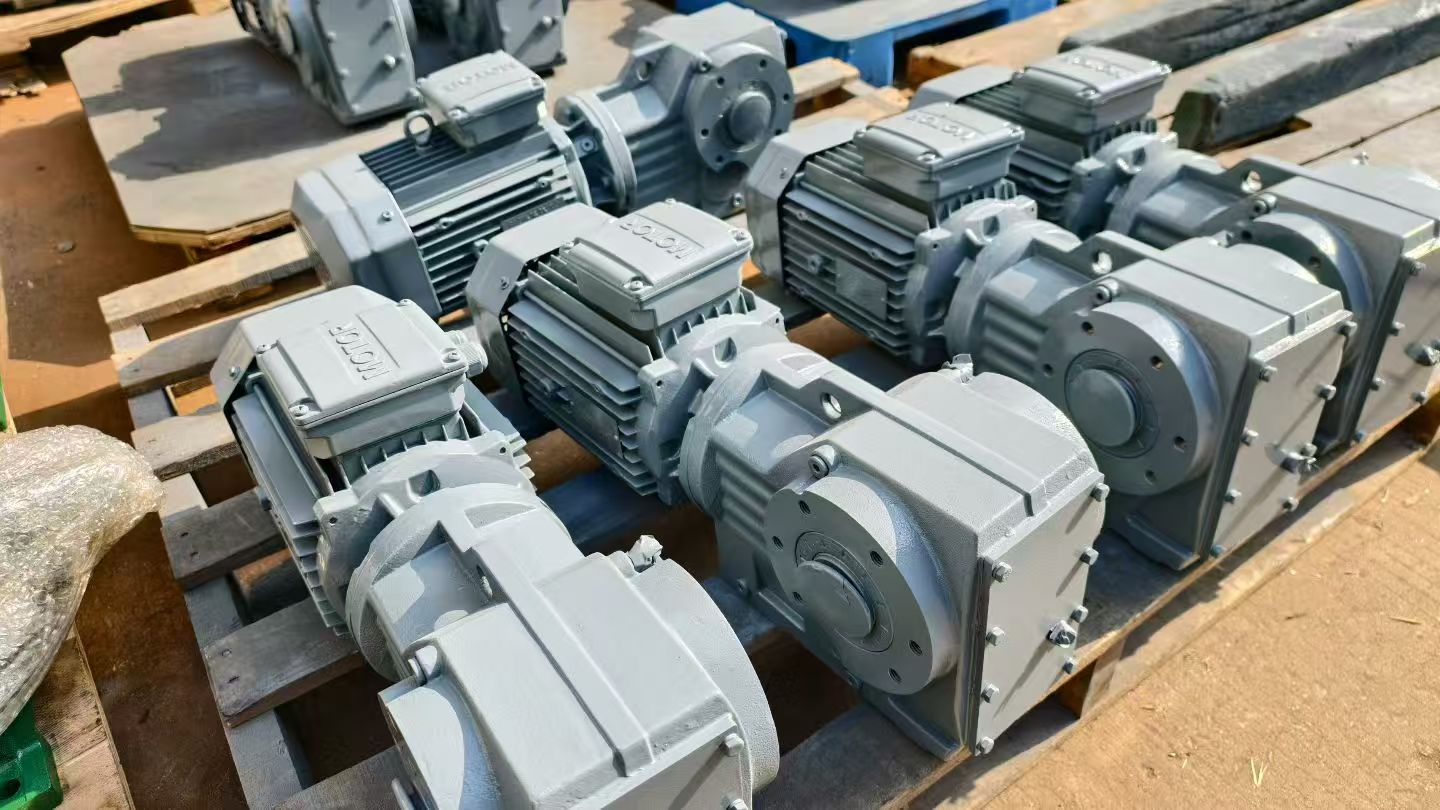

Common Gear Motor Configurations for Reactor Agitators
Different reactor agitator designs need different gearbox structures.
For example, if the motor power is 5.5 kW and the output speed is 60 rpm:
Torque = 9550 × 5.5 ÷ 60 = 875 Nm
This means the theoretical output torque is about 875 Nm before considering gearbox efficiency and service factor.
However, this formula is only a basic reference. Real selection should also consider starting load, viscosity, working hours, shock load, and safety margin.
Why Starting Torque Matters
A reactor agitator often starts when material is already inside the tank. This means the starting load may be much higher than the running load.
For high-viscosity liquid, slurry, glue, or resin, the agitator may need strong starting torque.
Important factors include:
• Starting condition • Material viscosity • Blade resistance • Tank filling level • Starting frequency • VFD soft start requirement
A VFD can reduce mechanical shock, but the gear motor must still have enough torque capacity.
Motor Selection for Reactor Agitators
The electric motor is another key part of the gear motor system.
A good gearbox with a poor motor may still fail. A good motor with an undersized gearbox may also cause problems.
The motor and gearbox must be selected as one complete system.
IE2, IE3, and IE4 Motors
Common motor efficiency classes include:
• IE2 • IE3 • IE4
For many international markets, IE3 motors are becoming more common because they provide better energy efficiency.
For reactor agitators that run many hours per day, IE3 motors can help reduce electricity consumption and improve long-term operating value.
Victory can supply IE2, IE3, and customized high-efficiency motor solutions according to customer requirements.

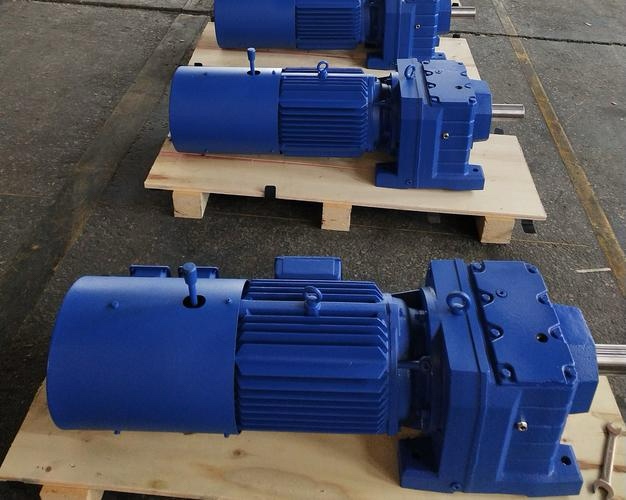

VFD Operation
Many reactor agitators use VFDs to control speed.
VFD benefits include:
• Soft start • Lower mechanical shock • Speed adjustment • Better process control • Reduced start-up current • Possible energy saving
However, if the motor runs at low frequency for a long time, cooling may become a problem.
For low-speed, heavy-duty, or continuous VFD operation, an inverter-duty motor with an independent cooling fan may be recommended.

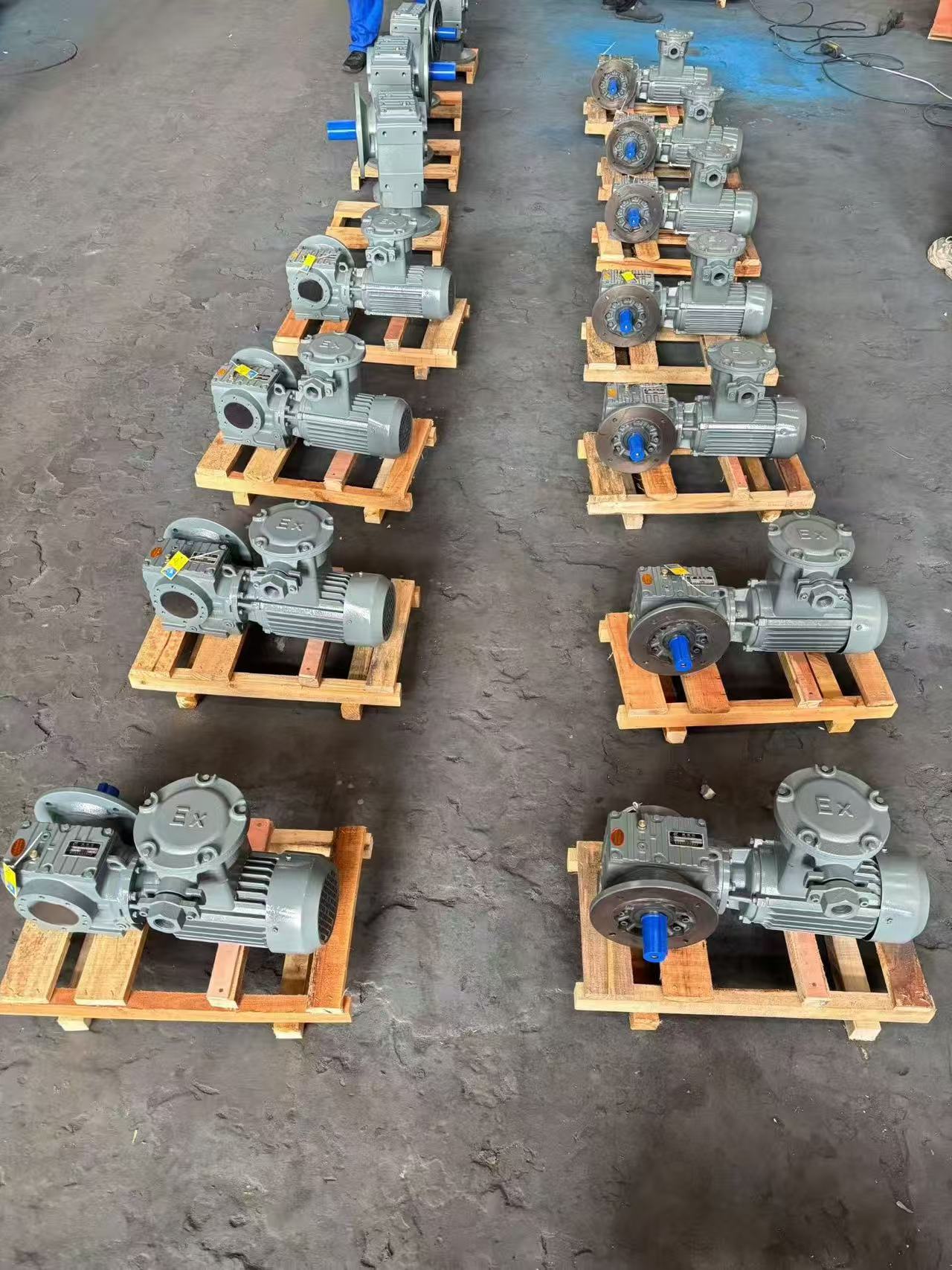

Explosion-Proof Motor Options
Some reactor agitators are used in hazardous areas, such as chemical plants, coating factories, solvent processing, or dust environments.
• Gas or dust environment • Zone classification • Temperature class • Protection level • Voltage and frequency • Certificate requirement
For hazardous applications, safety requirements must be confirmed before selecting the motor.
Insulation and Protection Class
For reactor agitator applications, common motor requirements include:
• IP55 • IP65 • Class F insulation • Class H insulation for special cases • S1 continuous duty • IC411 cooling • TEFC enclosure
For most industrial agitator applications, IP55 and Class F insulation are common. If the motor is used outdoors, near chemical vapor, or in a humid environment, higher protection may be needed.
Common Mistakes When Selecting Agitator Gear Motors
Many gearbox failures happen because the selection was wrong from the beginning.
Choosing Only by Motor Power
Motor power is important, but it is not enough.
Correct selection should include:
• Motor power • Output speed • Output torque • Service factor • Mounting position • Application • Working hours • Load condition
A 5.5 kW gear motor can have many different ratios and torque values. Without output speed and working condition, the model cannot be selected accurately.
Ignoring Service Factor
A gear motor may look suitable based on power and speed, but if the service factor is too low, it may not survive real production.
For reactor agitators, especially heavy-duty or continuous operation, service factor should always be checked.
Using Low-Efficiency Gearboxes
For small intermittent machines, a low-efficiency gearbox may be acceptable.
But for reactor agitators running many hours per day, gearbox efficiency affects:
• Energy cost • Temperature rise • Lubrication life • Gearbox stability • Long-term reliability
This is why helical geared motors are often preferred for industrial mixing systems.
Not Confirming Mounting and Shaft Dimensions
Even if power and speed are correct, installation can still fail if dimensions do not match.
Before confirming the order, buyers should check:
• Output shaft diameter • Flange size • Foot mounting holes • Center height • Gearbox position • Motor terminal box direction • Oil plug and breather position
For replacement projects, drawings and photos are very helpful.
How to Provide Inquiry Details to Suppliers
To get an accurate quotation for a helical gear motor for reactor agitator, buyers should provide complete information.
A good inquiry should include:
• Application: reactor agitator • Motor power • Voltage and frequency • Phase • Output speed • Required torque if available • Mounting type • Shaft dimensions • Working hours per day • Material viscosity if known • Tank size if available • Explosion-proof requirement • VFD usage or direct start • Quantity • Destination country • Required certificates
Example:
“We need a helical gear motor for a reactor agitator. Motor power 7.5 kW, 400V, 50Hz, 3 phase, output speed 60 rpm, vertical mounting, continuous duty, with VFD control. The material has medium viscosity. Please recommend a suitable model with service factor above 1.8.”
This type of inquiry helps the supplier select a more accurate and reliable solution.
Why Choose Victory for Helical Gear Motor Solutions
For distributors, OEM manufacturers, project contractors, and brand owners, choosing the right supplier is as important as choosing the right model.
Victory supplies electric motors and gearboxes for many industrial applications, including agitators, mixers, conveyors, pumps, fans, crushers, and production equipment.
Factory-Direct Pricing
Victory is a direct factory supplier.
Compared with trading companies or multi-level distributors, factory-direct supply can help customers get more competitive prices.
This makes replacement easier for customers using IEC-based equipment in Europe, Asia, South America, and other markets.
Customization Support
Reactor agitator projects often need customization.
Victory can support different requirements, such as:
• Voltage customization • Frequency customization • Motor efficiency customization • Shaft dimension adjustment • Mounting position adjustment • Terminal box direction • Special painting • SKF bearing option • Nameplate customization • Gearbox and motor matching
For distributors and OEM customers, this flexibility helps them serve different projects with one stable supplier.

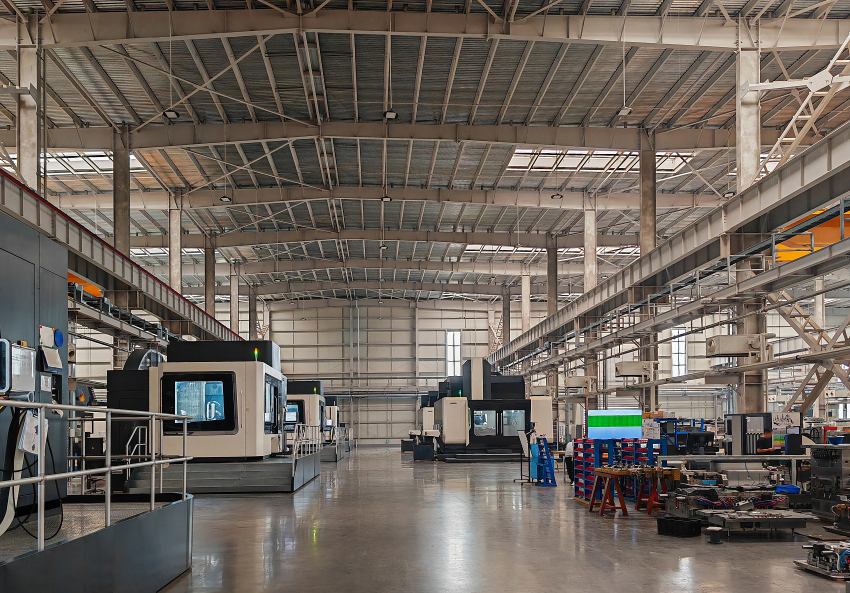

Stable Quality and Long-Term Support
For industrial gear motors, stable quality is more important than one-time low price.
Victory focuses on reliable raw materials, stable production, and long-term customer cooperation.
For motors, key parts such as stator, rotor, copper winding, bearings, and housing are carefully controlled.
For gearboxes, gear quality, bearing selection, sealing, housing strength, and assembly precision are important control points.
Victory also supports long-term customers with technical communication and after-sales service.
Recommended Selection for Different Reactor Agitator Conditions
Different working conditions require different gear motor solutions.
Light-Duty Liquid Mixing
For low-viscosity liquid and small tanks, the load is usually not very heavy.
Recommended solution:
• Inline helical gear motor • IE2 or IE3 motor • Service factor around 1.3–1.5 • Standard IP55 protection • Direct start or VFD control
This is suitable for water-like liquid, light chemical mixing, or simple blending.

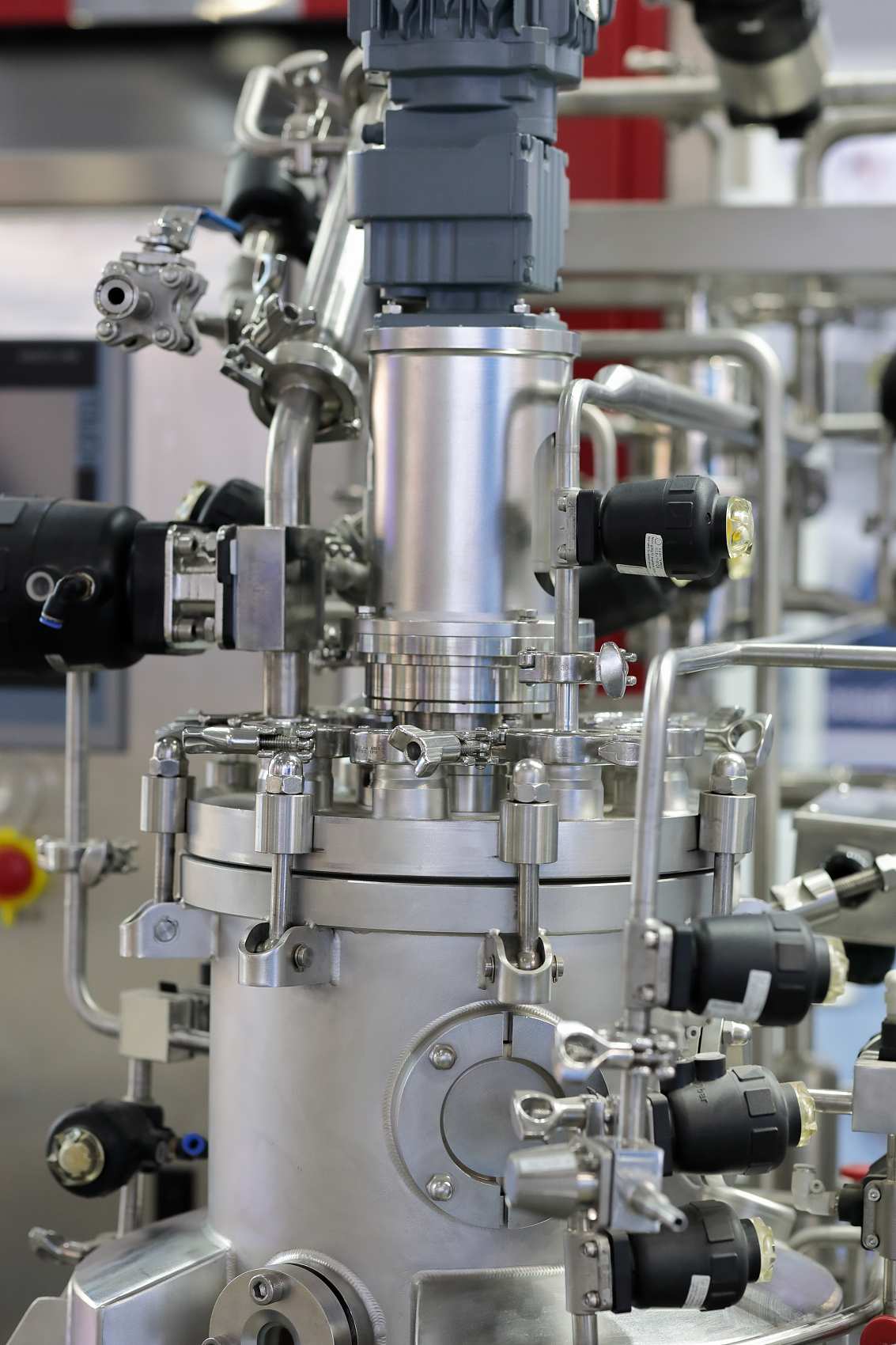

Medium-Duty Chemical Reactor
For medium-viscosity materials and longer working hours, the gear motor should be stronger.
Recommended solution:
• Inline or parallel shaft helical gear motor • IE3 motor • Service factor around 1.5–1.8 • Class F insulation • VFD optional • Better sealing and lubrication
This is suitable for many common chemical reactors and industrial mixing tanks.
Heavy-Duty High-Viscosity Agitator
For high-viscosity liquid, slurry, glue, resin, or heavy mixing, the gear motor must have higher torque capacity.
Recommended solution:
• Heavy-duty helical gearbox • Helical bevel or parallel shaft gearbox • IE3 motor • Service factor 2.0 or higher • VFD soft start • Stronger output shaft • Careful bearing load check
For this condition, choosing only by low price is risky. An undersized gearbox may fail quickly.
Hazardous Area Reactor Agitator
For flammable gas, solvent vapor, or dust environments, safety requirements are higher.
Recommended solution:
• Explosion-proof motor • Suitable Ex protection level • Correct temperature class • IP55 or higher protection • Proper grounding • Professional certificate confirmation • Gearbox selected according to load condition
Before ordering, the buyer must provide the hazardous area classification clearly.
Maintenance Tips for Helical Gear Motor on Reactor Agitator
Good maintenance can extend gear motor service life.
Check Oil Level Regularly
Gearbox lubrication is very important.
Too little oil may cause gear wear and overheating. Too much oil may cause leakage or temperature rise.
Check the oil level according to the mounting position and supplier manual.
Monitor Temperature
A gearbox may become warm during operation. This is normal.
But if the temperature keeps rising or becomes too hot, the operator should stop and check.
For vertical agitators, shaft alignment and support structure are especially important.
FAQ About Helical Gear Motor for Reactor Agitator
1. Is a helical gear motor suitable for reactor agitators?
Yes. A helical gear motor is suitable for many reactor agitator applications because it offers high efficiency, strong torque capacity, stable operation, and long service life.
2. What information is needed to select a reactor agitator gear motor?
You should provide motor power, voltage, frequency, output speed, mounting position, working hours, load condition, shaft dimensions, and whether VFD or explosion-proof motor is required.
3. Is a helical gearbox better than a worm gearbox for agitators?
For long-time, high-load, or high-power agitator applications, a helical gearbox is usually more efficient and durable than a worm gearbox. Worm gearboxes are compact and economical, but their efficiency is usually lower.
4. Can a helical gear motor work with a VFD?
Yes. A helical gear motor can work with a VFD. For long-term low-speed operation, an inverter-duty motor with an independent cooling fan may be recommended.
5. What service factor is recommended for reactor agitators?
It depends on the load. For medium-duty agitators, 1.5–1.8 may be suitable. For heavy-duty, high-viscosity, or 24-hour operation, 2.0 or higher is safer.
6. Can Victory customize the voltage and frequency?
Yes. Victory can customize motors for different markets, such as 380V/50Hz, 400V/50Hz, 415V/50Hz, 440V/60Hz, 460V/60Hz, and other requirements.
7. Can Victory supply explosion-proof gear motors for reactor agitators?
Victory can support explosion-proof motor solutions according to project requirements. Customers should provide the exact hazardous area classification, gas or dust group, temperature class, and certificate requirements.
8. What is the best gearbox type for a vertical reactor agitator?
For vertical reactor agitators, inline helical, parallel shaft helical, or helical bevel gear motors may be used depending on installation structure, torque requirement, and available space.
9. How can I replace an old agitator gear motor?
You should provide the old motor and gearbox nameplate, photos, drawings, shaft dimensions, mounting dimensions, and output speed. Victory can help check compatibility and recommend a replacement model.
10. Why should I choose Victory as a helical gear motor supplier?
Victory offers factory-direct pricing, IEC standard compatibility, customization support, stable quality, and long-term after-sales service. This makes Victory suitable for distributors, OEM manufacturers, and industrial project buyers.
Conclusion
Selecting the right helical gear motor for reactor agitator applications is not just about motor power.
A reliable solution should consider:
• Output speed • Output torque • Service factor • Mounting position • Shaft dimensions • Working environment • Motor efficiency • VFD operation • Safety requirements
For light-duty mixing, a standard inline helical gear motor may be enough.
For medium-duty chemical reactors, a stronger helical geared motor with a higher service factor is recommended.
For high-viscosity or continuous-duty applications, heavy-duty helical gearboxes with strong output torque and reliable motor quality are more suitable.
Victory can provide practical and cost-effective helical gear motor, helical gearbox, and agitator gear motor solutions for international B2B customers.
Whether you are a distributor, OEM manufacturer, engineering contractor, or end-user, Victory can help you select a suitable gear motor for your reactor agitator project.
