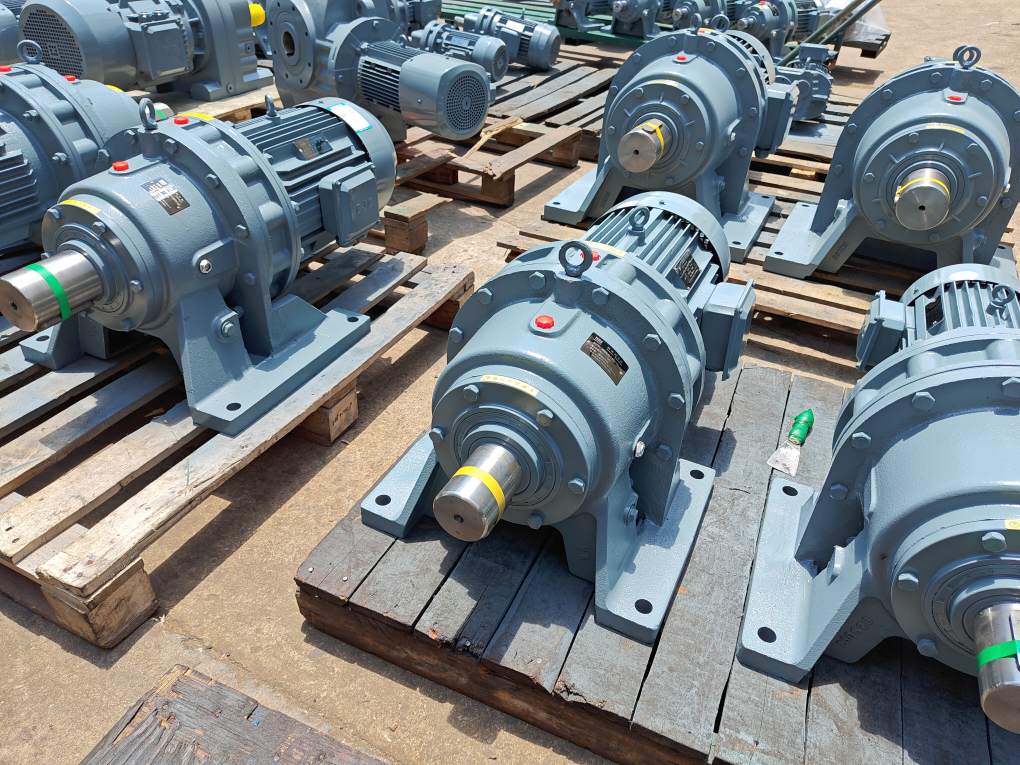

A cycloidal reducer for pellet mill is a speed reducer used to reduce motor speed and increase output torque.
In pellet mill equipment, the motor usually runs at a high speed, such as 1450 rpm or 960 rpm. But the pellet mill needs lower speed and stronger torque to press raw materials through the die.
A cycloidal reducer helps the pellet mill achieve:
• Lower output speed
• Higher output torque
• More stable transmission
• Better shock load resistance
• More compact machine structure
• Smoother pellet production
For pellet mill manufacturers and OEM equipment builders, the reducer is one of the key parts that directly affects machine performance.
Pellet mills usually work under heavy load. In many factories, pellet production lines run continuously for one or two shifts every day. Some lines even operate 24 hours a day.
If the reducer fails, the whole pellet mill may stop. This can cause production delays, raw material waste, extra maintenance cost, and customer complaints.
A reliable pellet mill gearbox can help pelletizing equipment achieve:
• Stable low-speed output
• Strong torque transmission
• Smooth startup
• Lower vibration
• Better shock load resistance
• Longer service life
• Reduced maintenance frequency
• More stable pellet quality
For pellet mill builders, the reducer also affects the quality and reputation of the complete machine. A low-quality reducer may reduce the initial cost, but it can create many after-sales problems later.

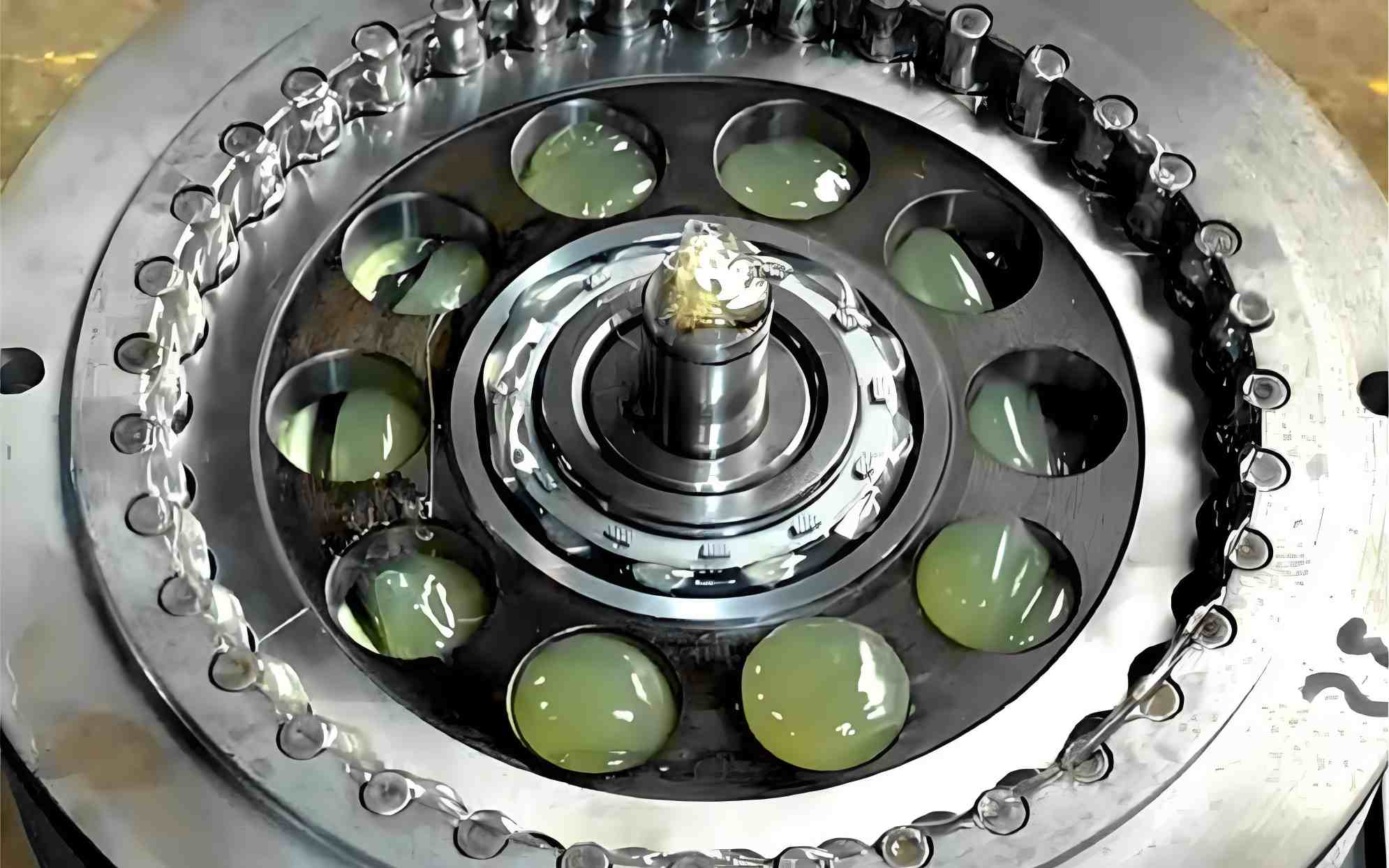

A cycloidal reducer uses cycloidal pinwheel transmission. Its internal structure is different from ordinary gear transmission.
The motor drives the input shaft. The eccentric bearing drives the cycloidal disc. The cycloidal disc works with pins to reduce speed and transmit torque to the output shaft.
This structure allows multiple contact points to share the load at the same time.
This brings several advantages:
• Strong impact resistance
• High reduction ratio
• Compact structure
• Stable torque output
• Good overload capacity
• Suitable for frequent load changes
In pellet mill applications, the working load is often not stable. Raw materials may change in moisture, density, hardness, and feeding quantity. A cycloidal reducer can better handle these changing working conditions.
Pellet mills require strong mechanical power to compress raw materials into pellets. The reducer must work under high torque, vibration, and shock load.
A cycloidal reducer for pellet mill is suitable because it offers a good balance between size, torque, and durability.
Main advantages include:
• High torque output at low speed
• Strong resistance to shock load
• Compact design for limited installation space
• Large reduction ratio options
• Reliable operation for continuous production
• Suitable for small and medium pellet machines
• Practical cost performance for OEM equipment
This is why cycloidal reducers are commonly used in pelletizing machines, feeding systems, mixers, conveyors, and other auxiliary equipment in pellet production lines.
A pellet mill drive system is not a light-duty transmission system. It must be selected according to real working conditions.
Before choosing a reducer, buyers should pay attention to the following factors:
• Motor power
• Input speed
• Required output speed
• Gear ratio
• Output torque
• Service factor
• Working hours per day
• Shock load level
• Raw material type
• Installation direction
• Ambient temperature
• Dust and vibration conditions
If the reducer is selected only according to motor power, the model may be too small. This can lead to overheating, noise, bearing damage, or early failure.
Pellet mills need high torque to press materials through the die. If the output torque is not enough, the machine may slow down, jam, or stop.
A reducer converts high-speed motor rotation into low-speed, high-torque output.
For pellet mill applications, high torque is important for:
• Starting under load
• Pressing raw materials
• Handling uneven feeding
• Preventing machine stalling
• Maintaining stable pellet output
• Reducing motor overload risk
When selecting a heavy-duty reducer for pellet mill, torque should always be checked carefully.
Many pellet mills work for long periods every day. Some production lines run continuously for 8 hours, 12 hours, or even 24 hours.
This means the reducer must be suitable for continuous duty.
A reducer for continuous pellet mill operation should have:
• Strong housing
• Reliable bearings
• Proper lubrication
• Good heat dissipation
• Enough service factor
• Stable sealing performance
• Suitable oil capacity
If the reducer is only suitable for light-duty operation, it may overheat quickly in pellet mill applications.
Pellet mills often face strong vibration and sudden impact load.
This may happen when:
• Raw material feeding is uneven
• Material moisture changes
• Hard particles enter the machine
• The die is partially blocked
• The machine starts under load
• The roller pressure changes suddenly
A cycloidal reducer has good shock load resistance because its internal structure allows multiple contact points to carry the load together.
For pellet mill equipment, this feature is very important.

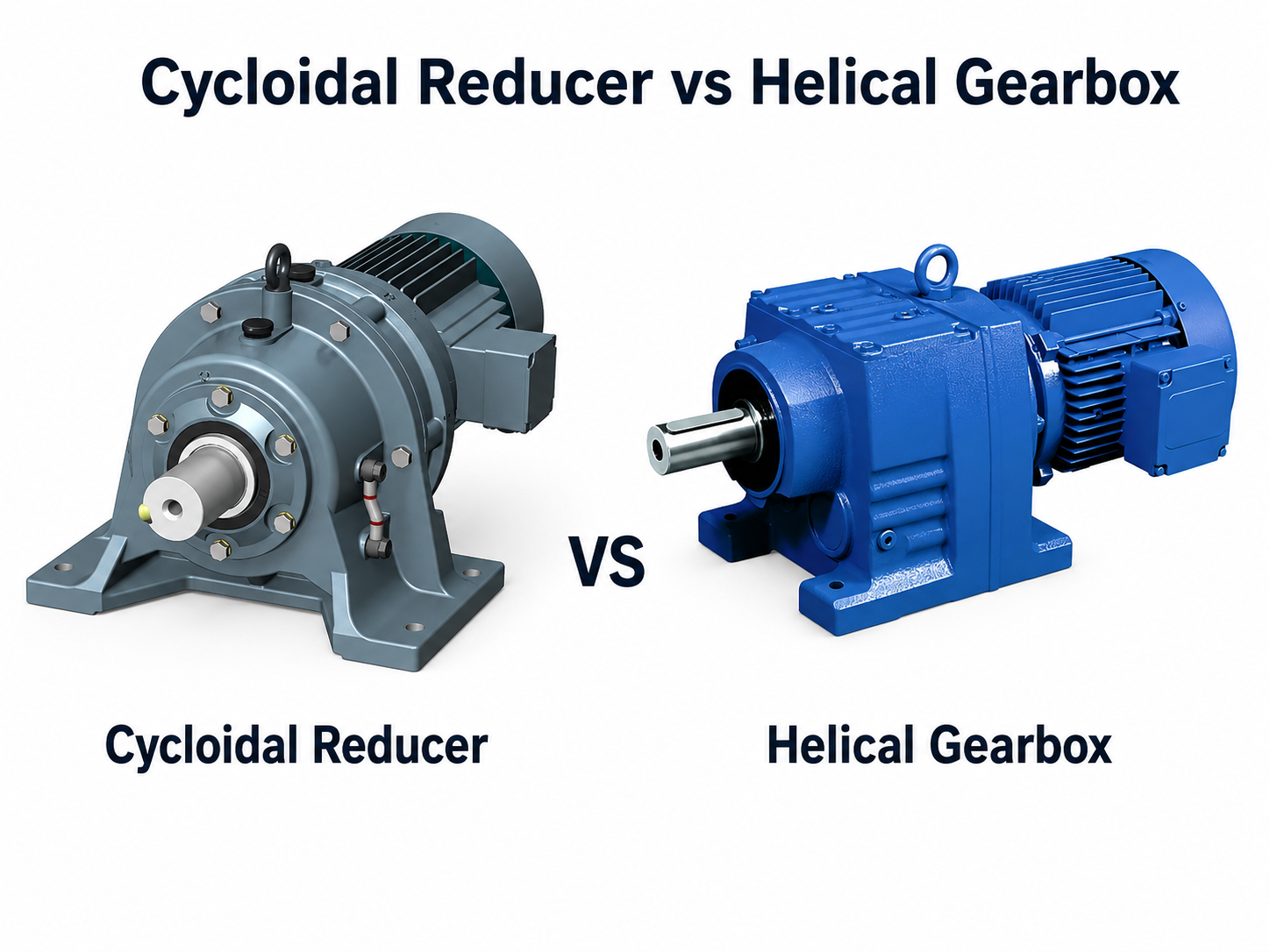

Both cycloidal reducers and helical gearboxes can be used in industrial transmission systems. But they are suitable for different conditions.
A cycloidal reducer is often chosen when the machine needs:
• Compact structure
• High reduction ratio
• Strong shock load resistance
• Good overload capacity
• Practical cost performance
• Small or medium machine design
A helical gearbox is often chosen when the machine needs:
• Higher transmission efficiency
• Larger torque capacity
• More standardized industrial design
• Better performance for heavy continuous duty
• Easier replacement for some European gearbox types
For pellet mills, the final choice depends on the actual application.
Important comparison points include:
• Required output torque
• Motor power
• Output speed
• Installation space
• Working hours
• Shock load level
• Budget
• Maintenance requirements
For small and medium pellet mills, a cycloidal reducer can be a practical solution. For larger or very heavy-duty pellet mills, a helical gearbox or special heavy-duty gearbox may be more suitable.
Selecting the right cycloidal reducer for pellet mill should follow a clear process.
The buyer should not only ask for a price. The correct model depends on technical data and real working conditions.
The basic selection process includes:
• Confirm motor power
• Confirm input speed
• Confirm required output speed
• Calculate gear ratio
• Check output torque
• Confirm mounting type
• Confirm shaft size
• Check service factor
• Confirm working environment
• Confirm quantity and delivery requirement
This helps the supplier recommend a reliable model instead of guessing.
The first step is to confirm the motor power and speed.
Common motor speeds at 50Hz include:
• 2-pole motor: about 2900 rpm
• 4-pole motor: about 1450 rpm
• 6-pole motor: about 960 rpm
• 8-pole motor: about 720 rpm
For pellet mills, 4-pole and 6-pole motors are commonly used.
The motor power may include:
• 3 kW
• 4 kW
• 5.5 kW
• 7.5 kW
• 11 kW
• 15 kW
• 18.5 kW
• 22 kW
The reducer model must match the motor power and input speed.
The gear ratio depends on the motor speed and required output speed.
The basic formula is:
Gear ratio = motor speed ÷ required output speed
For example:
If the motor speed is 1450 rpm and the required output speed is 58 rpm:
1450 ÷ 58 ≈ 25
So the reducer ratio should be close to 25:1.
When confirming the ratio, buyers should consider:
• Actual pellet mill working speed
• Available standard ratios
• Motor pole number
• Required torque
• Machine structure
• Production capacity
A small difference in output speed is usually acceptable, but it should be confirmed before ordering.
Output torque is one of the most important factors.
A simple torque calculation formula is:
Output torque ≈ 9550 × motor power ÷ output speed
For example:
If the motor power is 7.5 kW and the output speed is 60 rpm:
9550 × 7.5 ÷ 60 ≈ 1193 Nm
This is a basic theoretical value before considering reducer efficiency and service factor.
In real pellet mill applications, buyers should also consider:
• Shock load
• Starting load
• Raw material hardness
• Working hours
• Die resistance
• Safety margin
• Reducer efficiency
For pellet mills, it is safer to choose a reducer with enough torque margin rather than selecting the smallest possible model.

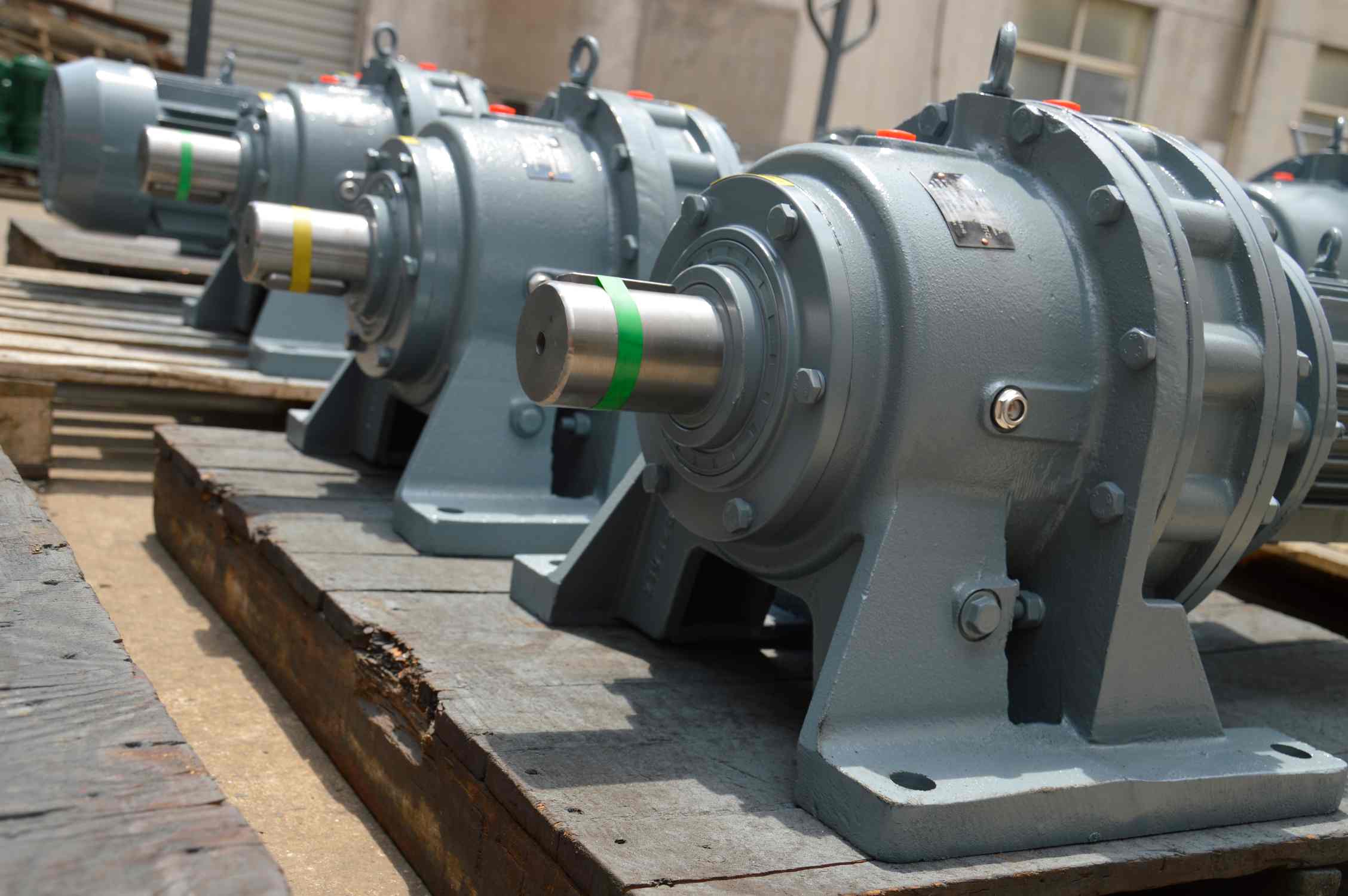

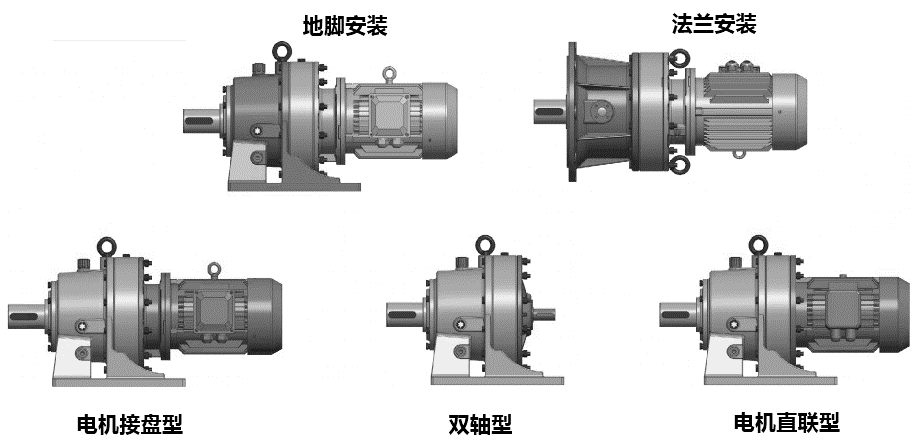

Cycloidal reducers can be supplied in different mounting types.
Common mounting options include:
• Foot mounted
• Flange mounted
• Horizontal installation
• Vertical installation
• Motor direct-connected type
• Coupling-connected type
For pellet mill applications, the mounting type must match the machine design.
Before production, it is better to confirm:
• Mounting hole dimensions
• Input connection method
• Output shaft diameter
• Output shaft length
• Keyway size
• Rotation direction
• Overall reducer dimensions
• Motor installation position
This can avoid installation problems after delivery.
Service factor is very important for pellet mill reducers.
Pellet mills often have heavy load, vibration, and impact. If the reducer service factor is too low, the reducer may fail early.
A higher service factor can help improve:
• Overload resistance
• Bearing life
• Gear life
• Machine stability
• Long-term reliability
• After-sales performance
For B2B buyers, the reducer should not only work during testing. It should work reliably in real production.
Cycloidal reducers can be used in different pellet mill systems and auxiliary machines.
Common applications include:
• Wood pellet mill
• Feed pellet mill
• Biomass pellet machine
• Fertilizer pelletizing equipment
• Pellet cooling system
• Feeding machine
• Conveyor system
• Mixer
• Crusher
• Screening equipment
Different applications have different load levels. The reducer model should be selected according to the actual machine.
Wood pellet mills are used for sawdust, wood chips, straw, and other biomass materials.
These materials may have different moisture levels and hardness. The load can change during production.
A cycloidal reducer can help wood pellet mills achieve:
• Stable output speed
• Strong torque transmission
• Good shock resistance
• Compact machine design
• Reduced downtime
• Better production stability
For biomass equipment manufacturers, the reducer should be selected with enough safety margin.
Feed pellet mills are used to produce animal feed pellets.
The production line may include crushing, mixing, pelletizing, cooling, and packing. If the pellet mill reducer fails, the complete line may stop.
A reliable pellet mill gearbox can help feed pellet equipment achieve:
• Smooth running
• Stable pellet size
• Lower vibration
• Continuous production
• Easier maintenance
• Longer equipment life
For feed machinery distributors, reducer quality is closely related to customer satisfaction.
Biomass pellet machines may process straw, rice husk, palm fiber, peanut shell, and agricultural waste.
These materials can create unstable load conditions.
A suitable heavy-duty reducer for pellet mill can help the machine handle:
• Uneven feeding
• Changing material density
• High pressing force
• Long working time
• Dusty working environment
• Strong mechanical vibration
For biomass pellet production, stable reducer performance is very important.
Fertilizer pelletizing equipment may work with organic fertilizer, compound fertilizer, or other granular materials.
This application may involve dust, moisture, and corrosive working conditions.
The reducer should have:
• Good sealing performance
• Proper lubrication
• Strong housing
• Reliable bearings
• Correct installation direction
• Regular maintenance
If the environment is humid or dusty, oil seals and breather parts should be checked more frequently.
Correct installation is as important as correct model selection.
Even a high-quality reducer may have problems if it is installed incorrectly.
Before startup, please check:
• Reducer mounting position
• Motor alignment
• Coupling alignment
• Bolt tightness
• Oil level
• Rotation direction
• Shaft connection
• Foundation strength
• Safety cover
• Ventilation space
A careful installation can reduce vibration, noise, oil leakage, and bearing damage.
Poor alignment is one of the common causes of reducer failure.
If the motor, reducer, and driven shaft are not aligned correctly, the reducer may suffer extra radial or axial load.
This may cause:
• Abnormal noise
• Vibration
• Bearing damage
• Oil seal damage
• Shaft wear
• Coupling failure
• Shorter service life
For coupling connection, the coupling should be installed correctly and checked before running.
Lubrication is critical for reducer life.
Before starting the pellet mill, check whether the reducer has enough oil. Some reducers may be shipped without oil due to transportation requirements.
Before operation, confirm:
• Correct oil type
• Correct oil quantity
• Proper oil level
• Breather condition
• No oil leakage
• Correct installation direction
Running the reducer without oil can cause serious internal damage.
Regular maintenance can greatly extend reducer service life.
For pellet mill applications, maintenance should focus on lubrication, temperature, noise, vibration, and sealing.
Recommended maintenance items include:
• Check oil level regularly
• Replace oil on time
• Monitor reducer temperature
• Check abnormal noise
• Check vibration
• Inspect oil seals
• Tighten bolts
• Clean dust around the reducer
• Check coupling condition
• Stop the machine if abnormal problems appear
Good maintenance can reduce downtime and improve production efficiency.
Reducer problems are often caused by wrong selection, poor installation, overload, or insufficient maintenance.
Common problems include:
• Overheating
• Abnormal noise
• Oil leakage
• Strong vibration
• Insufficient torque
• Bearing damage
• Output shaft wear
Understanding these problems can help users solve issues faster.
Overheating is a common problem in pellet mill reducers.
Possible causes include:
• Reducer overloaded
• Oil level too low
• Wrong oil type
• Poor ventilation
• Bearing damage
• Reducer model too small
• Ambient temperature too high
• Continuous heavy-duty operation
Possible solutions include:
• Check actual working load
• Add or replace lubricating oil
• Improve ventilation
• Check bearing condition
• Reduce overload operation
• Select a larger reducer model if necessary
If overheating continues, the machine should be stopped for inspection.
Abnormal noise usually means something is wrong.
Possible causes include:
• Poor alignment
• Loose bolts
• Bearing wear
• Internal transmission wear
• Insufficient lubrication
• Coupling problem
• Foreign particles inside the reducer
Possible solutions include:
• Check motor and reducer alignment
• Tighten all mounting bolts
• Check oil level
• Inspect coupling
• Replace worn bearings
• Stop the machine if the noise becomes serious
Early inspection can prevent bigger failures.
Oil leakage affects lubrication and reducer service life.
Possible causes include:
• Damaged oil seal
• Too much oil
• Blocked breather
• Wrong installation direction
• Poor shaft surface
• High internal pressure
• Loose cover bolts
Possible solutions include:
• Replace oil seal
• Adjust oil quantity
• Clean or replace breather
• Check shaft surface
• Tighten cover bolts
• Confirm correct mounting position
In dusty pellet mill environments, seals should be checked regularly.
If the reducer output torque is not enough, the pellet mill may slow down or stop.
Possible causes include:
• Gear ratio too low
• Motor power too small
• Reducer model too small
• Raw material too hard
• Feeding amount too large
• Pellet die blocked
• Service factor too low
Possible solutions include:
• Recalculate output torque
• Check motor power
• Choose a larger reducer
• Adjust feeding speed
• Clean or replace the die
• Confirm actual working load
For new projects, it is better to provide full working conditions before selecting the reducer.
To recommend the correct cycloidal reducer for pellet mill, the supplier needs detailed information.
Please provide:
• Motor power
• Motor speed
• Required output speed
• Required output torque if available
• Gear ratio if already known
• Application type
• Raw material
• Working hours per day
• Mounting type
• Installation direction
• Output shaft size
• Input connection method
• Voltage and frequency
• Quantity
• Destination country
• Special requirements
With this information, the manufacturer can recommend a suitable reducer model and avoid wrong selection.
For pellet mill applications, reducer quality is very important.
A reliable manufacturer can help customers with model selection, drawing confirmation, customization, production, packing, and after-sales support.
A professional supplier should provide:
• Suitable model recommendation
• Technical drawing support
• Custom shaft or flange options
• Stable product quality
• Reasonable delivery time
• Clear communication
• Professional export packing
• Long-term after-sales support
For distributors and OEM customers, stable quality is more valuable than a very low one-time price.
Victory can provide electric motors and reducers for many industrial applications, including pellet mills, biomass machines, feed machinery, conveyors, mixers, crushers, and other heavy-duty equipment.
For pellet mill projects, we can help customers select suitable motor and reducer combinations according to real working conditions.
Our product range includes:

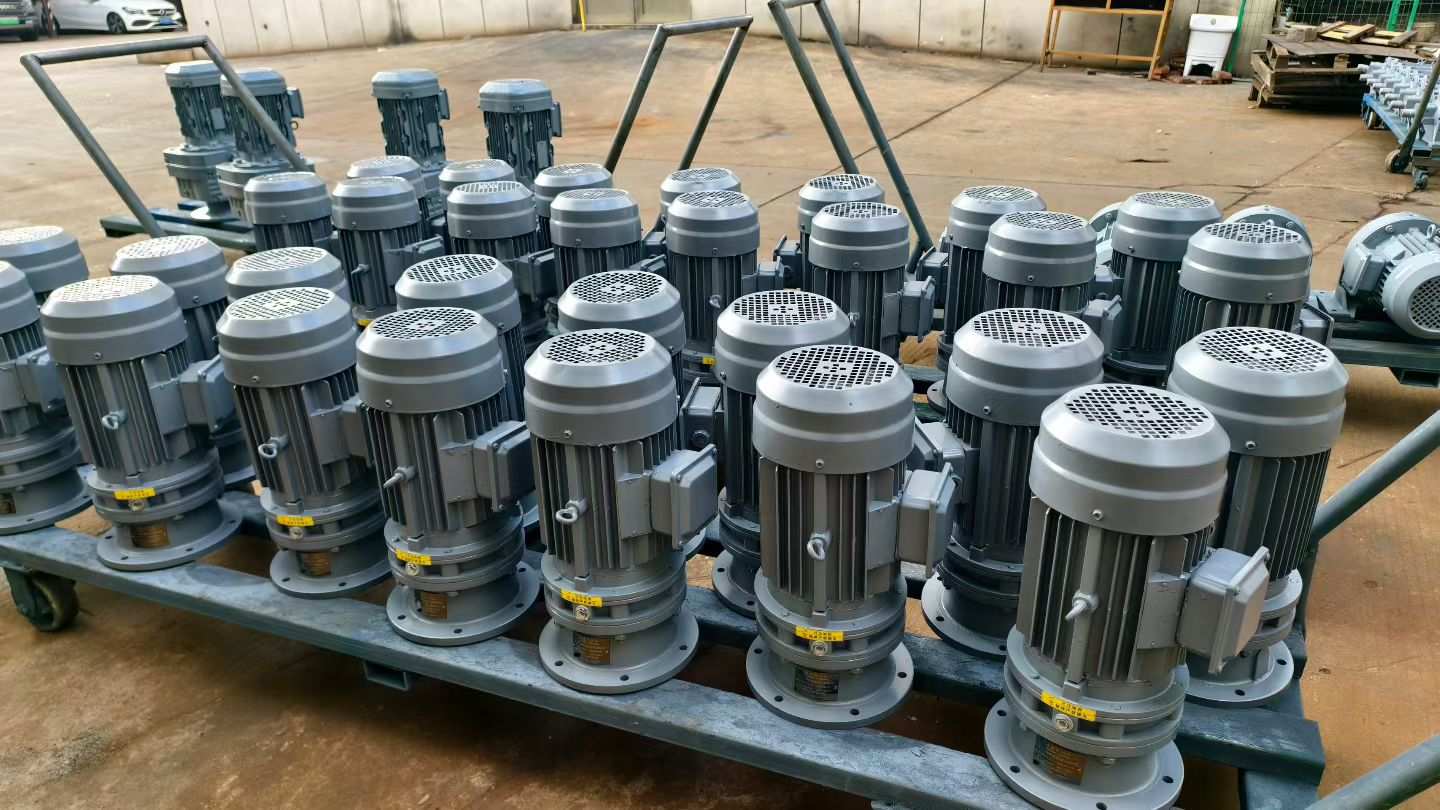

• Cycloidal reducers
• Helical gear reducers
• Worm gearboxes

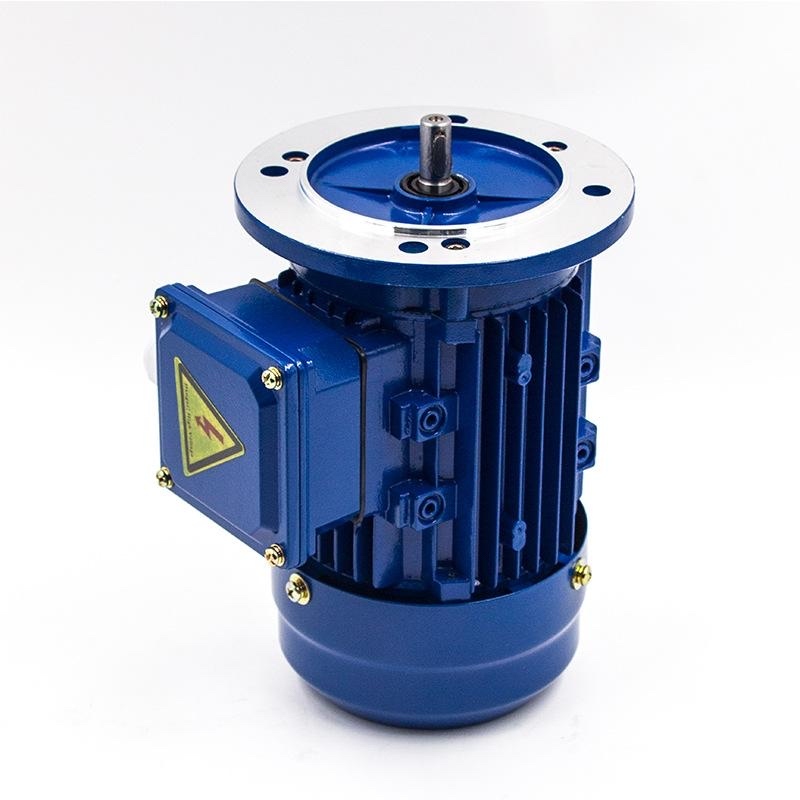

• Three-phase induction motors
• Single-phase induction motors
• Brake motors
• Customized motor and reducer solutions
If your pellet mill needs compact structure, high torque, and strong shock load resistance, a cycloidal reducer may be a practical choice.
If your application needs higher efficiency or larger torque capacity, we can also compare cycloidal reducers with helical gearboxes and recommend a more suitable solution.
A cycloidal reducer for pellet mill is a practical transmission solution for many pelletizing applications. It can provide low-speed output, high torque, compact structure, and good shock load resistance.
However, pellet mills are heavy-duty machines. The reducer must be selected carefully according to motor power, output speed, torque requirement, service factor, mounting type, and working conditions.
For pellet mill manufacturers, distributors, and OEM customers, choosing the right reducer can help achieve:
• More stable production
• Lower maintenance cost
• Longer machine life
• Better pellet quality
• Fewer after-sales problems
• Better customer satisfaction
If you are looking for a reliable pellet mill gearbox or heavy-duty reducer for pellet mill, Victory can help you check the technical requirements and recommend a suitable solution.
Yes. A cycloidal reducer can be used for pellet mills, especially small and medium pellet machines that require compact structure, high torque, and good shock load resistance.
The gear ratio depends on motor speed and required output speed.
For example:
• Motor speed: 1450 rpm
• Required output speed: 58 rpm
• Gear ratio: 1450 ÷ 58 ≈ 25:1
So the reducer ratio should be close to 25:1.
It depends on the application.
A cycloidal reducer is good for:
• Compact design
• Shock load resistance
• High reduction ratio
• Small and medium pellet machines
A helical gearbox is good for:
• Higher efficiency
• Larger torque capacity
• Heavy continuous-duty applications
• Standard industrial replacement projects
The best choice should be based on actual working conditions.
Common causes include:
• Overload
• Insufficient oil
• Wrong oil type
• Poor ventilation
• Bearing damage
• Reducer model too small
• Long continuous operation
If overheating continues, stop the machine and inspect the reducer.
You should provide:
• Motor power
• Input speed
• Required output speed
• Torque requirement
• Working hours
• Raw material type
• Mounting direction
• Shaft size
• Quantity
• Destination country
This helps the supplier recommend the correct model.
Yes. The output shaft diameter, shaft length, keyway, flange size, and mounting dimensions can often be customized according to the pellet mill design.
Common options include 4-pole and 6-pole three-phase induction motors.
The final choice depends on:
• Required output speed
• Torque requirement
• Machine structure
• Voltage and frequency
• Working condition
The oil should be checked regularly. For a new reducer, the first oil change is usually recommended after the initial running period.
After that, the oil change interval depends on:
• Working hours
• Load condition
• Oil quality
• Operating temperature
• Dust level
• Maintenance plan
Looking for a reliable cycloidal reducer for pellet mill?
Contact Victory with your motor power, output speed, torque requirement, mounting dimensions, and application details.
Our team can help you select a suitable reducer model, provide technical drawings, and support your pellet mill project with practical motor and reducer solutions.
