A Practical Guide to Helical Gear Motor for Packaging Machine
Views: 0 Author: Site Editor Publish Time: 2026-05-23 Origin: Site
Packaging machines need stable, accurate, and continuous motion. Whether the machine is used for conveying, filling, sealing, labeling, wrapping, or cartoning, the gear motor plays a very important role in keeping the production line running smoothly.
For many packaging equipment manufacturers, importers, distributors, and maintenance teams, the helical gear motor for packaging machine is one of the most common and practical drive solutions. It offers stable speed, reliable torque, compact structure, and relatively low noise, which makes it suitable for many industrial packaging applications.
However, choosing the right packaging machine gear motor is not only about motor power. You also need to consider output speed, torque, gear ratio, mounting position, voltage, duty cycle, load type, and working environment.
This guide will help you understand how to select a suitable helical geared motor for packaging machines, especially from a practical B2B purchasing and engineering point of view.
Why Packaging Machines Need Reliable Gear Motors
Packaging machines usually work for long hours. In many factories, the packaging line runs continuously for one or two shifts every day. Some production lines even operate 24 hours a day.
If the gear motor fails, the whole packaging line may stop. This can cause production delays, labor waste, rejected products, and extra maintenance cost.
A reliable industrial gear motor can help packaging machines achieve:
Stable conveying speed
Smooth start and stop
Accurate positioning
Lower vibration
Longer service life
Reduced maintenance frequency
Better production efficiency
For packaging machine builders, the gear motor also affects the quality and reputation of the complete equipment. A low-quality motor or gearbox may reduce the total cost at the beginning, but it can create many after-sales problems later.
That is why selecting a suitable helical gear motor for packaging machine is very important.
What Is a Helical Gear Motor?

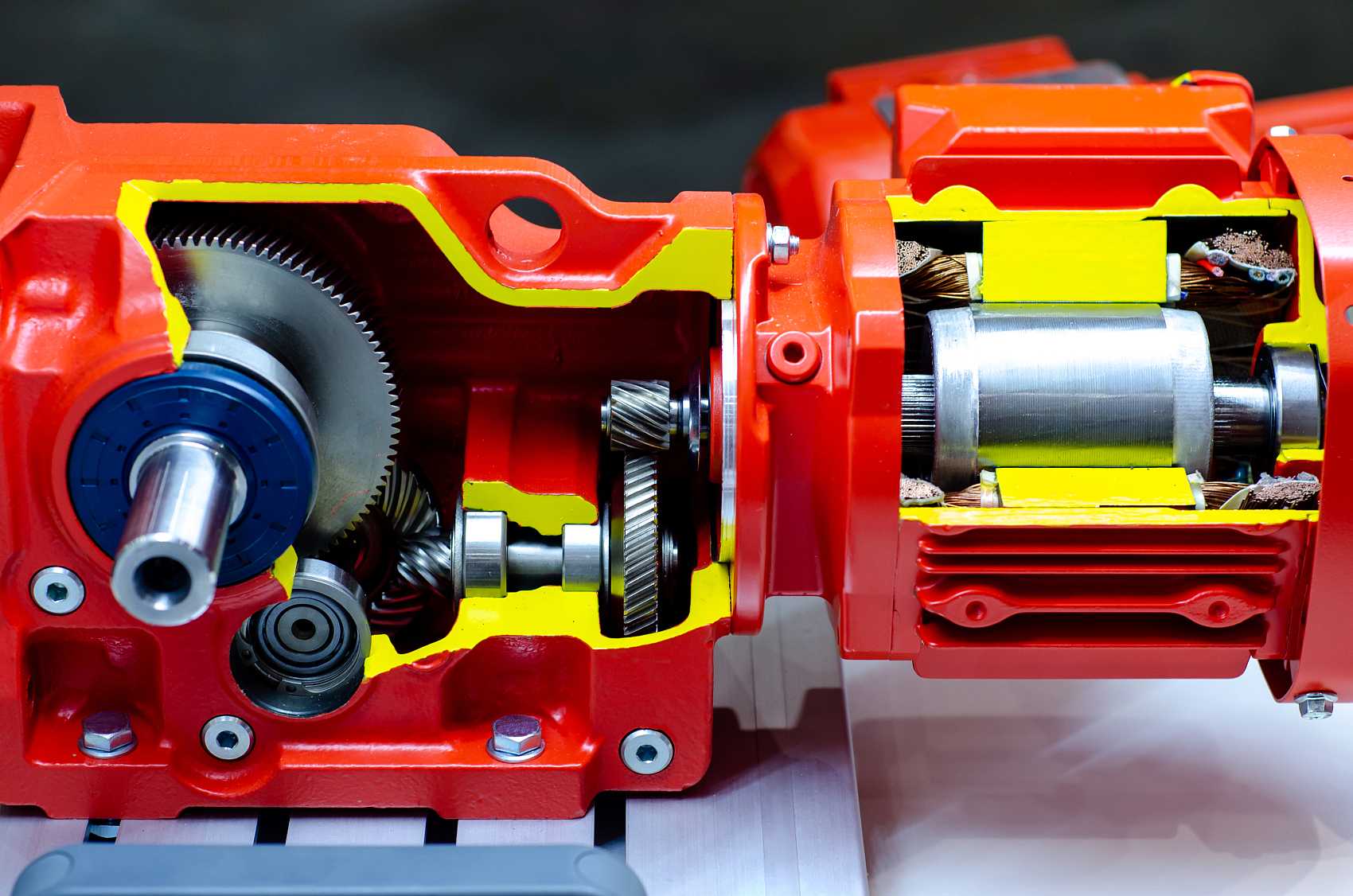

A helical gear motor is a drive unit that combines an electric motor and a helical gearbox. The motor provides rotary power, while the gearbox reduces speed and increases torque.
Unlike spur gears, helical gears have angled teeth. This tooth design allows smoother gear engagement, better load sharing, and quieter operation.
In packaging machines, three phase motors are more commonly used for industrial production lines. They are usually paired with helical gearboxes to provide stable and continuous output.
Why Helical Gear Motors Are Commonly Used in Packaging Machines
Helical gear motors are widely used in packaging equipment because they offer a good balance between performance, cost, and durability.
Smooth Transmission
The angled gear teeth of a helical gearbox mesh gradually. This helps reduce impact during transmission. For packaging machines, smooth transmission is important because products are often lightweight, fragile, or positioned at high speed.
For example, bottles, cartons, bags, labels, and food packages must move steadily on conveyors. If the gear motor creates too much vibration, the machine may suffer from inaccurate positioning or unstable product flow.
Stable Output Speed
Packaging machines often require consistent output speed. A gear motor for conveyor must keep the belt moving at a stable speed so that filling, sealing, cutting, or labeling can happen at the right position.
A helical gear motor can provide stable speed after reduction, making it suitable for continuous packaging lines.
Lower Noise
Noise control is becoming more important in modern factories. Compared with some traditional gear structures, helical gearboxes usually provide quieter operation.
For packaging workshops, lower noise helps improve the working environment and makes the complete machine feel more professional.
Compact Structure
Packaging machines often have limited installation space. A helical gear motor has a compact structure and can be installed in different positions depending on the machine layout.
This is useful for conveyor frames, side-mounted equipment, compact sealing machines, and integrated packaging systems.
Common Packaging Machine Applications
A helical gear motor for packaging machine can be used in many parts of a packaging production line.

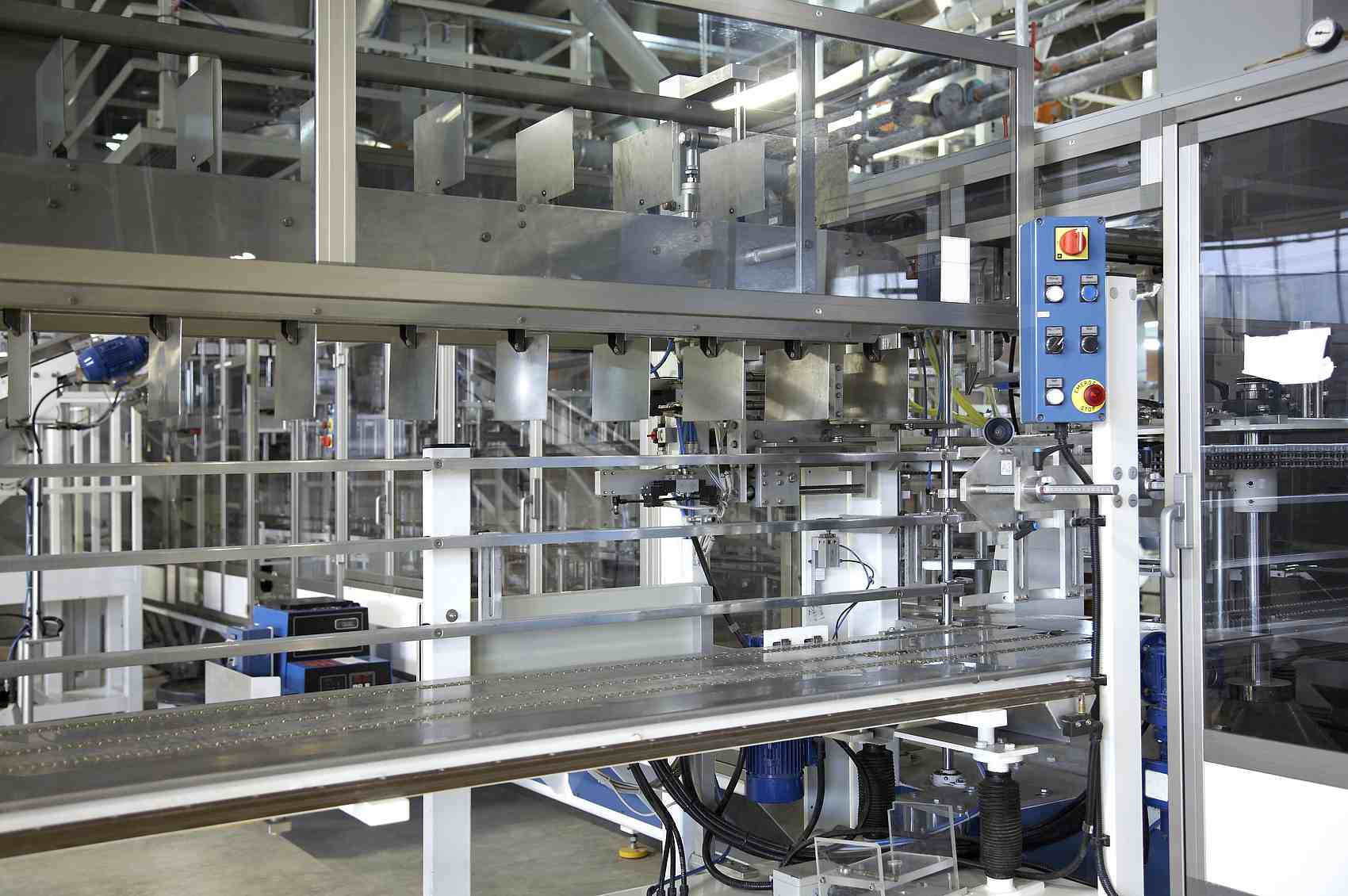

Conveyor Systems
Conveyors are one of the most common applications. A gear motor for conveyor drives the belt, roller, or chain to move products from one station to another.
Typical conveyor applications include:
Bottle conveyor
Carton conveyor
Food package conveyor
Box transfer conveyor
Sorting conveyor
Inspection conveyor
For conveyors, the most important selection points are output speed, torque, load weight, belt width, and working hours.
Filling Machines
Filling machines are used for liquid, powder, granule, or paste products. Gear motors may drive turntables, conveyors, lifting systems, or screw feeding parts.
In this application, smooth motion and stable speed are important because they affect filling accuracy and production efficiency.
Sealing Machines
Sealing machines need reliable movement to press, heat, seal, or transfer products. The gear motor should provide stable torque and avoid sudden speed changes.
For continuous sealing machines, the motor and gearbox should be suitable for long-time operation.
Labeling Machines
Labeling machines require accurate product movement. If the conveyor speed is unstable, the label may not be applied correctly.
A suitable helical geared motor can help maintain stable product flow and improve labeling accuracy.

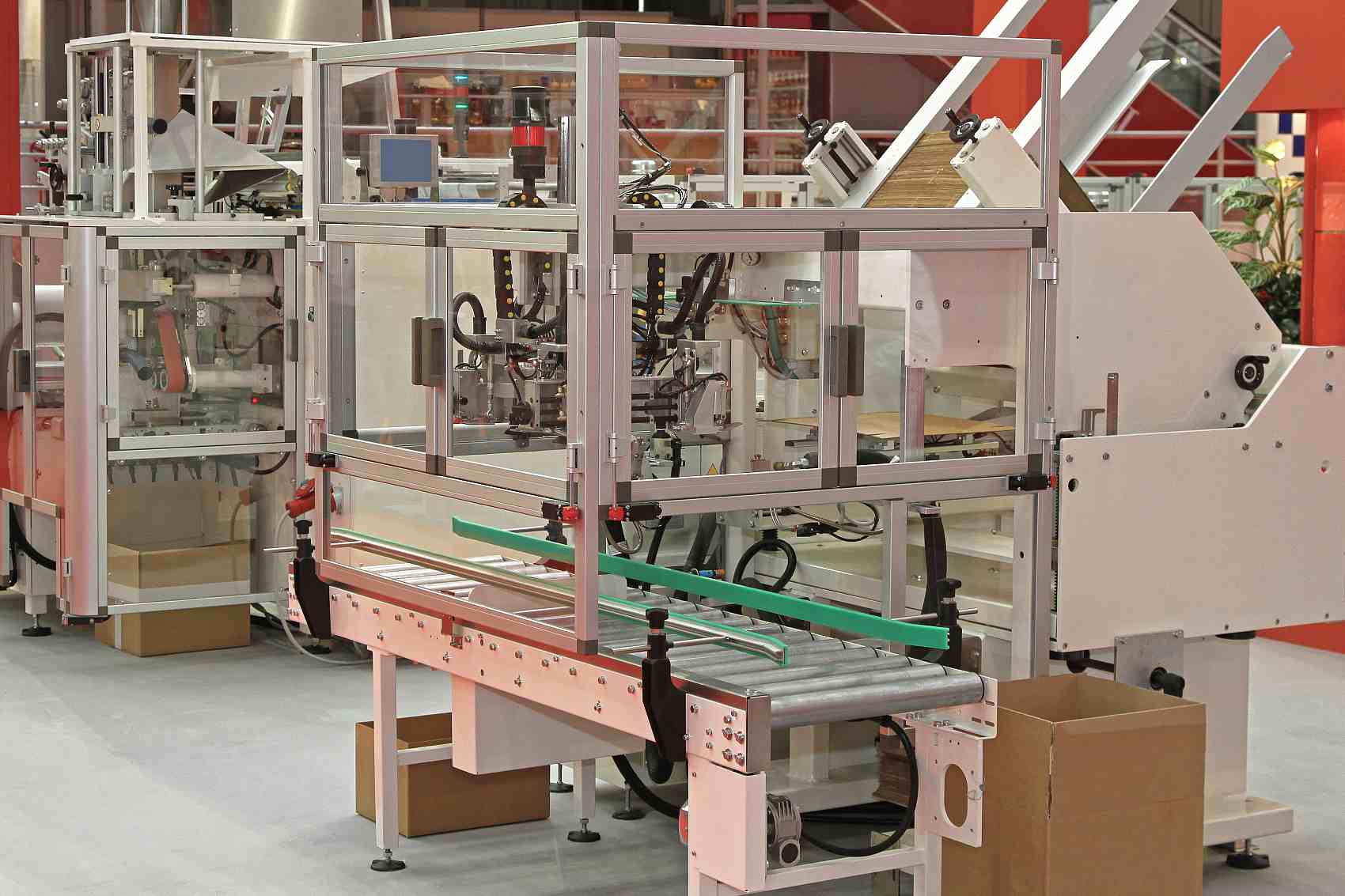

Cartoning Machines
Cartoning machines are used to open, fill, fold, and close cartons. Several gear motors may be used in one machine to drive different mechanical parts.
For this type of equipment, machine builders usually care about motor reliability, compact size, and easy installation.
Wrapping Machines
Wrapping machines often require synchronized motion between conveyors, rollers, and film feeding systems. Gear motors used here should provide smooth transmission and stable torque.
For higher-end packaging machines, the gear motor may also work together with a frequency inverter to adjust speed.
Key Selection Factors for Helical Gear Motor
Choosing a packaging machine gear motor should be based on real working conditions. Below are the most important factors.
Motor Power
Motor power is usually selected according to the load and application. Common power ranges for packaging machines include:
0.18 kW
0.25 kW
0.37 kW
0.55 kW
0.75 kW
1.1 kW
1.5 kW
2.2 kW
Small packaging conveyors may only need 0.18 kW or 0.37 kW. Larger or heavier machines may require 1.5 kW, 2.2 kW, or higher.
But power alone is not enough. You also need to check output torque and speed.
Output Speed
Output speed means the final speed after gearbox reduction. For packaging conveyors, common output speeds may range from 10 rpm to 300 rpm, depending on belt size and required line speed.
If the machine uses a frequency inverter, the output speed can be adjusted within a certain range. However, the base speed and gear ratio still need to be selected correctly.
Output Torque
Torque is one of the most important factors. If the torque is too low, the gear motor may overload, heat up, or fail to start under load.
The required torque depends on:
Product weight
Conveyor length
Belt friction
Roller diameter
Start-stop frequency
Incline angle
Shock load
Safety factor
For packaging machines with frequent start-stop operation, it is better to choose a gear motor with enough torque margin.
Gear Ratio
Gear ratio determines how much the gearbox reduces speed and increases torque.
For example, if a 4-pole motor runs at around 1450 rpm at 50 Hz and the gearbox ratio is 20:1, the output speed will be around 72.5 rpm.
Formula:
Output speed = Motor speed ÷ Gear ratio
If you know the required output speed, you can calculate the suitable gear ratio.
Mounting Type
Packaging machines may use different mounting methods depending on the equipment structure.
Common mounting types include:
Foot mounted
Flange mounted
Shaft mounted
Foot and flange mounted
Horizontal mounting
Vertical mounting
Before ordering, it is important to confirm the installation dimensions, shaft direction, output shaft size, and mounting position.
Voltage and Frequency
Different markets use different voltages and frequencies.
Common industrial voltages include:
220V / 380V, 50Hz
230V / 400V, 50Hz
380V / 660V, 50Hz
400V / 690V, 50Hz
230V / 460V, 60Hz
460V, 60Hz
For export projects, voltage and frequency must be confirmed clearly. A motor designed for 50Hz will have a different speed when used at 60Hz.
For example, a 4-pole motor running around 1450 rpm at 50Hz may run around 1740 rpm at 60Hz.
Duty Cycle
Packaging machines may operate intermittently or continuously. For conveyors and automatic packaging lines, continuous duty is common.
If the machine works for long hours, the gear motor should be suitable for continuous operation and have good heat dissipation.
For frequent start-stop applications, the motor and gearbox should have enough mechanical strength and thermal capacity.
Working Environment
The working environment also affects gear motor selection.
Important conditions include:
Indoor or outdoor use
Dust level
Humidity
Ambient temperature
Food processing environment
Chemical exposure
Washing or cleaning process
Required protection level
For normal packaging machines, IP55 motors are commonly used. For wet or dusty environments, higher protection or special surface treatment may be needed.

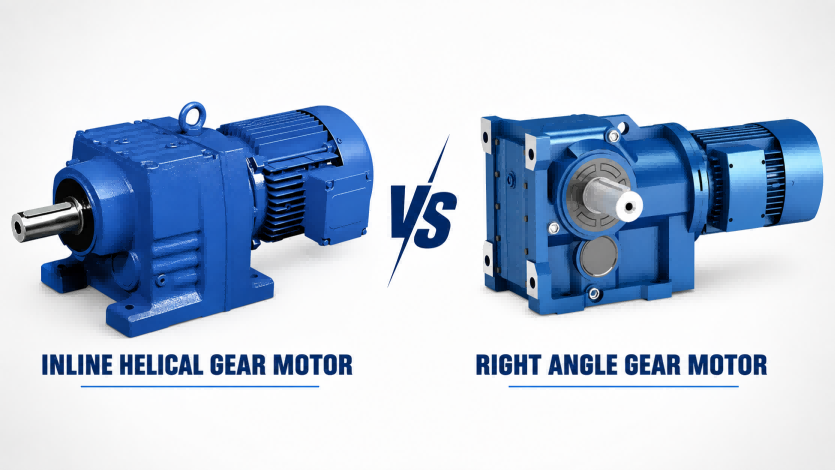

Inline Helical Gear Motor vs Right Angle Gear Motor
An inline helical gear motor has the input and output shafts arranged in the same direction. It is suitable for machines where the motor can be installed in line with the driven shaft.

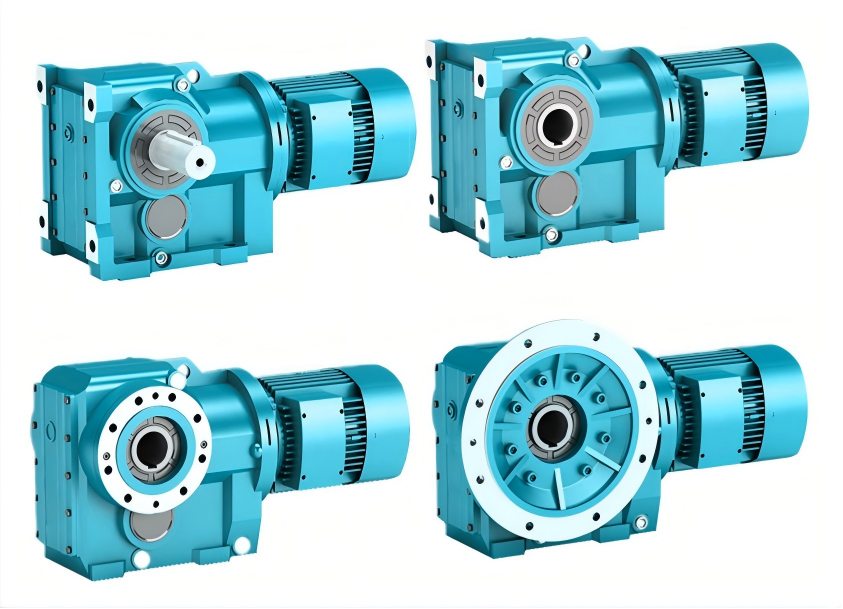

A right angle gear motor changes the power direction by 90 degrees. It is useful when the machine has limited space or requires side installation.
For many packaging conveyors, inline helical gear motors are simple, efficient, and cost-effective. For compact machines, right angle gear motors may be more suitable.
When selecting between them, you should consider:
Installation space
Shaft direction
Conveyor structure
Required torque
Maintenance convenience
Cost budget
How to Match Gear Motor with Packaging Conveyor
For a packaging conveyor, the gear motor selection should start from the conveyor data.
You need to know:
Conveyor length
Belt width
Product weight
Total load weight
Required belt speed
Roller diameter
Working hours
Start-stop frequency
Installation position
Then you can calculate or estimate the required output speed and torque.
For example, if the conveyor needs low speed but high pulling force, you should choose a larger gear ratio and enough output torque. If the conveyor needs faster speed and light load, a smaller gear ratio may be enough.
For B2B buyers, if you do not have complete calculation data, you can provide the supplier with machine pictures, nameplate photos, old motor model, gearbox model, and working video. An experienced supplier can help recommend a suitable replacement.
Common Mistakes When Selecting Gear Motors
Many purchasing problems happen because important details are not confirmed at the beginning.
Common mistakes include:
Only checking motor power, not output torque
Ignoring output speed
Choosing the wrong mounting type
Not confirming voltage and frequency
Ignoring shaft diameter and keyway size
Using a light-duty gearbox for frequent start-stop operation
Not considering ambient temperature
Not checking whether the motor needs brake or inverter control
Replacing a gearbox only by appearance
For packaging machines, small dimensional differences may affect installation. Therefore, before mass orders, it is better to confirm drawings, dimensions, and technical specifications.

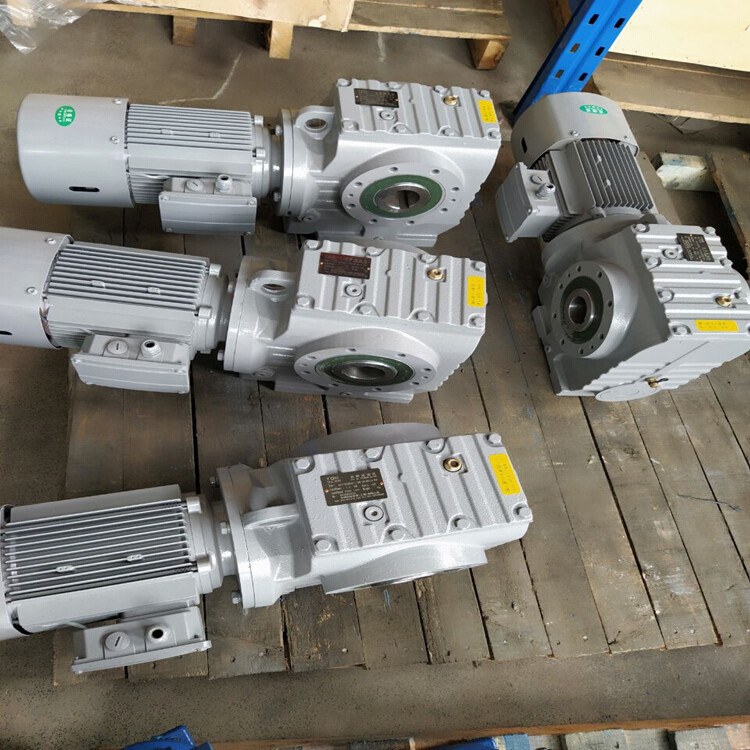

When Should You Use a Brake Motor?
Some packaging machines require the motor to stop quickly and accurately. In this case, a brake motor may be needed.
Brake gear motors are commonly used in:
Lifting mechanisms
Positioning conveyors
Cutting machines
Intermittent feeding systems
Vertical packaging systems
Machines requiring quick stop
A brake can be installed on the non-drive end of the motor. When power is cut off, the brake holds the motor shaft and prevents unwanted movement.
If your packaging machine requires accurate stopping, you should tell the supplier clearly that you need a brake motor.
Can Helical Gear Motors Work with Frequency Inverters?
Yes, helical gear motors can work with frequency inverters in many packaging machines.
A frequency inverter helps adjust speed according to production requirements. This is useful for packaging lines that need different speeds for different product sizes.
However, if the motor operates at very low frequency for a long time, cooling may become a problem. In this case, an inverter-duty motor with independent cooling fan may be recommended.
For normal speed adjustment, a standard three phase motor with gearbox can often work well with a VFD. But the working range and load condition should be confirmed.
Maintenance Tips for Packaging Machine Gear Motors
Replace lubrication oil according to working hours
Check for abnormal noise
Check motor temperature
Check oil leakage
Inspect mounting bolts
Keep ventilation clear
Avoid overload operation
Check shaft alignment
Monitor vibration
For packaging factories, preventive maintenance is better than emergency repair. A small issue such as oil leakage or abnormal noise should be handled early.
Why Importers and Machine Builders Choose Victory
For packaging machine manufacturers, distributors, and OEM buyers, choosing the right gear motor supplier is not only about price. Reliability, technical support, customization ability, and stable delivery are also important.
Victory can support B2B customers with practical solutions for motors and gearboxes.
Our advantages include:
Direct factory supply with competitive pricing
Experience in electric motors and gear reducers
Support for helical gear motor customization
IEC standard motor and gearbox options
Stable quality control for export orders
Flexible voltage and frequency options
Support for OEM branding and nameplate customization
Suitable solutions for conveyors, packaging machines, mixers, pumps, and industrial equipment
Long-term cooperation support for distributors and machine builders
For customers who currently use European or international brand gear motors, Victory can also help provide alternative solutions based on technical parameters, dimensions, torque, speed, and installation requirements.
If you have an old gear motor model, drawing, nameplate photo, or machine application, we can help check whether a compatible replacement is available.
Information Needed Before Quotation
To recommend the correct helical gear motor for packaging machine, it is better to provide the following information:
Motor power
Voltage and frequency
Output speed or gear ratio
Required torque
Mounting type
Output shaft diameter
Shaft direction
Working hours per day
Load type
Machine application
Environment condition
Quantity
Required brand or standard
Photos or drawings if available
The more information you provide, the more accurate the selection will be.
For replacement projects, the easiest way is to send the old motor and gearbox nameplate photos. If nameplates are missing, machine photos and shaft dimensions are also helpful.
FAQ About Helical Gear Motor for Packaging Machine
1. What power range is commonly used for packaging machine gear motors?
Common power ranges are from 0.18 kW to 2.2 kW for many packaging machines. Larger machines may require higher power depending on load and speed.
2. Is a helical gear motor suitable for conveyor systems?
Yes. A helical gear motor is widely used as a gear motor for conveyor because it provides stable speed, reliable torque, and smooth operation.
3. Can I use a frequency inverter with a helical gear motor?
Yes. Many packaging machines use VFD control to adjust speed. For long-time low-speed operation, an inverter-duty motor with independent cooling may be recommended.
4. How do I choose the right gear ratio?
You can calculate it based on motor speed and required output speed. Gear ratio = motor speed ÷ output speed.
5. Can Victory provide replacement gear motors for existing machines?
Yes. Victory can help select replacement gear motors based on model number, nameplate, drawings, dimensions, speed, torque, and mounting type.
6. What information should I provide before ordering?
You should provide power, voltage, frequency, output speed, gear ratio, torque, mounting type, shaft size, application, and working environment.
7. Is a brake motor necessary for packaging machines?
Not always. A brake motor is needed when the machine requires fast stop, accurate positioning, or holding function.
8. What is the difference between inline and right angle gear motors?
Inline gear motors have input and output in the same direction. Right angle gear motors change power direction by 90 degrees. The choice depends on machine layout and installation space.
Final Thoughts
A helical gear motor for packaging machine is a practical and reliable drive solution for conveyors, filling machines, sealing machines, labeling machines, cartoning machines, and wrapping equipment.
To choose the right model, you should not only look at motor power. Output speed, torque, gear ratio, mounting type, voltage, duty cycle, and working environment are all important.
For packaging machine builders and industrial buyers, a correctly selected packaging machine gear motor can improve machine stability, reduce maintenance, and support long-term production efficiency.
Victory can provide reliable helical geared motor solutions for packaging machines and other industrial equipment. If you need a standard model, customized specification, or replacement for an existing gear motor, you can send us your technical details, drawings, or nameplate photos. Our team will help you choose a suitable solution for your application.
