Understanding Gearbox Classification: A Complete Guide From Structure To Industrial Applications

A gearbox, also known as a speed reducer, is a crucial component in power transmission systems. It converts high-speed, low-torque input from a motor into low-speed, high-torque output, ensuring that mechanical equipment operates efficiently, smoothly, and accurately. As the core actuator of modern machinery, its performance directly affects precision, energy efficiency, and operational reliability.

This detailed guide explores the four main types of gearboxes—cylindrical, bevel, planetary, and worm gear reducers—highlighting their structural features, performance parameters, and industrial applications. By understanding these distinctions, engineers and procurement specialists can make informed decisions to optimize equipment performance and reduce lifecycle costs.

---

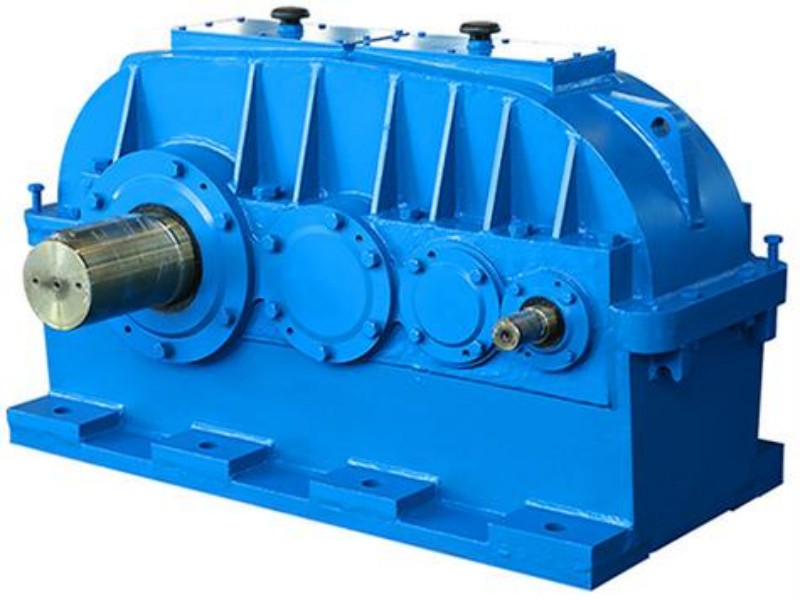

1. Cylindrical Gear Reducers – The Backbone of Heavy-Duty Power Transmission

1.1 Structural Overview

Cylindrical gear reducers are widely used as general-purpose transmission devices for heavy machinery. They rely on parallel or crossed cylindrical gears to transmit motion and power efficiently. Based on shaft arrangement, they are categorized into:

• Parallel-shaft type (e.g., ZQ and ZD series)

• Crossed-shaft type (often used in worm-cylindrical composite systems)

These reducers typically use involute tooth profiles, with a module range of 2–20 mm. The precision level follows the GB/T 10095.2-2008 standard, ranging from grade 7 to grade 5. For heavy-duty operations, precision-ground gears (grade 5) reduce contact stress and enhance durability.

1.2 Performance Parameters

• Transmission Efficiency: 89%–97% (single-stage), 82%–88% (three-stage)

• Dynamic Load Coefficient: 1.2–1.8 (ISO 6336 standard), withstanding 1.5–2× short-term overloads

• Reduction Ratio: 3–10 (single-stage), up to 1000 (multi-stage)

• Input Speed Range: 1000–3000 r/min

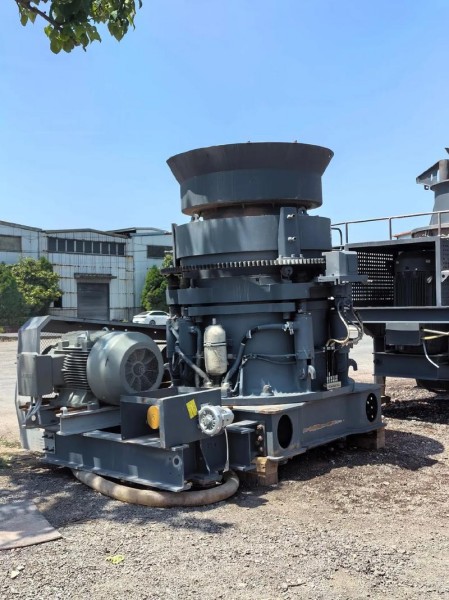

1.3 Application Fields

Cylindrical reducers are ideal for heavy-load applications where space is not restricted, such as:

• Mining crushers and conveyor drive systems

• Bridge crane lifting mechanisms (≤50 tons)

• Large-scale conveyors and mixers

However, they are less suitable for compact or low-noise environments (below 75 dB).

1.4 Advantages and Limitations

Advantages:

• High torque transmission

• Robust and long-lasting

• Easily maintained and cost-effective

Limitations:

• Large in size

• Moderate noise level

• Efficiency decreases with more transmission stages

---

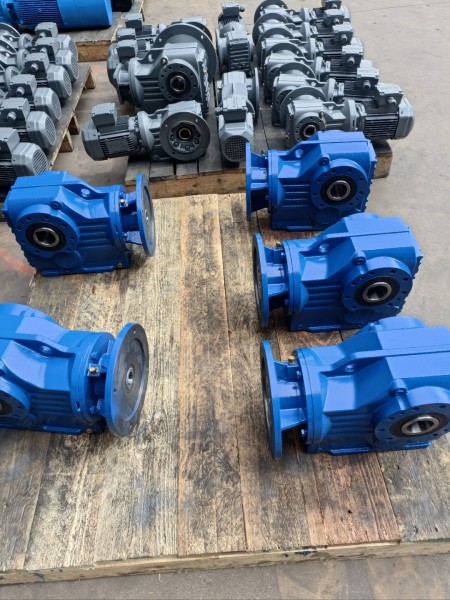

2. Bevel Gear Reducers – Optimizing Directional Power Transmission

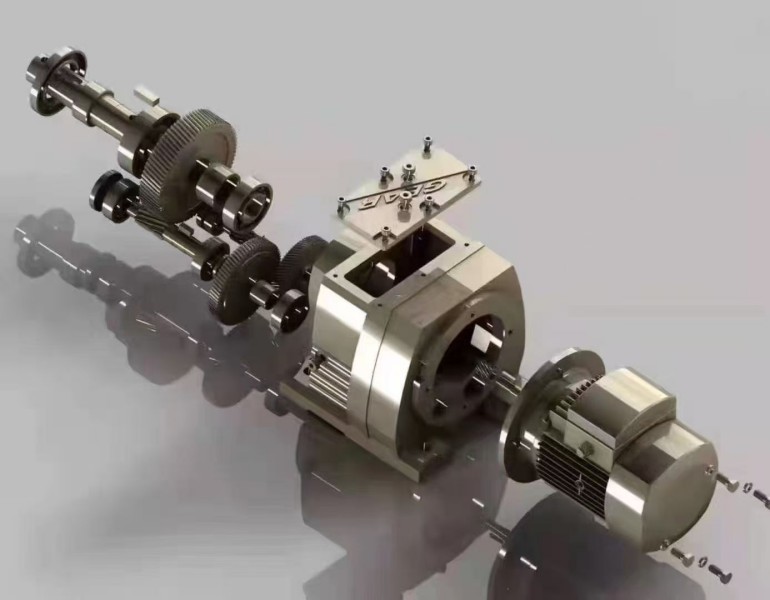

2.1 Structural Overview

Bevel gear reducers are designed to change the direction of power transmission, typically by 90°. They use bevel gears as their core components, categorized by tooth profile into:

• Spur bevel gears

• Helical bevel gears

• Spiral bevel gears

Among these, spiral bevel gears—such as those made by Gleason Gear—offer superior smoothness and higher tooth contact rates (up to 80%). They employ precision machining and surface modification technologies to minimize stress at tooth edges and improve stability.

Most housings are made from cast iron HT300, ensuring high rigidity and ≤0.05 mm/m coaxiality error in the transmission shaft.

2.2 Performance Parameters

• Transmission Efficiency: 85%–92% (straight gears), 92%–96% (spiral gears)

• Static Load Coefficient: 2.0–2.5 (GB/T 10062.1)

• Impact Load Resistance: Up to 3× rated torque for spiral gears

• Axial Load Capacity: ≤30% of rated radial load (requires thrust bearings)

2.3 Application Fields

Bevel reducers excel in directional transmission systems, such as:

• Port gantry cranes (slewing radius 10–30 m)

• Metallurgical converters and tilting mechanisms

• Heavy machine tool feed drives

2.4 Maintenance and Considerations

Since bevel gears operate under high stress, they require high-quality lubricants (ISO VG 220–460). Periodic clearance adjustments using specialized tools—like tooth thickness calipers and dial indicators—are necessary. While this raises maintenance costs, the efficiency and precision gained justify the investment.

---

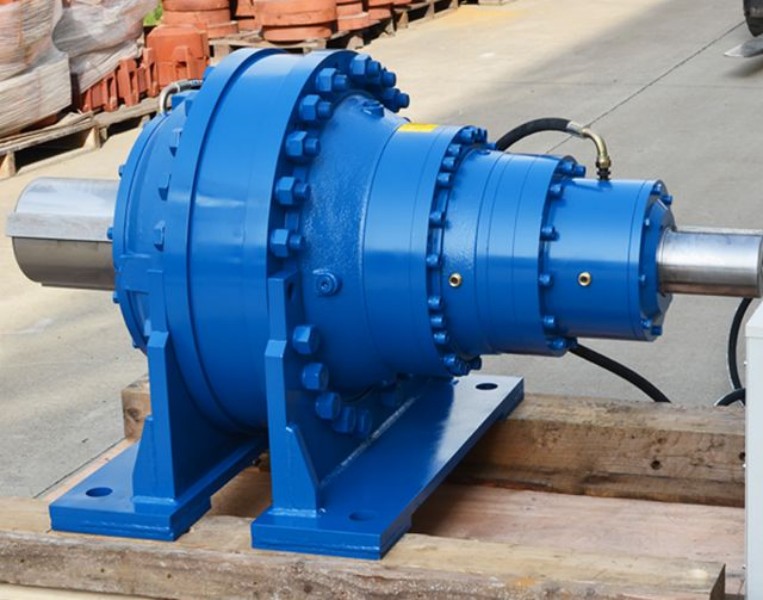

3. Planetary Gear Reducers – Compact, High-Precision Powerhouses

3.1 Structural Overview

The planetary gear reducer is a compact and efficient transmission system, featuring a three-stage structure:

Sun Gear → Planet Gears → Internal Ring Gear.

Usually, 3–6 planet gears are evenly distributed around the sun gear, ensuring balanced torque transmission.

Materials and Design Features:

• Sun and Planet Gears: 20CrMnTi carburized and quenched (HRC 58–62)

• Internal Ring Gear: 42CrMo quenched and tempered (HB 220–250)

• Floating Planet Carrier: Automatically compensates for meshing errors, improving load distribution

3.2 Performance Parameters

• Transmission Efficiency: 96%–98% (single-stage), 92%–95% (two-stage)

• Torque Density: 20–50 N·m/kg (2–3× higher than cylindrical reducers)

• Backlash: ≤3 arcmin (precision grade), ≤10 arcmin (standard grade)

3.3 Application Fields

Planetary gear reducers are preferred in high-precision, compact machinery, including:

• CNC lathe spindle drives (≤8000 r/min)

• Intelligent cranes (±5 mm positioning accuracy)

• Industrial robots and servo systems (repeatability ±0.02 mm)

Although costs are 2–3 times higher than equivalent cylindrical gear reducers, their efficiency, precision, and compact size make them invaluable in automation and robotics.

3.4 Advantages

• Exceptional efficiency and precision

• High torque in a small footprint

• Low backlash ideal for servo applications

Limitations:

• Higher initial cost

• Requires manufacturer support for repairs or replacements

---

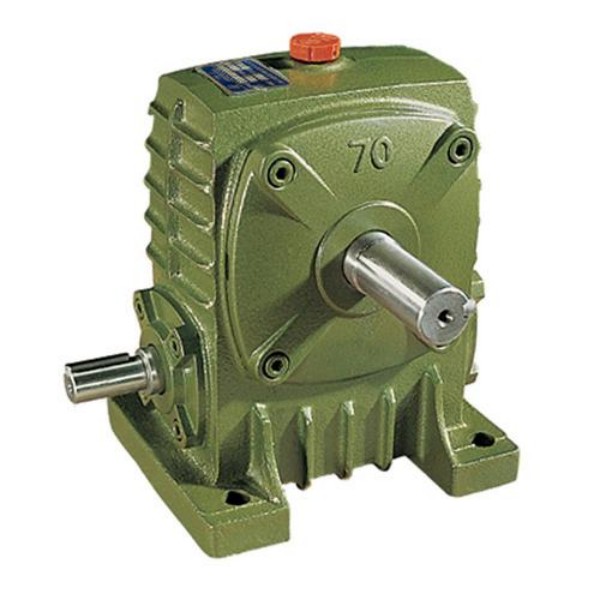

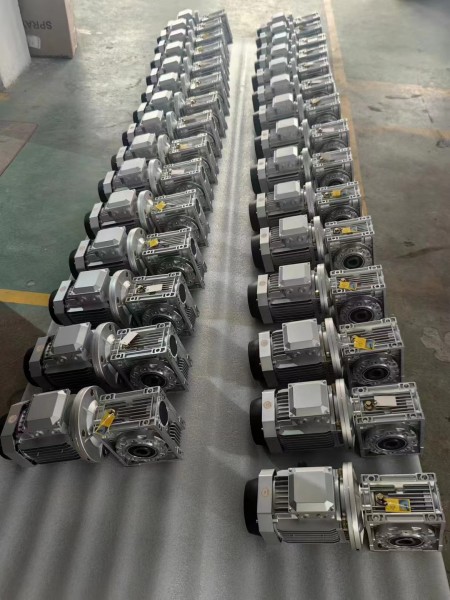

4. Worm Gear Reducers – Reliable, Self-Locking Transmission Systems

4.1 Structural Overview

Worm gear reducers employ a worm (screw-like shaft) meshing with a worm wheel (bronze gear) to achieve high reduction ratios in a compact design.

• Worm Materials: Hardened steel (1–4 threads)

• Worm Wheel: Tin bronze (ZCuSn10Pb1)

• Lubrication: Forced or oil bath systems to control heat and friction

Heat sinks or cooling coils are commonly integrated to prevent temperature rise during continuous operation.

4.2 Performance Parameters

• Efficiency: 70%–75% (single-thread), 75%–85% (multi-thread)

• Reduction Ratio: 10–1000 (single-stage capable of very high ratios)

• Self-Locking Angle: ≤3°30′ (GB/T 10085-2018), prevents back-driving

• Allowable Contact Stress: ≤180 MPa

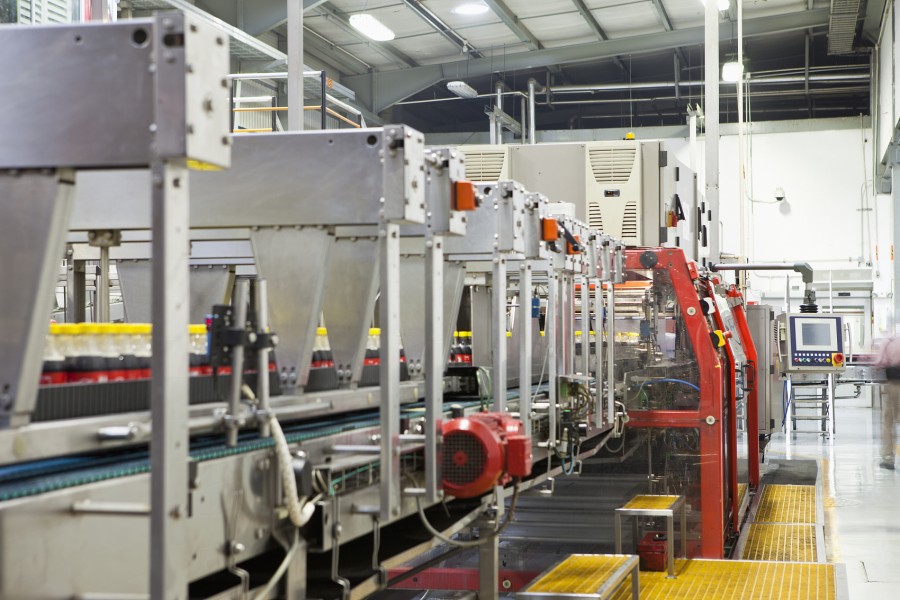

4.3 Application Fields

Worm gear reducers are ideal for low-speed, high-reduction applications requiring self-locking capabilities, such as:

• Crane luffing systems (≤0.5 m/s)

• Gate hoists (≤100 kN lifting force)

• Chemical mixers (≤50 r/min)

Due to high surface wear, regular oil analysis (ISO 4406 ≤18/15) is essential to detect metal particles and prevent gear failure.

---

5. Summary: Choosing the Right Gear Reducer for Your Application

Selecting the appropriate gearbox requires a careful balance between load capacity, precision, efficiency, and environmental adaptability.

5.1 Load Matching

• Use GB/T 3811-2008 as a reference for rated load coefficients.

• Heavy-duty systems (A7–A8) require 20%–30% higher safety margins.

5.2 Precision Control

• Planetary reducers (≤5 arcmin backlash) suit servo-driven systems.

• Cylindrical reducers (7-grade precision) work well for general machinery.

5.3 Environmental Adaptability

• For high temperatures (≥40°C), choose reducers with forced cooling systems.

• In dusty conditions, ensure IP65 or higher enclosure protection.

5.4 Energy Efficiency

• For continuous operations like conveyors, select reducers with ≥90% efficiency to reduce power losses and operational costs.

---

6. Final Thoughts

Understanding the classification and selection principles of gear reducers is vital for achieving long-term reliability and energy efficiency in industrial systems.

• Cylindrical reducers are best for heavy-duty, general applications.

• Bevel reducers excel in directional power transfer systems.

• Planetary reducers offer precision and compact performance for automation and robotics.

• Worm reducers provide self-locking safety and cost-effective low-speed control.

By combining engineering insight with careful selection criteria, companies can enhance mechanical performance, minimize downtime, and lower overall operational costs.

As industries move toward smart manufacturing, integrating IoT-enabled gear reducers with real-time monitoring will be the next evolution—offering predictive maintenance and efficiency optimization at every stage of operation.
