In this article, we will explain the working principle of a cycloidal speed gearbox in a simple and practical way.

What Is a Cyclo Drive?

A cyclo drive is a type of speed reducer that uses cycloidal motion to reduce input speed and increase output torque.

In simple words, the motor rotates at a high speed. The cycloidal reducer converts this high-speed rotation into lower-speed, higher-torque output. This makes it suitable for conveyors, mixers, agitators, crushers, packaging machines, lifting equipment, and other industrial machines.

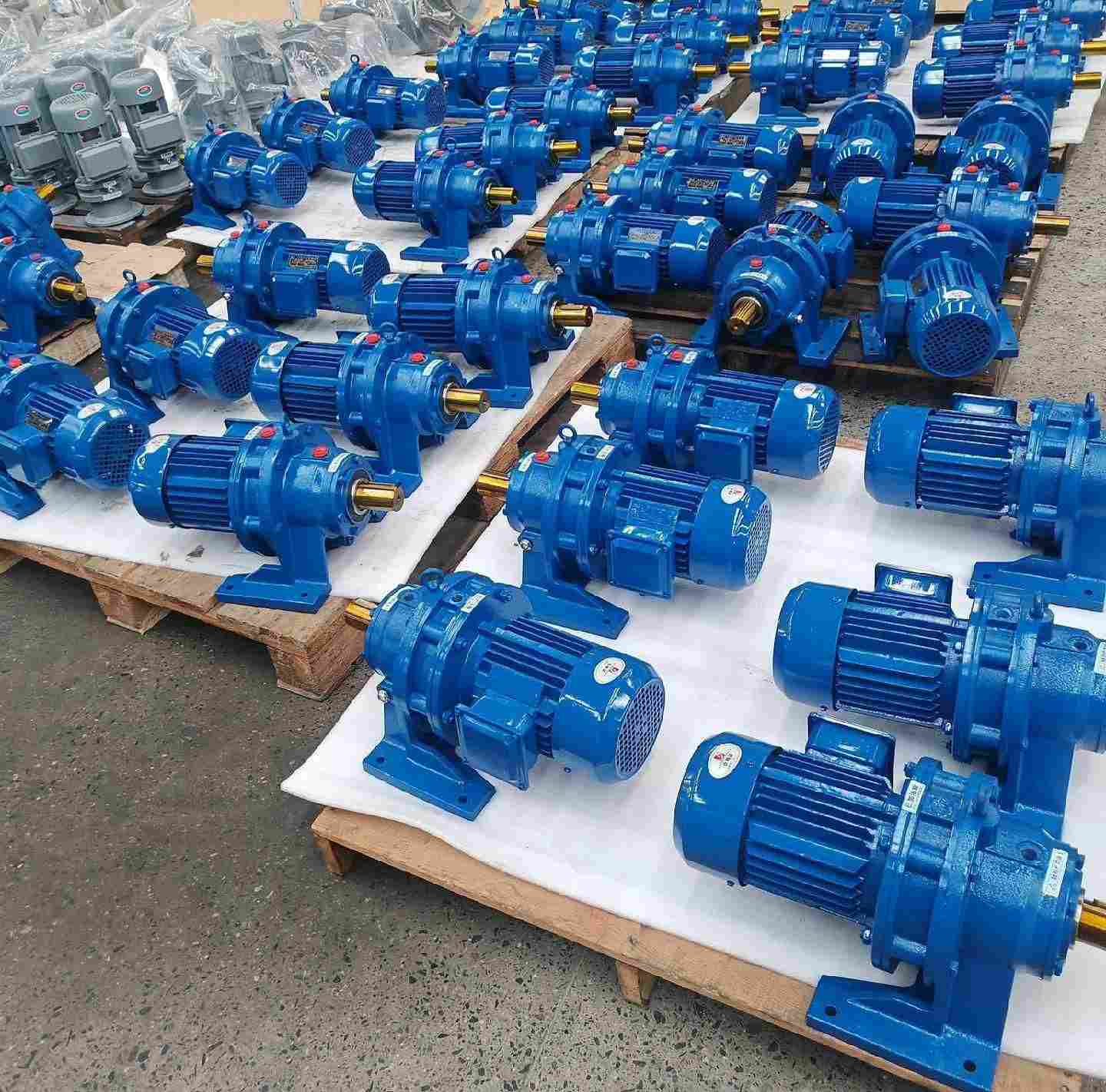

A standard cycloidal gear motor usually combines an electric motor with a cycloidal drive gear motor structure. The motor provides power, while the cycloidal gearbox reduces speed and increases torque.

Basic Definition of a Cycloidal Drive

A cycloidal drive uses a special disc called a cycloidal disc. This disc moves in an eccentric rolling motion inside a ring of pins. Through this motion, the gearbox reduces speed and transfers torque to the output shaft.

Unlike a traditional gearbox that depends mainly on tooth-to-tooth meshing, a cycloidal transmission uses rolling contact between the cycloidal disc and many pins. Because several contact points share the load at the same time, the gearbox can handle heavy loads and shock loads very well.

That is one of the key reasons why many industrial users choose a cycloidal speed drive for demanding applications.

Why It Is Different from Traditional Gearboxes

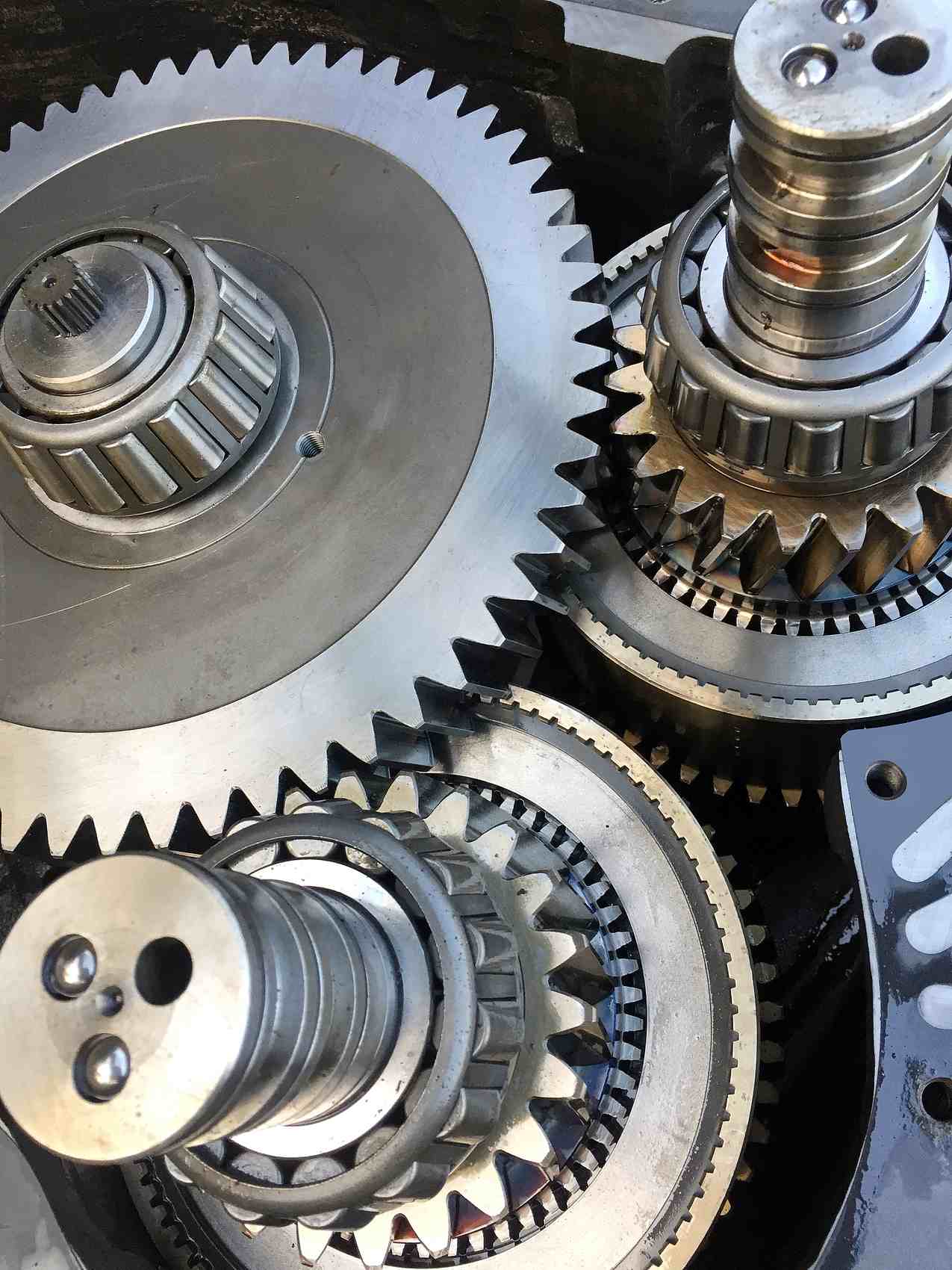

Traditional gearboxes, such as helical gearboxes or worm gearboxes, use gear teeth to transmit power. These designs are widely used and reliable, but the load is usually carried by fewer contact teeth at one time.

A cyclo drive unit is different. It has multiple contact points between the cycloidal disc and the ring pins. This design helps distribute the load more evenly.

Because of this, a cycloidal speed reducer normally offers:

• High torque capacity

• Strong shock-load resistance

• Compact size

• Stable operation

• Long service life

• Good overload performance

• Suitable performance for frequent start-stop applications

For many heavy-duty machines, this structure is a very practical advantage.

Main Components of a Cyclo Drive Gearbox

To understand how a cyclo drive gearbox works, we first need to understand its main components.

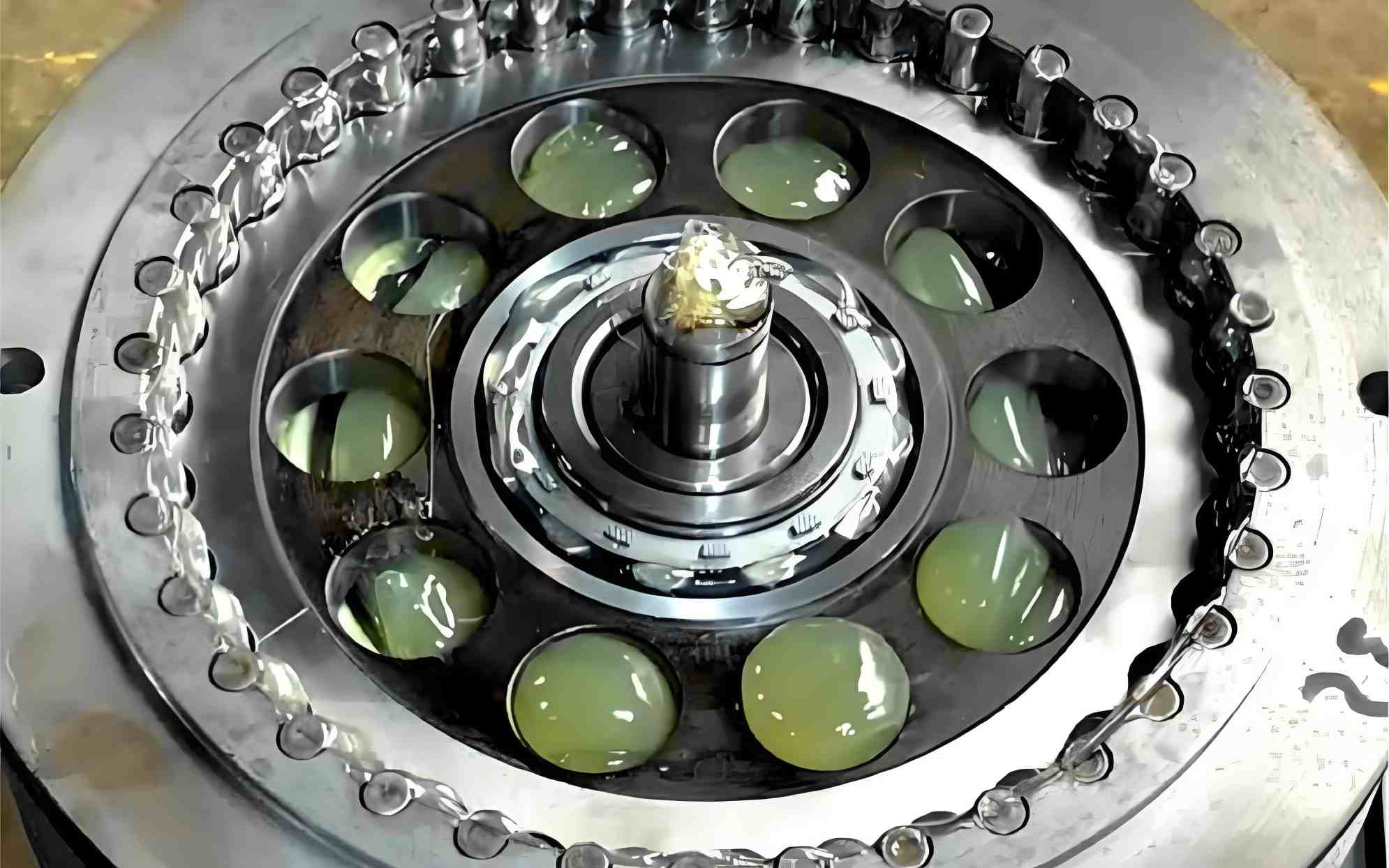

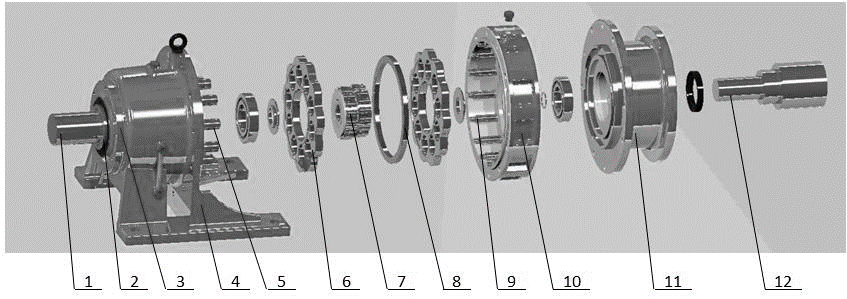

A typical cycloidal reducer includes the following parts:

Input Shaft and Eccentric Bearing

The input shaft is connected to the motor. When the motor rotates, it drives the input shaft.

On the input shaft, there is usually an eccentric bearing. This bearing does not rotate exactly around the center. Instead, it creates an offset motion.

This eccentric motion is the starting point of the cycloidal movement.

In simple terms, the eccentric bearing makes the cycloidal disc “wobble” or “roll” inside the gearbox instead of rotating directly like a normal gear.

Cycloidal Disc

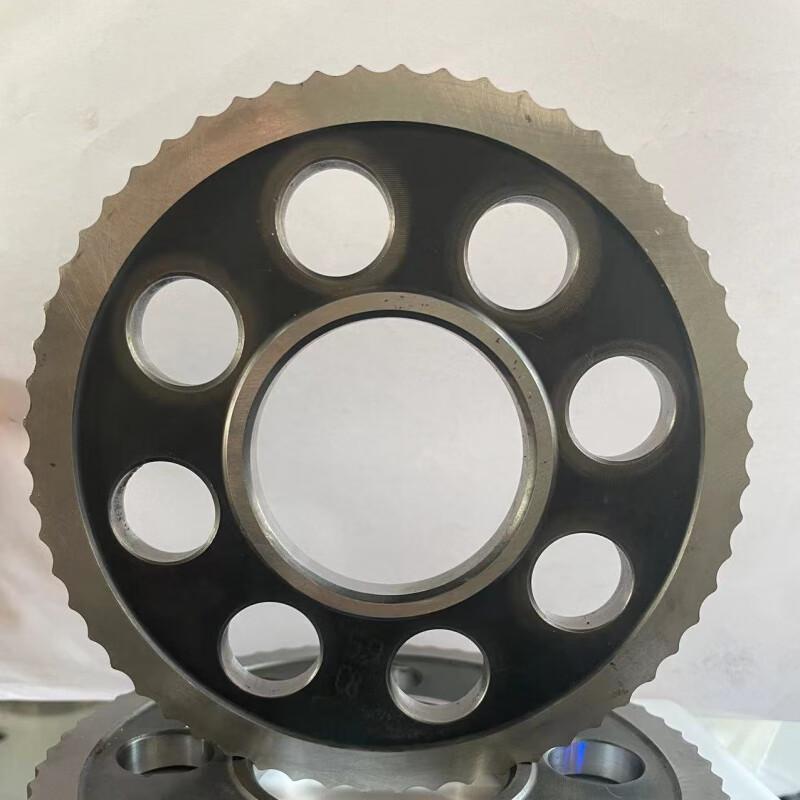

The cycloidal disc is one of the most important parts of a cycloid reducer.

It has a special curved profile. This profile is designed to engage with the ring pins inside the housing. When the eccentric bearing drives the cycloidal disc, the disc moves in a cycloidal path.

The shape of the disc allows the gearbox to reduce speed and transmit torque smoothly.

In many cycloidal gear reducers, there may be one or two cycloidal discs depending on the design and torque requirement.

Ring Pins or Pin Housing

Around the cycloidal disc, there is a fixed ring with pins. These pins are mounted inside the gearbox housing.

The cycloidal disc rolls against these ring pins. Because the number of lobes on the cycloidal disc is usually different from the number of pins in the ring, the disc moves slowly in the opposite direction.

This difference creates speed reduction.

For example, if the ring has one more pin than the cycloidal disc profile, every full input rotation only moves the disc by a small amount. This is how the cycloidal speed gearbox achieves a large reduction ratio.

Output Pins and Output Shaft

The cycloidal disc does not directly drive the output shaft like a standard gear.

Instead, output pins pass through holes in the cycloidal disc. As the disc moves, these output pins collect the reduced motion and transfer it to the output shaft.

This design converts the eccentric motion of the disc into smooth rotational output.

The result is lower speed and higher torque.

Housing, Bearings, and Lubrication System

The housing supports all internal components and protects the gearbox from dust, moisture, and mechanical damage.

Bearings support the input shaft, output shaft, and internal rotating parts. Proper bearing quality is very important for the long-term reliability of a cycloidal gear motor.

Lubrication reduces friction, improves efficiency, lowers temperature, and extends service life.

For industrial buyers, housing strength, bearing quality, machining precision, and lubrication design are all important factors when choosing a cycloidal drive gear motor.

How Does a Cyclo Drive Work Step by Step?

Now let’s explain the working process of a cyclo drive in a practical way.

Step 1: Motor Power Enters the Input Shaft

The process starts with the electric motor.

The motor rotates at a certain speed, such as 1400 rpm, 1450 rpm, 1750 rpm, or 1800 rpm, depending on voltage, frequency, and pole number.

This motor rotation enters the cycloidal reducer through the input shaft.

At this stage, the speed is still high and the torque is relatively low.

Step 2: The Eccentric Bearing Creates Cycloidal Motion

The input shaft drives the eccentric bearing.

Because the bearing is mounted off-center, it creates an eccentric movement. This means the cycloidal disc does not simply rotate around the center. Instead, it moves in a rolling and orbiting path.

This eccentric motion is what makes the cycloidal drive different from a normal gear reducer.

The cycloidal disc begins to roll against the ring pins inside the gearbox.

Step 3: The Cycloidal Disc Rolls Against the Ring Pins

As the cycloidal disc moves, its special curved profile contacts the fixed ring pins.

The disc rolls around the inside of the pin housing. Because the number of pins and the cycloidal profile are different, the disc rotates slowly in the opposite direction of the input shaft.

This is the key reduction process.

For example, the input shaft may rotate many times, but the cycloidal disc only completes a small amount of reverse rotation. This creates a large speed reduction ratio.

That is why a cycloidal speed reducer can produce low output speed and high torque in a compact gearbox body.

Step 4: Speed Is Reduced and Torque Is Increased

In any gearbox, when speed is reduced, torque increases.

The cycloidal transmission reduces the motor speed through the interaction between the cycloidal disc and the ring pins.

If the motor input speed is 1450 rpm and the gearbox ratio is 29:1, the theoretical output speed is approximately:

1450 ÷ 29 ≈ 50 rpm

This means the gearbox changes high-speed motor rotation into low-speed, high-torque output.

For applications such as mixers, conveyors, hoists, and crushers, this is exactly what the machine needs.

Step 5: Output Pins Transfer Motion to the Output Shaft

The reduced motion of the cycloidal disc is transferred to the output shaft through output pins.

These pins pass through holes in the cycloidal disc. As the disc moves, it pushes the output pins and drives the output shaft.

Finally, the output shaft delivers slow, strong, and stable rotation to the machine.

This is how a cyclo drive unit converts motor power into practical mechanical output.

Why Can a Cycloidal Reducer Handle Heavy Loads?

One of the biggest advantages of a cycloidal reducer is its strong load capacity.

This is why many equipment manufacturers choose a cycloidal gear reducer for applications where ordinary gearboxes may not be strong enough.

Multiple Teeth Contact at the Same Time

In a traditional gear reducer, only a limited number of gear teeth carry the load at one time.

In a cycloidal speed reducer, several contact points between the cycloidal disc and ring pins share the load together.

This load-sharing structure reduces stress on each contact point.

As a result, the gearbox can handle higher torque and stronger impact loads.

This is especially useful for machines with heavy starting loads or unstable working conditions.

High Shock Load Resistance

Many industrial machines do not run under smooth and stable loads.

For example:

• Mixers may face changing material resistance

• Crushers may suddenly meet hard material

• Conveyors may start under full load

• Agitators may work with high-viscosity liquid

• Hoisting equipment may require frequent starts and stops

In these situations, shock load is a serious challenge.

A cycloidal drive gear motor performs well because its internal structure distributes load across multiple contact points. This gives it better resistance to shock and overload.

Compact Structure with High Torque Density

A cycloidal speed gearbox can provide high torque in a compact size.

This is very important for machine builders because installation space is often limited.

Compared with some traditional gearbox designs, a cyclo drive gearbox can offer a strong torque output without requiring a large installation space.

For OEMs and system integrators, this helps make the machine structure more compact and efficient.

Cyclo Drive vs Traditional Gear Reducer

Different gearboxes have different advantages. The best choice depends on the working condition.

Here is a practical comparison.

Cycloidal Gear Reducer vs Helical Gearbox

A helical gearbox is efficient, smooth, and widely used in industrial transmission systems.

However, a cycloidal gear reducer may be more suitable when the application requires high shock-load resistance, compact size, and frequent start-stop operation.

For example, if the machine is a conveyor with stable load, a helical gearbox may be suitable.

But if the machine is a mixer, crusher, or heavy-duty agitator, a cycloidal reducer may be a better choice.

Cycloidal Speed Reducer vs Worm Gearbox

A worm gearbox is simple, compact, and cost-effective. It is commonly used in light and medium-duty applications.

However, worm gearboxes usually have lower efficiency than cycloidal or helical gearboxes, especially at high reduction ratios.

A cycloidal speed reducer normally provides better shock-load performance and higher torque density.

If the application requires compact structure, high torque, and long continuous operation, a cycloidal speed gearbox can be a more durable solution.

Cyclo Drive Gearbox vs Planetary Gearbox

Planetary gearboxes are known for precision, compact design, and high efficiency.

However, a cyclo drive gearbox is often preferred in heavy-duty applications where shock load, overload resistance, and durability are more important than ultra-high positioning precision.

For example, in robotics or servo positioning, a planetary gearbox may be preferred.

But in mixers, conveyors, crushers, wastewater equipment, and general industrial machinery, a cycloidal drive is often a very practical and cost-effective choice.

Common Applications of Cycloidal Speed Gearboxes

A cycloidal speed drive is used in many industries because of its strong torque capacity and reliable operation.

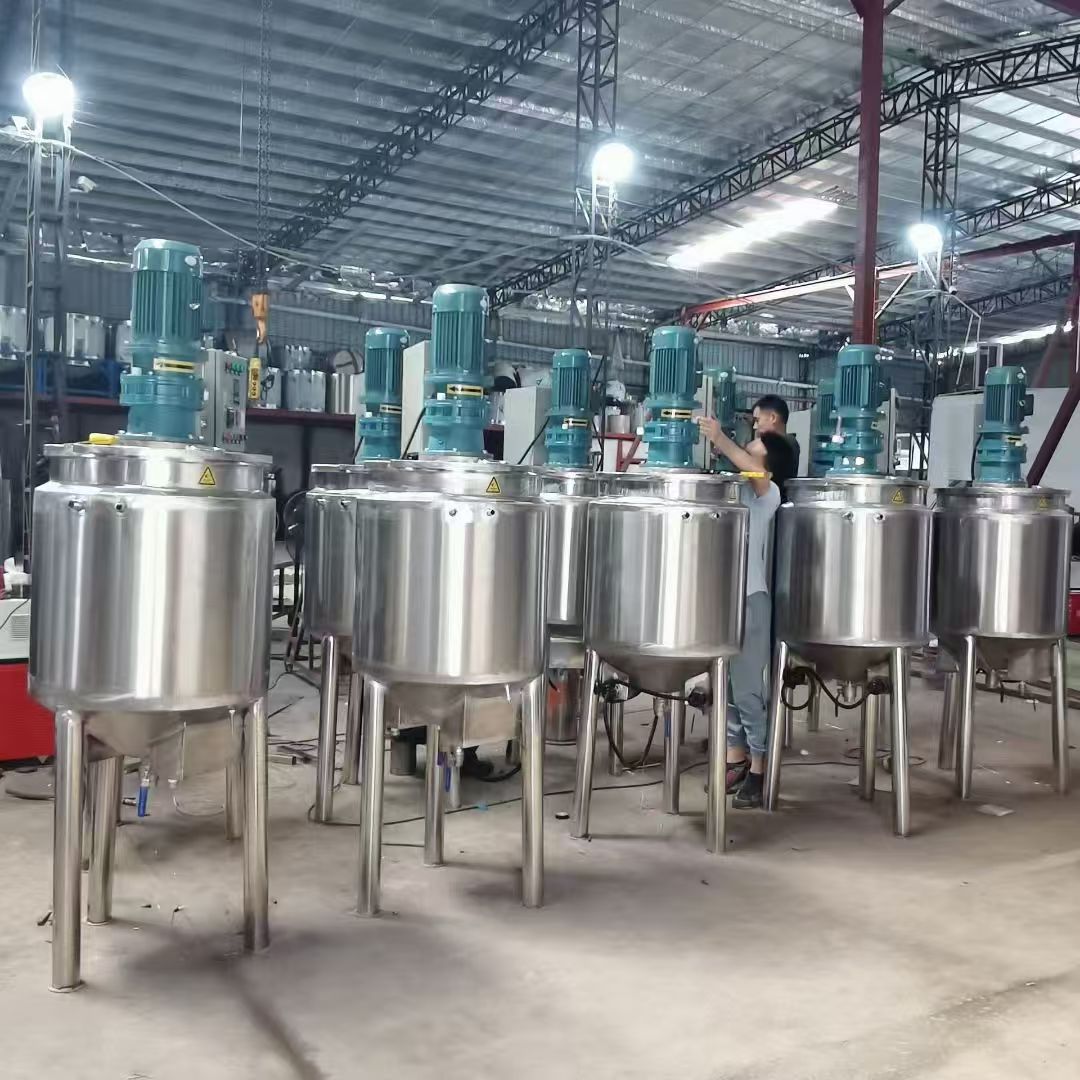

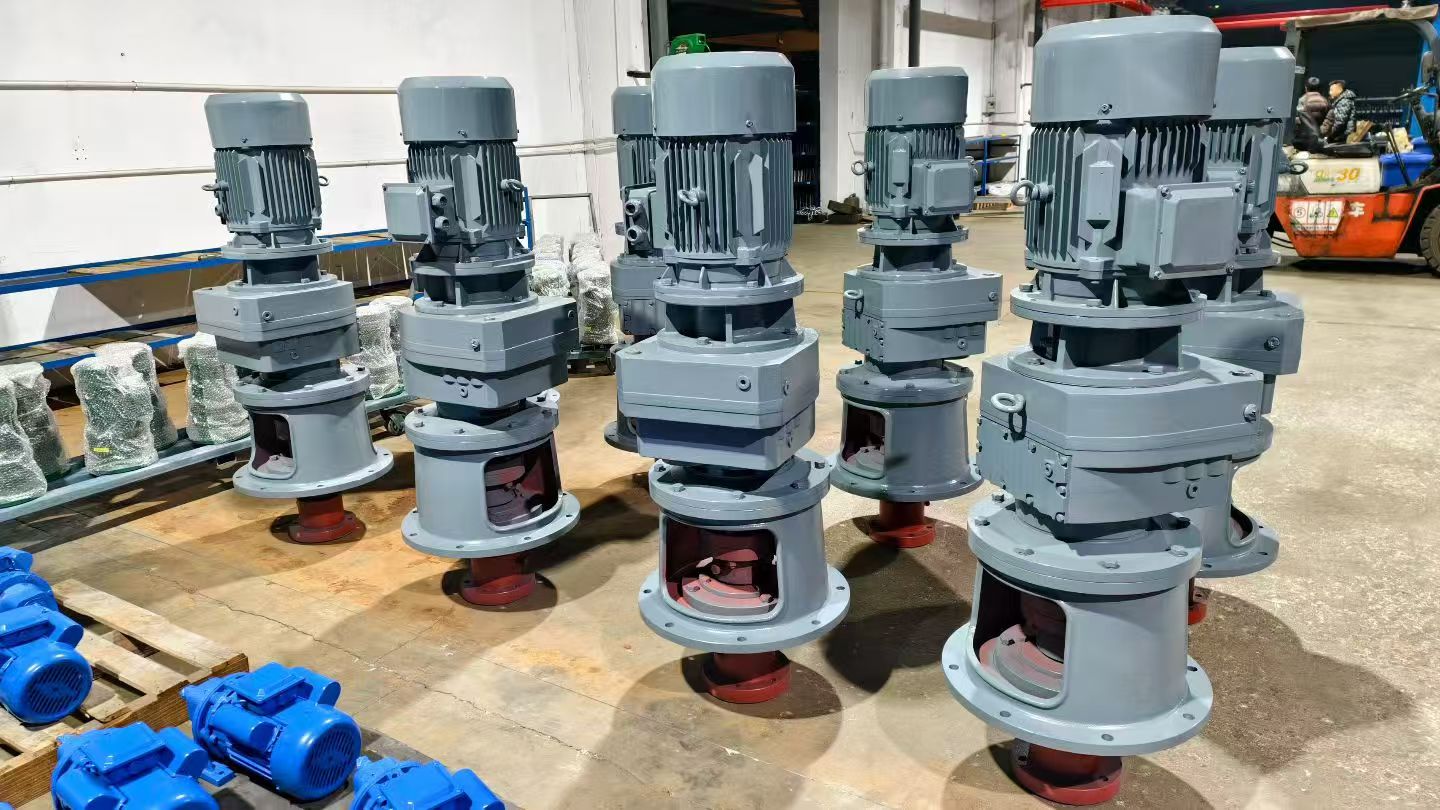

Mixers and Agitators

Mixers and agitators often require low speed and high torque.

When mixing high-viscosity liquids, powders, chemicals, or slurry, the load can change suddenly. A cycloidal reducer is suitable because it can handle shock loads and continuous working conditions.

This is why many reactor agitators, industrial mixers, and chemical mixing machines use cycloidal gear motors.

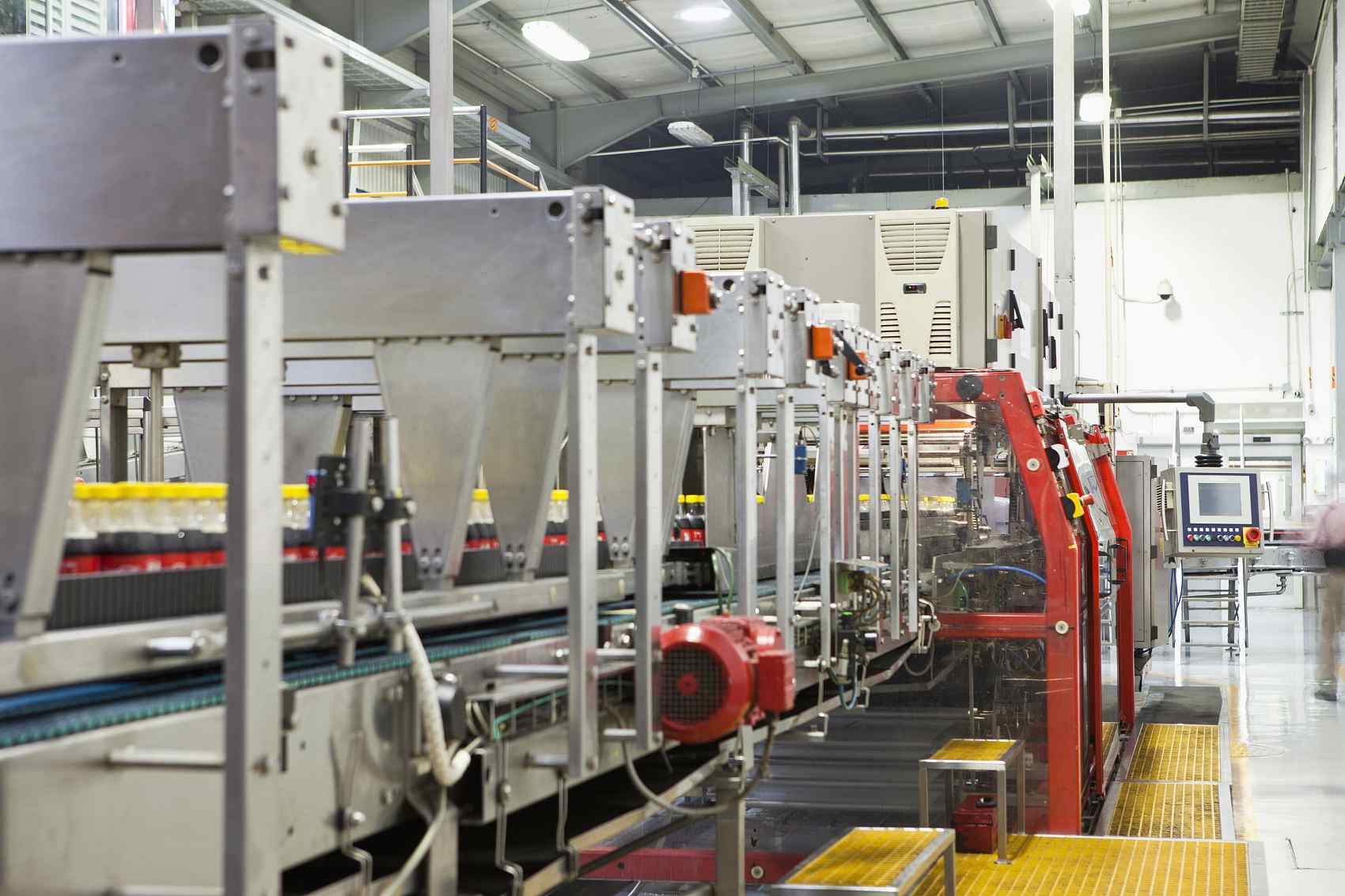

Conveyors and Packaging Machines

Conveyors require stable speed and reliable torque.

A cycloidal speed reducer can provide smooth output and strong driving force for belt conveyors, chain conveyors, roller conveyors, and packaging equipment.

For factories that operate long hours every day, gearbox durability is very important.

Crushers and Shredders

Crushers and shredders often face heavy impact loads.

When hard materials enter the machine, the gearbox must withstand sudden torque changes. A cyclo drive gearbox is suitable for this type of application because of its strong overload resistance.

In some cases, cycloidal reducers are used as alternatives to other heavy-duty gearbox systems when compact size and strong shock resistance are needed.

Hoisting and Heavy-Duty Equipment

Hoisting equipment requires high safety, stable torque, and reliable braking support.

A cycloidal transmission can be used in some lifting and heavy-duty drive systems, depending on the load requirement, service factor, and safety design.

For frequent start-stop applications, the gearbox selection should be carefully calculated.

Food, Chemical, and Environmental Machinery

Cycloidal gearboxes are also used in:

• Food processing machines

• Chemical equipment

• Wastewater treatment machines

• Environmental protection equipment

• Textile machinery

• Printing machinery

• Agricultural machinery

• Mining equipment

Because of their compact size and reliable torque output, cycloidal speed gearboxes are useful in many industrial sectors.

How to Select the Right Cycloidal Reducer

Choosing the right cycloidal reducer is not only about price. The correct selection should be based on real working conditions.

Here are the main points buyers should confirm.

Motor Power

Motor power is one of the first parameters to confirm.

Common motor powers may include:

• 0.55 kW

• 0.75 kW

• 1.1 kW

• 1.5 kW

• 2.2 kW

• 3 kW

• 4 kW

• 5.5 kW

• 7.5 kW

• 11 kW

• 15 kW

• 18.5 kW

• 22 kW

The motor power must match the load requirement of the machine.

If the motor power is too small, the machine may not start properly or may overload frequently.

If the motor power is too large, the system cost may increase unnecessarily.

Input Speed

Input speed depends on the motor speed.

For example:

• 4-pole motor at 50Hz: usually around 1400–1500 rpm

• 4-pole motor at 60Hz: usually around 1700–1800 rpm

• 6-pole motor: lower speed

• 2-pole motor: higher speed

The input speed affects the output speed after reduction.

When selecting a cyclo drive unit, it is important to confirm whether the motor operates at 50Hz or 60Hz.

Required Output Speed

Output speed is calculated by dividing motor speed by reduction ratio.

For example:

If the motor speed is 1450 rpm and the ratio is 23:1:

1450 ÷ 23 ≈ 63 rpm

If the ratio is 59:1:

1450 ÷ 59 ≈ 24.5 rpm

The required output speed depends on the machine.

A mixer may need low speed.
A conveyor may need medium speed.
A packaging machine may need more accurate speed control.

Output Torque

Torque is one of the most important selection parameters.

Higher torque is required for heavy-load machines.

When selecting a cycloidal gear reducer, buyers should confirm:

• Required output torque

• Starting torque

• Peak torque

• Shock load level

• Continuous working hours

• Load type

This helps avoid gearbox overload and early failure.

Service Factor

Service factor is very important for industrial gearbox selection.

A machine that runs only a few hours per day under stable load may use a lower service factor.

But a machine that runs 16–24 hours per day, starts frequently, or faces shock load should use a higher service factor.

For heavy-duty applications, a cycloidal speed reducer with a suitable service factor can provide better reliability and longer service life.

Mounting Position and Installation Space

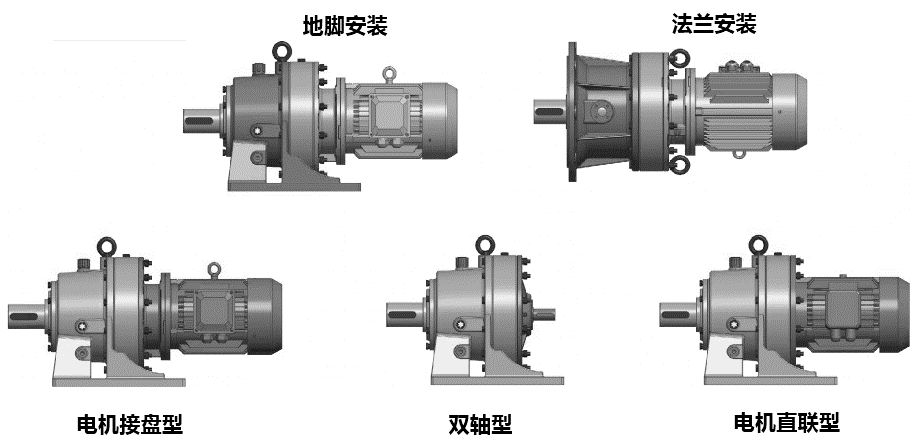

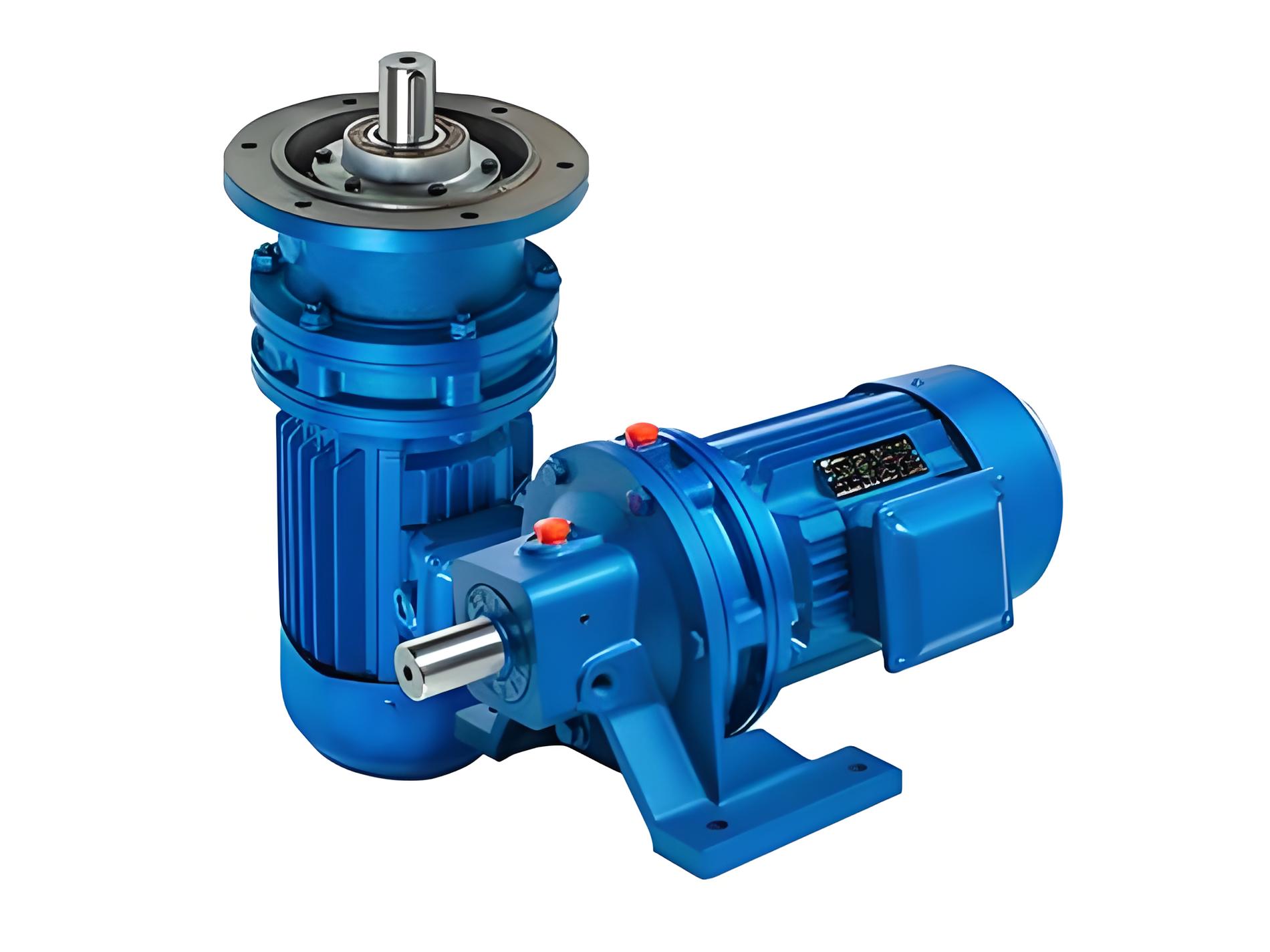

Before ordering a cycloidal gear motor, buyers should confirm the mounting position and installation dimensions.

Common information includes:

• Foot mounting or flange mounting

• Horizontal or vertical installation

• Input and output shaft direction

• Shaft diameter

• Keyway size

• Center height

• Overall gearbox dimensions

• Connection with motor or driven machine

For replacement projects, dimension matching is especially important.

Why Choose Victory Cycloidal Reducers?

For distributors, OEMs, brand owners, and machinery manufacturers, choosing the right gearbox supplier is as important as choosing the right gearbox model.

Victory supplies industrial motors and gearboxes for international B2B customers, including cycloidal reducers, electric motors, worm gearboxes, helical gear reducers, and gear motors.

Direct Factory Supply

Victory is a direct factory supplier, which helps customers reduce sourcing cost and improve communication efficiency.

For distributors and brand owners, direct factory cooperation means:

• More competitive pricing

• Flexible model selection

• Better support for trial orders

• Easier communication on technical details

• More stable long-term supply

This is especially important for customers who want to build a reliable cycloidal reducer product line.

Stable Quality and Competitive Price

Victory focuses on practical industrial quality.

Our products are designed for real working conditions, including conveyors, mixers, agitators, crushers, and general machinery.

Compared with some international brands, Victory can offer a more cost-effective solution while keeping stable product performance.

For many customers, the goal is not only to buy a cheap gearbox. The real goal is to get a reliable cycloidal speed gearbox with reasonable price, stable delivery, and long-term after-sales support.

Support for OEM, Distributor, and Replacement Projects

Different customers have different needs.

A distributor may need a wide model range and stable stock support.
An OEM may need consistent dimensions and long-term supply.
A machinery manufacturer may need technical selection support.
A replacement customer may need help matching an existing gearbox model.

Victory can support different B2B customer types with flexible solutions.

We can help customers select suitable cycloidal gear reducers, cycloidal gear motors, and related electric motors according to the actual application.

Technical Support for Model Selection

A good supplier should not only quote a price. A good supplier should help buyers avoid wrong selection.

Victory can help customers confirm:

• Motor power

• Gear ratio

• Output speed

• Output torque

• Mounting type

• Service factor

• Application condition

• Replacement dimension

• Motor voltage and frequency

• Continuous duty or intermittent duty

This support is especially useful for customers who are not familiar with cycloidal transmission selection.

FAQ About Cyclo Drive Gearboxes

1. What is a cyclo drive used for?

A cyclo drive is used to reduce motor speed and increase output torque. It is commonly used in conveyors, mixers, agitators, crushers, packaging machines, wastewater equipment, food machinery, chemical equipment, and other industrial machines.

2. How does a cycloidal reducer reduce speed?

A cycloidal reducer reduces speed through the motion of a cycloidal disc. The input shaft drives an eccentric bearing, which makes the cycloidal disc roll against fixed ring pins. Because of the difference between the cycloidal disc profile and the ring pins, the speed is reduced and torque is increased.

3. Why is a cycloidal gear reducer good for heavy loads?

A cycloidal gear reducer is good for heavy loads because multiple contact points share the load at the same time. This design helps improve torque capacity, shock-load resistance, and overload performance.

4. Is a cyclo drive better than a worm gearbox?

It depends on the application. A worm gearbox is simple and cost-effective for light and medium-duty applications. A cyclo drive is usually better for applications that require higher torque, stronger shock-load resistance, and longer continuous operation.

5. Is a cycloidal reducer suitable for mixers?

Yes. A cycloidal reducer is very suitable for mixers and agitators because these machines often need low speed, high torque, and good resistance to changing loads.

6. What information is needed to select a cycloidal speed reducer?

To select a cycloidal speed reducer, you should confirm motor power, input speed, output speed, required torque, service factor, working hours, load type, mounting position, and installation dimensions.

7. Can a cycloidal gear motor be used with a three-phase motor?

Yes. A cycloidal gear motor can be combined with a three-phase motor or other suitable motor types. The motor voltage, frequency, power, and mounting connection should match the gearbox and machine requirements.

8. What is the main advantage of a cycloidal transmission?

The main advantage of a cycloidal transmission is its strong torque capacity and shock-load resistance. Its compact structure also makes it suitable for many industrial machines where space is limited.

Conclusion

A cyclo drive works by using an eccentric bearing to move a cycloidal disc inside a ring of fixed pins. This special motion reduces input speed and increases output torque. Through output pins, the reduced motion is transferred to the output shaft, creating slow, strong, and stable rotation.

Compared with many traditional gear reducers, a cycloidal reducer offers excellent shock-load resistance, high torque density, compact structure, and reliable operation. That is why cycloidal gear reducers, cycloidal speed reducers, and cycloidal gear motors are widely used in mixers, conveyors, crushers, agitators, packaging machines, and other industrial equipment.

For B2B buyers, distributors, OEMs, and machinery manufacturers, selecting the right cyclo drive gearbox is not only about ratio and price. It is also about torque, service factor, mounting dimensions, working conditions, and supplier support.

Victory can provide reliable cycloidal speed gearbox solutions for international customers, with direct factory pricing, practical technical support, flexible model selection, and stable long-term cooperation.

If you are looking for a cost-effective cycloidal drive gear motor or want to replace an existing cyclo drive unit, Victory can help you select the right model according to your real working conditions.
