Bonfiglioli Gearbox Replacement Guide for OEM Equipment Builders
Views: 0 Author: Site Editor Publish Time: 2026-07-17 Origin: Site

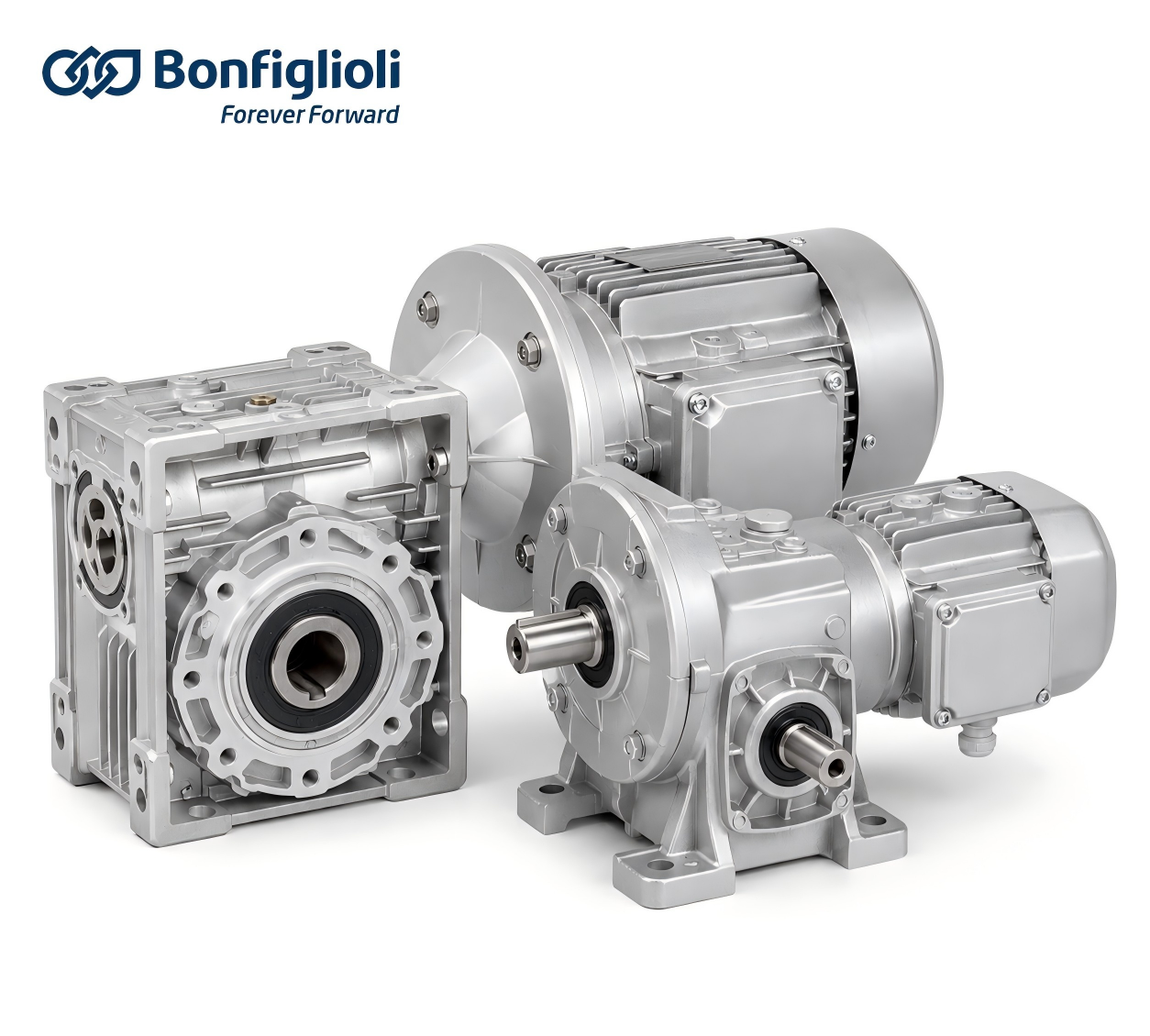

Bonfiglioli gearboxes and gearmotors are widely used in conveyors, packaging machines, mixers, agricultural equipment, material-handling systems, food-processing machinery, and industrial automation.
For OEM equipment builders, however, continuing to use the original gearbox is not always the most practical choice. Long delivery times, increasing purchasing costs, limited local availability, discontinued configurations, and special customization requirements may lead manufacturers to search for a reliable Bonfiglioli gearbox replacement.
Replacing a gearbox is not simply a matter of finding another model with the same motor power or gear ratio. The replacement must match the required output torque, speed, service factor, mounting position, shaft dimensions, motor interface, installation space, and actual working conditions.
This guide explains how OEM equipment builders can evaluate a Bonfiglioli gearmotor alternative and reduce the risks involved in introducing a new gearbox supplier.
Bonfiglioli is a trademark of its respective owner. Victory Machinery Technology Co., Ltd. is not affiliated with Bonfiglioli. The terms “replacement” and “alternative” in this article refer to independently manufactured products selected according to the required application and installation conditions.
Why OEM Builders Search for Bonfiglioli Gearbox Alternatives
OEM manufacturers usually consider alternative gearboxes for several practical reasons.
Reduce Procurement Lead Times
A delayed gearbox can stop the assembly and testing of an entire machine.
This may affect:
Machine delivery schedules
Factory acceptance testing
Customer installation dates
Project payments
Spare-parts availability
Production planning
An alternative gearbox manufacturer may offer shorter production times and more flexible delivery arrangements.
Control Equipment Manufacturing Costs
Gearboxes can represent a significant part of the total drive-system cost. For equipment sold in price-sensitive markets, using only premium European components may make the complete machine less competitive.
A properly selected Bonfiglioli gearbox equivalent can help control costs while maintaining the performance required by the machine.
The purpose is not to choose the lowest-priced reducer. The correct objective is to select a gearbox with sufficient torque, efficiency, strength, and service life without paying for unnecessary specifications.
Obtain Customized Mechanical Interfaces
Standard catalogue gearboxes may not fully match every machine design.
OEM builders may require:
Special output shafts
Customized hollow shaft diameters
Modified mounting holes
Special flange dimensions
Non-standard motor adapters
Different terminal-box positions
Brake motors
Encoder installation
Customer-specific colors and nameplates
A flexible gearbox manufacturer may be able to produce these configurations more efficiently than a large international brand working mainly with fixed catalogue options.
Develop a Second Supply Source
Depending on one gearbox brand creates supply-chain risk.
By approving a second supplier, OEM equipment builders can improve:
Purchasing flexibility
Price negotiation
Delivery stability
Spare-parts support
Production continuity
A new supplier should normally be introduced through technical evaluation, sample testing, pilot production, and final approval.
Identify the Original Gearbox Type
Before selecting a Bonfiglioli gearbox replacement, determine the original gearbox architecture.
A possible replacement is an R Series in-line helical gear motor.
Helical-Bevel Gearbox
A helical-bevel gearbox uses a right-angle arrangement between the motor and output shaft.
It is often selected for:
Conveyors
Mixers
Material-handling equipment
Packaging lines
Compact right-angle drives

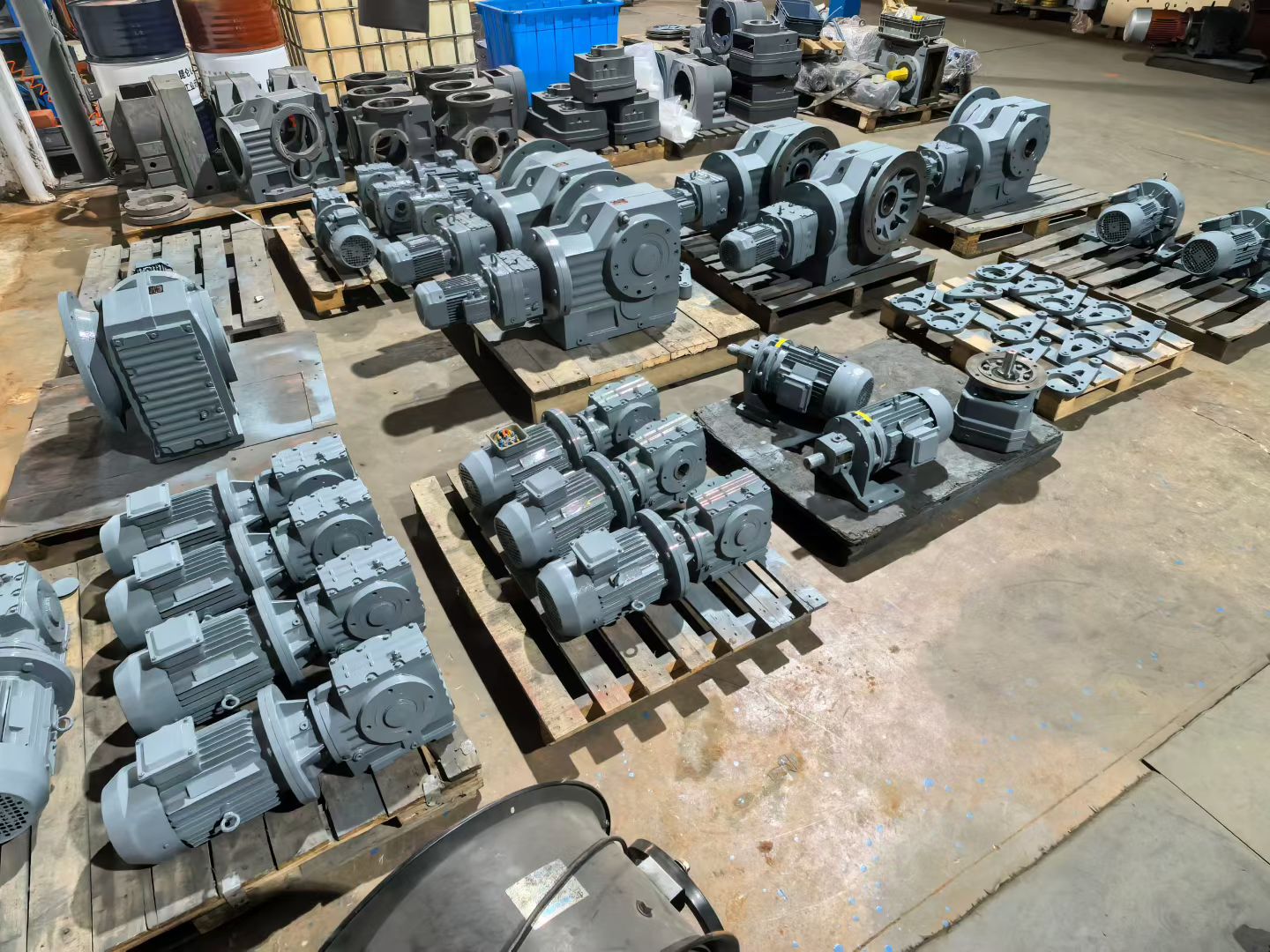

A K Series helical-bevel gear motor may be considered as an alternative, but the shaft direction, mounting dimensions, output torque, and installation position must be checked.
Parallel-Shaft Helical Gearbox
A parallel-shaft gearbox is often used where a compact drive must be mounted close to the machine structure.
Common configurations include:
Solid output shaft
Hollow output shaft
Shrink-disc connection
Flange mounting
Torque-arm mounting
An F Series parallel-shaft helical gear motor can be evaluated as a replacement.

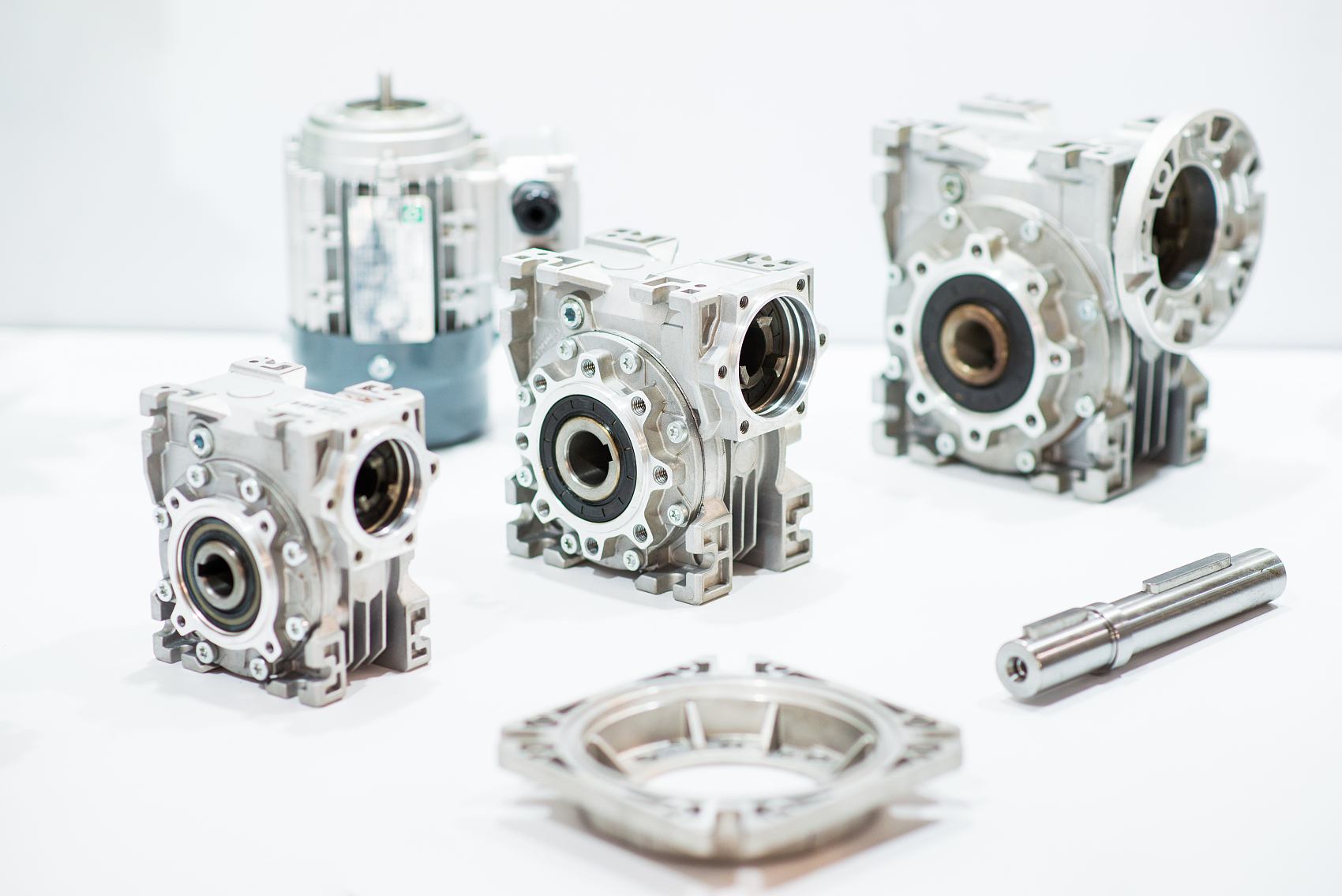

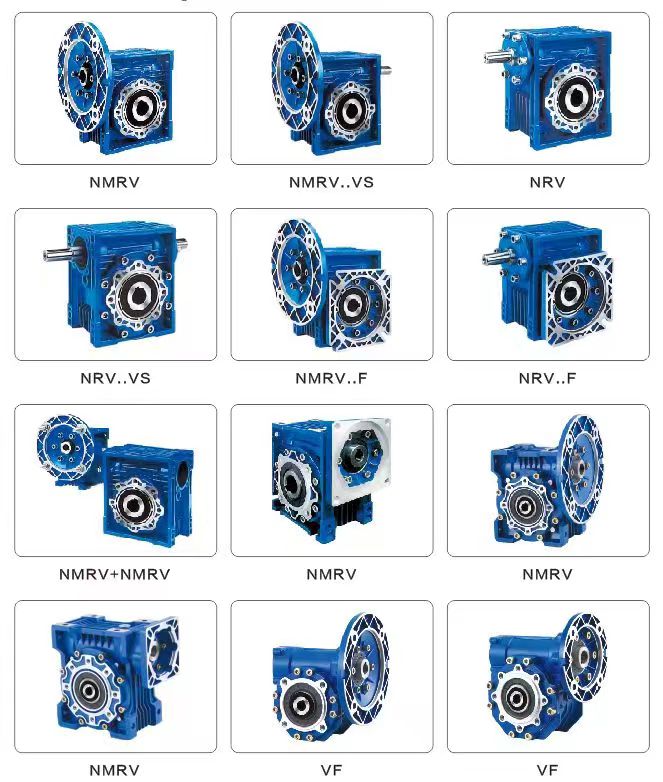

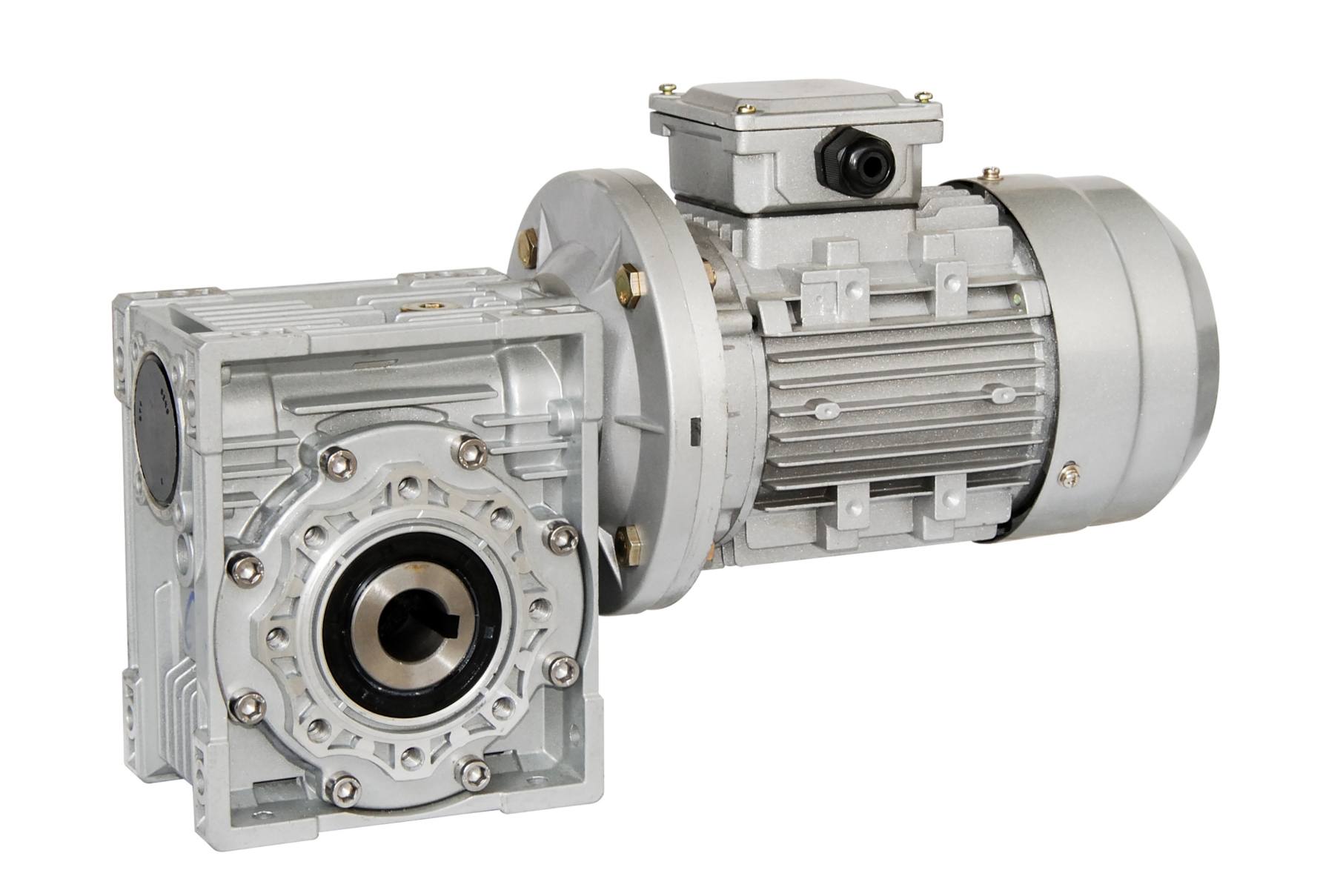

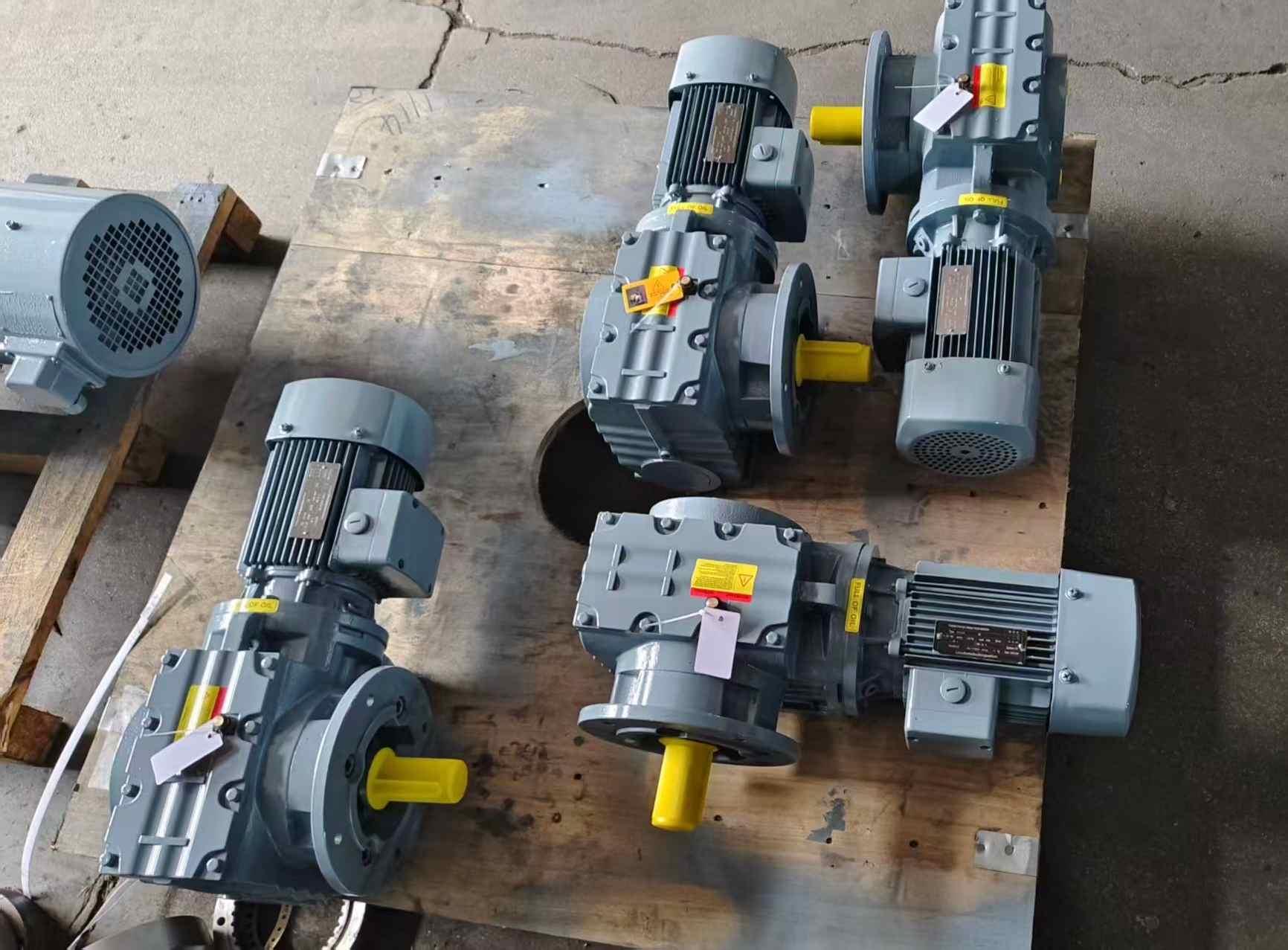

Worm Gearbox
Worm gearboxes are used in compact right-angle drive systems and applications requiring relatively high reduction ratios.
Efficiency, temperature rise, torque capacity, duty cycle, and self-locking expectations must be considered.
Planetary Gearbox
Planetary gearboxes are generally used for high torque, compact dimensions, and heavy-load applications.
They should not be replaced with a small worm or standard helical gearbox simply because the output speed is similar.
A planetary replacement must be evaluated for:
Continuous torque
Peak torque
Radial load
Axial load
Shock loading
Thermal capacity
Required service life
Collect Complete Replacement Information
The accuracy of the replacement depends on the information provided to the gearbox manufacturer.
A nameplate photo alone is rarely enough.
Original Gearbox Data
Provide:
Complete model number
Gear ratio
Input speed
Output speed
Motor power
Mounting position
Manufacturing number
Brake information
Lubricant information, when available
Clear photographs should show the nameplate and the gearbox from several directions.
Mechanical Dimensions
The original dimensional drawing should include:
Overall length
Housing width and height
Shaft center height
Output shaft diameter
Shaft length
Keyway dimensions
Hollow shaft diameter
Flange diameter
Flange pilot
Bolt-circle diameter
Mounting-hole spacing
Foot dimensions
Motor position
Terminal-box position
When drawings are unavailable, the OEM should measure the installed gearbox or provide the complete machine assembly drawing.
Application Conditions
The gearbox supplier should understand how the machine operates.
Important information includes:
Driven equipment type
Daily operating hours
Starts per hour
Continuous or intermittent duty
Uniform, moderate, or heavy shock load
Reversing operation
Indoor or outdoor installation
Ambient temperature
Dust, moisture, or chemicals
VFD speed range
Required service life
Whether the machine starts under load
This information helps determine gearbox size, service factor, motor type, and bearing requirements.
Match the Required Gearbox Performance
Confirm the Output Speed
The approximate output speed is calculated as:
Output Speed = Motor Speed ÷ Gear Ratio
For example, if the motor runs at 1,450 rpm and the ratio is 30:1:
1,450 ÷ 30 = 48.3 rpm
The exact operating speed may vary because of motor slip, load, frequency, and VFD settings.
A small speed difference may affect:
Conveyor capacity
Mixing time
Filling accuracy
Machine synchronization
Production-cycle time
OEM builders should therefore confirm both the original ratio and the actual required machine speed.
Calculate the Output Torque
The approximate output torque can be calculated using:
T = 9550 × P × η ÷ n
Where:
T = output torque in Nm
P = motor power in kW
η = transmission efficiency
n = output speed in rpm
For a 5.5 kW motor, 50 rpm output speed, and 94% efficiency:
T = 9550 × 5.5 × 0.94 ÷ 50
The estimated output torque is approximately 987 Nm.
This calculation is only a starting point. The selected gearbox must still provide sufficient rated torque and service factor for the real application.
Do Not Select Only by Motor Power
Two gearmotors with the same motor power may have different:
Gearbox housing sizes
Torque ratings
Bearing capacities
Thermal limits
Service factors
Output shaft strengths
Motor power alone does not confirm that two gearboxes are equivalent.
Check Starting and Peak Torque
Some machines require much higher torque during startup.
Examples include:
Loaded conveyors
Mixers with settled material
Crushers
Screw feeders
Bucket elevators
Extruders
Lifting equipment
The gearbox manufacturer must know whether the machine starts empty or under load.
The motor starting torque and short-duration peak torque must remain within the allowable gearbox limits.
Select an Appropriate Service Factor
The service factor provides additional capacity for actual operating conditions.
It is influenced by:
Operating hours per day
Starts per hour
Load variation
Shock loading
Driven-machine type
Reversing frequency
Motor starting method
A light conveyor and a heavily loaded mixer should not use the same service factor, even when their average torque is similar.
Evaluate Thermal Capacity
Gearboxes generate heat through gear contact, bearings, seals, and lubricant movement.
Thermal performance becomes important in applications with:
Continuous 24-hour operation
High ambient temperature
Low output speed
High reduction ratios
Restricted ventilation
Frequent starts
Installation inside an enclosure
A gearbox may have sufficient mechanical torque capacity but still overheat during continuous operation.
Verify Mechanical Interchangeability
Confirm the Mounting Position
Mounting position affects:
Lubricant quantity
Oil level
Breather position
Bearing lubrication
Seal operation
The supplier should know whether the gearbox is mounted:
Horizontally
Vertically
On a wall
With the shaft upward
With the shaft downward
At an inclined angle
A gearbox designed for horizontal mounting should not be rotated without confirming the lubrication arrangement.
Compare Foot and Flange Dimensions
For a direct gearbox replacement, compare:
Shaft center height
Foot-hole spacing
Flange outside diameter
Flange thickness
Pilot diameter
Bolt-circle diameter
Mounting-hole diameter
Even a small difference can prevent installation or create alignment problems.
Confirm the Output Shaft
The output may use:
Solid shaft
Double output shaft
Keyed hollow shaft
Shrink disc
Splined shaft
Customized shaft
Confirm the complete shaft details, including:
Diameter
Length
Key size
Tolerance
Shoulder position
Thread
Shaft direction
Check Radial and Axial Loads
Pulleys, sprockets, belts, and chains create radial load on the gearbox output shaft.
The load is affected by:
Transmitted torque
Pulley diameter
Sprocket diameter
Belt or chain tension
Distance from the gearbox bearing
Mixers, screw conveyors, and vertical drives may also create axial load.
The replacement gearbox must have sufficient shaft and bearing capacity.
Check the Available Installation Space
Compare the complete gearmotor envelope, including:
Motor length
Gearbox length
Brake length
Fan-cover diameter
Terminal-box position
Cable-entry direction
Lubrication-plug access
Maintenance clearance
A gearbox may meet the torque and mounting requirements but still interfere with the machine frame.
Confirm Motor and Electrical Requirements
Motor Power and Speed
Confirm:
Rated power
Number of poles
Rated speed
Duty type
Efficiency class
Starting torque
Motor mounting type
Do not assume that every gearbox uses a standard four-pole motor.
Voltage and Frequency
Common requirements include:
220 V, 50 Hz
230 V, 60 Hz
380 V, 50 Hz
400 V, 50 Hz
415 V, 50 Hz
440 V, 60 Hz
460 V, 60 Hz
480 V, 60 Hz
Dual-voltage motors
Incorrect voltage or frequency can affect current, torque, speed, temperature rise, and service life.

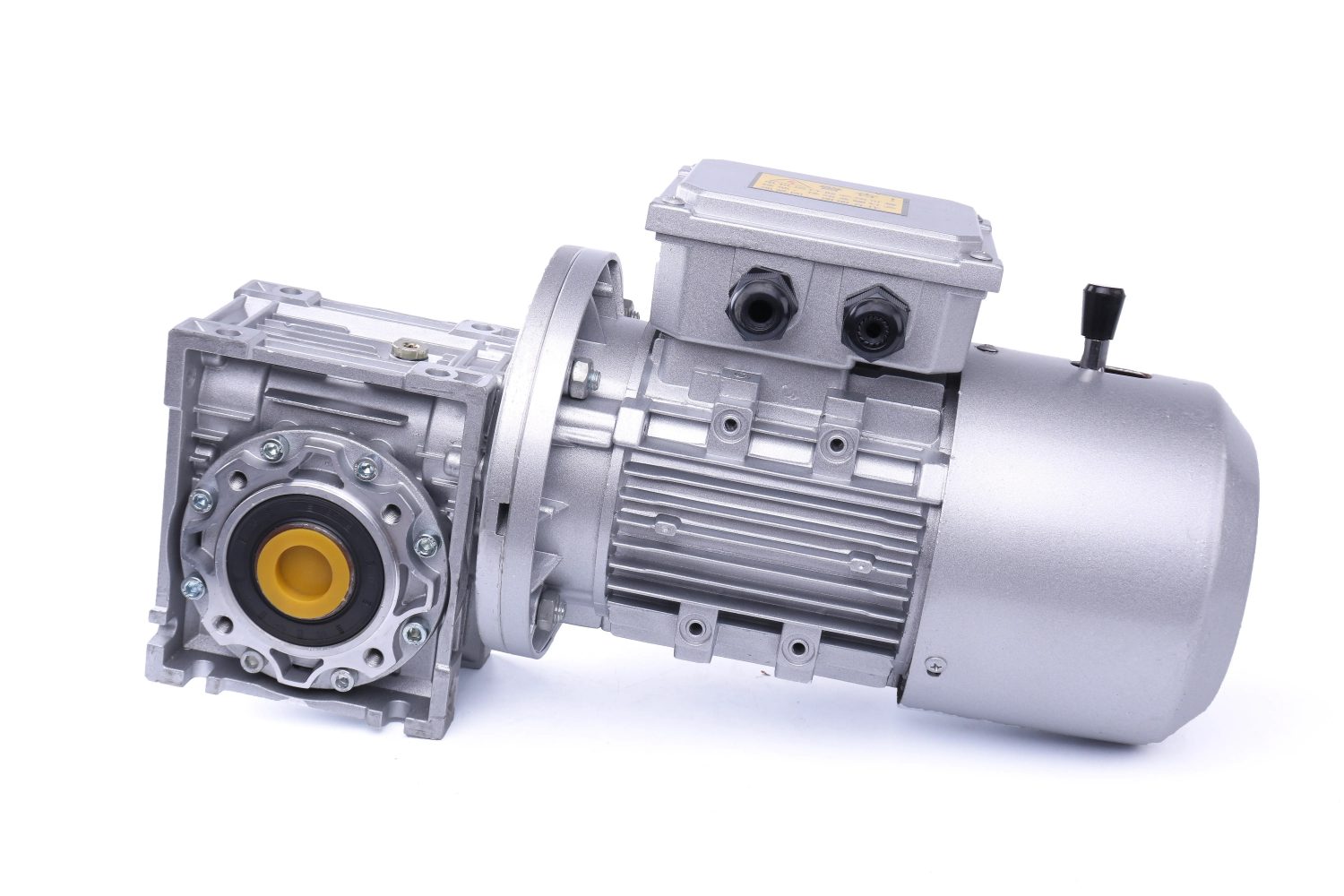

Brake Motor Requirements
For lifting, positioning, indexing, or inclined conveyors, confirm:
Brake torque
Brake voltage
AC or DC brake
Rectifier type
Manual release
Required stopping time
Braking frequency
A holding brake and a dynamic service brake may require different designs.
VFD Operation
When the motor is controlled by a variable frequency drive, provide:
Minimum frequency
Maximum frequency
Continuous operating frequency
Acceleration time
Deceleration time
Constant-torque range
Encoder requirement
Independent cooling requirement
A standard motor fan may not provide sufficient cooling during continuous low-speed operation.
Additional Motor Options
OEM projects may also require:
PTC thermistors
PT100 sensors
Encoders
Independent cooling fans
Space heaters
IP65 or IP66 protection
Explosion-proof motors
Special insulation
Customized terminal boxes
Customer logos and nameplates
These requirements should be confirmed before quotation.
Select the Right Replacement Strategy
Direct Drop-In Replacement
A direct replacement is suitable when:
The machine structure cannot be modified
Existing equipment requires spare parts
Installation time must be minimized
Multiple machines use the same gearbox
Accurate drawings or a physical sample are usually required.
A supplier should not promise complete interchangeability based only on the original model number.
Replacement with an Adapter
A standard gearbox may sometimes be installed using:
Adapter plates
Mounting brackets
Shaft sleeves
Flexible couplings
Spacer rings
Customized torque arms
This method can reduce customization costs, but the adapter must maintain correct alignment, rigidity, and load capacity.
Redesign Around a Standard Gearbox
For new equipment, it may be more economical to design the machine around a standard alternative gearbox.
This can improve:
Supplier availability
Ratio selection
Spare-parts supply
Production standardization
Long-term cost control
Common Gearbox Replacement Mistakes
Selecting Only by Gear Ratio
The same ratio does not guarantee the same torque, shaft strength, efficiency, or service life.
Matching Motor Power but Ignoring Gearbox Size
Two 5.5 kW gearmotors may have very different gearbox torque capacities.
Ignoring Mounting Position
The wrong mounting position can cause oil leakage, poor lubrication, overheating, or premature bearing failure.
Ignoring External Shaft Loads
A gearbox output bearing may fail even when the transmitted torque is within the rated range.
Changing Gearbox Technology Without Evaluation
Replacing a helical-bevel gearbox with a worm gearbox may reduce efficiency and increase temperature.
Changing from planetary to standard helical gearing may increase dimensions and reduce shock-load capacity.
Skipping Sample Testing
Drawings can confirm dimensions, but they cannot completely reproduce real machine conditions.
Important OEM projects should always begin with sample testing.
Recommended OEM Validation Process
Step 1: Technical Review
Provide the original model, drawings, nameplate, motor information, and operating conditions.
Step 2: Drawing Confirmation
The replacement supplier should provide a detailed drawing showing:
Overall dimensions
Mounting holes
Shaft details
Flange dimensions
Motor position
Terminal-box position
Step 3: Sample Production
Start with one or several samples before approving mass production.
Step 4: No-Load Inspection
Check:
Rotation direction
Output speed
Noise
Vibration
Oil leakage
Brake operation
Motor current
Step 5: Loaded Machine Test
Monitor:
Starting current
Operating current
Gearbox temperature
Motor temperature
Noise
Vibration
Output speed
Machine capacity
Leakage
Testing should include the most demanding expected operating cycle.
Step 6: Pilot Order
After sample approval, use a small pilot batch to verify production consistency and installation convenience.
Step 7: Final Approval
Record the approved:
Model number
Drawing
Motor specification
Paint color
Nameplate
Inspection standard
Packaging method
Sample reference
Why Work with Victory for Gearbox Replacement
Victory supplies industrial motors, gearboxes, and customized drive solutions for OEM equipment builders.
OEM customers can begin with a sample or pilot order before moving to repeat production.
This helps reduce technical and purchasing risks.
Quality Inspection and Warranty
Gearmotors can be inspected for:
Dimensions
Rotation
Noise
Vibration
Leakage
Electrical performance
Appearance
Victory provides an 18-month warranty after delivery for its industrial motor and gearbox products.
Frequently Asked Questions
Can another gearbox directly replace a Bonfiglioli gearbox?
Yes, but direct interchangeability must be confirmed by comparing torque, ratio, mounting dimensions, shaft type, motor interface, mounting position, and operating conditions.
What information is required for replacement selection?
Provide the model number, nameplate, ratio, motor power, output speed, mounting position, shaft dimensions, drawings, application, operating hours, and load conditions.
Can an in-line helical gearbox be replaced by an R Series gear motor?
Yes, an R Series gear motor can be evaluated, but the ratio, torque, center height, foot dimensions, flange, and installation space must match.
Can a helical-bevel gearbox be replaced by a K Series gearbox?
Yes, but output shaft direction, dimensions, torque, ratio, mounting position, and rotation direction must be checked.
Can a worm gearbox replace a helical-bevel gearbox?
It may be possible for some light-duty applications, but the differences in efficiency, temperature, torque, and service life must be evaluated.
Should the replacement use the same motor power?
Not always. The motor and gearbox should be selected according to output torque, speed, starting load, duty cycle, and service factor.
Is a sample necessary?
A sample is strongly recommended for new replacement projects, especially when the gearbox is used in customized OEM machinery.
Conclusion
A successful Bonfiglioli gearbox replacement requires more than matching a model number or gear ratio.
OEM equipment builders should compare output speed, continuous torque, peak torque, service factor, thermal capacity, shaft loads, mounting dimensions, motor specifications, and installation space.
For existing machinery, a customized drop-in replacement may be the best solution. For new machine designs, standardizing the equipment around an alternative gearbox series may provide better cost control and supply-chain flexibility.
Send Victory the original gearbox model, nameplate, dimensional drawing, motor specification, application information, and required quantity. Our technical team can evaluate the replacement requirements and provide a proposed gearbox configuration and drawing for approval.
