If you search for an industrial transmission product, you may see suppliers use the terms gear reducer, gearbox, and speed reducer for products that look almost identical. This can make equipment selection and replacement unnecessarily confusing.
Are these three different machines? In many industrial applications, the answer is no.
A gear reducer and a speed reducer are generally types of gearboxes designed specifically to reduce rotational speed and increase output torque. The term gearbox is broader because a gearbox can be designed for speed reduction, speed increase, torque conversion, or changing the direction of power transmission.
In everyday industrial purchasing, however, manufacturers and engineers often use gear reducer, speed reducer, and gearbox interchangeably.
The more important question is not what the product is called, but whether its gear ratio, output speed, torque, mounting arrangement, efficiency, dimensions, and duty rating match the application.
This guide explains the differences between these terms, the main types of industrial gear reducers, how speed and torque are calculated, and how to select or replace the right gearbox.
A gearbox is a mechanical transmission device containing gears, shafts, bearings, seals, lubricant, and a housing. It transfers rotational power from an input shaft to an output shaft while changing one or more characteristics of the motion.
Depending on its design, an industrial gearbox can:
Reduce rotational speed
Increase rotational speed
Increase output torque
Change shaft direction
Change the relationship between input and output motion
In most industrial machinery, the gearbox is installed between an electric motor and the driven equipment.
For example:
Electric motor → Gearbox → Conveyor pulley
or:
Electric motor → Gearbox → Mixer shaft
No.
Although most industrial gearboxes used with electric motors are designed for speed reduction, “gearbox” is a general term.
Some gearboxes can increase output speed, while others primarily change the direction of rotation or distribute power between several shafts.
Therefore:
All gear reducers can be considered gearboxes, but not every gearbox is necessarily a gear reducer.
Gearbox is widely used because it describes the physical component itself: a housing containing a gear transmission.
It is common in industries such as:
Machinery manufacturing
Mining
Material handling
Automotive equipment
Marine systems
Power generation
Industrial processing
For many international buyers, industrial gearbox is also the broadest search term when they do not yet know exactly which gearbox type they need.
A gear reducer is a gearbox specifically designed to reduce rotational speed from the input shaft to the output shaft.
As speed decreases, the available output torque increases, after accounting for mechanical losses.
For example, an electric motor may operate at approximately 1450 rpm while a conveyor requires only 58 rpm.
A gear reducer can reduce the motor speed to the required machine speed.
A gear reducer uses one or more gear stages.
The relationship between motor speed and output speed is determined primarily by the gear reduction ratio.
For example, if the input shaft rotates 25 times for every single output shaft revolution, the reduction ratio is approximately:
25:1
With a 1450 rpm motor:
1450 ÷ 25 = 58 rpm
The output shaft therefore rotates at approximately 58 rpm.
Industrial electric motors often operate too quickly to drive machinery directly.
A gear reducer allows the machine to obtain:
Lower output speed
Higher output torque
Controlled equipment speed
More suitable shaft orientation
Compact power transmission
Gear reducers are commonly used for:
Conveyors
Mixers
Agitators
Screw conveyors
Feeders
Packaging machines
Food processing equipment
Mining machinery
Agricultural equipment
Industrial automation
A speed reducer is essentially a gearbox designed to reduce input speed.
In most industrial applications, “speed reducer” and “gear reducer” describe the same basic function.
The main difference is terminology rather than mechanical principle.
Both normally:
Receive relatively high input speed
Reduce output speed
Increase output torque
Use gears or related transmission mechanisms
Connect a motor to industrial equipment
Therefore, a helical gearbox may be described as:
Helical gearbox
Helical speed reducer
All three descriptions can refer to the same product.
Terminology varies by:
Country
Industry
Manufacturer
Product catalog
Engineering tradition
Customer search behavior
In North American industrial markets, “speed reducer” and “gear reducer” are widely used.
In many European and international markets, “gearbox” or “gear unit” may be more common.
Chinese manufacturers exporting internationally often use all three terms so buyers can find the same product using different search terms.
The easiest way to understand the terminology is through scope.
Gearbox is the broadest term.
It describes a mechanical gear transmission enclosed in a housing and does not necessarily mean the output speed must be lower than the input speed.
Gear reducer emphasizes the mechanical function of reducing rotational speed through gearing.
Speed reducer emphasizes the result: reducing speed from the input to the output.
For most industrial applications:
Gear reducer ≈ Speed reducer ≈ Reduction gearbox
The actual product may be identical.
Therefore, buyers should focus more on technical specifications than terminology.
Another common source of confusion is the difference between a gear reducer and a gear motor.
A gear reducer is the mechanical gearbox only.

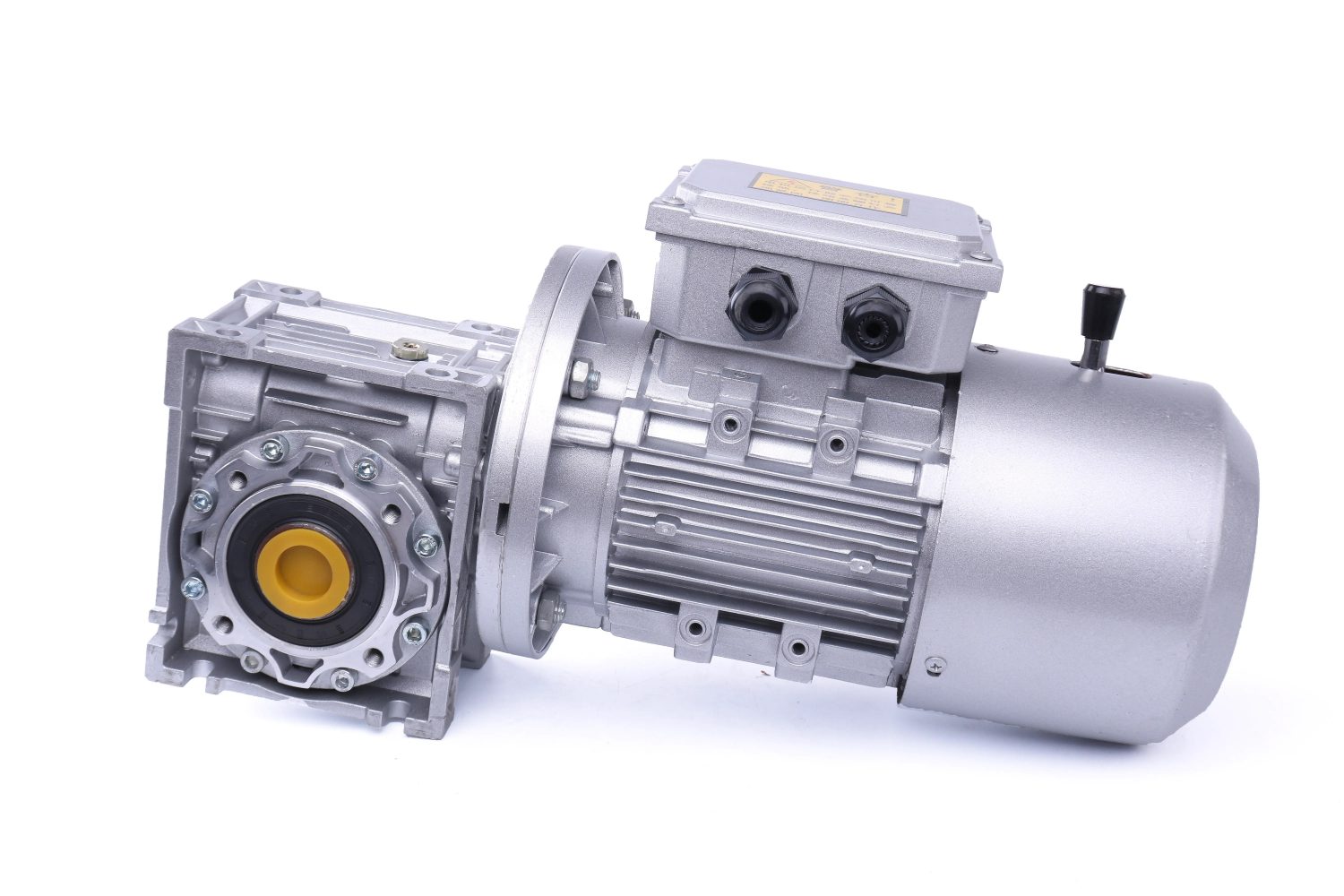

A gear motor combines:
Electric motor + Gear reducer
into one complete drive unit.
A standalone gearbox may be suitable when:
The existing motor will be reused
A special motor is already specified
Motor and gearbox are connected by a coupling
The equipment manufacturer supplies its own motor
Only the failed gearbox needs replacement
A complete gear motor can simplify:
Model selection
Motor-to-gearbox matching
Installation
Alignment
Procurement
Maintenance
Industrial gear motors may use:
For OEM machinery, buying the motor and gearbox as one matched assembly can reduce compatibility problems.
The gear reduction ratio is one of the most important gearbox specifications.
The basic relationship is:
Output speed = Input speed ÷ Gear ratio
For a 1450 rpm motor:
Ratio 10:1 → approximately 145 rpm
Ratio 20:1 → approximately 72.5 rpm
Ratio 25:1 → approximately 58 rpm
Ratio 50:1 → approximately 29 rpm
A higher ratio generally produces lower output speed.
When calculating output speed, use the motor's rated speed instead of synchronous speed.
For example, a four-pole 50 Hz induction motor has a synchronous speed of 1500 rpm, but the actual rated speed may be approximately 1430–1470 rpm.
Using the real rated speed produces a more accurate estimate of gearbox output speed.
Industrial gear reducers are normally manufactured with standard gear ratios.
If the calculated ratio is 24.7 but available ratios are 23.8 and 25.1, compare the resulting output speeds and choose the nearest acceptable option.
A VFD can provide additional speed adjustment where required.
Speed reduction allows the gearbox to increase available output torque.
Approximate gearbox output torque can be estimated using:
Output torque (Nm) = 9550 × Motor power (kW) × Gearbox efficiency ÷ Output speed (rpm)
For example:
Motor power: 5.5 kW
Output speed: 60 rpm
Gearbox efficiency: 94%
The approximate output torque is:
9550 × 5.5 × 0.94 ÷ 60 ≈ 823 Nm
This does not mean every gearbox connected to a 5.5 kW motor can safely transmit 823 Nm.
The gearbox itself must have adequate rated torque.
Gearbox catalogs may specify:
Rated torque
Nominal torque
Maximum torque
Peak torque
These values should not be treated as identical.
Rated torque normally refers to torque that can be transmitted continuously under specified operating conditions.
Peak torque is typically permitted only for short periods, such as during:
Startup
Shock loading
Jamming
Braking
Reversing
A gearbox should not be selected for continuous operation using only its maximum short-duration torque.
Although gearbox, gear reducer, and speed reducer may describe the same general product category, actual gearbox designs differ significantly.

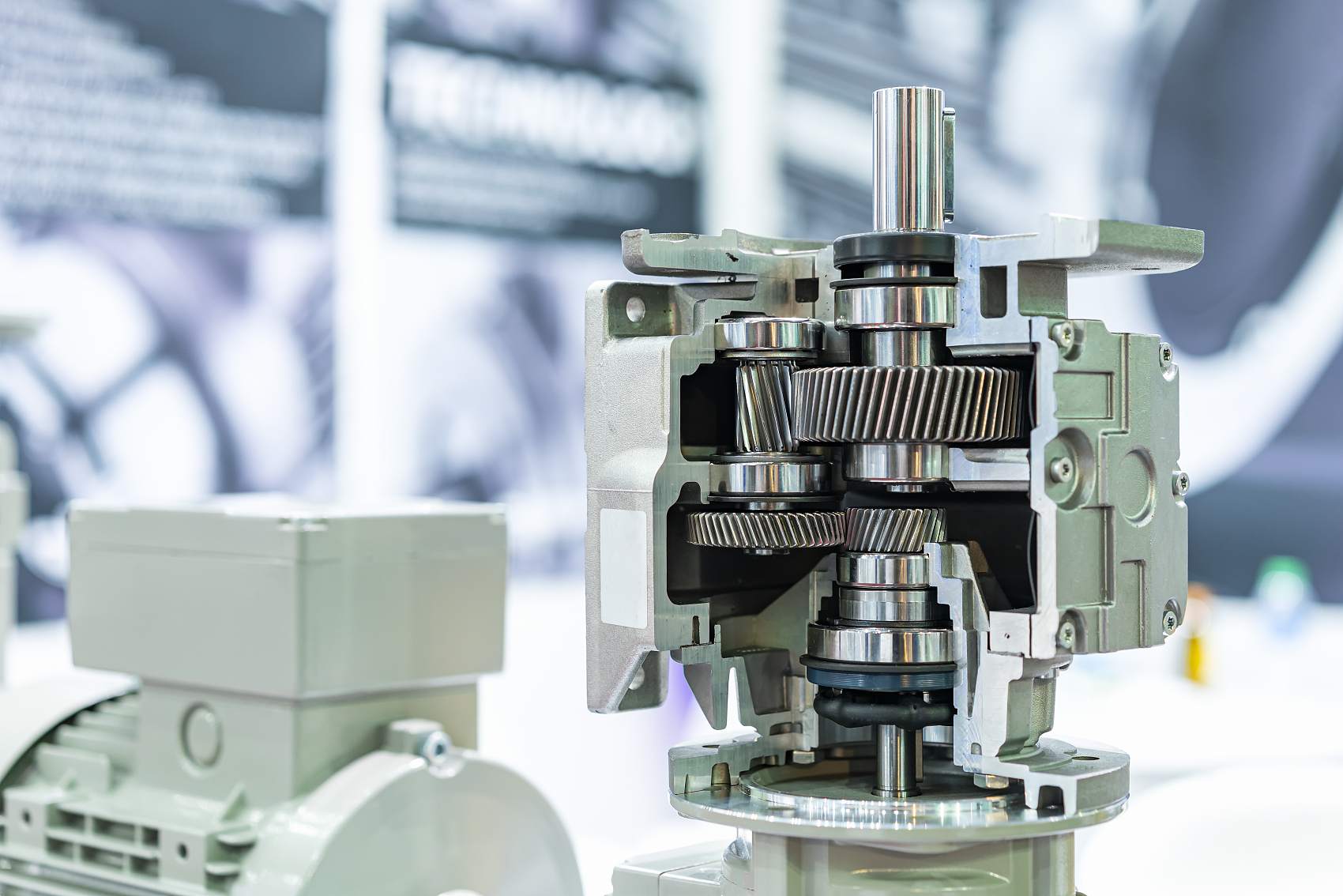

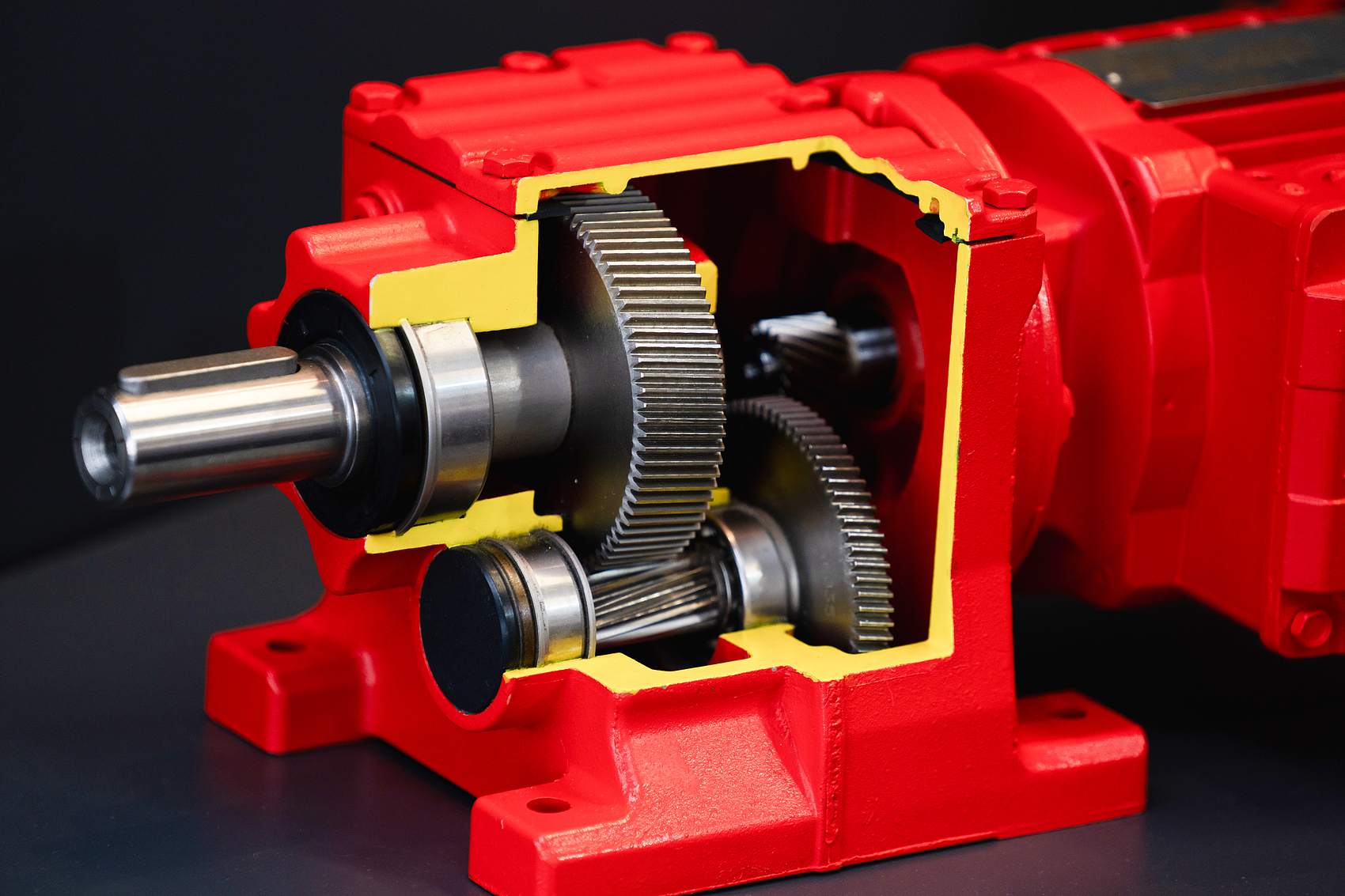

A helical gear reducer uses gears with angled teeth.
Helical gearing provides gradual tooth engagement, resulting in smooth operation and high transmission efficiency.
Typical applications include:
Conveyors
Mixers
Packaging machines
Food processing equipment
Industrial production lines

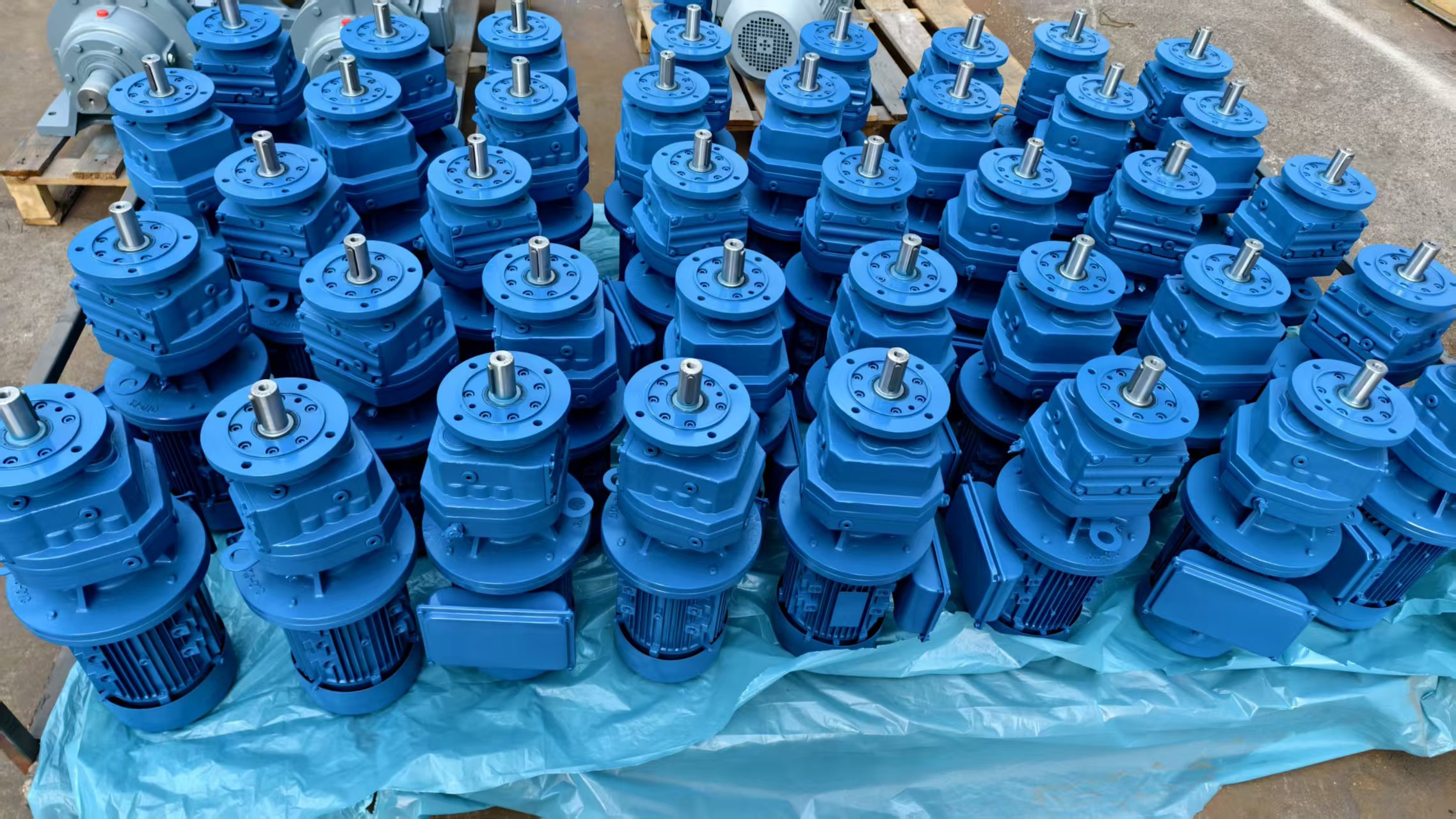

An inline helical gearbox places the input and output along the same general axis.
It is commonly used where simple, efficient inline transmission is required.

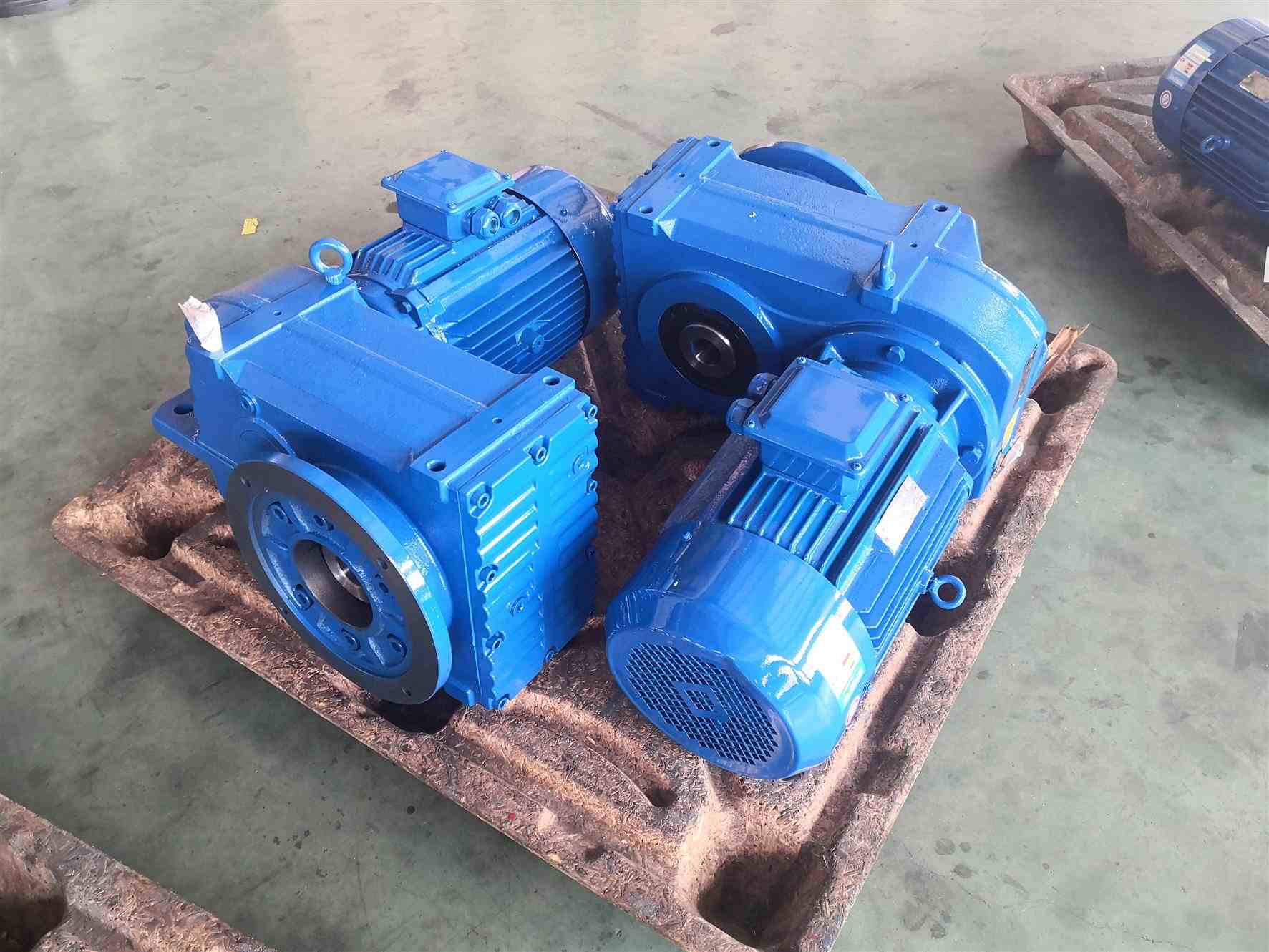

A parallel shaft gearbox positions the input and output shafts parallel to each other.
It provides a compact arrangement for:
Belt conveyors
Overhead conveyors
Agitators
Material handling equipment
Space-restricted machinery
Parallel shaft gear reducers are often available with hollow shafts, shrink discs, or torque arms, allowing direct connection to driven machine shafts.

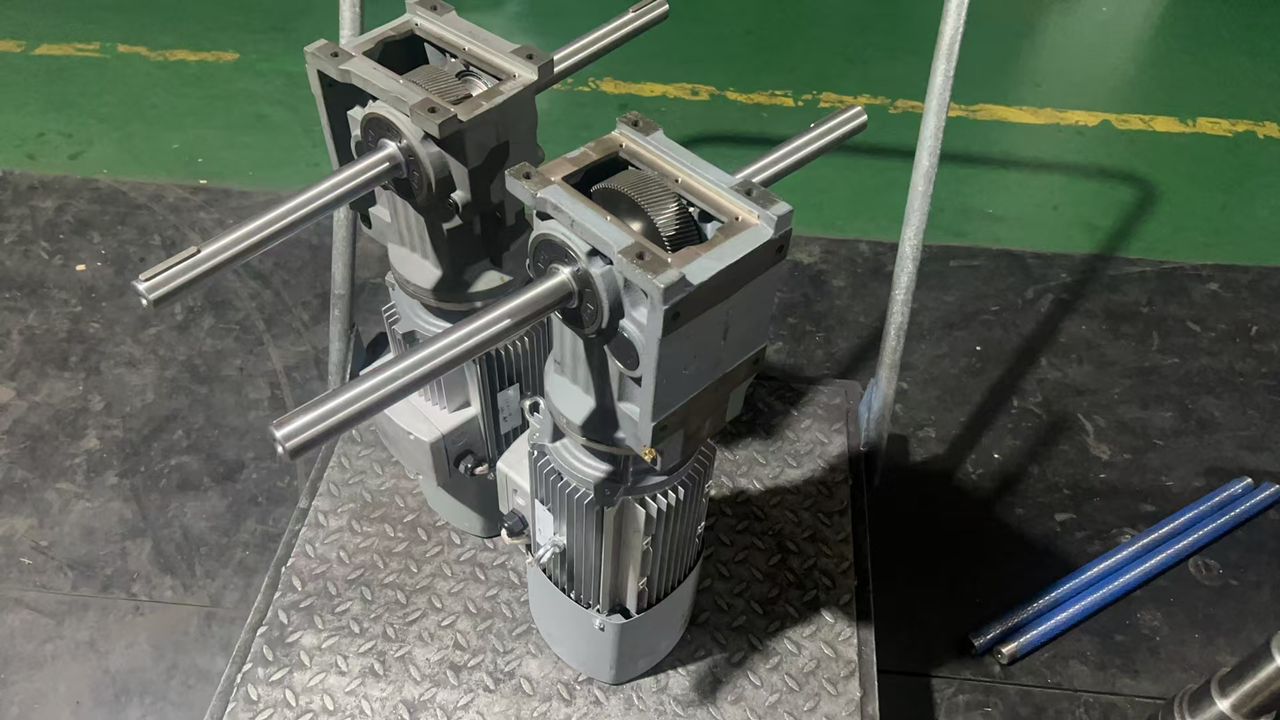

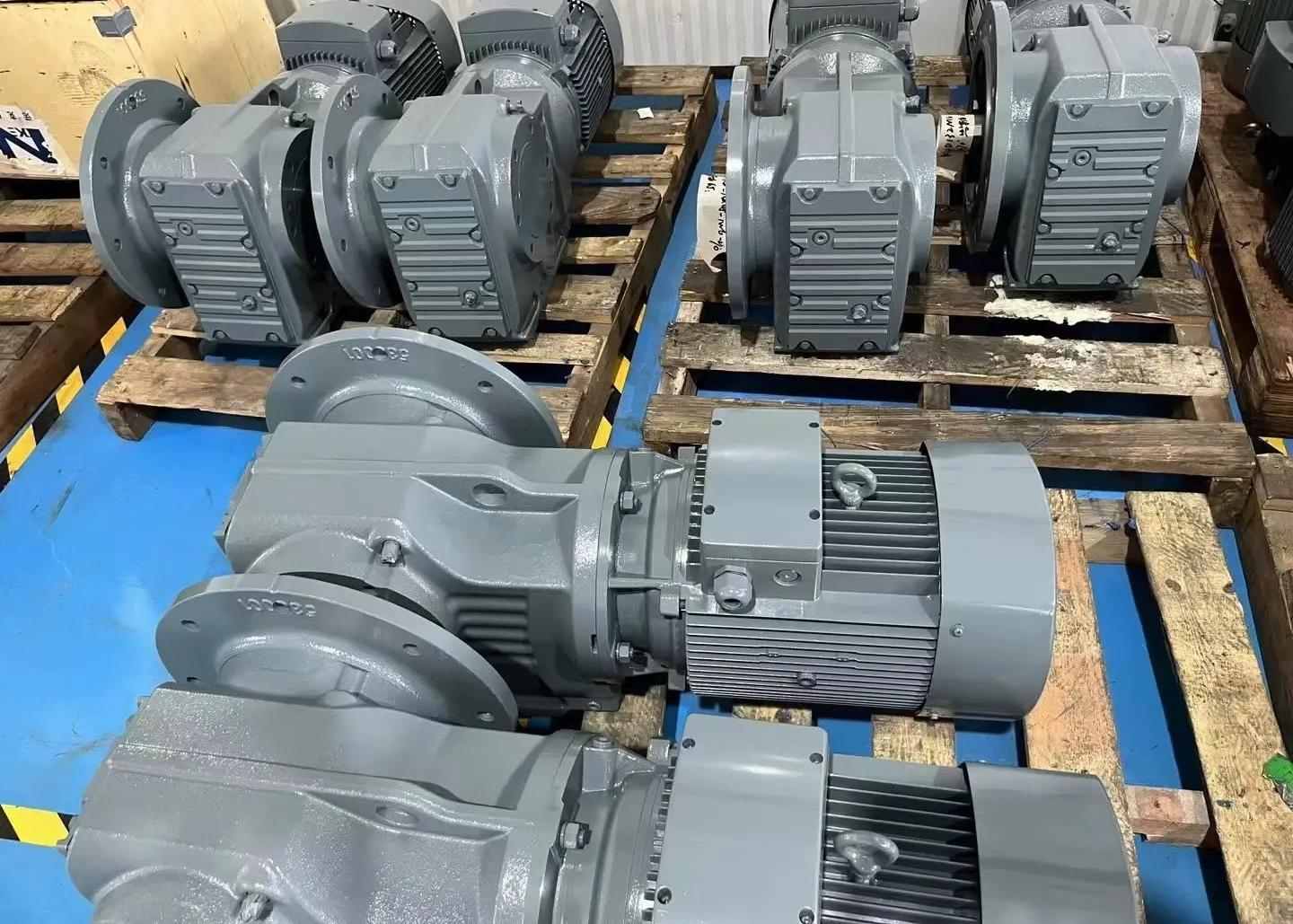

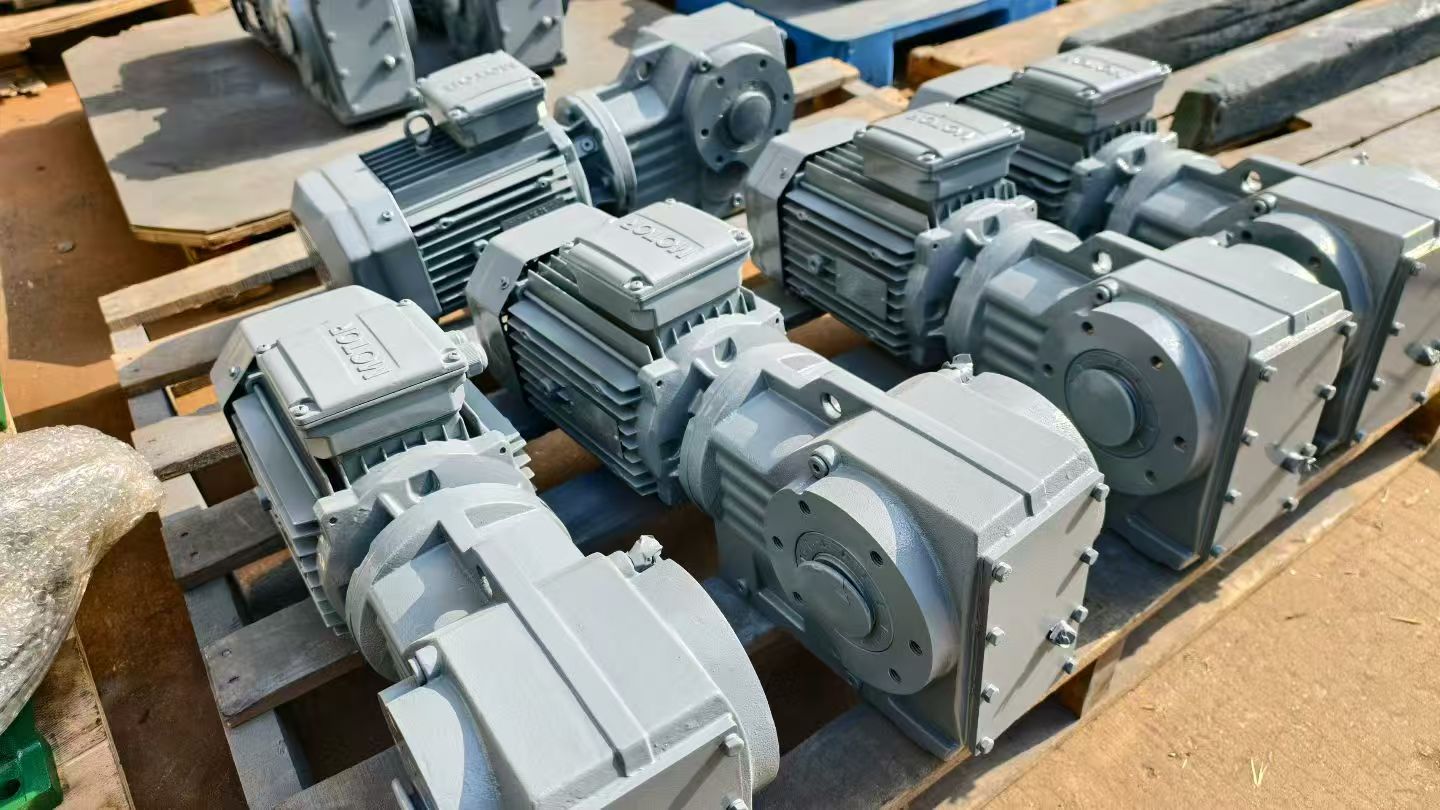

A bevel helical gearbox provides approximately 90-degree transmission between input and output.
It combines helical and bevel gearing and is commonly used for:
Heavy conveyors
Bucket elevators
Mining equipment
Mixers
Material handling systems
It provides high efficiency and strong torque capacity while allowing the motor to be installed beside the driven machine instead of directly behind it.

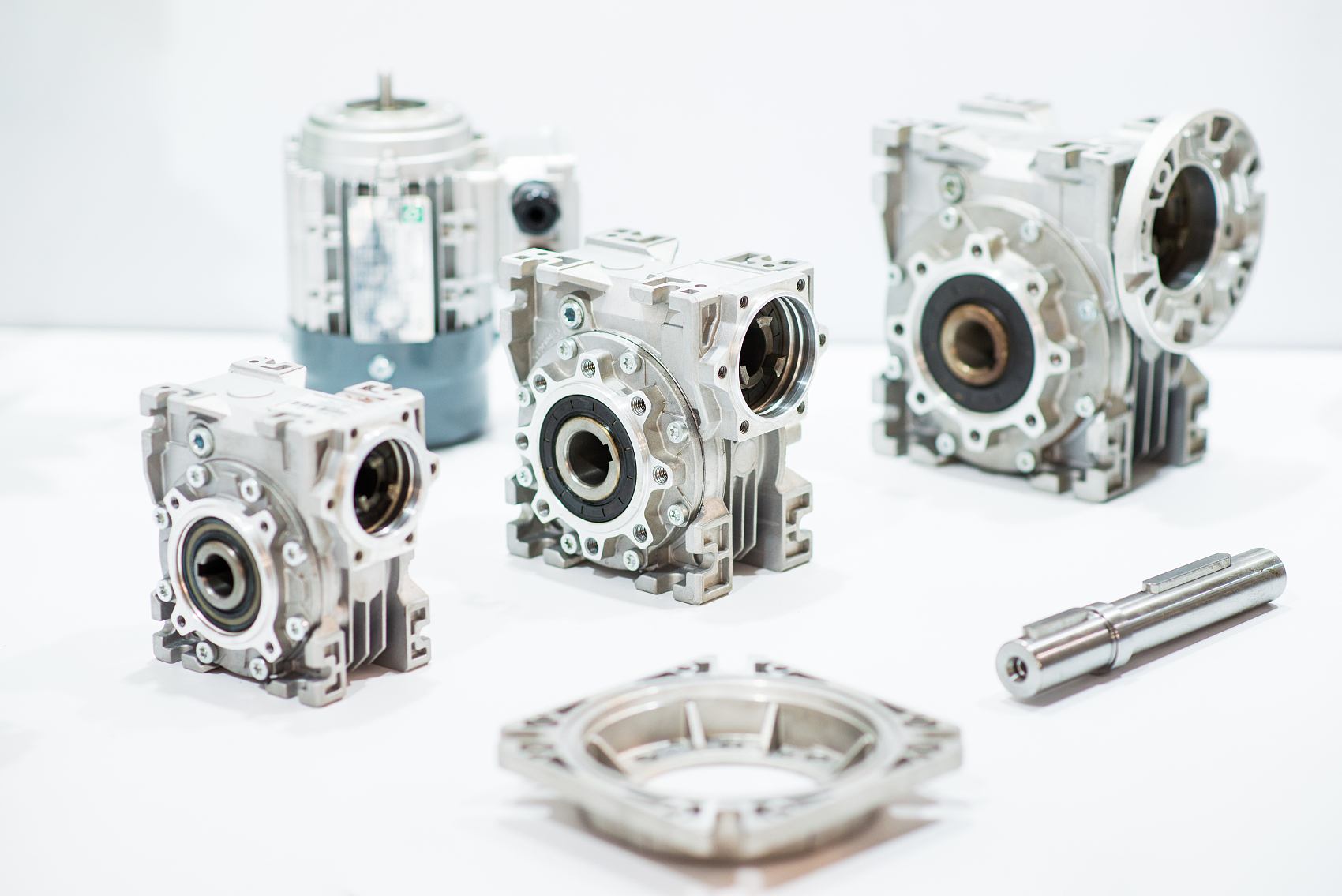

A worm gearbox uses a worm shaft and worm wheel to create right-angle power transmission.
Common applications include:
Small conveyors
Packaging equipment
Food machinery
Gates
Light automation
The NMRV worm gearbox is widely used because it offers:
Compact construction
Wide reduction ratios
Simple mounting
Competitive cost
However, worm gear reducers can have lower efficiency and higher heat generation than helical gearboxes, especially at higher ratios.

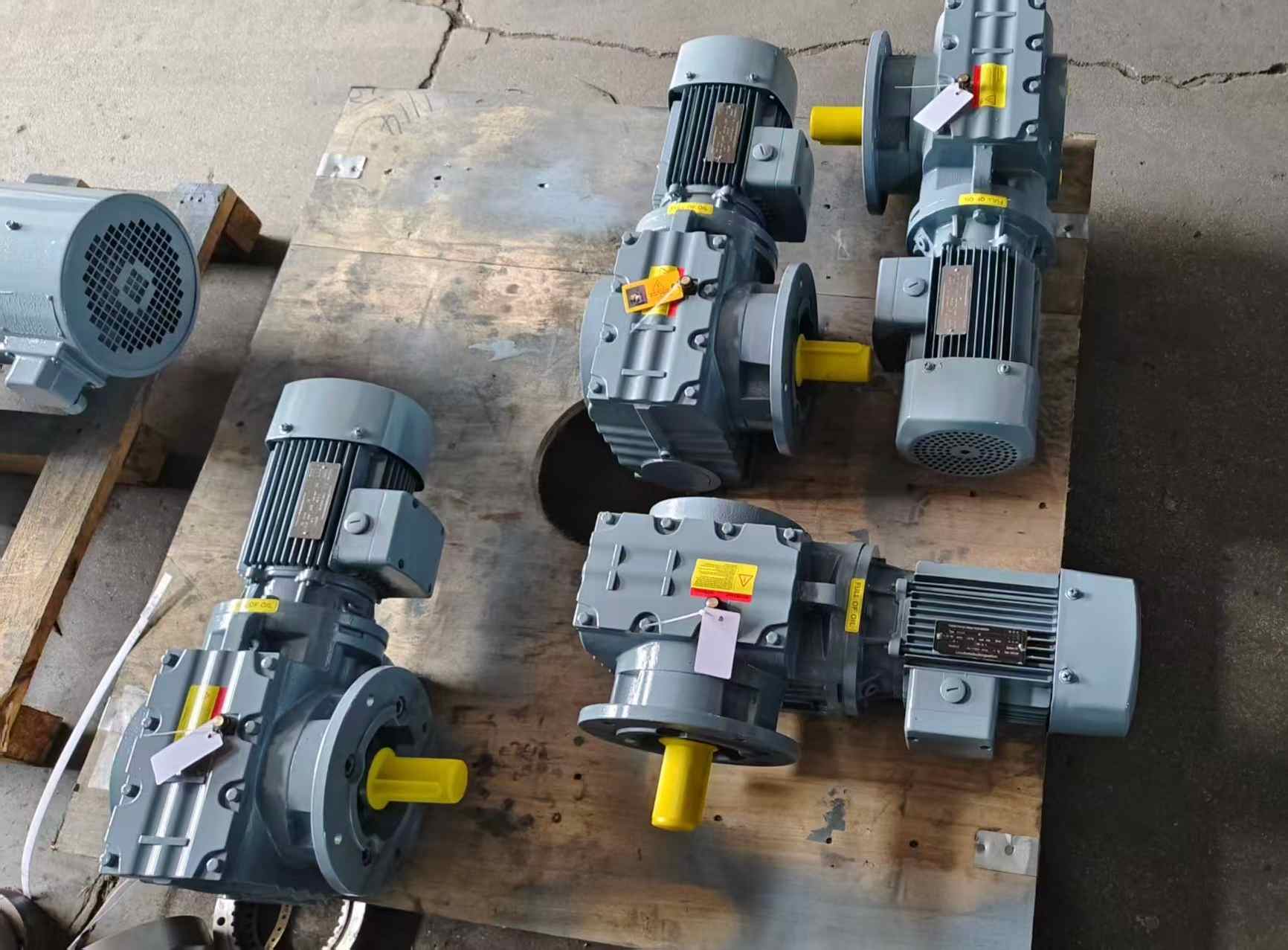

A helical worm gearbox combines a helical input stage with a worm stage.
It provides compact right-angle transmission and can offer better efficiency than a basic worm reducer at a similar total reduction ratio.
It is commonly used for light and medium-duty machinery.

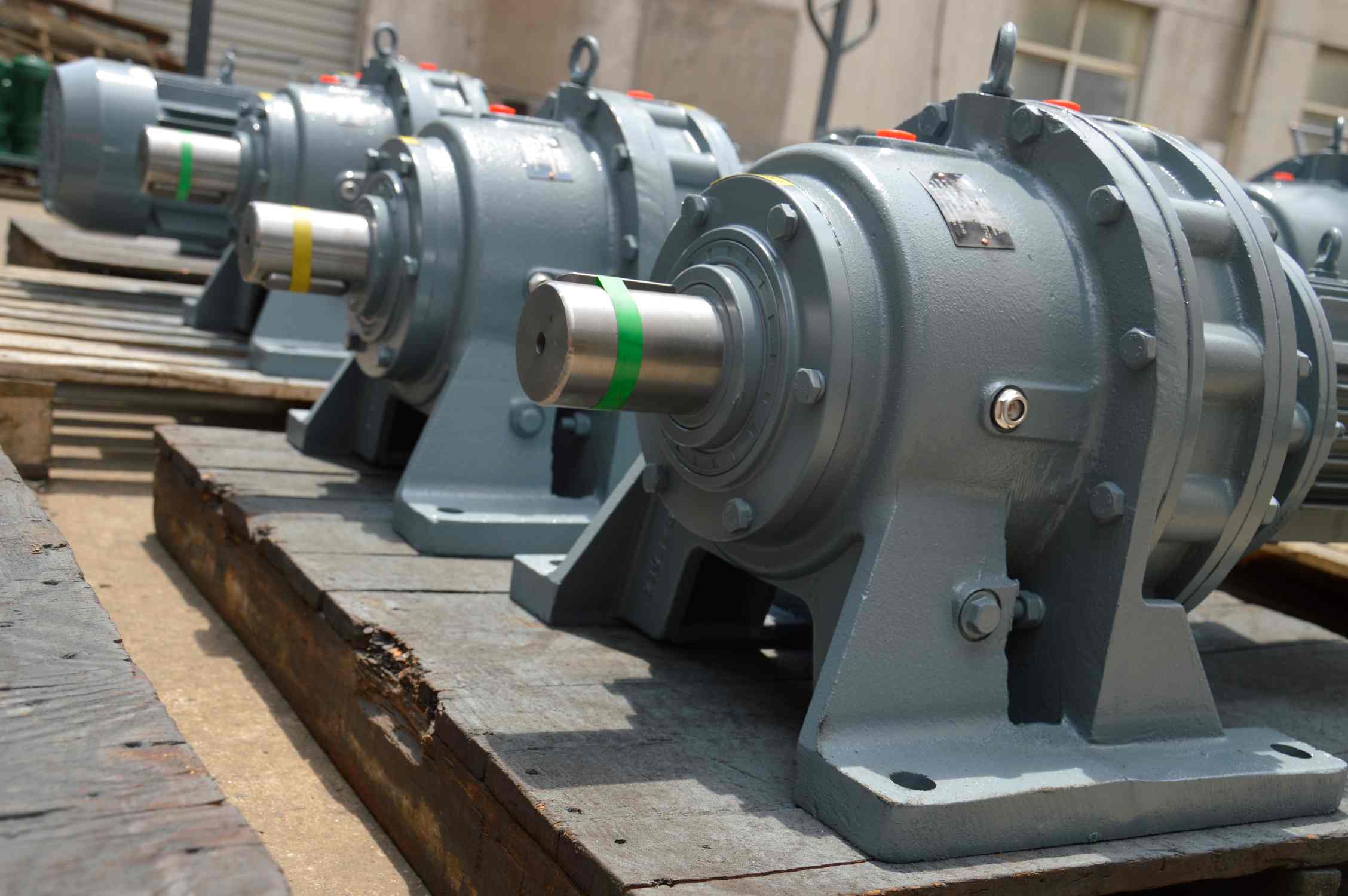

A cycloidal speed reducer uses a cycloidal disc mechanism rather than conventional parallel-axis gears.
It can provide large reduction ratios within a compact structure and offers multiple-tooth engagement.
Typical applications include:
Screw conveyors
Feeders
Mixers
Slow-speed conveyors
Bulk material equipment
Cycloidal reducers are often selected for applications requiring relatively high reduction ratios and good resistance to shock loads.
The terminology on a supplier's website is less important than the technical selection.
Determine whether the gearbox will drive a:
Conveyor
Mixer
Feeder
Pump
Packaging machine
Lifting system
Industrial production machine
Different applications have different load characteristics.
Record:
Motor power
Motor rated speed
Voltage
Frequency
If a complete gear motor is required, also confirm the motor efficiency and protection requirements.
If required output speed is known:
Gear ratio = Motor speed ÷ Required output speed
If the gear ratio is already known, calculate the resulting output speed.
Confirm that the gearbox rated torque is sufficient for:
Continuous operation
Startup
Temporary overload
Shock loads
Service factor depends on:
Operating hours per day
Starts per hour
Load type
Shock loading
Reversing
Ambient conditions
A packaging conveyor and a mining conveyor should not use the same gearbox selection criteria simply because they use motors of the same power.
Common gearbox mounting arrangements include:
Foot mounting
Flange mounting
Hollow-shaft mounting
Torque-arm mounting
Output configurations may include:
Solid shaft
Hollow shaft
Shrink disc
Keyed shaft
Consider:
Ambient temperature
Dust
Water
Corrosion
Washdown
Hazardous gas
Combustible dust
The motor and gearbox seals, coating, lubricant, and protection configuration should match the operating environment.
When replacing an existing industrial gearbox, the label “gear reducer,” “speed reducer,” or “gearbox” does not determine compatibility.
What matters is whether the replacement matches the original technical and mechanical requirements.
Check:
Gear ratio
Output speed
Rated output torque
Motor power
Mounting position
Output shaft diameter
Hollow-shaft diameter
Keyway
Flange dimensions
Bolt pattern
Center height
Installation space
Different manufacturers use different model naming systems.
For example, two manufacturers may both use a size number such as “87,” but their dimensions, torque capacities, and ratios can be different.
For a direct gearbox replacement, always compare the dimensional drawing.
Victory Machinery Technology Co., Ltd. supplies industrial electric motors, gear reducers, gearboxes, and complete gear motors for OEM equipment manufacturers, distributors, maintenance companies, and industrial users.
With 22 years of manufacturing experience, Victory can support both new-machine selection and existing gearbox replacement projects.
Victory can provide:
Cycloidal speed reducers and gear motors
These products can be selected according to motor power, gear ratio, output speed, torque, installation arrangement, and application duty.
Victory can combine the gearbox with:
This allows OEM manufacturers to source the gearbox and electric motor from one supplier.
Available configurations can include:
Custom voltage and frequency
Foot or flange mounting
Customized output shafts
Customized flanges
Hollow-shaft designs
Mounting-position adjustments
PTC or PT100 protection
Independent cooling fans
Anti-condensation heaters
SKF, NSK, or FAG bearing options
Custom paint
OEM nameplates
When an original gearbox is discontinued, unavailable, has a long delivery time, or exceeds the project budget, Victory can evaluate a compatible alternative.
For replacement evaluation, provide:
Gearbox nameplate photo
Motor nameplate photo
Gear ratio or output speed
Motor power
Output torque, if available
Mounting position
Shaft and flange dimensions
Overall installation photographs
Application and operating conditions
Victory can recommend a standard gearbox when possible or evaluate customized shaft and flange dimensions when direct replacement is required.
Victory can also provide:
Technical model selection
Product datasheets
Dimension drawings
OEM branding
Customized nameplates
Custom packaging
Sample orders
Batch production
Quality inspection
CE and ISO9001 documentation
18-month warranty
This supports equipment manufacturers developing standardized drive solutions as well as distributors building their own industrial gearbox and gear motor product lines.
A gear reducer is a type of gearbox designed to reduce rotational speed and increase torque. In many industrial applications, the two terms are used interchangeably.
Yes, in most industrial applications. Both terms normally describe a mechanical transmission that reduces input speed to a lower output speed.
A gearbox or gear reducer is the mechanical transmission only. A gear motor combines the gearbox with an electric motor into one drive unit.
Yes. As output speed is reduced, available output torque increases, minus mechanical losses inside the gearbox.
Helical, parallel shaft helical, and bevel helical gear reducers generally provide high transmission efficiency. Worm reducers may have lower efficiency, particularly at high reduction ratios.
Inline helical, parallel shaft helical, and bevel helical gearboxes are common conveyor solutions. The best choice depends on output speed, torque, conveyor layout, mounting, and load conditions.
Yes, provided that gear ratio, output speed, torque, service factor, mounting position, shaft dimensions, flange dimensions, and operating conditions are correctly matched.
For initial selection, provide motor power and either the required gear ratio or output speed. For final selection, also confirm application, torque, mounting, operating hours, load conditions, and dimensions.
The difference between a gear reducer, gearbox, and speed reducer is mainly one of terminology and scope.
A gearbox is the broadest term for an enclosed mechanical gear transmission. A gear reducer specifically reduces rotational speed through gearing, while speed reducer describes the same speed-reduction function in more general language.
In most industrial purchasing situations, gear reducer and speed reducer can be treated as equivalent terms, and both may simply be called industrial gearboxes.
What matters more than terminology is correct technical selection.
Gear ratio determines output speed. Motor power, output speed, gearbox efficiency, and service factor affect available torque. Gearbox type determines shaft arrangement, efficiency, installation flexibility, and suitability for the application.
Whether the requirement is a helical gear reducer, worm gearbox, cycloidal speed reducer, or complete gear motor, selection should be based on actual machine speed, torque, mounting, duty, and environmental conditions.
Victory can provide standard and customized industrial gear reducers, gearboxes, and gear motors, helping OEM manufacturers, distributors, and industrial users select new drives or replace existing gearboxes with technically compatible and cost-effective solutions.
