What Is a Gear Motor? Types, Gear Ratios, Torque and Industrial Applications
Views: 0 Author: Site Editor Publish Time: 2026-08-07 Origin: Site

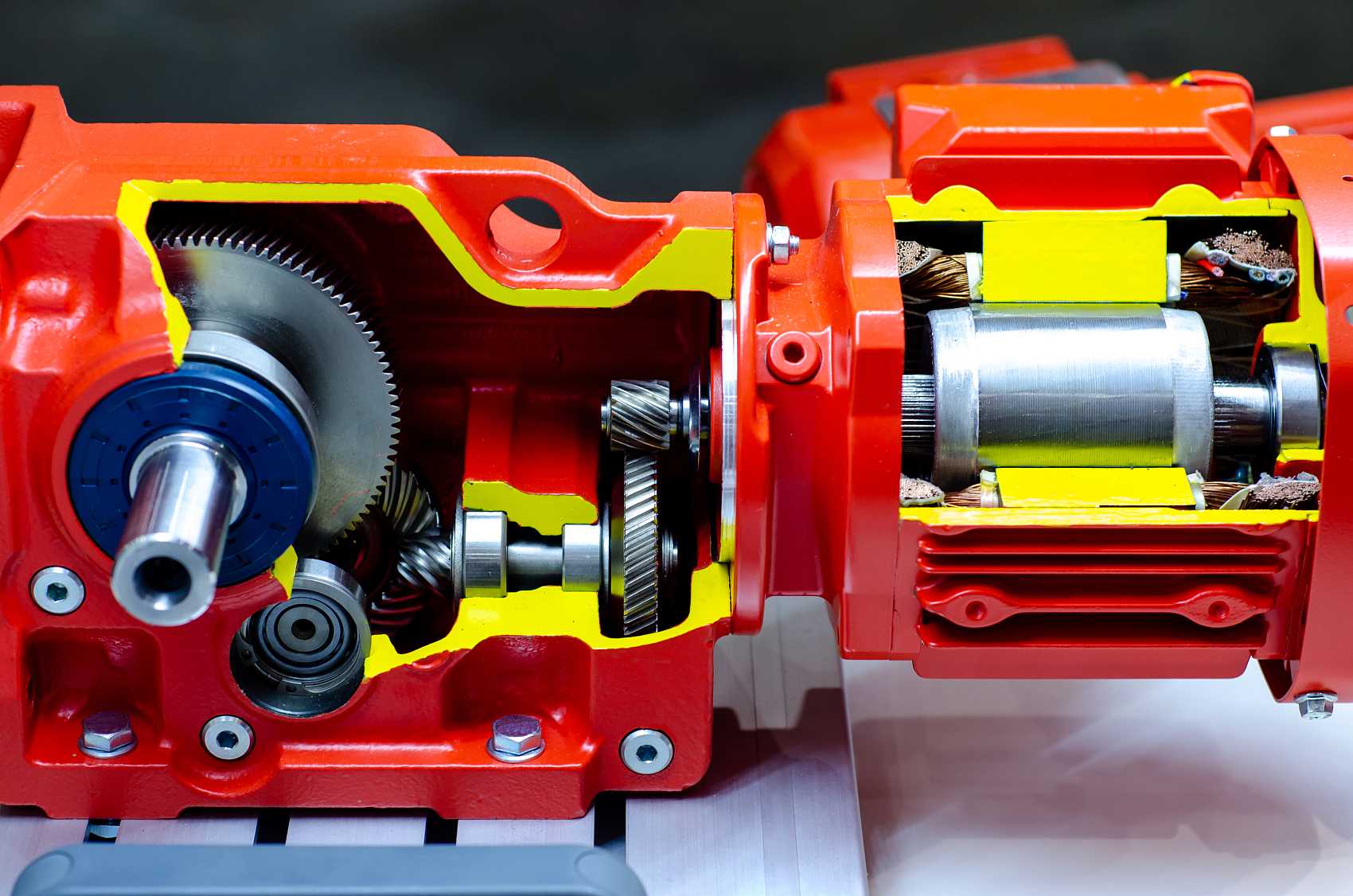

A gear motor is an integrated drive unit that combines an electric motor with a gearbox to provide lower output speed and higher output torque. Instead of using a separate motor, coupling, and reducer, a gear motor packages the power source and speed-reduction mechanism into one compact assembly.
Gear motors are widely used in conveyors, mixers, packaging machines, food processing equipment, lifting systems, industrial automation, agricultural machinery, and other applications where a standard motor runs too fast or does not provide enough torque directly.
Choosing the correct gear motor requires more than matching motor power. Gear ratio, output speed, torque, gearbox type, mounting, duty cycle, load condition, and environment must all be considered.
This guide explains what a gear motor is, how it works, the main types, how gear ratio affects speed and torque, and how to select a reliable industrial gear motor.
The motor generates rotational power at relatively high speed. The gearbox reduces that speed through gears and transfers the power to the output shaft. As output speed decreases, available output torque increases.
For example, a four-pole motor may run at approximately 1450 rpm at 50 Hz. With a 25:1 gearbox:
1450 ÷ 25 = 58 rpm
This output speed is more suitable for many conveyors, mixers, feeders, and industrial machines.

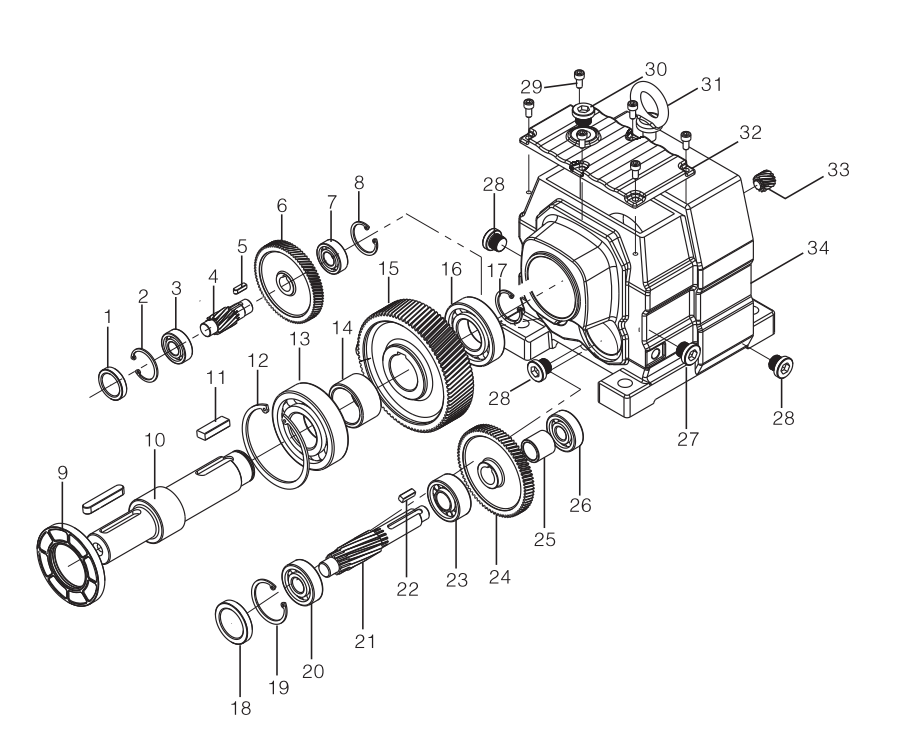

Main Components of a Gear Motor

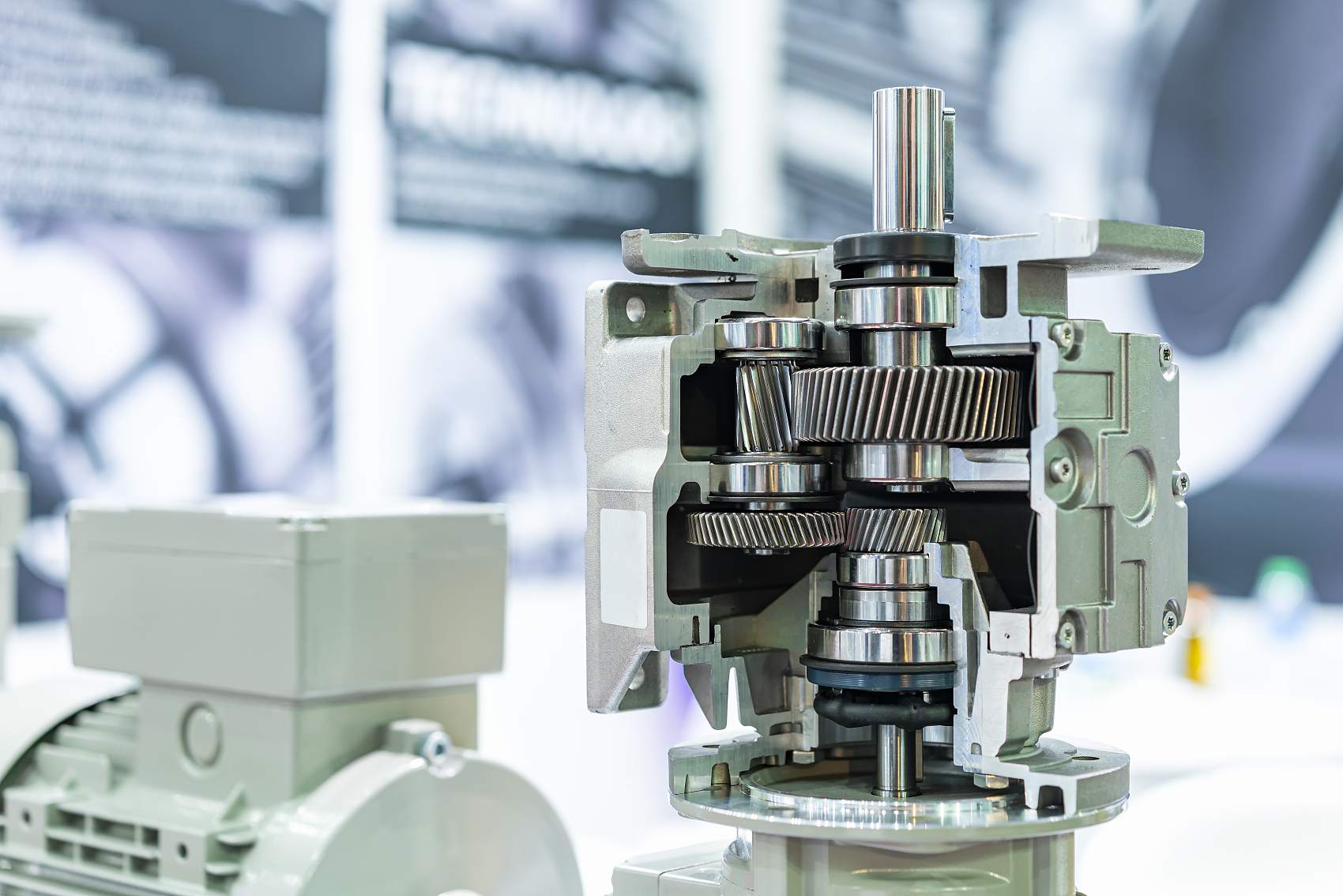

A typical industrial gear motor includes the electric motor, gearbox housing, gear set, shafts, bearings, seals, lubricant, and mounting structure. Depending on the application, it may also include a brake, independent cooling fan, encoder, PTC or PT100 sensor, heater, or explosion-proof enclosure.
Why Use a Gear Motor?
Many industrial machines require much lower speed and higher torque than a standard electric motor can provide directly.
Compact Drive Design
The motor and gearbox are combined as one unit, reducing separate couplings and simplifying machine layout.
Higher Output Torque
Gear reduction increases torque at the output shaft, allowing a relatively small motor to drive a heavier load.
Flexible Output Speed
Different gear ratios provide a wide range of output speeds from the same motor speed.
Easier Installation
A complete gear motor can simplify procurement, alignment, installation, and maintenance.
How Does a Gear Motor Work?
The electric motor converts electrical energy into rotating mechanical power. This power enters the gearbox through the input shaft or pinion.
One or more gear stages reduce rotational speed. A smaller driving gear turning a larger driven gear lowers speed and increases torque. The output shaft then transfers the reduced-speed rotation to the machine.
Relationship Between Speed, Ratio and Torque
The most important gear motor parameters are motor speed, gear ratio, output speed, and output torque. They must be considered together.
How to Calculate Gear Motor Output Speed
Output speed = Motor rated speed ÷ Gear ratio
If motor speed is 1750 rpm and the gear ratio is 20: 1
1750 ÷ 20 = 87.5 rpm
The approximate output speed is 87.5 rpm.
Use Rated Motor Speed
For an induction motor, use the rated speed shown on the nameplate. A four-pole motor at 50 Hz has a synchronous speed of 1500 rpm, but its rated speed is commonly around 1430–1470 rpm because of motor slip.
At 60 Hz, rated speed is often around 1720–1770 rpm rather than exactly 1800 rpm.
What Is Gear Ratio in a Gear Motor?
Gear ratio describes how many input shaft revolutions are required for one output shaft revolution.
A 10:1 ratio means the motor turns approximately ten times while the output shaft turns once. A 50:1 ratio produces much lower output speed.
How Gear Ratio Affects Output Speed
A higher gear ratio generally means lower output speed and higher theoretical output torque. A lower ratio means higher output speed.
With a 1450 rpm motor:
10:1 → about 145 rpm
25:1 → about 58 rpm
50:1 → about 29 rpm
Does a Higher Ratio Always Mean Better Performance?
No. The correct ratio depends on the required machine speed and torque.
An unnecessarily high ratio may make the machine too slow and can increase gearbox size, heat, or cost.
VFD Speed Adjustment
A variable frequency drive can adjust motor speed, but the gearbox must still be selected for maximum input speed, required torque, thermal capacity, and continuous duty.
Understanding Gear Motor Torque
Torque is the turning force available at the output shaft and is normally expressed in Nm.
Approximate output torque can be calculated as:
Output torque (Nm) = 9550 × Motor power (kW) × Gearbox efficiency ÷ Output speed (rpm)
For a 5.5 kW motor, 60 rpm output speed, and 94% gearbox efficiency:
9550 × 5.5 × 0.94 ÷ 60 ≈ 823 Nm
The selected industrial gear motor should have sufficient rated torque after the required service factor is applied.
Rated, Starting and Peak Torque
These three torque values should not be confused.
Rated Output Torque
Rated torque is the torque the gearbox is designed to transmit continuously under specified conditions.
Starting Torque
Starting torque is required to accelerate the machine from rest. Loaded conveyors, mixers, screw feeders, and lifting equipment may require higher starting torque than normal running torque.
Peak Torque
Peak torque is a short-duration load caused by startup, shock, jamming, braking, or reversing. It should not be treated as a continuous rating.
Why Service Factor Matters
Service factor provides capacity margin between actual load and gearbox rating. It depends on operating hours, starts per hour, shock loading, reversing, machine type, ambient temperature, and load inertia.
A stable packaging conveyor may require a lower service factor than a heavily loaded mixer, crusher feeder, or mining conveyor.
Main Types of Gear Motors
Different gearbox designs provide different shaft arrangements, efficiencies, ratios, and torque capacities.

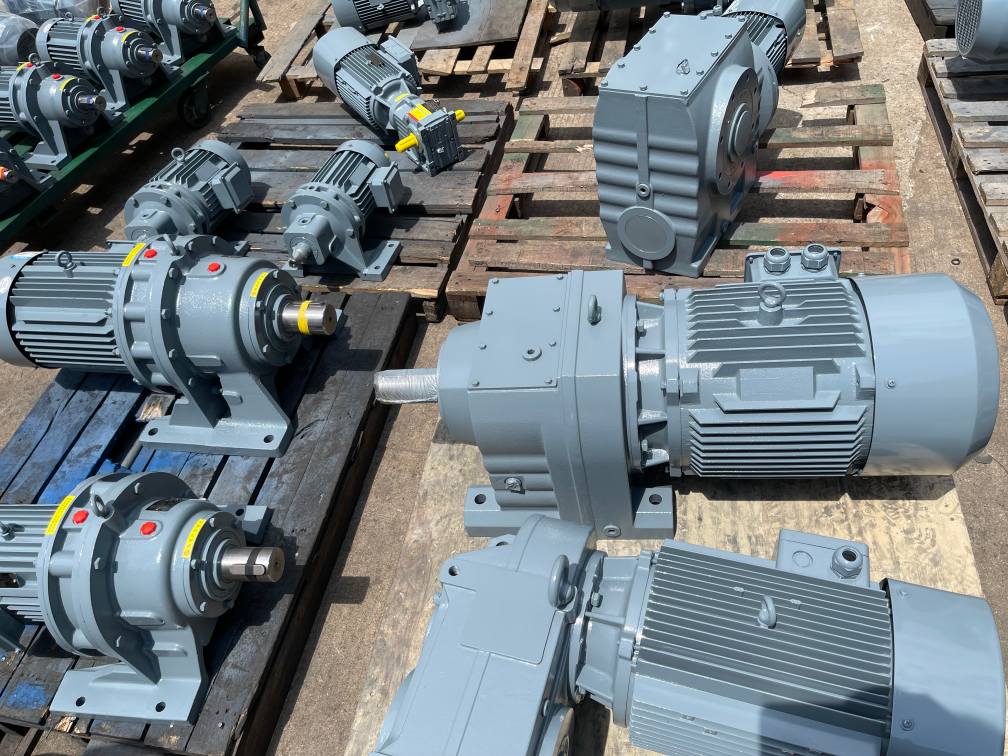

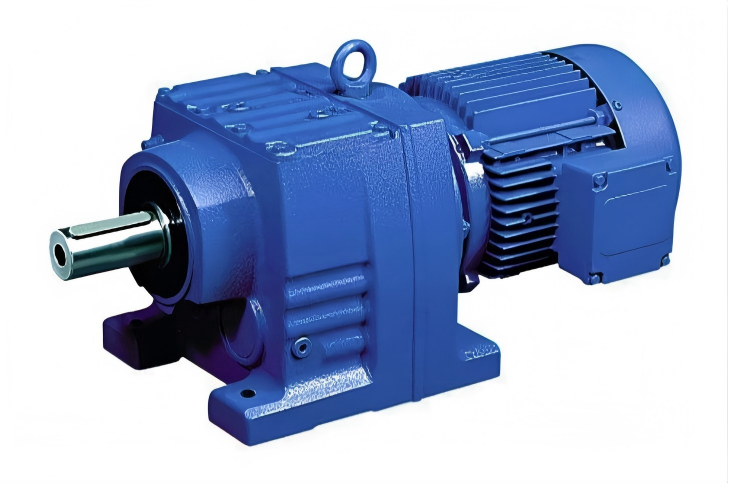

Inline Helical Gear Motor
An inline helical gear motor uses helical gears with the motor and output shaft arranged along the same general axis.
Typical applications include conveyors, mixers, packaging equipment, food processing lines, and general machinery.
Advantages
Inline helical gear motors offer high efficiency, low noise, smooth operation, wide ratio choices, and good continuous-duty performance.
When to Choose One
Choose an inline helical gear motor when efficiency and straightforward inline installation are priorities.
It is suitable for compact right-angle applications such as packaging machines, light and medium conveyors, and food processing equipment.
Efficiency is generally better than a simple worm gearbox at a similar total ratio, although actual performance depends on ratio and operating conditions.

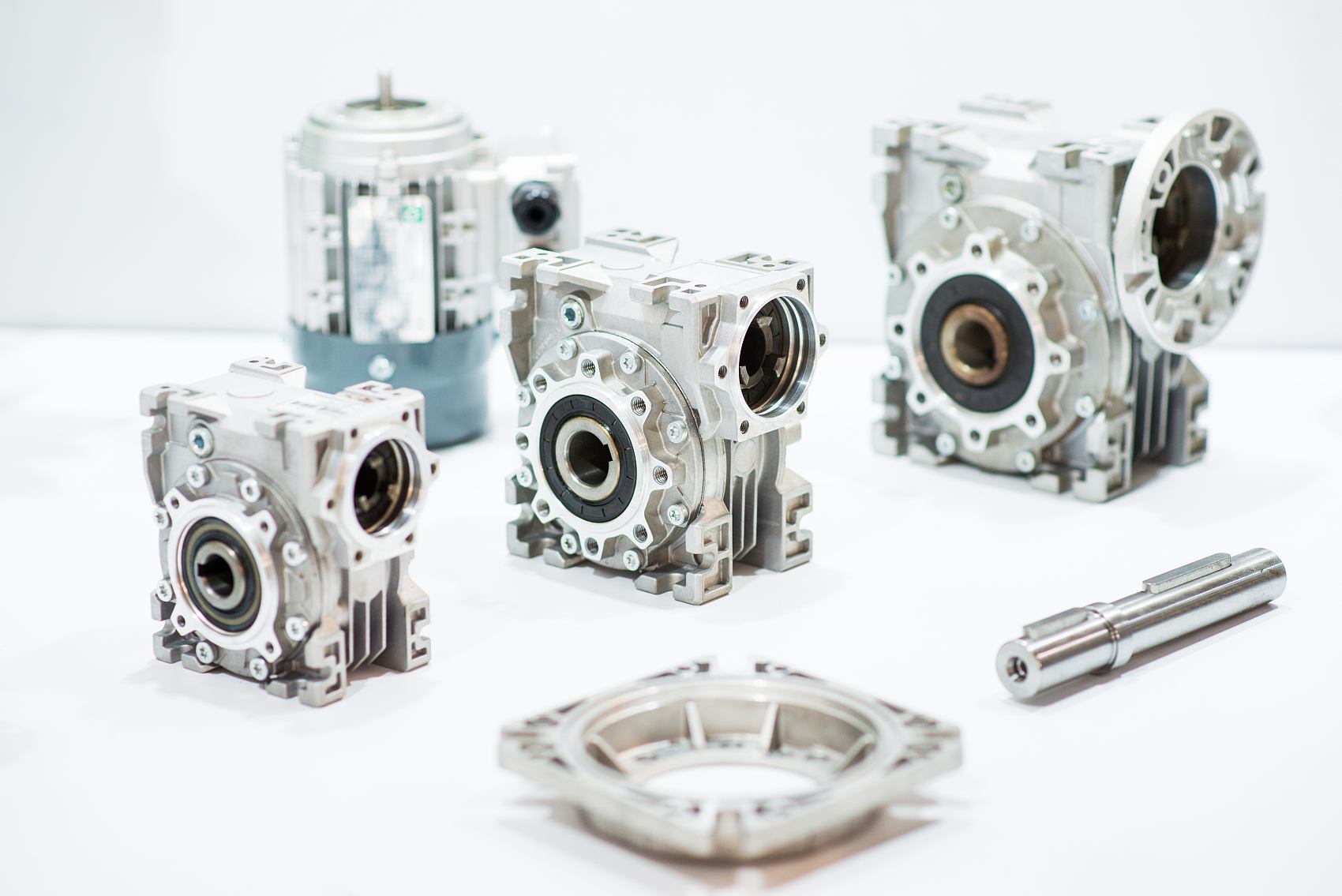

NMRV Worm Gear Motor
An NMRV worm gearbox combined with a motor is a common economical drive for small and medium machines.
Typical uses include small conveyors, packaging lines, food machines, gates, and light automation.
Advantages
NMRV worm gear motors offer compact right-angle construction, wide ratio availability, simple mounting, and competitive cost.
Efficiency Consideration
Worm gear motors may generate more heat and have lower efficiency than helical gear motors, particularly at high ratios.
Continuous-duty applications require checks for thermal capacity and operating temperature.

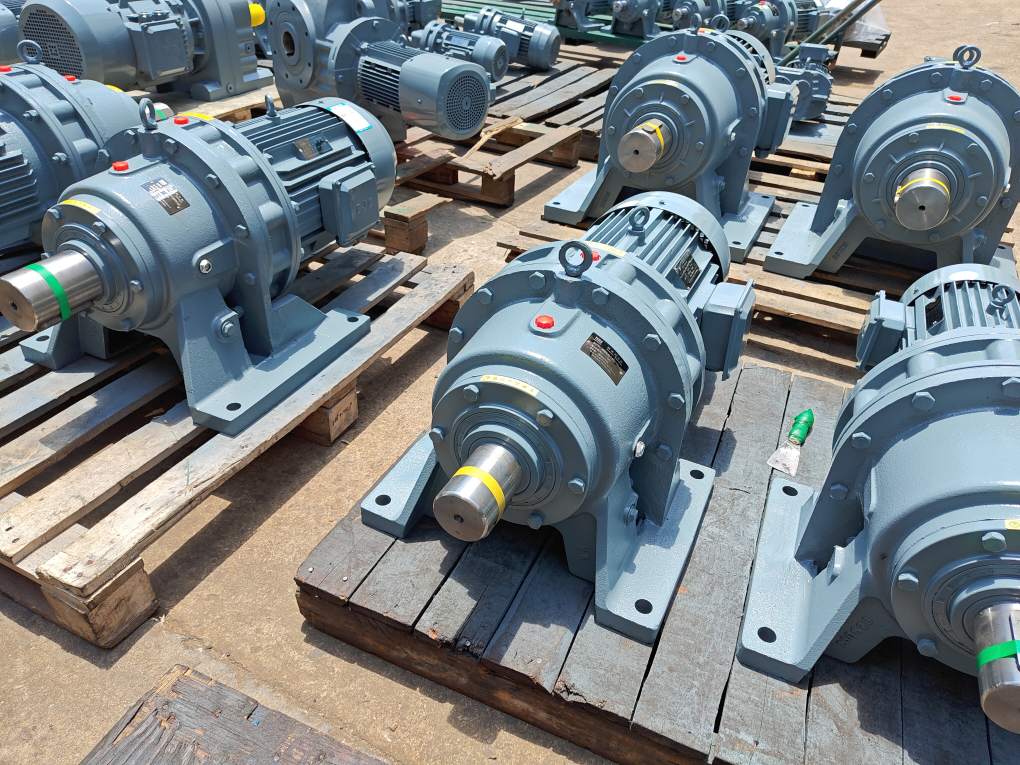

Cycloidal Gear Motor
A cycloidal gear motor uses a cycloidal reducer and is suitable for slow conveyors, mixers, screw conveyors, feeders, and machines requiring high reduction ratios.
Advantages
Cycloidal reducers provide compact high-ratio transmission, multiple tooth engagement, and good overload resistance.
What to Check
Confirm rated torque, service factor, output speed, mounting position, and duty instead of selecting only by motor power.
Gear Motor Mounting Options
The mounting arrangement affects how the industrial gear motor connects to the machine and can also affect lubrication.
Foot Mounting
A foot-mounted gear motor is bolted to a machine base and is common for conveyors, mixers, and general machinery.

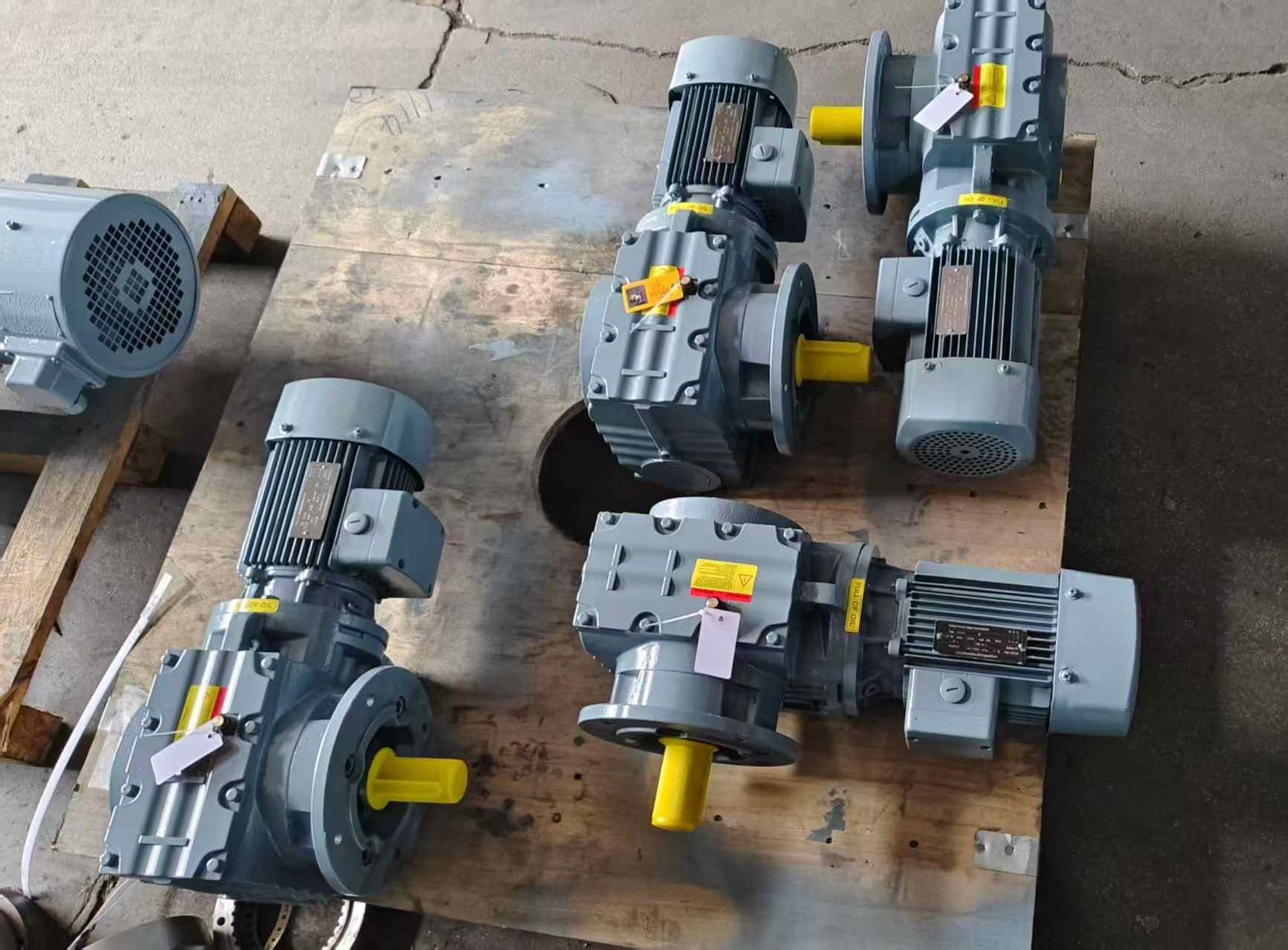

Flange Mounting
A flange-mounted gear motor attaches directly to the driven equipment.
Check:
Flange diameter
Pilot diameter
Bolt circle
Mounting holes
Output shaft dimensions

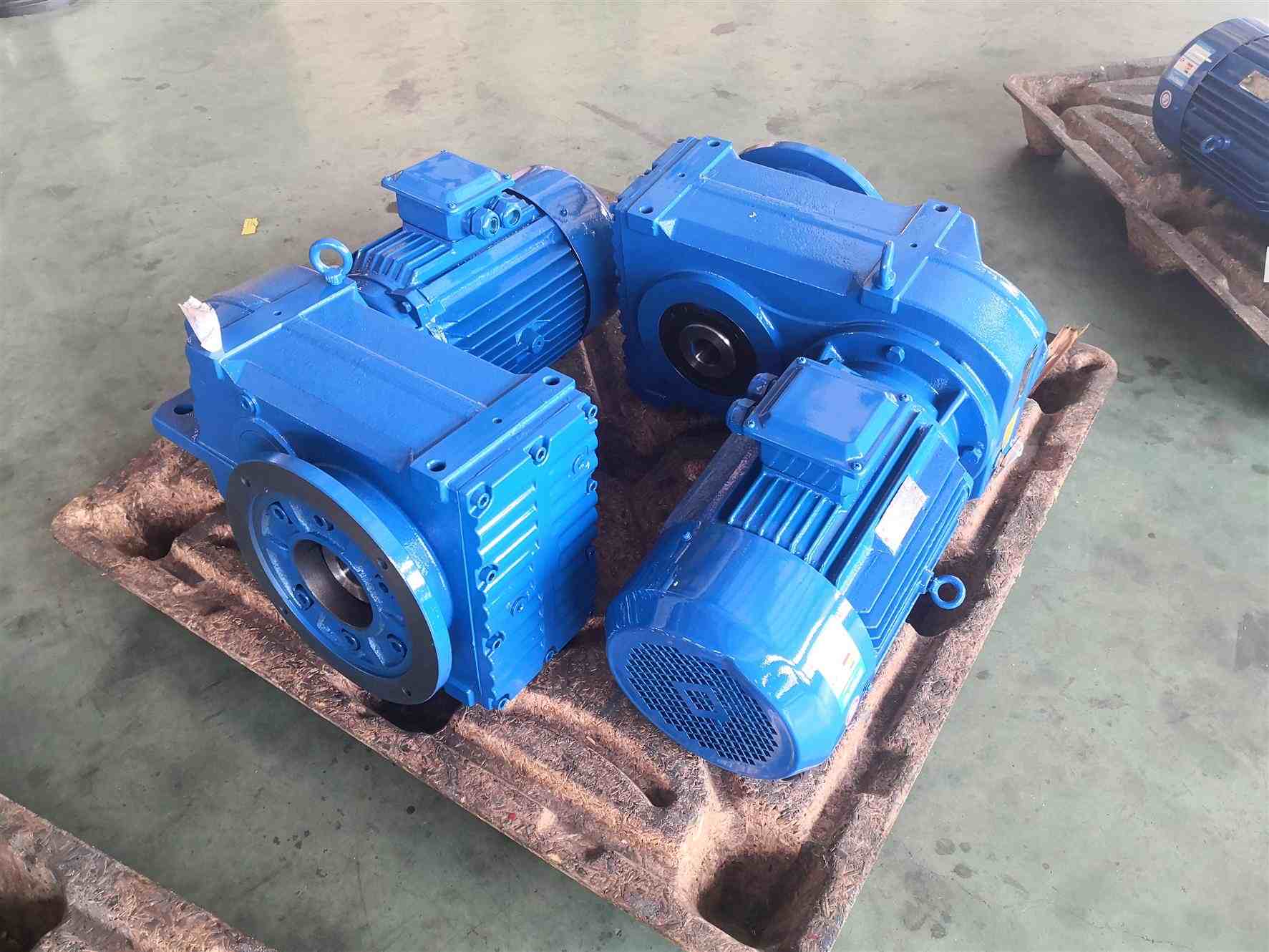

Hollow-Shaft and Torque-Arm Mounting
Hollow-shaft gear motors mount directly on the driven shaft through a keyed hollow shaft, shrink disc, or locking assembly.
A torque arm prevents the gearbox housing from rotating.
Mounting Position and Lubrication
Horizontal, vertical shaft-up, vertical shaft-down, and side-mounted positions can require different oil quantities and breather positions.
Do not change mounting orientation without confirming lubrication requirements.
Electric Motor Options for Gear Motors
The electric motor configuration should match the power supply, control requirements, and operating environment.
Three-Phase Gear Motor
Three-phase induction motors are the most common option for industrial gear motors because they are efficient, durable, and suitable for continuous operation.
IE2, IE3, and IE4 efficiency levels may be available according to project requirements.

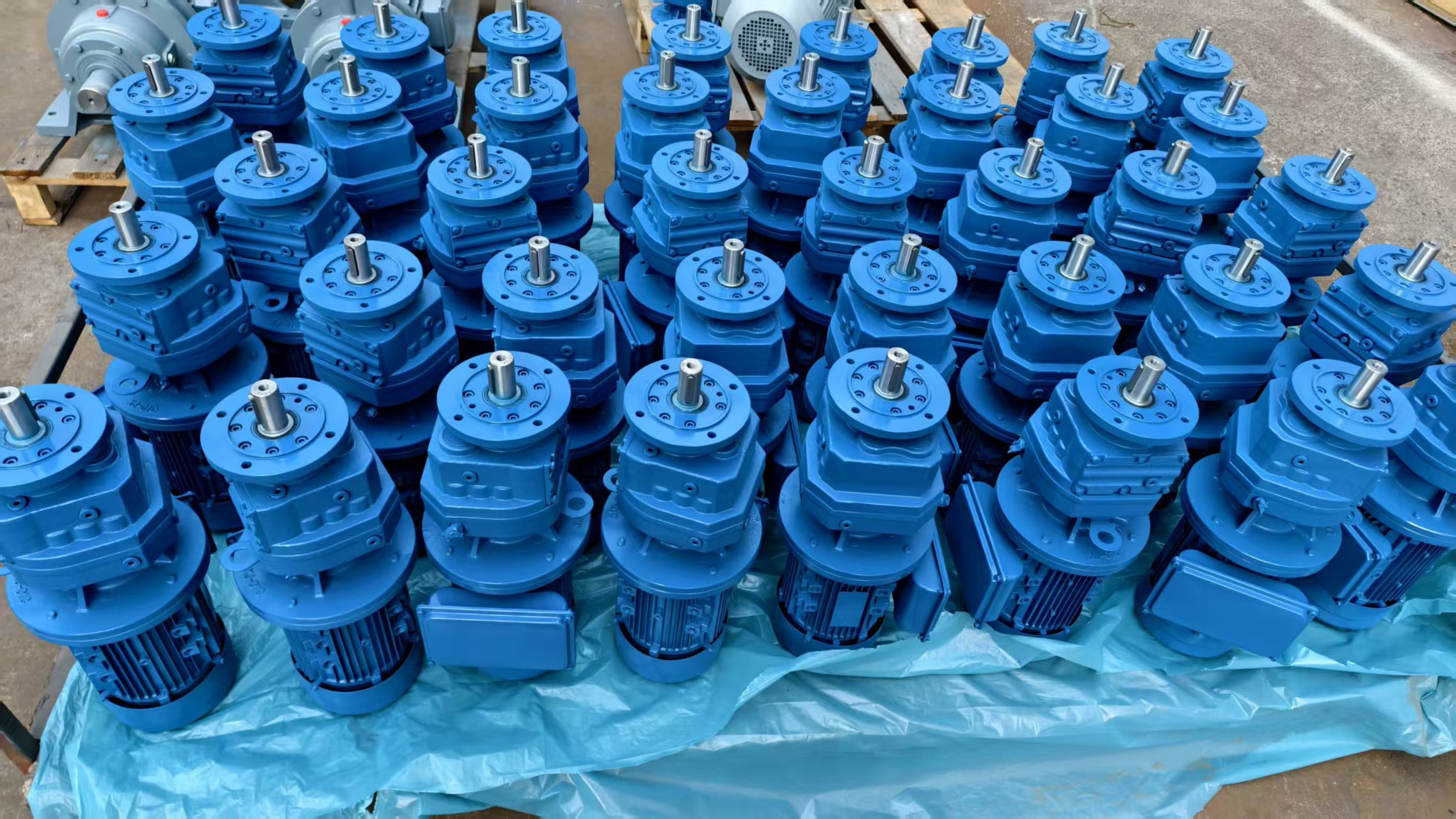

Single-Phase Gear Motor
A single-phase gear motor is useful where three-phase power is unavailable, including small conveyors, workshop machines, agricultural equipment, and light machinery.

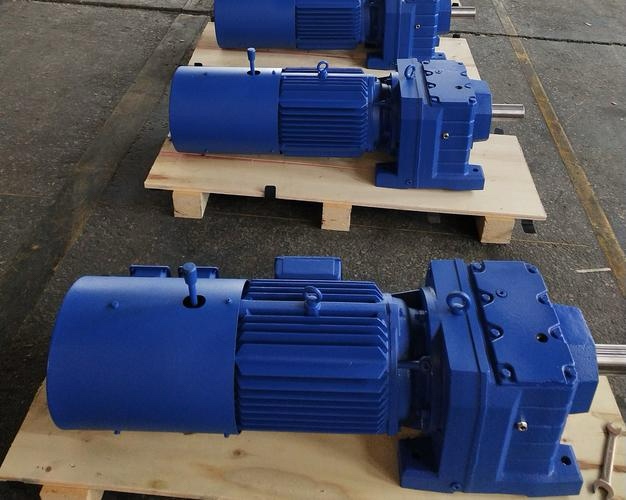

Brake Gear Motor
A brake gear motor is useful for:
Inclined conveyors
Lifting systems
Positioning machines
Doors and gates
Applications requiring rapid stopping or holding
VFD Gear Motor
A VFD gear motor allows adjustable speed through a variable frequency drive.
For prolonged low-speed operation, an independent cooling fan may be required because the standard shaft-mounted motor fan provides less cooling at low speed.

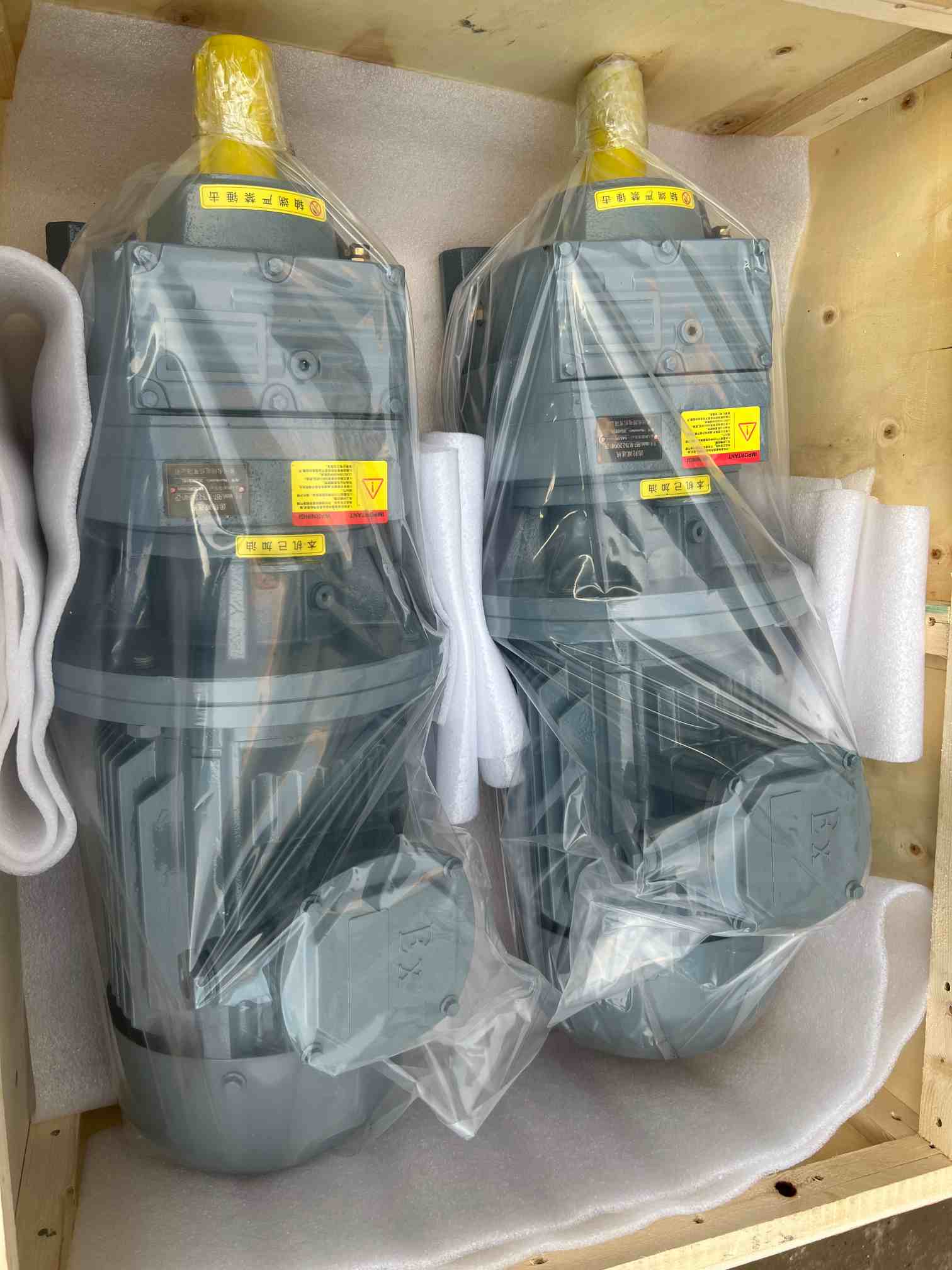

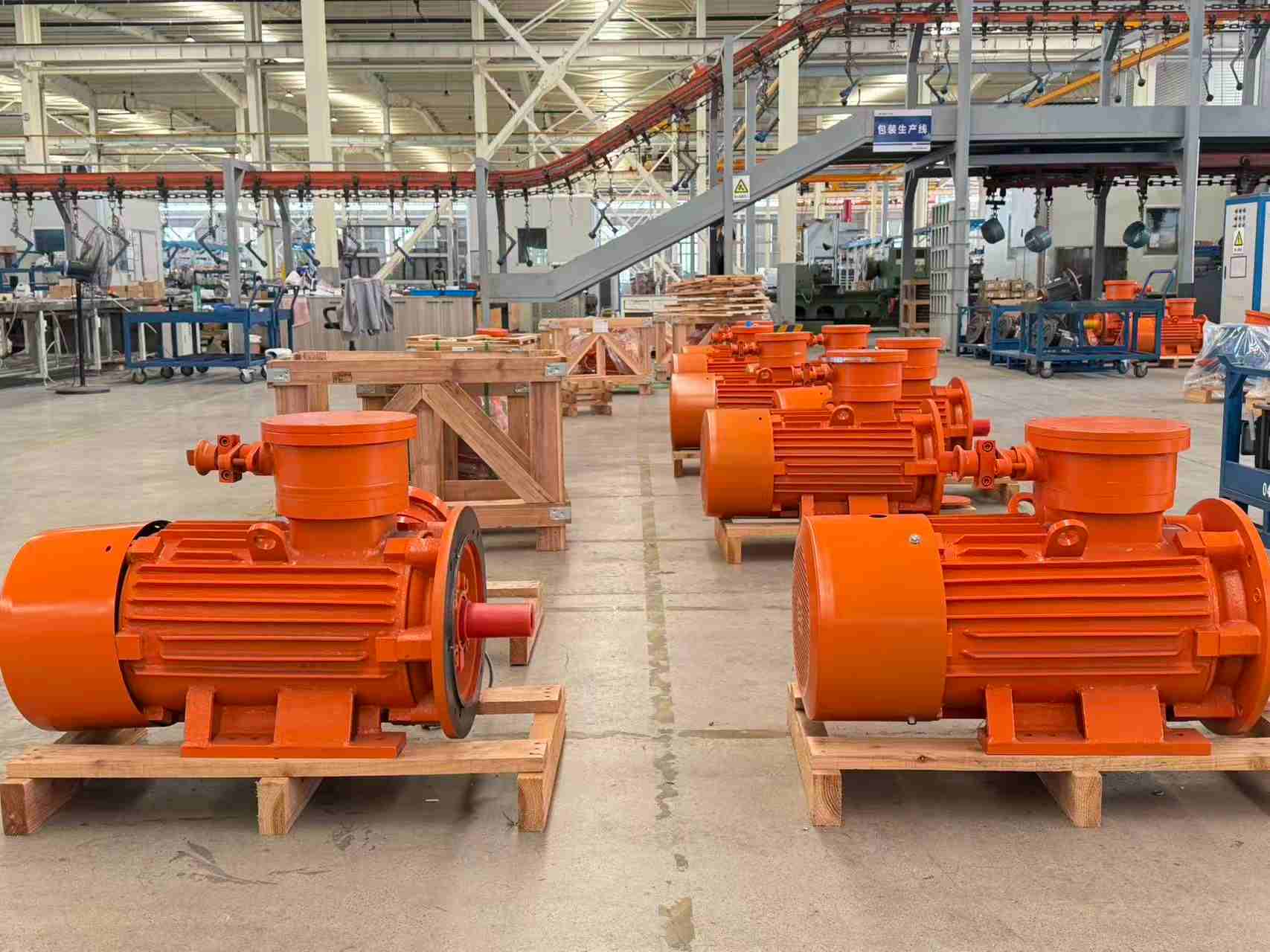

Explosion-Proof Gear Motor
Hazardous environments containing flammable gas or combustible dust may require an explosion-proof gear motor.
The required protection must match the hazardous zone, gas or dust group, temperature class, and applicable certification.
Common Industrial Gear Motor Applications
Gear motors are used wherever industrial equipment requires controlled low speed and increased torque.

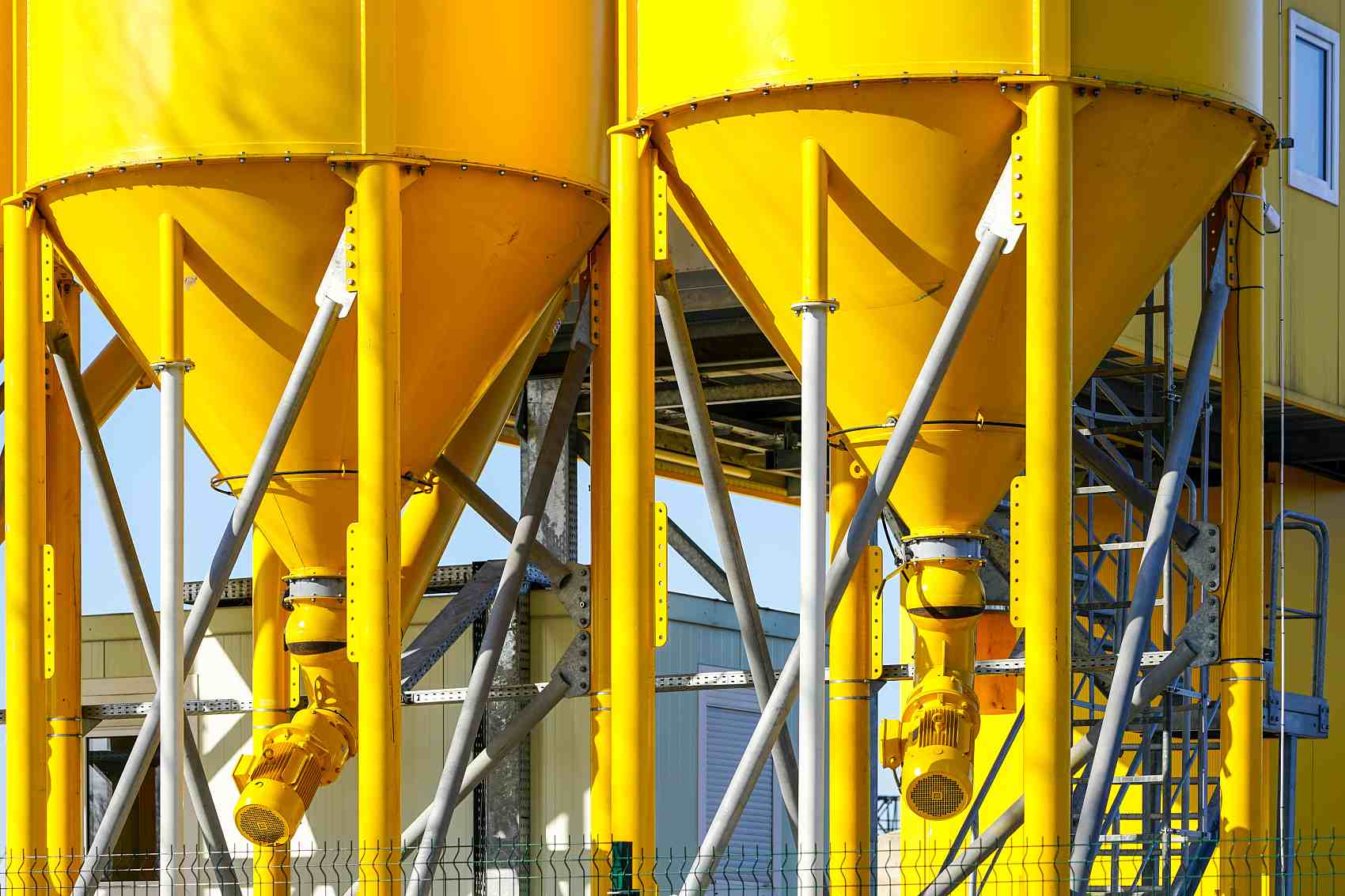

Conveyor Systems
Conveyor gear motors drive belts, rollers, chains, and bucket systems in factories, warehouses, mines, food plants, and packaging lines.
Selection should consider belt speed, starting load, pulley diameter, operating hours, and mounting arrangement.
Mixers and Agitators
Mixers usually require low speed and high continuous torque.
Fluid viscosity, impeller size, starting load, and duty cycle should be considered when selecting the gear motor.
Packaging and Food Processing Machinery
Compact helical gear motors and worm gear motors are used in filling, sealing, labeling, sorting, and packaging equipment.
Food applications may also require higher IP protection, corrosion-resistant coatings, or food-grade lubricant.
Lifting and Positioning Equipment
Hoists, lifts, gates, and positioning systems may require a brake gear motor because the drive must not only move the load but also stop and hold it.
Screw Conveyors and Feeders
Screw conveyors often operate at low speed and may require high starting torque when loaded.
Helical, bevel helical, parallel shaft, or cycloidal gear motors may be suitable depending on layout and required torque.
Industrial Automation
Industrial gear motors are used in automated production lines, indexing mechanisms, turntables, handling equipment, and assembly machines requiring controlled speed and reliable torque.
How to Select the Right Gear Motor
Step 1: Identify the Application
Determine whether the drive is for a conveyor, mixer, feeder, lifting system, packaging machine, or other industrial equipment.
Step 2: Confirm Power and Output Speed
Motor power and either the required output speed or gear ratio are the most important starting points for initial gear motor selection.
Step 3: Calculate Gear Ratio
Divide rated motor speed by required gearbox output speed.
Step 4: Check Torque
Calculate operating torque and confirm starting or peak torque where necessary.
Step 5: Evaluate Duty and Load
Confirm:
Operating hours
Starting frequency
Shock load
Reversing
Ambient temperature
Whether the machine starts loaded
Step 6: Choose Gearbox Type and Mounting
Select an inline helical, parallel shaft, bevel helical, helical worm, NMRV worm, or cycloidal gear motor according to layout, efficiency, torque, and installation space.
Step 7: Confirm Dimensions and Environment
Check shaft dimensions, flange, mounting position, IP protection, hazardous-area requirements, and lubrication.
How Victory Supports Industrial Gear Motor Projects
Victory Machinery Technology Co., Ltd. supplies industrial gear motors, gearboxes, and IEC electric motors for OEM equipment manufacturers, distributors, maintenance companies, and industrial users.
With 22 years of manufacturing experience, Victory can supply complete motor and gearbox solutions from one source.
When an original gear motor is discontinued, unavailable, or expensive, Victory can evaluate an equivalent replacement.
Information Used for Replacement
Key information includes:
Motor and gearbox nameplates
Motor power and speed
Gear ratio
Output speed
Rated torque
Mounting position
Shaft or flange dimensions
Application and duty cycle
Where possible, Victory can recommend a standard model to reduce cost and lead time.
Customized dimensions can also be evaluated when the new gear motor must directly replace existing equipment.
OEM and Technical Services
Victory supports customers with:
Technical selection
Product datasheets
Outline drawings
Sample orders
Batch production
OEM branding and nameplates
Quality inspection
CE and ISO9001 documentation
18-month warranty
These services support OEM equipment manufacturers, industrial distributors, replacement projects, and companies developing private-label gear motor product lines.
FAQ About Gear Motors
What Is the Difference Between a Gear Motor and a Gearbox?
A gearbox is a mechanical speed reducer without the driving motor. A gear motor combines the electric motor and gearbox into one integrated drive unit.
Does a Gear Motor Increase Torque?
Yes. Gear reduction reduces output speed and increases the available output torque, minus mechanical losses in the gearbox.
How Do I Choose a Gear Ratio?
Divide the motor rated speed by the required output speed, then select the nearest available standard gear ratio and check the resulting machine speed.
Which Type of Gear Motor Is Most Efficient?
Helical, parallel shaft helical, and bevel helical gear motors generally provide high transmission efficiency. Worm gear motors can have lower efficiency, especially at high ratios.
Can a Gear Motor Run with a VFD?
Yes. Check the motor frequency range, gearbox maximum input speed, low-speed torque, and motor cooling requirements.
What Is the Best Gear Motor for a Conveyor?
Inline helical, parallel shaft, and bevel helical gear motors are common choices. Selection depends on conveyor speed, torque, load, mounting arrangement, and available space.
Can Another Brand Replace an Existing Gear Motor?
Yes, if the replacement matches the gear ratio, output speed, torque, mounting, shaft or flange dimensions, motor electrical data, and application duty.
What Information Is Needed for Initial Gear Motor Selection?
Start with the motor power and either the required output speed or gear ratio. Then confirm the application, mounting arrangement, load, duty cycle, voltage, and installation dimensions.
