How Brand Owners Can Build Reliable Single Phase Induction Motor Product Lines

For many brand owners, distributors, and equipment suppliers, building a reliable single phase induction motor product line is not only about finding a low-cost motor. It is about creating a stable product system that customers can trust, reorder, and recommend.

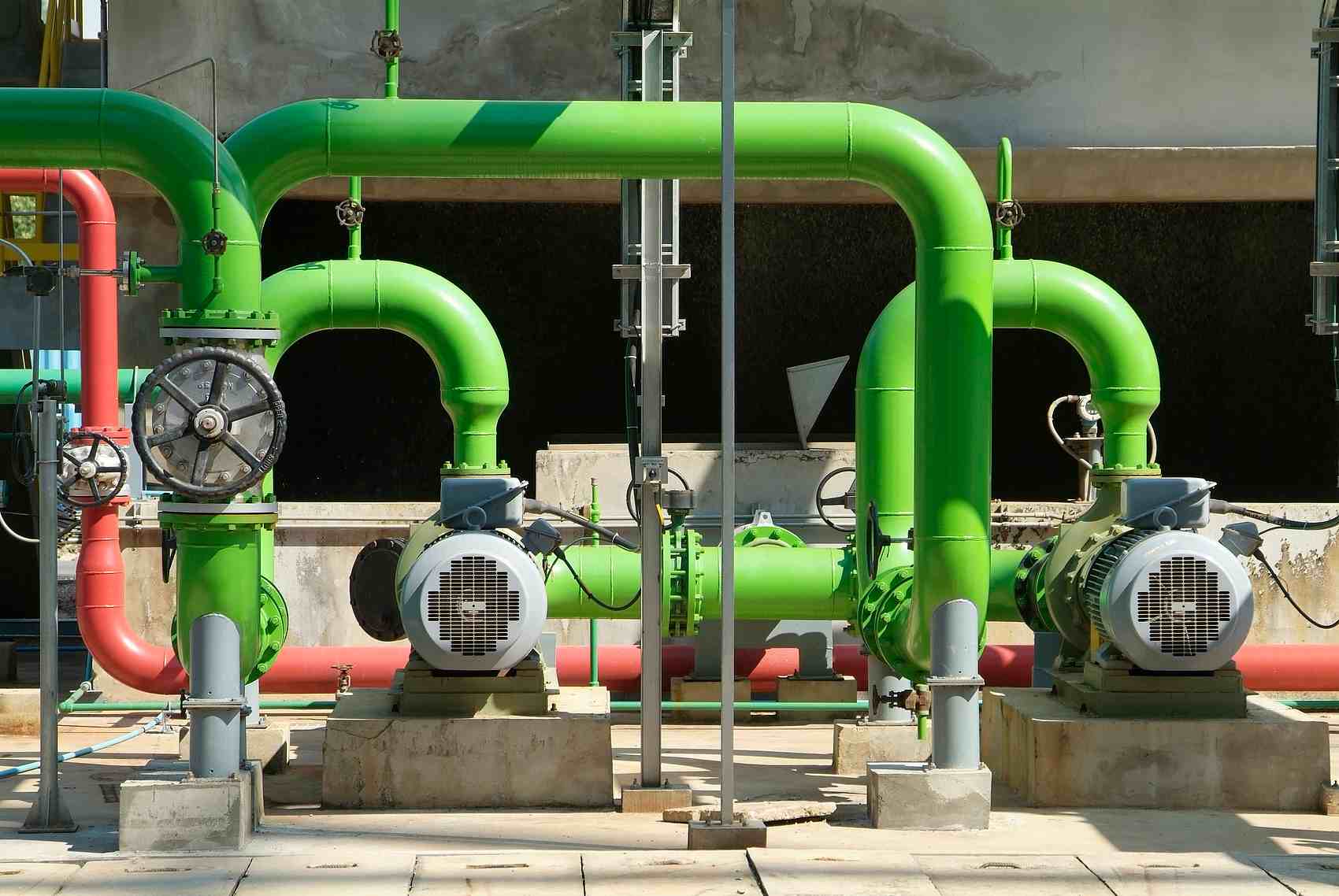

Single phase induction motors are widely used in pumps, fans, compressors, small machinery, agricultural equipment, household machines, workshops, and light industrial applications. Compared with three phase motors, they are easier to use in areas where only single phase power is available. This makes them especially important in residential, commercial, agricultural, and small industrial markets.

However, single phase motors also have special technical challenges. Starting performance, capacitor quality, winding temperature rise, bearing life, and voltage stability all affect final reliability. If a brand owner only focuses on appearance and price, the product line may face complaints such as weak starting torque, capacitor burning, motor overheating, high noise, or short service life.

This article explains how brand owners can build reliable single phase induction motor product lines, from product structure and technical selection to supplier cooperation and quality control.

Why Single Phase Induction Motors Still Have Strong Market Demand

Single phase induction motors remain one of the most practical motor categories in the global market. Many countries and regions have a large number of homes, farms, shops, small factories, and repair workshops using single phase electricity. In these places, three phase power may not be available, or the installation cost may be too high.

That is why single phase motors are still widely used for:

• Water pumps

• Air compressors

• Fans and blowers

• Small mixers

• Woodworking machines

• Grinding machines

• Agricultural machines

• Food processing equipment

• Garage and workshop machines

• Small conveyor systems

For brand owners, this means single phase motors can form a very practical and repeatable product category. The market is not limited to one industry. A well-designed single phase induction motor product line can serve dealers, OEM equipment manufacturers, maintenance companies, farm users, and local hardware distributors.

Common Applications in Daily Equipment

A single phase induction motor is often selected when the machine needs simple installation and stable running. For example, a water pump supplier may need 0.75 kW, 1.1 kW, 1.5 kW, and 2.2 kW motors for different pump sizes. A small compressor manufacturer may need motors with higher starting torque. A fan supplier may focus more on low noise, smooth running, and continuous operation.

Different applications require different motor designs. A motor used for a fan does not always need the same starting torque as a motor used for a compressor. A motor used in a dusty farm environment may need better sealing than a motor used indoors. This is why brand owners should not treat all single phase motors as the same product.

A reliable product line should match real working conditions.

Why Brand Owners Should Pay Attention to Quality Stability

For brand owners, one failed motor can damage more than one order. It can damage customer confidence. If a customer buys a motor under your brand and it fails because of a cheap capacitor or poor winding quality, the customer will usually blame your brand, not the hidden factory.

Quality stability is especially important for repeat business. Dealers and distributors prefer products that are easy to sell and have fewer after-sales problems. OEM manufacturers prefer motors that can be installed on their machines without repeated testing and adjustments.

A reliable single phase motor product line helps brand owners reduce claims, improve market reputation, and build long-term customer relationships.

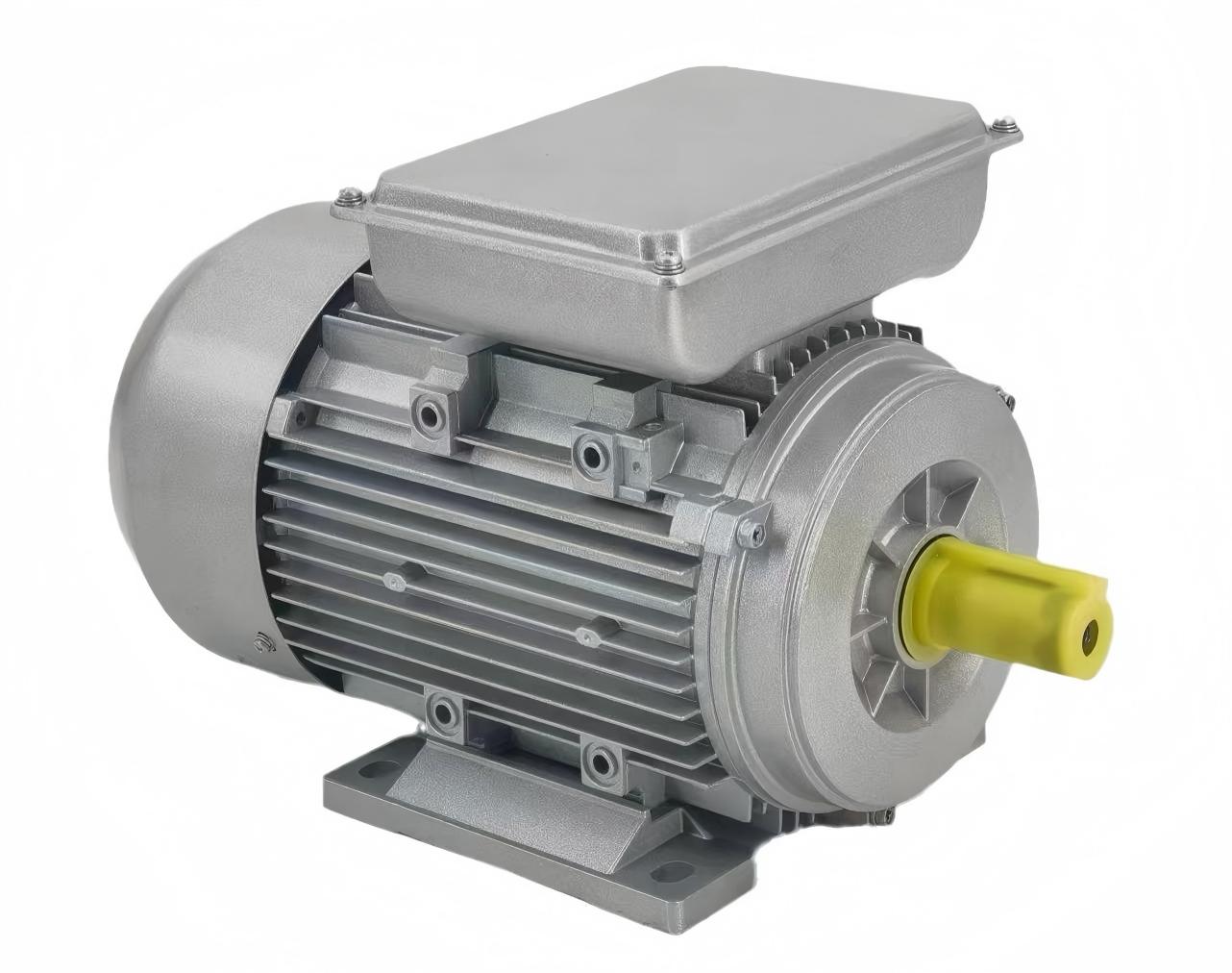

Understanding the Main Types of Single Phase Induction Motors

Before building a product line, brand owners should understand the main types of single phase induction motors. The internal design affects starting torque, running efficiency, cost, and application range.

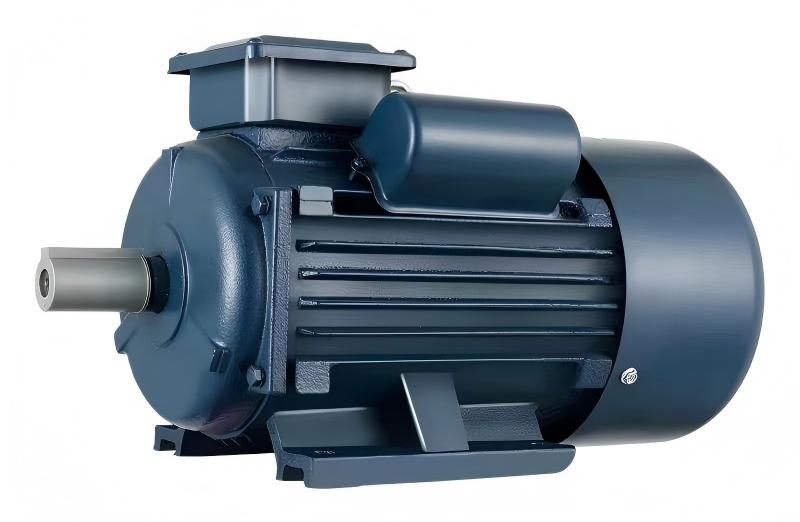

Capacitor Start Single Phase Motor

A capacitor start single phase motor uses a starting capacitor to provide higher starting torque. After the motor starts, the starting winding is usually disconnected by a centrifugal switch or another starting device.

This type is suitable for applications that need stronger starting ability, such as:

• Compressors

• Pumps

• Small machinery

• Grinding machines

• Equipment with heavier starting load

The advantage is good starting torque. The disadvantage is that the starting system is more complex, and the starting capacitor and switch quality must be reliable.

Capacitor Run Single Phase Motor

A capacitor run motor uses a running capacitor during operation. It usually has smoother running performance, better power factor, and lower noise compared with basic split phase motors.

This type is often used for fans, pumps, and equipment that needs continuous running but does not require extremely high starting torque.

For brand owners, capacitor run motors are attractive because they are stable, practical, and suitable for many standard applications.

Capacitor Start and Capacitor Run Motor

A capacitor start and capacitor run motor uses both a starting capacitor and a running capacitor. It combines strong starting torque with better running performance.

This design is commonly used for higher power single phase motors or machines with difficult starting conditions. For example, some 1.5 kW, 2.2 kW, 3 kW, and larger single phase motors may use this design.

The advantage is stronger performance. The cost is higher, but for demanding applications, it is often the better choice.

Split Phase Motor

A split phase motor is a simple single phase motor design without a capacitor or with a simplified starting structure. It is usually used for light-duty applications.

Because the starting torque is lower, it is not suitable for heavy-load starting. Brand owners should be careful when selecting this type for pumps or compressors.

PSC Motor

PSC means permanent split capacitor motor. It uses a capacitor permanently connected in the circuit. PSC motors are common in fans, blowers, air conditioners, and some pump applications.

They are known for smooth operation and relatively simple structure. However, they are not ideal for very high starting torque requirements.

Key Factors That Decide Product Line Reliability

A reliable single phase induction motor is not decided by one component. It depends on the complete design and production process. Brand owners should pay attention to the following factors when selecting a manufacturer.

Copper Winding Quality

The winding is the heart of the motor. Copper quality, wire diameter, winding turns, insulation material, and impregnation process all affect motor performance.

Poor winding may cause:

• Higher temperature rise

• Lower efficiency

• Weak output power

• Shorter motor life

• Easy burnout under overload

For brand owners, it is important to confirm whether the manufacturer uses new copper wire and proper insulation material. Some low-cost motors may reduce copper weight to cut cost, but this can cause overheating and poor performance.

A reliable motor should have stable winding data, good insulation treatment, and proper temperature rise control.

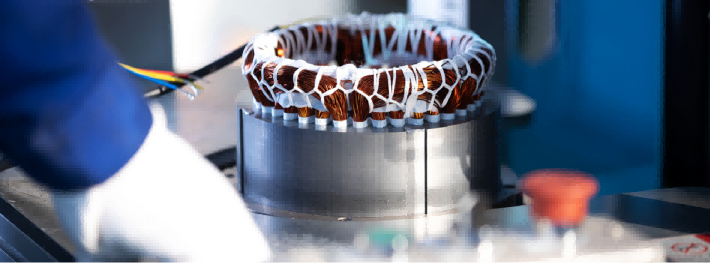

Stator and Rotor Lamination

The stator and rotor core affect magnetic performance and efficiency. High-quality silicon steel sheets help reduce iron loss and improve motor stability.

If the lamination quality is poor, the motor may have higher no-load current, more heat, lower efficiency, and louder running noise. For product lines sold under a private brand, this can create serious quality differences between batches.

Brand owners should work with suppliers that control core material and production consistency.

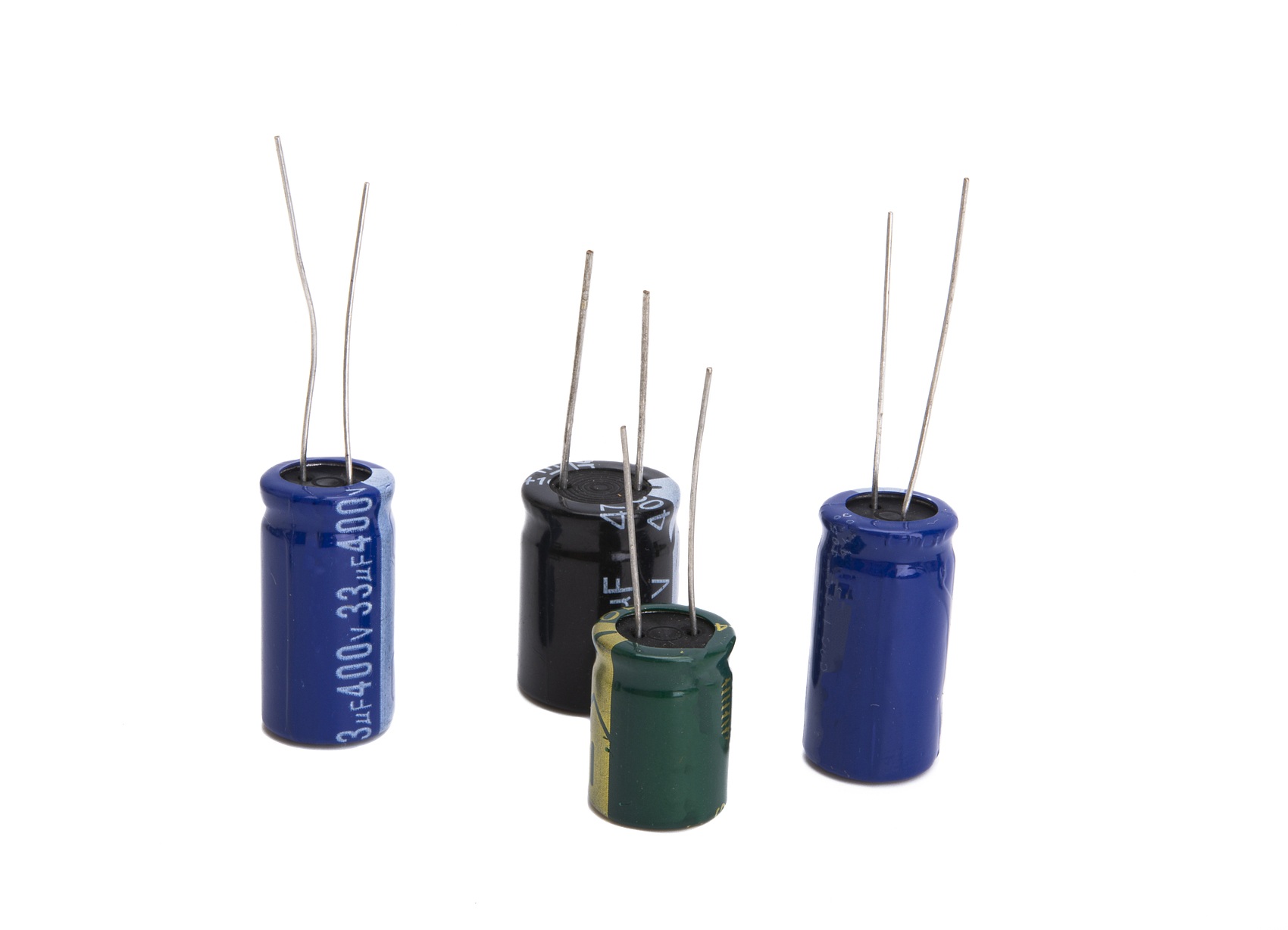

Capacitor Selection

Capacitors are one of the most common failure points in single phase motors. A poor capacitor may fail early, leak, lose capacity, or burn during frequent starting.

The starting capacitor and running capacitor should be correctly matched with the motor power, voltage, and application. For machines with frequent starting or heavy load, capacitor quality becomes even more important.

A reliable single phase motor manufacturer should not only install a capacitor that can start the motor during testing. The capacitor should also be suitable for long-term use in real working conditions.

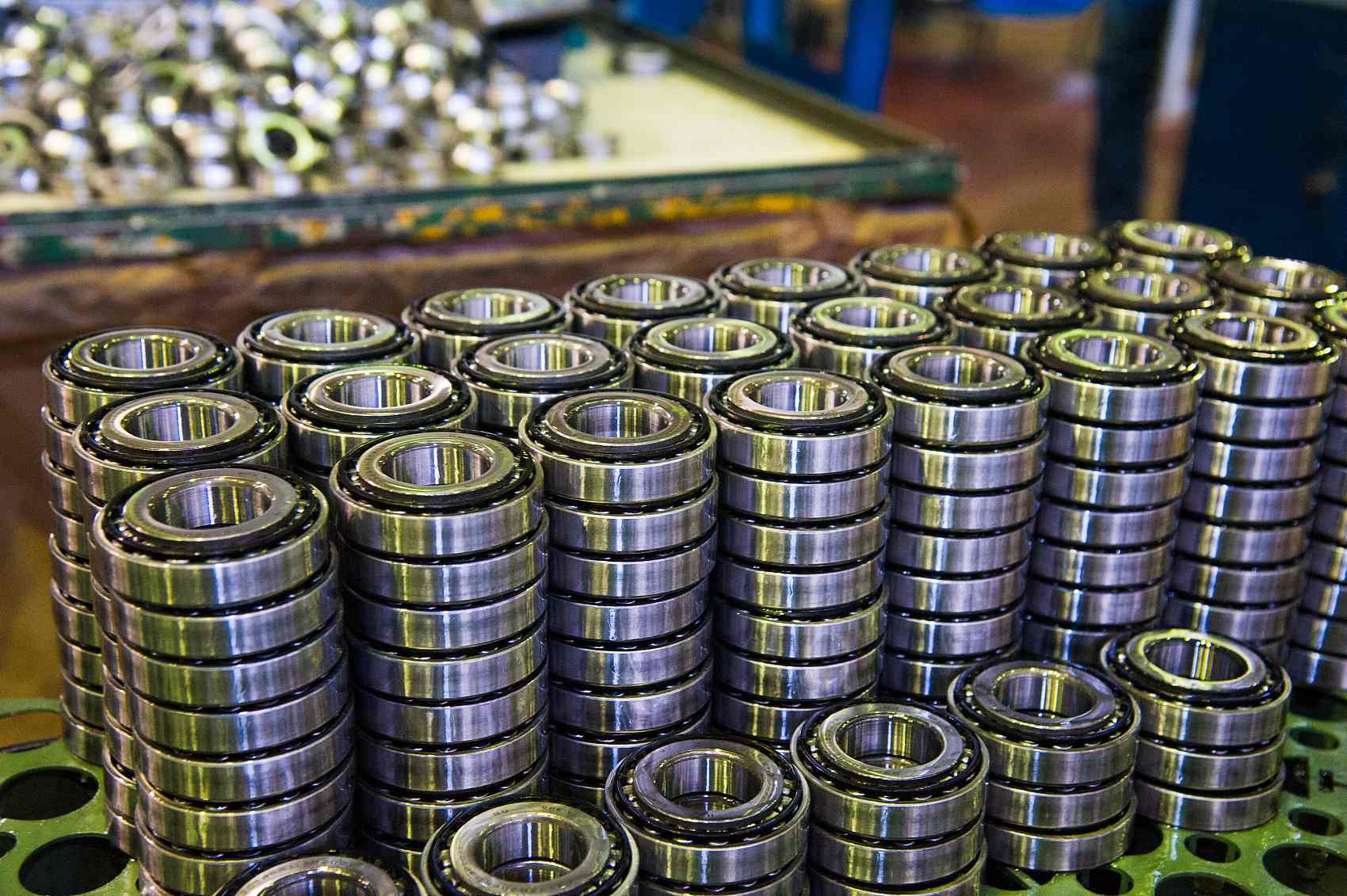

Bearing Quality

Bearings affect noise, vibration, and service life. Low-quality bearings may cause abnormal noise after short operation, especially in pumps, fans, and compressors that run for long hours.

For higher-end product lines, brand owners can consider SKF, NSK, FAG, or other premium bearing options. For standard product lines, a stable bearing supplier is still necessary.

Bearing selection should match motor speed, load, installation direction, and working environment.

Shaft Accuracy

Shaft dimension accuracy is very important when the motor is connected to pumps, pulleys, couplings, or gearboxes. If the shaft diameter, keyway, length, or concentricity is not accurate, the customer may face installation problems.

For OEM brand owners, customized shaft design is often required. A good factory should be able to provide technical drawings before production and control machining accuracy during batch production.

Cooling Performance

Single phase motors may produce more heat than expected if the load is heavy, the voltage is unstable, or the motor runs continuously. Therefore, cooling design is important.

Cooling performance depends on:

• Fan design

• Fan cover structure

• Housing surface area

• Motor frame size

• Winding design

• Running current control

If the motor is used in a hot environment, dusty area, or continuous-duty application, brand owners should confirm the temperature rise and duty cycle with the supplier.

Motor Housing Strength

Single phase motors are commonly made with aluminum or cast iron housings. Aluminum motors are lighter and attractive for many standard applications. Cast iron motors are stronger and often preferred for heavy-duty or harsh environments.

For brand owners, the housing choice should match the market position. A light-duty product line may use aluminum housing to control cost and weight. A heavy-duty industrial line may use cast iron housing for better strength and durability.

How Brand Owners Should Design a Complete Product Range

A successful product line should not be random. It should be planned according to customer demand, local voltage standards, application industries, and stocking strategy.

Power Range Planning

Most single phase motor product lines include small and medium power ranges. Common models may include:

• 0.37 kW

• 0.55 kW

• 0.75 kW

• 1.1 kW

• 1.5 kW

• 2.2 kW

• 3 kW

• 4 kW

• 5.5 kW

For many markets, 0.75 kW to 3 kW are popular for pumps, compressors, fans, and small machinery. Brand owners can start with the most common models, then expand according to customer feedback.

A practical strategy is to divide the line into three levels:

Entry-Level Line

This line focuses on basic applications and competitive price. It is suitable for light-duty use, general pumps, fans, and household equipment.

Standard Industrial Line

This line uses better winding, better capacitors, and stronger bearings. It is suitable for distributors and small industrial users who need stable quality.

Heavy-Duty Line

This line focuses on stronger starting torque, cast iron housing, premium bearings, better sealing, and customized technical options. It is suitable for compressors, workshops, agricultural machines, and equipment manufacturers.

Voltage and Frequency Options

Different markets use different power systems. Brand owners should confirm local standards before building inventory.

Common options include:

• 110V 60Hz

• 115V 60Hz

• 220V 50Hz

• 220V 60Hz

• 230V 50Hz

• 240V 50Hz

• 220/240V

• Special voltage according to customer request

Voltage and frequency affect motor winding design, speed, torque, current, and capacitor selection. A 220V 50Hz motor should not be treated exactly the same as a 220V 60Hz motor.

For international brand owners, customized voltage and frequency are important. A supplier with strong engineering ability can help adjust motor design for different countries.

Mounting Types

Mounting type affects installation compatibility. Common mounting structures include:

• B3 foot mounting

• B5 flange mounting

• B14 small flange mounting

• B35 foot and flange mounting

• Special mounting for OEM machines

For replacement markets, standard mounting dimensions are important. For OEM machines, customized flanges or shafts may be required.

A good product line should include the most common mounting types and support special designs when customers need them.

Speed Options

Single phase motors are usually available in different pole designs. Common speeds include:

• 2 pole: about 2800–3450 rpm depending on frequency

• 4 pole: about 1400–1750 rpm depending on frequency

• 6 pole: about 900–1150 rpm depending on frequency

The right speed depends on the driven machine. Pumps and compressors may use different speeds. Fans may need lower noise and stable airflow. Brand owners should prepare datasheets clearly showing rated speed, power, current, voltage, frequency, and mounting dimensions.

Enclosure and Protection Grade

For standard applications, IP44 or IP55 may be used depending on market requirements. For industrial or outdoor applications, IP55 is often preferred. Some customers may request higher protection such as IP65.

Protection grade should match the working environment. A motor used indoors in a clean area does not need the same sealing as a motor used in a farm, workshop, or wet environment.

Brand owners should clearly define which protection grade belongs to each product line.

Common Problems in Low Quality Single Phase Motors

Understanding common problems helps brand owners avoid supplier mistakes and reduce after-sales costs.

Capacitor Failure

Capacitor failure is one of the most frequent complaints. It may happen because the capacitor quality is poor, the voltage rating is too low, the motor starts too often, or the motor is overloaded.

When capacitors fail, the motor may hum, fail to start, rotate weakly, or trip protection devices.

To reduce this risk, brand owners should ask the supplier to use reliable capacitor brands and proper capacitor specifications.

Overheating

Overheating may be caused by insufficient copper, poor lamination, overload, wrong voltage, blocked cooling, or poor design.

A motor that becomes too hot may damage insulation and shorten service life. For product lines used in hot regions, temperature rise control is especially important.

Brand owners should request testing data and confirm that the motor is suitable for the intended duty cycle.

Low Starting Torque

Some machines need strong starting torque. If the motor design is not suitable, the motor may fail to start under load.

This problem often appears in compressors, pumps, grinders, and machines with mechanical resistance at startup.

To avoid this issue, brand owners should match motor type with application. For heavy starting load, capacitor start or capacitor start and capacitor run motors are usually better choices.

High Noise

Noise can come from bearings, rotor imbalance, fan design, poor assembly, or electromagnetic vibration. In markets where users care about comfort, such as household pumps or fans, noise control is important.

A stable factory should test vibration and noise before delivery, especially for batch orders.

Short Bearing Life

Short bearing life may result from poor bearing quality, wrong installation, shaft misalignment, excessive radial load, or poor sealing.

If the motor drives a belt pulley, radial load should be considered carefully. If it connects directly to a pump or gearbox, shaft alignment becomes very important.

How to Work with the Right Single Phase Motor Manufacturer

Selecting the right manufacturer is one of the most important decisions for brand owners. A reliable supplier should not only give a price. They should help you build a stable product system.

Technical Communication

Before production, brand owners should confirm:

• Rated power

• Voltage and frequency

• Rated speed

• Mounting type

• Shaft size

• Frame size

• Capacitor type

• Duty cycle

• Protection grade

• Insulation class

• Working environment

• Application machine

• Branding requirements

The more complete the information, the lower the risk of wrong selection.

Sample Testing

For new product lines, sample testing is necessary. Brand owners should test the motor with real equipment, not only in no-load condition.

Important sample tests include:

• Starting performance

• Running current

• Temperature rise

• Noise and vibration

• Load performance

• Installation compatibility

• Capacitor performance

• Long-time running test

After sample approval, the supplier should keep the same technical standard for batch production.

Customized Branding

For brand owners, branding is part of product value. A manufacturer should support:

• Customer logo

• Customized nameplate

• Customized color

• Customized carton

• Product label

• Technical datasheet

• User manual

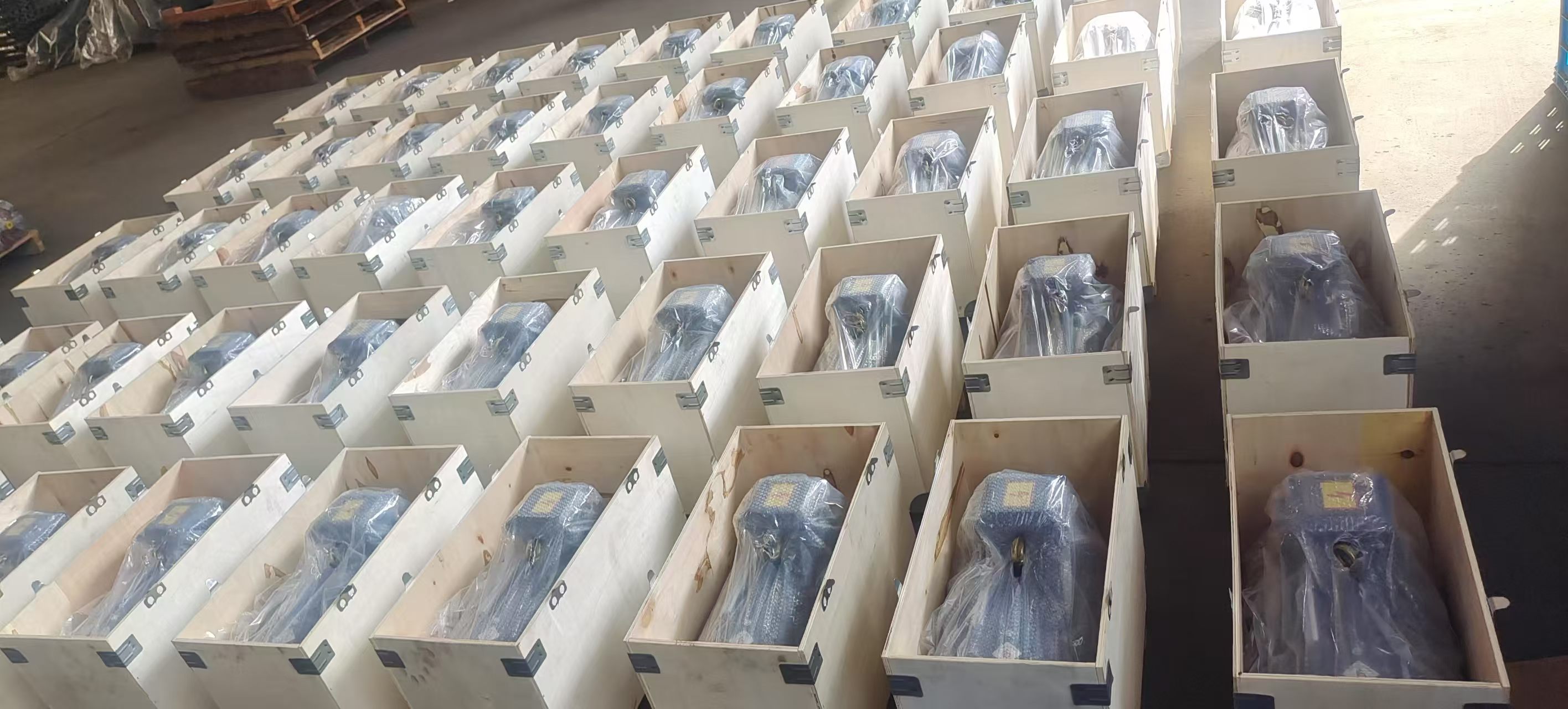

• OEM packaging

A consistent brand image helps distributors sell the product more professionally.

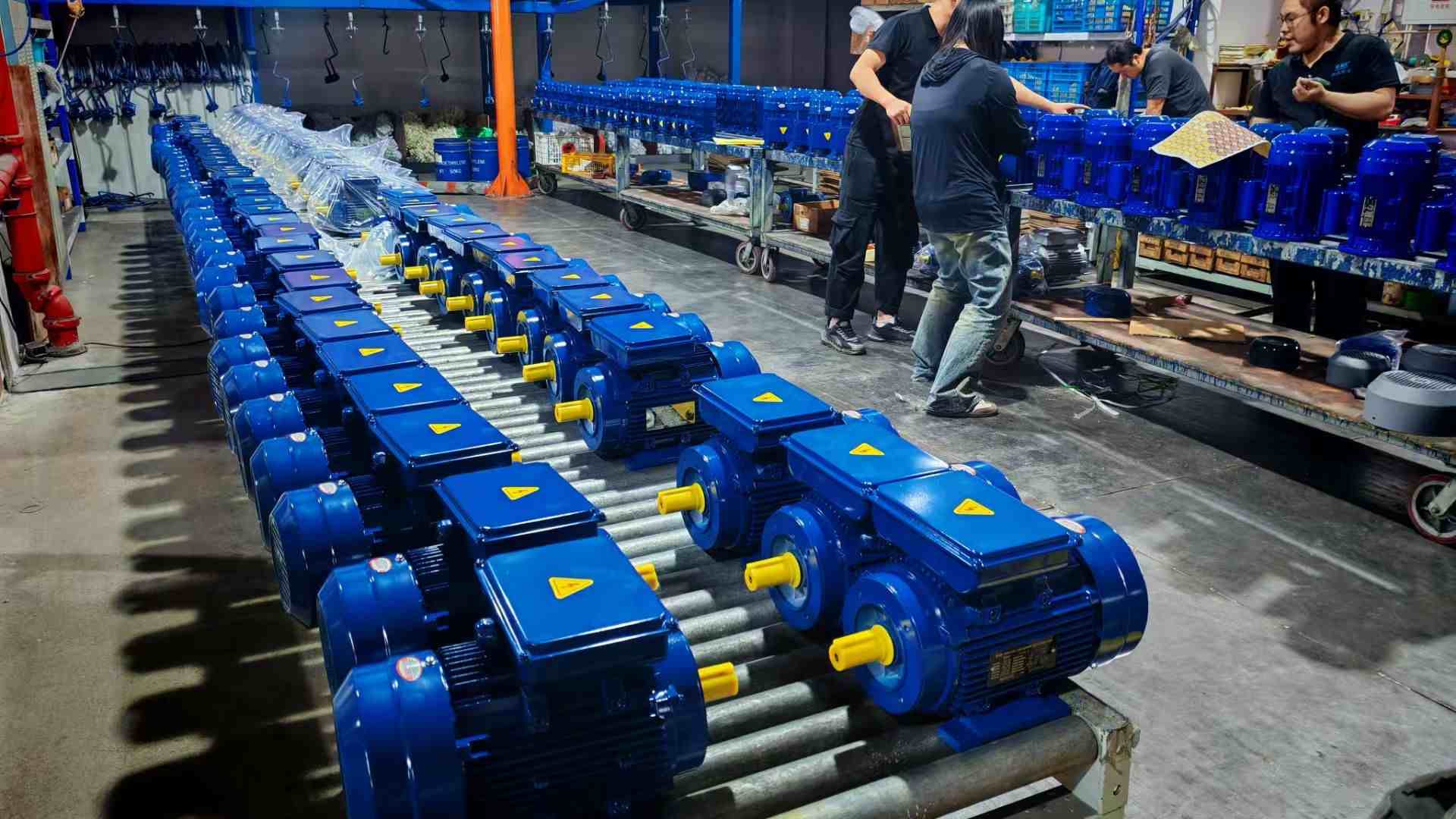

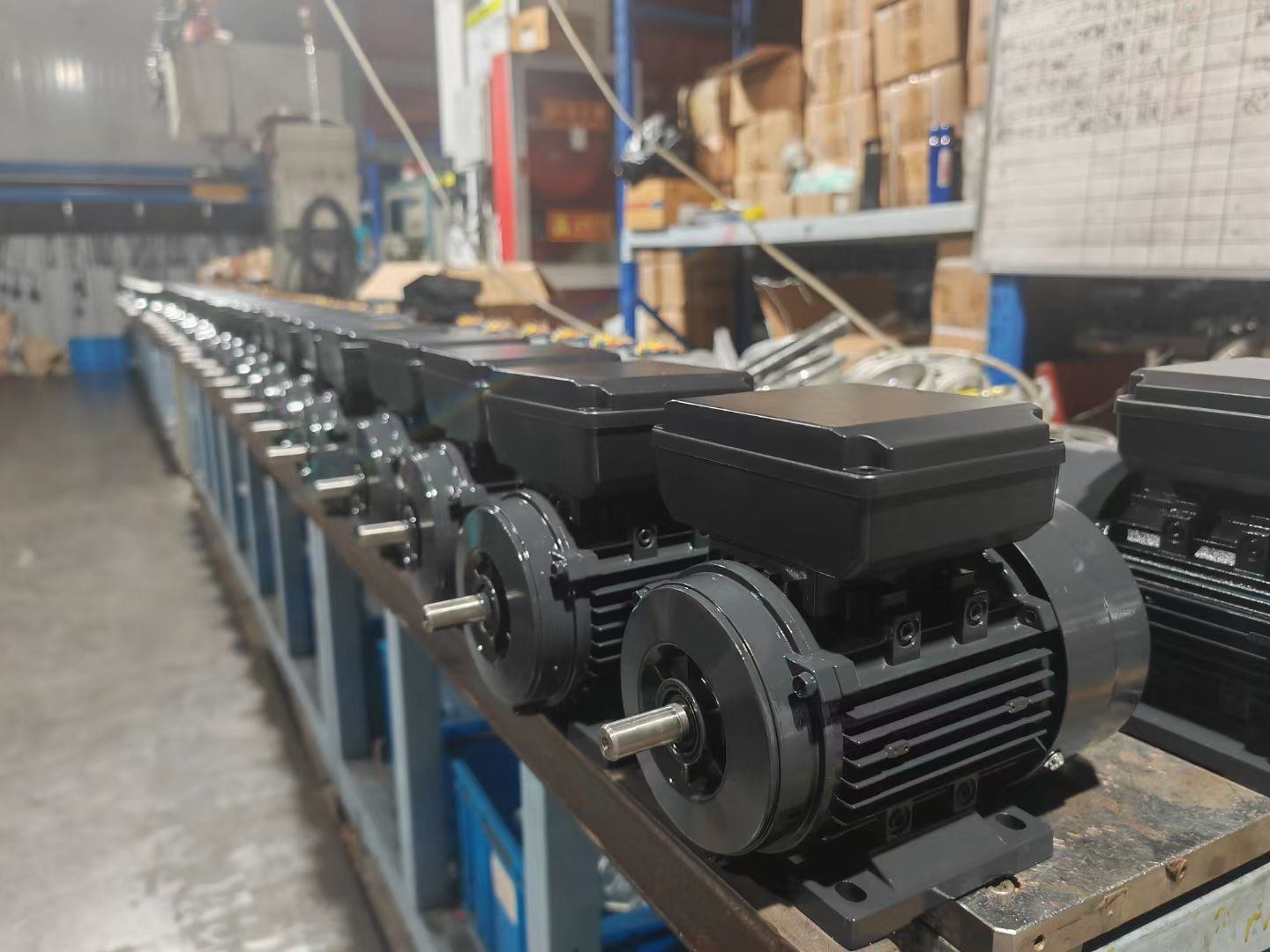

Stable Batch Production

Many suppliers can make one good sample, but not every supplier can keep the same quality in mass production. Brand owners should focus on batch consistency.

Important controls include:

• Same winding design

• Same capacitor specification

• Same bearing level

• Same shaft dimension

• Same testing standard

• Same packaging requirement

• Same inspection process

Long-term cooperation depends on consistency, not only the first sample.

Victory’s Advantages for Brand Owners

Victory supports brand owners, distributors, OEM equipment manufacturers, and industrial suppliers who want to build reliable single phase induction motor product lines with stable quality and flexible customization.

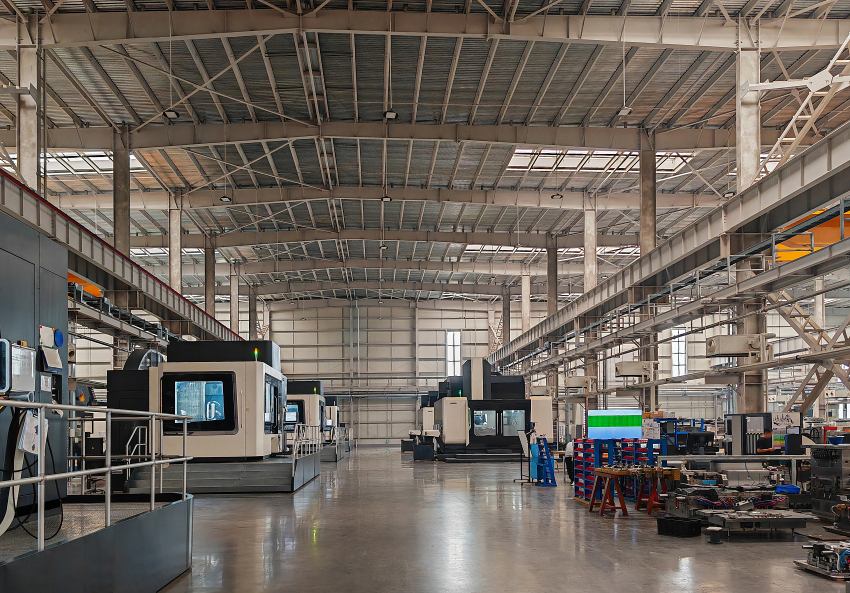

Factory Supply and Competitive Cost

As a factory supplier, Victory can help customers reduce unnecessary trading cost while keeping technical communication direct and efficient. This is important for brand owners who need competitive pricing but cannot sacrifice quality stability.

For long-term product line cooperation, factory-direct supply makes it easier to control materials, production schedule, sample improvement, and batch quality.

Custom Voltage, Shaft, Flange, Color and Nameplate

Different markets have different requirements. Victory can support customized options such as:

• 110V, 220V, 230V, 240V and other voltage options

• 50Hz or 60Hz frequency

• Special shaft diameter and length

• Special flange or mounting design

• B3, B5, B14, B35 mounting types

• Customer logo and brand nameplate

• Customized motor color

• Aluminum or cast iron housing options

• Capacitor start, capacitor run, or capacitor start and run design

• Technical drawings before production

This flexibility is especially useful for brand owners who need to build private label single phase motor product lines for different regions.

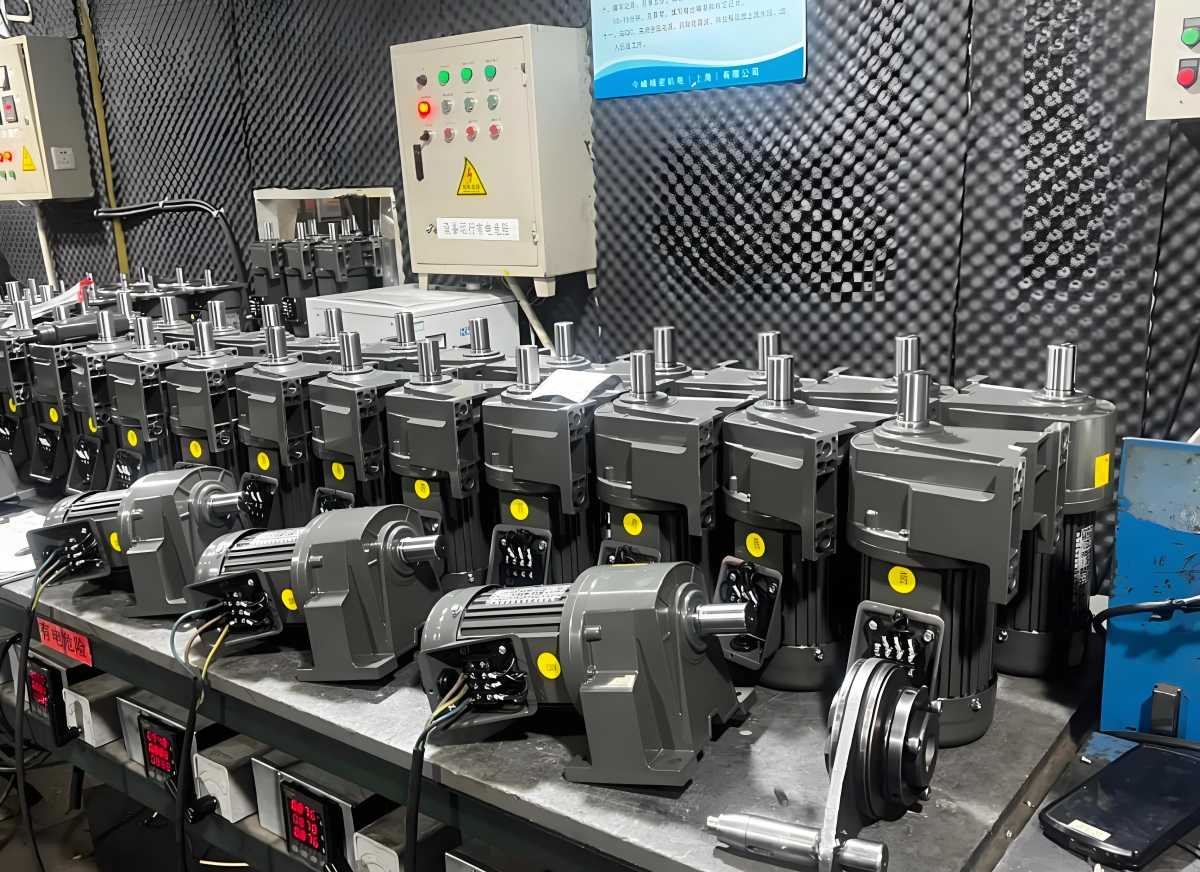

100% Testing Before Delivery

For single phase motors, testing is very important because starting performance and capacitor matching directly affect user experience.

Victory checks motors before delivery to help reduce quality risks. Testing can include no-load running, current checking, voltage confirmation, rotation direction, noise observation, and appearance inspection.

For customized orders, technical drawings and key parameters can be confirmed before production to avoid installation mistakes.

Warranty and Long-Term Support

Victory provides an 18-month warranty after delivery. For brand owners, this gives more confidence when developing a new product line or entering a new market.

Long-term support is also important. If customers need to adjust voltage, improve capacitor selection, change shaft design, upgrade bearings, or develop a new model, Victory can provide technical communication and production support.

Building a Reliable Product Line Step by Step

Brand owners can follow a practical process to reduce risk.

Step 1: Define the Target Market

Before selecting models, confirm where the motors will be sold and what machines they will drive. A pump market, compressor market, and fan market may require different motor designs.

Step 2: Choose Core Models First

Start with the most popular power ranges and mounting types. Do not build too many models at the beginning. A focused product line is easier to test, stock, and promote.

Step 3: Confirm Technical Standards

Create a clear specification sheet for each model. Include voltage, frequency, power, speed, frame size, mounting, capacitor, protection grade, insulation class, and shaft dimension.

Step 4: Test Samples Under Real Load

Do not approve a product only by appearance. Test it with the real machine or similar load condition. Measure current, temperature, noise, and starting ability.

Step 5: Improve Before Batch Order

If sample testing shows any issue, adjust the design before mass production. This may include changing capacitor size, improving bearing selection, modifying shaft dimensions, or upgrading insulation.

Step 6: Build Consistent Packaging and Branding

Professional packaging, labels, datasheets, and nameplates help improve brand value. Customers feel more confident when the product looks organized and technical information is clear.

Step 7: Monitor After-Sales Feedback

After selling the first batch, collect feedback from dealers and end users. Track capacitor failure, overheating, noise, bearing problems, and installation issues. Use this feedback to improve the next batch.

FAQ

What is the best single phase induction motor for heavy starting load?

For heavy starting load, a capacitor start motor or capacitor start and capacitor run motor is usually better. These designs provide stronger starting torque and are more suitable for compressors, pumps, grinders, and small machinery.

Can single phase motors be customized for different countries?

Yes. Single phase motors can be customized for different voltage and frequency requirements, such as 110V 60Hz, 220V 50Hz, 220V 60Hz, 230V 50Hz, or other special standards. Shaft, flange, color, nameplate, and packaging can also be customized.

Why do capacitors fail in single phase motors?

Capacitors may fail because of poor quality, wrong voltage rating, frequent starting, overload, high temperature, or incorrect matching with the motor. Choosing reliable capacitors and correct motor design can reduce this problem.

Are aluminum housing motors or cast iron housing motors better?

It depends on the application. Aluminum housing motors are lighter and suitable for many standard applications. Cast iron motors are stronger and better for heavy-duty, industrial, or harsh environments.

How can brand owners reduce after-sales problems?

Brand owners should choose a reliable manufacturer, confirm specifications clearly, test samples under real load, use stable components, and keep batch production consistent. Capacitor quality, winding design, bearing selection, and cooling performance are especially important.

Can Victory provide private label single phase motors?

Yes. Victory can support customer logo, customized nameplate, color, packaging, shaft, flange, voltage, frequency, and other technical requirements for brand owners and OEM customers.

Conclusion

Building a reliable single phase induction motor product line requires more than choosing a low price. Brand owners must understand motor type, application demand, component quality, testing standards, and supplier capability.

A good product line should have stable winding quality, reliable capacitors, accurate shaft dimensions, proper cooling, strong bearings, and clear technical specifications. It should also match the real needs of pumps, fans, compressors, agricultural machines, and small industrial equipment.

For brand owners who want to build long-term market reputation, working with a reliable factory is the key. Victory can support customized single phase induction motors with flexible voltage, frequency, shaft, flange, color, logo, nameplate, packaging, and technical drawings. With factory-direct supply, 100% testing before delivery, and 18-month warranty support, Victory helps brand owners develop stable, competitive, and reliable single phase motor product lines for global markets.
