Building reliable explosion-proof motor product lines is more complicated than selecting standard industrial motors and replacing their nameplates.

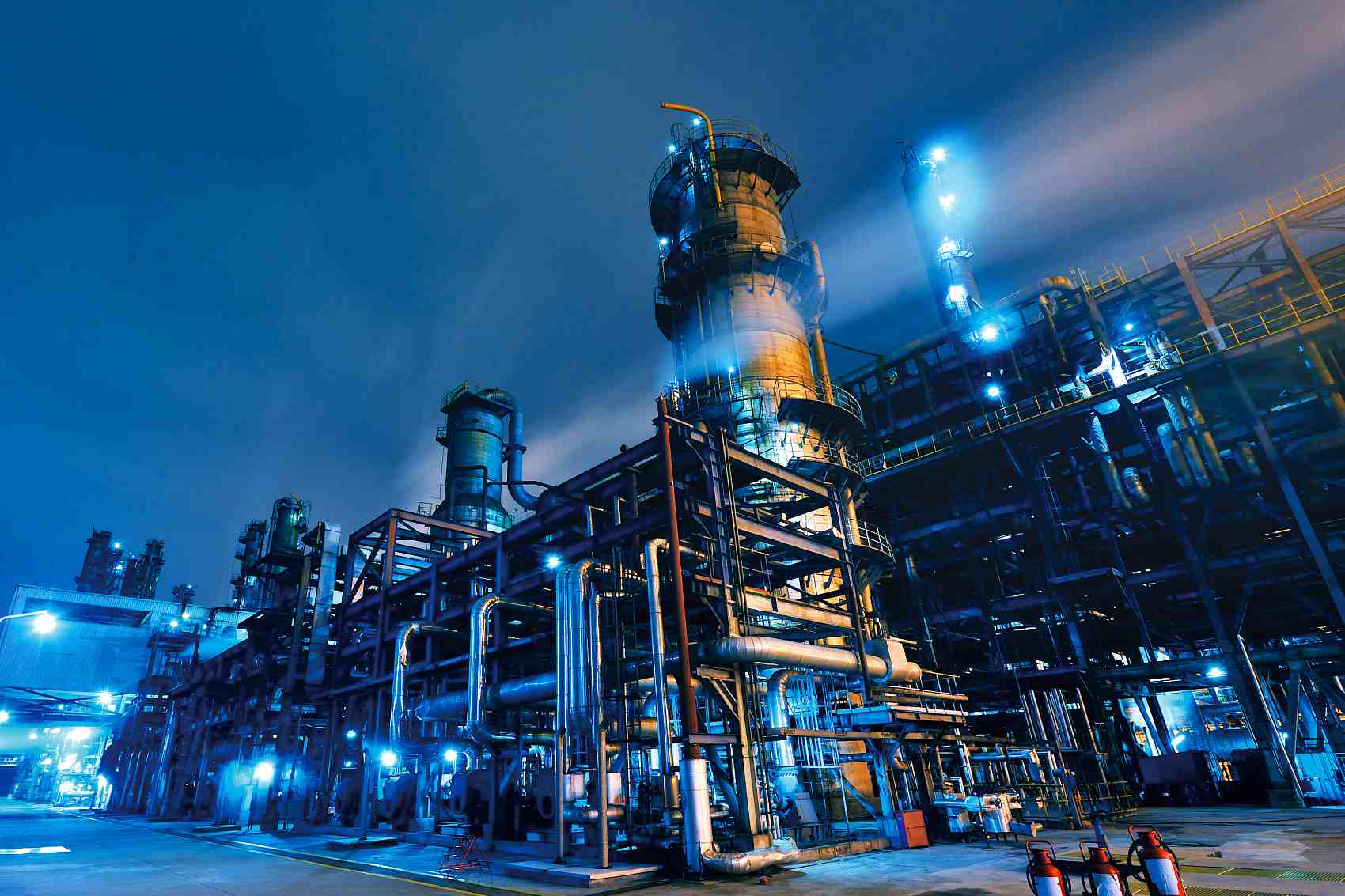

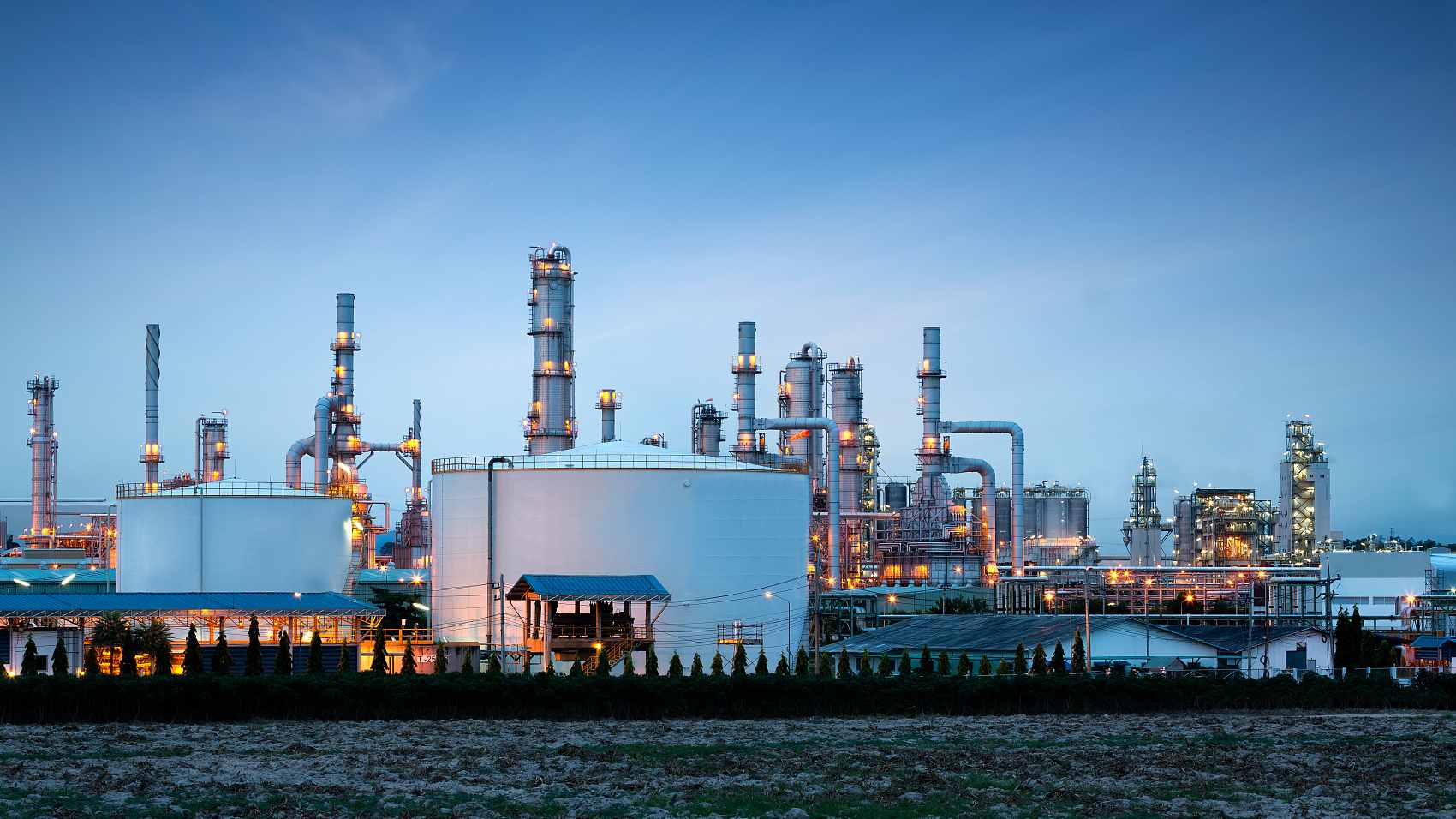

Explosion-proof motors are used in petroleum processing, chemical plants, paint production, gas handling, mining, grain processing, food production, pharmaceutical facilities, wastewater treatment, and other locations where flammable gases, vapors, combustible dust, or fibers may create an explosion risk.
In these applications, incorrect motor selection can create consequences far more serious than ordinary equipment downtime. The motor must be suitable for the hazardous-area classification, explosive material, temperature requirement, protection concept, ambient conditions, electrical supply, driven load, and local certification system.
The term “explosion-proof motor” is often used commercially as a general description. Under IEC-based systems, however, flameproof enclosure “Ex d,” increased safety “Ex e,” and dust protection by enclosure “Ex t” are different protection concepts with different construction and testing requirements. IEC 60079-0 defines the general construction, testing, and marking requirements for Ex equipment, while separate parts of the IEC 60079 series cover specific protection methods.
Brand owners must therefore build the product range around clearly defined markets and certified configurations rather than marketing one motor as suitable for every hazardous location.
This guide explains how brand owners can work with a qualified explosion-proof motor manufacturer to develop a safe, consistent, and commercially practical product line.
The first step is to decide where the motors will be sold.
Certification and marking requirements differ between Europe, IECEx markets, North America, and countries operating their own national approval systems.
Equipment placed on the European Union market for use in potentially explosive atmospheres falls under ATEX Directive 2014/34/EU. The directive establishes essential health and safety requirements and the conformity assessment procedures that apply before covered equipment is placed on the EU market.
An ATEX product line must be planned according to factors such as:
Equipment group and category
Gas or dust environment
Protection method
Gas or dust group
Temperature class or maximum surface temperature
Equipment Protection Level
Ambient temperature range
Certification and production-control requirements
A CE mark alone does not make a standard motor suitable for an explosive atmosphere. The required ATEX marking and supporting conformity documents must cover the actual motor configuration.
The IECEx Certified Equipment Scheme provides international third-party certification for equipment used in explosive atmospheres. IECEx certification includes product assessment and ongoing Quality Assessment Reports intended to verify that production remains consistent with the certified sample.
Some countries accept IECEx certificates directly, while others use IECEx test reports as part of a local approval process.
Brand owners should confirm:
Whether IECEx is accepted in the destination country
Whether national registration is also required
Whether the selected certificate covers the exact motor
Whether the manufacturing location is included
Whether accessories and options are within the approved scope
An IECEx electric motor should never be selected only from a catalogue description. The certificate number, schedule, drawings, conditions of certification, and current online certificate status should be reviewed.
The United States and Canada commonly use hazardous-location systems based on Classes, Divisions, Groups, and sometimes Zones.
In the United States, OSHA classifications distinguish locations involving flammable gases or vapors, combustible dust, and ignitable fibers or flyings. Equipment must be approved for the specific hazardous classification in which it will be installed.
An ATEX or IECEx marking should not automatically be presented as equivalent to a North American approval.
A brand owner entering the US or Canadian market should work with the motor manufacturer and an appropriate certification body to confirm the required NRTL, UL, CSA, or other recognized approval.
The motor supplier should not determine the hazardous-area classification merely from the customer’s industry.
A paint factory, grain-processing plant, oil terminal, and wastewater facility may each contain several different zones or divisions.
Gas-hazard applications may involve substances such as hydrocarbons, solvents, hydrogen, or other flammable gases and vapors.
The customer should provide:
Hazardous zone or division
Gas group
Required temperature class
Required protection concept
Ambient temperature
Indoor or outdoor installation
Certificate system
IEC 60079-1 covers equipment using flameproof enclosure protection “d.” The enclosure is designed and tested according to defined requirements for equipment intended for explosive gas atmospheres.
The construction depends on carefully controlled features such as enclosure strength, joints, clearances, threaded entries, fasteners, and terminal arrangements.
These features are part of the certified design and must not be modified casually.
IEC 60079-7 covers increased safety protection “e.” This protection method applies additional design and construction measures to reduce the risk of arcs, sparks, or excessive temperatures under defined operating conditions.
An Ex e motor and an Ex d motor are not interchangeable descriptions. Brand owners must preserve the exact protection marking approved for the motor.

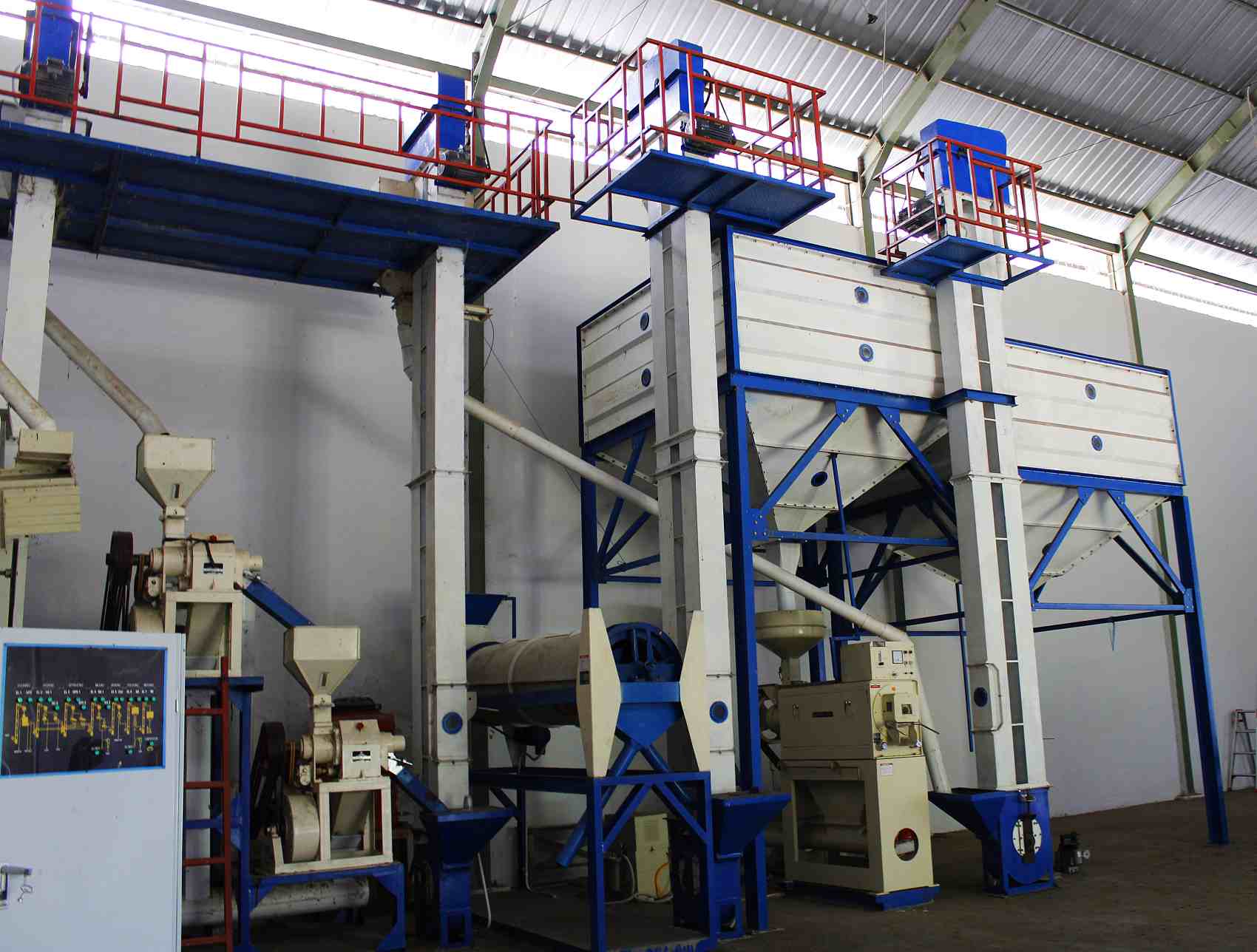

Combustible dust may be present in grain handling, flour production, animal-feed plants, woodworking, metal processing, chemical production, and similar industries.
IEC 60079-31 covers equipment protected by enclosure and surface-temperature limitation for explosive dust atmospheres.
A reliable dust explosion-proof motor product line must consider:
Dust zone
Dust group
Maximum surface temperature
Dust layer accumulation
Enclosure protection
Shaft sealing
Terminal-box sealing
Cooling-fin design
Cleaning and maintenance conditions
Dust protection should not be treated as a simple addition to a gas-certified motor. Gas and dust markings must be supported by the motor’s certified construction.
A motor can become an ignition source if its external surface or internal components reach an unsafe temperature.
Temperature performance is affected by:
Motor load
Starting frequency
Ambient temperature
Voltage variation
VFD operation
Cooling conditions
Dust accumulation
Mechanical blockage
Bearing condition
The selected motor must carry the appropriate temperature marking for the explosive material and installation conditions.
The customer or hazardous-area specialist should define the required temperature class or maximum surface temperature. The motor manufacturer should not guess this requirement.
A reliable range should cover the most important market requirements without creating too many unmanageable combinations.
Brand owners can begin with several standardized groups:
Gas explosion-protected motors for higher-risk zones
Gas motors for lower-risk zones
Dust explosion-protected motors
Combined gas and dust configurations
Explosion-proof motors for VFD operation
Application-specific OEM motors
Each group should have its own approved model coding, technical datasheet, marking format, and certificate references.
The initial range should focus on the powers most commonly requested by the target market.
Consider:
Typical pump and fan powers
Common compressor and mixer sizes
Distributor inventory capacity
Standard IEC frame sizes
Local voltage and frequency
Required pole numbers
Available certification scope
A focused range is easier to control than a catalogue containing every possible power, voltage, and mounting configuration.
Common options include two-pole, four-pole, six-pole, and eight-pole motors.
The product range should show:
Rated output
Rated speed
Rated current
Efficiency class
Starting performance
Duty type
Permitted ambient range
Protection marking
Special two-speed motors or non-standard speeds should be treated as separate engineering projects.

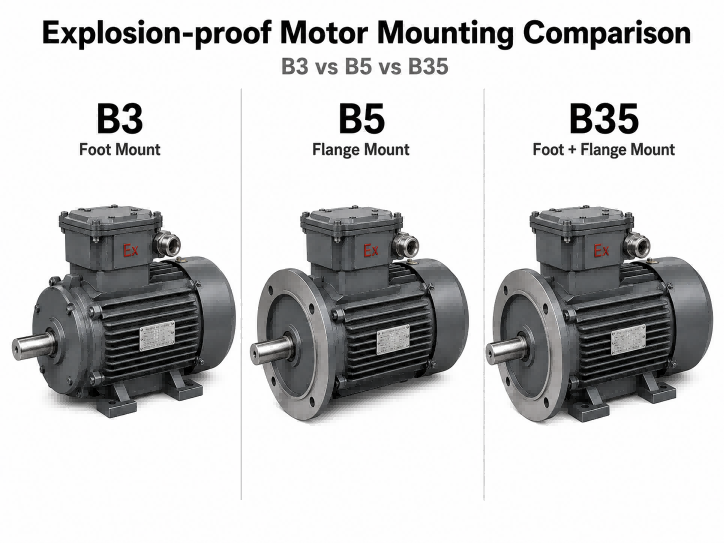

Common mounting options include:
IM B3 foot mounting
IM B5 flange mounting
IM B35 foot and flange mounting
Vertical shaft arrangements
Customized pump or gearbox interfaces
Different mounting positions can affect cooling, bearing loads, drainage, and certification conditions. Every proposed arrangement should be checked against the approved design.
An explosion-proof enclosure does not compensate for an incorrectly selected electrical design.
The product line should define market-specific configurations, such as:
380 V, 50 Hz
400 V, 50 Hz
415 V, 50 Hz
440 V, 60 Hz
460 V, 60 Hz
480 V, 60 Hz
Approved dual-voltage arrangements
Changing the voltage, frequency, winding connection, or power rating may affect current, temperature rise, starting performance, and certification.
The brand owner should confirm that every electrical version is included within the manufacturer’s approved technical scope.
The supplier should know:
Operating hours per day
Starts per hour
Direct-on-line or reduced-voltage starting
Whether the machine starts under load
Acceleration time
Load inertia
Expected overload
Continuous or intermittent duty
High-inertia fans, loaded conveyors, crushers, and mixers can have longer acceleration times than simple pumps.
Long acceleration periods may increase rotor and stator temperatures even when the normal running current is acceptable.
A standard explosion-proof motor should not automatically be used with a variable frequency drive.
VFD operation can affect:
Motor cooling at low speed
Winding temperature
Bearing currents
Peak voltage stress
Permitted speed range
Surface temperature
Required thermal protection
Motor and inverter coordination
The certificate and manufacturer’s instructions should confirm whether VFD operation is permitted and under what conditions.

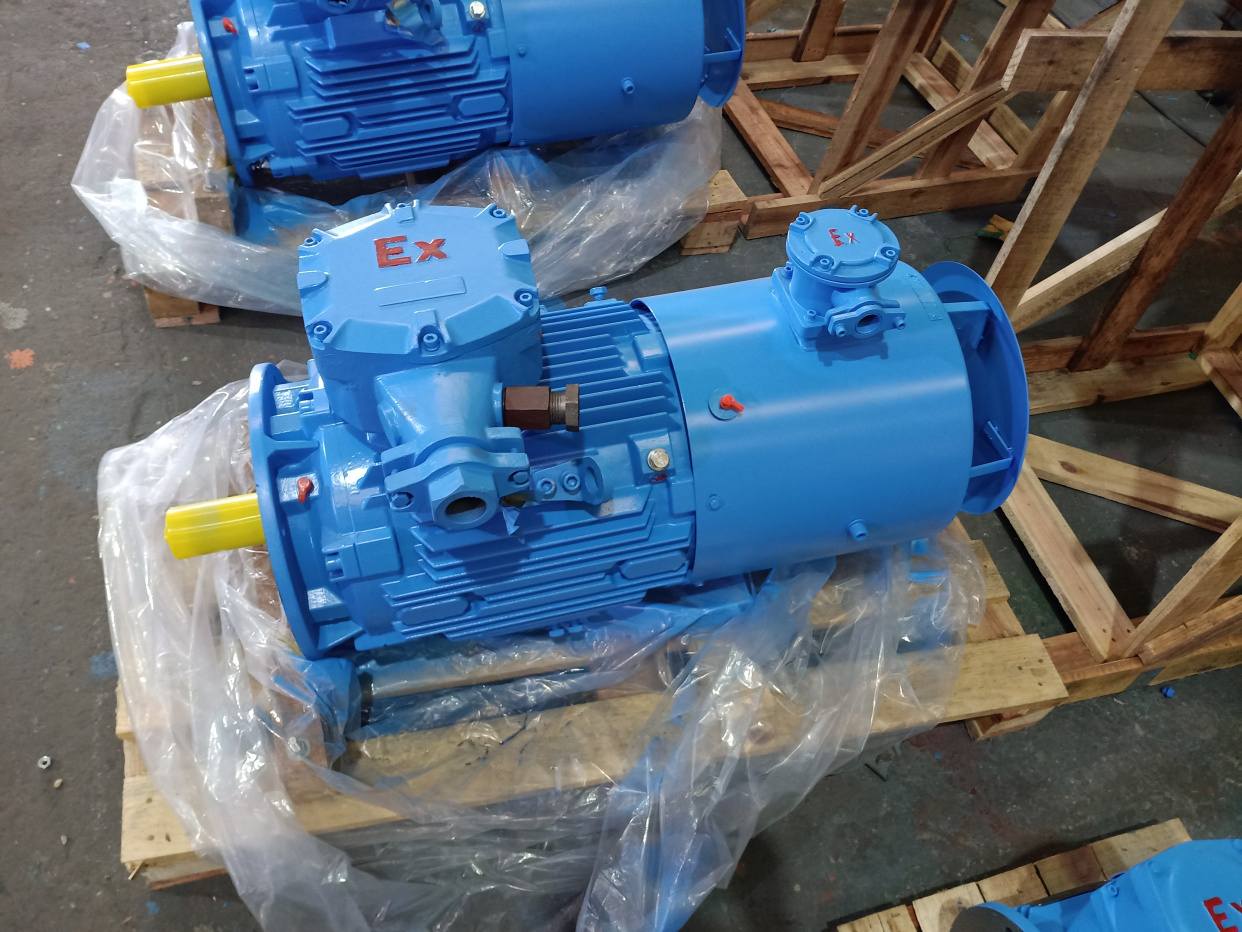

A VFD-duty hazardous area electric motor may require PTC thermistors, PT100 sensors, independent cooling, restricted frequency ranges, or specific inverter settings.
Depending on the approved design, thermal protection may include:

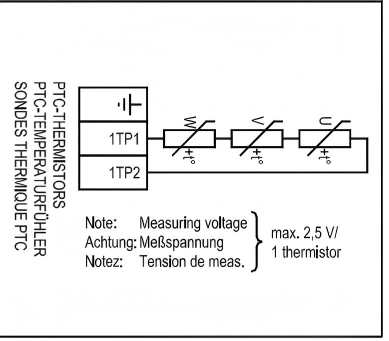

PTC thermistors
PT100 temperature sensors
Bearing temperature sensors
Space heaters
External protection relays
These accessories must be included in the original engineering and certification review. Installing an unapproved component inside an Ex motor may invalidate the approved construction.
Mechanical details are essential to explosion protection and product consistency.
For an Ex d flameproof motor, enclosure joints, shaft passages, threaded parts, covers, and fasteners are controlled features.
Brand owners should require the manufacturer to control:
Housing material
Machined joint dimensions
Surface finish
Fastener grade
Thread specifications
Cover engagement
Shaft clearances
Terminal-box construction
Critical dimensions should be inspected and recorded during production.
The terminal box should match the intended cable arrangement and certification requirements.
Confirm:
Cable-entry thread
Number and position of entries
Approved cable glands
Terminal size
Earthing terminals
Terminal-box orientation
Blanking plugs

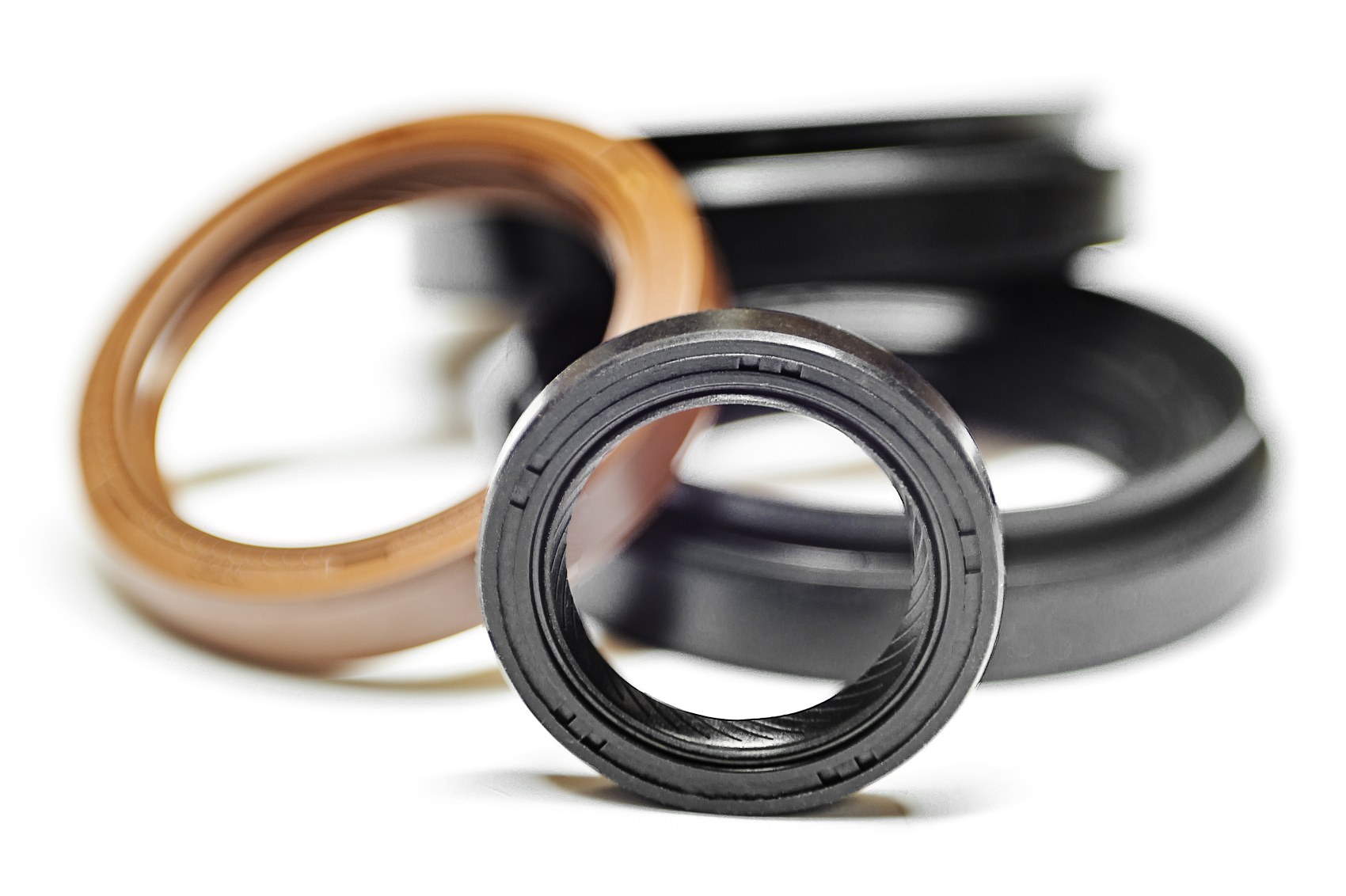

Sealing requirements
Cable glands and blanking elements must be suitable for the relevant protection concept and installation.
Brand owners should avoid supplying ordinary industrial cable glands with explosion-protected motors.
The mechanical platform should define:

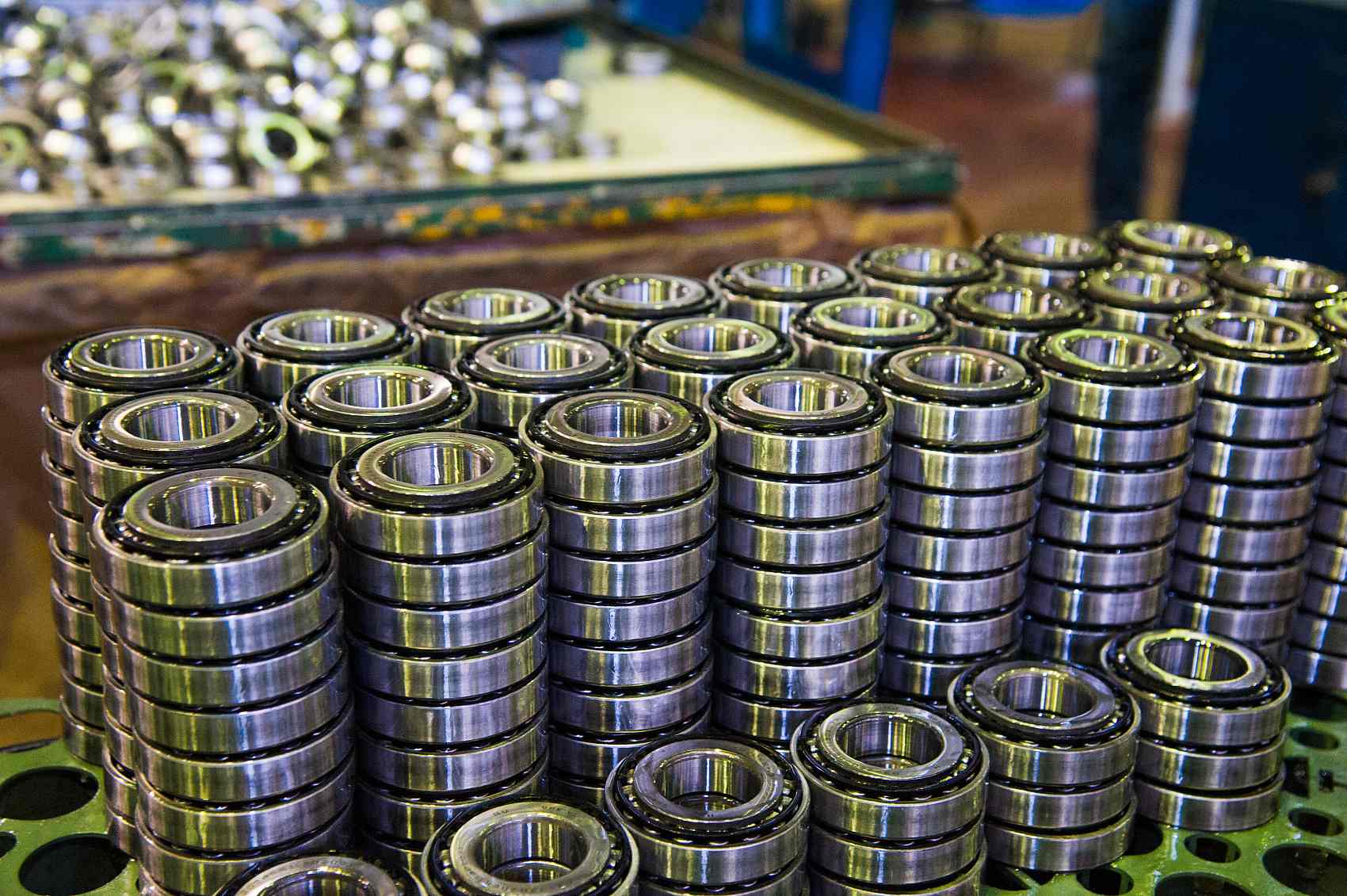

Bearing models
Bearing brands
Internal clearance
Grease specification
Shaft material
Shaft tolerances
Radial and axial load limits
Seal arrangement
Bearing failure can increase vibration, friction, and temperature. It may also damage the flameproof shaft interface or enclosure.
Outdoor, coastal, chemical, and wastewater applications may require additional corrosion protection.
Options can include:
Special paint systems
Stainless-steel nameplates
Corrosion-resistant fasteners
Shaft protection
Drainage arrangements
Higher enclosure protection
Anti-condensation heaters
IP ratings describe protection against solids and water, but the explosion-protection type is defined separately within the IEC 60079 system. IEC 60034-5 notes that enclosure-protection ratings for rotating machines do not themselves specify the protection methods required for explosive gas or dust environments.
Selecting the correct explosion-proof motor manufacturer requires more than reviewing prices and catalogue images.
The brand owner should check:
Certificate number
Certification body
Manufacturer name
Manufacturing location
Motor series
Frame range
Power range
Protection marking
Ambient range
Special conditions of use
Certificate status
The certificate must cover the motor being purchased, not merely a similar product from the same factory.
Explosion-protected equipment requires ongoing production consistency.
For IECEx projects, the Quality Assessment Report provides evidence that the manufacturer’s quality system has been assessed for producing equipment consistently with the certified design.
The brand owner should confirm that the approval remains valid and applies to the manufacturing site.
Important materials include:

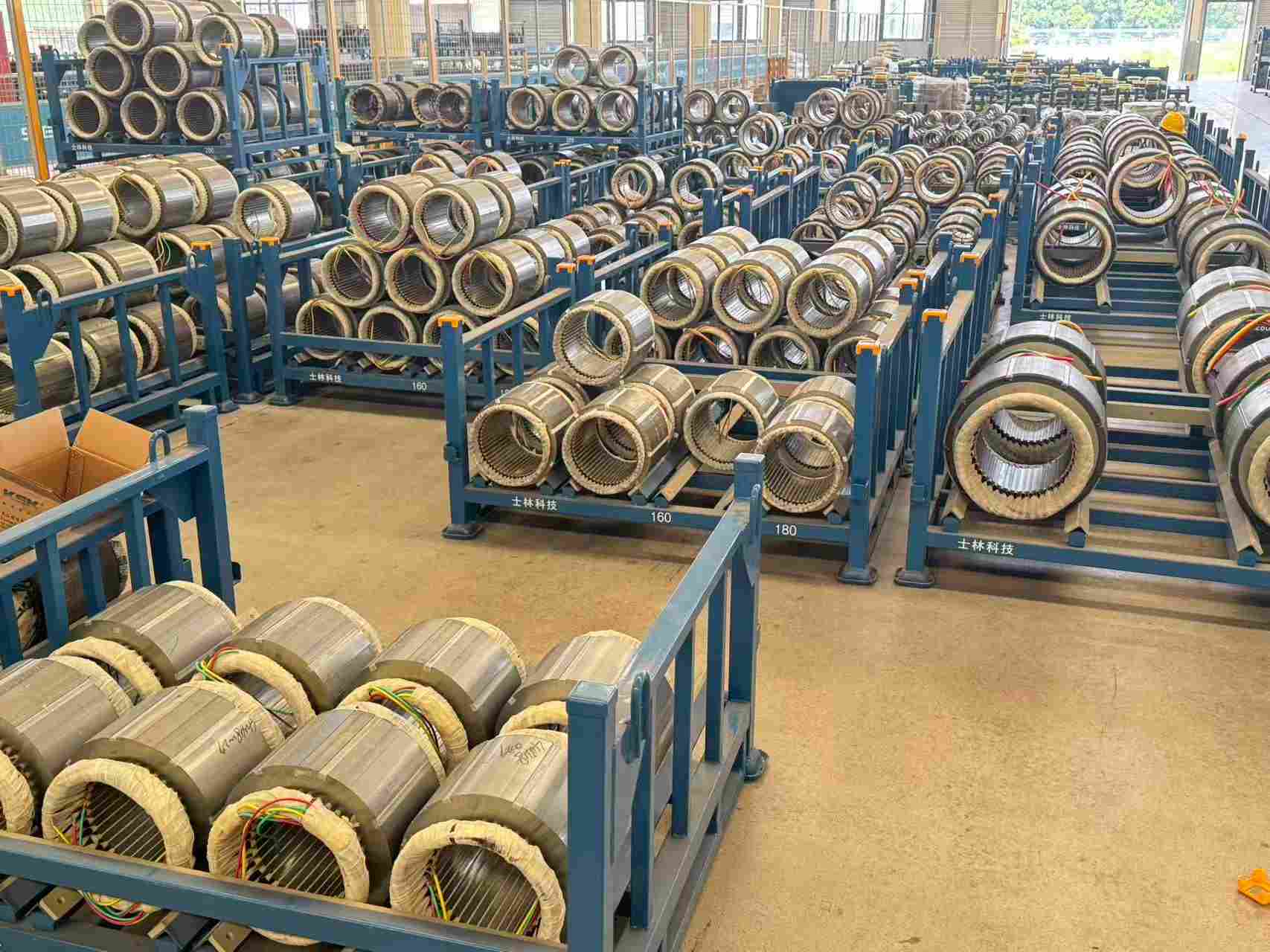

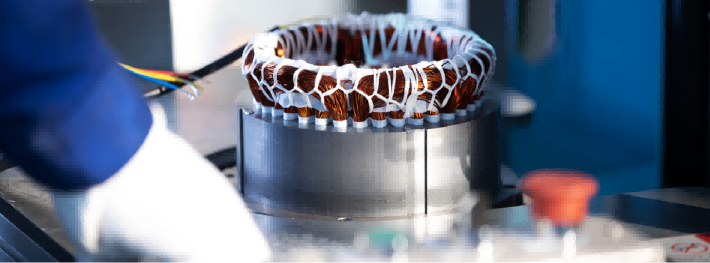

Stator and rotor laminations
Copper winding wire
Insulation materials
Housings and end shields
Bearings
Shafts
Fasteners
Terminal components
Cable-entry parts
Seals and gaskets
Important processes include machining, winding, impregnation, enclosure assembly, joint inspection, pressure testing where required, electrical testing, and marking control.
Material or design changes should not be made without formal technical review.
Incoming materials should be checked against approved specifications.
Production controls should include:
Winding resistance
Insulation arrangement
Rotor balance
Shaft runout
Bearing installation
Critical joint dimensions
Thread inspection
Fastener verification
Terminal-box assembly
Earthing continuity

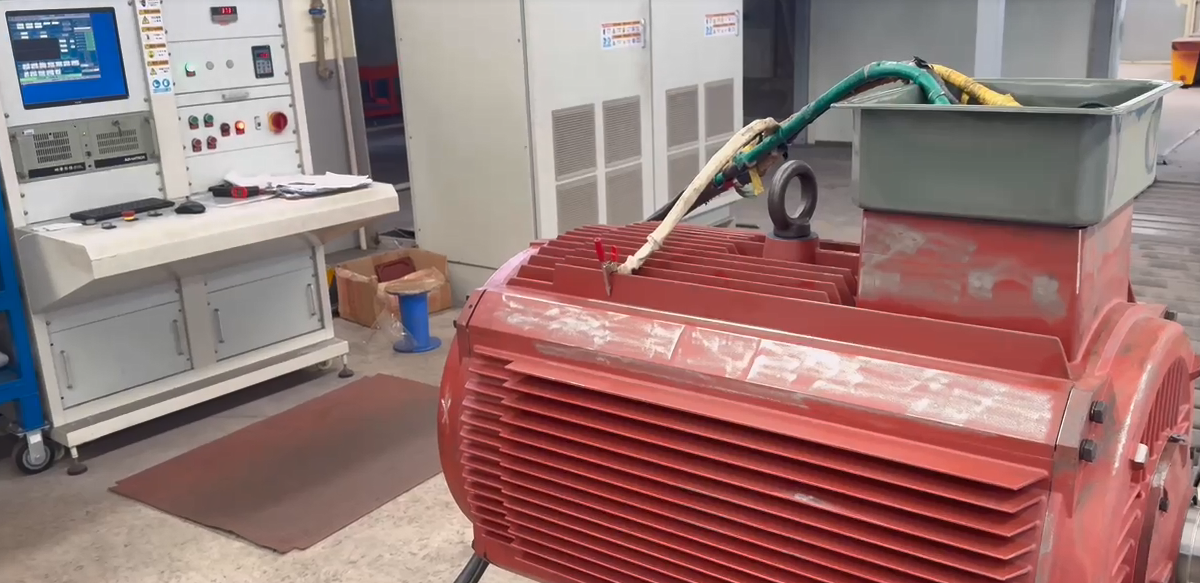

Routine motor tests may include:
Winding resistance
Insulation resistance
Dielectric testing
No-load current
No-load power
Rotation direction
Speed
Noise
Vibration
Earthing inspection
Nameplate verification
Visual inspection
Additional certified-product inspections should follow the applicable certificate, standards, and production quality plan.
Each motor should be traceable through:
Serial or batch number
Production date
Approved technical specification
Certificate reference
Inspection records
Critical material batches
Nameplate record
Final test results
This information is essential for investigating field problems and managing repeat orders.
Private label explosion-proof motors require stricter control than standard private label industrial motors.
Possible customization may include:
Customer logo
Brand name
Paint color
Carton design
Technical manual
Shaft dimensions
Voltage and frequency
Mounting type
Terminal-box position
However, every technical change must remain within the certified design or be approved through the correct certification procedure.
The private label must not remove or obscure required information such as:
Ex marking
Certificate number
Protection type
Gas or dust group
Temperature class
EPL or equipment category
Ambient range
Manufacturer information
Serial or batch identification
The final nameplate drawing should be approved before production.
Each model should have a controlled technical file containing the motor rating, winding data, frame, mounting, shaft drawing, bearings, terminal box, protection marking, paint, nameplate, certificate references, and packaging.
Repeat orders should follow the approved file unless a formal engineering change is completed.
Begin with representative models rather than the complete range.
Test samples for electrical performance, dimensions, installation compatibility, temperature, vibration, starting, and operation on the actual driven equipment.
After sample approval, place a pilot order to evaluate:
Production consistency
Documentation
Packaging
Distributor feedback
Installation procedures
After-sales requirements
Expand the range only after the core models and supply process have been verified.
Victory Machinery Technology Co., Ltd. supports distributors, brand owners, and OEM manufacturers with standard and customized explosion-proof motor solutions.
Victory has more than 20 years of experience in electric motor and geared-drive manufacturing, supporting application selection, customized engineering, repeat production, and technical troubleshooting.
Victory can provide ATEX explosion-proof motor solutions for applications involving Zone 1/21 and Zone 2/22 requirements, subject to the selected model, marking, certificate scope, and project conditions.
Each project should confirm the required gas or dust environment, protection marking, temperature requirement, ambient temperature, and installation conditions before final selection.
Available configurations can include:
100% copper windings
Cold-rolled steel stator and rotor laminations
Class F insulation
Cast-iron housings
Standard industrial bearings
Optional SKF, NSK, or FAG bearings
Stainless-steel nameplates
Application-specific shafts and flanges
The approved material configuration can be confirmed before sample production.
Victory can evaluate customization involving:
Voltage and frequency
Power and speed
Mounting arrangement
Shaft dimensions
Flange dimensions
Terminal-box orientation
Cable-entry threads
Paint color
Customer logo
Private label nameplate
PTC or PT100 protection
Special environmental requirements
All technical options must be reviewed against the applicable explosion-protection certificate and approved construction.
Brand owners can begin with technical samples or a pilot batch before releasing a larger order.
Drawings, motor specifications, marking details, and nameplate designs can be confirmed before production.
Motors can be inspected for electrical performance, starting, current, insulation, noise, vibration, shaft dimensions, terminal configuration, critical appearance, and nameplate accuracy.
Victory provides an 18-month warranty after delivery, supported by technical investigation, spare parts, or replacement solutions according to the cause of the reported problem.
No. Gas and dust applications have different classifications, protection methods, groups, and temperature requirements. The motor marking and certificate must cover the actual environment.
No. The United States commonly requires approval for its own hazardous-location classification system. ATEX or IECEx certification does not automatically replace North American approval.
Provide the zone or division, gas or dust group, temperature class, protection concept, certificate requirement, ambient temperature, motor power, voltage, frequency, mounting, application, duty cycle, and VFD conditions.
Only when the motor design, certificate, manufacturer’s instructions, thermal protection, and operating range permit VFD operation.
No. IP66 describes protection against dust and water ingress. Explosion protection requires the appropriate Ex construction, marking, testing, and certification.
Yes, but all mandatory certification and explosion-protection information must remain accurate and visible. The final nameplate design should be reviewed before production.
A standard motor should not be converted by simply using a stronger housing or adding an Ex nameplate. Explosion protection depends on a complete tested and certified design.
Building reliable explosion-proof motor product lines requires careful market planning, hazardous-area information, certification control, stable engineering, strict manufacturing quality, complete documentation, and traceable production.
Brand owners should never select these motors only by power, voltage, price, or IP rating. The required zone or division, explosive material, protection method, temperature class, ambient range, duty cycle, starting condition, VFD use, and certificate system must all be confirmed.
The safest development process is to define the target markets, select a focused range, verify certificates, approve technical samples, complete application testing, launch a pilot batch, and expand only after product and production consistency have been proven.
Victory Machinery Technology Co., Ltd. can support motor selection, customized engineering, ATEX project evaluation, technical drawings, private label development, quality inspection, and repeat supply.
Send us your hazardous-area classification, required Ex marking, motor power, voltage, frequency, mounting type, application, quantity, and branding requirements. Our technical team will evaluate the project and recommend an appropriate explosion-proof motor configuration.
