How Manufacturers Can Select the Right Helical Gear Motor for Manufacturing & Automation
Views: 0 Author: Site Editor Publish Time: 2026-07-13 Origin: Site

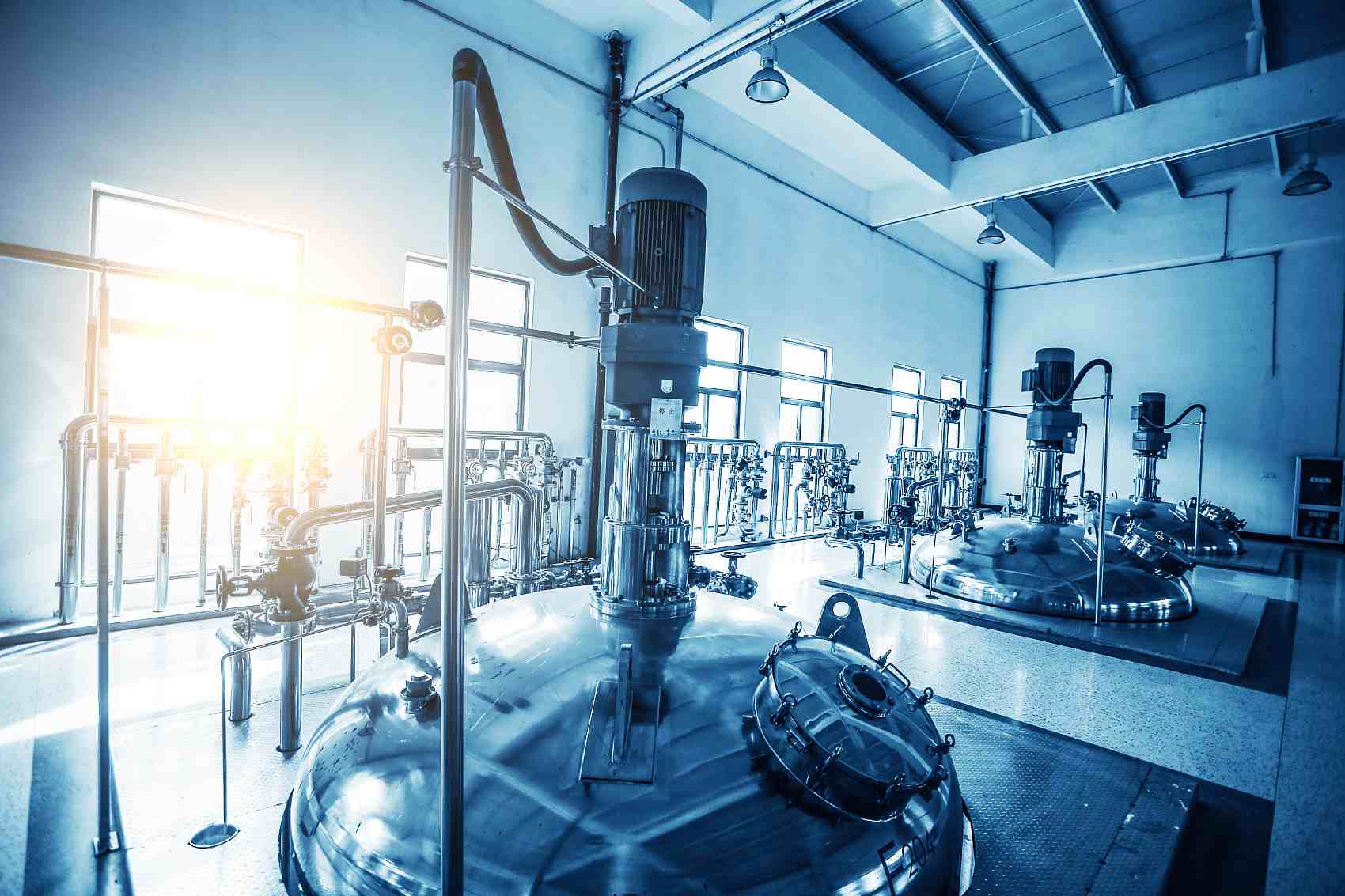

A helical gear motor is widely used in conveyors, mixers, packaging systems, production lines, material-handling equipment, and automated machinery. It combines an electric motor with a helical gearbox to reduce speed and increase output torque.
Selecting the right unit involves more than matching motor power and ratio. Frequent starts, shock loads, shaft forces, low-speed operation, washdown, and VFD control can make two apparently similar drives perform very differently. Reliable selection requires a complete review of torque, duty cycle, mounting, environment, and controls.
What Is a Helical Gear Motor?
A helical gear motor uses angled gear teeth that engage progressively, supporting smooth transmission, low vibration, quiet running, and high load capacity. Major drive manufacturers describe inline helical gearmotors as efficient, compact, modular solutions that can combine different ratios, motors, mounting positions, brakes, encoders, and output shafts.
The input and output shafts are parallel but offset. It offers a compact axial layout and is often supplied with a hollow output shaft for conveyors and material-handling systems.
A helical-worm unit combines a helical stage with a worm stage. It offers compact right-angle transmission and quiet operation, although its efficiency is generally lower than that of an all-helical or helical-bevel drive.
1. Define the Application Before Selecting a Gear Motor
Industrial gear motor selection should begin with the driven machine, not with a supplier catalog.
Identify the Load Type
A belt conveyor usually creates a smoother load than a crusher, mixer, screw conveyor, lifting table, or indexing system. Record whether the load is uniform, variable, frequently reversed, shock-loaded, rapidly accelerated, or safety-critical.
Confirm the Operating Cycle
Specify operating hours per day, starts per hour, reversals, acceleration time, peak-load duration, and emergency-stop frequency.
A drive running continuously at a stable load may need a different rating from one that starts 60 times per hour, even when both have the same nominal running torque.
Measure the Real Load
When replacing an existing drive, do not select only from the old motor power. The original unit may have been oversized or may no longer match the process.
Useful information includes measured current, product weight, conveyor speed, pulley diameter, friction, and maximum overload. Current readings under normal and heavy load help show how much motor capacity is actually used.
2. Determine the Required Output Speed
The theoretical gearbox ratio is:
Gear ratio = Motor speed ÷ Required output speed
If a four-pole motor runs at 1,450 rpm and the machine requires 72.5 rpm:
Ratio = 1,450 ÷ 72.5 = 20
A nominal ratio near 20:1 is required.
Use the rated motor speed rather than synchronous speed because induction motors operate with slip. Include any chain, belt, sprocket, or pulley transmission installed after the gearbox.
Calculate Conveyor Speed Correctly
For a conveyor pulley:
Pulley speed = Linear speed × 60 ÷ Pulley circumference
The pulley diameter must be based on the effective working diameter, including belt thickness where relevant.
Select the Ratio Around the Normal VFD Speed
A variable-frequency drive provides speed adjustment, but it should not compensate for a badly chosen ratio. Continuous operation at very low frequency reduces the cooling from the motor-mounted fan and can cause overheating.
Choose a ratio that places normal production speed near the middle of the planned frequency range. Continuous low-speed duty may require an independent fan or an inverter-duty motor.
3. Calculate Continuous and Peak Output Torque
Torque is the central mechanical selection parameter.
For a 4 kW motor, 70 rpm output speed, and 94% combined efficiency:
Torque = 9,550 × 4 × 0.94 ÷ 70 ≈ 513 N·m
The gearbox allowable torque must remain above the required operating torque after the service factor is applied.
Check Starting and Peak Torque
Running torque alone is not enough. Fully loaded starts, static friction, material buildup, inclined conveying, acceleration, jams, and reversing can produce much higher peak torque. The gearbox, shaft, key, coupling, and driven components must all withstand it.
Consider Driven Inertia
Large rollers, flywheels, indexing tables, and long conveyors may have high inertia. A more powerful motor may accelerate the machine faster, but it also increases peak torque. Acceleration time should be selected together with the VFD and mechanical transmission limits.
4. Apply the Correct Service Factor
The service factor provides a margin for long operating hours, frequent starts, reversing, shock loading, high temperature, large inertia, and uneven loads.
Arbitrary oversizing is not good engineering because it increases cost, current, machine impact, and light-load losses. Provide the supplier with the machine type, daily operating hours, starts per hour, and load characteristics so that a reasonable thermal and mechanical margin can be selected.
5. Choose the Correct Gearbox Arrangement

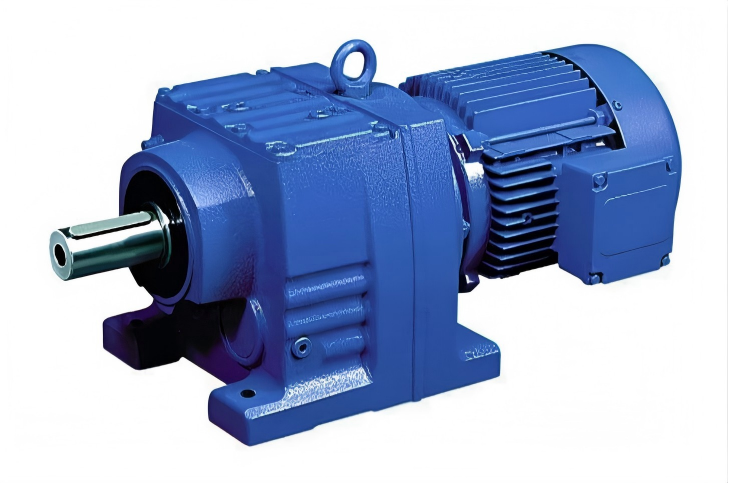

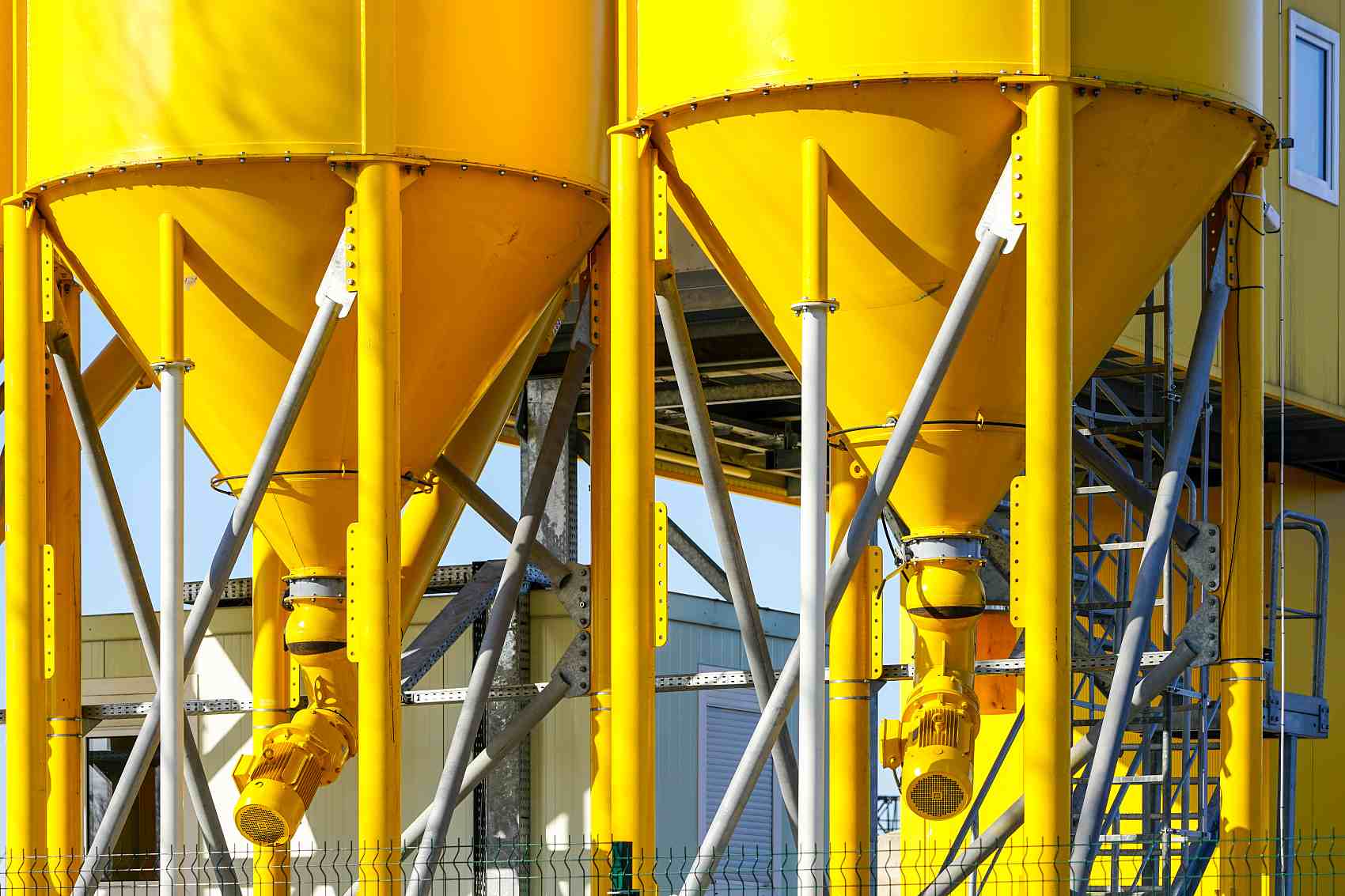

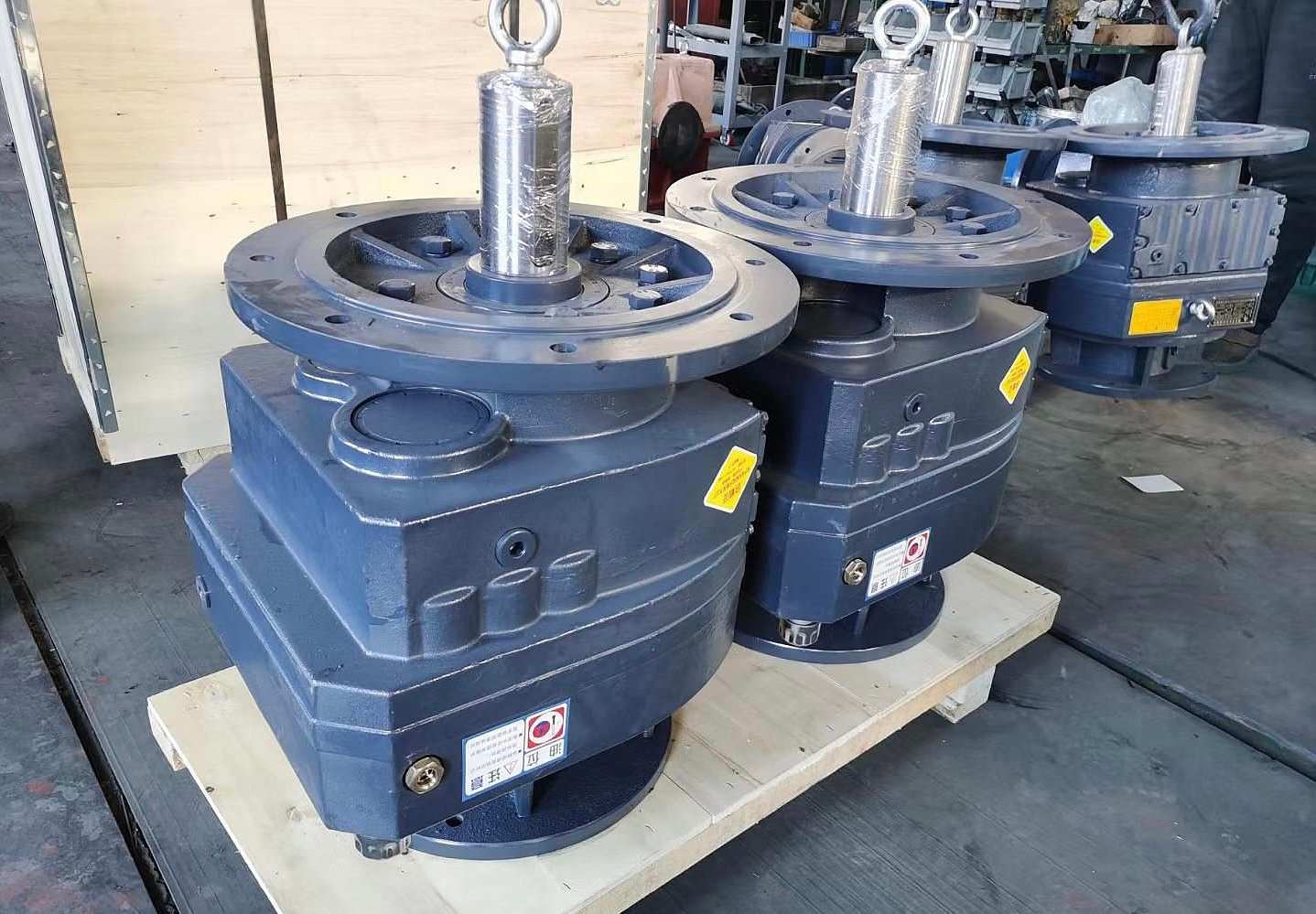

When to Use an Inline Helical Gear Motor
Choose an inline unit when the input and output should be coaxial, high efficiency is important, and there is sufficient installation length along the shaft axis.
It is often the most practical choice for conveyors, mixers, pumps, fans, and general industrial machinery.

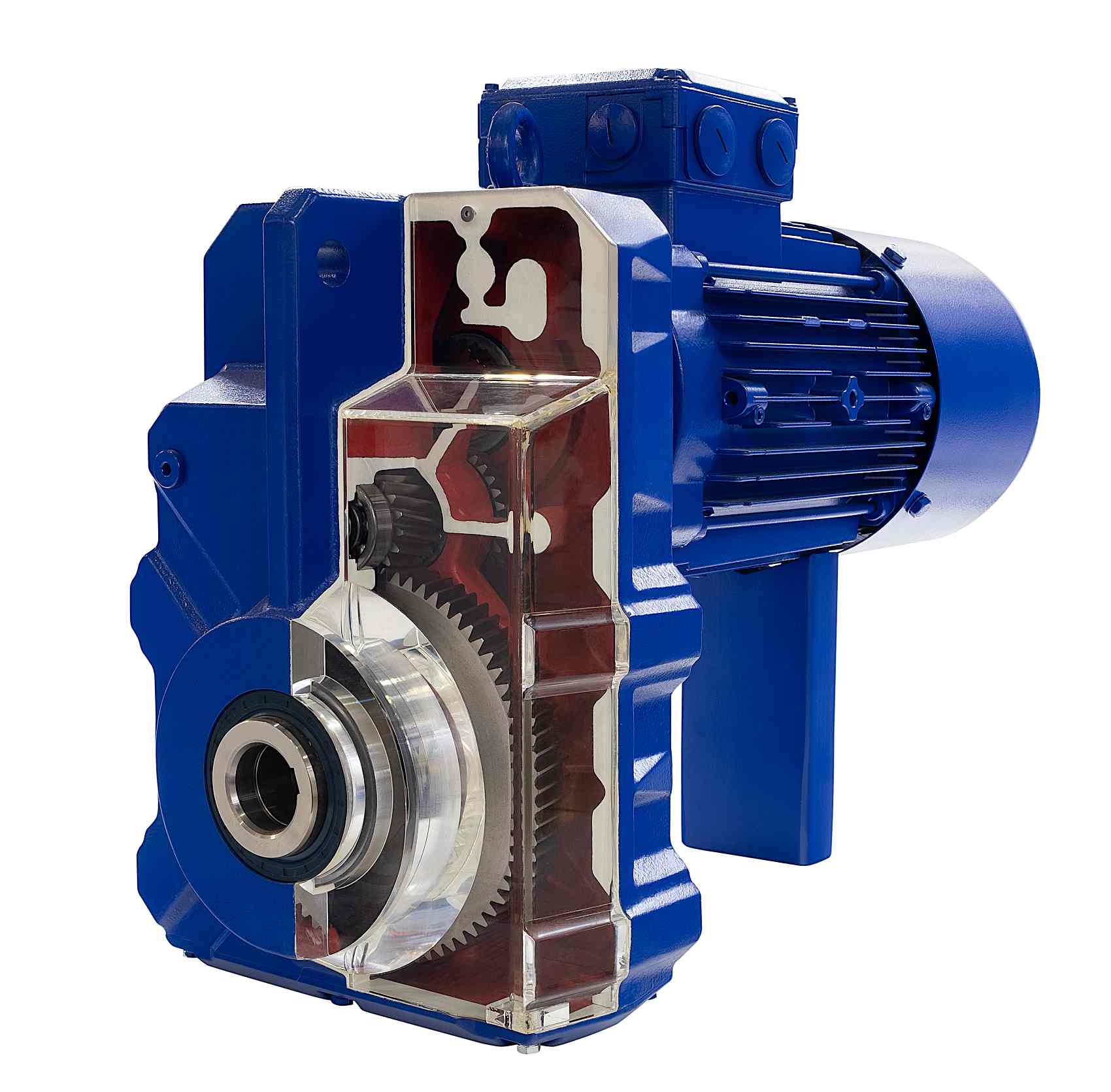

When to Use a Parallel-Shaft Helical Gear Motor
Choose a parallel-shaft unit when axial space is limited, the motor must sit beside the driven shaft, or a hollow-shaft connection simplifies installation.
Available solid shafts, keyed hollow shafts, splines, shrink discs, foot mounts, and flanges show why the interface must match the machine—not only the torque.

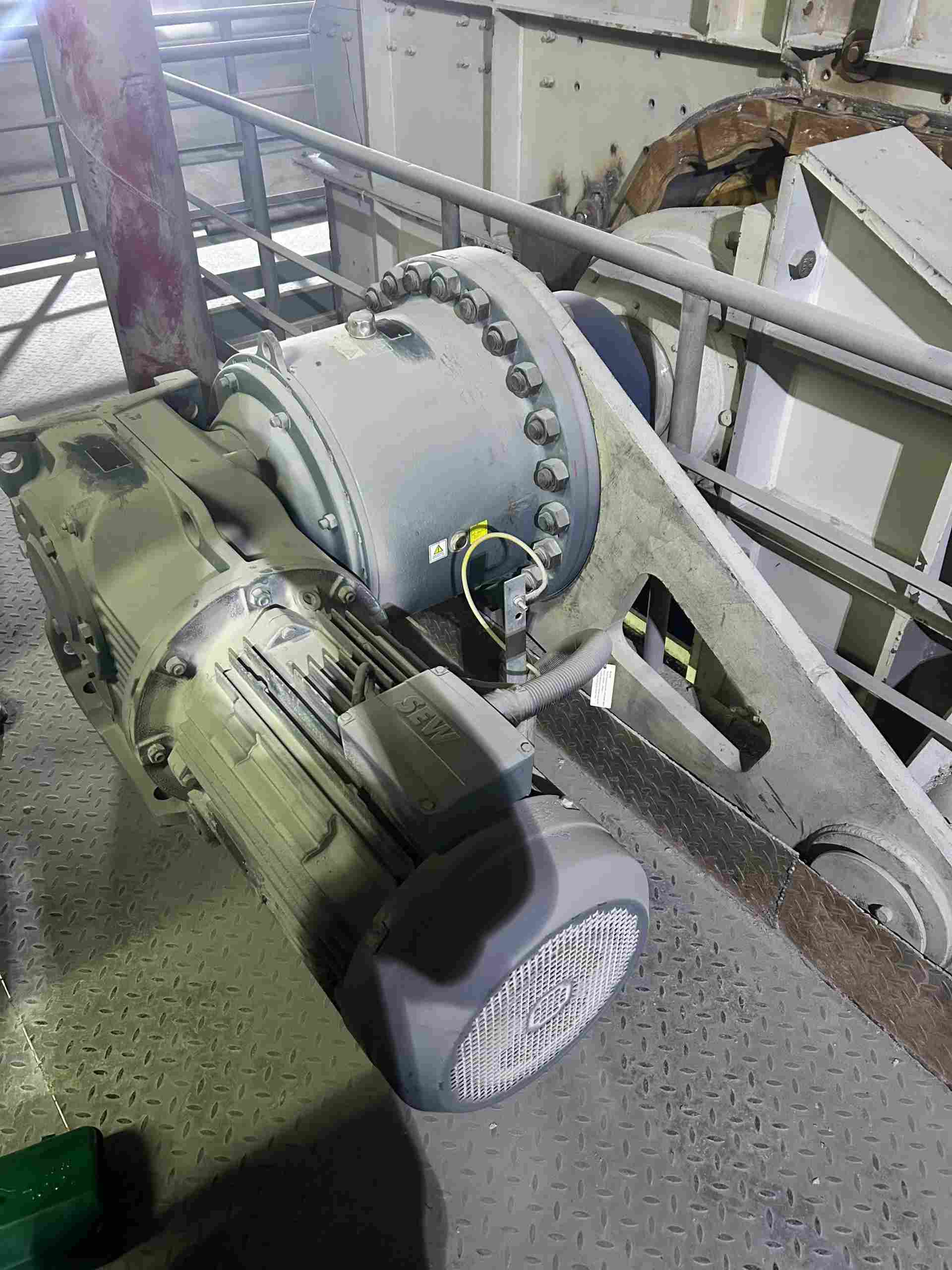

When to Use a Helical-Bevel Gear Motor
Choose a helical-bevel drive when a 90-degree output is required and the machine operates for long hours or at relatively high torque.
Compared with a worm-based solution, a helical-bevel gear motor is often more suitable where energy efficiency and continuous duty are priorities.

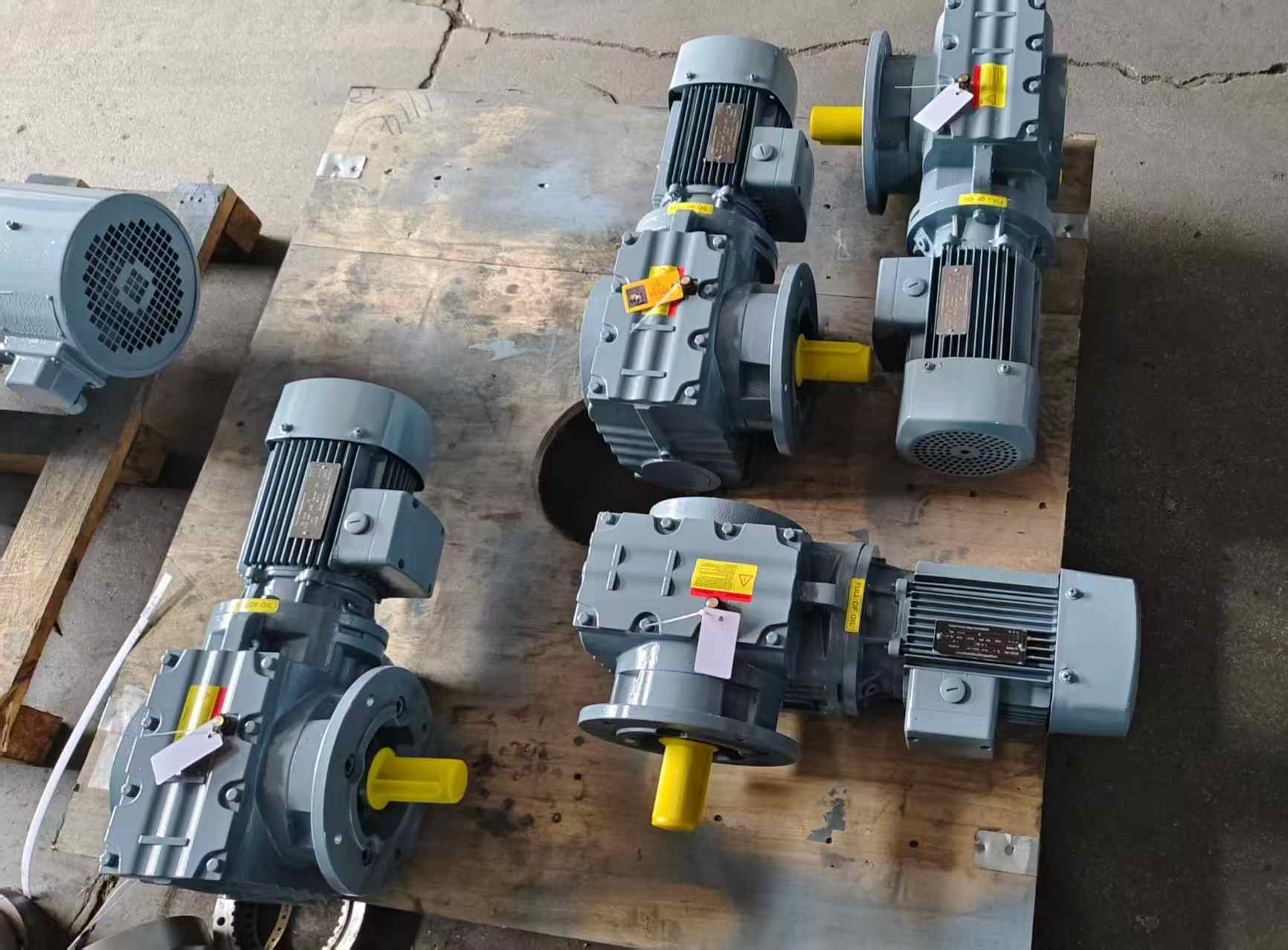

When to Consider a Helical-Worm Gear Motor
A helical-worm unit may be practical for lower-power, intermittent, compact right-angle applications. Before selecting it for continuous automation, compare temperature rise, efficiency, required ratio, and operating hours with a helical-bevel alternative.
6. Verify Radial Load, Axial Load, and Shaft Design
A gearbox output shaft carries more than torque.

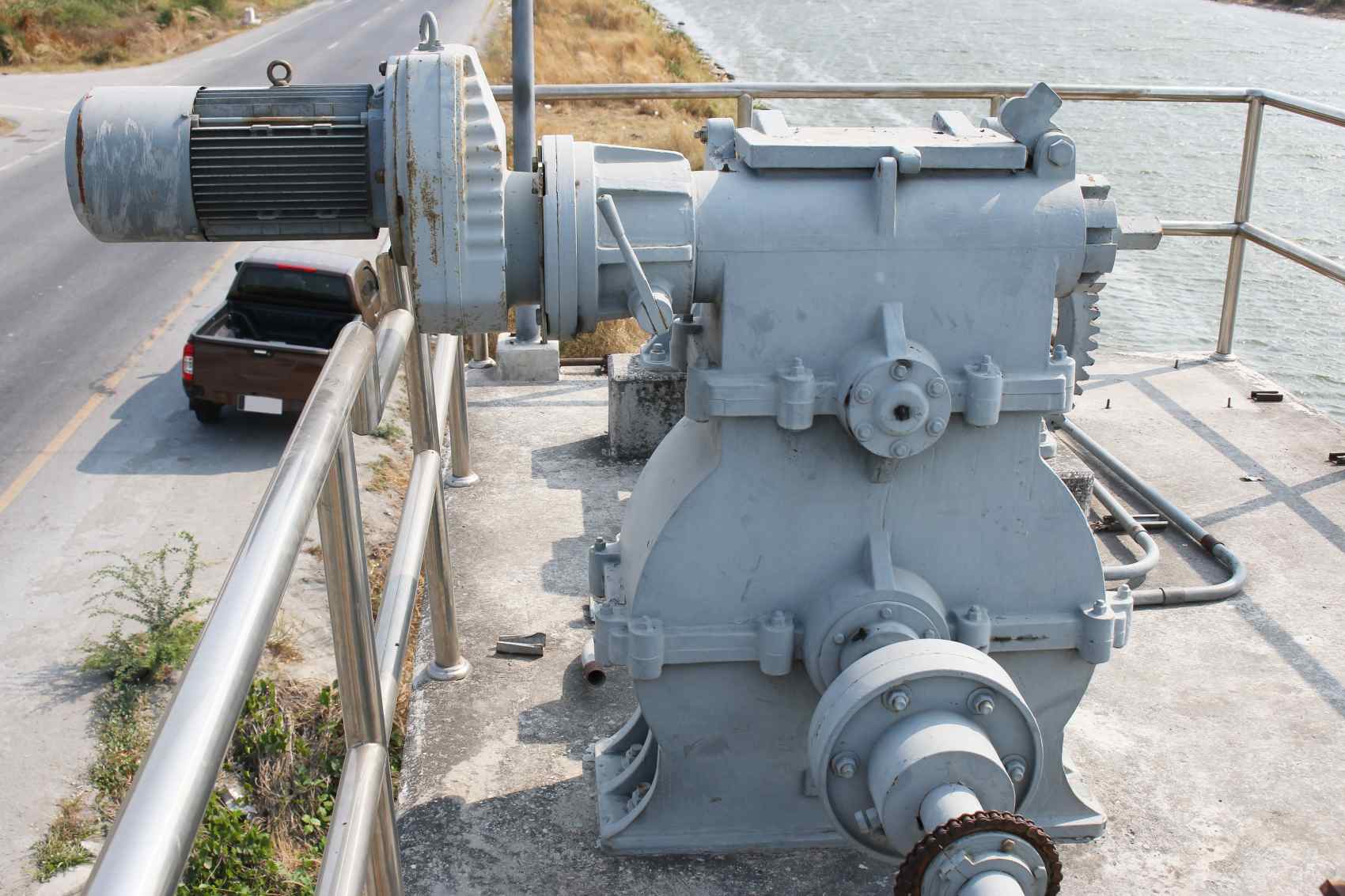

Radial Load
Belts, chains, sprockets, and pulleys create radial force. The allowable value depends on gearbox size, bearing arrangement, output speed, shaft diameter, and the distance between the load and gearbox housing.
A pulley installed far from the output bearing produces a larger bending moment. Mount pulleys and sprockets as close to the gearbox as practical.
Axial Load
Screw conveyors, mixers, bevel gears, inclined systems, and some couplings can create axial thrust. Standard bearings may not be sufficient for a large continuous thrust load, so reinforced bearings may be required.
Output Connection
Common interfaces include:
Solid keyed shaft
Keyed hollow shaft
Shrink-disc hollow shaft
Splined shaft
Flange output
Torque arm
Custom shaft
For replacement projects, provide a dimensional drawing. Confirm shaft diameter, key size, shaft length, center height, flange diameter, bolt pattern, and mounting holes. Model numbers from different brands are not automatically interchangeable.
7. Match the Motor to the Electrical System
Voltage, Frequency, and Phase
Confirm the actual power supply, including phase, voltage, frequency, and connection method.
Common industrial specifications include 220/380 V, 230/400 V, 380/660 V, 400/690 V, 440 V, 460 V, and 480 V. Frequency affects speed, magnetic loading, torque, and cooling, so 50 Hz and 60 Hz operation must be checked separately.
Motor Efficiency
Motor efficiency influences lifecycle cost. IEC 60034-30-1:2025 defines efficiency classes for many single-speed motors, while IEC 60034-2-1:2024 establishes test methods for determining efficiency.
IE3 is widely specified for industrial machinery, with higher classes considered for long annual operating hours or stricter markets.
Starting Method
Common starting methods include:
Direct-on-line starting
Star-delta starting
Soft starter
Variable-frequency drive
A fully loaded conveyor or high-inertia machine may not accelerate successfully with a low starting-torque method. Compare the motor torque curve, load torque, acceleration time, and available supply capacity.
Brake and Protection Options
Automation applications may require:
Electromagnetic brake
Encoder
PTC thermistors
PT100 sensors
Independent cooling fan
Anti-condensation heater
Backstop
Manual brake release
For vertical or suspended loads, do not assume the gearbox can hold the load when power is removed. A correctly selected brake, backstop, or separate holding device may be necessary.
8. Check VFD and Automation Compatibility
Define the minimum continuous speed, normal speed, maximum speed, constant-torque range, acceleration time, and deceleration time.
Low-Speed Operation
At low speed, a standard self-cooled motor receives less airflow. Possible solutions include a forced-cooling fan, larger motor frame, lower continuous torque, or a different gearbox ratio.
High-Speed Operation
Above rated frequency, motor speed rises while available torque may fall. Check gearbox input-speed limits, bearing speed, lubrication, noise, and rotating-component safety.
Backlash and Positioning
Standard backlash is normally acceptable for conveyors. Indexing tables, synchronized handling, dosing systems, and positioning equipment may require reduced backlash.
Also evaluate encoder resolution, coupling stiffness, mechanical play, load inertia, and control response. A high-resolution encoder cannot compensate for loose mechanical connections.
9. Confirm Mounting Position and Installation Dimensions
Helical gear motors can be foot-mounted, flange-mounted, shaft-mounted, horizontal, or vertical.
The exact mounting position affects oil quantity, breather location, sealing, and lubrication. Confirm:
Overall gearbox and motor length
Center height
Terminal-box position
Cable-entry direction
Brake or fan extension
Guard clearance
Shaft-removal space
Maintenance access
A technically suitable drive may still be impossible to install if it collides with the machine frame.
10. Evaluate the Operating Environment

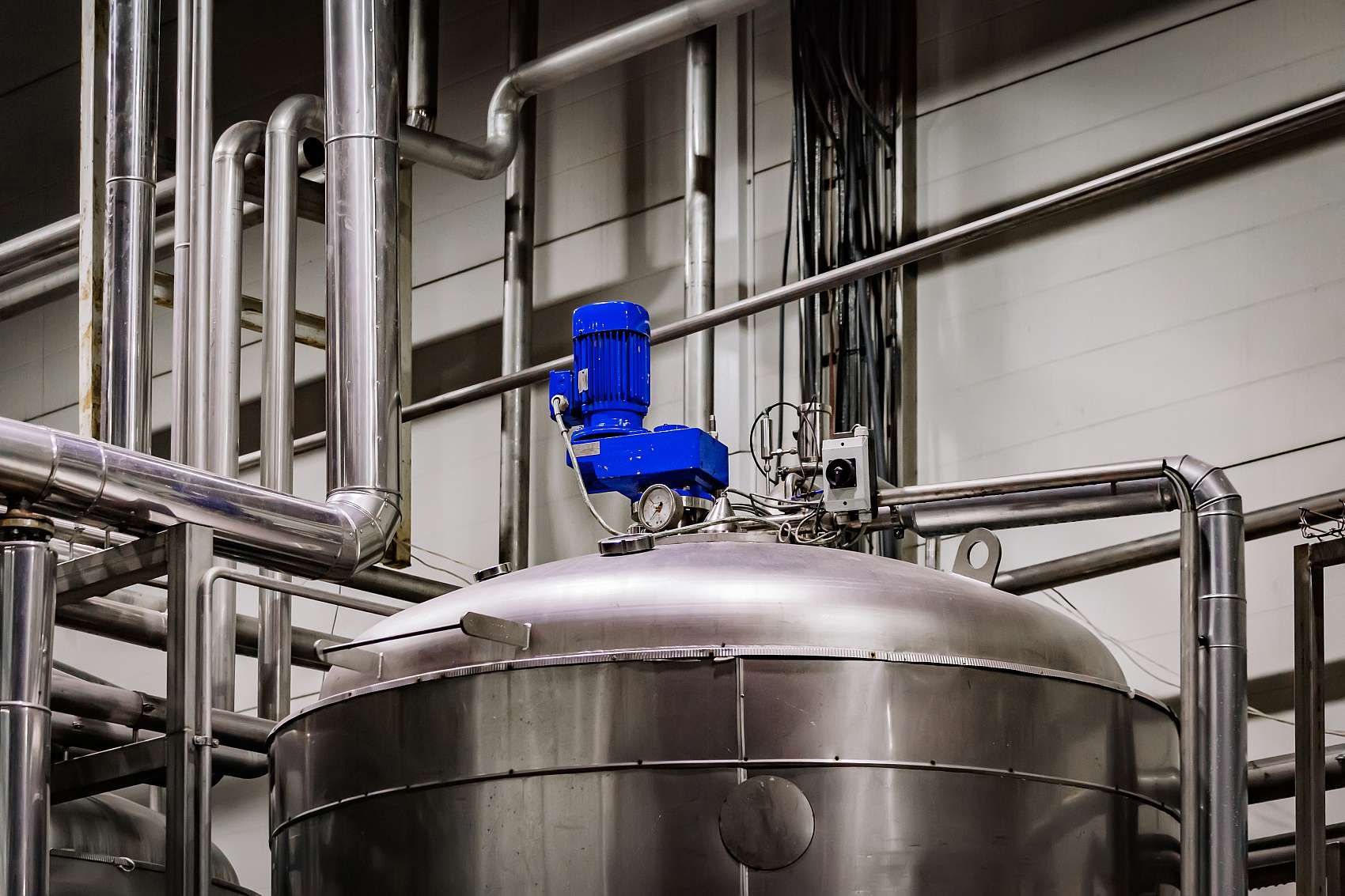

Dust, Moisture, and Washdown
Indoor dry factories may use standard protection. Food plants, beverage lines, outdoor conveyors, cement equipment, and washdown areas may require higher IP protection, improved seals, corrosion-resistant coatings, or special lubricants.
Some drive manufacturers provide smooth-surface helical units designed to reduce areas where liquids and solids can collect, demonstrating the importance of hygienic construction in food production.
Specify the required IP rating, shaft seals, coating, stainless-steel hardware, lubricant type, and cleaning method.
Temperature and Altitude
High ambient temperature reduces cooling capacity and can shorten lubricant life. High altitude reduces air density and motor cooling.
Provide the actual temperature range, installation altitude, and information about enclosed spaces, sunlight, or nearby heat sources.
Hazardous Areas
Explosive gas or dust environments require a certified drive system suitable for the relevant zone, gas or dust group, and temperature class.
A standard motor with only an upgraded IP rating is not a substitute for explosion-protected equipment.
11. Compare Total Cost of Ownership
The lowest purchase price may not provide the lowest lifecycle cost.
Evaluate:
Motor and gearbox efficiency
Annual operating hours
Lubrication intervals
Seal and bearing life
Brake maintenance
Spare-part availability
Replacement lead time
Standardization across machines
Downtime risk
For critical equipment, one complete spare drive and standardized frames or mounting dimensions can greatly reduce downtime.
Helical Gear Motor Selection Checklist
Before requesting a quotation, provide the following information.
Operating Data
Machine type, required output speed, continuous and peak torque, operating hours, starts per hour, reversals, acceleration time, and shock-load level.
Mechanical Data
Gearbox arrangement, mounting position, shaft type, shaft dimensions, radial and axial loads, pulley or sprocket details, and available installation space.
Electrical Data
Motor power, voltage, frequency, phase, efficiency class, starting method, VFD speed range, and required control accessories.
Environmental Data
Ambient temperature, altitude, dust, water exposure, washdown, corrosion, indoor or outdoor installation, and hazardous-area classification.
Optional Features
Brake, encoder, independent fan, PTC, PT100, backstop, special bearings, special seals, heater, custom flange, custom shaft, logo, color, and nameplate.
Complete data allows the supplier to verify torque, thermal capacity, shaft loading, mounting, and electrical compatibility instead of offering only a similar-looking model.
Common Selection Mistakes
Selecting Only by Motor Power
The same motor power can produce very different output torque at different speeds. Gearbox torque capacity must be checked separately.
Ignoring Starting Conditions
A gear motor that runs the machine after acceleration may still be unable to start it under full load.
Using a VFD to Correct the Wrong Ratio
Extreme low-frequency operation can create cooling and torque problems. The normal working speed should remain within a practical motor frequency range.
Neglecting Shaft Loads
A gearbox may have enough torque but insufficient bearing capacity for a large overhung pulley or heavily tensioned chain.
Ordering Without Dimensions
Brand model codes are not universally interchangeable. Always confirm the mounting and output dimensions.
Selecting Only by Price
A low-cost drive becomes expensive when it wastes energy, needs frequent maintenance, or creates long production downtime.
Why Choose Victory for Helical Gear Motor Projects?
Victory supplies configurable gear motor solutions for OEMs, machinery manufacturers, distributors, and industrial users.
Application-Based Selection
Victory can review output speed, torque, duty cycle, service factor, mounting, shaft dimensions, radial loads, VFD range, and environmental conditions rather than matching only power and ratio.
R, F, K, and S Series Options
Available configurations include:
R series inline helical gear motors
F series parallel-shaft helical gear motors

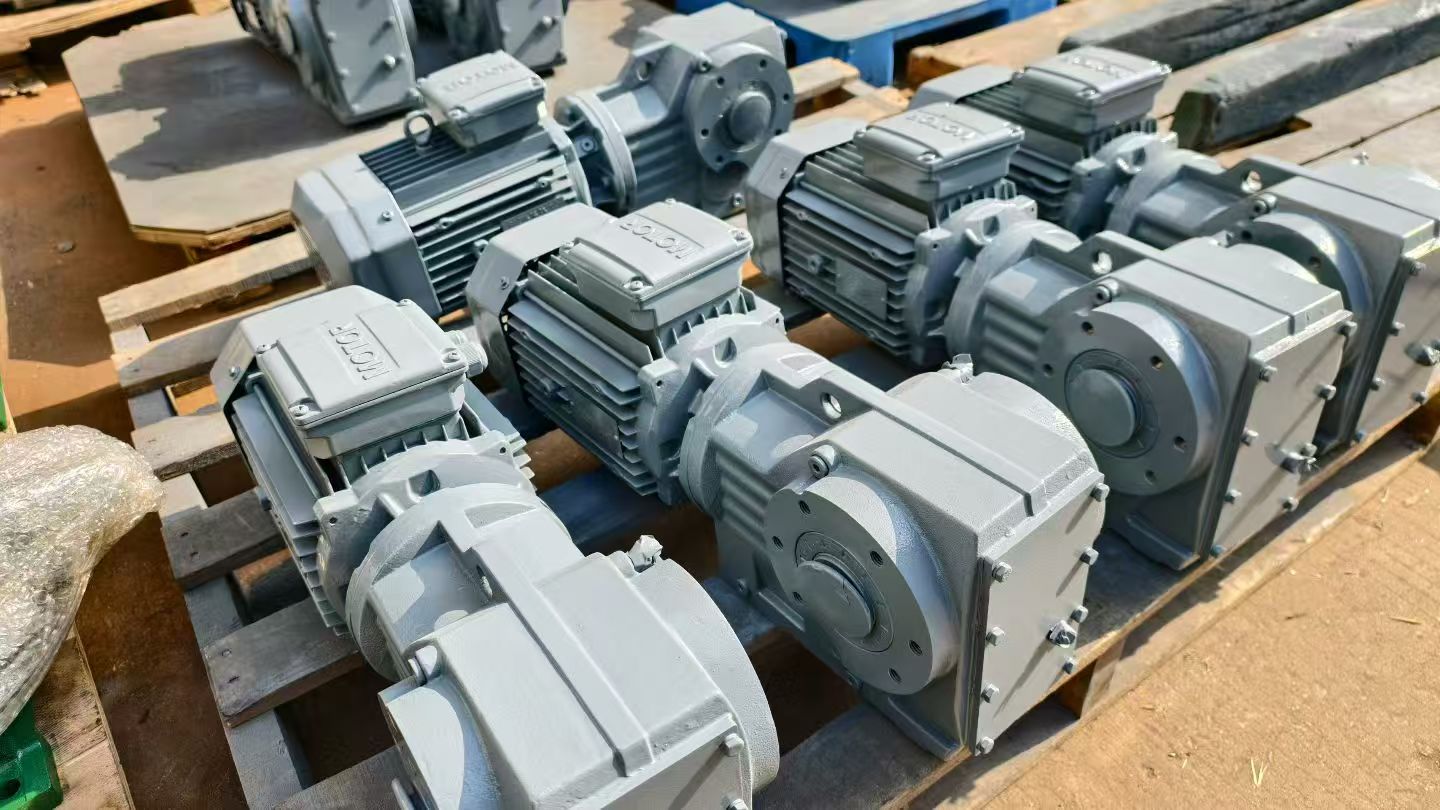

K series helical-bevel gear motors
S series helical-worm gear motors
This allows the drive layout to match the machine instead of forcing one gearbox structure into every application.
Motor and Gearbox Customization
Options include:
Different voltages and frequencies
IE2 or IE3 motors
Electromagnetic brakes
Independent cooling fans
PTC or PT100 protection
Custom shafts and flanges
Special bearing brands
Custom colors
Customer logos
Customized nameplates
Quality and Replacement Support
Victory can provide gears manufactured from 20CrMnTi alloy steel according to the selected design, with heat treatment and precision machining.

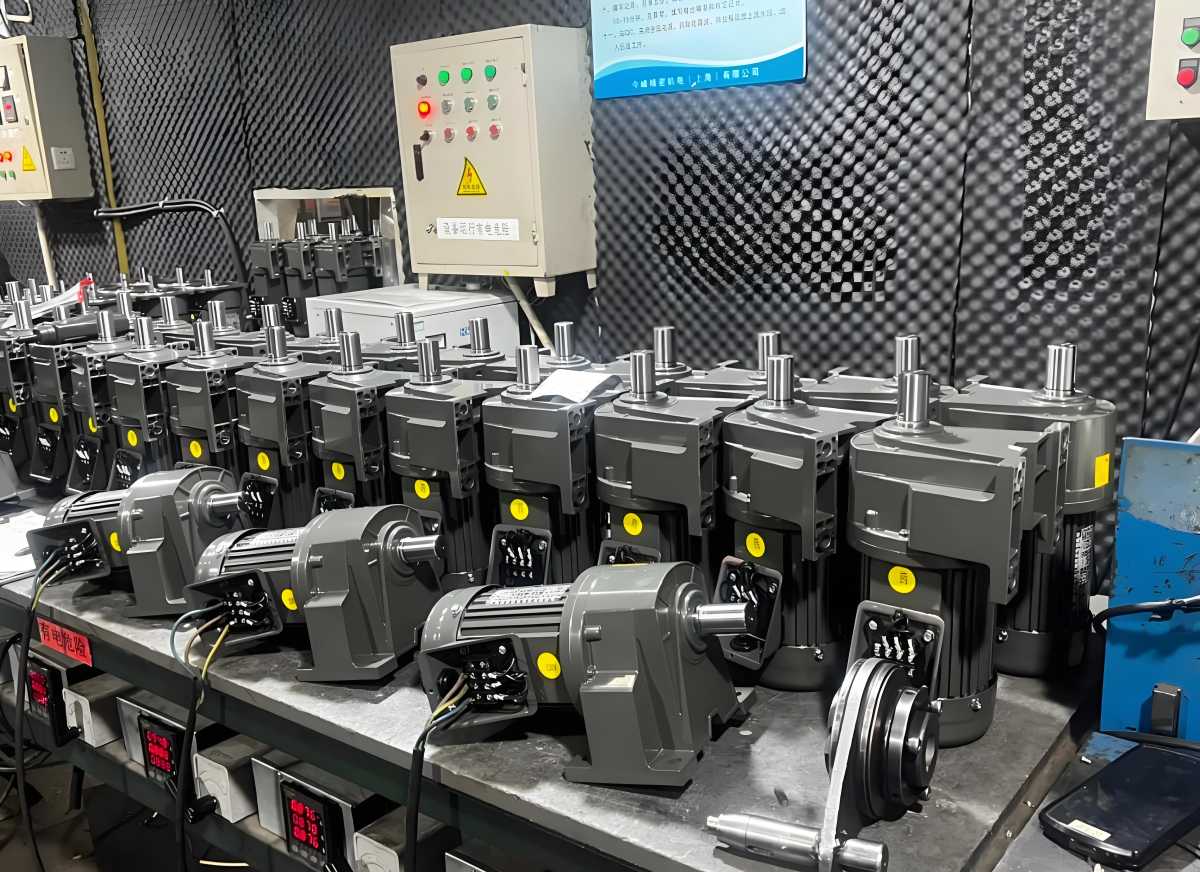

Assembled units can be checked for rotation, noise, oil leakage, and basic operating performance before shipment.
For replacement projects, customers can provide the old nameplate, photos, dimensions, output speed, mounting position, and load data. Victory can then evaluate compatibility beyond the original model code.
OEM and Commercial Support
Private-label customers can request customized packaging, manuals, nameplates, product colors, and technical documents.
Sample orders, batch production, international shipping, and an 18-month warranty after delivery are available according to the confirmed specification and commercial terms.
Frequently Asked Questions
How Do I Calculate the Correct Gear Ratio?
Divide the rated motor speed by the required gearbox output speed. Include any additional belt, chain, pulley, or sprocket ratio in the machine.
Should I Select a Helical Gear Motor by Power or Torque?
Both must be checked, but output torque and operating duty are usually more useful than motor power alone. The gearbox must safely carry both continuous and peak torque.
Can a Standard Helical Gear Motor Operate with a VFD?
Many three-phase units can operate with a VFD, but the speed range, low-speed cooling, motor insulation, required torque, and gearbox input-speed limit must be verified.
When Should I Choose a Helical-Bevel Gear Motor?
Use a helical-bevel gear motor for a compact right-angle output where high efficiency, long operating hours, or relatively high torque are important.
Can a Helical Gear Motor Hold a Vertical Load?
Do not assume that it can. A correctly sized brake, backstop, or independent mechanical holding device may be required.
What Information Is Needed to Replace an Old Gear Motor?
Provide the nameplate, power supply, output rpm, ratio, mounting position, shaft dimensions, flange or foot dimensions, terminal-box position, and details of the driven machine.
A dimensional drawing is strongly recommended.
Conclusion
The right helical gear motor is not simply the unit with the correct kilowatt rating and nominal ratio. It must provide the required running and peak torque, fit the mechanical layout, withstand shaft loads, match the electrical supply, operate safely with the control system, and survive the actual environment.
By collecting complete application data and evaluating torque, speed, service factor, mounting, VFD operation, and lifecycle cost together, manufacturers can reduce downtime, avoid unnecessary oversizing, and build more reliable automation equipment.
