Cyclo Drive Lubrication Guide: How to Choose, Fill, Check, and Maintain Lubricant for Long Service Life

A cyclo drive is known for high torque capacity, compact structure, strong shock-load resistance, and reliable operation in demanding industrial equipment. It is widely used in conveyors, mixers, crushers, pellet mills, packaging machines, wastewater equipment, and many other drive systems.

However, even a high-quality cycloidal reducer can fail early if lubrication is ignored. Lubrication is not just a maintenance step. It directly affects bearing life, cycloidal disc wear, pin and roller contact, temperature rise, oil seal performance, noise level, and overall service life.

This cyclo drive lubrication guide explains how to choose the right oil or grease, how to fill the reducer correctly, how often to change lubricant, and how to avoid common lubrication problems.

What Is a Cyclo Drive?

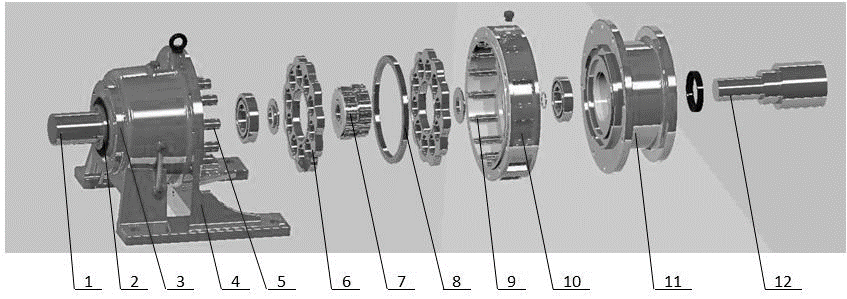

A cyclo drive, also called a cycloidal reducer or cycloidal gearbox, is a speed reducer that uses cycloidal motion to reduce motor speed and increase output torque. It usually includes an input shaft, eccentric bearing, cycloidal disc, pins, rollers, output mechanism, bearings, housing, and oil seals. Because multiple contact points share the load, a cyclo drive can handle impact and overload better than many conventional gearboxes.

Main Advantages of Cyclo Drives

Cyclo drives are popular because they offer several practical advantages.

High shock-load resistance

The load is distributed across many contact points, helping the reducer handle sudden impact loads.

Compact high-ratio design

Cycloidal reducers can achieve large reduction ratios in a relatively small housing.

Stable torque transmission

With correct selection and lubrication, a cyclo drive can provide smooth output torque and long service life.

However, these advantages depend heavily on proper lubrication. Wrong oil, low oil level, overfilling, contamination, or delayed oil change may cause overheating, abnormal noise, oil leakage, bearing damage, or internal wear.

Why Lubrication Is Important for Cyclo Drives

Lubrication has several key functions inside a cycloidal reducer.

Reducing Friction and Wear

The cycloidal disc, pins, rollers, bearings, and output parts move under load. A stable lubricant film reduces metal-to-metal contact and protects these parts from rapid wear.

Controlling Temperature

During operation, friction generates heat. Lubricant helps transfer heat away from contact surfaces and keeps the reducer from running hotter than normal.

Protecting Internal Parts

A proper lubricant reduces corrosion, noise, vibration, bearing wear, and seal damage, especially in humid, dusty, or continuous-duty environments.

Oil Lubrication vs Grease Lubrication

Cyclo drives may use oil lubrication or grease lubrication. The right choice depends on reducer size, speed, mounting position, duty cycle, and manufacturer design.

Oil Lubrication

Oil lubrication is common for medium and large cycloidal reducers, continuous-duty applications, higher input speeds, and heavy-duty equipment. Oil flows inside the reducer, reaches contact surfaces, removes heat, and can be drained and replaced during maintenance.

Oil lubrication is often used for conveyors, mixers, crushers, pellet mills, and industrial production lines that run for long hours.

Grease Lubrication

Grease lubrication is more common in smaller reducers, special mounting positions, low-speed applications, or sealed designs where oil leakage control is important. Grease stays in place better than oil, but it does not flow or cool as effectively.

Grease may be suitable for small cycloidal reducers, intermittent operation, compact machines, and some vertical or inclined installations. However, grease must also be maintained correctly. If it separates, hardens, becomes contaminated, or loses consistency, it may no longer protect the reducer.

How to Choose the Right Lubricant for a Cyclo Drive

There is no single lubricant that fits every cyclo drive. The right selection should consider the actual working condition.

Main Selection Factors

Small reducers may use grease, while medium and large reducers often use gear oil. Higher input speed creates more heat, and high output torque requires stronger film strength. Temperature also matters: oil that is too thick may cause difficult startup in cold environments, while oil that is too thin may not protect internal parts in hot environments.

Operating hours, load type, and mounting position should also be checked. A reducer running 24 hours per day, facing shock load, or installed vertically needs more careful lubrication management than a reducer used occasionally under stable load.

Common Oil Grades for Cycloidal Reducers

For many industrial cycloidal reducers, commonly used gear oil grades may include ISO VG 150, ISO VG 220, or ISO VG 320. The exact grade depends on reducer model, speed, load, temperature, and mounting position.

The most important rule is simple: follow the reducer supplier’s lubrication recommendation. Do not choose oil only based on experience with other gearbox types.

If the Oil Is Too Thin

Oil that is too thin may fail to form a strong protective film. This can lead to faster internal wear, higher noise, bearing damage, temperature rise, and shorter reducer life.

If the Oil Is Too Thick

Oil that is too thick can also cause problems. It may increase starting resistance, raise motor current during startup, create more churning loss, reduce efficiency, and cause higher operating temperature.

Mineral Oil or Synthetic Oil?

Both mineral gear oil and synthetic gear oil can be used in industrial gearboxes, but they are suitable for different conditions.

Mineral Gear Oil

Mineral oil is economical and suitable for many standard industrial applications. It is often enough for normal temperature, moderate load, and regular maintenance conditions.

Synthetic Gear Oil

Synthetic oil is more expensive but may perform better under demanding conditions. It can be considered for high temperature operation, low temperature startup, long operating hours, or heavy-duty continuous service.

Do Not Mix Different Oils

Do not mix mineral oil, synthetic oil, and different oil brands without confirmation. Different additive systems may not be compatible. If changing oil type, drain the old oil completely and clean the reducer before refilling.

How Much Oil Should Be Added?

Correct oil quantity is as important as correct oil grade. Do not fill the reducer until it is completely full. Overfilling is a common mistake.

Correct Oil Level

For oil-lubricated cyclo drives, the oil level should reach the specified level plug or sight glass position. The reducer should be stopped and placed in the correct mounting position when checking oil level.

Problems Caused by Low Oil Level

Low oil level can cause poor lubrication, rapid wear, abnormal noise, high temperature, bearing damage, and reducer failure.

Problems Caused by Overfilling

Too much oil may cause oil foaming, churning heat, seal leakage, internal pressure rise, and lower efficiency. If a reducer leaks after oil filling, overfilling or incorrect breather installation should be checked first.

Lubrication Before Startup

Before starting a new cyclo drive, lubrication must be checked carefully. Some reducers are shipped with lubricant, while others may be shipped without oil for safety during transportation. Never assume the reducer is ready to run.

Pre-Startup Checklist

Before operation, confirm the following points:

Lubrication type

Check whether the reducer uses oil or grease.

Oil grade or grease type

Use the lubricant recommended by the supplier.

Oil quantity

Fill according to reducer model and mounting position.

Oil level

Check the level plug, sight glass, or oil level mark.

Breather plug

For oil-lubricated reducers, the breather should be installed correctly if required.

Leakage inspection

Check the shaft seal, drain plug, oil plug, and housing joint.

Smooth rotation

If possible, rotate the shaft by hand before power-on to check for abnormal resistance.

First Oil Change and Regular Maintenance

For a new reducer, the first oil change is important because small wear particles may appear during the initial running period. After the first running stage, the reducer should enter a regular maintenance schedule.

First Oil Change

As a practical reference, many users inspect the oil after the first 100 to 300 operating hours. If the oil becomes dark, smells burnt, contains metal particles, or looks contaminated, replace it earlier.

Regular Oil Change

The oil change interval depends on working condition.

Light-duty operation

For clean and intermittent applications, the oil may last longer.

Normal industrial operation

For standard 8 to 12 hours per day operation, oil should be checked and changed according to the supplier’s maintenance guide.

Heavy-duty operation

For 24-hour operation, shock load, high temperature, dusty areas, or frequent start-stop conditions, oil inspection and replacement should be more frequent.

Harsh environments

Cement plants, mining equipment, feed mills, wastewater treatment systems, and outdoor conveyors need stricter lubrication maintenance because dust, water, and temperature changes can contaminate lubricant faster.

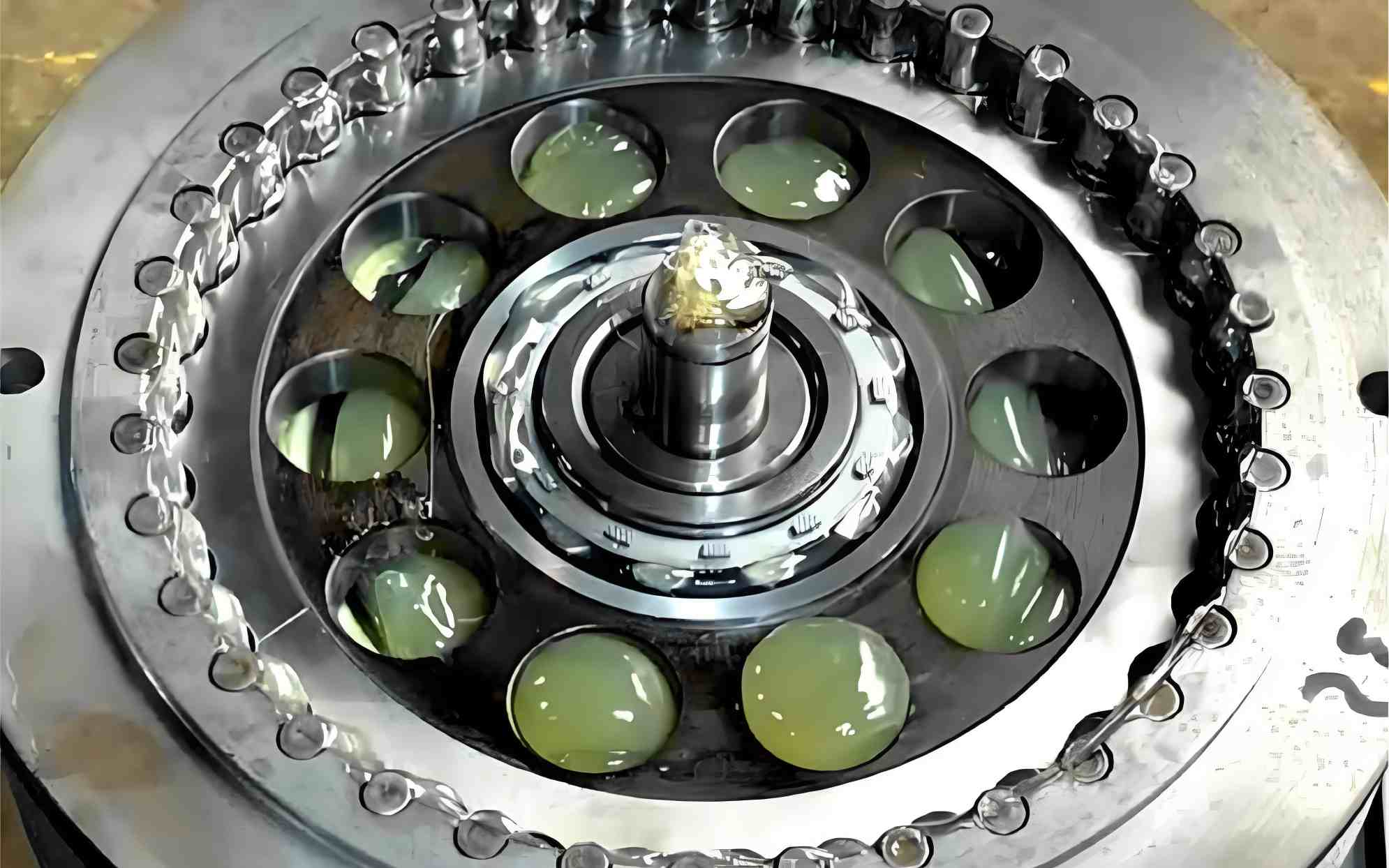

Grease Maintenance for Cyclo Drives

If the cyclo drive is grease-lubricated, maintenance should follow the grease requirement instead of oil maintenance rules.

Do Not Overfill Grease

Too much grease can increase temperature and pressure on seals. It may also create resistance and reduce efficiency.

Use the Correct Grease

Grease has base oil, thickener, additives, and consistency grade. Different greases may not be compatible. Use the supplier’s recommended type.

Avoid Mixing Greases

Mixing different greases can cause hardening, softening, oil separation, or poor lubrication performance. If changing grease type, clean the old grease as much as possible.

Watch for Grease Aging

Grease should be replaced if it becomes dry, hard, separated, contaminated, or discolored.

How to Check Lubricant Condition

Regular inspection helps detect problems before the reducer fails.

Oil Color

Fresh oil is usually clear or slightly amber. Dark oil may indicate overheating, oxidation, or aging.

Metal Particles

Metal particles may indicate internal wear. If many particles are found, stop the machine and inspect the reducer.

Water Contamination

Milky oil usually means water has entered the reducer. This is dangerous because water reduces lubrication performance and causes corrosion.

Burnt Smell

A burnt smell may indicate overheating or oil oxidation.

Oil Level Drop

If the oil level drops repeatedly, check for leakage at the shaft seal, plug, gasket, or housing joint.

Temperature Rise

A sudden temperature increase may be caused by low oil, wrong oil viscosity, overfilling, overload, bearing damage, or poor alignment.

Common Cyclo Drive Lubrication Problems

Many cyclo drive failures are related to lubrication mistakes.

Running Without Oil

This is one of the most serious mistakes. If a reducer is operated without oil, bearings and internal transmission parts can be damaged quickly.

Wrong Oil Grade

Incorrect viscosity can cause overheating, poor lubrication, high noise, difficult startup, or rapid wear.

Low Oil Level

Low oil level may result from leakage, incorrect filling, wrong mounting position, or poor maintenance.

Overfilling

Overfilling can cause foaming, heat, leakage, and pressure increase inside the reducer.

Oil Contamination

Dust, water, metal particles, or chemicals can damage lubricant quality and internal parts.

Mixed Lubricants

Mixing incompatible lubricants may reduce protection, form sludge, or damage seals.

Ignoring Oil Change

Old oil loses its protective performance. Delayed oil change can lead to higher wear and reducer failure.

Blocked Breather

A blocked or missing breather can cause pressure problems and oil leakage.

Lubrication Tips for Different Applications

Different machines create different lubrication risks.

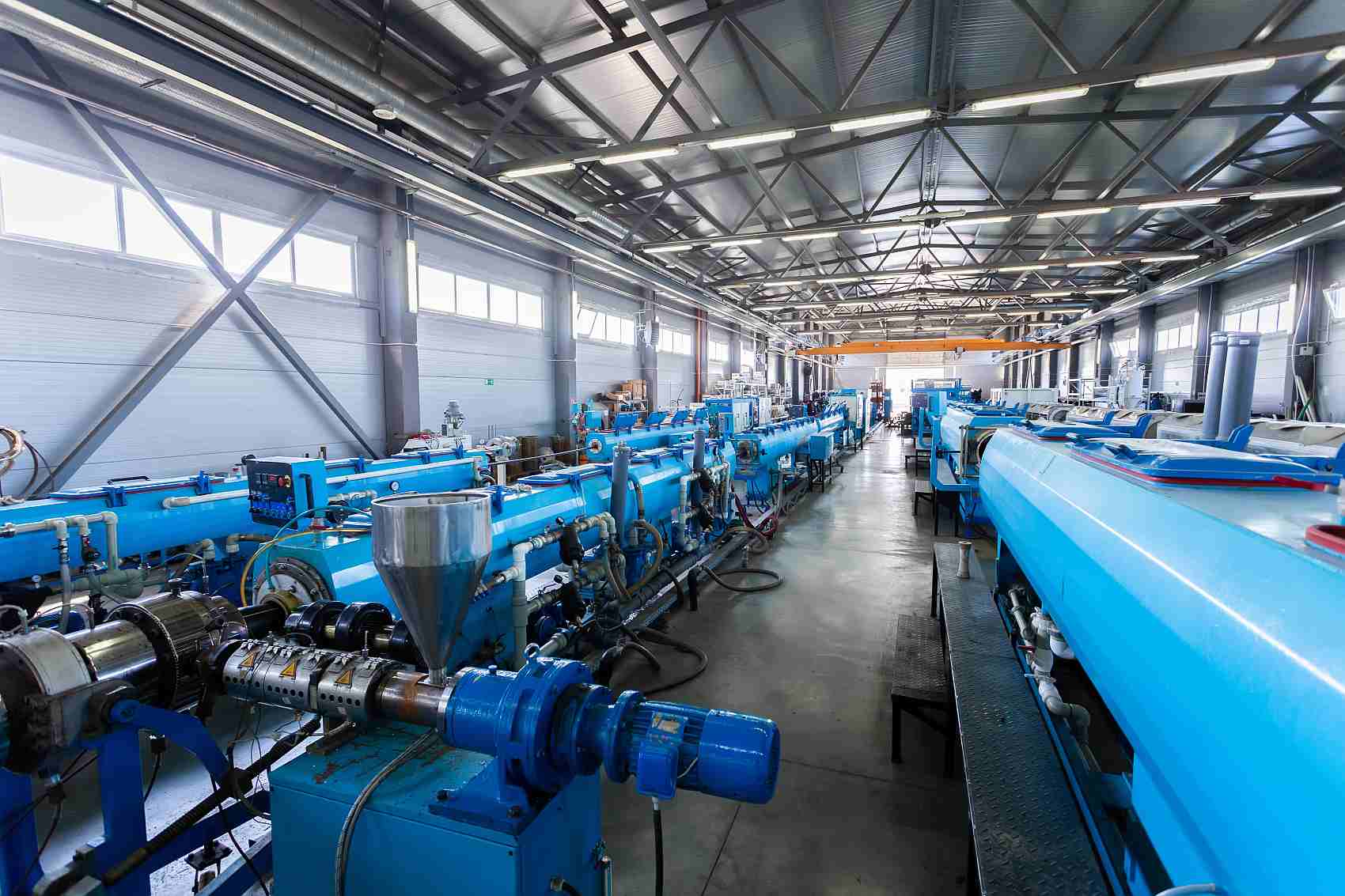

Conveyors

Conveyors often run continuously. Check oil level, temperature, and seals regularly, especially in dusty environments.

Mixers and Agitators

Mixers may start under load and face changing torque. Use proper oil viscosity and confirm the service factor of the reducer.

Crushers

Crushers create impact load and vibration. Oil should be checked frequently for metal particles and overheating signs.

Pellet Mills

Pellet mills often work in dusty and high-load conditions. Prevent oil contamination and monitor temperature carefully.

Packaging Machines

Packaging machines may have frequent start-stop cycles. Lubrication should match speed, duty cycle, and operating hours.

Wastewater Equipment

Moisture and corrosion are major risks. Check for water contamination and choose suitable sealing protection.

How to Change Oil in a Cyclo Drive

Oil changing should be clean and controlled.

Step 1: Stop the Machine Safely

Turn off the power and follow safety procedures before maintenance.

Step 2: Let the Reducer Cool

Do not drain oil when it is extremely hot. Hot oil can cause burns.

Step 3: Clean Around the Plugs

Clean the oil plug, drain plug, and surrounding area before opening them.

Step 4: Drain Old Oil

Open the drain plug and drain the old oil completely into a container.

Step 5: Inspect the Old Oil

Check color, smell, water contamination, and metal particles.

Step 6: Flush if Needed

If the oil is heavily contaminated, flushing may be necessary before refilling.

Step 7: Add New Oil

Close the drain plug and add the recommended oil to the correct level.

Step 8: Recheck After Running

Run the reducer briefly, stop it, wait for the oil to settle, and check the level again.

How Victory Supports Reliable Cyclo Drive Lubrication

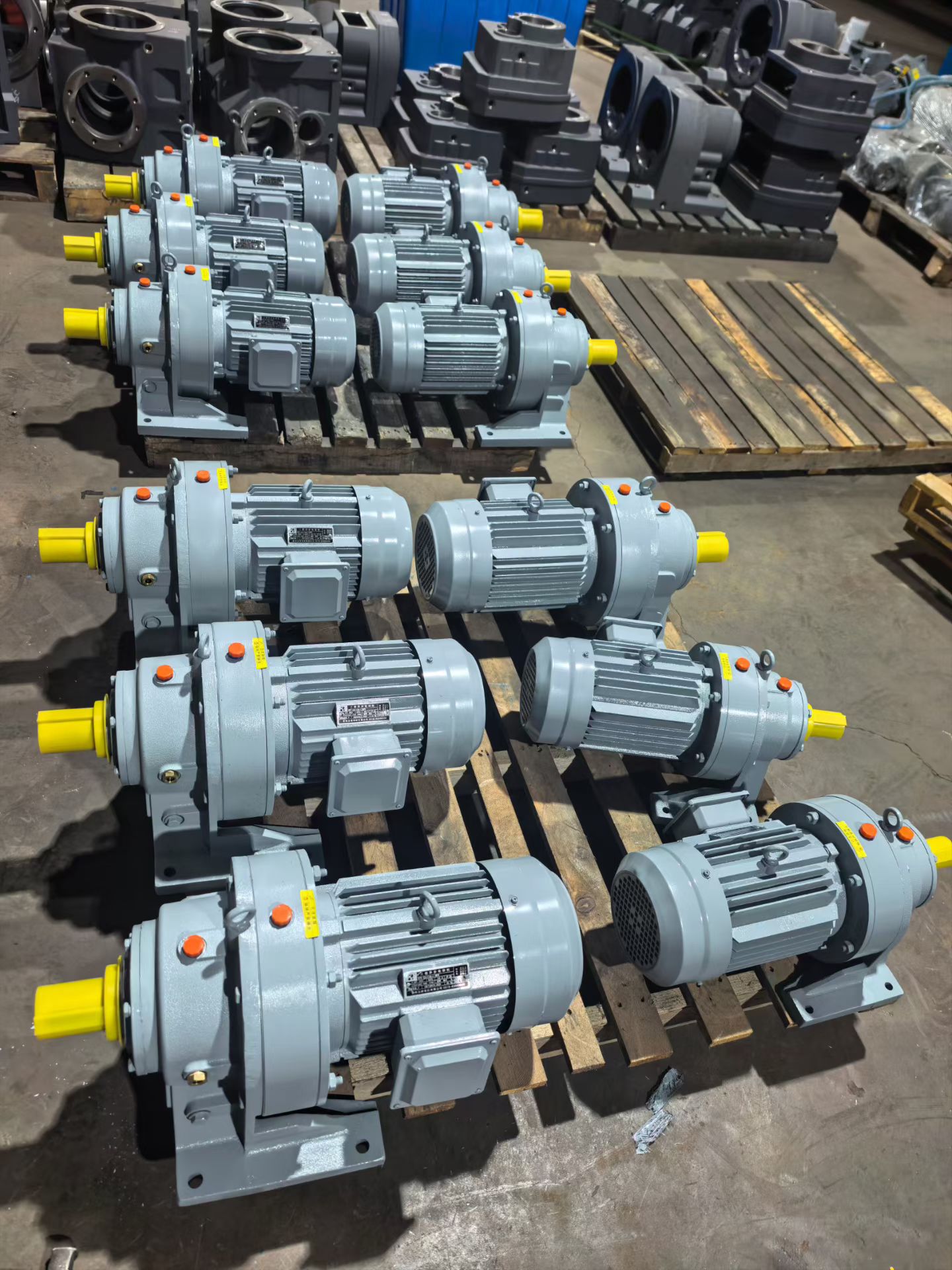

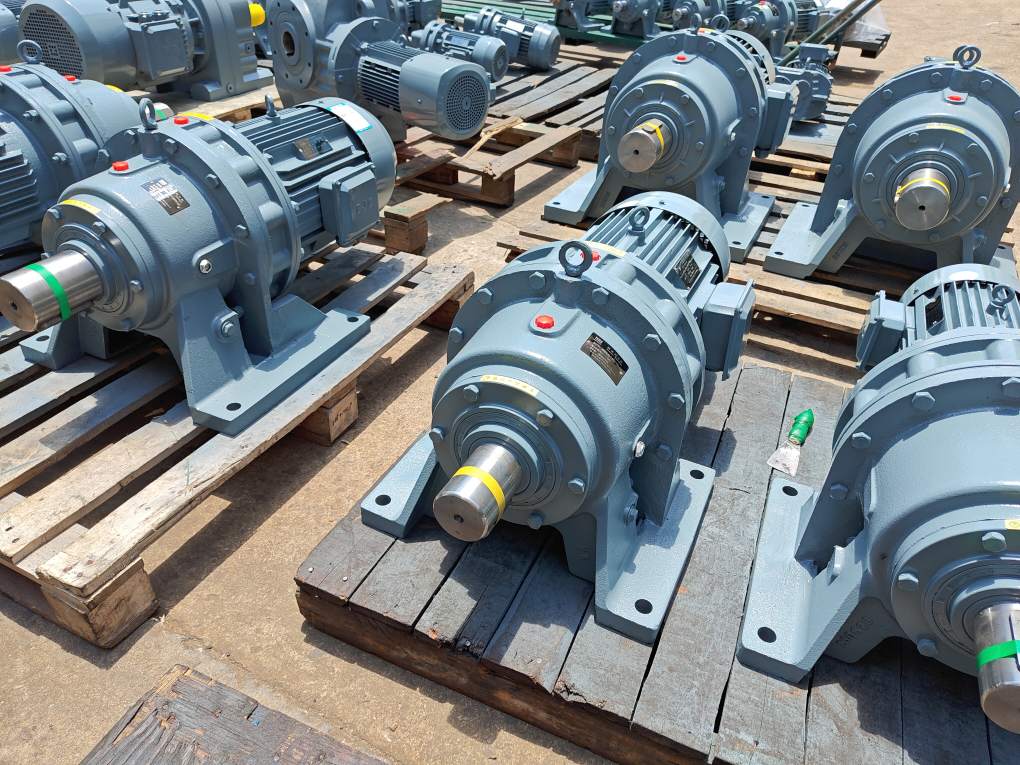

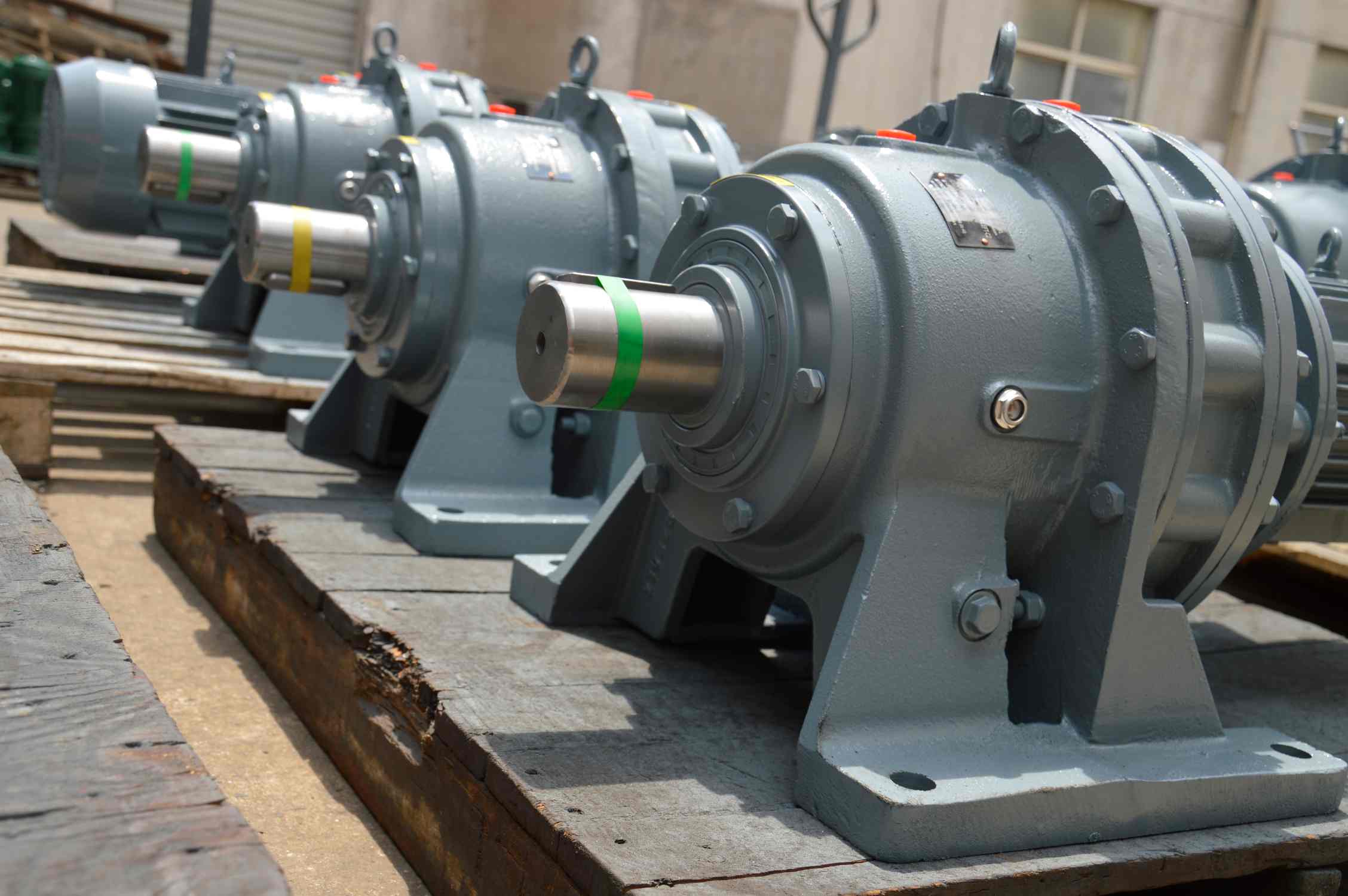

Victory supplies cycloidal reducers and gear motor solutions for conveyors, mixers, pellet mills, packaging machines, wastewater equipment, and other industrial machinery. For brand owners, distributors, and OEM customers, lubrication support is part of building a reliable product line.

Model Selection Support

Victory helps customers select the proper cyclo drive according to motor power, output speed, torque, service factor, load type, and working hours.

Lubrication Guidance

According to reducer size, mounting position, duty cycle, and application environment, Victory can provide practical lubrication suggestions before shipment.

Custom Mounting Options

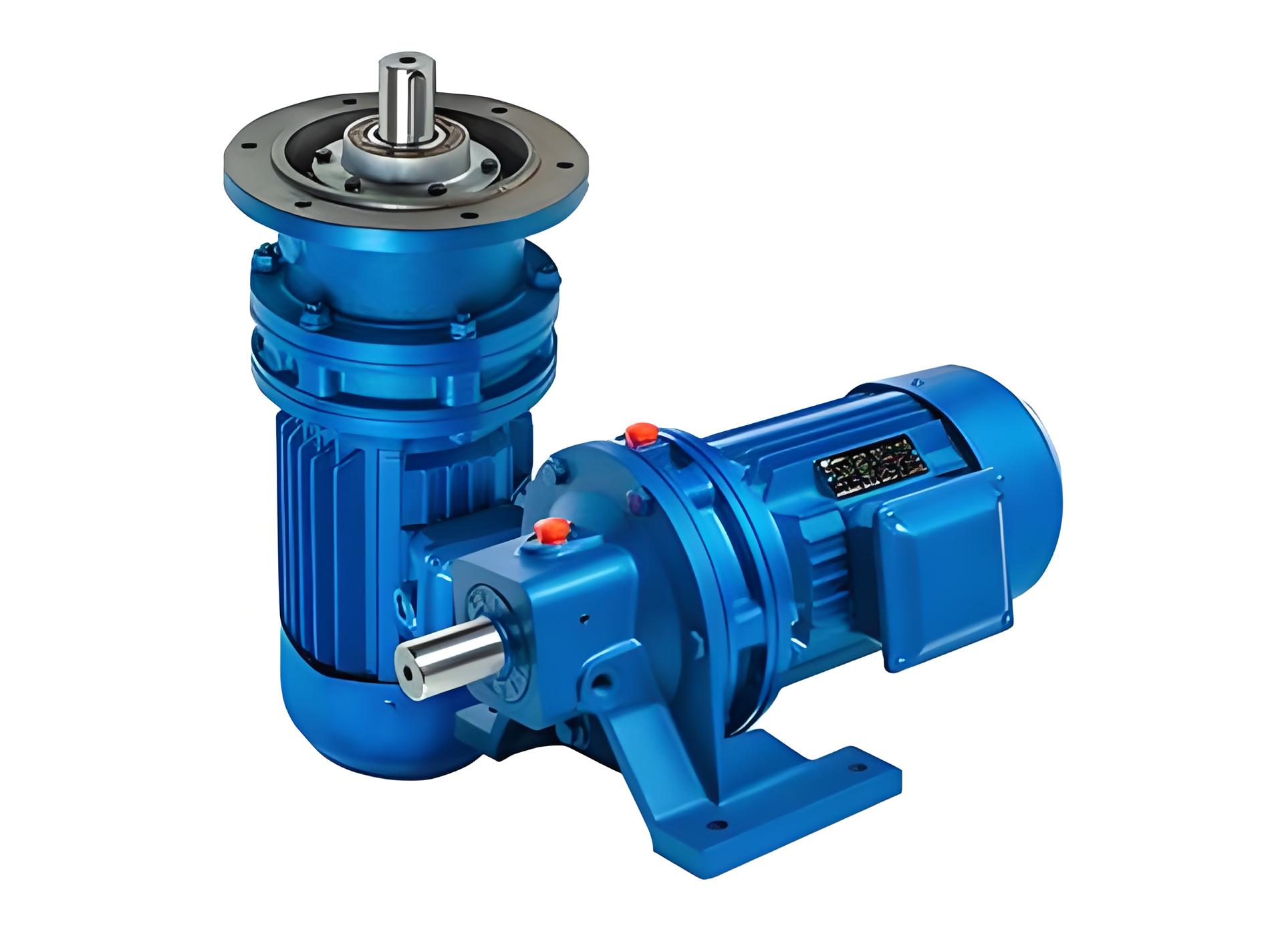

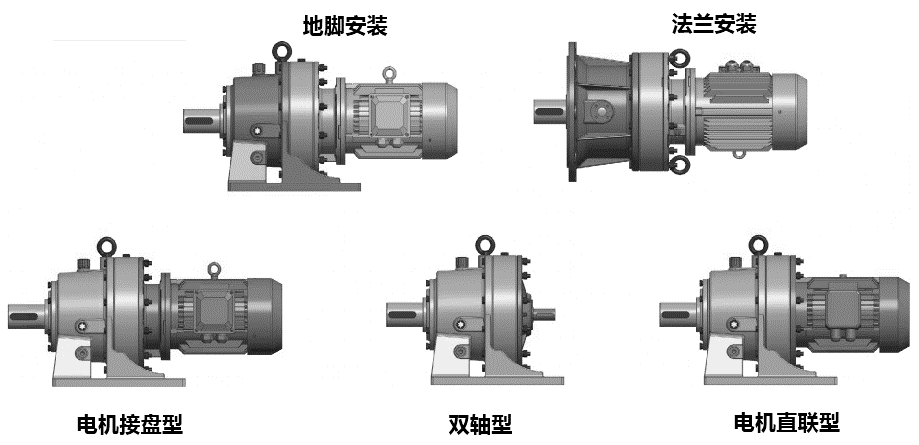

Victory supports foot mounting, flange mounting, vertical installation, horizontal installation, special shaft design, and customized connection dimensions. This helps customers avoid lubrication problems caused by incorrect installation.

Complete Gear Motor Matching

Victory can supply cycloidal reducer with three-phase motor, brake motor, VFD motor, special voltage motor, customized shaft, flange, and nameplate.

OEM and Brand Support

For distributors and brand owners, Victory supports customer logo, customized color, private nameplate, technical drawings, stable batch production, and consistent quality control.

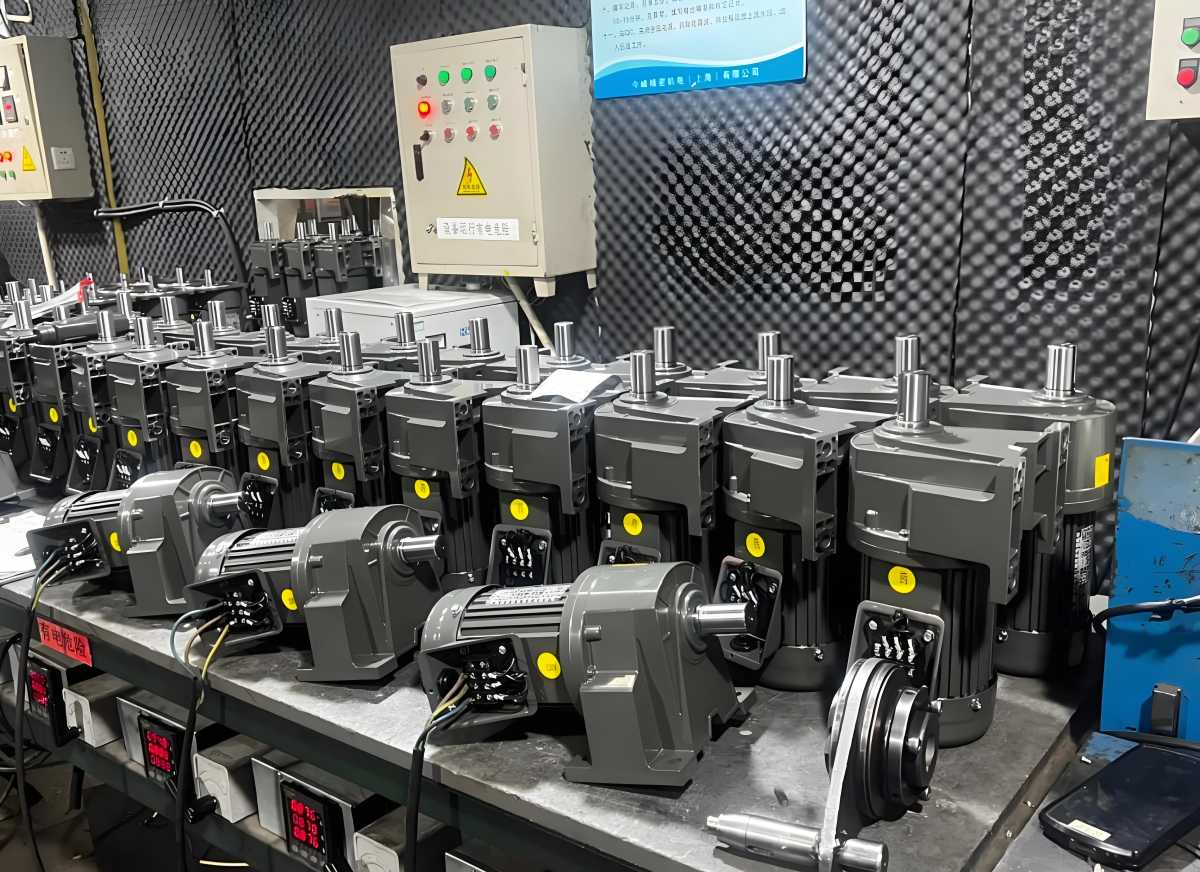

Quality Check Before Delivery

Before shipment, Victory can check appearance, rotation, mounting dimensions, sealing area, and motor matching to reduce installation and maintenance risk.

Cyclo Drive Lubrication Maintenance Checklist

A simple checklist can help reduce failure risk.

Before Startup

Confirm lubricant type, oil grade, oil quantity, plugs, breathers, and seals before operation.

During Operation

Monitor temperature, noise, leakage, and vibration. Grinding, knocking, oil leakage, or abnormal heat should be checked immediately.

During Maintenance

Replace oil on schedule, inspect old oil for particles or water, and record lubricant type, replacement date, operating hours, and abnormal conditions.

FAQ About Cyclo Drive Lubrication

What oil should I use for a cyclo drive?

Use the oil recommended by the reducer supplier. Common industrial cycloidal reducers may use gear oil such as ISO VG 150, 220, or 320, but the exact choice depends on model, speed, load, temperature, and mounting position.

Can I use grease instead of oil?

Only if the reducer is designed for grease lubrication. Do not replace oil with grease without supplier confirmation.

How often should I change the oil?

It depends on operating hours, load, temperature, and environment. Heavy-duty, dusty, wet, or 24-hour applications need more frequent inspection and oil replacement.

Why is my cyclo drive overheating?

Possible reasons include low oil level, overfilled oil, wrong oil viscosity, overload, bearing damage, misalignment, blocked breather, or poor ventilation.

Why is oil leaking from the reducer?

Oil leakage may come from worn seals, overfilling, blocked breather, incorrect mounting angle, high internal pressure, or damaged sealing surfaces.

Can I mix different gearbox oils?

It is not recommended. Different oils may have incompatible additives. If changing oil type, drain and clean the reducer before refilling.

What happens if a cyclo drive runs without oil?

The reducer may suffer rapid bearing damage, cycloidal disc wear, pin and roller damage, overheating, and complete failure. Stop the machine immediately and inspect the reducer.

Conclusion

Cyclo drive lubrication is one of the most important factors affecting gearbox reliability. Correct lubricant selection, correct oil quantity, regular inspection, and timely oil change can reduce overheating, wear, noise, leakage, and unexpected downtime.

For conveyors, mixers, crushers, pellet mills, packaging machines, and wastewater equipment, lubrication should be considered from the beginning of reducer selection. Different loads, mounting positions, operating hours, and environments require different lubrication attention.

Victory provides cycloidal reducers, gear motors, and customized drive solutions for industrial customers. With proper model selection, practical lubrication guidance, and stable manufacturing support, Victory helps distributors, OEMs, and brand owners build reliable cyclo drive product lines for long-term industrial use.
