How to Replace an Old Gear Motor When the Original Brand Is Unavailable

When an old gear motor fails, many maintenance teams first try to buy the same brand and model again. However, this is not always possible. The original model may be discontinued, the local distributor may no longer sell it, or the delivery time and price may not be acceptable.

For a factory, an unavailable gear motor brand can quickly become a production problem. A failed gear motor may stop a conveyor, mixer, agitator, pump, crusher, packaging machine, or complete production line.

The good news is that you do not always need the same brand. In most cases, what you need is a compatible gear motor replacement that matches the key technical data, installation dimensions, and working conditions of the old unit.

This guide explains how to replace an old gear motor when the original brand is unavailable, what information should be checked, and how Victory can help you choose a reliable replacement solution.

Why Old Gear Motors Need Replacement

A gear motor combines an electric motor and a gearbox. The motor provides power, while the gearbox reduces speed and increases output torque. Because gear motors often work under continuous load, they may wear out after years of operation.

Common Failure Reasons

Old gear motors may need replacement because of mechanical failure, electrical failure, or discontinued spare parts.

Common reasons include:

• Gearbox oil leakage
• Bearing wear
• Gear tooth damage
• Broken output shaft
• Motor winding burnout
• Brake failure
• Excessive noise or vibration
• Overheating
• Discontinued model
• Unavailable spare parts

Why Fast Replacement Matters

In heavy-duty applications, such as mixers, crushers, pellet mills, rotary dryers, and conveyors, the gear motor may face shock load, frequent start-stop, or long working hours. Once it fails, fast replacement becomes very important because production loss is often much higher than the cost of the gear motor itself.

Why the Original Brand May Be Unavailable

Many industrial machines were imported years ago. The gear motor installed on the machine may come from a European, Japanese, Korean, or local brand. After many years, the same model may be difficult to find.

Main Reasons for Brand Unavailability

The original gear motor brand may be unavailable because:

• The model has been discontinued
• The gearbox series has been upgraded
• The local distributor no longer imports it
• The original supplier has a long lead time
• The replacement price is too high
• The machine manufacturer no longer supports spare parts
• The nameplate is damaged or missing
• The old gear motor was specially customized

Practical Replacement Thinking

In this situation, a compatible replacement gear motor is often the most practical choice. It can reduce cost, shorten delivery time, and help the machine return to operation quickly.

Do You Really Need the Same Brand?

In most industrial applications, the brand name is not the most important factor. What matters is whether the new gear motor can perform the same function and fit the machine correctly.

Key Matching Points

A suitable gear motor replacement should match:

• Motor power
• Voltage and frequency
• Motor speed
• Gearbox ratio
• Output speed
• Output torque
• Mounting type
• Shaft or hollow bore size
• Flange or foot dimensions
• Brake or VFD requirement
• Application load and working environment

Example of Brand Replacement

For example, an old helical gear motor on a conveyor does not have to be replaced by the same brand. It only needs the correct speed, torque, mounting structure, and shaft connection. If these points are correct, a different brand can often replace the original gear motor successfully.

What Is a Compatible Gear Motor Replacement?

A compatible gear motor replacement is a new gear motor that can replace the old unit in performance, installation, and function.

It may not look exactly the same as the original gear motor, but it should achieve three important goals:

• The machine runs at the correct speed
• The gear motor provides enough torque
• The new unit can be installed safely and reliably

Direct Replacement vs Modified Replacement

Some replacements can be installed directly without changing the machine. Other replacements may require small adjustments, such as a customized shaft, special flange, adapter plate, coupling, or modified mounting base.

When Modification Is Acceptable

Small mechanical modifications are common in industrial replacement projects, especially when the original brand is unavailable. As long as the new gear motor meets the required performance and installation conditions, a modified replacement can be a practical and reliable solution.

Step 1: Collect the Old Gear Motor Information

Before selecting a replacement gear motor, collect as much information as possible from the old unit. The more details you provide, the easier it is to choose a correct replacement.

Information You Should Prepare

Useful information includes:

• Complete gear motor photos
• Motor nameplate photo
• Gearbox nameplate photo
• Machine application
• Installation position
• Output shaft dimensions
• Flange or foot mounting dimensions
• Hollow bore size if applicable
• Brake information if applicable
• Voltage and frequency
• Required output speed
• Working hours per day
• Load condition
• Quantity required

If the Nameplate Is Missing

Even if the nameplate is missing, clear photos and measured dimensions can help the supplier evaluate a replacement solution. Photos of the shaft, flange, foot mounting, and machine connection are especially useful.

Check the Motor Nameplate

The motor nameplate usually shows the main electrical data.

Important motor information includes:

• Power: kW or HP
• Voltage: 230V, 380V, 400V, 415V, 440V, 460V, etc.
• Frequency: 50Hz or 60Hz
• Phase: usually three phase
• Speed: rpm
• Current: A
• Efficiency class: IE2, IE3, or IE4
• Insulation class
• Protection rating
• Brake voltage if available

Motor Data Example

If the old motor is 5.5 kW, 400V, 50Hz, 4 pole, about 1450 rpm, the replacement motor should normally follow the same electrical data unless the customer wants to upgrade or customize the design.

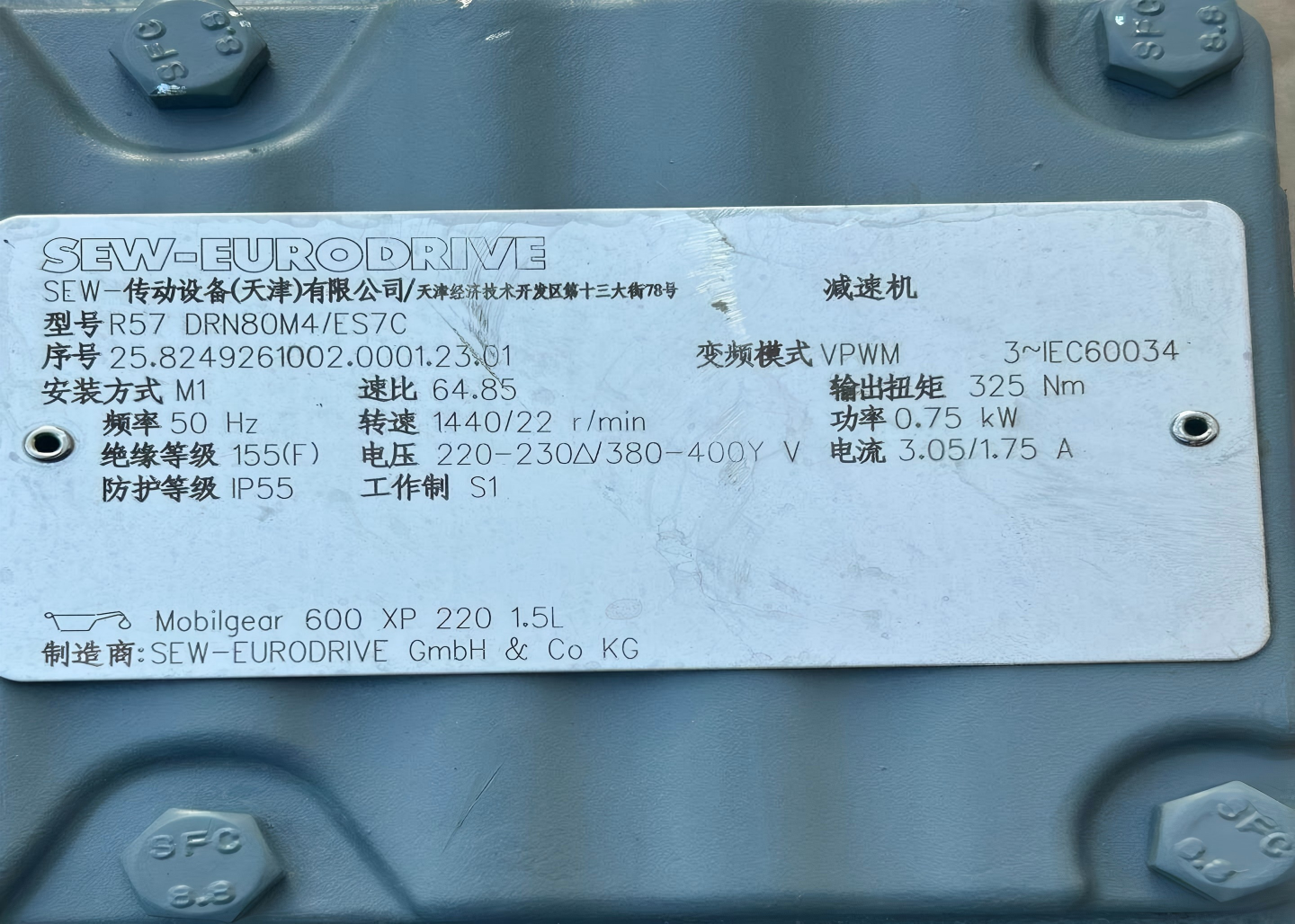

Check the Gearbox Nameplate

The gearbox nameplate usually provides the gearbox model, ratio, output speed, torque, and mounting information.

Important gearbox information includes:

• Gearbox type and size
• Ratio
• Output speed
• Output torque
• Service factor
• Mounting position
• Output shaft direction

Why Ratio Is Important

The ratio and output speed are especially important. If the ratio is wrong, the machine may run too fast or too slow. This can reduce production efficiency, damage the machine, or create safety risks.

Step 2: Identify the Gearbox Type

Different machines use different gearbox structures. Before choosing a replacement, identify the gearbox type.

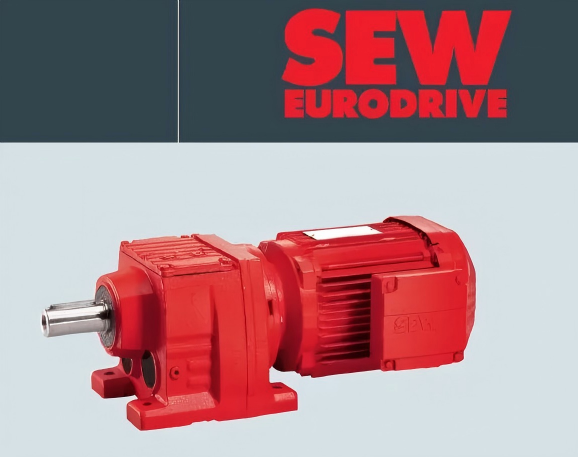

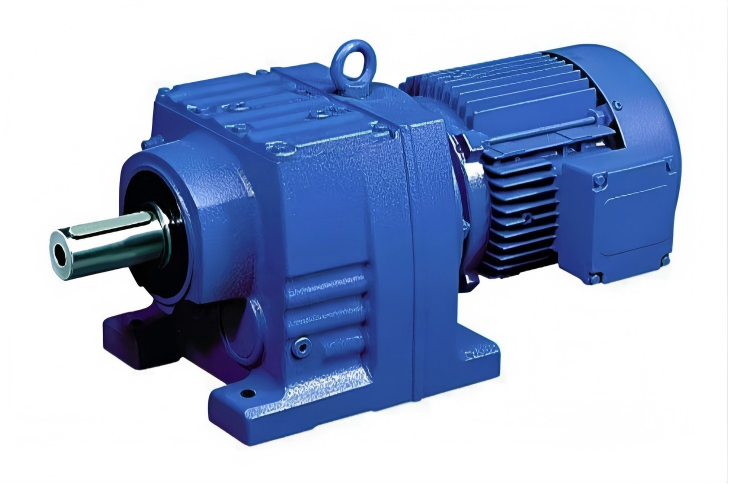

Helical Gear Motor

A helical gear motor is widely used in conveyors, mixers, pumps, packaging machines, and general industrial equipment.

Main Features

It has high efficiency, smooth operation, and good load capacity. It is suitable for continuous operation and many general industrial applications.

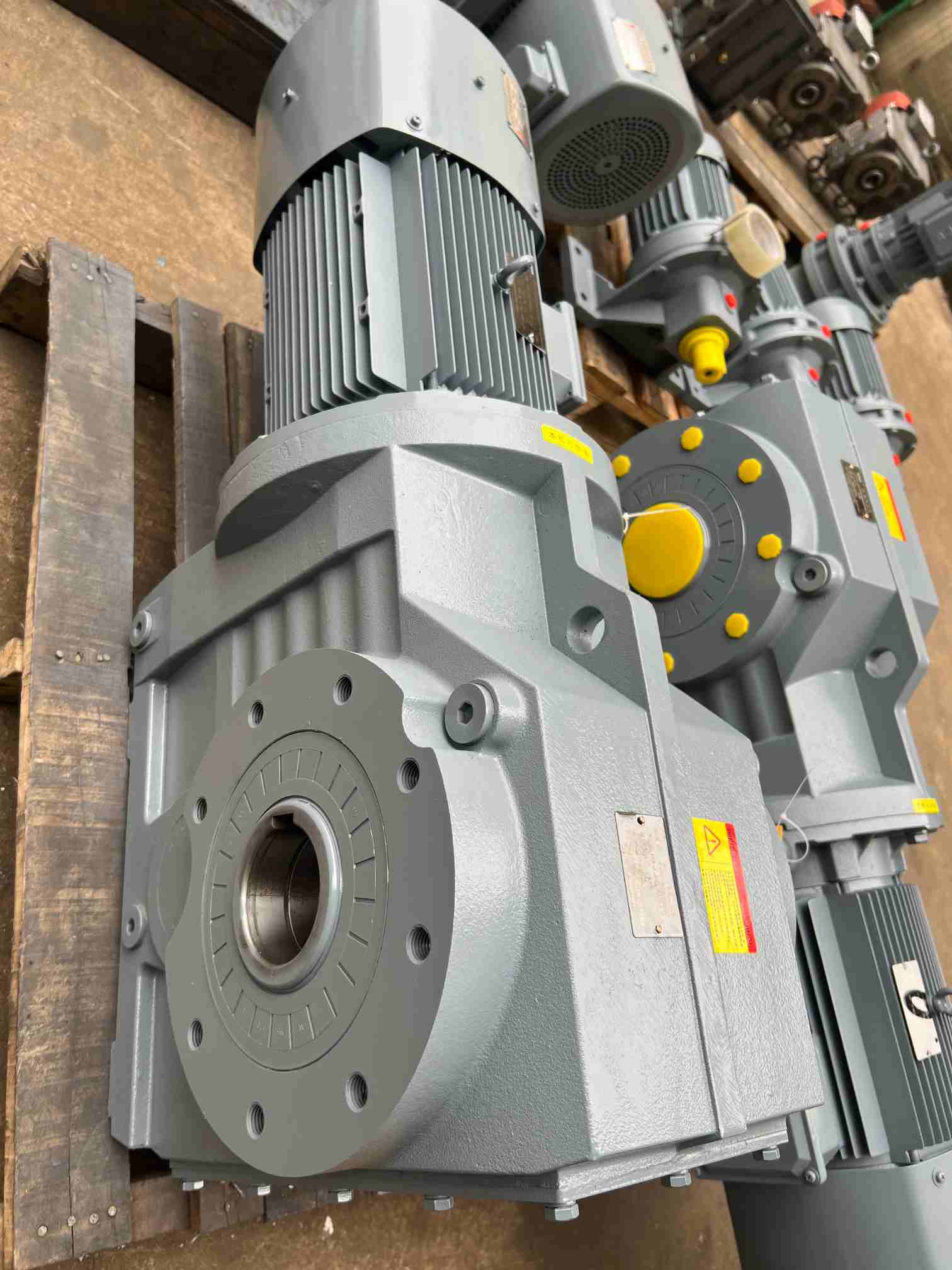

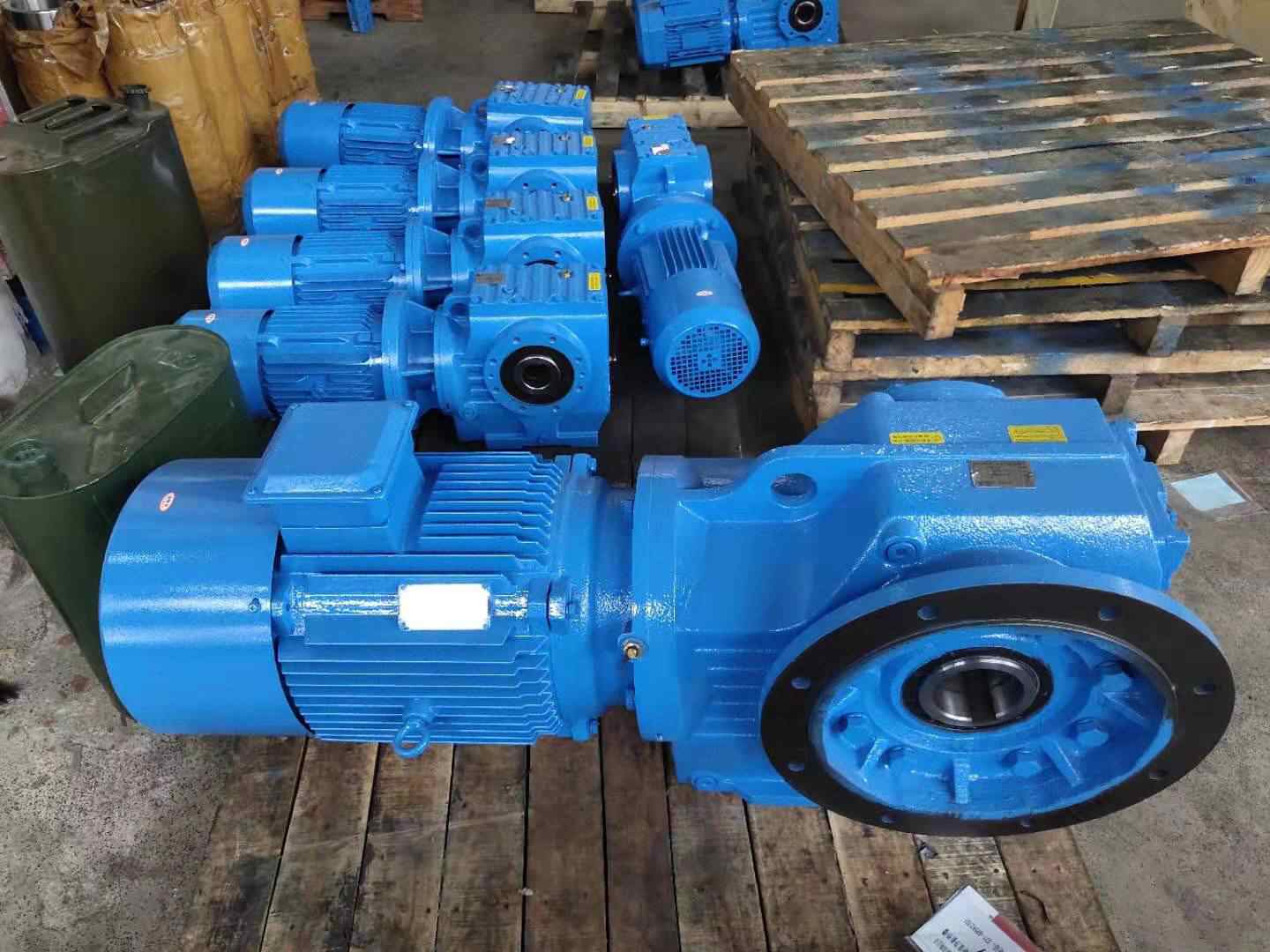

Helical Bevel Gear Motor

A helical bevel gear motor provides right-angle transmission. It is suitable for conveyors, mixers, agitators, food machinery, packaging machines, and lifting equipment.

Main Features

Compared with worm gear motors, helical bevel gear motors usually have higher efficiency and better torque performance. They are a good choice when the machine needs a 90-degree power transmission layout.

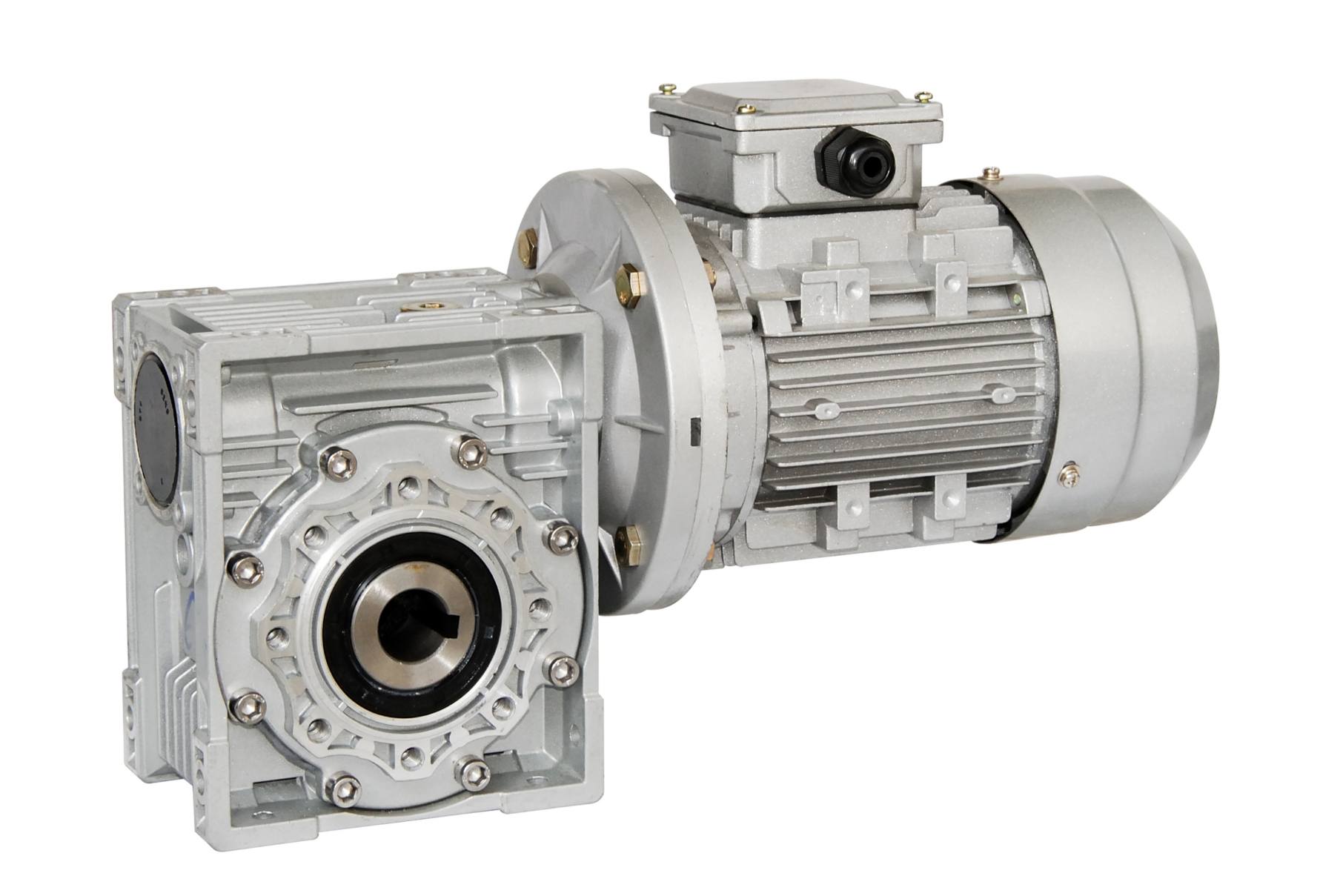

Worm Gear Motor

A worm gear motor is compact and economical. It is commonly used for light and medium-duty right-angle transmission.

Main Features

It is often used for small conveyors, packaging equipment, food machinery, light mixers, and adjustment systems. However, its efficiency is usually lower than helical or helical bevel gear motors, especially at higher ratios.

Cycloidal Gear Motor

A cycloidal gear motor is suitable for heavy-duty and shock-load applications.

Main Features

It has strong overload capacity and a compact structure. It is often used for crushers, mixers, pellet mills, conveyors, agitators, and heavy industrial machines.

Step 3: Match Motor Power and Electrical Parameters

Motor power is one of the first things to confirm. If the power is too small, the motor may overload and overheat. If the power is too large, it may increase cost and create unnecessary mechanical stress.

Electrical Parameters to Confirm

The main electrical parameters include:

• Power
• Voltage
• Frequency
• Phase
• Speed
• Efficiency class
• Insulation class
• Protection rating
• Duty cycle

Voltage and Frequency Differences

For international replacement projects, voltage and frequency are very important. A gear motor used in Europe may be 400V 50Hz, while one used in the United States may be 230/460V 60Hz. Victory can customize voltage and frequency for different markets, including 50Hz and 60Hz systems.

Step 4: Confirm Output Speed and Gear Ratio

Output speed is one of the most important factors in gear motor replacement.

Basic Formula

Motor Speed ÷ Gearbox Ratio = Output Speed

For example, if the motor speed is 1450 rpm and the gearbox ratio is 30:1, the output speed is about 48 rpm.

Why Output Speed Must Match

If the output speed is too high, the machine may run too fast and cause damage. If the output speed is too low, production efficiency may decrease.

What to Check

When checking output speed, confirm:

• Original motor speed
• Gearbox ratio
• Required output speed
• Allowed speed tolerance
• Whether a VFD is used

When Exact Ratio Is Not Available

Sometimes the exact original ratio is not available. A close ratio may be acceptable if the machine allows a small speed difference. For applications such as conveyors and mixers, a small speed difference is often acceptable after confirmation.

Step 5: Check the Required Output Torque

Torque is the force that drives the machine load. A replacement gear motor must provide enough torque for the application.

Torque and Speed Relationship

Torque is related to motor power and output speed. At the same motor power, a lower output speed usually means higher output torque.

Applications That Need Higher Torque

Applications that usually require higher torque include heavy conveyors, loaded mixers, crushers, pellet mills, high-viscosity agitators, rotary dryers, and lifting equipment.

For example:

• A mixer may start with heavy material inside.
• A crusher may face sudden hard material.
• A conveyor may receive uneven loading.
• A pellet mill may have fluctuating feeding pressure.

If the replacement gear motor does not have enough torque, it may fail during startup or overload. This is why torque should be checked together with motor power, ratio, output speed, and service factor.

Step 6: Measure the Mounting Dimensions

Even if the technical parameters are correct, the replacement gear motor still needs to fit the machine.

Foot Mounting

For foot-mounted gear motors, check foot hole distance, foot hole diameter, shaft center height, overall size, and output shaft position.

Installation Risk

If the foot dimensions are different, the machine base may need modification. For this reason, foot mounting dimensions should be checked before confirming the replacement model.

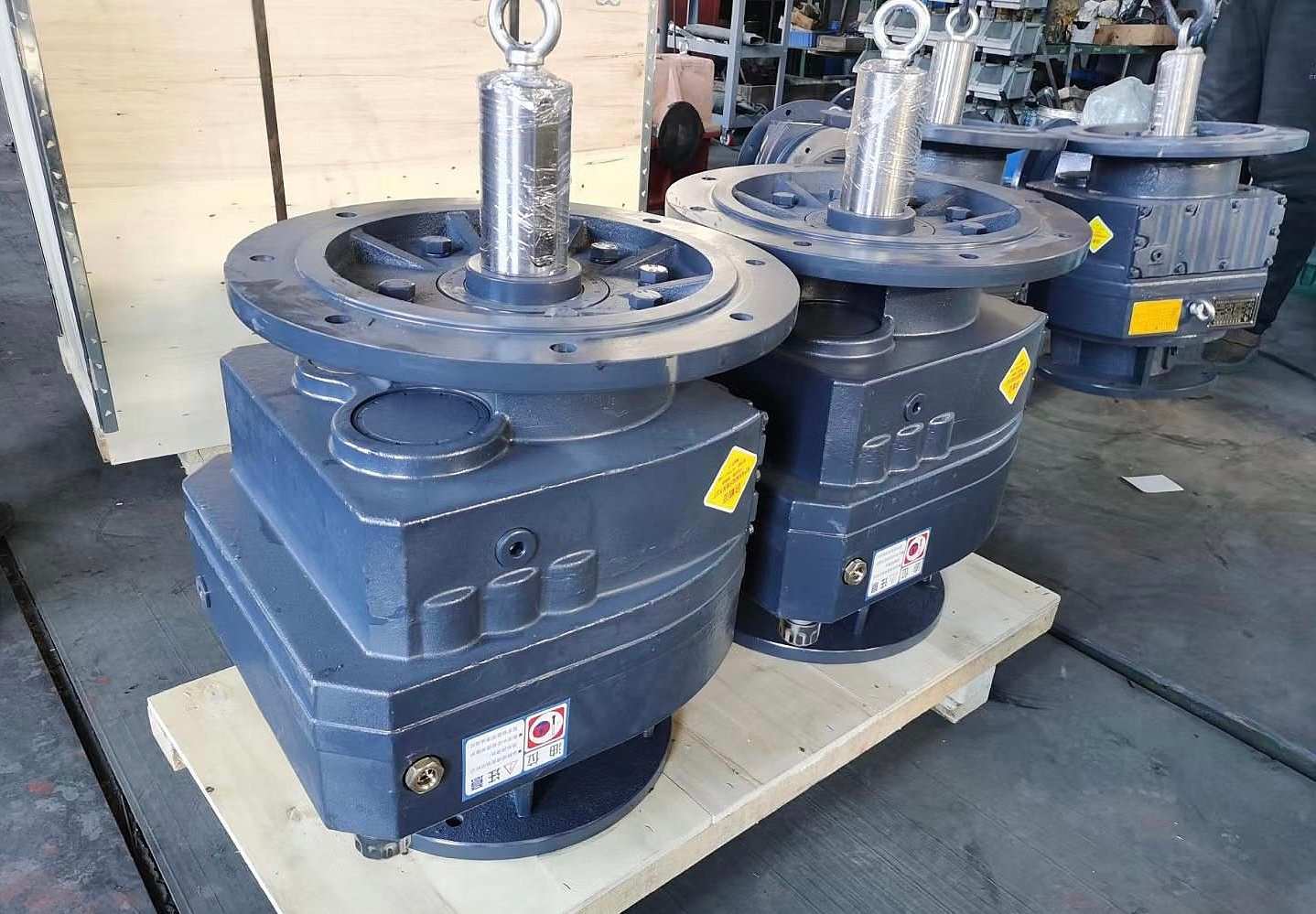

Flange Mounting

For flange-mounted gear motors, check flange outer diameter, pilot diameter, bolt hole diameter, bolt hole quantity, PCD bolt circle, shaft diameter, and shaft length.

Why Flange Size Matters

A small difference in flange size may prevent installation. This is especially important when the gear motor is directly connected to a machine housing or pump body.

Shaft Mounting

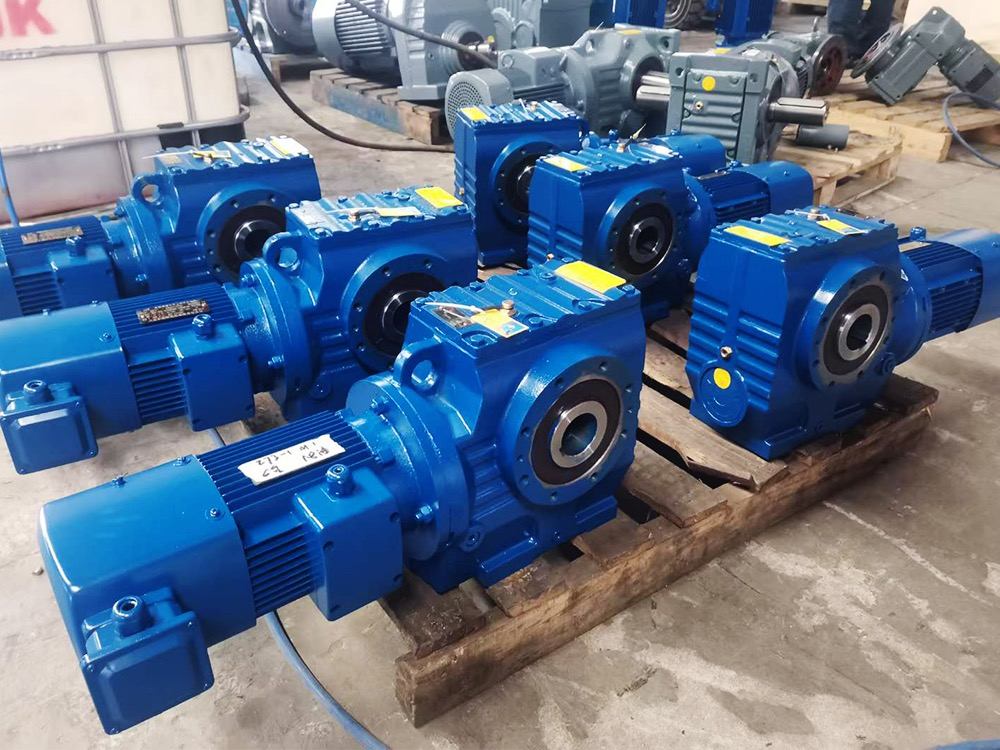

Some gear motors use hollow shaft mounting or torque arm mounting.

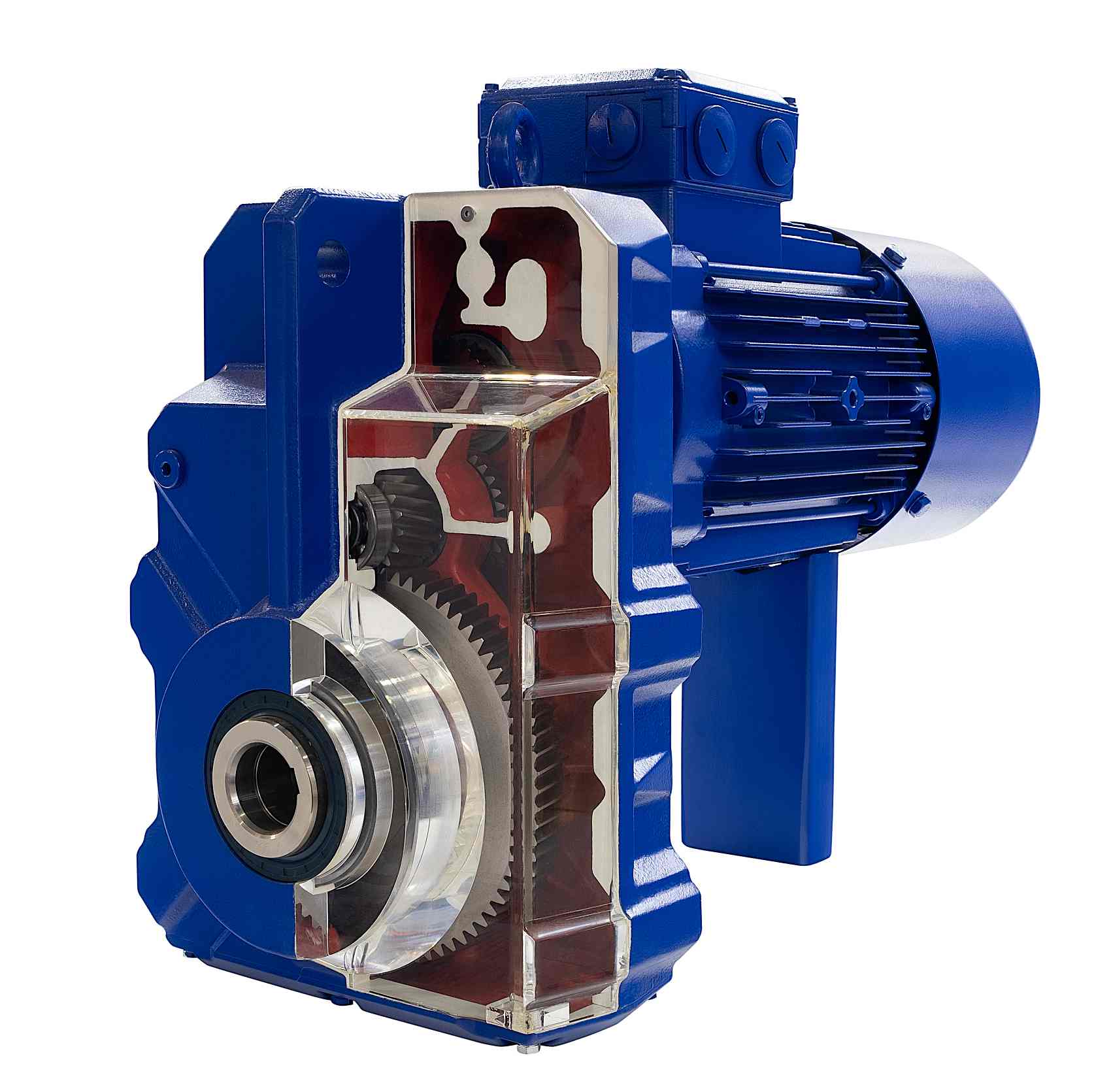

Important Hollow Shaft Data

For this type, check hollow bore diameter, keyway size, hollow shaft depth, torque arm position, locking method, and machine shaft size. If the hollow bore does not match the machine shaft, the gear motor cannot be installed directly.

Step 7: Measure the Output Shaft or Hollow Bore

The output shaft is one of the most important mechanical connection points.

Solid Shaft Measurement

For a solid shaft, measure shaft diameter, shaft length, keyway width, keyway depth, thread size, shoulder position, and distance from the gearbox face.

Keyway Matching

The keyway must match the machine coupling, sprocket, pulley, or driven part. If the keyway is wrong, the shaft may not transmit torque correctly.

Hollow Shaft Measurement

For a hollow shaft, measure bore diameter, bore depth, keyway size, machine shaft size, and locking method.

Customization Support

Victory can evaluate customized shaft, hollow bore, flange, and mounting solutions according to the customer’s old gear motor or machine requirement.

Step 8: Check the Working Conditions

A gear motor for a light conveyor is different from a gear motor for a crusher, mixer, or pellet mill. Working conditions affect gearbox size, service factor, bearing selection, lubrication, and safety margin.

Working Conditions to Confirm

Important working conditions include:

• Application type
• Load type
• Working hours per day
• Start-stop frequency
• Shock load level
• Ambient temperature
• Dust or moisture level
• Indoor or outdoor installation
• Vertical or horizontal mounting

Why Service Factor Matters

For continuous-duty or heavy-load applications, it is better to choose a gear motor with a stronger safety margin. This helps reduce overheating, gear wear, and unexpected failure.

Step 9: Confirm Brake, VFD, and Special Options

Many old gear motors include special options. These must be checked before replacement.

Common Special Options

Common options include:

• Electromagnetic brake
• VFD motor
• Independent cooling fan
• Encoder
• PTC or PT100 thermal protection
• Special voltage or frequency
• Special output shaft or flange
• Special terminal box position
• Higher IP protection
• Customer logo or nameplate

Brake and VFD Notes

If the old gear motor is controlled by a VFD, the replacement motor should be suitable for inverter operation. For low-speed running, an independent cooling fan is recommended because the standard motor fan may not provide enough cooling at low frequency.

If the old gear motor has a brake, the brake voltage and brake torque should also be confirmed.

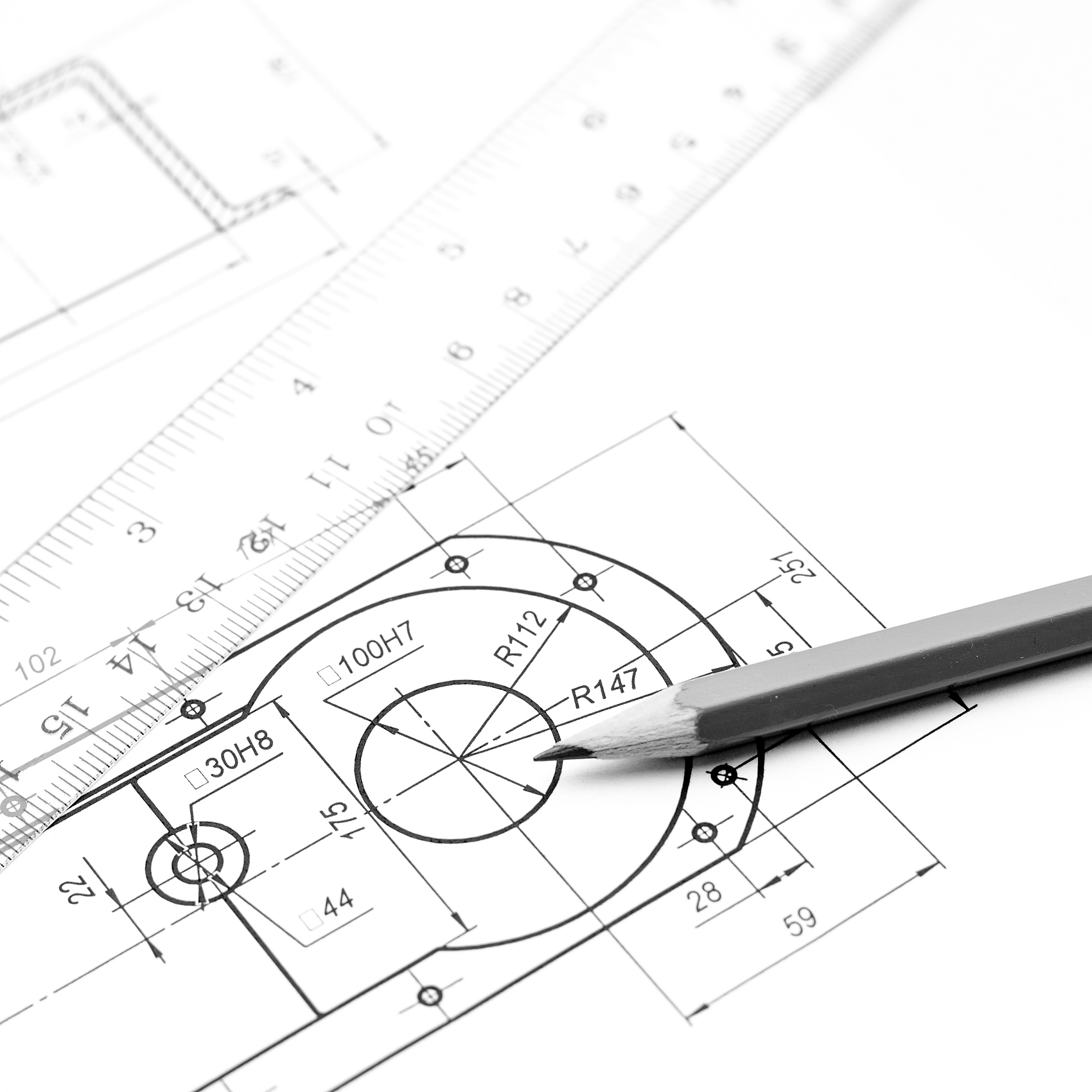

Step 10: Prepare Photos and Drawings

Photos and drawings can greatly reduce replacement risk.

Useful Photos and Documents

Before asking for a quotation, prepare complete gear motor photos, nameplate photos, output shaft photos, mounting photos, machine connection photos, installation space photos, existing drawings, or simple dimension sketches.

Better Information Means Better Selection

The replacement supplier can make a more accurate recommendation when the photos and dimensions are clear. This is especially important for customized output shafts, non-standard flanges, or old models without nameplates.

Common Mistakes When Replacing an Old Gear Motor

Many replacement problems happen because only one parameter is checked.

Mistakes to Avoid

Common mistakes include:

• Only checking motor power and ignoring output speed
• Only checking gearbox ratio and ignoring torque
• Ignoring shaft size or keyway dimensions
• Ignoring flange PCD
• Ignoring voltage and frequency
• Ignoring brake voltage
• Ignoring mounting position
• Ignoring service factor
• Choosing a gearbox too small for the load
• Not confirming whether the motor is VFD-driven
• Not providing clear photos or dimensions

System Matching Is Important

A gear motor replacement should be checked as a complete system. The motor, gearbox, mounting structure, shaft connection, and application load all need to be considered.

Why Choose Victory for Gear Motor Replacement?

Victory provides industrial gear motor replacement solutions for customers who need reliable, compatible, and cost-effective alternatives when the original brand is unavailable.

Direct Factory Supply

Victory is a direct factory supplier. Compared with many original brand replacement options, we can help customers reduce purchasing cost while maintaining stable quality.

Cost-Effective Alternative

For many old European or Japanese gear motor replacements, the original brand price may be high and the delivery time may be long. Victory can offer a practical alternative with factory-direct support.

Compatible Replacement Support

Our technical team can compare old gear motor parameters and recommend a suitable replacement model according to motor power, ratio, output speed, torque, mounting dimensions, and application requirements.

Technical Review Before Selection

We can review nameplate photos, machine photos, shaft dimensions, flange dimensions, and working conditions before recommending a replacement solution.

Voltage and Frequency Customization

Victory can customize motors for different markets, including 220V, 230V, 380V, 400V, 415V, 440V, 460V, 50Hz, and 60Hz applications.

Suitable for Global Markets

This is useful for customers in Europe, Southeast Asia, North America, South America, the Middle East, and other regions with different electrical standards.

Motor Power Matching

We can match motor power according to the original gear motor, machine load, and working condition.

Avoid Wrong Selection

This helps avoid undersized or oversized replacement selection and improves the service life of the new gear motor.

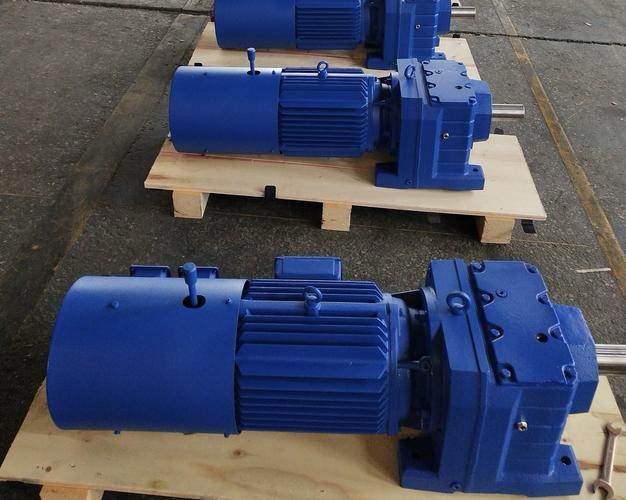

Brake and VFD Motor Matching

If the old gear motor has an electromagnetic brake, Victory can provide a brake motor solution according to the required brake voltage and application. For speed control applications, we can provide VFD motors with independent cooling fans for better low-speed cooling performance.

Suitable for Controlled Applications

This is useful for conveyors, mixers, lifting systems, packaging machines, and other equipment that requires stopping control or variable speed operation.

Special Shaft or Flange Customization

If the original gear motor has a special output shaft, hollow bore, flange, or mounting size, Victory can evaluate customized production according to drawings, photos, or measured dimensions.

Easier Installation

Customized mechanical dimensions can reduce installation changes and help the replacement gear motor fit the existing machine better.

Technical Drawings Before Production

Before production, Victory can provide technical drawings for customer confirmation.

Reduce Installation Risk

This helps reduce installation risk, especially for customized replacement projects involving shafts, flanges, hollow bores, or special mounting positions.

18-Month Warranty

Victory provides an 18-month warranty after delivery, giving customers more confidence in long-term use.

Long-Term Support

Our goal is not only to supply a replacement gear motor, but also to help customers improve equipment reliability and reduce future maintenance problems.

Gear Motor Replacement Checklist

Before ordering a replacement gear motor, prepare the following information:

• Old gear motor brand and model
• Motor power
• Voltage and frequency
• Motor speed
• Gearbox ratio
• Output speed
• Output torque if available
• Mounting type
• Mounting position
• Shaft diameter and length
• Keyway size
• Flange dimensions
• Foot mounting dimensions
• Hollow bore size if applicable
• Brake requirement
• VFD requirement
• Application and load condition
• Working hours per day
• Quantity required
• Delivery location

Final Confirmation Before Order

Before production, it is recommended to confirm the technical drawing, electrical data, mounting position, shaft dimensions, and delivery terms. This helps avoid mistakes and ensures the replacement gear motor can be installed smoothly.

FAQ

Can I replace an old gear motor with a different brand?

Yes. In most cases, you can replace an old gear motor with a different brand if the motor power, voltage, frequency, output speed, torque, mounting dimensions, and shaft size are correctly matched.

What matters most?

The most important point is compatibility, not the brand name. The replacement must meet the working and installation requirements of the machine.

What information is needed to replace an old gear motor?

You should provide motor nameplate photos, gearbox nameplate photos, complete gear motor photos, mounting dimensions, shaft dimensions, application information, and quantity required.

What if I only have photos?

Photos are still helpful. If the nameplate is unclear, the supplier can check the gearbox structure, mounting type, and shaft connection from photos, then ask for the missing dimensions.

What should I do if the old nameplate is missing?

If the nameplate is missing, provide clear photos, shaft dimensions, mounting dimensions, output speed, machine application, and any available drawings. A professional supplier can help estimate a suitable replacement.

Can the replacement still be selected?

Yes, but more measurements may be needed. The more complete the information, the lower the replacement risk.

Does the replacement gear motor need the same gearbox ratio?

It is best to match the original ratio or output speed. If the exact ratio is not available, a close ratio may be acceptable depending on the machine’s speed tolerance.

When is a close ratio acceptable?

A close ratio may be acceptable for many conveyors, mixers, and general machines, but it should be confirmed before ordering.

Can Victory customize the output shaft or flange?

Yes. Victory can evaluate customized output shafts, hollow bores, flanges, and mounting dimensions according to the old gear motor or machine requirement.

What should I provide for customization?

Please provide drawings, photos, or measured dimensions, including shaft diameter, shaft length, keyway size, flange PCD, pilot diameter, and mounting hole details.

Can Victory provide drawings before production?

Yes. Victory can provide technical drawings before production for customer confirmation, especially for customized shaft, flange, hollow bore, or mounting requirements.

Why is this important?

Drawing confirmation helps reduce installation risk and ensures that the replacement gear motor matches the customer’s machine before production begins.

Conclusion

Replacing an old gear motor when the original brand is unavailable does not have to be difficult. The key is not the brand name, but whether the new gear motor can meet the same technical and installation requirements.

A successful old gear motor replacement should match motor power, voltage, frequency, output speed, torque, mounting dimensions, shaft size, and working conditions.

With clear photos, nameplate information, and basic measurements, Victory can help customers select a compatible gear motor replacement solution. Whether you need a standard replacement, customized shaft, special flange, brake motor, or VFD motor, Victory can support you with reliable technical service and factory-direct supply.

If your original gear motor brand is unavailable, send us the old gear motor photos, nameplate information, and installation dimensions. Victory will help you check the best replacement solution for your machine.
