Common Failures of Cyclo Drives and Solutions
Views: 0 Author: Site Editor Publish Time: 2026-06-12 Origin: Site
Cyclo drives are widely used in conveyors, mixers, crushers, lifting equipment, packaging machines, food machinery, textile machines, and many other industrial systems. Compared with ordinary gear reducers, cycloidal reducers offer compact size, high reduction ratio, strong overload capacity, and stable transmission performance.
However, like any mechanical transmission product, a cyclo drive can fail if it is incorrectly selected, poorly installed, overloaded, insufficiently lubricated, or used under harsh working conditions without proper maintenance.
For equipment manufacturers, distributors, and maintenance teams, understanding common cyclo drive failures is very important. It helps reduce downtime, lower repair costs, and extend the service life of the whole machine.
In this article, we will discuss the most common failures of cyclo drives and practical solutions. We will also explain how correct selection, proper installation, and reliable manufacturing quality can help prevent many problems before they happen.
Why Cyclo Drives Are Widely Used in Industrial Equipment

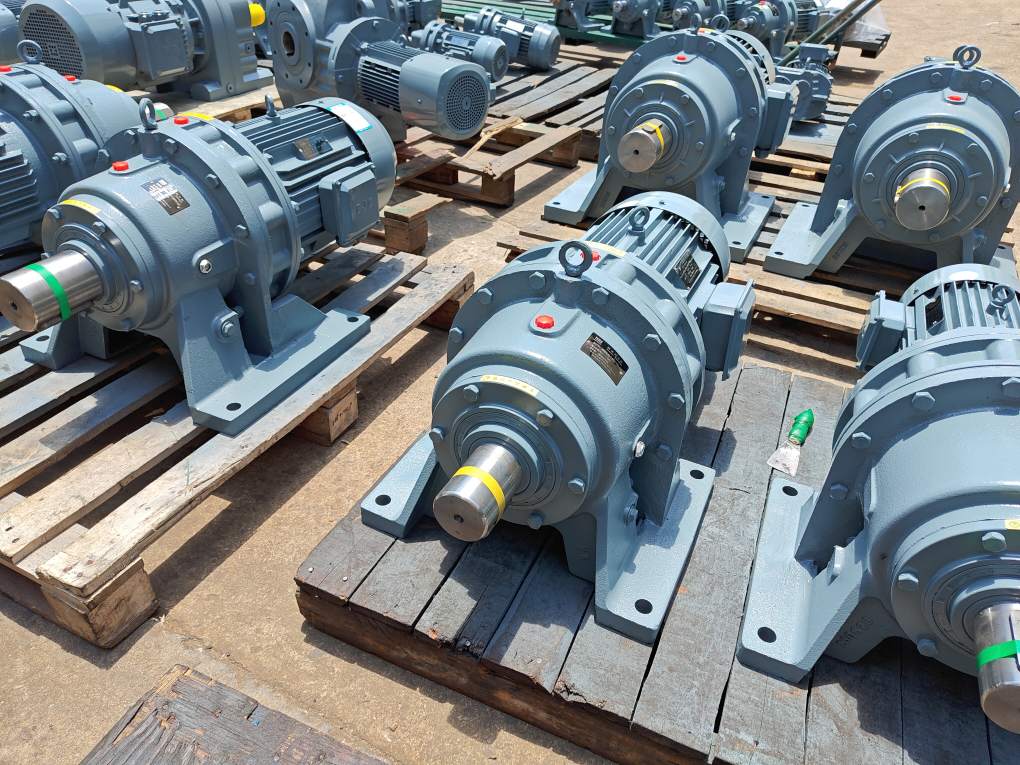

A cyclo drive, also called a cycloidal reducer or cycloidal gearbox, uses a cycloidal disc, pins, bearings, and an eccentric mechanism to achieve speed reduction and torque increase.
Because of its special transmission structure, it is often selected for applications that require:
High Reduction Ratio
Cyclo drives can achieve large reduction ratios in a compact body. This makes them suitable for machines where space is limited but low output speed is required.
Strong Shock Load Capacity
Many industrial machines do not run under smooth load all the time.
For example:
• A crusher may suddenly meet hard material. • A mixer may start with heavy material inside. • A conveyor may receive uneven loading. • A pellet mill may face fluctuating feeding pressure.
Cyclo drives are suitable for these conditions because their internal transmission design can distribute load across multiple contact points.
Compact Structure
Compared with some traditional gearbox designs, cycloidal reducers can provide high torque in a relatively small size. This helps machine builders save installation space.
Stable Operation
When properly selected and maintained, a cyclo drive can offer long service life and reliable operation in continuous-duty applications.
However, these advantages can only be fully achieved when the reducer is selected, installed, lubricated, and maintained correctly.

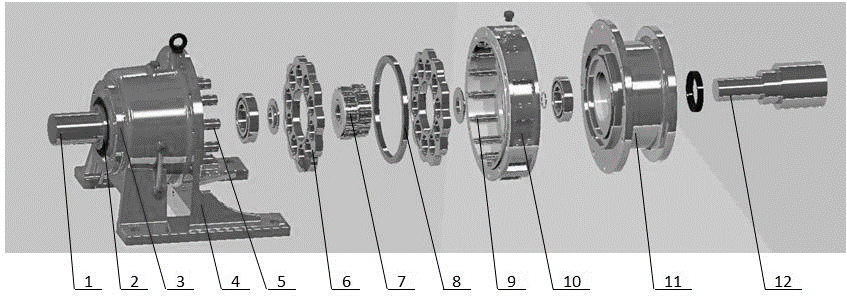

How a Cyclo Drive Works
Before discussing failures, it is helpful to understand the basic working principle.
When the motor drives the input shaft, the eccentric bearing causes the cycloidal disc to move in a special rolling motion. The cycloidal disc engages with fixed pins inside the housing. Through this motion, the reducer converts high motor speed into lower output speed and higher output torque.
This structure is strong, but it also means that correct internal alignment, lubrication, bearing quality, and load matching are very important.
If one part is damaged or improperly installed, the whole reducer may show noise, vibration, overheating, leakage, or torque loss.
Failure 1: Abnormal Noise During Operation
Abnormal noise is one of the most common signs of cyclo drive problems. A healthy cyclo drive will produce a normal mechanical running sound, but sharp noise, knocking, grinding, or irregular sound usually means something needs attention.
Possible Causes of Abnormal Noise
Common causes include:
• Poor lubrication or insufficient oil • Bearing damage • Internal wear of cycloidal disc or pins • Loose mounting bolts • Misalignment between motor and reducer • Overload operation • Foreign particles inside the reducer • Incorrect installation position
If the noise appears shortly after installation, the problem is often related to installation, alignment, oil level, or incorrect model selection.
If the noise appears after long-term operation, it may be caused by bearing wear, oil deterioration, or internal component wear.
Solutions for Abnormal Noise
First, stop the machine and check whether the reducer is overloaded. If the actual working load is much higher than the rated torque, the reducer may produce heavy noise and fail quickly.
Second, check the oil level and oil quality. If the oil is too low, too dirty, or not suitable for the working temperature, replace it immediately.
Third, inspect the mounting bolts. Loose bolts can cause vibration and knocking sound.
Fourth, check the motor-reducer connection. If the motor shaft and reducer input are not properly aligned, abnormal noise may occur.
If the noise continues after these checks, the reducer should be opened by qualified technicians to inspect bearings, cycloidal discs, pins, and output parts.
Failure 2: Excessive Vibration
Vibration is another common problem in cyclo drive applications. Light vibration may be normal in some heavy-duty equipment, but continuous or increasing vibration is dangerous.
Common Reasons for Vibration
Cyclo drive vibration may come from:
• Unstable foundation • Loose bolts • Incorrect coupling installation • Misalignment • Damaged bearings • Worn internal parts • Unbalanced driven machine • Overload or shock load • Incorrect mounting direction
Sometimes users think the reducer itself is the problem, but the real source may be the connected machine, such as a conveyor pulley, mixer shaft, fan, or crusher rotor.
How to Solve Vibration Problems
Start by checking the foundation. The reducer and motor should be installed on a strong and flat base. A weak base can amplify vibration.
Then check all bolts, including motor bolts, reducer bolts, coupling bolts, and base bolts.
Next, inspect the coupling. If the coupling is not installed correctly, or if the shaft centerline is not aligned, vibration will increase.
Also check the driven equipment. A bent shaft, unbalanced load, or blocked machine can transfer vibration back to the reducer.
If the vibration is caused by internal bearing or disc wear, the reducer needs professional repair or replacement.
Failure 3: Oil Leakage
Oil leakage is a visible and common failure. Some users may ignore small oil leakage at the beginning, but this can lead to serious damage later.
Where Oil Leakage Usually Happens
Oil leakage often appears at:
• Input shaft oil seal • Output shaft oil seal • Housing joint surface • Oil plug area • Breather plug • Mounting flange • Damaged gasket area
Main Causes of Oil Leakage
The common causes include:
• Aging oil seal • Damaged shaft surface • Too much oil inside the reducer • Blocked breather plug • High internal pressure • Incorrect installation direction • Poor sealing surface • Strong vibration • High operating temperature
If the breather plug is blocked, pressure inside the reducer increases during operation. This pressure can push oil through seals and joints.
Practical Oil Leakage Solutions
First, confirm that the oil level is correct. Too much oil is not better. Overfilling can cause heat, pressure, and leakage.
Second, check whether the breather plug is clean and working properly.
Third, inspect the oil seal. If it is worn, hardened, or damaged, replace it.
Fourth, check the shaft surface. If the shaft has scratches or wear marks, a new oil seal alone may not solve the problem.

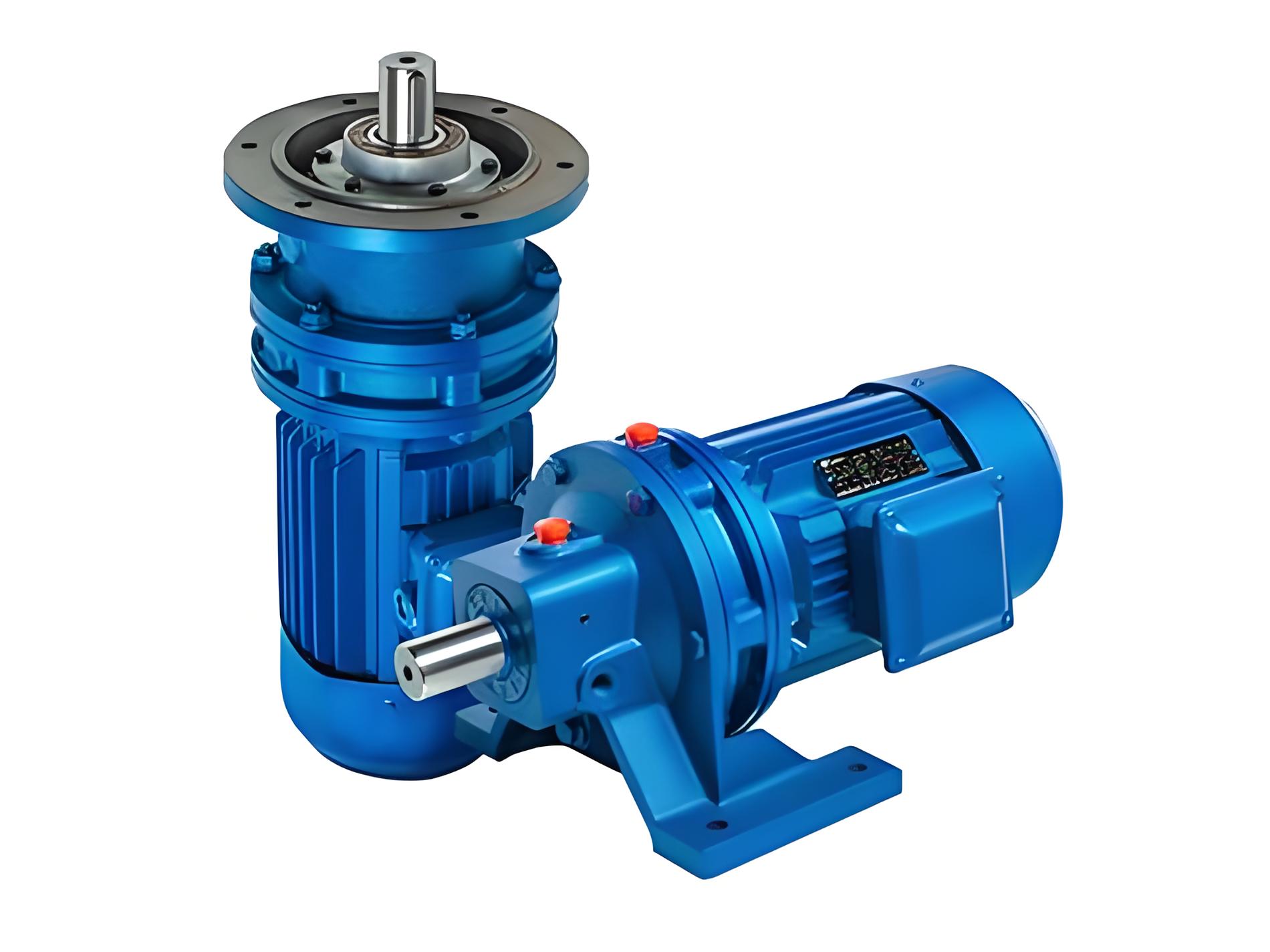

Fifth, confirm the mounting position. Some reducers require different oil quantity or plug position for horizontal and vertical installation.
For OEM customers and distributors, it is better to confirm the mounting direction before ordering. Victory can provide suitable oil filling, seal configuration, and installation suggestions according to the actual working condition.
Failure 4: Overheating
A cyclo drive will generate heat during operation. However, if the surface temperature becomes too high, it may indicate a problem.
Why Cyclo Drives Become Too Hot
Common reasons include:
• Overload operation • Too much or too little lubricating oil • Wrong oil viscosity • Poor ventilation • High ambient temperature • Bearing damage • Continuous heavy-duty running • Incorrect reducer size • Motor-reducer mismatch • Frequent starting and stopping
In many cases, overheating is caused by wrong selection. If the reducer is too small for the application, it may still run, but it will operate under stress and generate excessive heat.
How to Reduce Operating Temperature
Check the actual load first. If the reducer is overloaded, choose a larger model or reduce the load.
Then check the lubricant. Use the correct oil type and correct oil quantity. Replace old or contaminated oil.
Improve ventilation around the reducer. Do not install the reducer in a closed space without airflow unless proper cooling is provided.
For high-temperature environments, special oil seals, high-temperature grease, or special lubrication may be required.

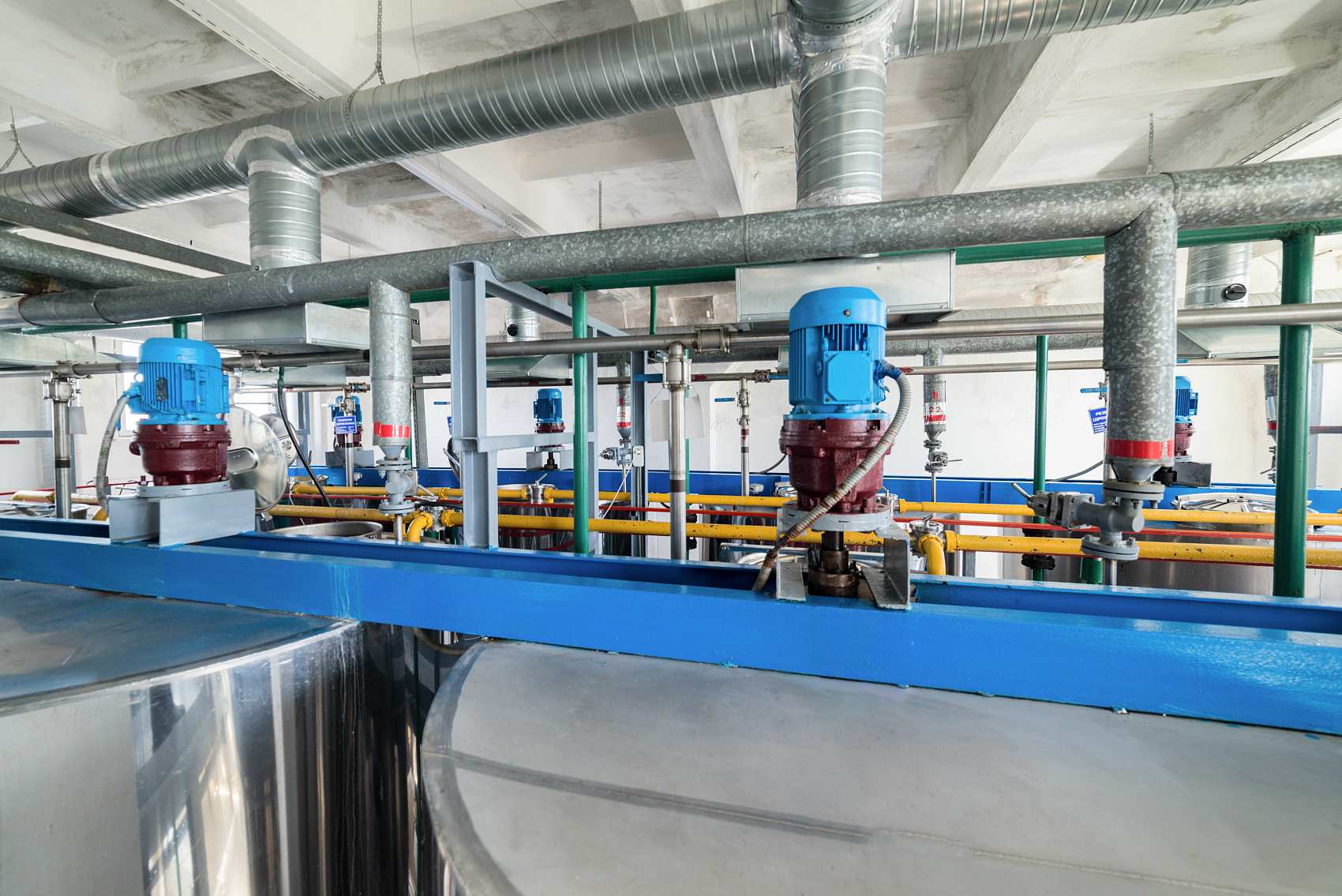

For applications such as mixers, crushers, conveyors, and pellet mills, it is important to consider service factor. Victory can help customers select a safer model based on motor power, output speed, torque, duty cycle, and shock load condition.

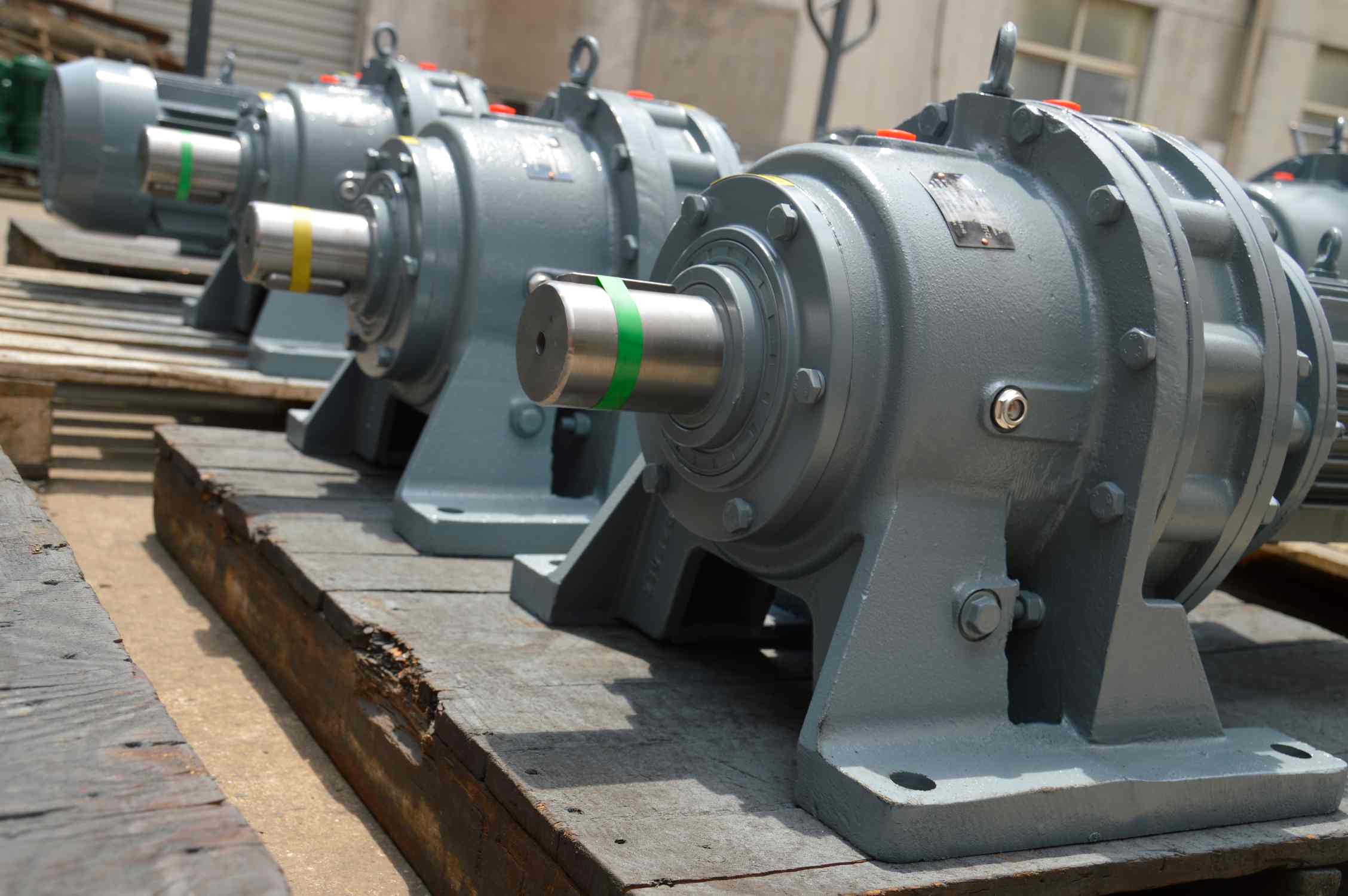

Failure 5: Output Shaft Wear or Breakage
Output shaft damage is a serious failure because it can stop the entire machine immediately.
Main Causes of Shaft Damage
Output shaft wear or breakage may be caused by:
• Excessive radial load • Excessive axial load • Poor coupling alignment • Overload or impact load • Incorrect installation of sprocket, pulley, or gear • Shaft material fatigue • Long-term vibration • Wrong reducer model selection
One common mistake is installing a pulley or sprocket too far from the reducer housing. This increases bending force on the output shaft and may cause shaft damage.
How to Prevent Shaft Failure
Install pulleys, sprockets, and couplings as close as possible to the reducer housing.
Avoid hammering the shaft during installation. Use proper tools to install couplings and transmission parts.
Check whether the driven machine creates high radial force. If yes, select a stronger reducer or use additional external support bearings.
Make sure the reducer output torque is higher than the actual working torque requirement.
For special applications, Victory can support customized shaft dimensions, special output shaft design, flange mounting, hollow shaft design, or stronger reducer selection.

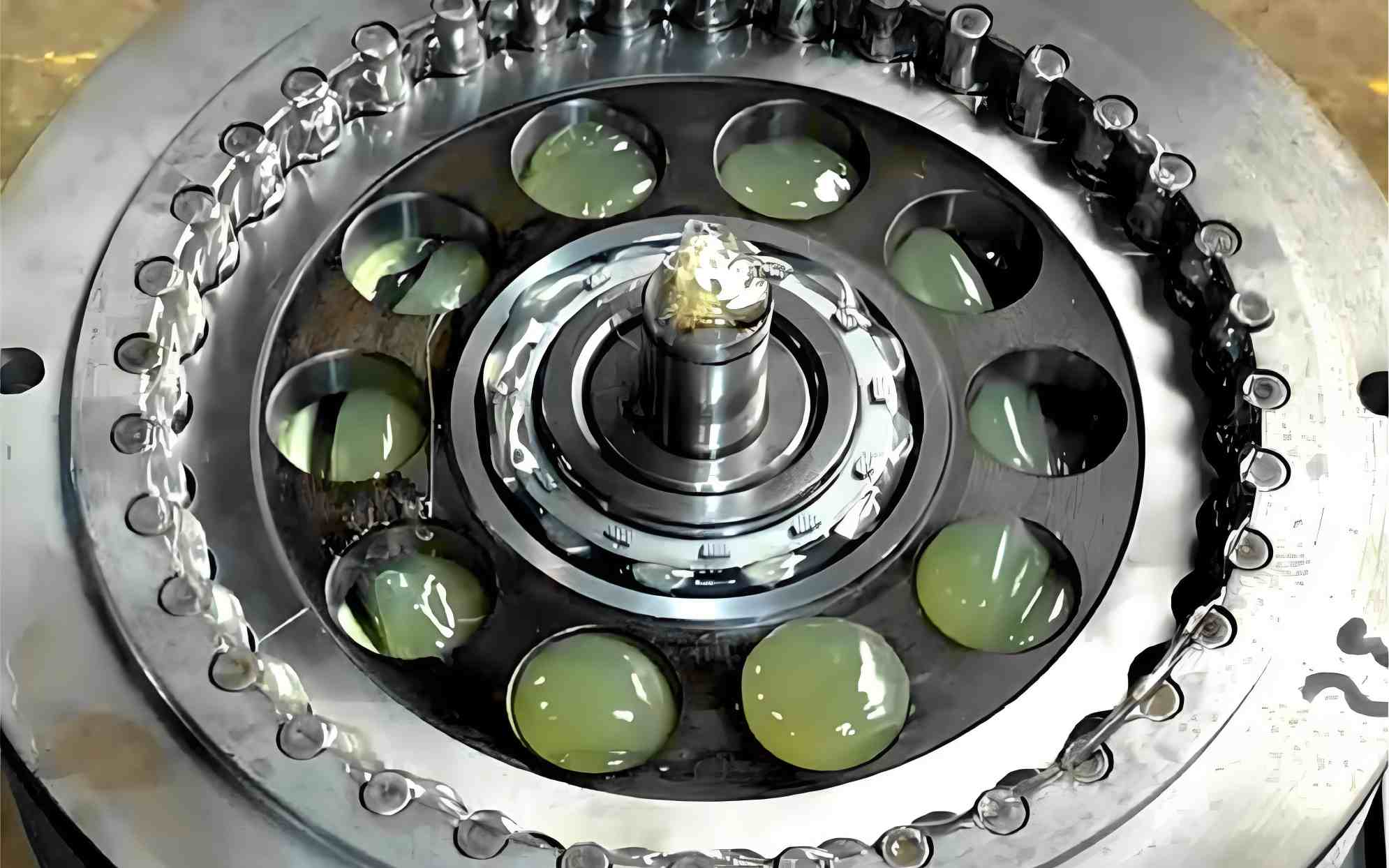

Failure 6: Bearing Damage

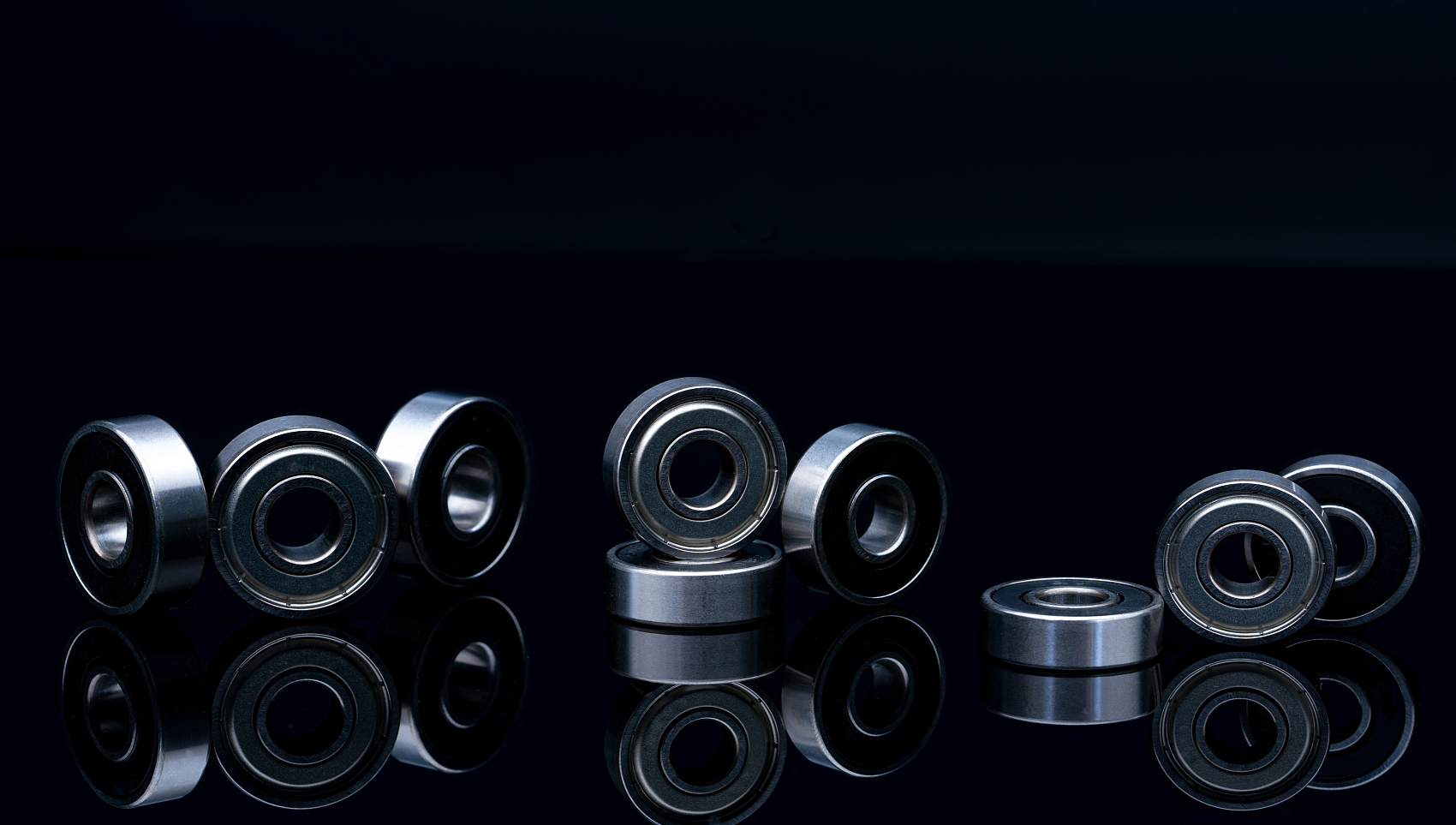

Bearings are critical parts inside a cyclo drive. Once bearings fail, the reducer may show noise, vibration, overheating, and reduced service life.
Signs of Bearing Failure
Typical signs include:
• Increasing noise • Rough running sound • High temperature • Metal particles in oil • Shaft looseness • Vibration • Unstable output speed
Why Bearings Fail
Bearing damage can be caused by:
• Poor lubrication • Oil contamination • Overload • Misalignment • Shock load • Improper assembly • Long service time • Poor bearing quality
Bearing Maintenance and Replacement Solutions
Use clean and suitable lubricating oil. Replace oil according to the maintenance schedule.
Avoid water, dust, and metal particles entering the reducer.
Check whether the machine has shock load or frequent start-stop operation. If yes, select a higher service factor.
When replacing bearings, use reliable bearing brands and correct installation tools.
Victory can provide reducers with standard quality bearings, and optional SKF, NSK, or other requested bearing brands for customers who need higher reliability in demanding applications.

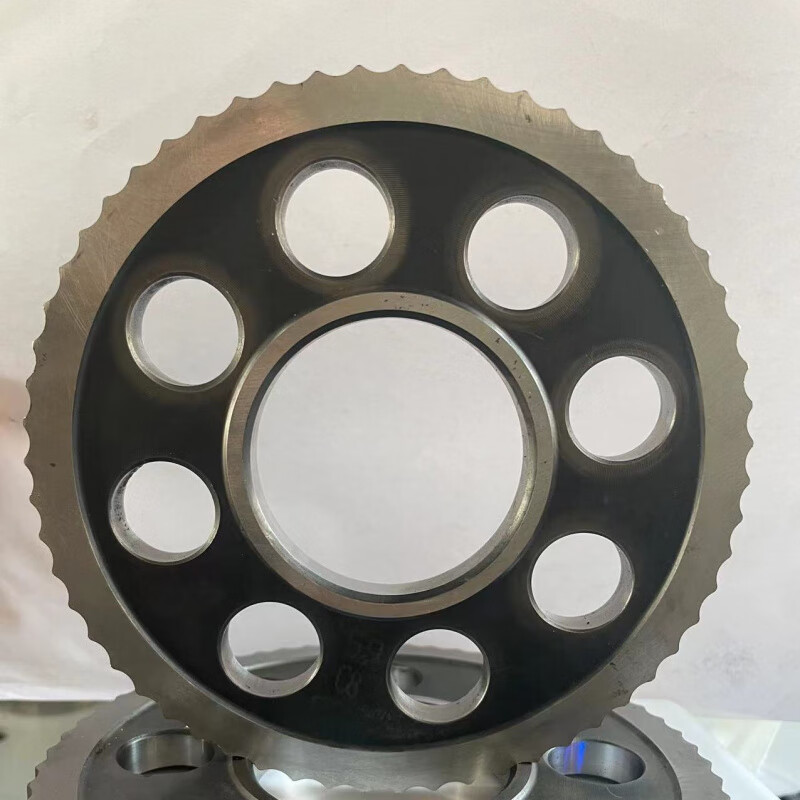

Failure 7: Cycloidal Disc or Pin Wear
The cycloidal disc and pin system is the core transmission part of a cyclo drive. Wear in this area can directly affect reducer performance.
Why Internal Wear Happens
Possible causes include:
• Long-term overload • Poor lubrication • Oil contamination • Improper heat treatment • Incorrect material quality • Frequent impact load • Bearing failure leading to poor contact • Use beyond rated service life
Choose the correct reducer size from the beginning. Do not select only based on motor power. Output torque, output speed, shock load, daily working hours, and application type should also be considered.
Use good quality lubricating oil and replace it regularly.
Avoid continuous overload operation.
For heavy-duty applications, choose a reducer with higher safety factor.
Victory uses carefully selected materials, controlled machining, and strict assembly inspection to improve the reliability of cycloidal reducers. For OEM and distributor customers, we can also provide technical drawings and model selection support before production.

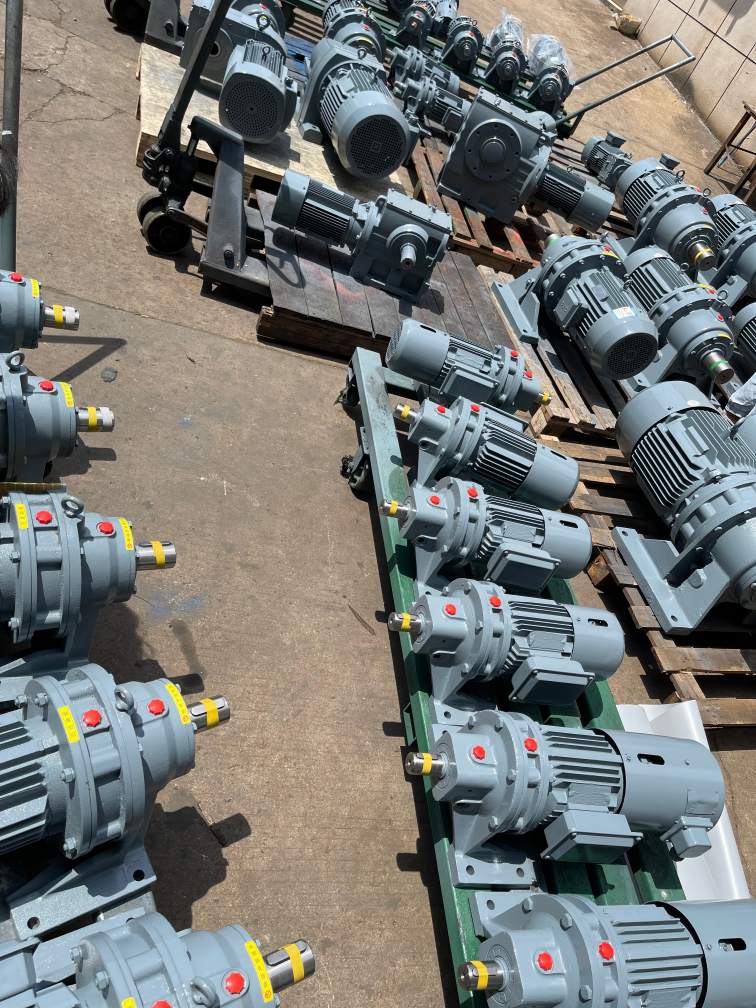

Failure 8: Motor Burnout in Cyclo Gear Motors

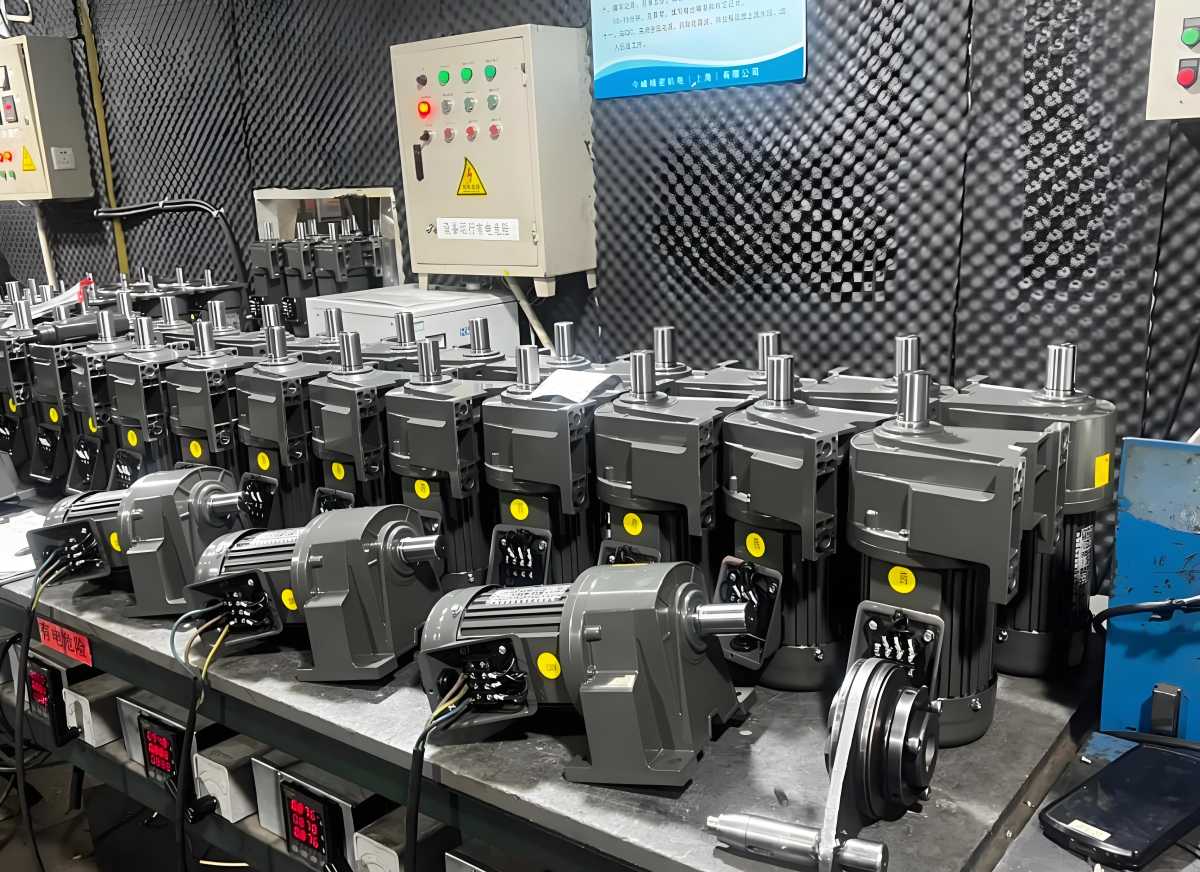

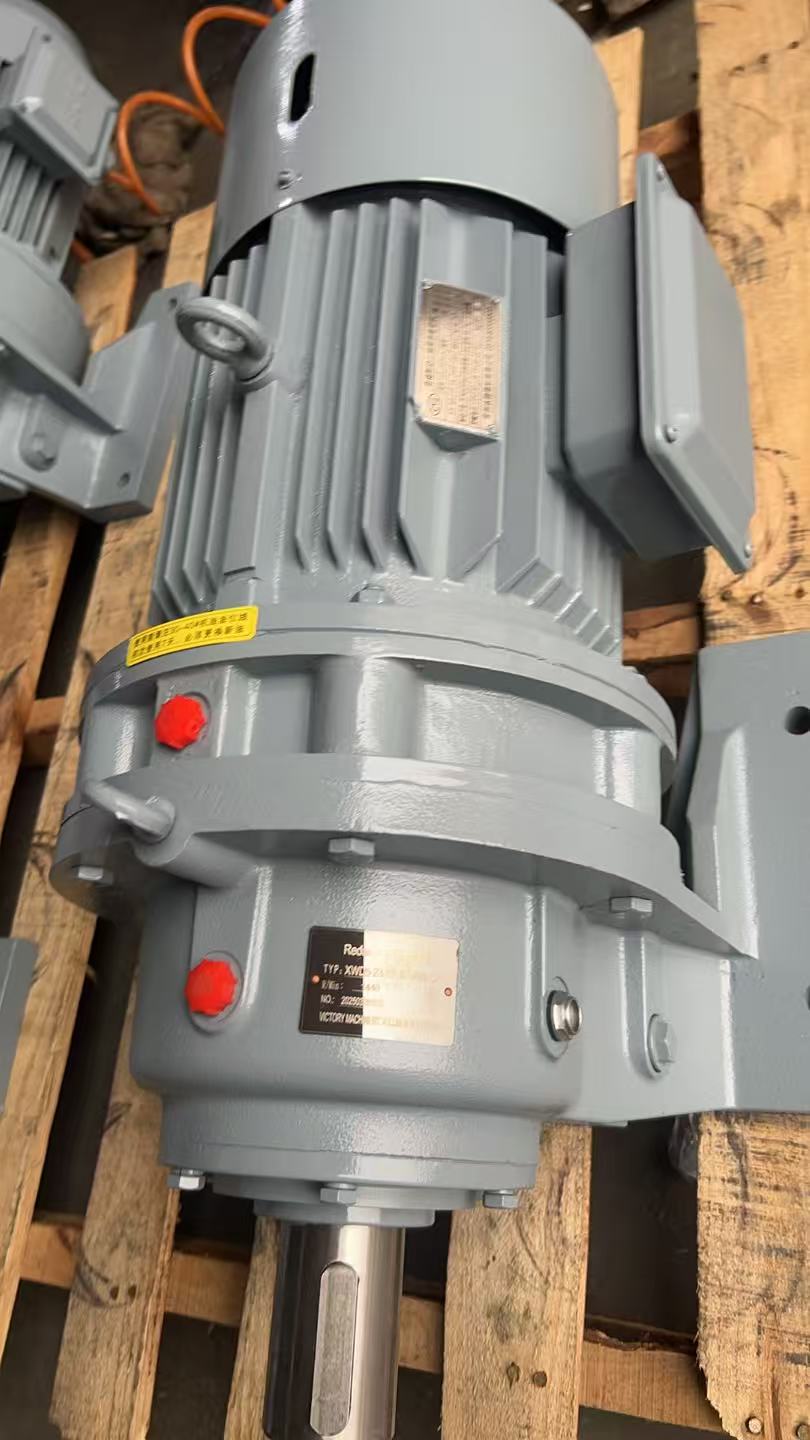

Many cyclo drives are supplied together with motors as complete cyclo gear motors. Sometimes the reducer is still usable, but the motor burns out.
Electrical Causes
Motor burnout may happen because of:
• Wrong voltage • Phase loss • Overload current • Poor power supply • Incorrect frequency • Frequent starting • Lack of overload protection • Wrong wiring connection • Poor cooling
Mechanical Causes
Mechanical problems can also burn the motor:
• Reducer jammed • Driven machine blocked • Overload operation • Bearing damage • Incorrect reduction ratio • Output speed too low for the actual machine requirement • High starting torque demand
How to Protect the Motor
Use thermal overload protection, circuit breakers, and correct wiring.
Confirm voltage and frequency before ordering. Different markets may require different voltage standards, such as 220V, 380V, 400V, 415V, 440V, 460V, or 480V, with 50Hz or 60Hz.

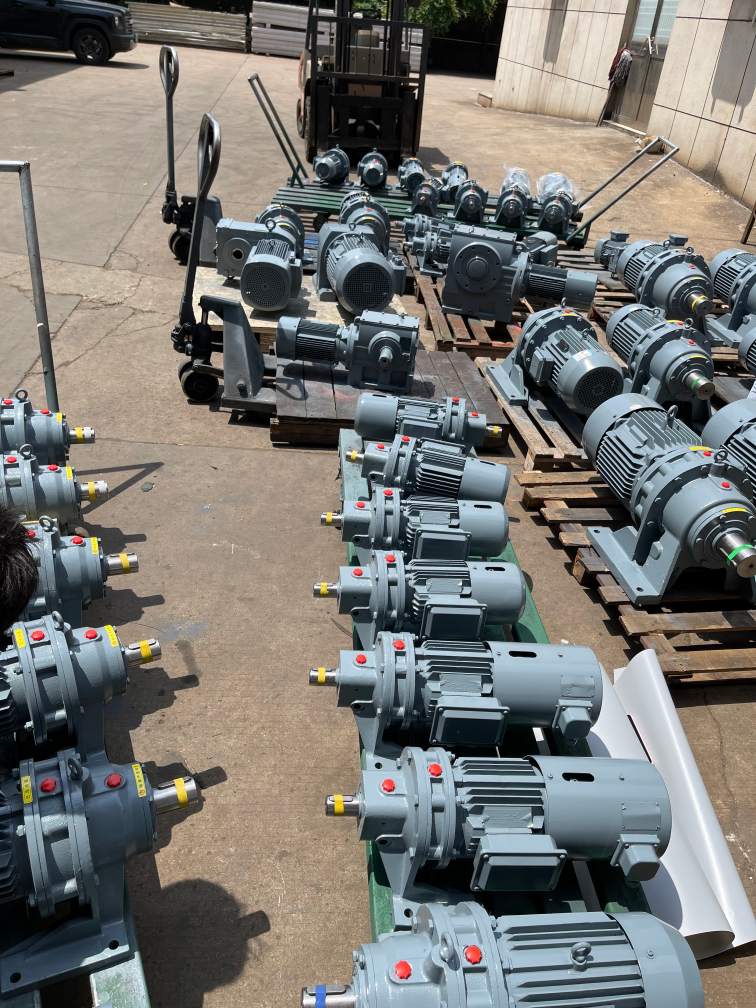

For VFD operation, use a motor suitable for inverter duty, especially when the motor runs at low speed for a long time.
Victory can match cycloidal reducers with three-phase motors, brake motors, VFD motors, special voltage motors, and customized nameplates according to customer requirements.
Failure 9: Loose Bolts and Mounting Problems
Many reducer failures are not caused by the reducer itself, but by poor installation.
Why Installation Quality Matters
A cyclo drive must be installed firmly. If the mounting surface is uneven or bolts are loose, the reducer may experience additional stress.
This can lead to:
• Vibration • Noise • Oil leakage • Shaft misalignment • Bearing damage • Housing damage • Shorter service life
How to Improve Installation Reliability
Use a flat and strong mounting base.
Tighten bolts according to proper torque requirements.
Check bolt tightness after initial operation.
Use alignment tools when connecting the reducer with a motor, coupling, pulley, or driven shaft.
Avoid forcing parts into position. If the reducer does not fit, check dimensions instead of applying excessive force.
For replacement projects, customers should provide old reducer photos, nameplate, shaft dimensions, mounting dimensions, and application details. Victory can help check compatibility before production.
Failure 10: Reduced Output Torque
Sometimes a cyclo drive still runs, but the machine feels weak. The output torque is not enough, or the machine cannot start under load.
Why Torque Performance Drops
Possible reasons include:
• Motor power too small • Wrong reduction ratio • Internal wear • Overload • Low voltage • VFD parameter issue • Coupling slipping • Brake not fully released • Mechanical blockage in driven equipment • Incorrect service factor
How to Restore Proper Torque Transmission
Check whether the motor is providing rated power.
Measure voltage and current during operation.
Inspect the coupling, belt, chain, and output connection.
Check whether the brake is fully released if using a brake motor.
Confirm that the reducer ratio matches the required output speed and torque.
If the original model was selected too small, replacement with a larger cyclo drive is usually the better solution.
Preventive Maintenance Tips for Cyclo Drives
Good maintenance can prevent many failures.
Check Oil Regularly
Maintain the correct oil level and replace oil according to working conditions. In dusty, humid, or high-temperature environments, oil should be checked more frequently.
Monitor Noise and Vibration
Operators should pay attention to changes in sound and vibration. Early signs are often easier and cheaper to solve.
Check Temperature
If the reducer temperature rises suddenly, stop the machine and inspect load, lubrication, bearing condition, and ventilation.
Inspect Oil Seals
Oil seals should be checked regularly. Replace them before leakage becomes serious.
Tighten Bolts
Check mounting bolts after initial running and during regular maintenance.
Avoid Overload
Do not use the reducer beyond its rated torque for long periods. For shock load applications, select a larger service factor.
How to Choose the Right Cyclo Drive Before Failure Happens
Many failures can be avoided during the selection stage.
Before choosing a cyclo drive, confirm the following information:
• Motor power • Input speed • Required output speed • Required output torque • Gear ratio • Mounting type • Shaft type and dimensions • Working hours per day • Load type • Shock load condition • Ambient temperature • Voltage and frequency • Brake or VFD requirement • Application machine
For example, a conveyor and a crusher may use the same motor power, but their load conditions are very different. The crusher needs a stronger service factor because it faces higher impact load.

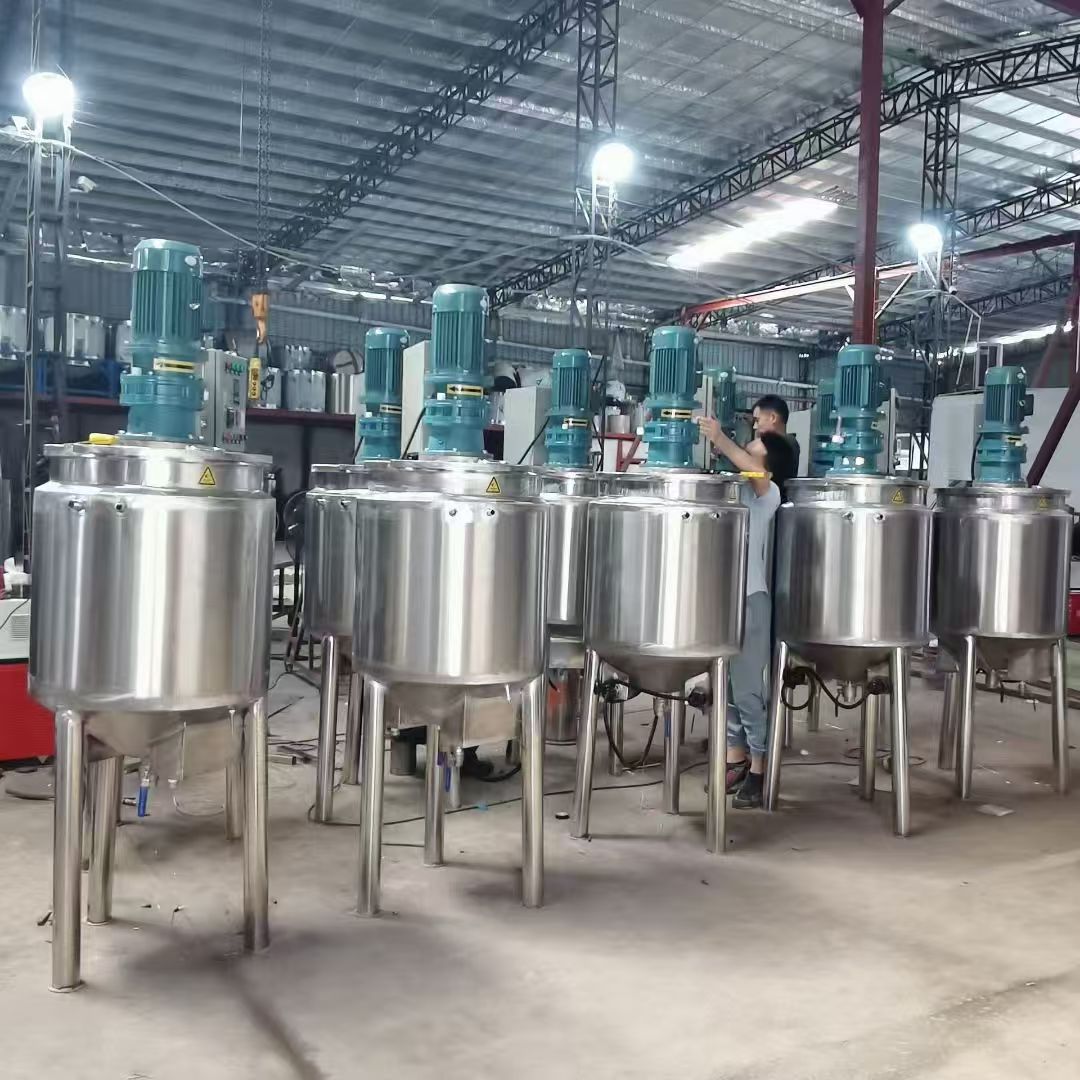

A mixer may need higher starting torque because material may remain inside the tank when the machine starts.
A lifting machine may require a brake motor and higher safety factor.
This is why professional selection is very important.
For B2B buyers, distributors, OEMs, and machine builders, we focus not only on selling a reducer, but also on helping customers choose a suitable solution.
Professional Model Selection Support
Victory can help customers select the right cyclo drive according to application, motor power, output speed, torque, mounting type, and working condition.
This reduces the risk of wrong selection, overload, overheating, and early failure.
Flexible Customization
Victory can support:
• Voltage and frequency customization • Motor power matching • Brake motor matching • VFD motor matching • Special shaft or flange • Foot or flange mounting • Customer logo and nameplate • Technical drawings before production • Different reduction ratios • Customized output speed
This is especially useful for OEM projects and replacement applications.
Quality Control

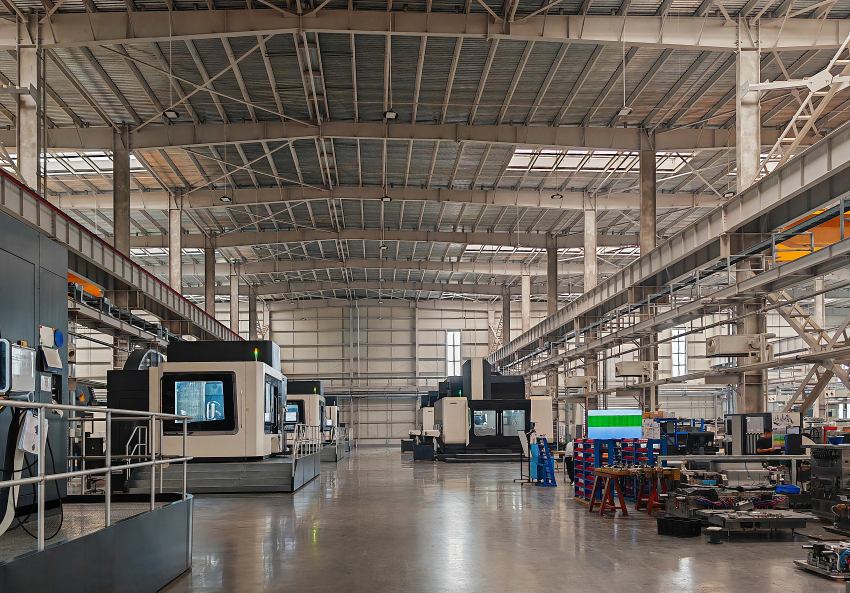

Victory pays attention to material selection, machining accuracy, assembly process, and final inspection.
For industrial buyers, stable quality means fewer complaints, less downtime, and better long-term customer trust.
Factory Price Advantage
As a factory supplier, Victory can offer competitive pricing for distributors, machinery manufacturers, and project buyers.
Customers can get reliable cyclo drive solutions at a reasonable cost, especially for batch orders and long-term cooperation.
Support for Global Markets
Victory supplies products to different international markets and can support different voltage and frequency requirements, including 50Hz and 60Hz applications.
For customers in Europe, Southeast Asia, South America, North America, and other regions, this flexibility is very important.
Conclusion
Cyclo drives are strong, compact, and reliable speed reducers, but they still need correct selection, proper installation, good lubrication, and regular maintenance.
The most common cyclo drive failures include abnormal noise, vibration, oil leakage, overheating, bearing damage, shaft wear, internal disc wear, motor burnout, loose mounting, and reduced output torque.
Most of these problems are preventable. The key is to understand the real working condition before choosing the reducer.
For industrial buyers, the best solution is not always the cheapest model or the smallest size. The best solution is the model that can safely handle the actual load, working hours, shock condition, speed requirement, and installation environment.
Victory can help customers choose reliable cyclo drives and cyclo gear motors with suitable motor matching, customized voltage, brake options, VFD compatibility, special mounting, and technical support.
If you are looking for a cyclo drive for conveyors, mixers, crushers, lifting equipment, packaging machines, or other industrial machinery, choosing the right supplier and the right model from the beginning can save a lot of time, cost, and trouble later.
