Helical gear reducers are one of the most widely used power transmission devices in modern industrial machinery. From conveyors and mixers to packaging equipment and heavy-duty industrial systems, a helical gear reducer plays a critical role in reducing speed while increasing torque to ensure stable machine operation.

Because these helical gearboxes often operate continuously under heavy loads, proper maintenance and timely repair are essential to prevent unexpected downtime and extend equipment lifespan.

In this guide, we will explain how to maintain, troubleshoot, and repair helical gear reducers, helping manufacturers and maintenance engineers improve the reliability and service life of their gear motor systems.

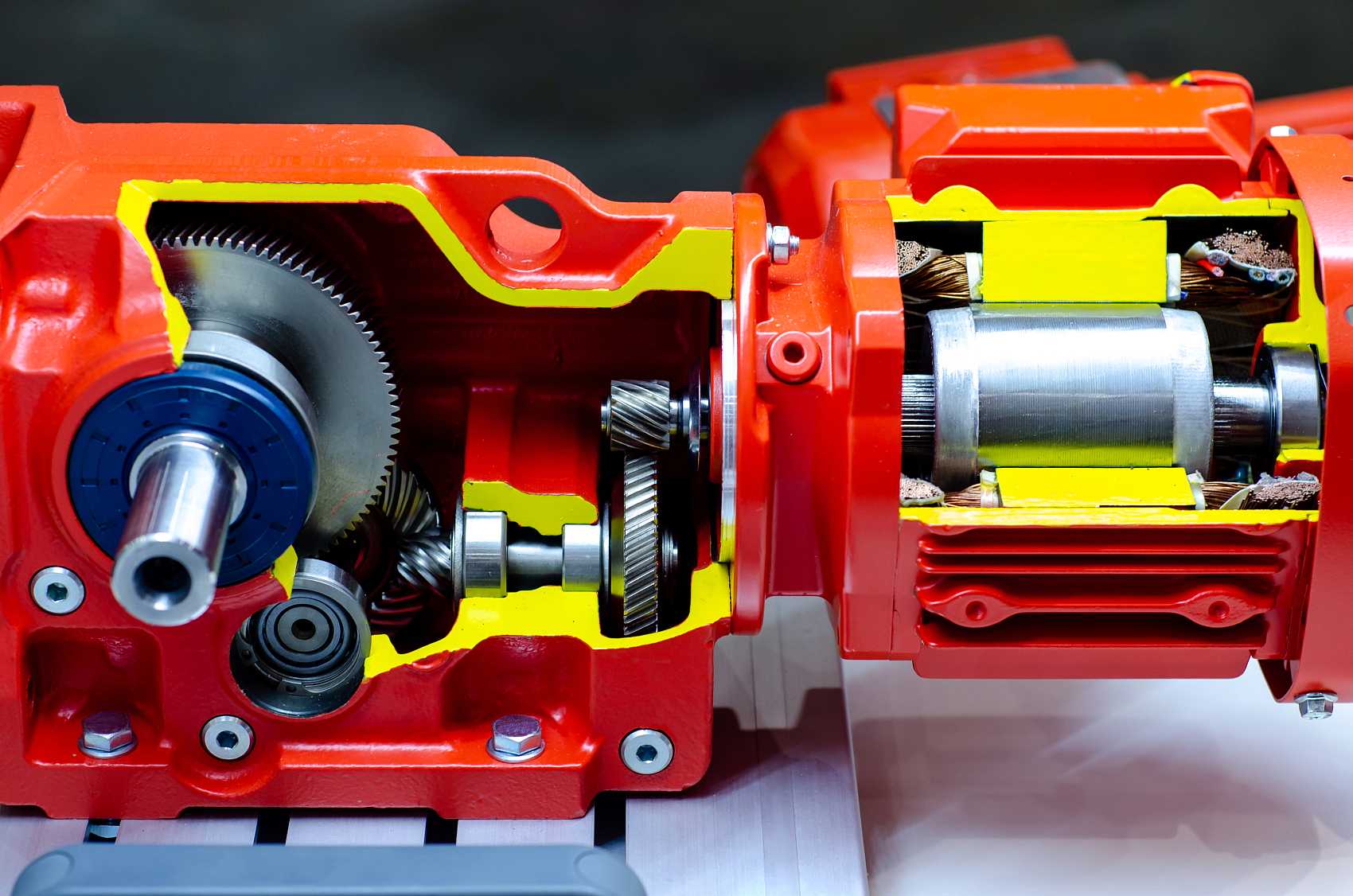

Understanding the Structure of a Helical Gear Reducer

Before discussing maintenance, it is important to understand how a helical gearbox works and what its key components are.

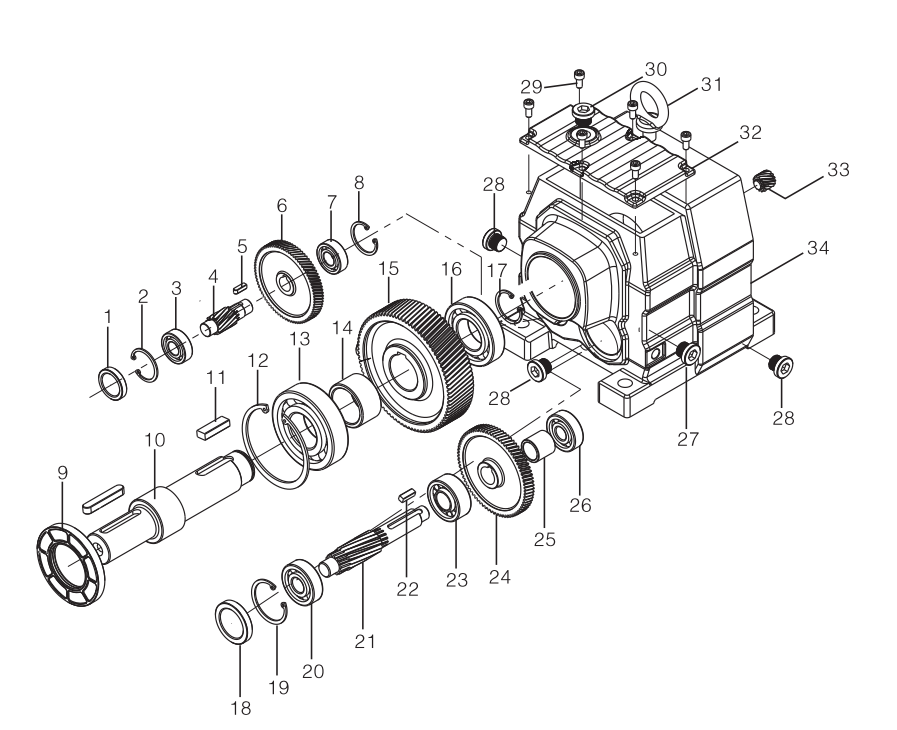

Main Components of a Helical Gearbox

A typical helical gear reducer consists of several critical components:

• Helical gears

• Input shaft

• Output shaft

• Bearings

• Gear housing

• Oil seals

• Lubrication system

These components work together to transfer power efficiently while maintaining smooth and quiet operation.

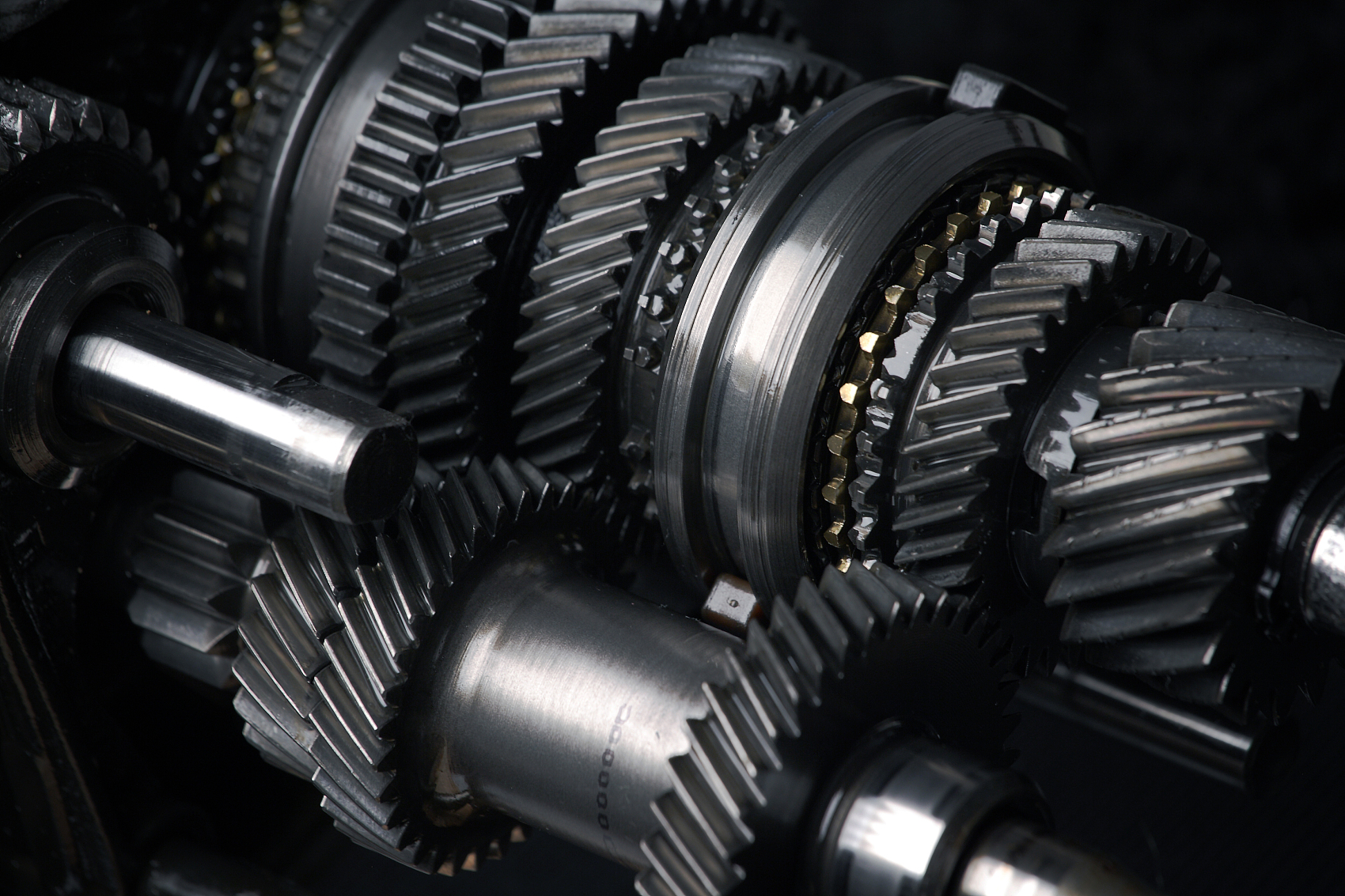

How Helical Gear Transmission Works

Unlike spur gears, helical gears have angled teeth that engage gradually. This design provides several advantages:

• Smooth power transmission

• Reduced vibration

• Higher load capacity

• Lower noise levels

Because of these benefits, helical gear reducers are widely used in industrial equipment requiring stable and efficient power transmission.

Advantages of Helical Gear Reducers

Compared with other types of gearboxes, helical gearboxes offer several key advantages:

• High transmission efficiency (up to 95% or more)

• Strong load carrying capacity

• Low operating noise

• Long service life

These characteristics make helical gear motors ideal for applications such as conveyors, crushers, mixers, elevators, and automated production lines.

Common Causes of Helical Gear Reducer Failures

Even though industrial helical gear reducers are designed for durability, improper use or poor maintenance can lead to failures.

Understanding the most common causes helps prevent costly downtime.

Gear Wear and Pitting

Gear wear usually occurs due to:

• Insufficient lubrication

• Contaminated oil

• Overloading

If not addressed early, wear can lead to gear pitting, which reduces transmission efficiency and eventually damages the gearbox.

Bearing Damage

Bearings support the shafts inside the helical gearbox and ensure smooth rotation. Common causes of bearing failure include:

• Misalignment

• Excessive load

• Poor lubrication

Damaged bearings often cause vibration and abnormal noise.

Lubrication Problems

Lubrication plays a crucial role in protecting gears and bearings.

Common lubrication issues include:

• Low oil level

• Oil contamination

• Incorrect lubricant viscosity

Without proper lubrication, friction increases and internal components wear quickly.

Improper Installation

Incorrect installation can significantly shorten the lifespan of a helical gear reducer.

Typical installation problems include:

• Shaft misalignment

• Loose mounting bolts

• Incorrect coupling installation

These issues may cause vibration, overheating, and mechanical failure.

Daily Maintenance of Helical Gear Reducers

Routine inspection is the most effective way to extend the life of a helical gearbox.

Routine Visual Inspection

Operators should regularly inspect the gearbox for:

• Oil leakage

• Loose bolts

• Cracks in the housing

• Abnormal vibration

Early detection of these issues prevents more serious damage.

Monitoring Temperature and Noise

A properly functioning helical gear reducer should operate smoothly with minimal noise.

Signs of potential problems include:

• Unusual noise

• Excessive vibration

• Sudden temperature increase

These symptoms often indicate internal component wear.

Checking Oil Level and Oil Quality

Regularly checking lubrication oil is essential.

Maintenance staff should:

• Ensure oil levels remain within recommended limits

• Replace oil when it becomes contaminated

• Use oil with the correct viscosity

Proper lubrication greatly improves gearbox reliability.

Bolt Tightening and Alignment Checks

Loose mounting bolts or shaft misalignment can damage gears and bearings.

Routine maintenance should include:

• Checking bolt torque

• Verifying shaft alignment

• Inspecting couplings

These steps help maintain stable operation.

Lubrication Best Practices for Helical Gearboxes

Lubrication is one of the most critical factors in the maintenance of helical gear reducers.

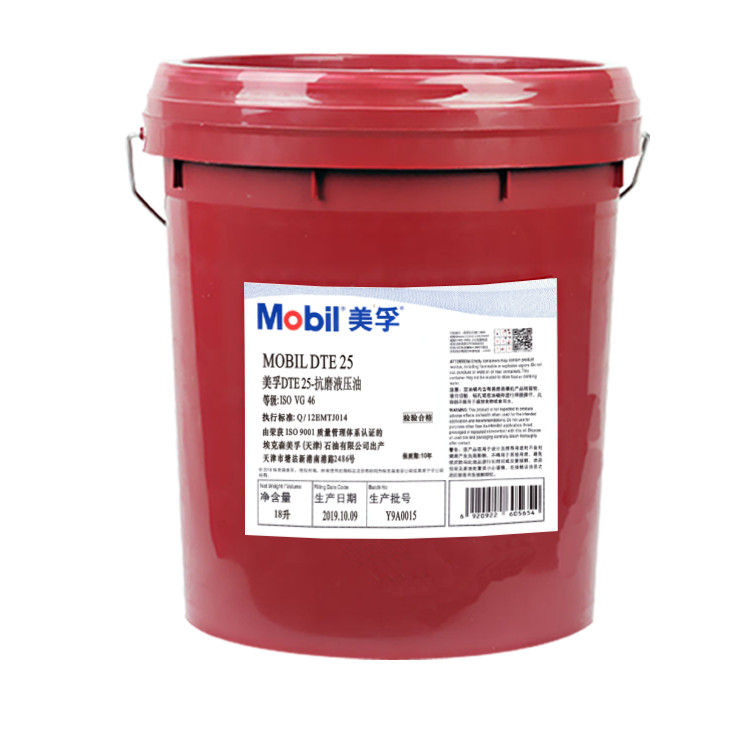

Selecting the Right Lubricating Oil

The correct oil type depends on operating conditions such as:

• Load

• Temperature

• Speed

Industrial helical gearboxes typically use high-quality gear oil with excellent anti-wear properties.

Recommended Oil Change Intervals

Although intervals vary depending on usage, a typical guideline is:

• First oil change after 300 hours

• Subsequent oil changes every 2500–4000 hours

Following a proper oil replacement schedule ensures long-term gearbox performance.

Preventing Oil Leakage

Oil leakage can reduce lubrication efficiency and contaminate the environment.

To prevent leaks:

• Inspect oil seals regularly

• Ensure proper installation

• Replace damaged seals promptly




Troubleshooting Common Helical Gear Reducer Problems

Even with proper maintenance, occasional problems may still occur.

Abnormal Noise in Gearboxes

Unusual noise often indicates:

• Gear wear

• Bearing damage

• Insufficient lubrication

Immediate inspection is recommended.

Excessive Vibration

Excessive vibration may be caused by:

• Shaft misalignment

• Imbalanced loads

• Damaged bearings

Correct alignment usually solves this issue.

Gearbox Overheating

Overheating can result from:

• Overload operation

• Poor lubrication

• Blocked cooling airflow

Reducing load and improving lubrication typically resolves overheating.

Oil Leakage

Oil leakage may occur due to:

• Worn oil seals

• Excessive internal pressure

• Damaged housing

Replacing seals usually solves the problem.

Repair and Replacement Strategies

When a helical gear reducer fails, deciding whether to repair or replace it is an important decision.

When to Repair a Gearbox

Repair is usually recommended when:

• Damage is limited to bearings or seals

• Gear wear is minor

• Replacement parts are available

Repair can significantly reduce maintenance costs.

When Replacement Is Necessary

Replacement is often more practical when:

• Gear teeth are severely damaged

• Housing is cracked

• The gearbox has reached the end of its service life

Installing a new helical gear motor ensures reliable operation.

Replacing Bearings and Seals

Bearing and seal replacement should follow strict procedures:

1. Disassemble the gearbox carefully

2. Remove damaged components

3. Install new bearings and seals

4. Reassemble and test the gearbox

Professional technicians should perform major repairs.

Preventive Maintenance Plan for Industrial Gearboxes

A well-planned maintenance program reduces failure risks.

Monthly Inspection Checklist

Monthly maintenance should include:

• Oil level inspection

• Noise monitoring

• Bolt tightening

• Seal inspection

Annual Maintenance Plan

Annual servicing may include:

• Complete oil replacement

• Bearing inspection

• Gear wear evaluation

• Shaft alignment verification

Predictive Maintenance Technologies

Modern factories increasingly use predictive maintenance methods such as:

• Vibration monitoring

• Thermal imaging

• Oil analysis

These technologies help detect potential problems before failures occur.

How Victory Supports Industrial Gearbox Reliability

At Victory, we understand how critical reliable power transmission is for industrial equipment.

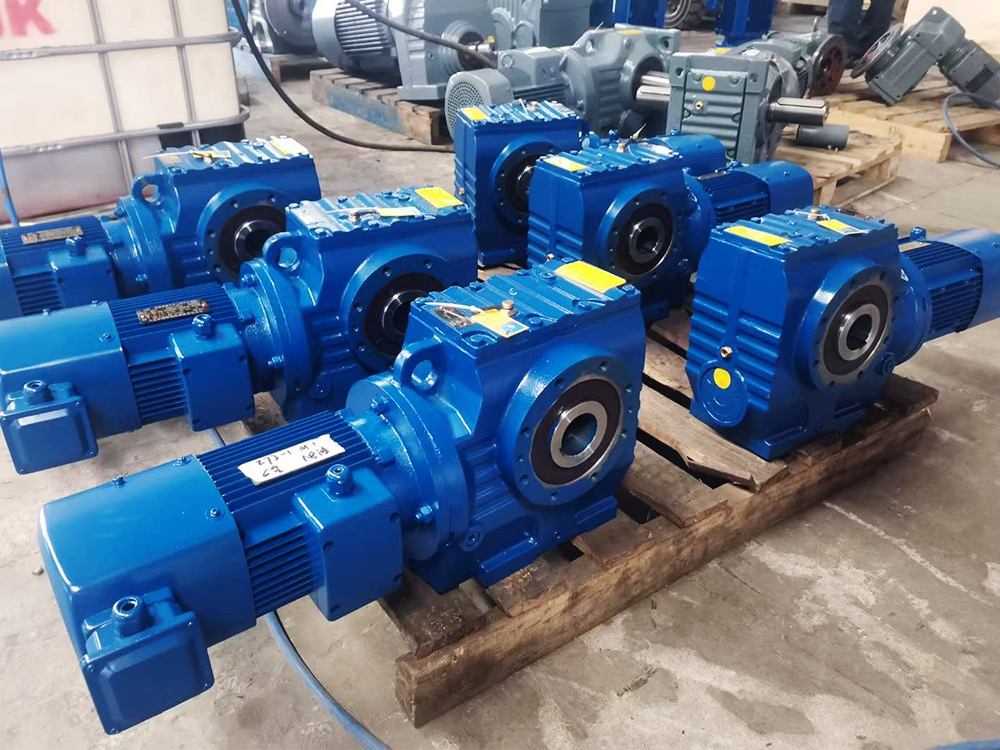

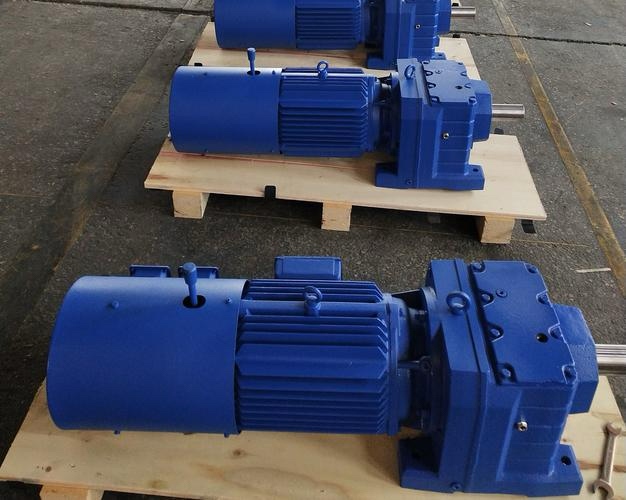

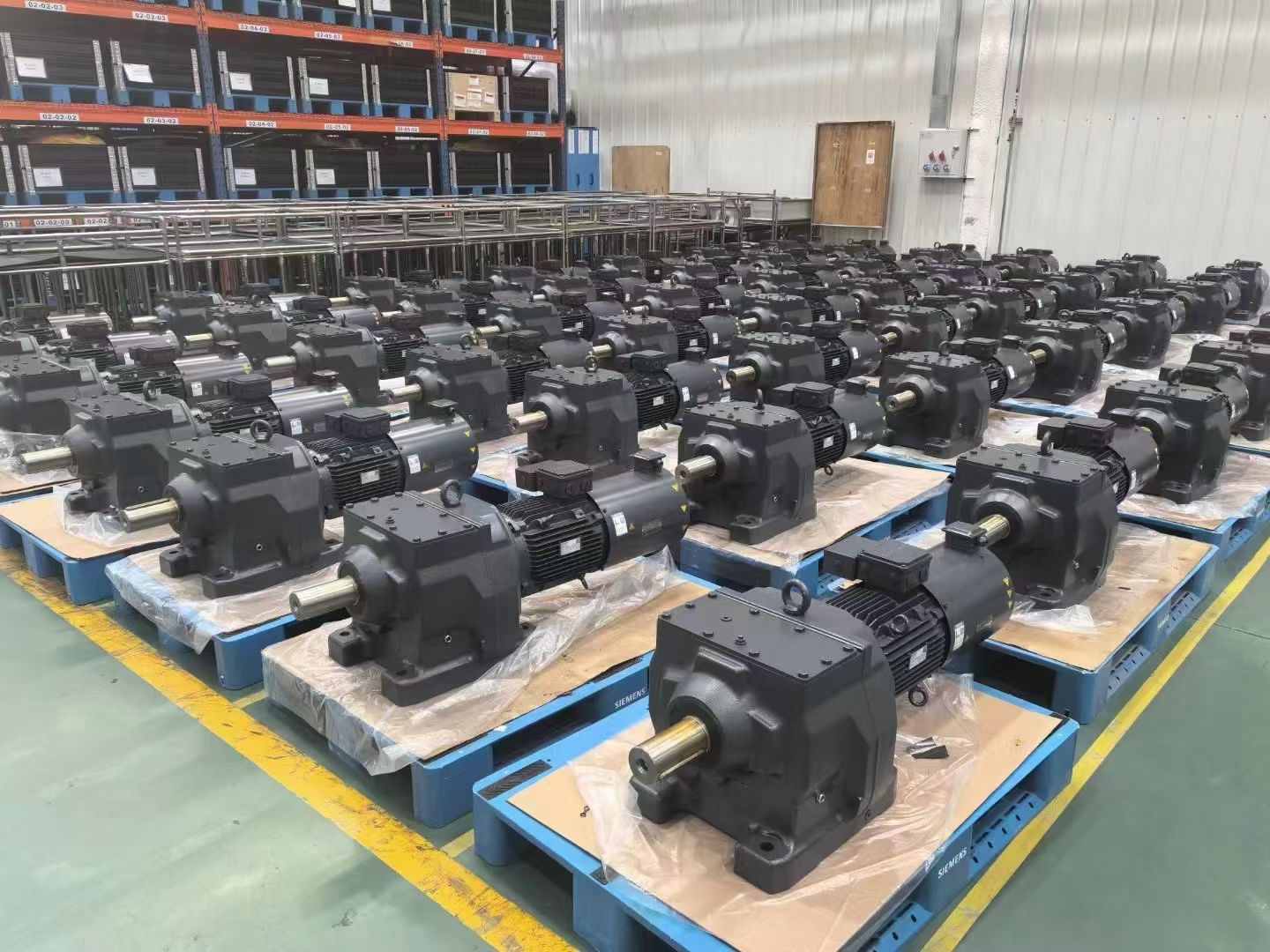

High-Quality Helical Gear Reducers

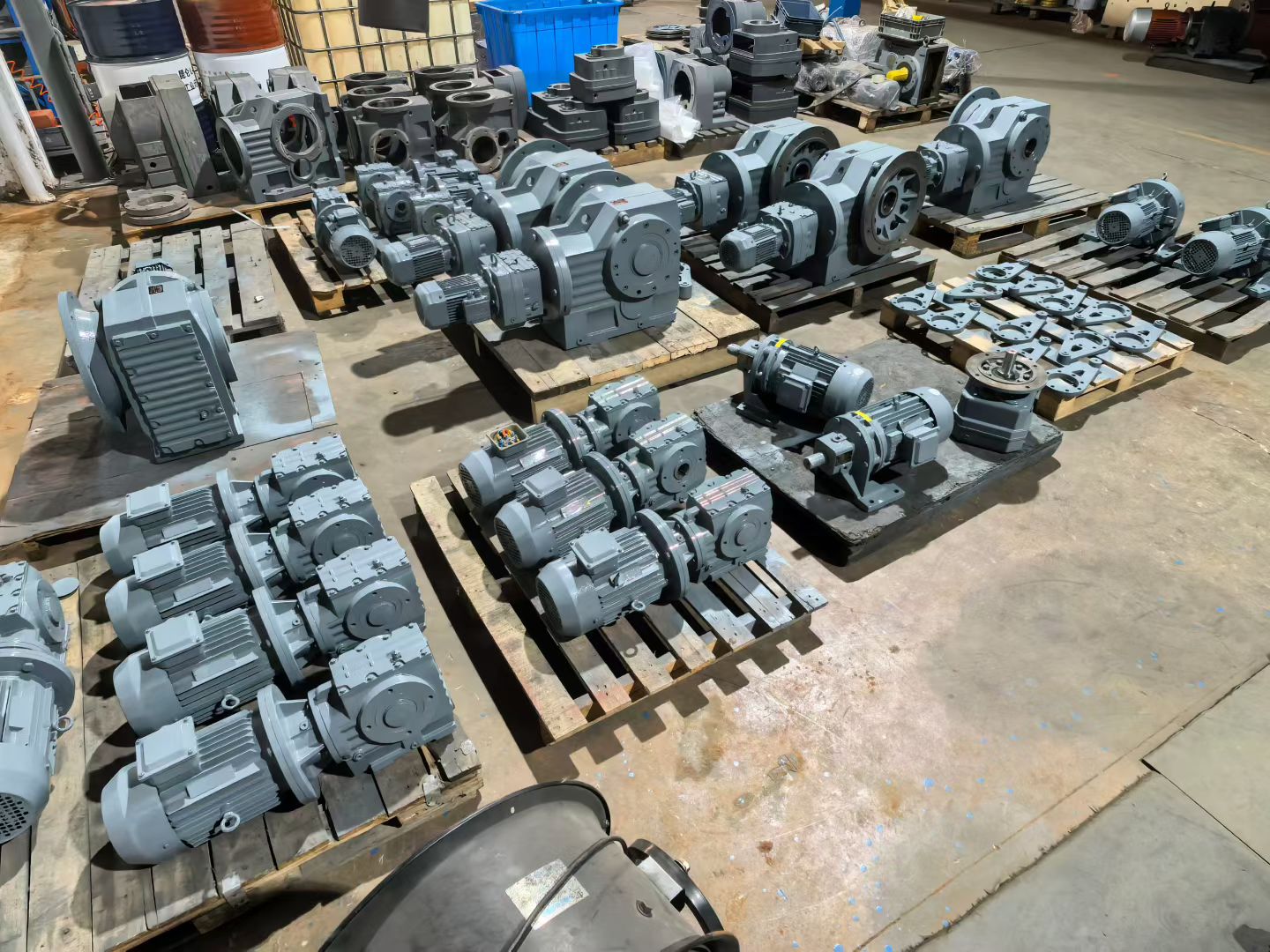

Victory provides a wide range of helical gear reducers, including:

• Inline helical gear motor

• Parallel shaft gear motor

• Bevel gear motor

• Worm gear motor

Our helical gearboxes are designed for durability, efficiency, and long service life.

Solutions for OEM Manufacturers

Many OEM manufacturers rely on Victory gear motors for their machines.

We provide:

• Custom gear ratios

• Flexible mounting options

• IEC standard motors

• IE3 / IE4 high-efficiency motors

Our products are ideal replacements for well-known brands while offering better lead times and competitive prices.

Technical Support and Spare Parts

Beyond supplying products, we also support customers with:

• Technical consultation

• Installation guidance

• Spare parts supply

• Maintenance recommendations

This ensures long-term reliability for industrial equipment.

Choosing the Right Gear Motor for Long Service Life

Selecting the right gearbox greatly reduces maintenance needs.

Selecting the Correct Gear Ratio

Choosing the correct gear ratio ensures:

• Optimal torque output

• Efficient power transmission

• Reduced wear

Matching the Right Electric Motor

A properly matched three phase electric motor improves efficiency and reliability.

Ensuring Proper Installation

Correct installation practices include:

• Accurate shaft alignment

• Proper mounting

• Adequate lubrication

These steps significantly extend gearbox life.

Conclusion

Helical gear reducers are essential components in modern industrial systems. Proper maintenance, correct lubrication, and timely repairs can significantly extend the lifespan of helical gearboxes while preventing costly downtime.

By following a structured maintenance program and selecting high-quality gear motors, manufacturers can ensure reliable and efficient machine operation for many years.

If you are looking for durable and efficient helical gear reducers, Victory provides reliable solutions for OEM manufacturers and industrial equipment suppliers worldwide.

FAQ

How often should a helical gear reducer be serviced?

Most industrial helical gear reducers should be inspected monthly and receive a full maintenance service annually. Lubrication oil typically needs replacement every 2500–4000 operating hours.

What causes a helical gearbox to overheat?

Common causes include overload, insufficient lubrication, misalignment, or poor ventilation around the gearbox.

How long does an industrial helical gearbox last?

With proper maintenance, a high-quality helical gear reducer can operate for 8–15 years or even longer in industrial applications.

What lubricant should be used for a helical gear reducer?

High-quality industrial gear oil with anti-wear and extreme pressure additives is typically recommended for helical gearboxes.
