What Is A Helical Gear Motor? A Complete Guide

Introduction to Helical Gear Motors

If you’ve ever wondered what keeps large machines, conveyor belts, and industrial equipment running so smoothly, the answer often lies in the gear motor driving them. Among different gear motors available today, the helical gear motor stands out as one of the most efficient and reliable.

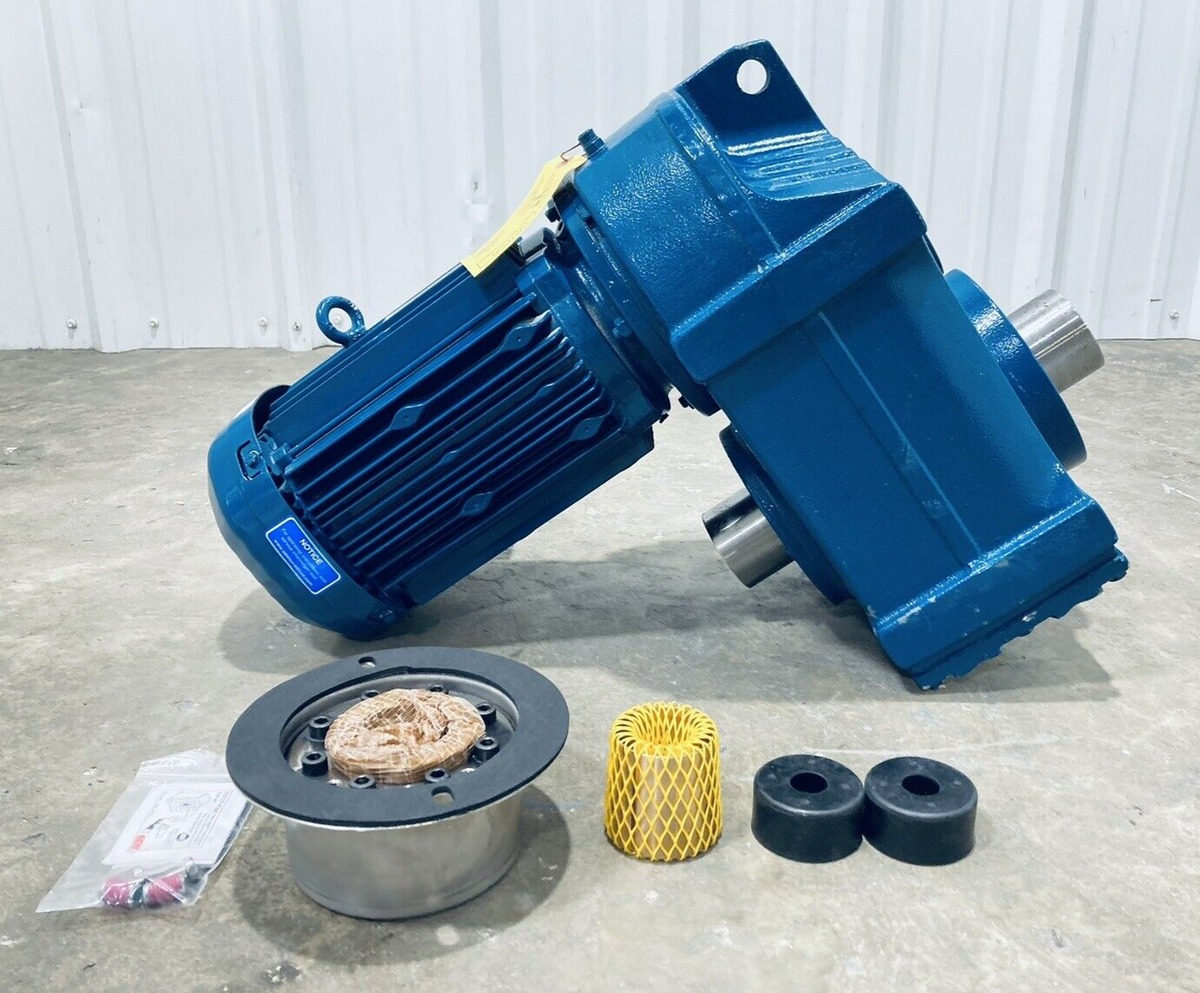

A helical gear motor is essentially an electric motor integrated with a helical gearbox, designed to transfer power smoothly and efficiently. Unlike basic gear systems that create jerks and noise, helical gears allow a gradual meshing of teeth, which leads to reduced vibrations, higher torque output, and greater longevity.

The importance of these motors in modern machinery cannot be overstated. From food processing industries to heavy-duty conveyors, and even automotive manufacturing, helical gear motors ensure that operations remain smooth, precise, and energy-efficient. They are widely used because they strike a balance between power transmission, efficiency, and durability.

When compared to spur gear systems, which have straight-cut teeth, helical gear motors excel in providing silent operation and higher load-carrying capacity. While worm gear motors are also popular, they suffer from lower efficiency and heat build-up. This makes helical gear motors the preferred choice for continuous and heavy-duty applications.

In short, a helical gear motor is the workhorse of modern industries, quietly ensuring that production lines keep moving without a hitch.

---

Understanding the Basics of Helical Gears

To understand how a helical gear motor works, we first need to look closely at helical gears themselves.

Structure and Design of Helical Gears

Unlike spur gears that have straight teeth, helical gears feature teeth cut at an angle (called the helix angle) to the gear axis. This angled design allows the teeth to engage gradually rather than suddenly, leading to smoother and quieter transmission. The overlapping contact also means more teeth share the load, making the gear stronger and more durable.

The helix angle typically ranges between 15° to 30°, depending on the application. A higher angle results in smoother operation but also increases the axial thrust, which must be managed with suitable bearings.

This unique tooth design makes helical gears suitable for high-speed and high-load applications where spur gears would otherwise fail.

Difference Between Helical and Spur Gears

• · Tooth Design: Spur gears have straight teeth, while helical gears have angled teeth.

• · Noise Levels: Spur gears are noisier due to sudden contact; helical gears run quieter.

• · Load Capacity: Helical gears can carry heavier loads due to distributed contact.

• · Efficiency: Spur gears are slightly more efficient at low speeds, but helical gears excel in high-speed conditions.

If spur gears are like clapping hands together sharply, helical gears are like rubbing hands smoothly across each other—gentle, controlled, and efficient.

Advantages of Helical Gears

• · Smooth and Quiet Operation – Reduced vibration makes them ideal for noise-sensitive environments.

• · High Load-Carrying Capacity – More tooth contact spreads out the load.

• · Durability – Less wear and tear compared to spur gears.

• · Versatility – Can transmit motion between parallel and non-parallel shafts.

Limitations of Helical Gears

• · Axial Thrust – The angled teeth generate sideways forces, which require special bearings.

• · Higher Manufacturing Cost – More complex design compared to spur gears.

• · Efficiency Losses at Very High Speeds – Due to friction and heat generation.

Despite these limitations, their benefits far outweigh the drawbacks, which is why they dominate industrial applications.

---

Components of a Helical Gear Motor

A helical gear motor is not just a single piece of equipment but a combination of several crucial components working together in harmony. Let’s break them down:

Gearbox Unit

The gearbox houses the helical gears and is responsible for reducing the motor’s high speed into usable torque. The reduction ratio depends on the application—some require slow, high-torque output, while others need faster motion.

Motor Unit

Typically, an electric motor (AC or DC) is coupled with the gearbox. The motor provides the initial power input, which is then refined by the gears. In many industries, three-phase induction motors are used due to their efficiency and reliability.

Lubrication and Cooling Systems

Since gears are in constant contact, proper lubrication is essential to reduce friction, heat, and wear. Some gear motors are air-cooled, while heavy-duty models use oil baths or forced lubrication systems for smooth operation.

Shafts, Bearings, and Housing

The gearbox also includes shafts that transfer torque, bearings that support axial and radial loads, and a rigid housing that protects the entire assembly. The housing is usually made of cast iron or steel for durability in industrial conditions.

Together, these components ensure that the helical gear motor can handle heavy-duty, continuous operations without breaking down.

---

Working Principle of a Helical Gear Motor

At its core, the working principle of a helical gear motor is straightforward: convert electrical energy into mechanical torque while ensuring smooth power transmission.

How Torque is Transmitted

When the motor rotates, it drives the helical gears inside the gearbox. Thanks to the angled teeth, power is transmitted gradually, distributing the load over multiple teeth. This smooth meshing action allows the motor to handle larger forces without producing sudden shocks.

Role of Helix Angle in Operation

The helix angle is crucial to performance. A small angle leads to less smoothness, while a larger angle increases thrust forces. Manufacturers carefully design this angle to strike the right balance between quiet operation, strength, and efficiency.

Efficiency and Power Output

Helical gear motors are highly efficient, with efficiencies ranging from 90% to 98%, depending on the design. This makes them ideal for industries where energy savings and performance are critical.

Noise and Vibration Reduction

The overlapping tooth contact ensures that noise and vibrations are significantly reduced compared to spur gears. This makes them especially suitable for industries like pharmaceuticals, food processing, and packaging, where a quiet environment is essential.

---

Types of Helical Gear Motors

Not all helical gear motors are the same—different designs are tailored to different needs.

Inline Helical Gear Motors

In this type, the motor and gearbox are aligned in a straight line. These are compact, efficient, and widely used in conveyors and pumps.

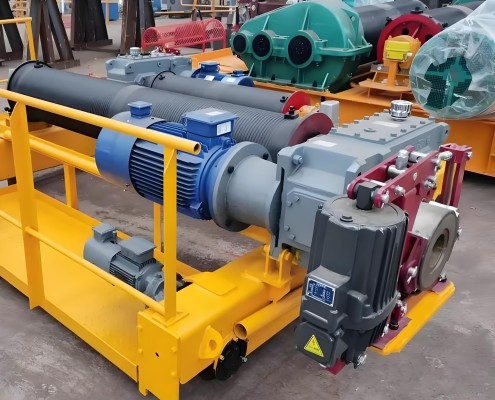

Parallel Shaft Helical Gear Motors

Here, the motor and gearbox shafts are parallel but not in a straight line. These offer greater flexibility in installation and are common in heavy-duty applications.

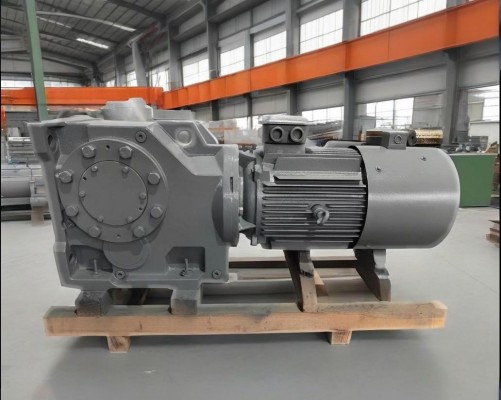

Helical Bevel Gear Motors

A combination of helical and bevel gears, this type allows power transmission at right angles. They are perfect for mixers, crushers, and rotary machines.

Customized Helical Gear Motors

Some industries require tailor-made solutions with specific torque, speed, and mounting designs. Manufacturers provide custom-built helical gear motors to match these needs.

Applications of Helical Gear Motors

Helical gear motors are so versatile that they’re used across almost every industry you can think of. Their ability to provide high torque, smooth operation, and long life makes them the go-to choice for both light and heavy-duty applications.

One of the most common uses is in conveyor systems. Whether in food processing plants, airports, or warehouses, conveyors rely on helical gear motors to move products smoothly and reliably. The quietness of operation is especially important in industries like pharmaceuticals and packaging, where precision and hygiene matter.

In the automotive industry, these motors drive assembly line equipment, robotic arms, and lifting mechanisms. Their durability ensures that production lines run non-stop without costly downtime. Similarly, cement, mining, and steel plants use large helical gear motors to power crushers, mixers, and heavy machinery where extreme torque is needed.

They’re also widely used in HVAC systems, escalators, textile machines, and agricultural equipment. Imagine a modern city without elevators or escalators—that’s where helical gear motors quietly do their job, carrying people safely every day.

In short, helical gear motors are not limited to one sector; they are indispensable workhorses powering industries worldwide.

---

Advantages of Using Helical Gear Motors

Why do so many industries prefer helical gear motors over other types? The answer lies in their unique set of advantages.

First, their efficiency levels are remarkably high. With efficiencies often above 95%, they waste little energy as heat, which means lower power bills and more eco-friendly operations. This is a huge plus for companies aiming to reduce operational costs.

Second, they offer quiet and smooth performance. Unlike spur gears, which create sudden jolts, helical gears mesh gradually, reducing noise and vibration. This feature makes them ideal for public spaces such as malls and airports, where noisy machinery is unacceptable.

Third, their strength and durability are unmatched. The angled teeth design distributes the load across multiple teeth at once, reducing wear and tear. This results in longer service life and lower maintenance costs.

Another key benefit is their versatility. Helical gear motors can be designed for parallel shafts, inline arrangements, or even angled transmissions, making them suitable for a variety of machinery.

Finally, they are reliable under continuous operation. Many industrial machines run 24/7, and helical gear motors can handle such rigorous demands without frequent breakdowns.

When you combine efficiency, durability, versatility, and quietness, it’s no wonder that helical gear motors dominate modern industries.

---

Disadvantages of Helical Gear Motors

While helical gear motors are packed with advantages, it’s fair to acknowledge that they are not without drawbacks.

The most notable issue is axial thrust. Because of the angled teeth, helical gears generate sideways forces along the shaft. To counter this, manufacturers must use special thrust bearings, which can increase the complexity and cost of the design.

Another downside is their higher manufacturing cost. Cutting helical gear teeth at precise angles requires more advanced machinery and higher-quality materials compared to spur gears. This makes helical gear motors slightly more expensive to purchase.

Additionally, while they are efficient, at very high speeds they may lose some efficiency due to heat and friction. If not properly lubricated and cooled, this can lead to faster wear and reduced performance.

Finally, maintenance requirements can be more demanding compared to simpler gear systems. Regular lubrication checks and sometimes forced cooling systems are needed in heavy-duty applications.

However, despite these disadvantages, industries still overwhelmingly prefer helical gear motors because the benefits outweigh the limitations. The higher initial cost is often recovered quickly through lower operating costs, longer service life, and greater efficiency.

---

Comparison Between Helical Gear Motors and Other Gear Motors

When choosing a gear motor, businesses often compare helical gear motors with spur, worm, and bevel gear motors. Let’s break down the differences.

• · Helical vs. Spur Gear Motors:

• Spur gears are cheaper and easier to manufacture.

• Helical gears, however, are much quieter and more durable.

• Spur gears are best for low-speed, low-torque applications, while helical gears excel in high-torque, continuous operations.

• · Helical vs. Worm Gear Motors:

• Worm gears allow very high reduction ratios in compact sizes, but they are less efficient (50–70%).

• Helical gear motors, on the other hand, maintain 90–98% efficiency.

• Worm gears generate more heat, whereas helical gears stay cooler under continuous use.

• · Helical vs. Bevel Gear Motors:

• Bevel gears are used when shafts must intersect at right angles.

• Helical gears can be arranged for both parallel and angled shafts, offering more versatility.

• In terms of load capacity and noise reduction, helical gear motors outperform bevel gears in most cases.

In conclusion, while other gear systems have their place, helical gear motors strike the perfect balance between performance, durability, and efficiency, making them the most reliable choice for industries.

---

Maintenance and Care of Helical Gear Motors

Even the best machinery needs proper care to ensure long life, and helical gear motors are no exception. Regular maintenance helps avoid unexpected breakdowns and costly downtime.

The first step is lubrication. Helical gears generate friction, and without proper lubrication, they can wear out quickly. Depending on the application, gear motors may use oil baths, grease, or forced lubrication systems. Regularly checking oil levels and replacing lubricants at scheduled intervals keeps the gears running smoothly.

Next, it’s important to monitor bearings and shafts. Since axial thrust is present in helical gear systems, bearings must be inspected frequently to ensure they are not wearing out prematurely. Replacing a bearing on time can prevent bigger failures down the line.

Temperature monitoring is another key aspect. Overheating can damage both the motor and gearbox. Many modern gear motors come with built-in sensors to detect abnormal heat and vibration, allowing early detection of issues.

Routine cleaning of the housing ensures that dust, dirt, and moisture do not compromise performance. In industries like food processing, maintaining hygiene standards is critical, so external cleaning becomes even more important.

Lastly, having a preventive maintenance schedule helps industries avoid costly downtime. Instead of waiting for something to break, proactive checks ensure that the gear motor remains reliable for years.

Proper care can extend the life of a helical gear motor significantly, ensuring maximum return on investment.

Factors to Consider When Choosing a Helical Gear Motor

Selecting the right helical gear motor is not as simple as picking one off the shelf. Different applications have different requirements, and choosing the wrong motor can lead to inefficiency, higher costs, or even system failure.

The first factor to consider is torque requirement. How much force is needed to drive the machine? Conveyor belts, for example, may need moderate torque, while crushers or mixers require extremely high torque.

Second, you must look at the speed ratio. Helical gear motors are often used for speed reduction. Knowing the input speed from the motor and the desired output speed helps determine the correct gear ratio.

Load type also matters. Is the load constant, variable, or shock-based? For instance, textile machines need smooth and continuous operation, while mining equipment must handle heavy shock loads.

Another key factor is the mounting arrangement. Helical gear motors come in different configurations—inline, parallel shaft, or right-angle. The available space and design of the machinery will dictate which mounting option is best.

Don’t forget about environmental conditions. Dusty, wet, or high-temperature environments demand sealed housings, special coatings, or additional cooling mechanisms.

Finally, consider energy efficiency. Since these motors often run 24/7, even a small difference in efficiency can translate into huge cost savings over time.

In short, selecting the right helical gear motor requires balancing performance, durability, cost, and environmental factors to ensure maximum productivity.

---

Efficiency of Helical Gear Motors

One of the biggest reasons industries prefer helical gear motors is their impressive efficiency levels. While other gear systems like worm gears may waste energy as heat, helical gears are designed to minimize losses.

Typical efficiency ratings for helical gear motors range from 90% to 98%, depending on design, lubrication, and load. This means that very little energy is lost during transmission, making them both cost-effective and eco-friendly.

The gradual engagement of gear teeth plays a major role in this efficiency. Unlike spur gears, which clash teeth together suddenly, helical gears share the load across multiple teeth, reducing friction and wear.

This high efficiency is especially critical in industries where motors operate continuously. For example, in a packaging plant with dozens of conveyors, even a 5% improvement in efficiency translates into substantial savings in electricity bills each year.

Moreover, efficient gear motors run cooler, reducing the risk of overheating and extending the lifespan of components like bearings and shafts.

To maximize efficiency, it’s important to use quality lubricants, proper alignment, and regular maintenance. When optimized correctly, helical gear motors deliver long-term cost savings without sacrificing performance.

---

Future of Helical Gear Motors

The future of helical gear motors looks bright, thanks to advancements in technology and growing demand for energy-efficient solutions.

One major trend is integration with smart technologies. Modern gear motors are increasingly equipped with sensors that monitor temperature, vibration, and load in real time. This allows predictive maintenance, reducing downtime and improving efficiency.

Another development is the push toward eco-friendly designs. As industries aim to reduce carbon footprints, manufacturers are focusing on lightweight materials, high-efficiency designs, and lubricants that are environmentally friendly.

We are also seeing innovations in modular gear motor designs, where different components can be easily swapped out or upgraded. This not only extends service life but also makes customization easier for different industries.

The use of AI and IoT (Internet of Things) will likely play a big role in the future. Imagine a gear motor that alerts maintenance teams before a failure occurs or automatically adjusts its performance based on load conditions. These smart systems are already being tested in advanced industries.

With rapid automation in industries like logistics, e-commerce, and renewable energy, the demand for reliable, efficient, and intelligent helical gear motors will continue to rise.

In short, the future will bring smarter, greener, and more adaptable helical gear motors that will shape the next generation of industrial machinery.

---

Conclusion

Helical gear motors may not always be visible to the naked eye, but they are the silent powerhouses driving modern industries. From conveyors in warehouses to crushers in cement plants, from escalators in malls to robotic arms in factories, these motors keep the world moving efficiently.

Their unique design—with angled teeth and smooth engagement—makes them far superior to many other gear systems in terms of efficiency, durability, and quiet performance. While they do have some limitations, like axial thrust and slightly higher costs, the long-term benefits far outweigh the drawbacks.

As industries continue to demand more reliable and energy-efficient machinery, helical gear motors will only grow in importance. With smart technologies and eco-friendly innovations on the horizon, the future of these motors looks more promising than ever.

So, the next time you ride an escalator, see a conveyor moving in a factory, or notice massive machinery at work, remember—there’s probably a helical gear motor working silently behind the scenes.

---

FAQs

1. What makes a helical gear motor better than a spur gear motor?

Helical gear motors are smoother, quieter, and stronger because of their angled teeth, making them better for high-load, continuous operations.

2. Can helical gear motors run continuously without overheating?

Yes, when properly lubricated and cooled, helical gear motors are designed for continuous 24/7 operation in industrial environments.

3. Are helical gear motors more expensive than other types?

They have a higher initial cost compared to spur or worm gear motors, but their durability and efficiency often make them more cost-effective in the long run.

4. What industries use helical gear motors the most?

They are widely used in conveyors, elevators, packaging, mining, cement plants, automotive production, and food processing industries.

5. How do I maintain a helical gear motor?

Regular lubrication, monitoring bearings, checking for overheating, and preventive maintenance schedules are key to long-lasting performance.
