Introduction: Why the Right Helical Gear Motor Matters in Conveying Systems
In modern industrial production, conveying systems are the backbone of material handling. Whether in food processing, mining, logistics, packaging, or manufacturing lines, conveyors must operate reliably for long hours with minimal downtime.
![Empty Spiral Conveyor Belt]()
At the core of these systems lies the Helical gear motor, a compact power unit that combines an electric motor with a Helical gearbox to deliver efficient torque transmission and stable speed control.
Selecting the correct Gear motor is critical for manufacturers because it directly affects:
System reliability
Energy efficiency
Maintenance cost
Production continuity
A poorly selected Helical geared motor can lead to overheating, premature wear, excessive energy consumption, or even conveyor failure.
This guide explains how manufacturers can choose the right Industrial helical gearbox and Helical gear motor for their conveying systems while ensuring long-term performance and cost efficiency.
Understanding Helical Gear Motors in Conveying Systems
![R系列+大功率]()

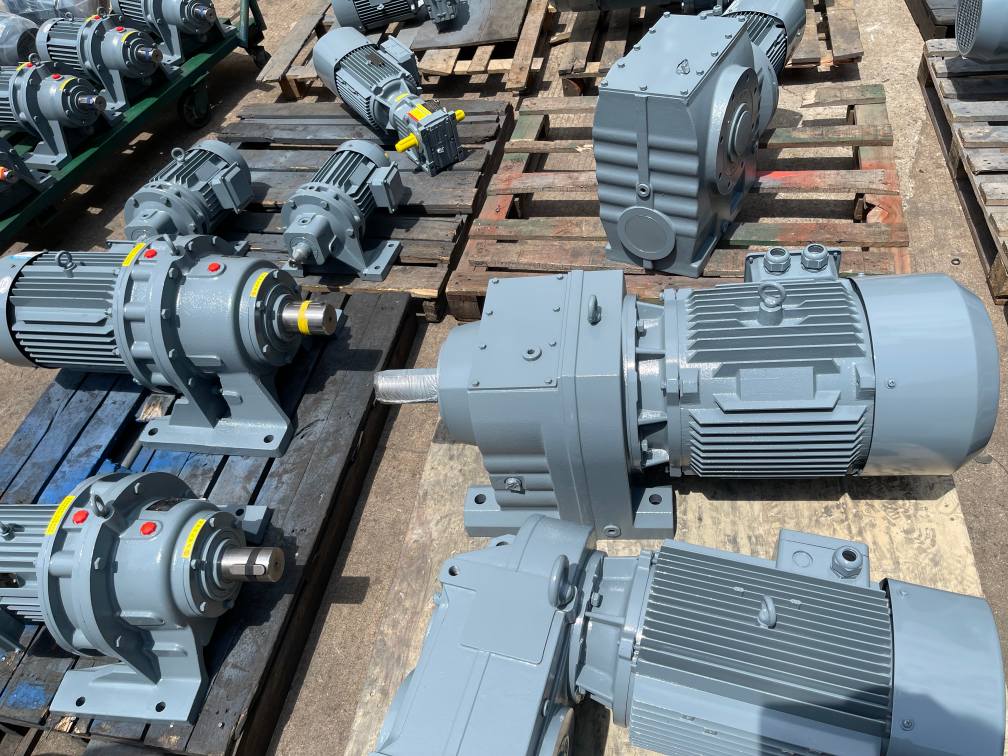

A Helical gear motor is a type of Geared motor that combines an electric motor with a Helical gear reducer. The helical gears have angled teeth that allow smoother meshing compared with spur gears.
This design offers several advantages:
Higher efficiency
Lower noise
Greater load capacity
Longer service life
Because of these characteristics, Helical gear transmission systems are widely used in conveyors, elevators, mixers, crushers, and automated production lines.
Common Types of Gear Motors Used in Conveying Systems
Manufacturers often choose between several types of Gear motor configurations depending on installation space and torque requirements.
![RF减速机]()

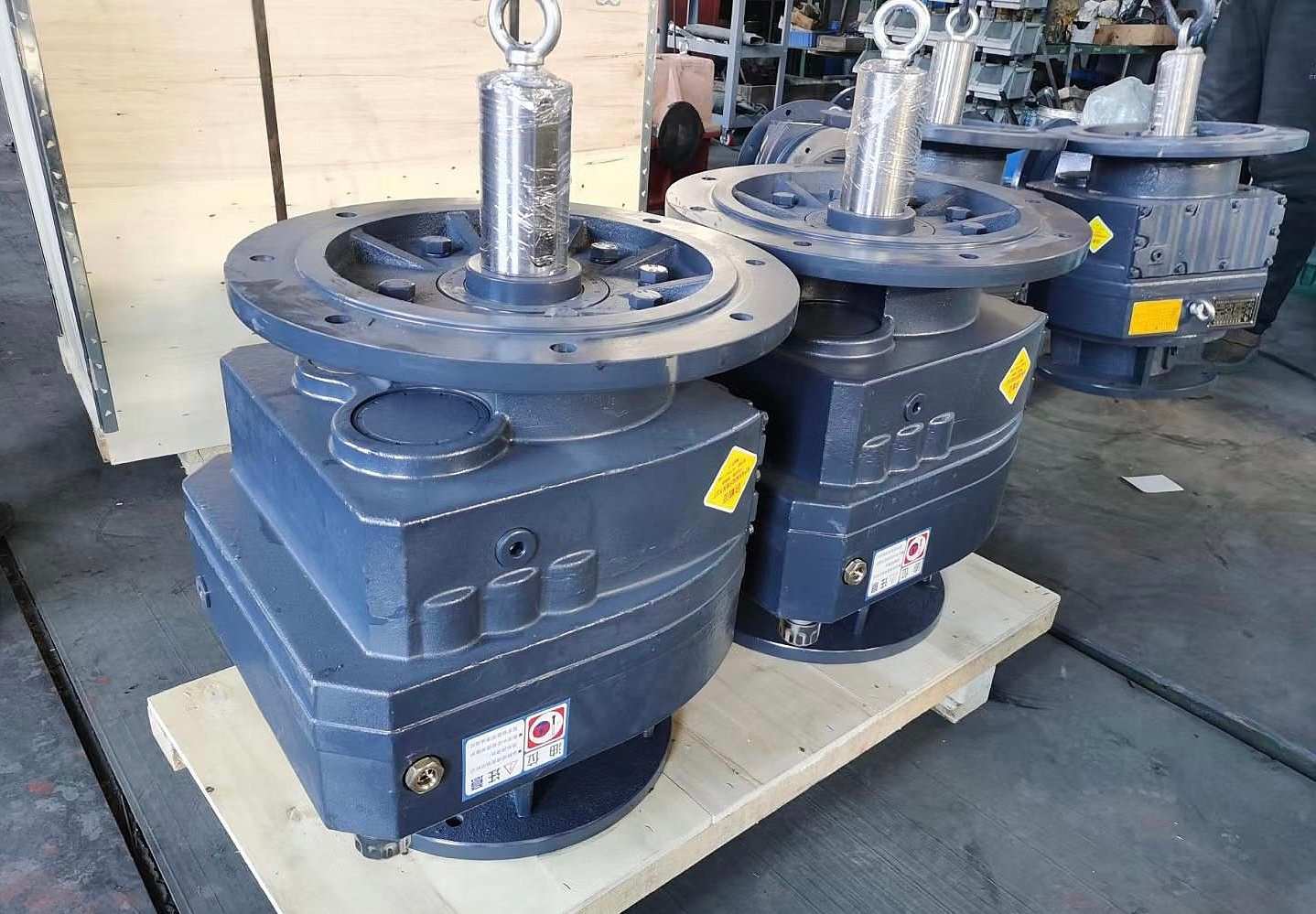

The Inline Helical gear motor features a coaxial design where the motor and gearbox share the same axis.
Advantages include:
Typical equipment includes Inline helical gearbox or Inline helical gear reducer systems.
![F系列空心轴+法兰输出]()

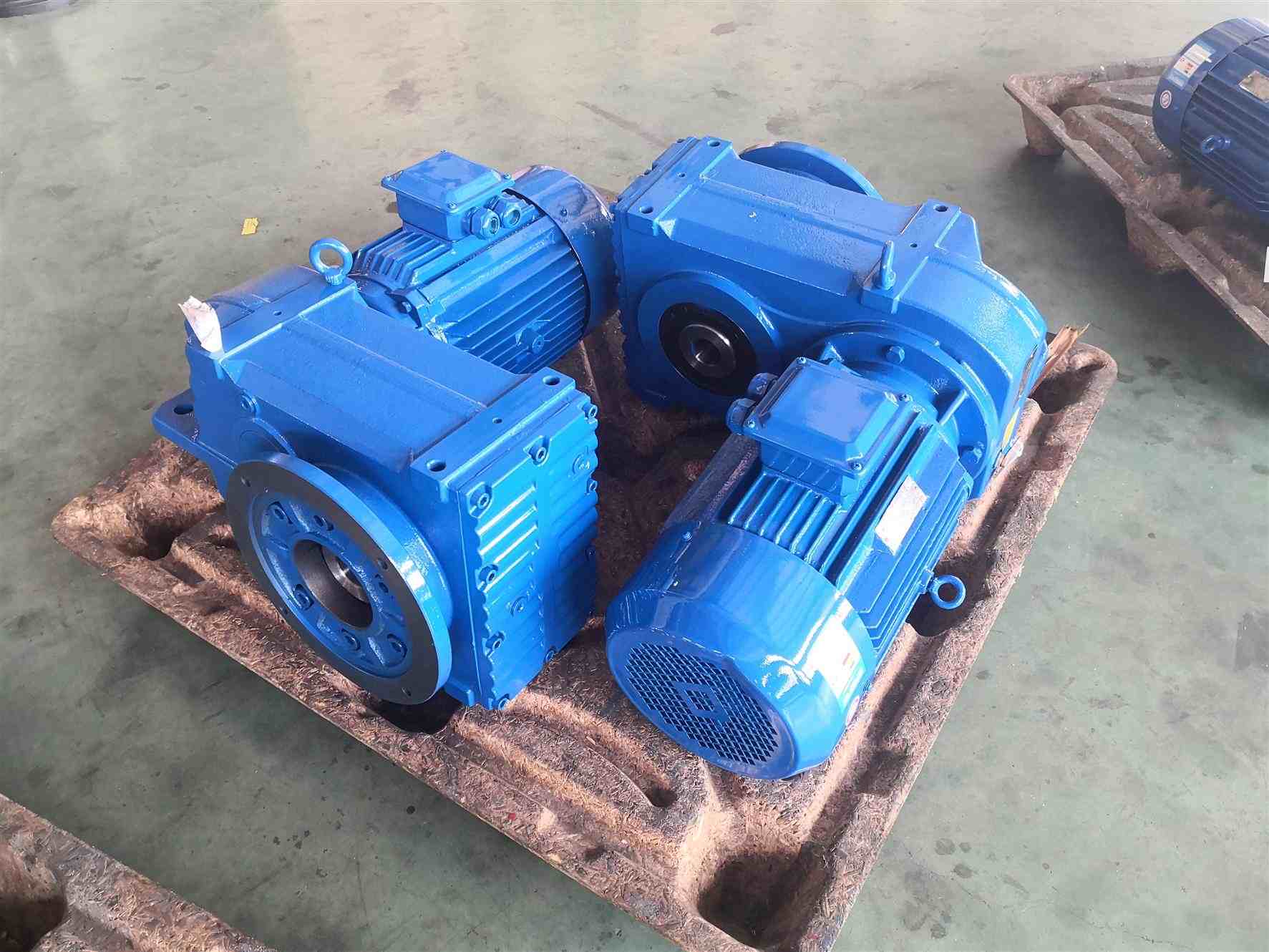

The Parallel shaft gear motor is commonly used in conveyors where a hollow shaft is required.
Typical configurations include:
Advantages:
![K空心轴+变频电机]()

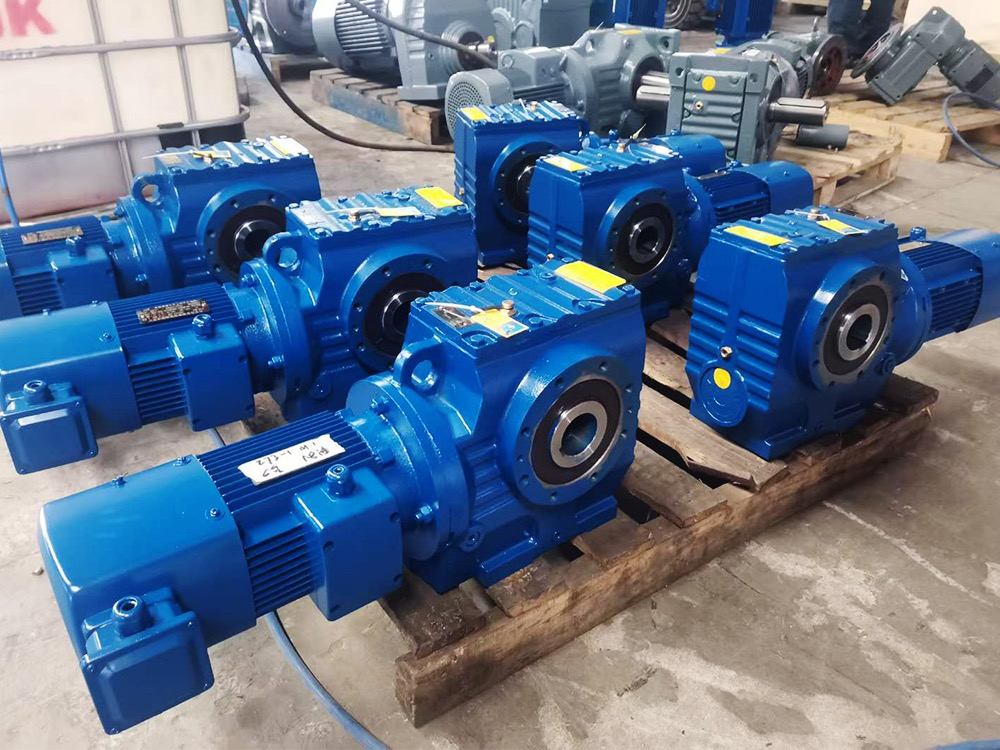

A Bevel gear motor (or Right angel gear motor) is designed for applications where power direction must change by 90 degrees.
Benefits include:
![K空心轴+小功率电机]()

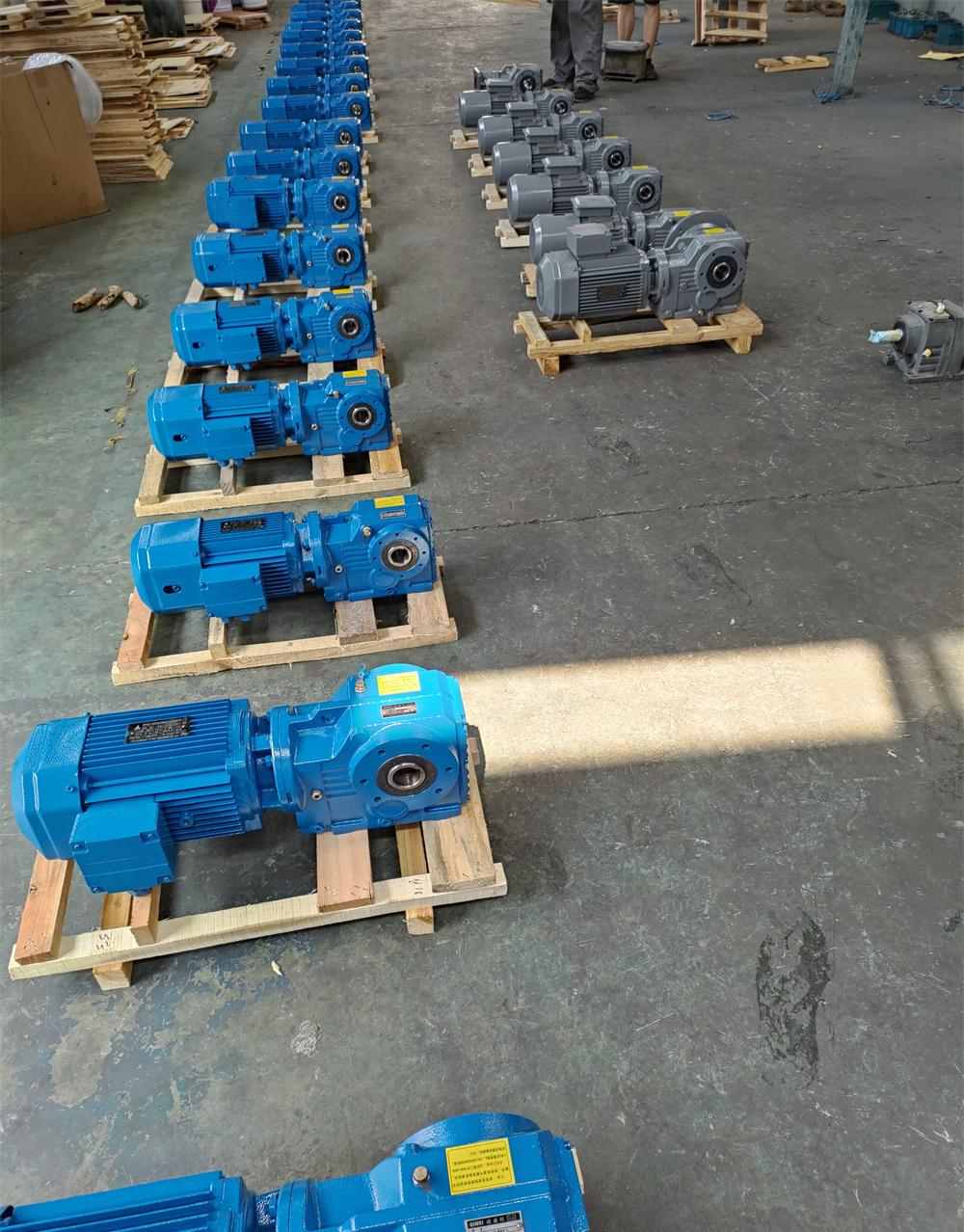

While not as efficient as helical systems, a Worm gear motor can still be used for some conveyors where self-locking capability is needed.
However, for most industrial conveyors, Helical reduction gearbox solutions are preferred due to higher efficiency.
Key Parameters for Selecting a Helical Gear Motor
Choosing the correct Helical speed reducer requires evaluating several technical parameters.
1. Torque Requirements
Torque is the most important factor when selecting a Helical reduction gear.
Manufacturers must calculate:
Conveyor load
Belt tension
Starting torque
Safety factor
Heavy conveyors often require High torque helical gearbox or Heavy duty helical gearbox solutions.
2. Speed and Gear Ratio
The Helical speed gearbox determines output speed.
Common conveyor speeds range from:
10 rpm – slow heavy conveyors
30–60 rpm – standard conveyors
100+ rpm – high-speed systems
Selecting the proper Helical speed reducer ensures optimal production speed and energy efficiency.
3. Mounting Configuration
![K空心轴灰色]()
Different installation environments require different gearbox structures.
Typical options include:

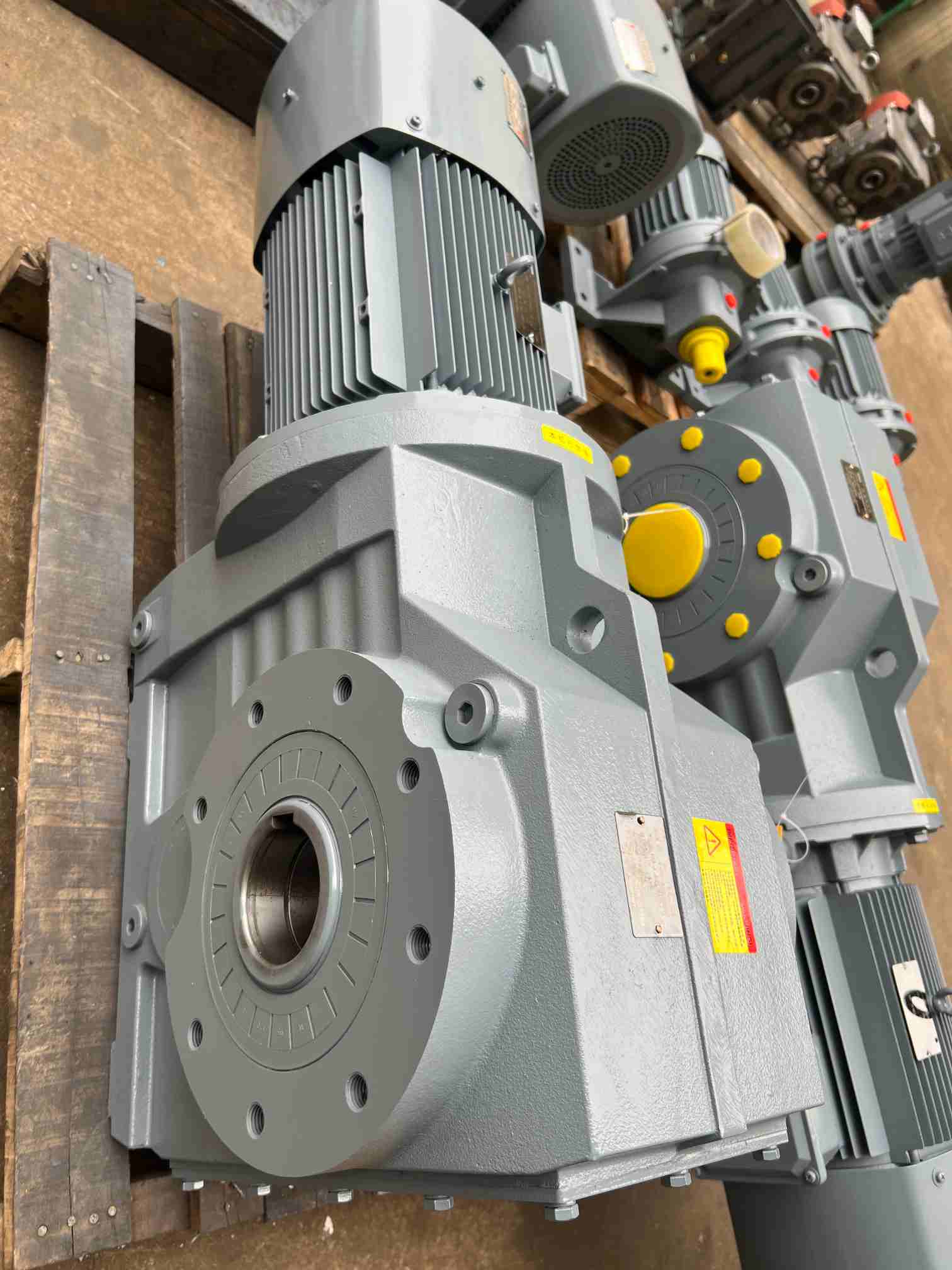

For conveyor drive shafts, Hollow shaft helical gearbox designs are extremely popular because they simplify installation.
4. Load Type and Duty Cycle
Manufacturers must evaluate:
Continuous operation
Shock loads
Start-stop frequency
For demanding industries such as mining and cement, an Industrial helical gearbox with reinforced bearings and hardened gears is recommended.
5. Efficiency and Energy Consumption
Compared with other systems, Helical gear drive units offer very high efficiency, often exceeding 95% per stage.
Higher efficiency means:
Lower operating costs
Reduced heat generation
Longer gearbox life
Helical Gearbox vs Other Gear Motor Types
Understanding the differences between gearbox types helps manufacturers make better decisions.
Gear Type
Efficiency
Torque
Noise
Application
|
|
|
|
|
Helical gear reducer | High | High | Low | Conveyors, mixers |
Worm gear motor | Medium | Medium | Medium | Light conveyors |
Bevel gear motor | High | High | Low | Right-angle drives |
Parallel shaft gear motor | High | High | Low | Heavy conveyors |
Overall, Helical gear motor solutions remain the most versatile option for conveyor applications.
Material Quality and Manufacturing Standards
The durability of a Helical gear box depends largely on manufacturing quality.
High-quality Helical gear unit components usually feature:
These factors determine whether the gearbox can operate reliably for years in industrial conditions.
How Victory Supports Manufacturers with Reliable Gear Motor Solutions
For manufacturers seeking reliable Helical geared motor solutions, selecting the right supplier is just as important as selecting the right gearbox.
Victory specializes in providing high-quality Gear motor and Helical gearbox solutions tailored for industrial equipment manufacturers.
Stable Supply Chain
![机械设备厂车间]()
Victory maintains a stable supply chain with long-term raw material suppliers, ensuring consistent quality and predictable lead times for Helical reduction gearbox products.
Wide Product Range
Victory provides a complete range of Geared motor solutions including:
These products are widely used in conveyor systems, packaging lines, and automated production equipment.
Customization for Equipment Manufacturers
![微信图片_20250912094428_154_7]()
Victory works closely with machinery manufacturers to provide customized Helical gear transmission solutions, including:
Custom mounting options
Special shaft dimensions
High torque designs
OEM branding
This allows manufacturers to integrate Helical gear drive systems seamlessly into their machines.
Technical Support and Engineering Assistance
Victory also supports customers with:
This ensures that manufacturers choose the most suitable Helical gear motor for their conveying systems.
FAQ
What is the advantage of using a helical gear motor in conveyor systems?
![Transportation line conveyor roller with container in motion]()
A Helical gear motor is widely used in conveying equipment because it provides high efficiency, smooth power transmission, and lower noise compared with many other Gear motor types.
The angled gear teeth in a Helical gear reducer allow gradual engagement, which reduces vibration and wear.
For industrial conveyor applications, an Industrial helical gearbox or Helical reduction gearbox offers reliable torque transmission and longer service life.
How do manufacturers calculate the required torque for a conveyor gear motor?
Manufacturers calculate torque based on conveyor load, belt tension, incline angle, and starting conditions.
Engineers usually estimate the total resistance of the conveyor system and apply a safety factor before selecting a Helical speed reducer or Helical speed gearbox.
For heavy-duty conveyors, a High torque helical gearbox or Heavy duty helical gearbox is often required to ensure stable operation.
What is the difference between an inline helical gear motor and a parallel shaft gear motor?
An Inline Helical gear motor has a coaxial structure where the motor and gearbox share the same axis, making it compact and efficient.
A Parallel shaft gear motor uses parallel input and output shafts, which is ideal for conveyors with limited installation space.
Both Inline helical gearbox and Parallel shaft helical gearbox designs are commonly used in conveyor systems because they provide efficient Helical gear transmission.
When should a hollow shaft helical gearbox be used?
A Hollow shaft helical gearbox is commonly used when the gearbox needs to be mounted directly on the conveyor drive shaft.
This design eliminates couplings and reduces installation complexity.
Many conveyor manufacturers prefer Parallel shaft helical gear unit or Hollow shaft helical gearbox solutions for easier installation and maintenance.
How can manufacturers ensure a long service life for a helical gearbox?
Choosing a high-quality Helical gear box with precision-machined gears and reliable bearings is essential.
Proper lubrication, correct alignment, and regular inspection can significantly extend the lifespan of a Helical gear unit or Helical gear drive system.
Using a well-designed Helical geared motor that matches the conveyor load and duty cycle will also improve durability and overall system efficiency.
Conclusion
Selecting the right Helical gear motor for conveying systems requires careful evaluation of torque, speed, mounting configuration, and operating conditions.
Compared with other transmission solutions, Helical gearbox systems provide superior efficiency, durability, and reliability, making them the preferred choice for industrial conveyors.
By partnering with a reliable supplier like Victory, manufacturers can obtain high-quality Helical gear reducer, Parallel shaft helical gearbox, or Inline helical gearbox solutions tailored to their equipment requirements.
The right Helical geared motor not only improves conveyor performance but also reduces long-term operational costs and enhances production efficiency.
