How to Select the Safety Factor of Helical Gear Motors
Views: 0 Author: Site Editor Publish Time: 2026-03-27 Origin: Site
Introduction: Why Safety Factor Matters More Than You Think
When selecting a Helical gear reduceror Helical gearbox, many buyers focus only on power, ratio, and price. However, one critical factor that directly determines equipment reliability is often overlooked — safety factor.
In this guide, we will walk you through how to correctly select the safety factor for your Industrial helical gearbox, based on real B2B project experience.
What Is Safety Factor in a Helical Gearbox
Understanding the Core Concept
The safety factor (SF) refers to the ratio between the gearbox's rated capacity and the actual working load.
For example:
If your Helical gear unit is rated for 2000 Nm, and your application requires 1000 Nm, then:
SF = 2.0
This means your Helical gear drive is operating at a safe margin, ensuring long-term stability.
Safety Factor vs Service Factor
Many customers confuse service factor and safety factor.
Service Factor = Application condition coefficient
Safety Factor = Design margin of the gearbox
For any Helical reduction gearbox, both must be considered together to ensure proper selection.
Key Factors That Influence Safety Factor Selection
Load Type: The Most Critical Variable
Different applications place very different stress levels on a Helical gear transmission.
Constant load → Lower SF needed
Variable load → Medium SF
Shock load → High SF required
For example:
Conveyor → stable → SF 1.3–1.5
Crusher → heavy shock → SF 2.0+
Working Hours and Duty Cycle
If your Helical speed reducer operates:
8 hours/day → normal SF
24 hours continuous (S1) → higher SF required
Continuous operation significantly impacts the lifespan of any Heavy duty helical gearbox.
Start/Stop Frequency
Frequent starting creates peak torque.
This is especially important for:
Helical gear motor
Coaxial gear motor
Inline helical gearbox
Ignoring this factor is one of the most common causes of gearbox failure.
Installation and Alignment
Improper installation reduces actual safety factor.
This applies to:
Solid shaft helical gearbox
Hollow shaft helical gearbox
Parallel shaft helical gear unit
Even the best High torque helical gearbox cannot compensate for poor alignment.
Standard Safety Factor Ranges (Practical Guide)
Light Duty Applications (SF 1.2 – 1.4)
Suitable for:
Fans
Light conveyors
Typical products:
Inline helical gear reducer
Coaxial helical gearbox
Medium Duty Applications (SF 1.4 – 1.8)
Common in:
Packaging machinery
Mixers
Recommended solutions:
Parallel shaft helical gearbox
Helical geared motor
Heavy Duty Applications (SF 1.8 – 2.5+)
Used in:
Crushers
Mining
Lifting equipment
Best choice:
Heavy duty helical gearbox
Parallel shaft helical gearbox
Combined with Bevel gear motor or Right angel gear motor
How to Calculate the Required Safety Factor
Basic Torque Formula
Required torque:
T = 9550 × P / n
Where:
P = Power (kW)
n = Output speed (rpm)
Then apply service factor to determine final selection for your Helical reduction gear.
Practical Example (Conveyor System)
Customer requirement:
Power: 7.5 kW
Output speed: 60 rpm
Calculated torque:
T ≈ 1193 Nm
If conveyor has slight shock:
Recommended SF = 1.5
Final selection:
Choose a Helical gear motor with ≥1800 Nm capacity.
Application-Based Selection Guide

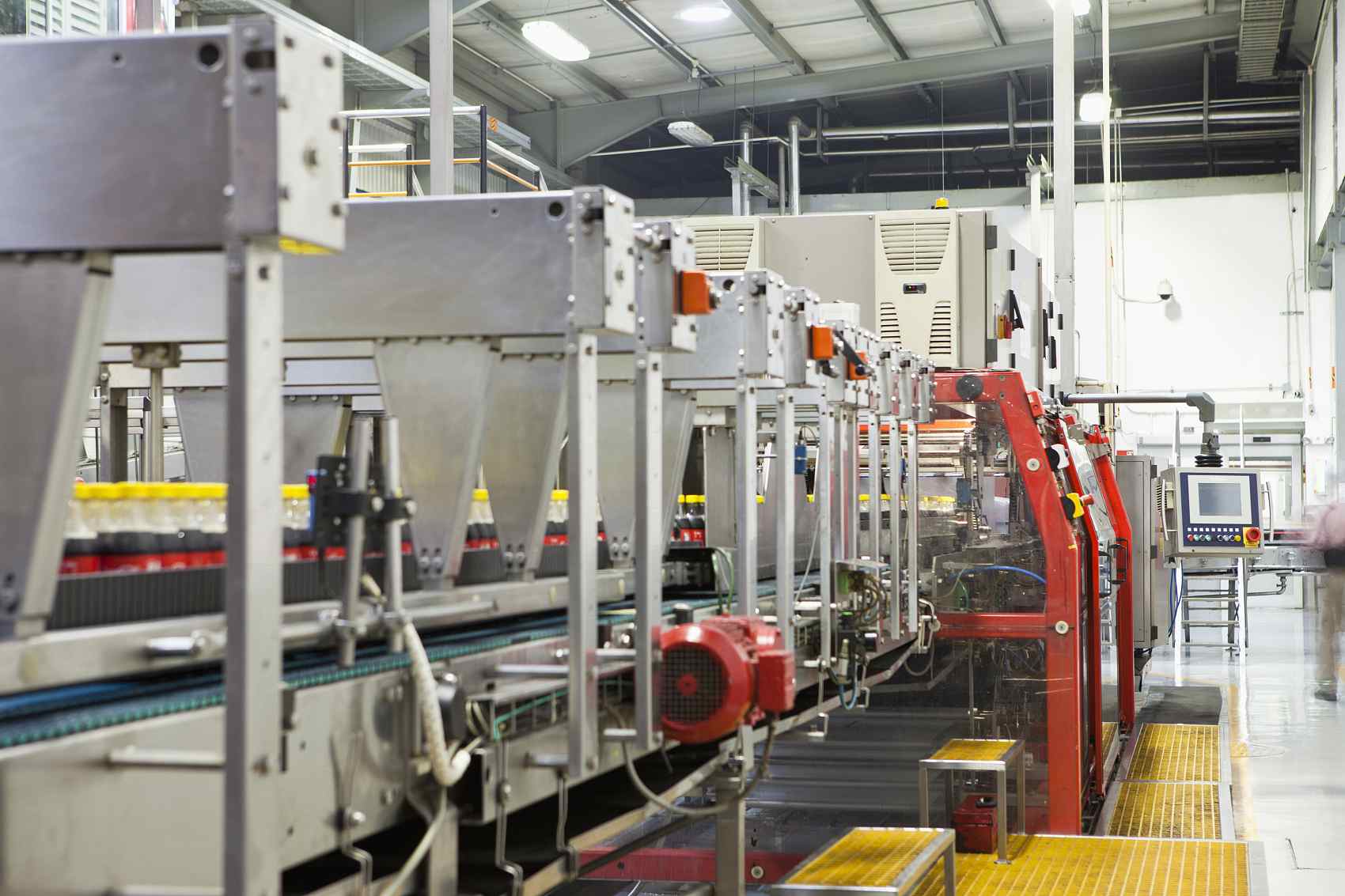

Belt Conveyor
Stable load
Recommended: SF 1.3–1.5
Use: Inline helical gearbox, Coaxial gear motor

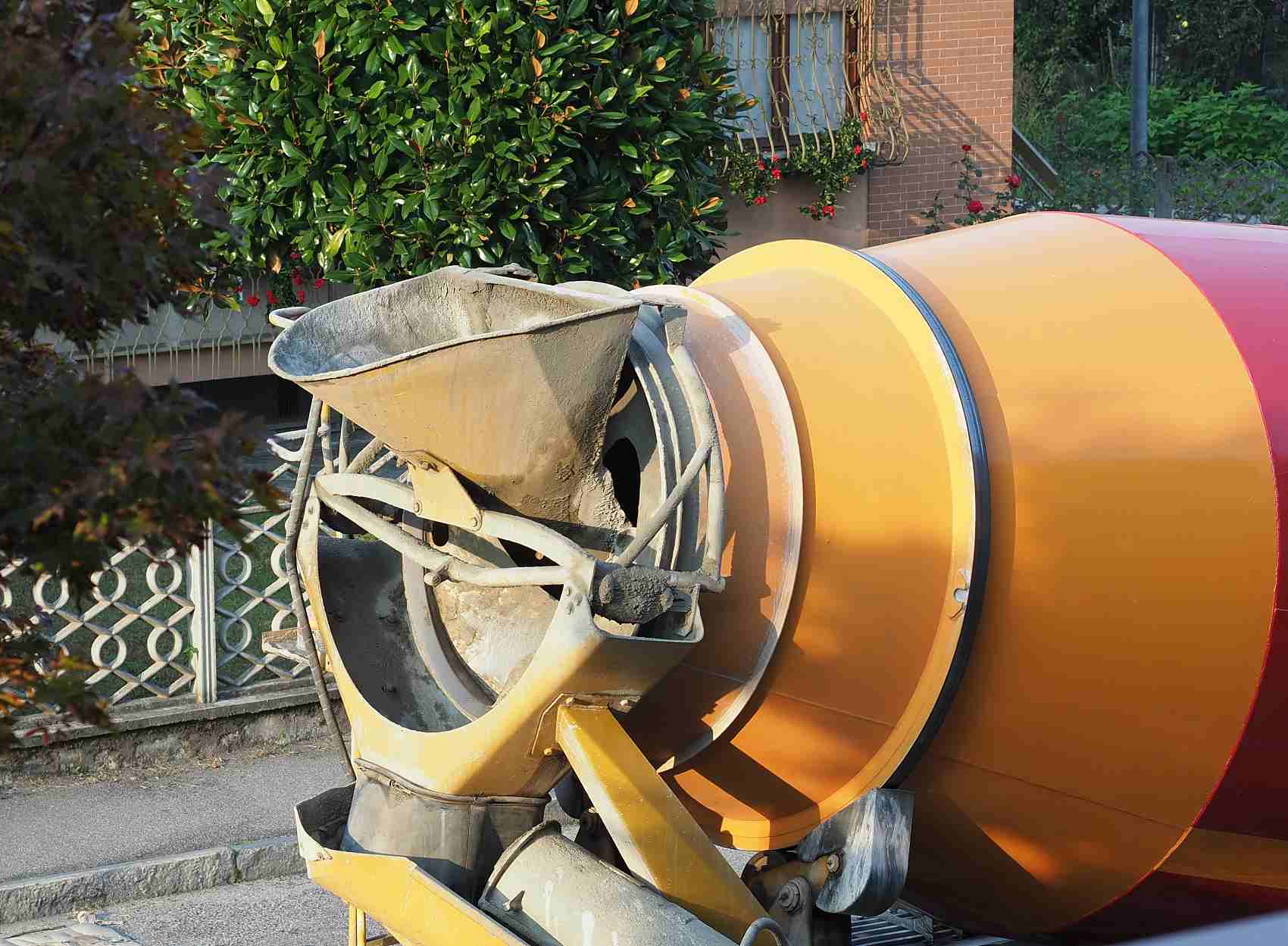

Mixers and Agitators
Variable load
Recommended: SF 1.5–1.8
Use: Helical gear unit, Parallel shaft gear motor
Crushers and Heavy Equipment
Strong shock load
Recommended: SF 2.0–2.5+
Use: High torque helical gearbox, often combined with Bevel gear motor

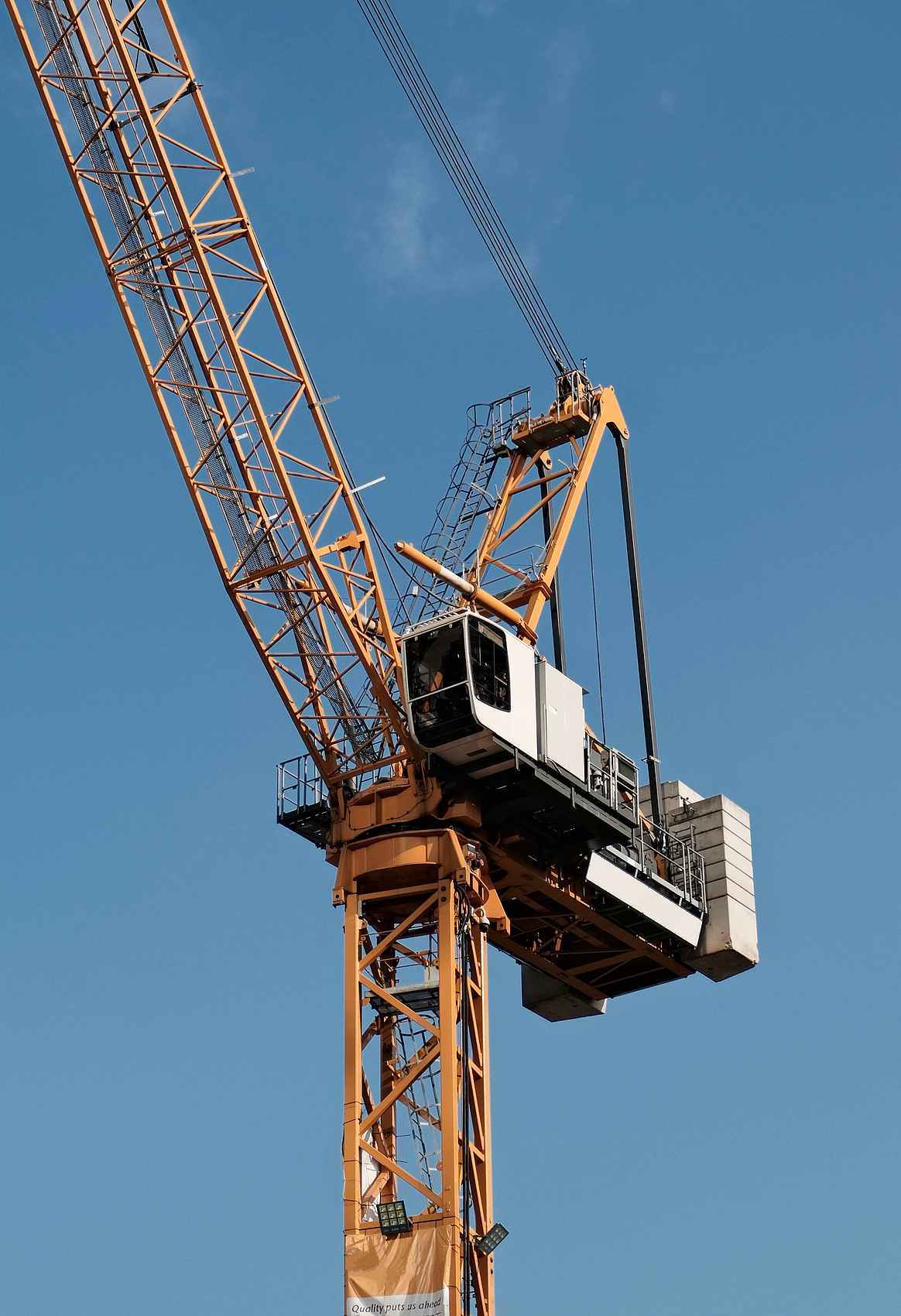

Lifting Equipment
Safety critical
Recommended: SF ≥ 2.0
Use: Right angel gear motor, Helical reduction gearbox
Common Mistakes Buyers Make
Mistake 1: Choosing Too Low Safety Factor
Result:
Gear wear
Bearing failure
Downtime
Mistake 2: Oversizing Too Much
Higher SF is not always better.
Problems:
Higher cost
Lower efficiency
Larger installation space
Mistake 3: Ignoring Real Working Conditions
Many buyers select based only on catalog data.
But real conditions (dust, humidity, misalignment) affect every Industrial helical gearbox.
Safety Factor vs Gearbox Lifespan
Higher safety factor generally means:
Longer lifespan
Lower maintenance
But optimal design balances:
✔ Cost ✔ Efficiency ✔ Reliability
How Victory Helps You Choose the Right Safety Factor
At Victory, we don’t just sell a Helical gearbox — we help you reduce risk.
1. Real Load Analysis Support
We help calculate torque based on your application, not just catalog data.
2. Customized Solutions
We can optimize:
Bearings (SKF optional)
Shaft design
Housing strength
For your Helical gear transmission needs.
3. Cost Control Without Compromise
Same performance as European brands, but significantly lower cost.
For distributors, this means:
✔ Higher margins ✔ Stronger competitiveness
4. Stable Quality and Supply
20+ years manufacturing experience
Long-term material suppliers
Strict testing before shipment
FAQ About Helical Gear Reducer Safety Factor
Q1: What happens if safety factor is too low?
It leads to early failure, overheating, and gear damage.
Q2: Is higher safety factor always better?
No. It increases cost and reduces efficiency.
Q3: How can I verify safety factor before buying?
Ask supplier for:
Torque calculation
Service factor confirmation
Application matching
Q4: Can safety factor be adjusted later?
Not easily. It must be determined during selection.
Conclusion: The Right Balance Is the Key
Choosing the correct safety factor is not about “bigger is safer.”
It is about selecting the right margin for your real working condition.
Whether you are sourcing:
Helical gear motor
Parallel shaft helical gearbox
Inline helical gearbox
The right safety factor ensures:
✔ Long lifespan ✔ Lower maintenance ✔ Higher ROI
If you are unsure, feel free to share your application details — we can help you select the most cost-effective Helical gear reducer solution for your market.
