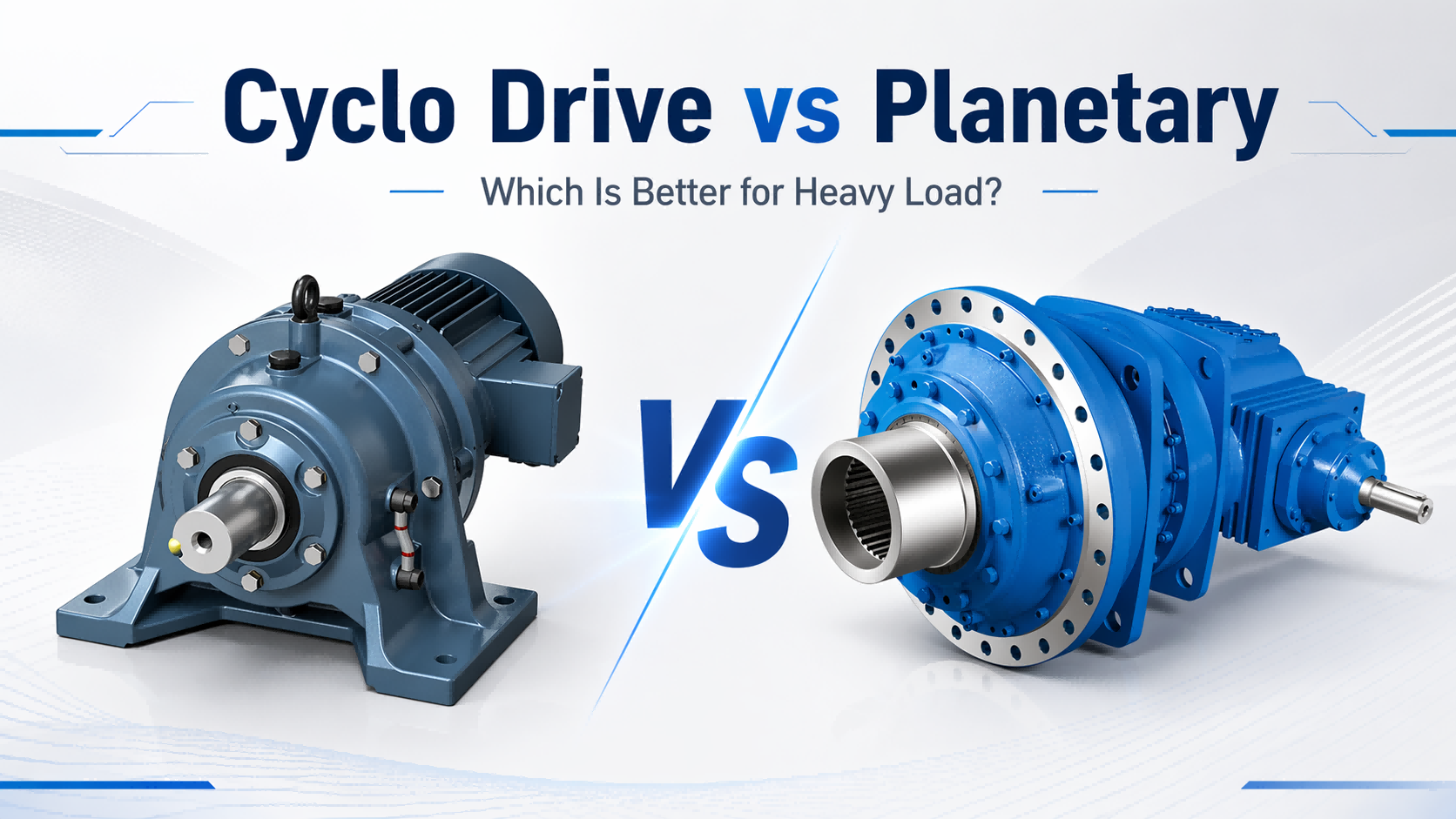

Cyclo Drive vs Planetary: Which is Better for Heavy Load?

When customers ask us about heavy load transmission, one question comes up again and again: should they choose a Cyclo drive or a planetary gearbox?

This is a practical question, especially for buyers working on conveyors, mixers, crushers, rotating equipment, and other demanding industrial systems. Both solutions are widely used, both can transmit high torque, and both have strong market recognition. But when the application involves heavy load, impact load, overload risk, and long-duty operation, the differences become very important.

In this article, we will compare Cyclo drive vs planetary gearbox in a practical B2B way, so distributors, equipment manufacturers, and project engineers can make a better decision.

Why Heavy Load Applications Need the Right Gear Reducer

In heavy-duty applications, the reducer is not just a speed reduction component. It is one of the key parts that directly affects:

• output torque stability

• service life

• downtime risk

• maintenance cost

• overload resistance

• long-term project reliability

If the wrong reducer is selected, the system may suffer from repeated failures, overheating, tooth damage, vibration issues, and premature wear. In some industries, a reducer failure can stop the entire production line.

That is why buyers should not only compare rated torque on paper. They should also compare the working principle, load-sharing method, overload capacity, and actual suitability for heavy load conditions.

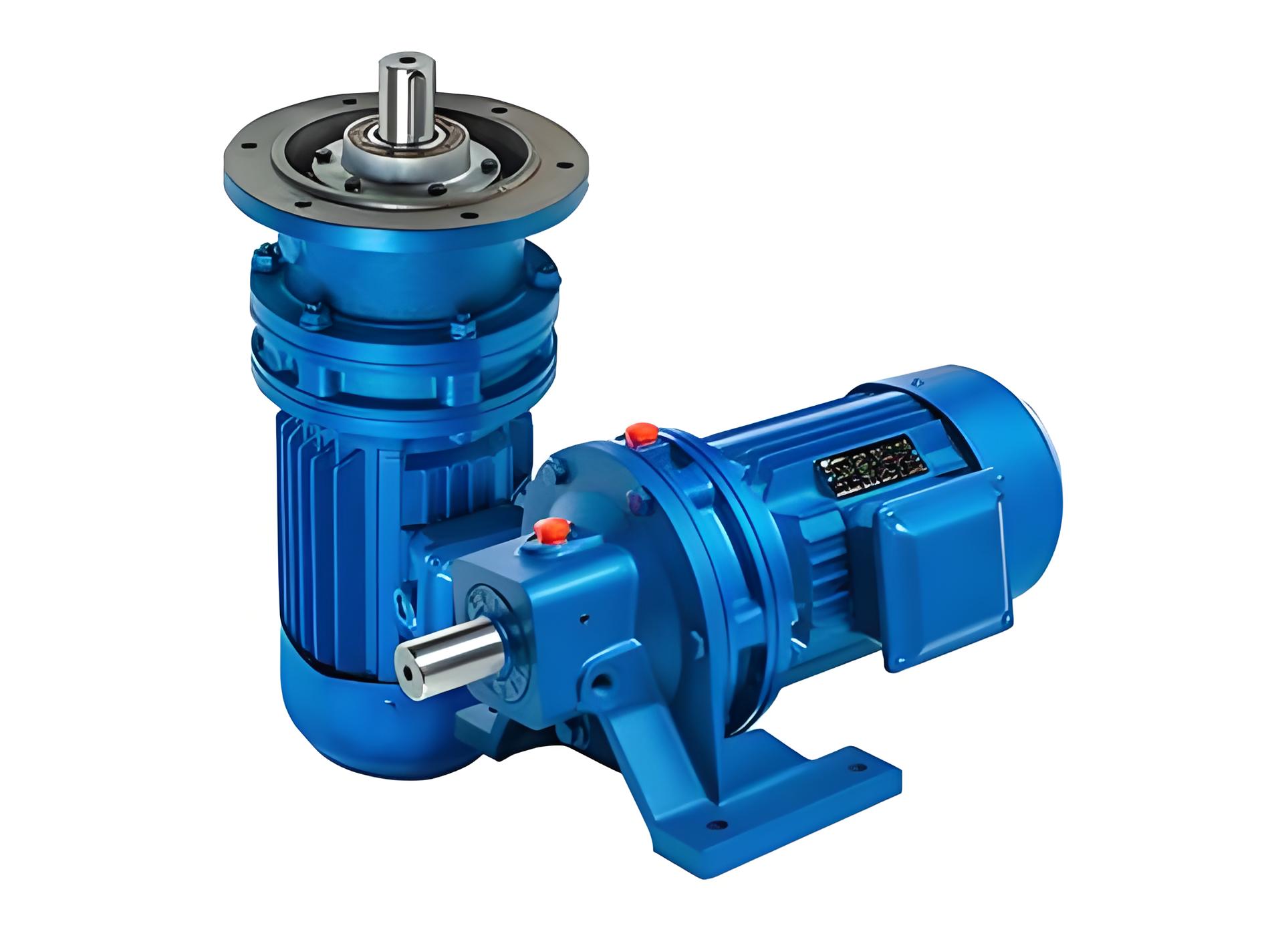

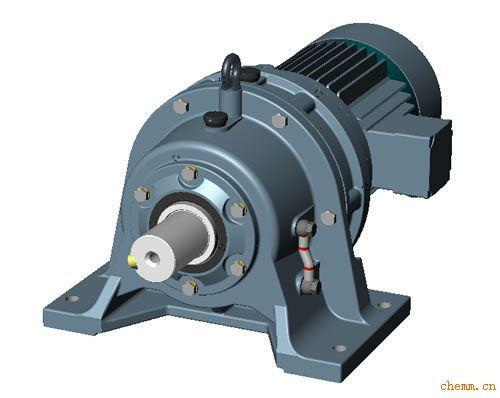

What Is a Cyclo Drive?

A Cyclo drive, also called a cycloidal reducer, cycloid reducer, or cycloidal gear reducer, uses a cycloidal disc mechanism instead of traditional involute gear teeth to transmit torque.

How a Cycloidal Reducer Works

A cycloidal drive usually works through an eccentric input, cycloidal disc, rollers or pins, and output mechanism. When the input shaft rotates, the eccentric motion drives the cycloidal disc to create a rolling contact motion, and torque is transmitted through multiple contact points.

This design gives the cycloidal speed reducer a special advantage: many contact points share the load at the same time.

Main Structural Features of a Cyclo Drive Gearbox

Compared with many conventional reducers, a Cyclo drive gearbox typically offers:

• multiple tooth engagement at the same time

• strong resistance to shock load

• high overload capacity

• compact structure for medium-to-high torque ranges

• smooth running under fluctuating load

That is why cycloidal transmission is widely used in harsh-duty industrial equipment.

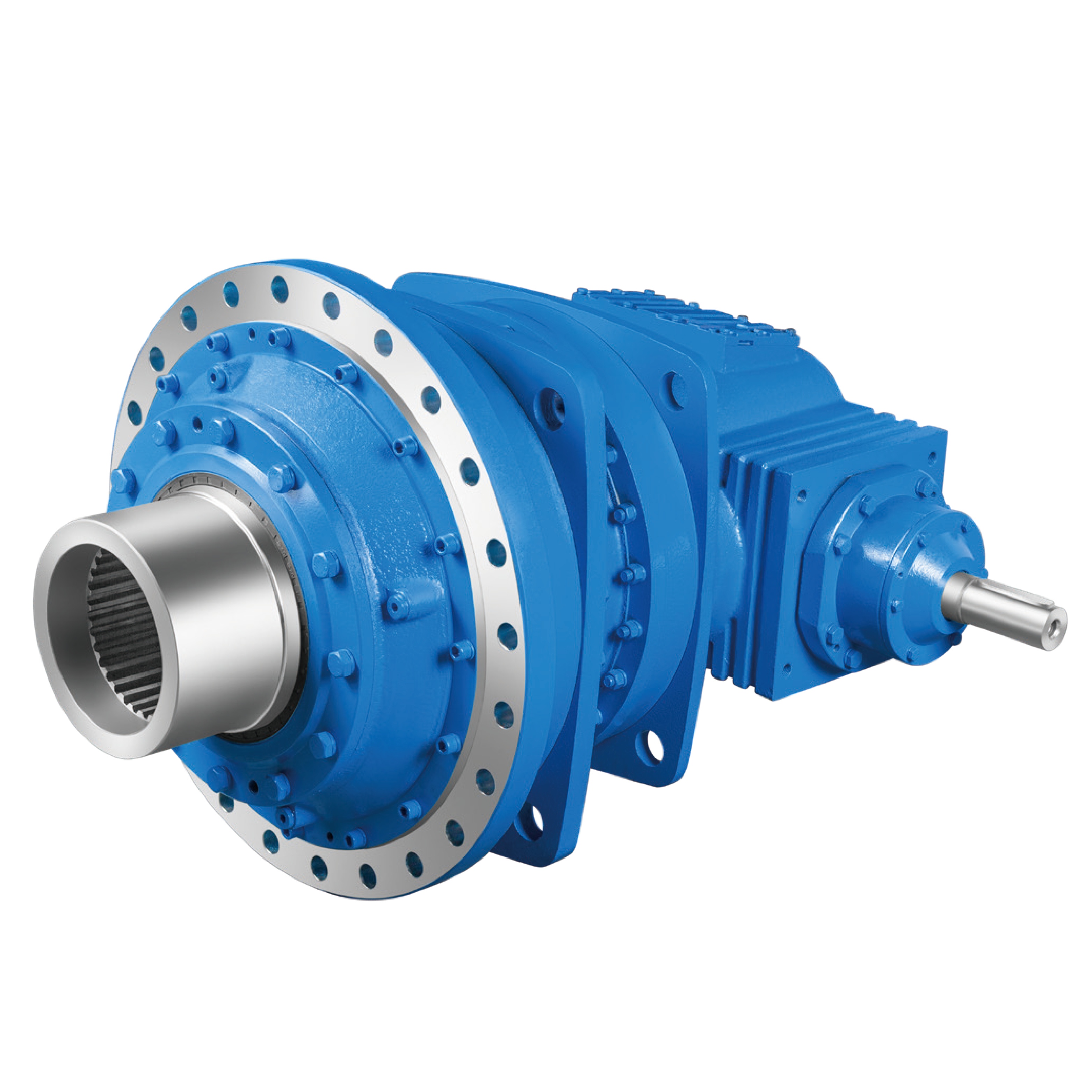

What Is a Planetary Gearbox?

A planetary gearbox, also called a planetary reducer or epicyclic gearbox, uses a central sun gear, multiple planet gears, and an internal ring gear.

How Planetary Gear Sets Transmit Torque

In a planetary system, torque is distributed through several planet gears revolving around the sun gear. This design allows the load to be shared among multiple planets, resulting in high torque density and compact construction.

Main Structural Features of a Planetary Reducer

A planetary gearbox is known for:

• compact size

• high torque in a small footprint

• good transmission efficiency

• coaxial structure

• suitability for servo and precision systems in many cases

Because of these characteristics, planetary gearboxes are popular in automation, construction machinery, mobile equipment, and many compact transmission systems.

Cyclo Drive vs Planetary: Core Differences

Now let's compare the two solutions where it matters most.

Load Distribution Principle

A cycloidal reducer transmits force through multiple pins and rolling contact points, and many engagement points can share the load simultaneously.

A planetary gearbox also shares load through multiple planet gears, but the load path is still dependent on gear tooth engagement and manufacturing precision between the gear components.

In real industrial use, the Cyclo drive unit is often considered more forgiving in conditions with sudden torque fluctuation or unstable feed load.

Shock Load Resistance

This is one of the biggest differences.

If your application experiences:

• sudden start-stop cycles

• impact loading

• jam risk

• overload peaks

• unstable material feeding

then a cycloidal drive is usually the safer option.

Because of its rolling contact design and multiple load-sharing points, the cycloidal speed gearbox is well known for strong shock-load resistance. In many applications, users choose a Cyclo drive motor or cycloidal gear motor specifically because they want better durability under rough working conditions.

A planetary gearbox can also handle high torque, but in repeated heavy shock conditions, the tooth contact stress may become a more important concern.

For pure shock-load resistance, Cyclo drive usually has the advantage.

Efficiency and Transmission Characteristics

In general, planetary gearboxes are often praised for high mechanical efficiency, especially in well-designed low-backlash systems.

A cycloid reducer also offers good efficiency, but its biggest advantage is usually not maximum efficiency. Its strength is durability under heavy and unstable load.

So if your top priority is absolute efficiency in a compact precision transmission, planetary may look attractive. But if your priority is surviving harsh heavy-duty conditions for years, cycloidal drive often performs better in real factories.

Backlash and Positioning Performance

Planetary gearboxes are often selected for applications requiring:

• tighter backlash control

• more accurate positioning

• servo motor matching

• compact automation systems

That is why planetary reducers are widely used in robotics, indexing, and precision motion control.

A cycloidal gear reducer can also provide reliable transmission, but it is more often selected for strength, overload resistance, and durability, not primarily for ultra-precise servo positioning.

If your application is a heavy industrial machine rather than a precision positioning axis, this difference may not matter much.

Size and Installation Space

Planetary gearboxes are famous for their excellent torque density. In some cases, they can deliver high torque in a smaller and lighter package.

That makes planetary reducers attractive when installation space is very limited.

A Cyclo drive gearbox may sometimes be slightly larger for the same torque class, depending on design and ratio, but many users accept that tradeoff because they value robustness more than compactness.

So the question is not simply “which is smaller?”
The better question is: what matters more in your project—compact size or shock-load survival?

Which One Is Better for Heavy Load?

The honest answer is: it depends on what “heavy load” really means in your application.

If heavy load means steady high torque in a compact space, planetary gearbox may be a strong option.

If heavy load means high torque plus shock, overload, variable resistance, and rough operating conditions, then Cyclo drive is usually the better choice.

Best Choice for High Shock and Overload Conditions

Choose Cyclo drive when your equipment faces:

• impact load

• frequent start-stop

• unstable feeding

• heavy inertia

• overload peaks

• dusty, dirty, or harsh industrial environments

This is why cycloidal speed drive systems are common in mixers, crushers, conveyors, steel processing, mining equipment, and similar applications.

Best Choice for Compact High Torque Design

Choose planetary gearbox when you need:

• compact installation

• high torque density

• coaxial structure

• lower backlash potential

• integration with precision drive systems

Best Choice for Precision Motion Systems

If the application is more servo-oriented than heavy industrial, planetary gearbox is often the better fit.

But for classic heavy industry, many engineers still prefer cycloidal transmission for peace of mind.

Cycloidal Drive in Typical Heavy Duty Applications

A cycloidal drive gear motor is especially suitable for industries where load changes are harsh and continuous operation is required.

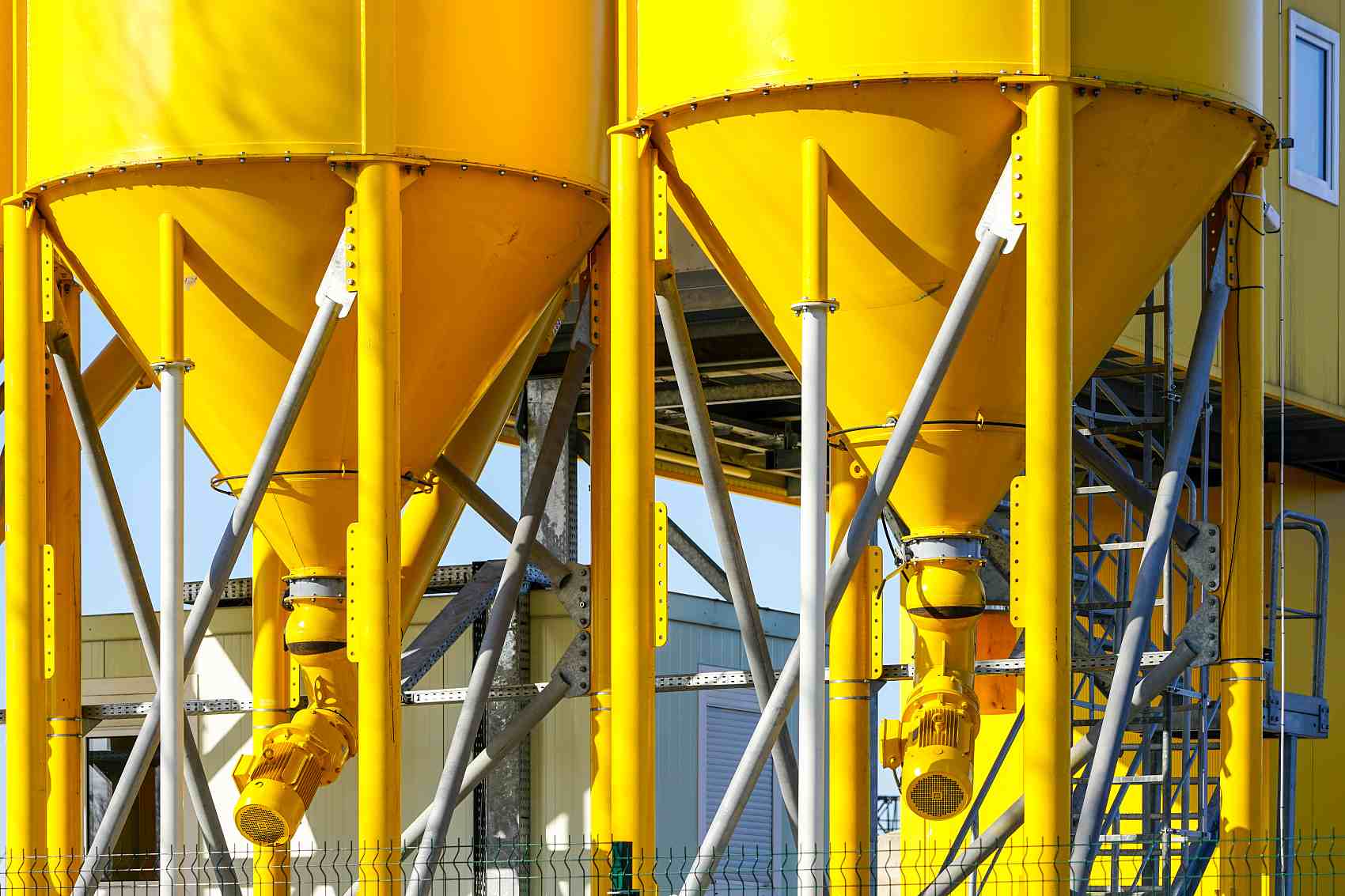

Mixers and Agitators

Mixers often deal with changing viscosity, startup resistance, and uneven material conditions. A Cyclo drive motor can handle these load changes more reliably than many standard gear systems.

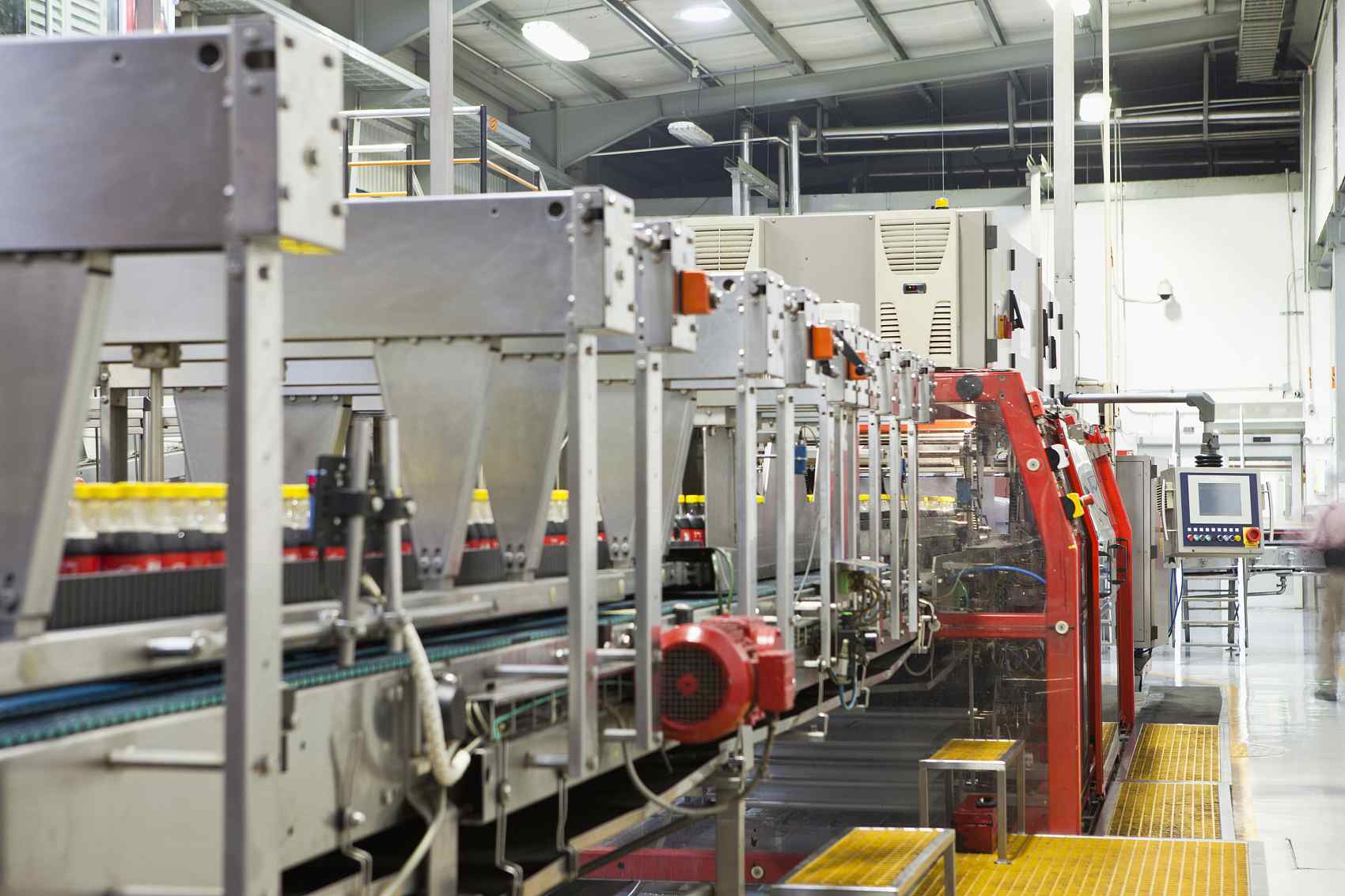

Conveyors and Material Handling

Heavy conveyors often experience sudden loading, blockage risk, and repeated starts. A cycloidal reducer is a strong choice because it handles shock loads well and has stable performance over long-duty cycles.

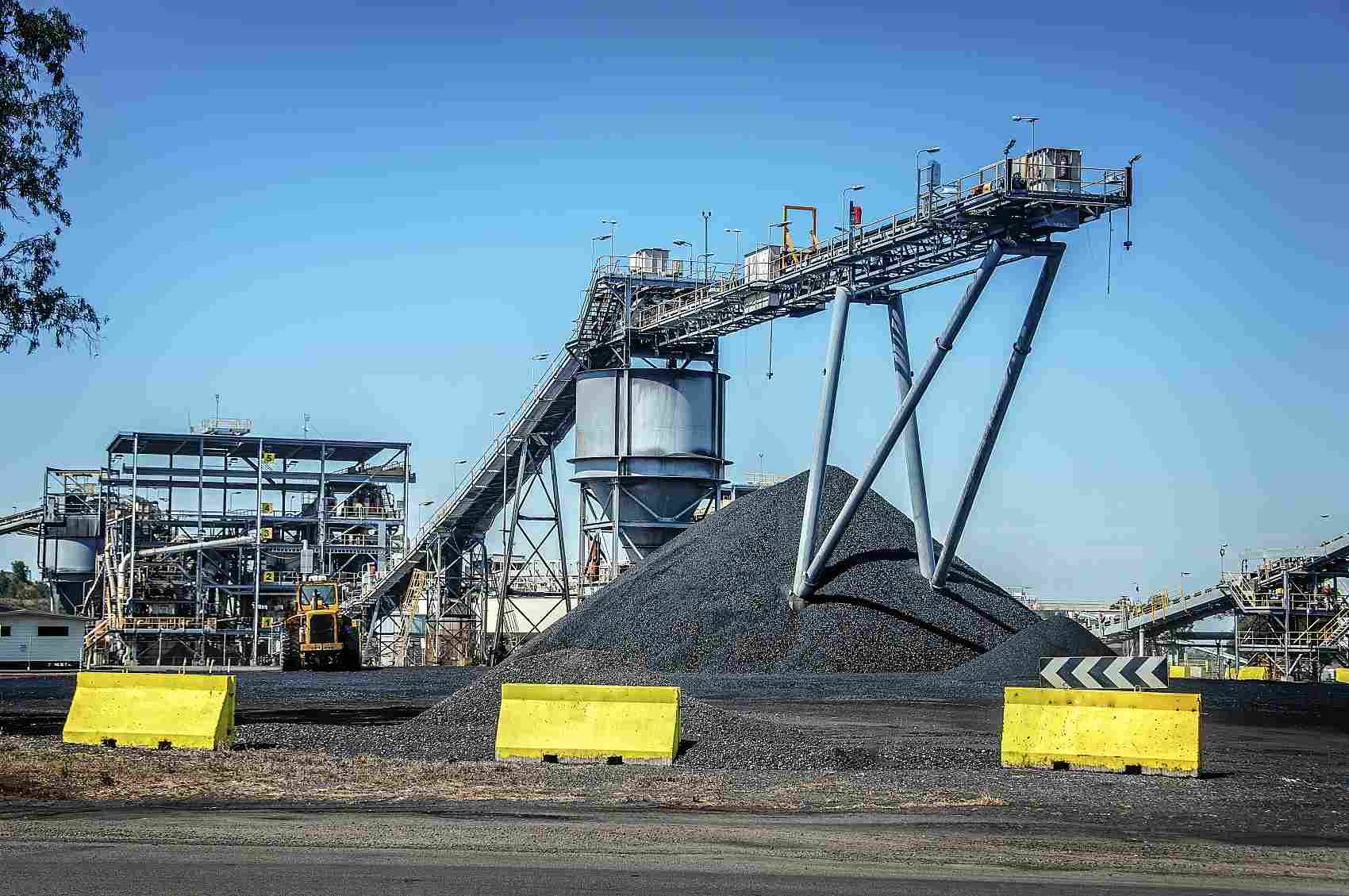

Crushers and Mining Equipment

Crushers and mining machines are typical examples where the reducer must survive severe impact and harsh working conditions. In this kind of application, a Cyclo drive unit often has a clear advantage over more delicate transmission systems.

Steel, Cement, and Harsh Industrial Environments

In cement, steel, bulk handling, and other severe environments, durability is often more important than small size. This is exactly where cycloidal gear motor systems prove their value.

Planetary Gearbox in Typical Heavy Duty Applications

This does not mean planetary gearbox is weak. In fact, it is excellent in many demanding systems.

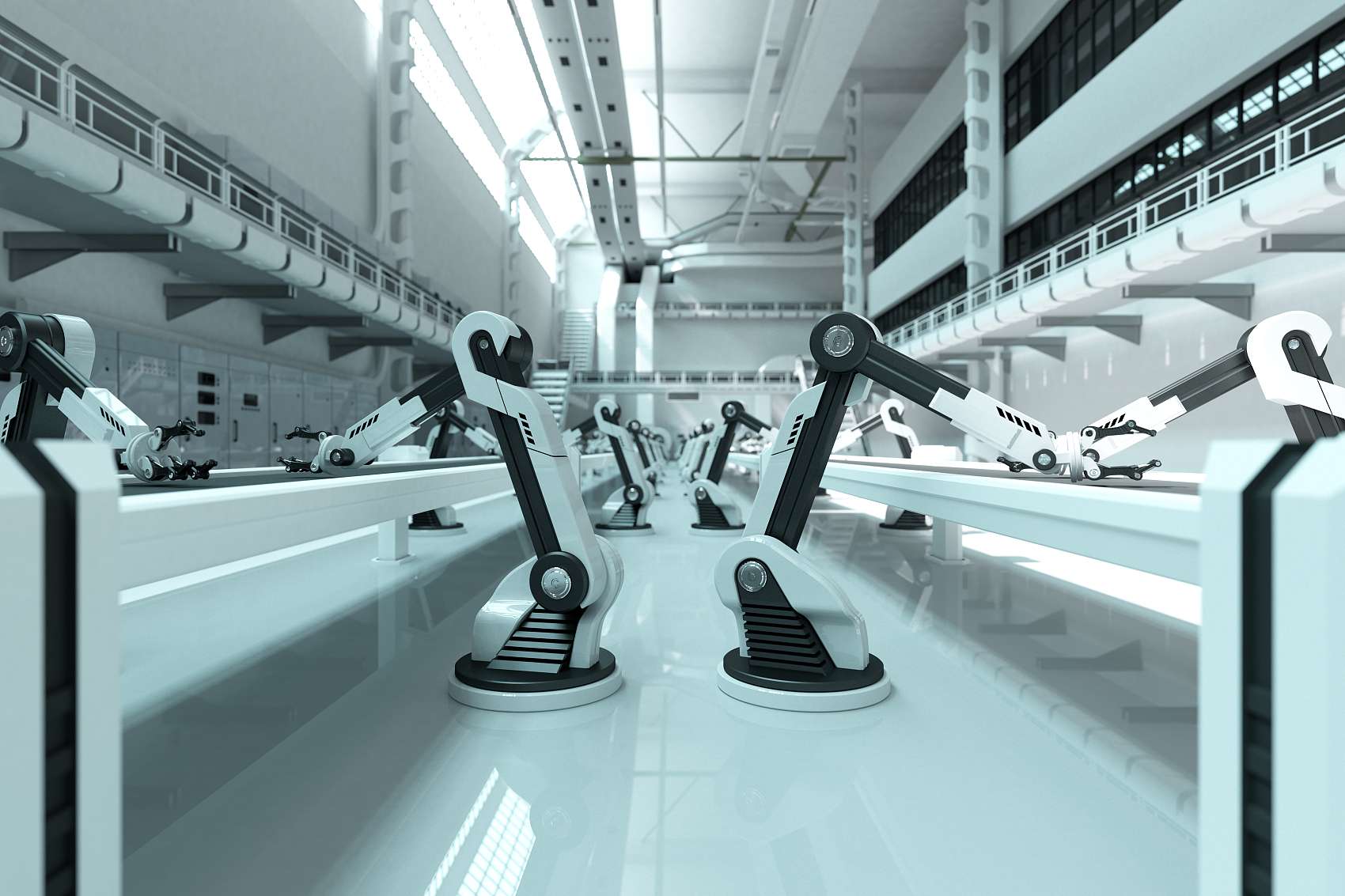

Servo Systems and Automation

Where control accuracy, compactness, and system responsiveness matter, planetary gearbox is often preferred.

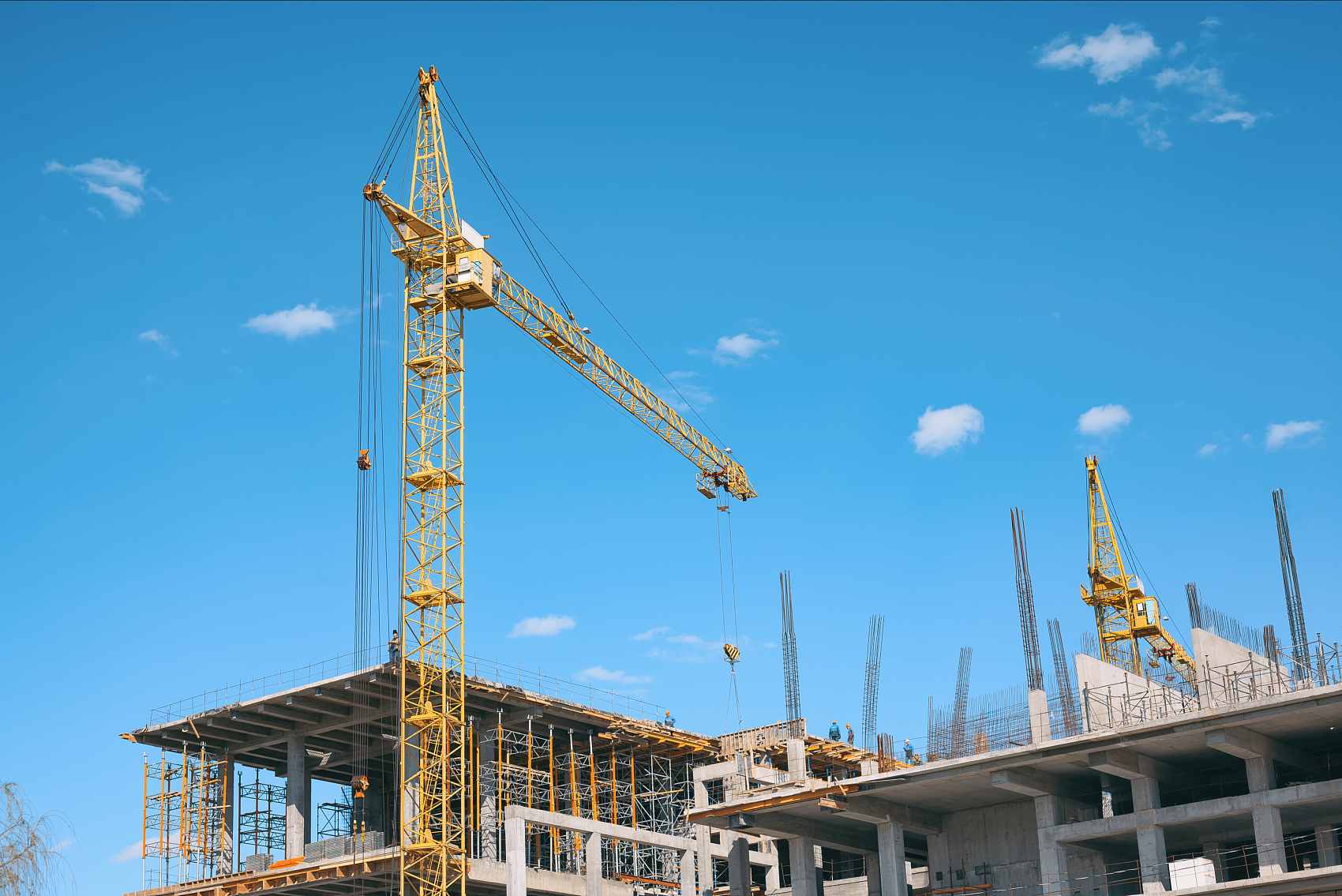

Construction Machinery and Mobile Equipment

Planetary reducers are common in travel drives, slewing systems, winches, and hydraulic-driven mobile machines because they provide high torque in compact space.

Winches, Rotary Drives, and High Torque Compact Systems

If the machine design has tight installation limits but still needs high output torque, planetary gearbox is often attractive.

How to Choose Between Cyclo Drive and Planetary Reducer

Instead of asking only which one is “better,” buyers should ask which one is better for the actual load profile.

Check the Real Load Type

Ask these questions:

• Is the load stable or fluctuating?

• Is there shock or impact?

• Is there a risk of sudden overload?

• Does the machine start under full load?

• Is material feeding uniform or irregular?

If the answers suggest unstable or rough working conditions, Cyclo drive gearbox is usually the safer selection.

Evaluate Service Factor and Duty Cycle

For long working hours, repeated starts, and high daily utilization, service factor matters a lot.

In heavy-duty industrial systems, the reducer should not be selected only by nominal torque. A proper safety margin is essential, especially if the machine faces unpredictable load peaks.

Consider Maintenance, Lifespan, and Total Cost

Some buyers focus too much on purchase price, but experienced distributors and OEMs know the real cost is the total cost of ownership.

A reducer that lasts longer and survives overload better may create much more value over time, even if the initial price is slightly higher.

That is one reason many customers choose cycloidal drive for demanding applications.

Why More Buyers Compare Cycloidal Reducer and Planetary Gearbox Today

Today’s buyers are under pressure from both performance and cost.

They want:

• reliable transmission

• better price competitiveness

• shorter lead times

• customization support

• easy motor matching

• dependable long-term supply

For distributors and machine builders, choosing the right reducer is not just a technical decision. It also affects after-sales risk, market reputation, and repeat business.

That is why the comparison between cycloidal reducer and planetary gearbox is becoming more important in industrial sourcing.

Why Choose Victory for Heavy Load Gear Reducer Solutions

At Victory, we understand that customers do not just need a catalog model. They need a reducer solution that fits the real working condition.

Stable Quality and Competitive Factory Pricing

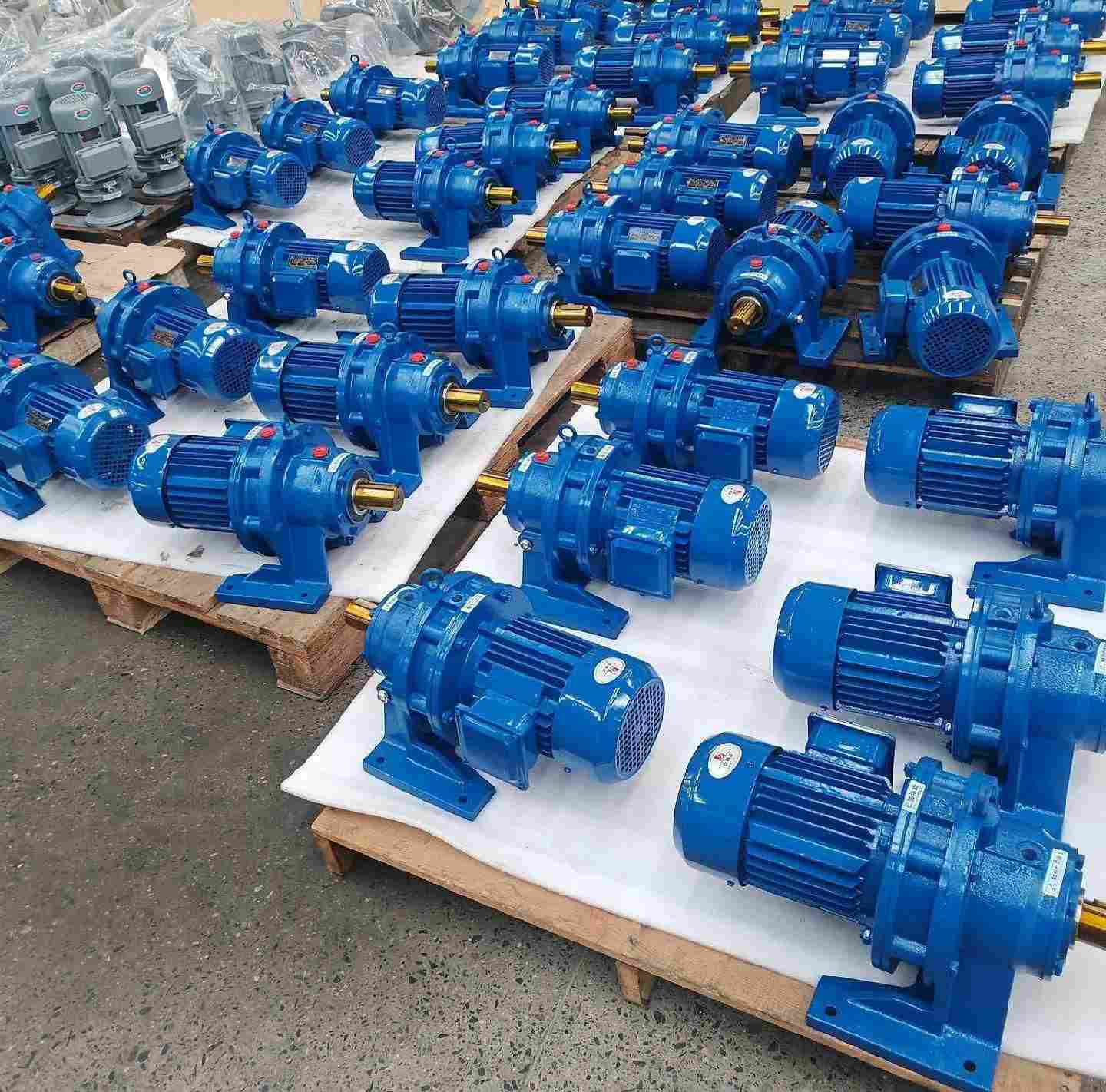

We are a direct factory with many years of experience in motors and reducers. For overseas buyers, this means:

• competitive pricing from factory source

• stable lead time

• consistent material quality

• practical support for OEM and distributor business

For customers comparing heavy-duty solutions, we can help recommend whether a cycloidal gear reducer, cycloidal gear motor, or other transmission option is more suitable.

Support for Customization and Matching Motors

One practical advantage is that we can also support matching motors, making it easier for customers to source a complete drive package.

Whether you need a cycloidal speed reducer, Cyclo drive motor, or complete heavy-duty geared motor solution, our team can provide practical selection support based on your torque, ratio, duty cycle, and installation requirements.

For B2B buyers, this reduces communication cost and improves project efficiency.

FAQ

Is Cyclo drive stronger than planetary gearbox?

For shock load, overload resistance, and rough industrial conditions, Cyclo drive is often stronger in practical use. For compact torque density and precision-oriented applications, planetary gearbox may have advantages.

Is planetary gearbox more efficient than cycloidal drive?

In many cases, planetary gearbox is known for very good efficiency. But reducer selection should not be based on efficiency alone. In heavy shock-load applications, durability may be more important.

Which reducer is better for shock load?

For shock load, fluctuating load, and overload peaks, a cycloidal reducer is usually the better choice.

Can a cycloidal reducer replace a planetary gearbox?

In many heavy-duty industrial applications, yes. But the final decision depends on torque, ratio, installation dimensions, duty cycle, and performance expectations.

Conclusion

So, Cyclo Drive vs Planetary: which is better for heavy load?

If your application is mainly about compact size, high torque density, and precision transmission, planetary gearbox is often a strong option.

If your application involves heavy load with shock, overload, unstable resistance, and demanding industrial duty, then Cyclo drive is usually the better and safer choice.

That is why many industrial buyers still trust cycloidal drive, cycloidal reducer, and cycloidal gear motor solutions for the toughest working conditions.

If you are selecting for a real project and want to compare the best model based on torque, ratio, motor power, and mounting type, Victory can help you evaluate the right solution from a practical factory perspective.
