Choosing between a cyclo drive and a helical gearbox depends on your working condition.
Both can reduce speed and increase torque.
But they are designed for different applications.
Quick answer:
Choose cyclo drive for heavy load, shock load, and high reduction ratio.
Choose helical gearbox for high efficiency, smooth running, and continuous duty.

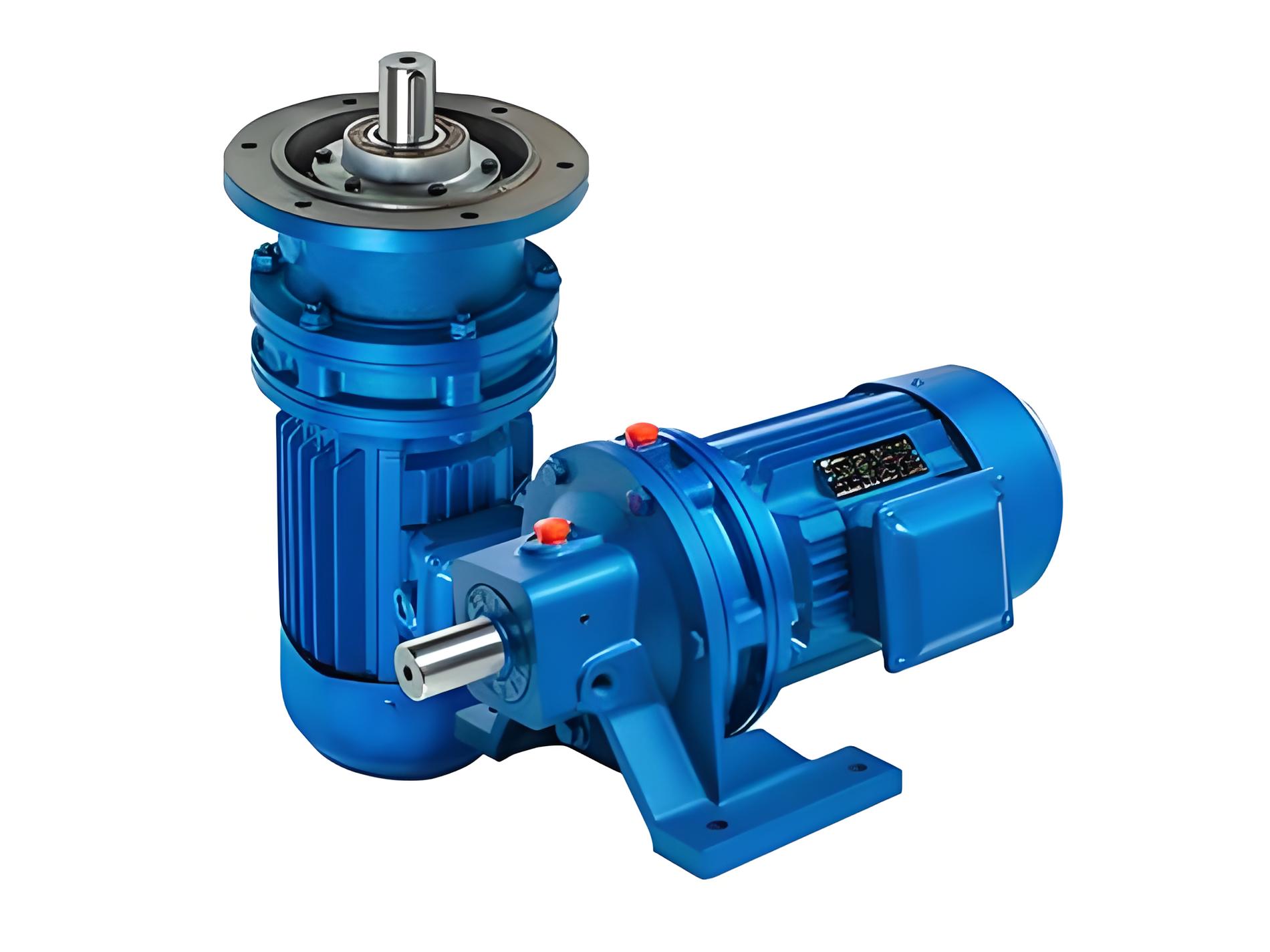

1. What Is a Cyclo Drive?
A cyclo drive is also called a cycloidal reducer or cyclo drive gearbox.
It uses cycloidal transmission instead of traditional gear teeth.

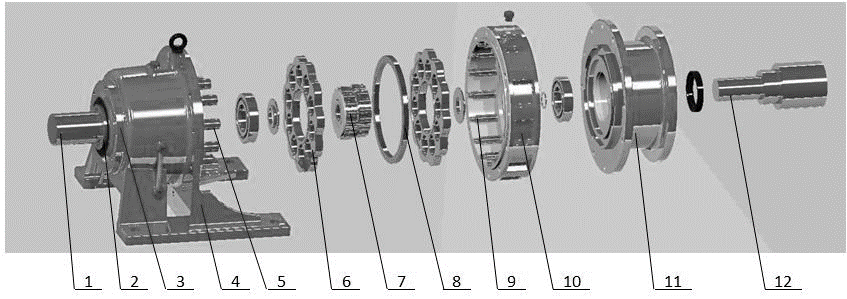

Main parts include:
Cycloidal disc
Eccentric bearing
Ring pins
Output pins
Gear housing
Main advantages:
High torque
Strong shock resistance
Compact structure
Large reduction ratio
Good overload capacity
A cyclo drive is suitable for heavy-duty machines with unstable loads.

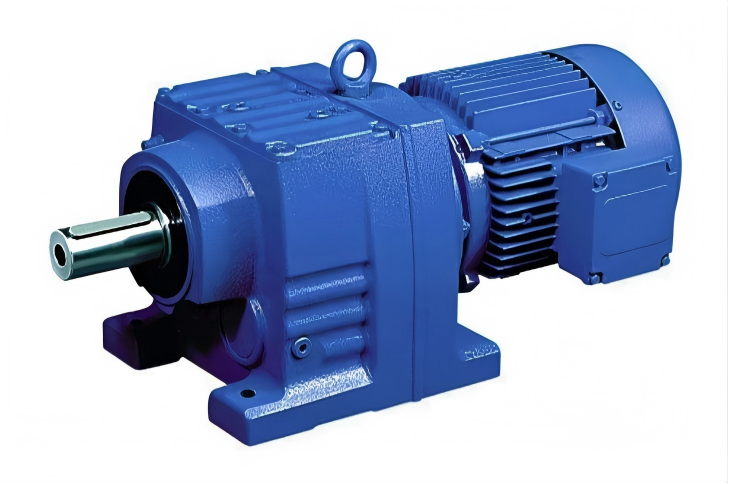

2. What Is a Helical Gearbox?
A helical gearbox uses helical gears with angled teeth.
The gear teeth mesh smoothly during operation.
Main advantages:
High efficiency
Low noise
Smooth transmission
Stable operation
Easy maintenance
A helical gearbox is widely used in standard industrial equipment.
3. Cyclo Drive vs Helical Gearbox: Quick Comparison
Item | Cyclo Drive | Helical Gearbox |
Transmission | Cycloidal motion | Helical gears |
Shock load | Excellent | Good |
Efficiency | Good | Higher |
Noise | Medium | Lower |
Size | Compact for high ratio | Compact for standard ratio |
Torque | High in small size | High with proper sizing |
Maintenance | Medium | Easier |
Best use | Heavy-duty applications | Continuous-duty applications |
4. Main Difference
The main difference is the internal structure.
A cyclo drive uses cycloidal motion and pin contact.
It is better for impact and overload.
A helical gearbox uses angled gear teeth.
It is better for smooth and efficient transmission.
5. Torque Capacity
Cyclo drives provide strong torque in a compact body.
They are suitable when the machine needs:
Low output speed
High torque
High ratio
Limited space
Helical gearboxes can also provide high torque.
But for heavy shock load, the gearbox must be selected with a higher service factor.

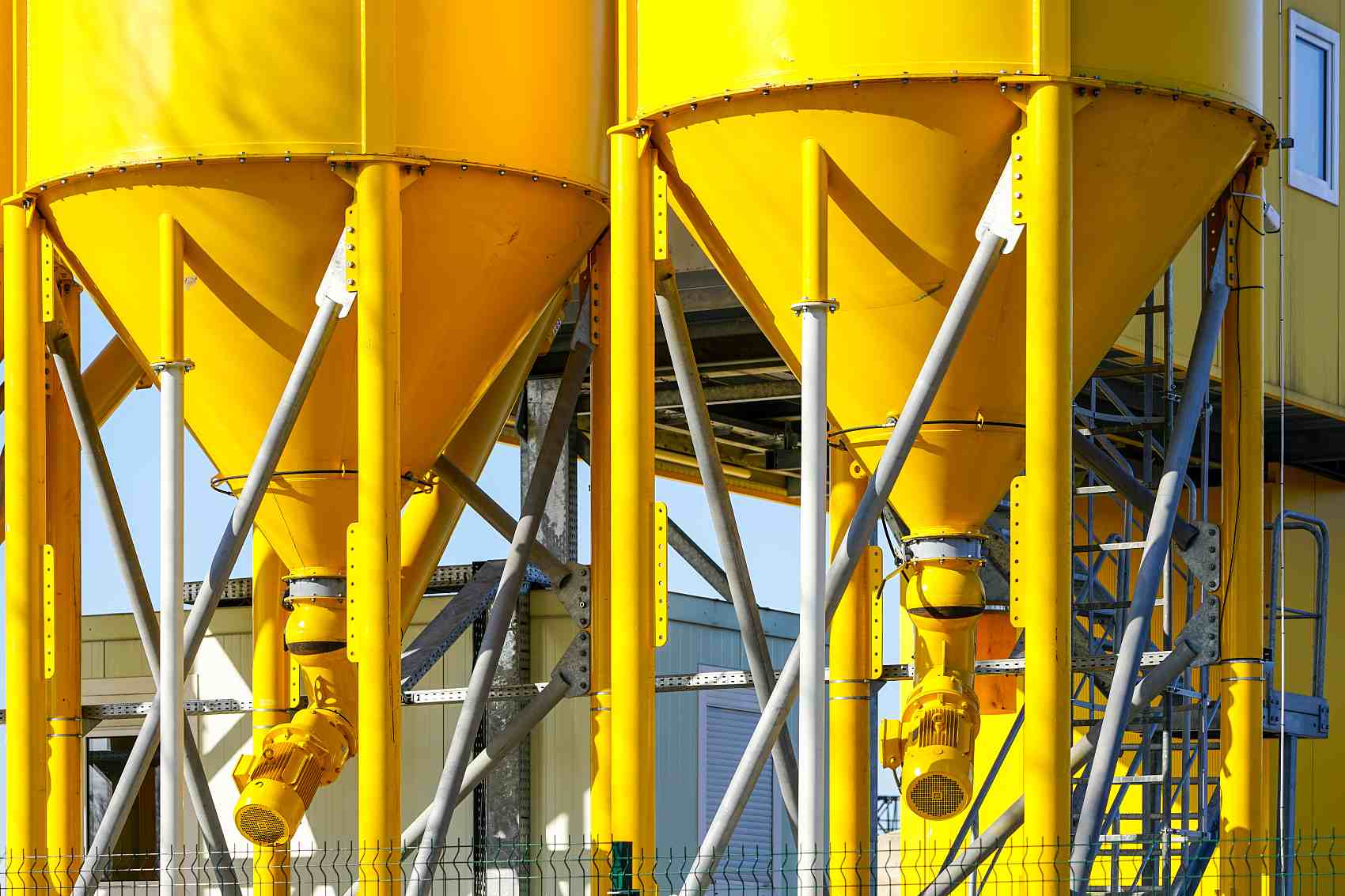

6. Shock Load Resistance
Cyclo drive has a clear advantage in shock load resistance.
The load is shared by many contact points.
This reduces the risk of damage from sudden impact.
Better for:
Crushers
Mixers
Agitators
Rotary dryers
Heavy conveyors
Mining equipment
Helical gearboxes can handle shock load too.
But the selection must be more careful.

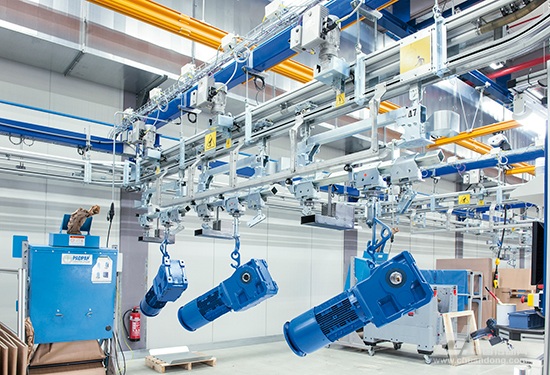

7. Efficiency
Helical gearboxes usually have higher efficiency.
This makes them better for machines running many hours every day.
Better for:
Pumps
Fans
Conveyors
Packaging machines
Production lines
Cyclo drives also work efficiently.
But their internal structure may create slightly more friction.

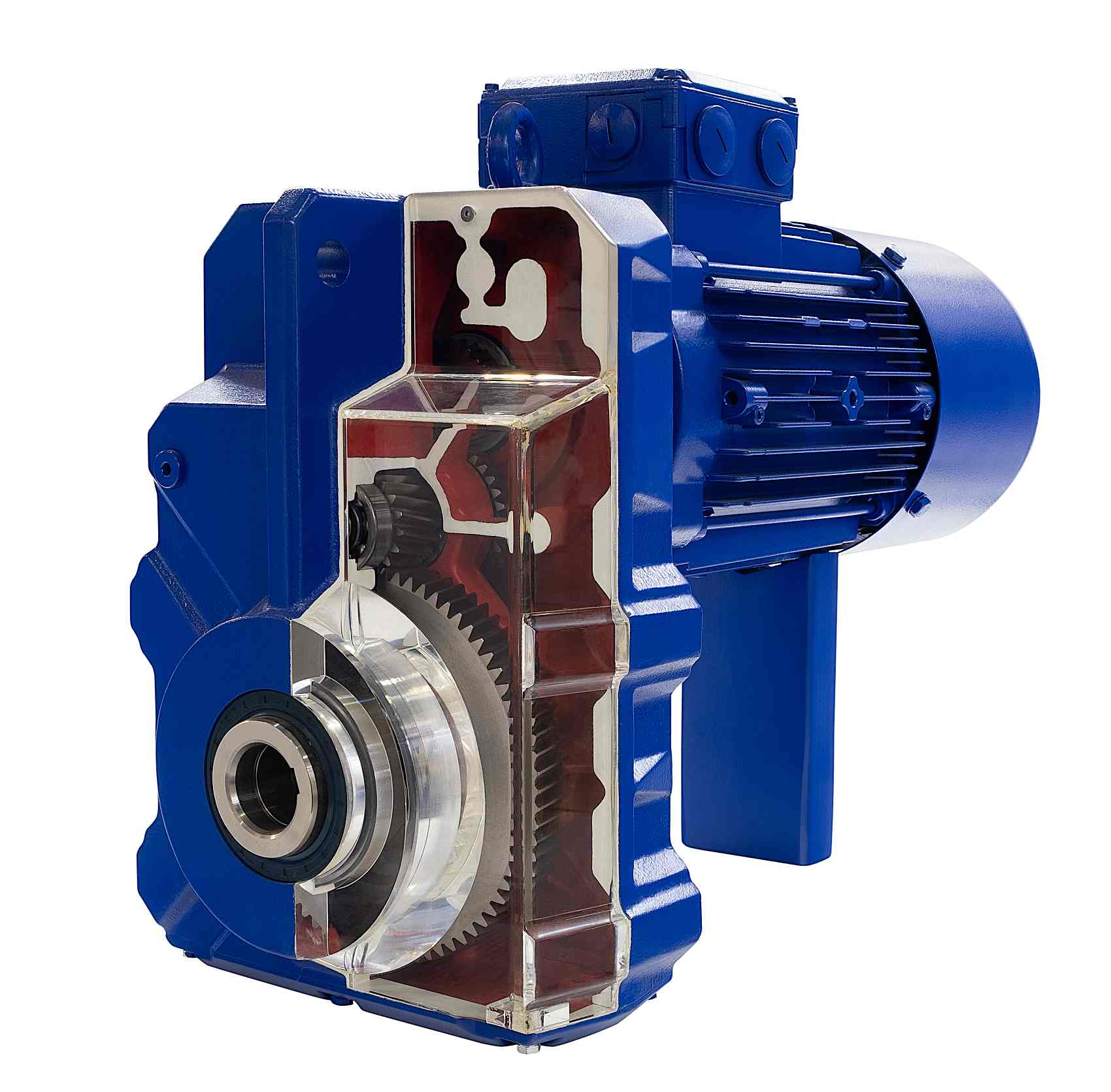

8. Noise and Vibration
Helical gearboxes are usually quieter.
The angled gear teeth mesh smoothly.
This reduces vibration and noise.
Cyclo drives may have more mechanical sound because of eccentric motion.
For heavy-duty machines, this is usually acceptable.
9. Size and Ratio
Cyclo drives are very suitable for high reduction ratios.
Common ratios include:
A helical gearbox can also reach high ratios.
But it may need more gear stages.
For standard ratios like 1:10, 1:20, or 1:30, a helical gearbox is very practical.
10. Maintenance
Helical gearboxes are easier to maintain.
Most technicians are familiar with their structure.
Common maintenance includes:
Oil change
Bearing inspection
Oil seal replacement
Gear inspection

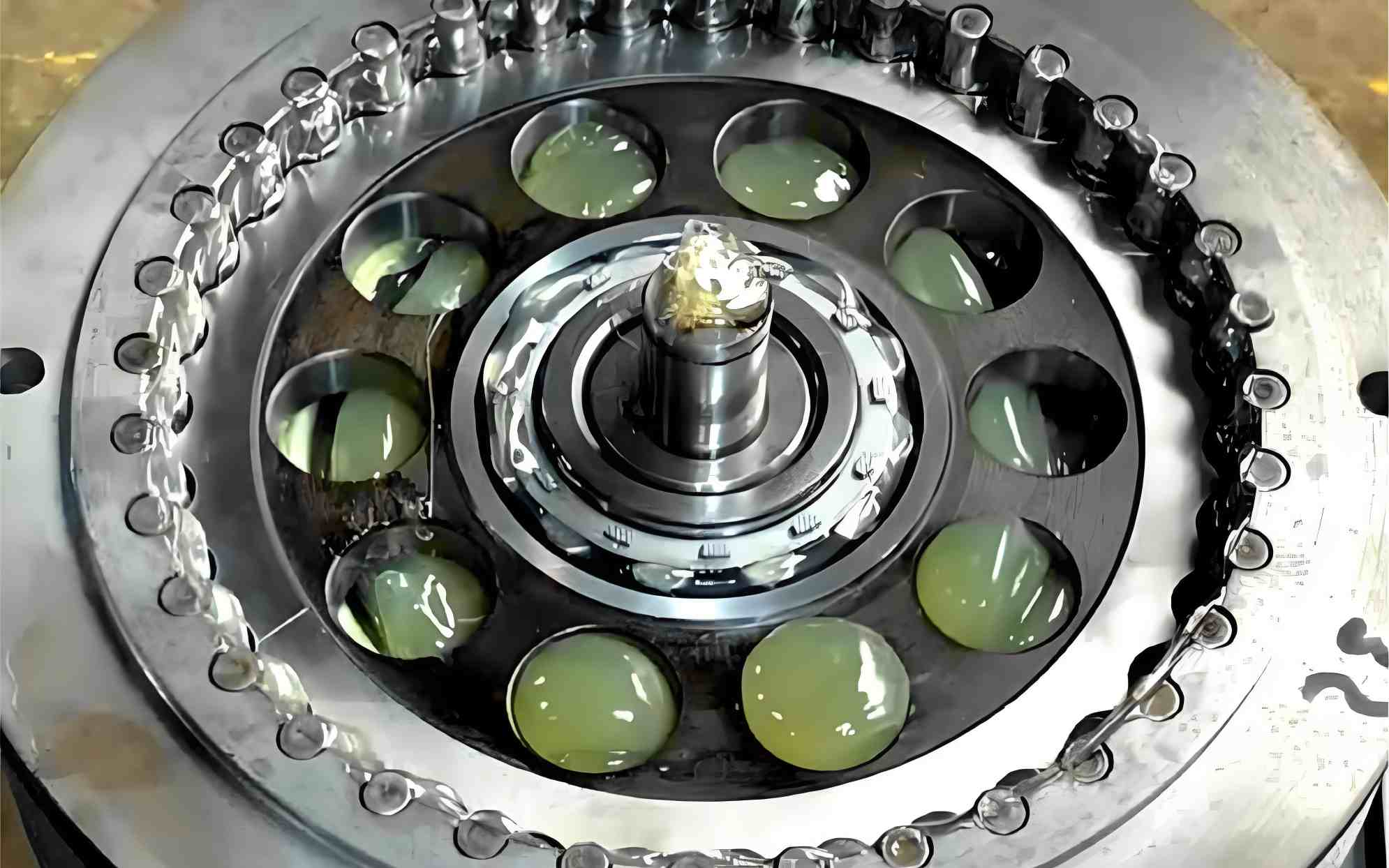

Cyclo drives also need proper lubrication.
But internal repair requires more technical knowledge.
11. Cost Comparison
For standard applications, helical gearboxes are often cost-effective.
For high torque and heavy shock load, cyclo drives may offer better long-term value.
Do not only compare the purchase price.
Also consider:
Service life
Failure risk
Downtime
Spare parts
Maintenance cost
Working condition
The cheapest gearbox is not always the best choice.
12. When to Choose a Cyclo Drive
Choose a cyclo drive if your application has:
Typical applications:
Mixers
Crushers
Agitators
Rotary dryers
Heavy conveyors
Wastewater equipment
Mining machinery
13. When to Choose a Helical Gearbox
Choose a helical gearbox if your application needs:
High efficiency
Low noise
Smooth running
Continuous operation
Easy maintenance
Stable load
Typical applications:
Pumps
Fans
Conveyors
Packaging machines
Food machinery
Textile machinery
Automation equipment
14. How to Select the Right Gearbox
Before selecting a gearbox, confirm these details:
Motor power
Input speed
Output speed
Gear ratio
Required torque
Load type
Working hours
Service factor
Mounting position
Shaft size
Working environment
The most common mistake is selecting only by motor power.
A 5.5 kW motor may need different gearboxes in different applications.
15. Victory Gearbox Solutions
Victory provides industrial gearbox and motor solutions for global B2B customers.
Our main products include:
We help customers select the right gearbox based on real working conditions.
Victory can support:
Factory-direct pricing
Stable quality control
Motor and gearbox matching
Custom voltage and frequency
Shaft and mounting customization
Technical selection support
Long-term supply cooperation
This helps distributors, OEMs, and equipment manufacturers reduce selection mistakes and after-sales problems.
16. FAQ
Is a cyclo drive better than a helical gearbox?
Not always.
Cyclo drive is better for shock load and high ratio.
Helical gearbox is better for high efficiency and smooth running.
Which gearbox is more efficient?
A helical gearbox usually has higher efficiency.
It is suitable for continuous-duty equipment.
Which gearbox is better for heavy load?
For heavy shock load, cyclo drive is usually better.
For stable heavy load, a properly selected helical gearbox can also work well.
Which gearbox is quieter?
A helical gearbox is usually quieter.
Its gear teeth mesh more smoothly.
Which gearbox is easier to maintain?
A helical gearbox is usually easier to maintain.
Its structure is more common and familiar to technicians.
Can a helical gearbox replace a cyclo drive?
Sometimes yes.
But you must check torque, ratio, shaft size, mounting size, load type, and service factor.
Conclusion
Both cyclo drives and helical gearboxes are reliable industrial reducers.
The right choice depends on the application.
Choose a cyclo drive for heavy load, shock load, compact size, and high reduction ratio.
Choose a helical gearbox for smooth running, high efficiency, low noise, and continuous duty.
For B2B buyers, correct selection is more important than simply comparing price.
Victory can help you choose the right gearbox and motor solution for your project.
