In industries such as oil & gas, chemical processing, mining, and pharmaceuticals, safety is not optional—it is critical. One of the most important pieces of equipment used in these environments is the Explosion-proof motor.

But what exactly makes a motor “explosion-proof”?
And more importantly, what is the actual explosion-proof principle behind it?

In this guide, we will break it down in a practical, easy-to-understand way—especially for distributors, OEMs, and industrial buyers.

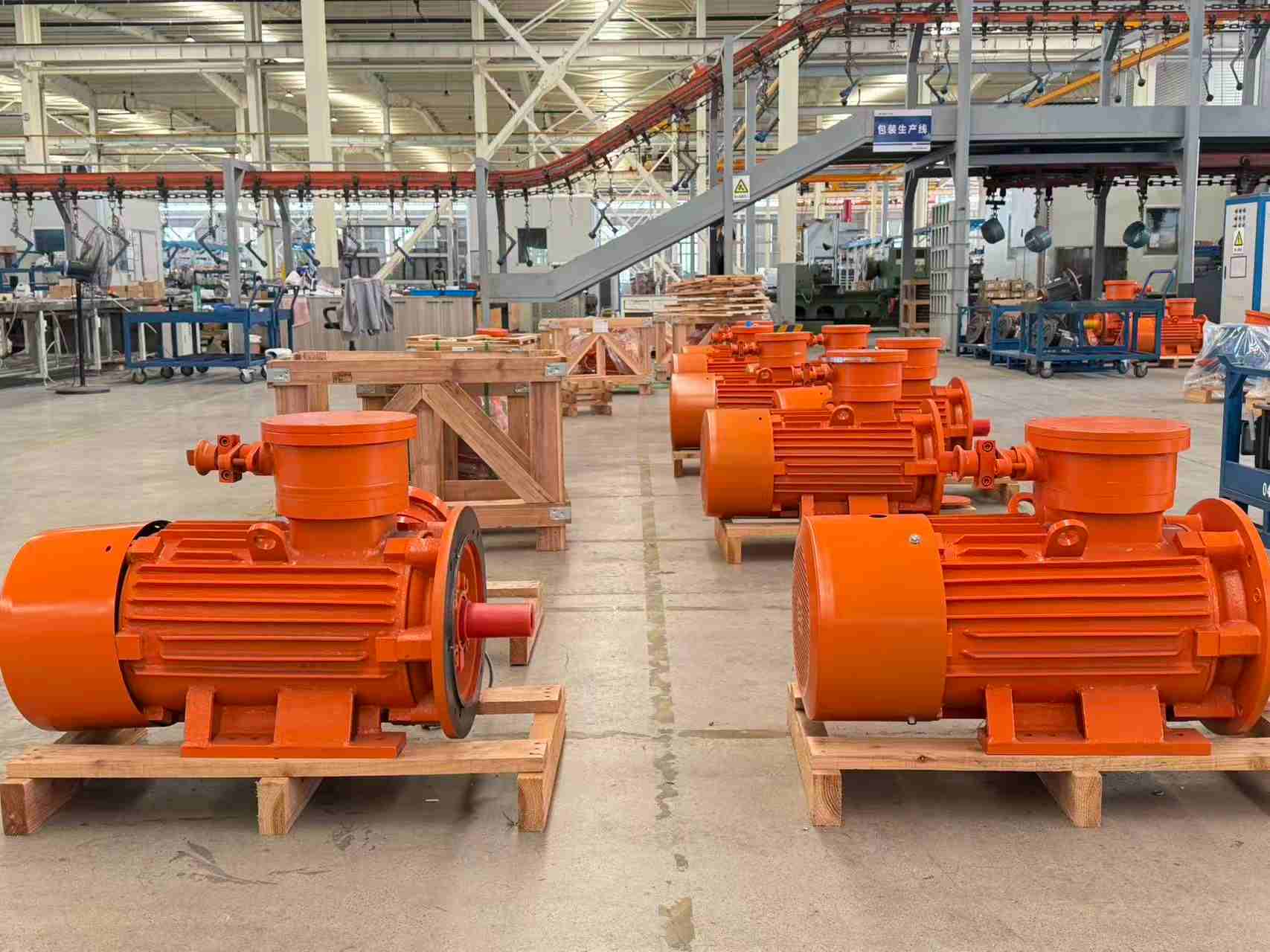

What Is an Explosion-Proof Motor

An Explosion proof induction motor (also known as Ex proof motor or Anti-explosion motor) is specially designed to operate safely in hazardous environments where flammable gases, vapors, or dust may be present.

Unlike standard motors, a Hazardous area motor does NOT prevent explosions from happening.
Instead, it is designed to:

✔ Contain any internal explosion
✔ Prevent ignition of the surrounding atmosphere

This is the key concept you must understand.

Why Explosion Protection Is Critical in Hazardous Areas

Industries using a Motor for explosive environment often deal with:

• Gas (methane, propane, hydrogen)

• Vapor (solvents, fuels)

• Dust (flour, coal, metal powder)

If these mix with oxygen and meet an ignition source (spark, heat), an explosion occurs.

That's why using a Flameproof AC motor is not just recommended—it's mandatory.

Basic Explosion Mechanism in Industrial Environments

For an explosion to occur, three elements must exist:

1. Fuel (gas, vapor, dust)

2. Oxygen

3. Ignition source

This is called the Explosion Triangle.

A normal motor can easily create ignition sources such as:

• Electrical sparks

• High surface temperature

• Mechanical friction

This is where an Explosion resistant motor plays its role.

Core Explosion-Proof Principle Explained

The fundamental principle of a flameproof three-phase asynchronous motor is:

“Contain the explosion and prevent flame propagation.”

It works in two key ways:

1. Withstand Internal Explosion

The motor enclosure is strong enough to resist internal pressure caused by an explosion.

2. Prevent Flame Escape

Even if an explosion occurs inside, the flame cannot escape to ignite the external environment.

This is achieved through:

• Special enclosure design

• Flame path (joint gaps)

• High-strength materials

How Flameproof Enclosure Works

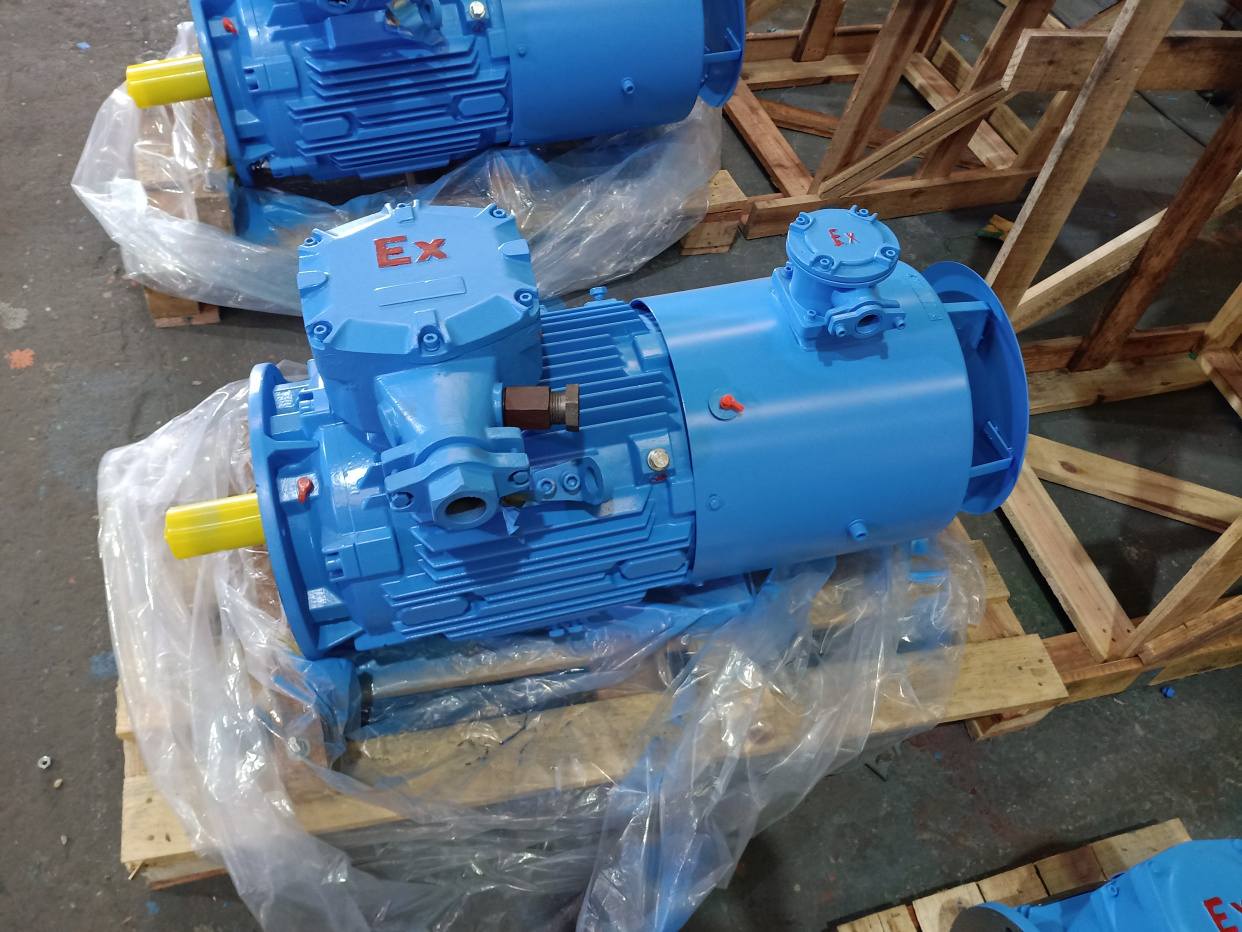

The enclosure of an ATEX motor or Explosion-proof motor is the core protection system.

Key features:

✔ Heavy-duty cast iron housing
✔ Precision-machined flame paths
✔ Tight gap tolerances

When an internal explosion occurs:

• Hot gases exit through narrow gaps

• The gap cools the flame below ignition temperature

• External gas is NOT ignited

This is the flameproof (Ex d) principle

Internal vs External Explosion Prevention

Most industrial applications prefer Explosion proof induction motor (Ex d) because it is more robust.

Key Types of Explosion-Proof Motors

Different applications require different protection types:

1. Flameproof (Ex d)

• Most common

• Suitable for Zone 1 & Zone 2

2. Increased Safety (Ex e)

• No sparks allowed

• Lower risk environments

3. Dust Explosion Protection (Ex t)

• Used in powder industries

Difference Between Explosion-Proof and Normal Motors

Main Components That Ensure Explosion Protection

A reliable Explosion resistant motor includes:

• Flameproof enclosure

• Sealed cable entries

• Reinforced terminal box

• Temperature control design

• Anti-spark fan

Each component contributes to the overall safety system.

International Standards for Explosion-Proof Motors

When selecting an ATEX motor, certification is critical:

• ATEX (Europe)

• IECEx (International)

• UL / NEC (North America)

At Victory, our motors can meet IEC & ATEX requirements, ensuring compliance for global markets.

How to Select the Right Hazardous Area Motor

When choosing a Motor for explosive environment, consider:

✔ Gas group (IIA, IIB, IIC)
✔ Temperature class (T1–T6)
✔ Zone classification (Zone 1 / Zone 2)
✔ Mounting type (B3, B5, etc.)

Incorrect selection can lead to serious safety risks.

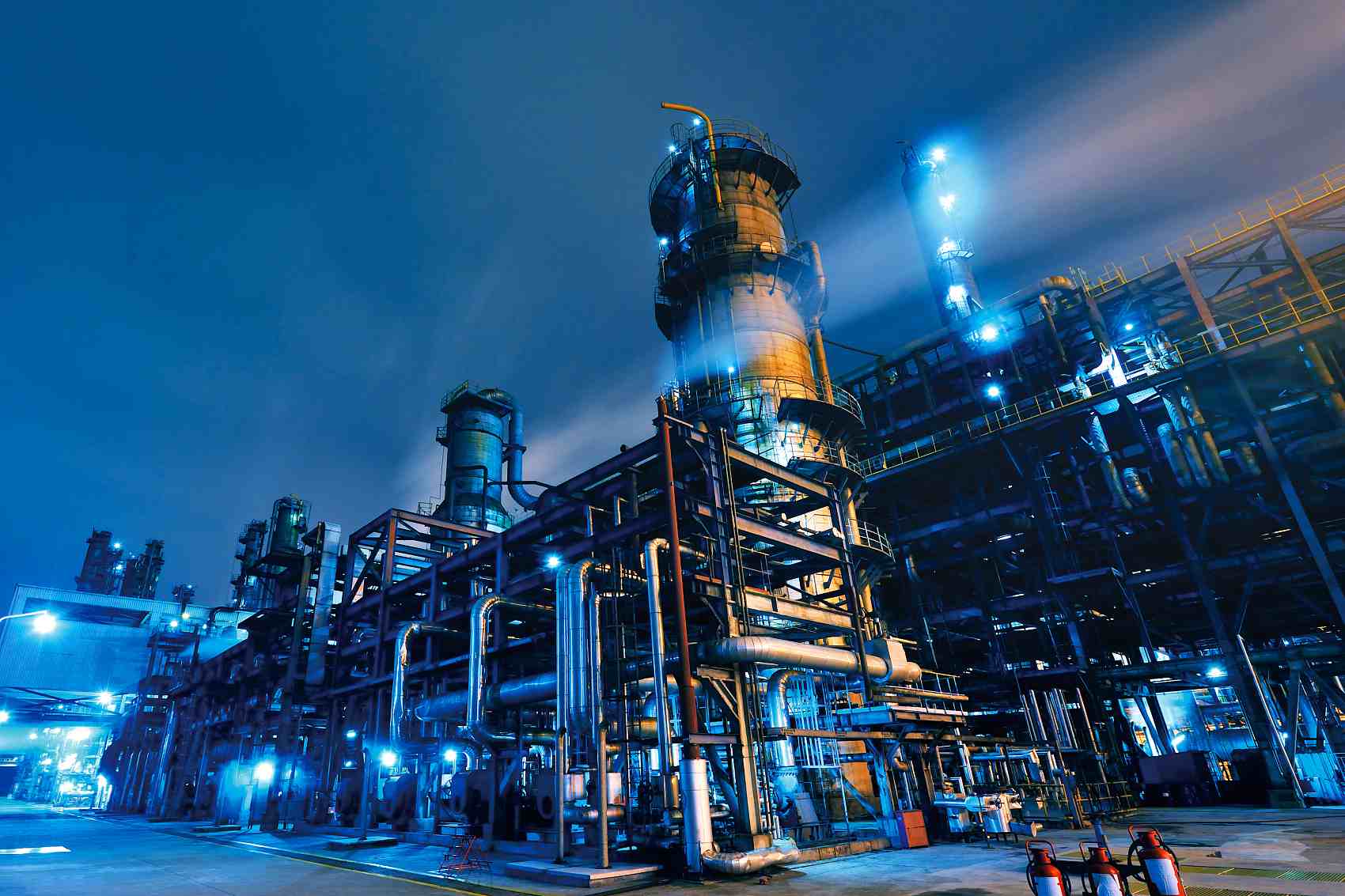

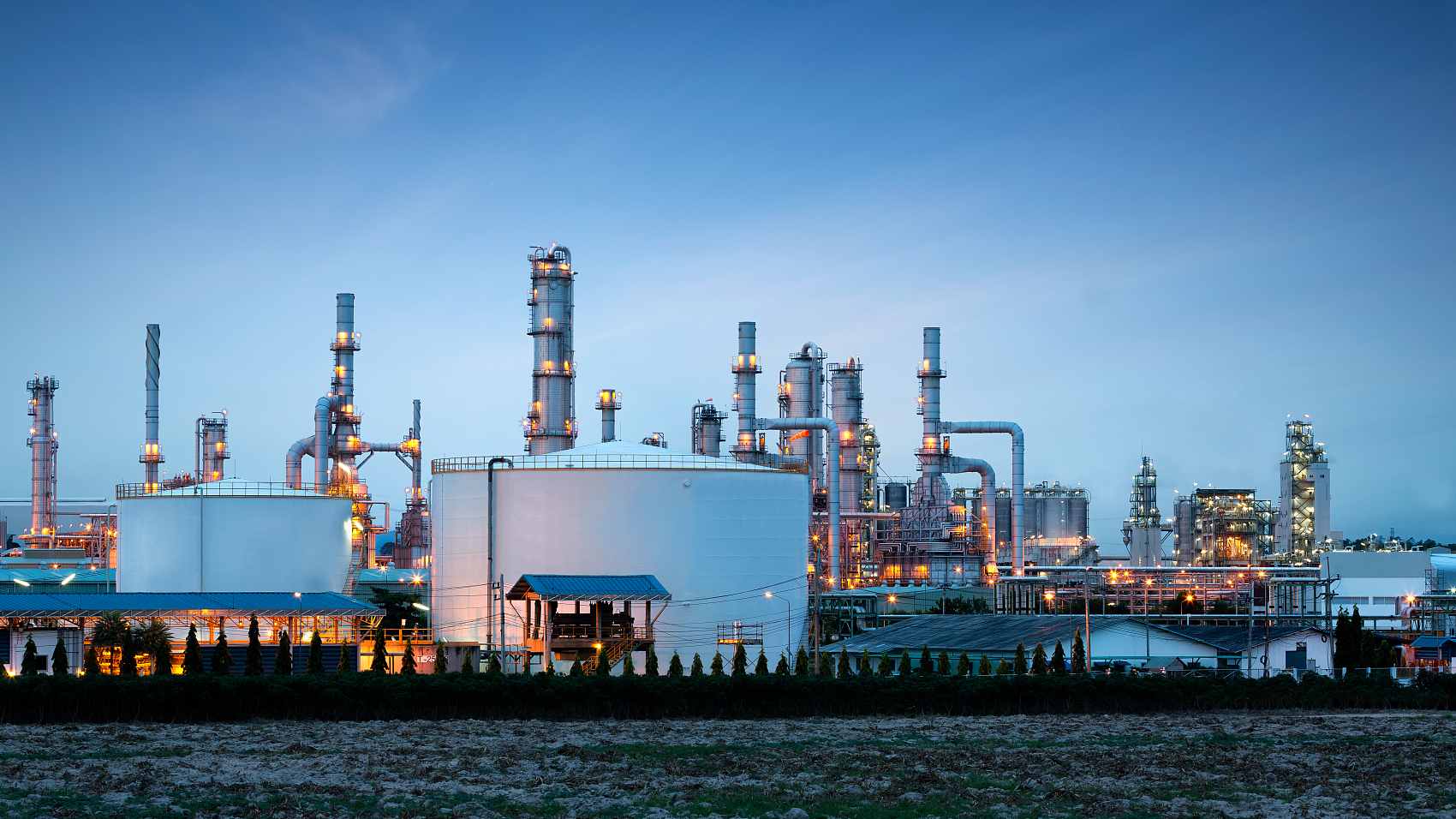

Common Applications of Explosion-Proof Motors

Explosion-proof motors are widely used in:

• Oil & gas plants

• Chemical factories

• Mining operations

• Grain processing

• Paint & solvent industries

Anywhere flammable materials exist, a Flameproof AC motor is essential.

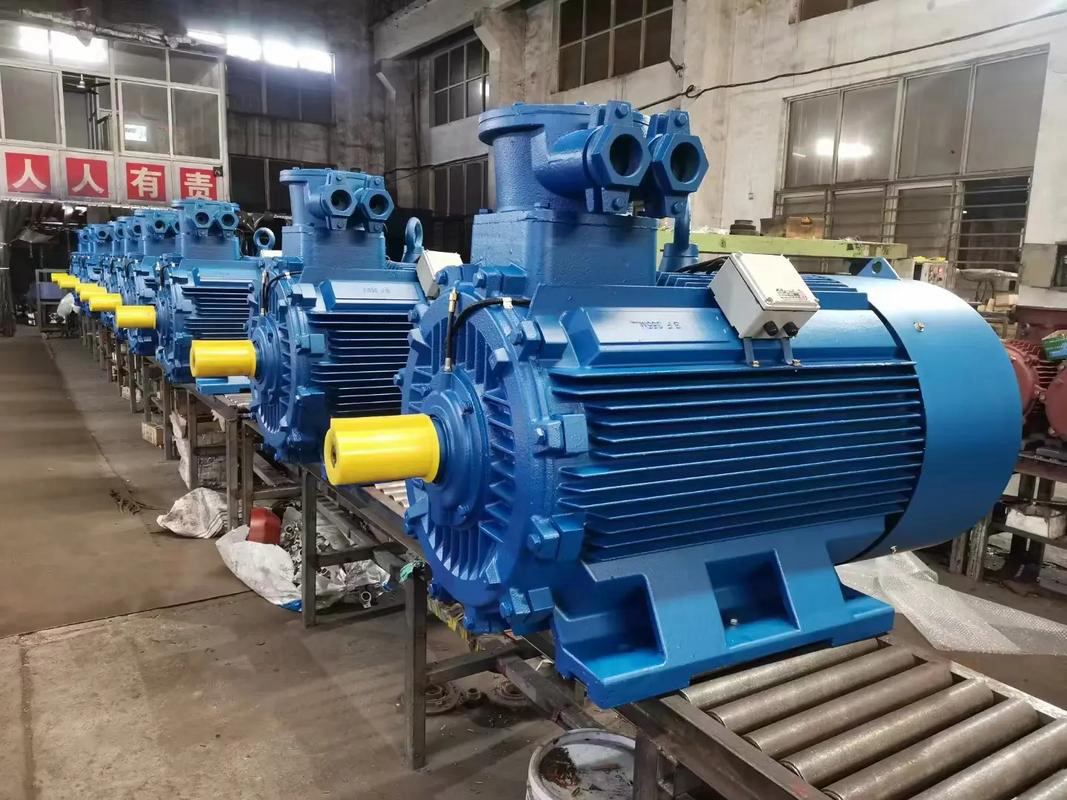

Advantages of Explosion-Proof Induction Motor

Why are Explosion proof induction motor solutions preferred?

✔ High reliability
✔ Long service life
✔ Strong adaptability
✔ Safe continuous operation

They are especially suitable for heavy-duty industrial environments.

Maintenance and Safety Considerations

Even the best Anti-explosion motor requires proper maintenance:

• Regular inspection of seals

• Check flame path integrity

• Avoid unauthorized modification

• Ensure correct installation

Why Choose Victory Explosion-Proof Motors

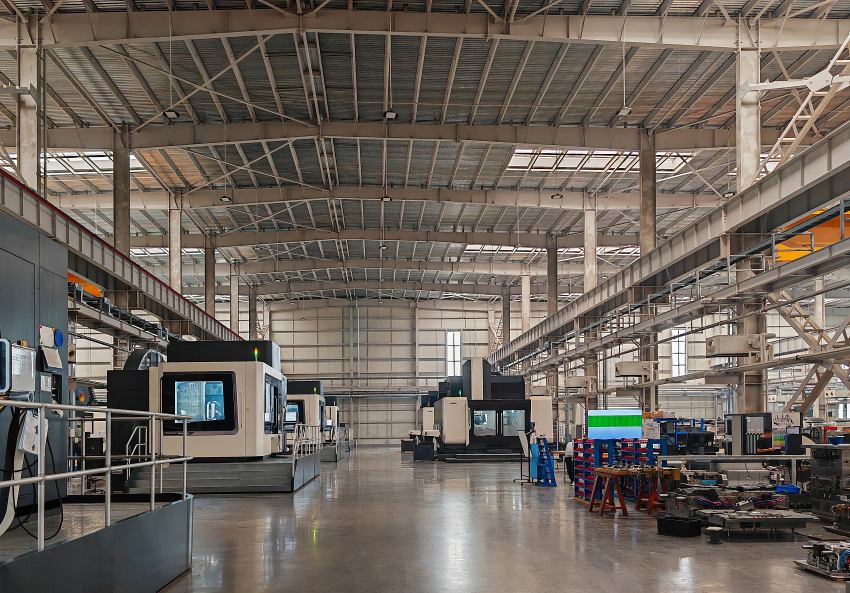

As a direct factory manufacturer, Victory offers strong advantages:

1. Cost Advantage

• Same IE3 quality as ABB / Siemens

• Only 1/3 price

2. Stable Quality

• 100% new raw materials

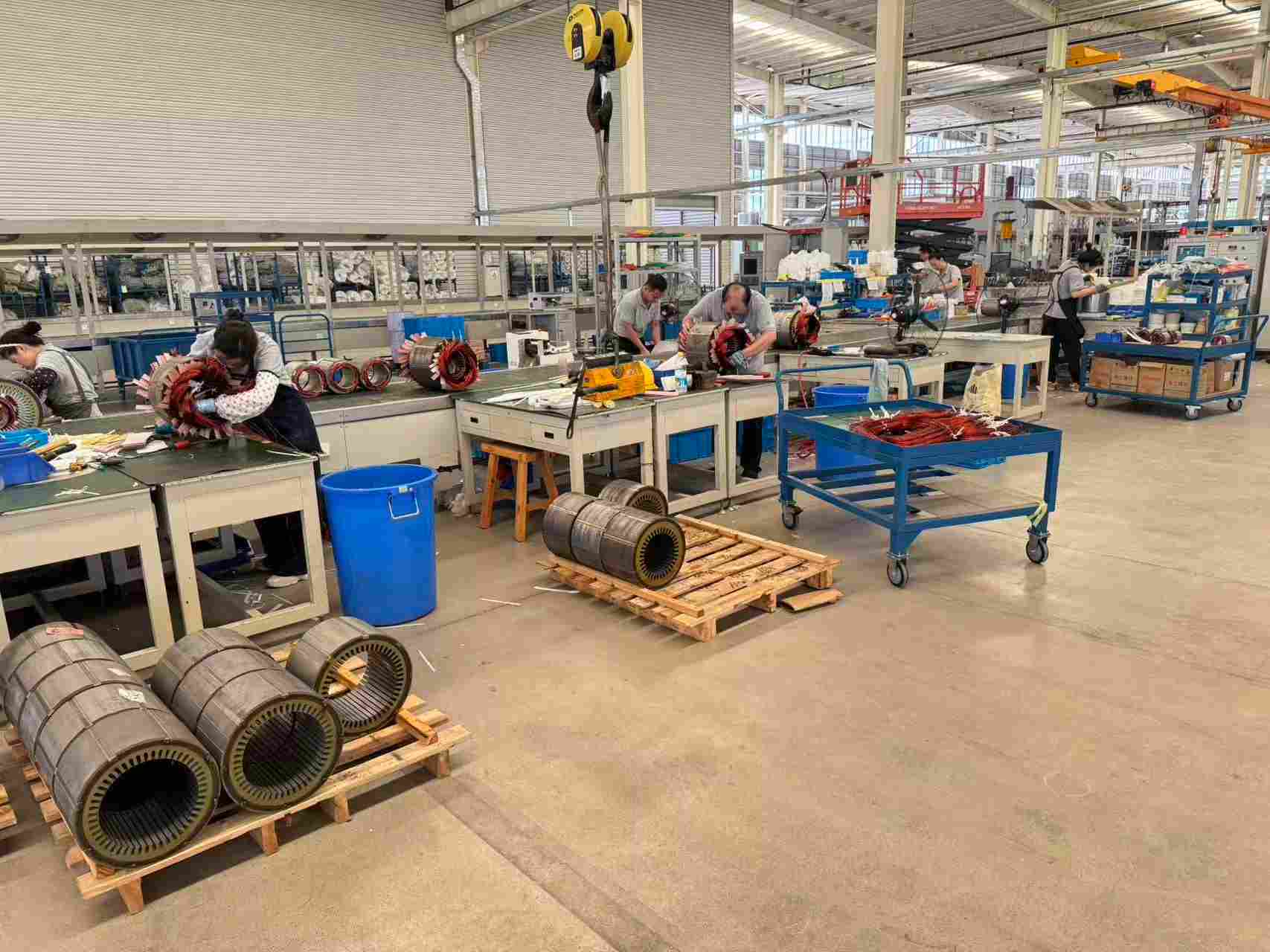

• High-quality copper winding

• Strict testing: noise, vibration, performance

3. Reliable Supply Chain

• Core suppliers over 10+ years

• Stable production and delivery

4. Customization Capability

• IEC standard replacement

• Flexible for Europe, US, Southeast Asia markets

5. Risk-Free Cooperation

• 0 major quality complaints in recent years

• Lifetime after-sales support

For distributors and OEM customers, this means high margin + low risk.

FAQ About Explosion-Proof Motors

1. Does explosion-proof motor prevent explosion completely?

No. It contains internal explosions and prevents external ignition.

2. What is the most common type?

The flameproof three-phase asynchronous motor (Ex d).

3. Can I replace ABB or Siemens motors directly?

Yes. Our motors follow IEC standards and are fully interchangeable.

4. Do you provide ATEX certification?

Yes, we can provide ATEX-compliant ATEX motor solutions.

5. What is the delivery time?

Standard models: 7–15 days.
