How System Integrators Select Three Phase Electric Motor for Engineering Projects

Learn how system integrators select the right three phase electric motor for engineering projects, including sizing, standards, and cost optimization. Discover how to reduce cost while ensuring reliability.

Why Motor Selection Matters for System Integrators

For system integrators, selecting the right three phase electric motor is not just about matching power ratings. It directly impacts system efficiency, lifecycle cost, reliability, and overall project success.

Unlike end users, system integrators must consider:

• Compatibility with existing systems

• Compliance with regional standards (IEC / NEMA)

• Long-term maintenance and replacement

• Total cost of ownership (TCO)

A wrong motor choice can lead to downtime, overheating, energy waste, and customer dissatisfaction.

Key Factors in Selecting a Three Phase Electric Motor

1. Application Type and Load Characteristics

The first step is understanding the application:

• Pumps → Constant torque

• Fans → Variable torque

• Conveyors → Continuous load

• Crushers / mixers → Heavy shock load

Each application determines starting torque, duty cycle, and overload capacity. For heavy-duty applications, a more robust three phase induction motor is required.

2. Power and Speed Requirements

System integrators must calculate:

• Required output power (kW or HP)

• Required speed (RPM)

Typical motor speeds:

• 2-pole → ~3000 rpm

• 4-pole → ~1500 rpm

• 6-pole → ~1000 rpm

Oversizing increases cost, while undersizing reduces motor lifespan.

3. Voltage, Frequency, and Regional Standards

Different regions require different specifications:

• Europe → 400V / 50Hz / IEC

• USA → 230/460V / 60Hz / NEMA

• Southeast Asia → 380V / 50Hz / IEC

System integrators must ensure compliance with local standards and certifications such as CE and IE3.

4. Efficiency Class and Energy Consumption

Efficiency is critical in modern engineering projects:

• IE2 → Standard efficiency

• IE3 → High efficiency

• IE4 → Premium efficiency

Most integrators prefer IE3 three phase electric motors to reduce long-term operating costs.

5. Protection and Environmental Conditions

Environmental conditions determine motor design:

• IP55 → Standard industrial use

• IP65 → Harsh environments

• Explosion-proof → Hazardous areas

Cooling method (IC411) and insulation class (F) also play key roles.

6. Mounting and Mechanical Compatibility

• B3 → Foot mounted

• B5 → Flange mounted

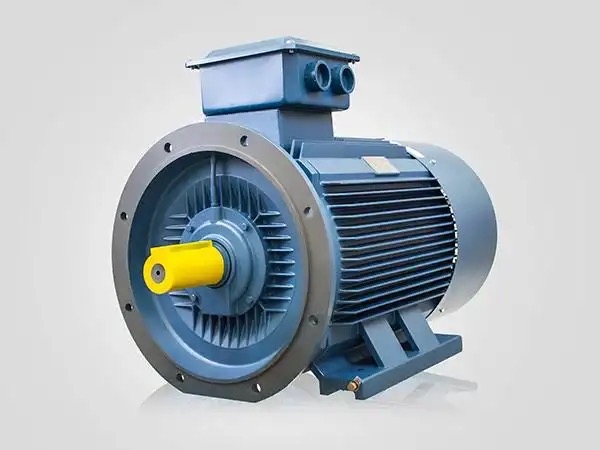

• B35 → Foot + flange

IEC standardized dimensions ensure easy replacement and compatibility.

Common Challenges Faced by System Integrators

1. Balancing Cost and Quality

Premium brands offer reliability but at a significantly higher cost.

2. Long Lead Time

Project deadlines often require fast delivery.

3. Customization Needs

Non-standard requirements are very common in engineering projects.

4. After-Sales Risk

Unreliable suppliers can create long-term operational issues.

Why More Integrators Choose Victory Motors

1. Direct Factory Advantage – Better Price

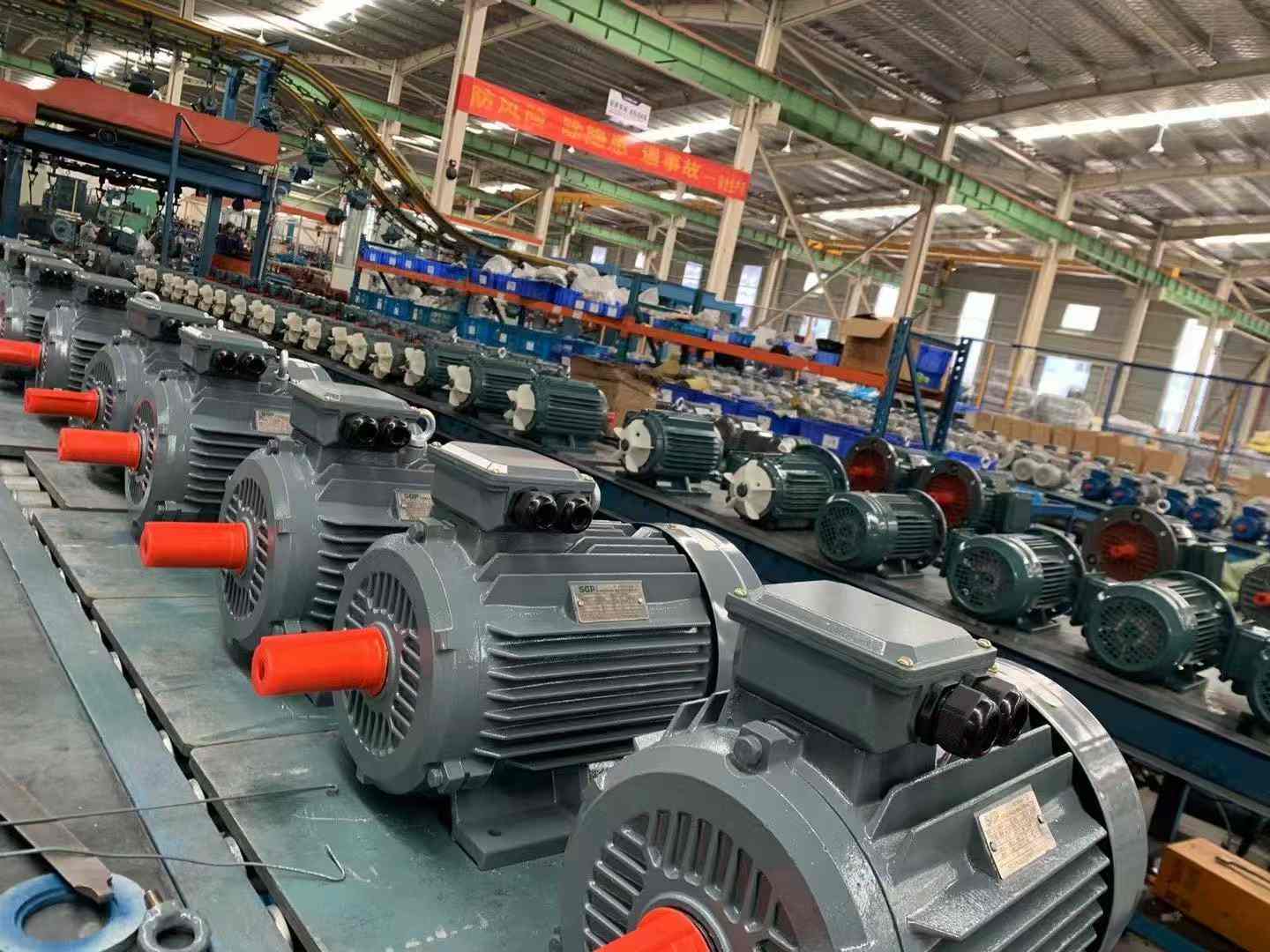

Victory operates as a source factory with no middleman, no marketing overhead, and lower operating costs.

Our motors offer comparable quality to ABB and Siemens at about one-third of the price.

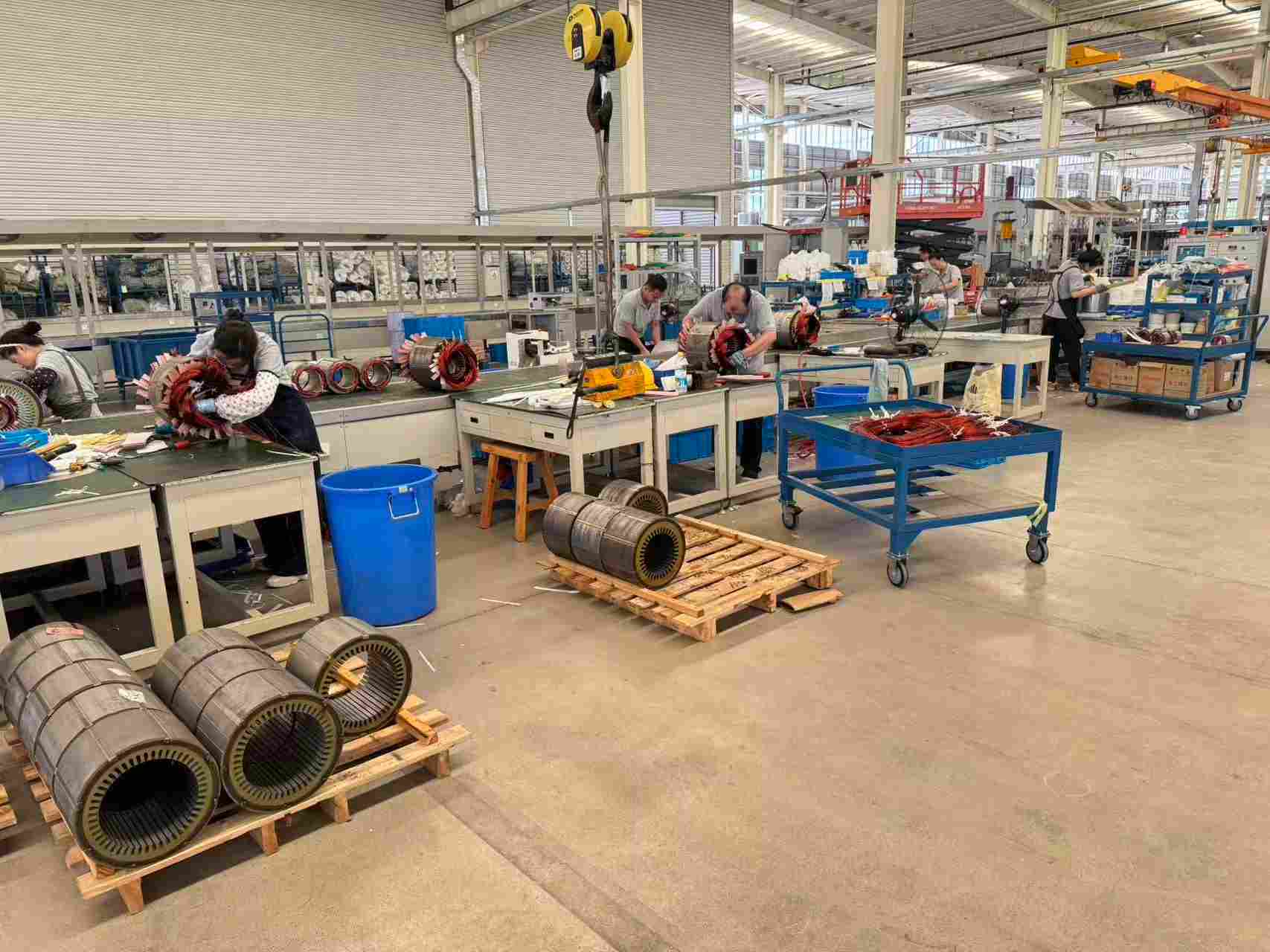

2. Stable Quality with Premium Materials

• 100% new copper wire

• High-quality stator and rotor

• Stable supply chain (10+ years partners)

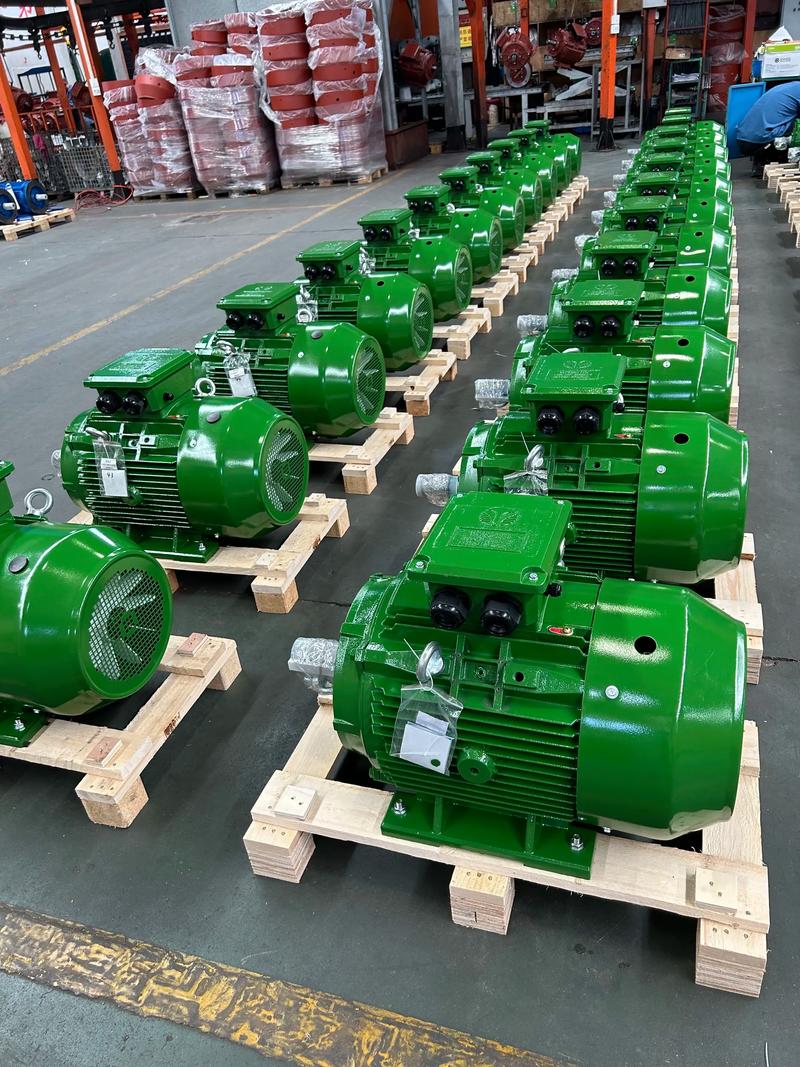

All motors are tested for performance, noise, and vibration before shipment.

3. IEC Standard – Easy Replacement

Victory motors follow IEC standards, ensuring seamless replacement for European brands without redesign.

4. Flexible Customization

• Voltage and frequency customization

• Special shaft sizes

• Different mounting types

• VFD-compatible motors

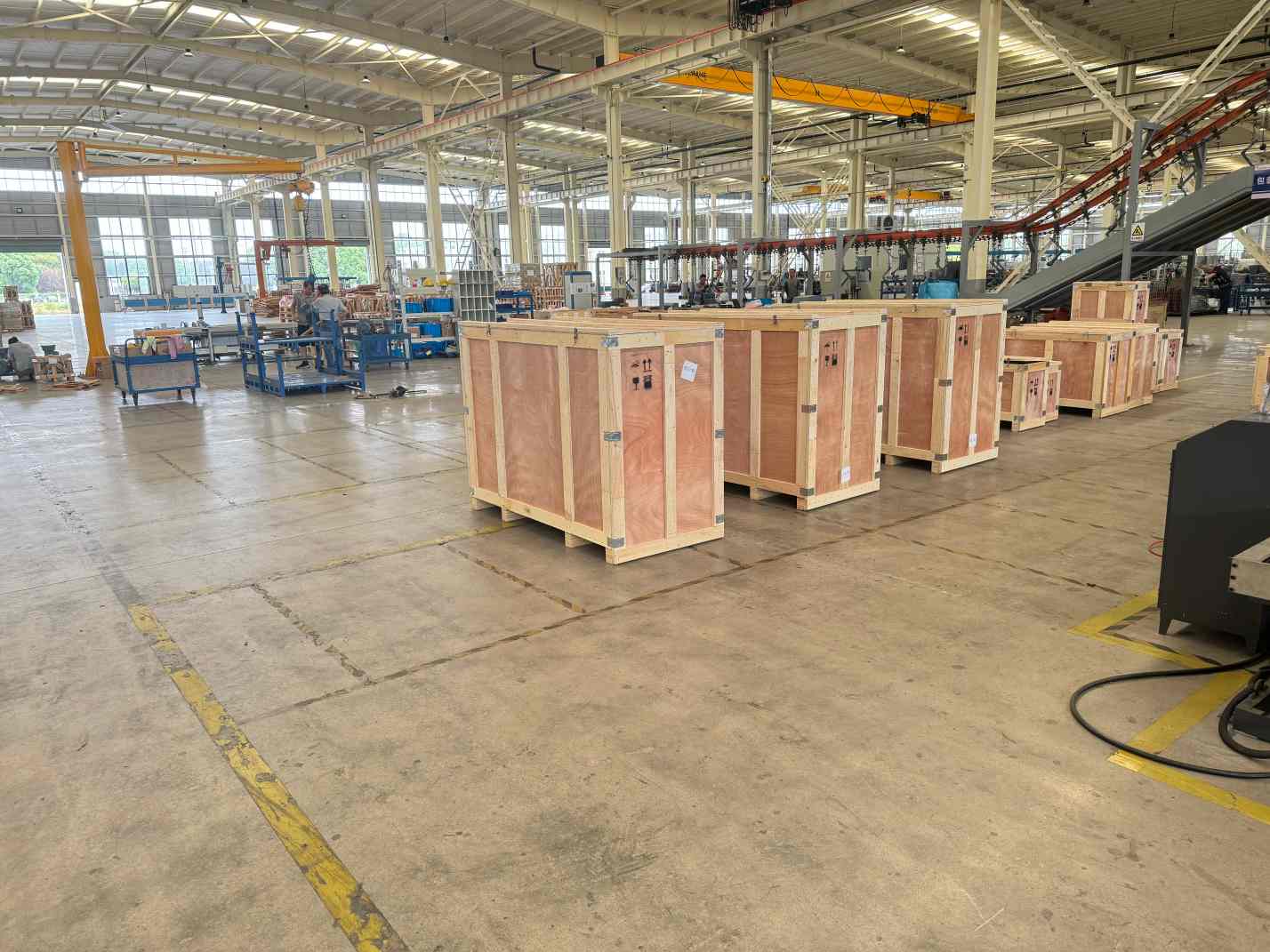

5. Fast Delivery

With a stable supply chain and efficient production, we ensure reliable and fast delivery.

6. Long-Term After-Sales Support

We provide lifetime technical support and free repair for long-term customers. Our export orders have maintained stable quality performance.

Practical Selection Workflow for System Integrators

1. Confirm application and load type

2. Calculate required power and torque

3. Select speed and pole number

4. Confirm voltage and frequency

5. Choose efficiency class (IE3 recommended)

6. Verify mounting and dimensions

7. Evaluate supplier reliability

Conclusion

Selecting the right three phase electric motor is essential for system integrators. It requires balancing technical requirements, cost, and long-term reliability.

Choosing the right supplier can significantly improve project efficiency, reduce costs, and ensure stable operation.

FAQ

What is the most commonly used motor type?

The three phase induction motor is the most widely used due to its reliability and efficiency.

Should I choose IE2 or IE3 motors?

IE3 motors are recommended for better energy efficiency and compliance with global standards.

Can Victory motors replace ABB or Siemens motors?

Yes, Victory motors follow IEC standards and can be used as direct replacements.

How do I choose the correct motor size?

It depends on load, torque, and application conditions. Proper calculation is required.

Do you support customization?

Yes, we support full customization based on project requirements.
