How To Select A Cycloid Reducer: A Complete Guide

Views: 0 Author: Site Editor Publish Time: 2025-08-20 Origin: Site

Introduction

Cycloid reducers are an essential component in countless industrial applications, from heavy-duty machinery to precision automation systems. They provide the critical function of reducing motor speed while increasing torque, ensuring machines operate efficiently and safely. Choosing the right reducer is not just a matter of preference—it directly affects energy consumption, machine lifespan, and overall productivity.

When a reducer is mismatched to its application, problems such as overheating, excessive vibration, and premature wear quickly surface. On the other hand, selecting a reducer properly matched to load requirements guarantees smoother performance, reduced downtime, and lower maintenance costs. In industries such as metallurgy, chemical processing, and material handling, these benefits directly translate into cost savings and reliability.

This article serves as a comprehensive guide for engineers, technicians, and decision-makers to understand cycloid reducers, their working principles, and the correct selection process. By the end, you’ll have a step-by-step framework to choose a reducer that not only fits your application but also maximizes operational efficiency.

What is a Cycloid Reducer?

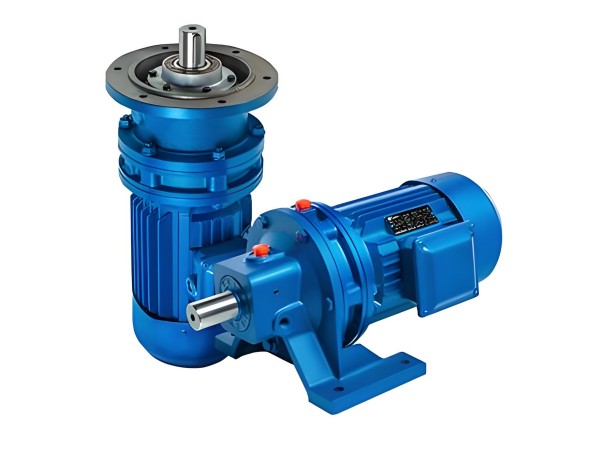

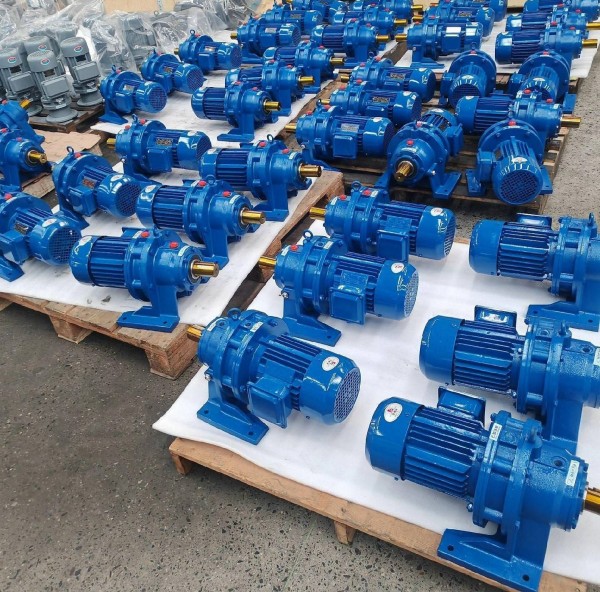

A cycloid reducer is a compact mechanical device designed to reduce high-speed input from motors into low-speed, high-torque output. Unlike conventional gear reducers that rely on straight-tooth or helical gear meshing, the cycloid reducer operates using a unique epicycloidal gear mechanism.

This design gives it several advantages over other types of reducers:

· High Reduction Ratios in Compact Size: A single-stage cycloid reducer can achieve ratios up to 87:1, while double and triple stages extend the ratio into the thousands without significantly enlarging the device.
· Smooth Power Transmission: Because the tooth profiles of cycloid gears engage multiple teeth simultaneously, load distribution is uniform, reducing stress and wear.
· Durability: The rolling contact between the cycloid gear and pinwheel reduces friction and prolongs service life.
· High Shock Load Capacity: Cycloid reducers can withstand sudden load changes better than traditional gearboxes, making them suitable for heavy-duty operations.

Essentially, the cycloid reducer combines strength, compactness, and efficiency in a way that many conventional reducers cannot, making it a preferred choice across diverse industries.

(Click here to check cycloid reducer parameter sheet)

Working Principle of a Cycloid Reducer

Understanding how a cycloid reducer works helps explain why it delivers such exceptional performance. The working principle can be broken down into three key stages:

· Eccentric Revolution of the Cycloid Gear

The input shaft, driven by a motor, contains an eccentric section that engages with the cycloid gear. As the shaft rotates, the eccentric force causes the cycloid gear to revolve around the center of the pinwheel. This motion is similar to how the moon revolves around Earth.

· Meshing Drive with the Pinwheel

During this revolution, the cycloid gear’s special tooth profile continuously meshes with cylindrical pins on the pinwheel. Since the cycloid gear always has one tooth fewer than the pinwheel, every full revolution results in the cycloid gear "advancing" or "retreating" by one tooth relative to the pinwheel. This is the core mechanism that achieves speed reduction.

For instance, if a pinwheel has 11 teeth while the cycloid gear has 10, each revolution produces a relative backward motion of 1/11 of a turn, creating a reduction ratio of 11:1.

· Conversion to Output Rotation

Finally, the motion is transferred through the output mechanism (pins or bearings) to the output shaft. This converts the eccentric revolution into a smooth rotational output, ready to drive machinery.

This revolution–meshing–rotation sequence is the hallmark of cycloid technology. Because the gear engagement is distributed over multiple teeth, stress is minimized, leading to higher efficiency and durability.

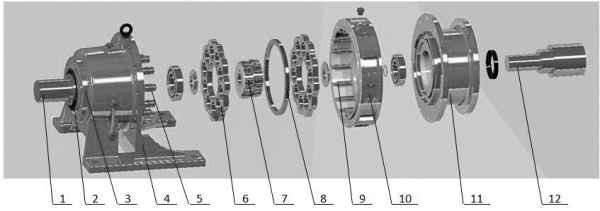

Core Components of a Cycloid Reducer

To better understand its functionality, let’s break down the main components of a cycloid reducer:

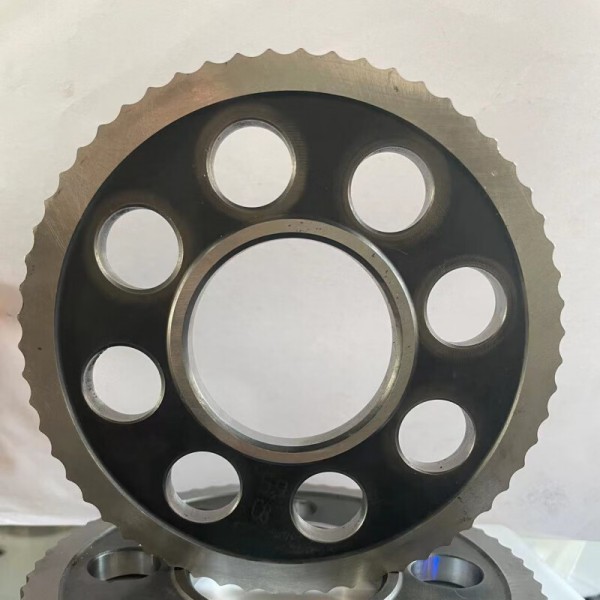

· Cycloid Gear: The heart of the reducer, designed with a tooth profile based on a short-amplitude epicycloid curve. Typically made in two symmetrical halves, this structure balances the radial forces acting on the eccentric shaft, ensuring smooth operation.
· Pinwheel: A stationary component with cylindrical pins evenly distributed around its inner wall. These pins act like teeth, engaging with the cycloid gear to facilitate reduction. Bearings are often placed on these pins to minimize wear.
· Eccentric Shaft (Input Shaft): This shaft introduces motion into the system. It carries two eccentric sections positioned 180° apart, which drive the cycloid gear into eccentric revolution.
· Output Mechanism: Usually a pin-type or pin-hole mechanism, it transforms the cycloid gear’s revolution into usable rotational motion. Depending on design, this can be a cross-slide or swing-arm bearing system.

Each of these components is precisely engineered to withstand heavy loads and minimize wear, making the cycloid reducer one of the most robust and reliable reduction systems in modern industry.

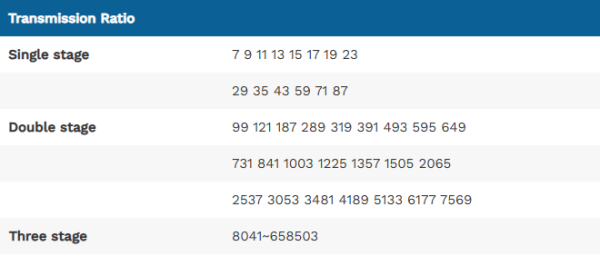

Reduction Ratio and Calculation Method

One of the defining features of cycloid reducers is their flexible reduction ratios. Selecting the right ratio is crucial since it determines the output speed and torque.

· Single-Stage Reduction Ratio

The formula is:

✅ i=z1/(z1−z2)

Since the cycloid gear always has one tooth fewer than the pinwheel, the formula simplifies to ✅ i=z1.

Example: A pinwheel with 11 teeth yields a ratio of 11:1; with 87 teeth, the ratio becomes 87:1.

· Double-Stage Reduction

Achieved by connecting two cycloid stages in series. The overall ratio is the product of both stages.

Example: Two 11:1 stages result in 121:1; two 87:1 stages achieve 7569:1.

· Triple-Stage Reduction

Used in applications requiring extremely high reduction ratios, reaching into hundreds of thousands.

This flexibility allows engineers to customize reducers based on exact speed and torque requirements, making cycloid reducers one of the most versatile options in mechanical power transmission.

Key Issues to Consider When Selecting a Cycloid Reducer

1. Identify Key Parameters

When selecting a cycloid reducer, the first and most important step is identifying the core operating parameters. These parameters determine whether the reducer will work efficiently, last long, and handle the demands of your application. Choosing a reducer without carefully considering these factors often leads to performance issues and premature equipment failure. Let’s break down the key parameters one by one.

1.1 Input Parameters

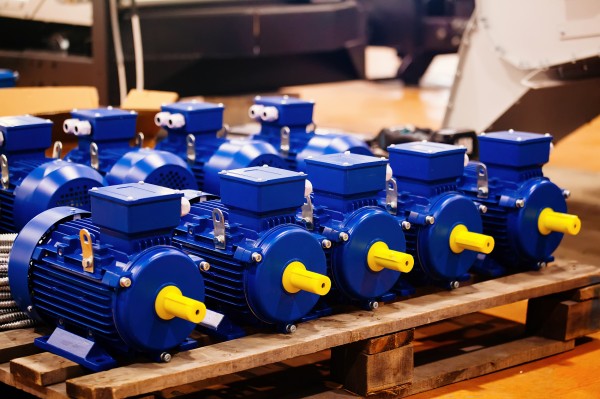

The input side of the reducer is driven by a motor, so understanding motor performance is critical.

· Input Power (P): Measured in kilowatts (kW), this is typically defined by the motor rating. The reducer must have a rated capacity equal to or higher than the motor’s output power. For example, if the motor is rated at 5 kW, the reducer must be sized accordingly to avoid overloading.
· Input Speed (n₁): Expressed in revolutions per minute (rpm). Common induction motors operate at 1450 rpm (4-pole) or 960 rpm (6-pole). The reducer must be capable of handling this input speed. A mismatch here can cause overheating or mechanical failure.

1.2 Output Parameters

On the output side, speed and torque are critical.

· Output Torque (T): The actual torque requirement must be calculated. The formula is:

✅ T=9550×P/n₂×K

Where P is motor power (kW), n₂ is output speed (rpm), and K is the safety factor (typically 1.2–2.5 depending on load conditions).

· Output Speed (n₂): Calculated by dividing the input speed by the reduction ratio.

✅ n2=n₁/i

For example, if a motor runs at 1450 rpm and the reduction ratio is 29, then the output speed is approximately 50 rpm.

· Reduction Ratio (i): This is determined based on speed reduction needs. Cycloid reducers allow for ratios from 9 to 87 (single-stage), and 121 to over 7000 (multi-stage), making them adaptable for both high-speed and heavy-torque requirements.

By correctly identifying these input and output parameters, you set the foundation for choosing the right model. Failing to do so risks underperformance or even equipment breakdown.

2. Selecting the Correct Model and Structure

Once the operating parameters are clear, the next step is selecting the appropriate model and structural configuration. Cycloid reducers come in a wide variety of types, so understanding how to match the model to the application is essential.

2.1 Model Specifications

Cycloid reducers are categorized by center distance and output torque range. The chosen model should have a rated torque capacity equal to or greater than the calculated torque (including safety factor).

For example:

· If calculated torque is 500 N·m and the safety factor is 1.5, the required reducer must handle at least 750 N·m.
· Models are often labeled (e.g., XWD5, BWY12) to indicate size, torque, and configuration.

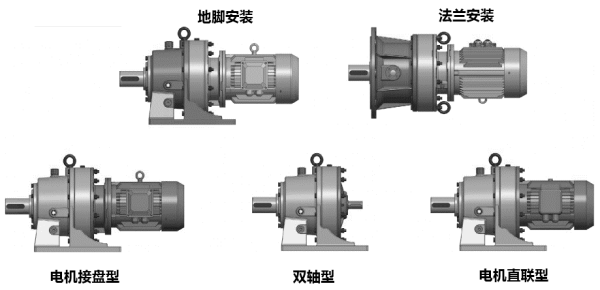

2.2 Structural Configurations

Cycloid reducers are available in several installation structures:

· Horizontal Type (W): The most common, used when there’s enough floor space and stability.

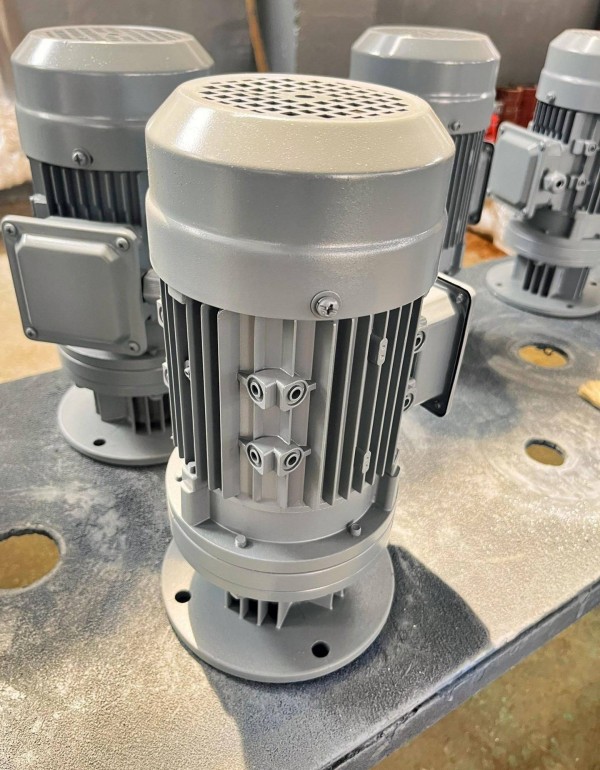

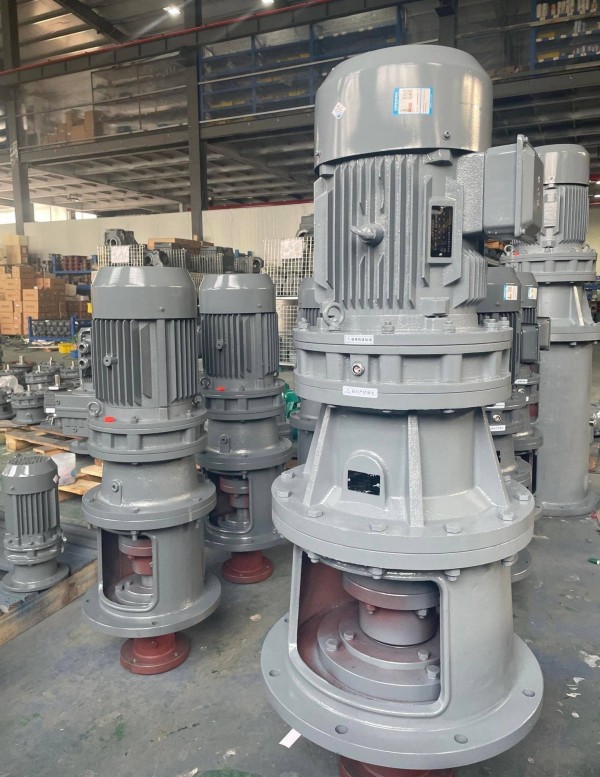

· Vertical Type (L): Suitable when space is limited and equipment is mounted vertically.
· Flanged Type (F): Allows direct flange mounting, commonly used for compact machinery setups.

2.3 Input and Output Types

· Input Options: Direct shaft connection or motor flange connection.
· Output Options: Solid shaft, hollow shaft, or keyed connections depending on the driven machine.

When choosing, always ensure the shaft connection type and mounting orientation match your existing machine layout. Ignoring this often leads to expensive re-engineering or installation delays.

3. Load Type Considerations

Not all loads are the same. Some machines run with steady, predictable loads, while others experience frequent shock or impact forces. The type of load has a direct influence on the reducer you choose.

3.1 Uniform Loads

These loads run smoothly and steadily, such as:

· Conveyors
· Mixers and agitators
· Packaging machines

For these applications, a standard safety factor (1.2–1.5) is sufficient.

3.2 Impact Loads

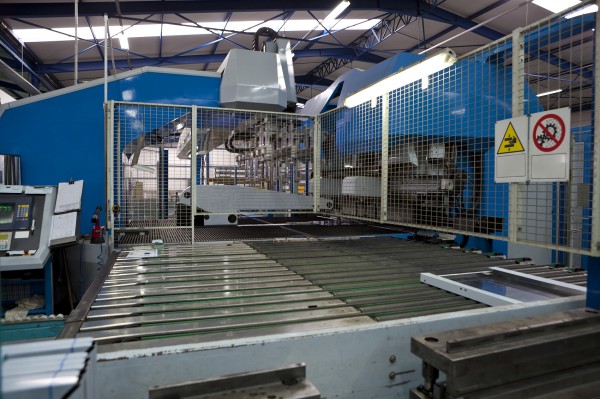

Machines such as crushers, stamping presses, or heavy-duty mills experience sudden shocks and irregular loads. In such cases:

· A higher safety factor (1.5–2.5) must be applied.
· Models with reinforced components or shock-absorbing structures should be chosen.

If a reducer not designed for impact loads is used in these conditions, it may fail prematurely due to excessive stress on gears and bearings.

In short, understanding your load type ensures you don’t overspend on an unnecessarily large reducer or undersize one that will fail under real working conditions.

4. Operating Time and Usage Frequency

Another factor often overlooked in reducer selection is operating time. Machines used continuously versus intermittently have very different requirements.

4.1 Continuous Operation

Machines that operate 24/7, such as industrial conveyors, require:

· Reducers with excellent heat dissipation to prevent overheating.
· Higher-rated power handling compared to intermittent duty reducers.
· More frequent lubrication checks.

4.2 Intermittent Operation

For equipment that only runs a few hours per day, standard reducers are often sufficient. The wear rate is much slower, so the overall design requirements are less demanding.

Ignoring usage frequency leads to mismatched selection. For example, using a standard reducer in 24-hour operation may cause it to overheat and fail early, while oversizing a reducer for occasional use results in unnecessary costs.

5. Environmental and Installation Conditions

The environment where the reducer operates plays a major role in performance and lifespan. Cycloid reducers are durable, but they must be matched to their environment.

5.1 Temperature

· High-Temperature Environments (>40°C): Require high-temperature resistant lubricants or cooling systems.
· Low-Temperature Environments (<-10°C): Need low-temperature gear oils to maintain smooth operation.

5.2 Dust, Humidity, and Corrosive Atmospheres

· Install reinforced oil seals to prevent contamination.
· Consider protective covers or anti-corrosion coatings for harsh chemical environments.

5.3 Limited Installation Space

In compact environments, single-stage or vertical designs are preferred. Engineers often overlook installation constraints, leading to space conflicts during assembly.

By carefully evaluating environmental and spatial conditions, you ensure not just functionality but also longevity and reliability of the reducer.

Common Mistakes in Selecting Cycloid Reducers

Even though cycloid reducers are designed to be robust and versatile, many failures and inefficiencies in industrial applications stem from incorrect selection. Avoiding these common mistakes can save both time and money.

* Underestimating Torque Requirements

One of the most frequent errors is selecting a reducer based only on speed reduction needs while ignoring torque demands. If the actual load torque exceeds the reducer’s rated torque, the system will quickly wear out, leading to overheating, gear damage, or even complete breakdown. Always calculate torque using the correct formula and apply a safety factor.

* Ignoring the Safety Factor

Safety factors are crucial for ensuring a reducer can handle unexpected load variations. Choosing a reducer without accounting for shock loads or operating conditions results in premature wear. For example, a machine with high-impact loads needs a safety factor of at least 2.0, not the standard 1.2 used for uniform loads.

* Mismatching Mounting Structure

Not every reducer can be installed in any orientation. Using a horizontal reducer in a vertical installation without proper adaptation leads to lubrication failures and overheating. Always confirm whether the reducer is suitable for the intended mounting direction.

* Overlooking Environmental Conditions

Reducers exposed to dust, moisture, or high temperatures require reinforced sealing, protective coatings, or special lubricants. Failing to consider the environment results in oil leaks, corrosion, and reduced lifespan.

By avoiding these common mistakes, engineers can extend reducer life, reduce maintenance costs, and ensure consistent machine performance.

Advantages of Using Cycloid Reducers

Cycloid reducers offer multiple advantages that make them stand out compared to traditional gear reducers such as worm gearboxes or helical gear units.

· High Transmission Efficiency

Due to rolling contact between the cycloid gear and pinwheel, friction losses are minimal. This results in efficiency levels of 90% or higher, even at high reduction ratios.

· Compact Design

Cycloid reducers achieve large reduction ratios within a relatively small housing. This compact structure saves installation space, making them ideal for modern machinery where space optimization is critical.

· Long Service Life

Because load is distributed over multiple teeth during meshing, the wear per tooth is significantly lower. This design allows cycloid reducers to handle heavy-duty applications with minimal maintenance.

· Strong Shock Load Resistance

The design allows reducers to withstand sudden impact loads 3–5 times greater than their rated torque. This makes them reliable in harsh environments such as mining or metalworking industries.

· Wide Range of Ratios

From 9:1 up to over 7500:1, cycloid reducers offer flexibility unmatched by most other gear reducers. Whether an application needs slow, precise control or massive torque multiplication, cycloid technology provides the solution.

These advantages explain why cycloid reducers are increasingly used in industries that demand both reliability and efficiency.

Applications of Cycloid Reducers in Industries

Cycloid reducers have found their place across various industries thanks to their versatility, compact size, and durability.

1. Machinery Manufacturing

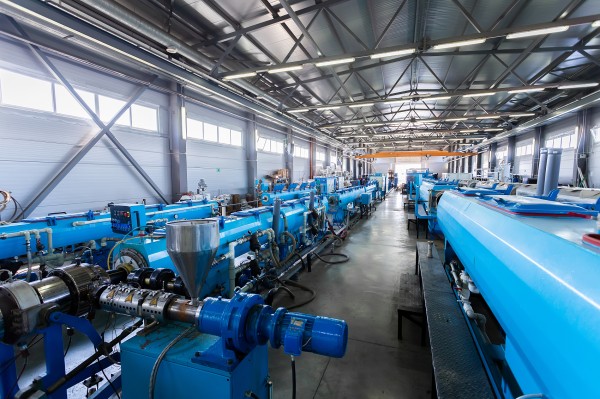

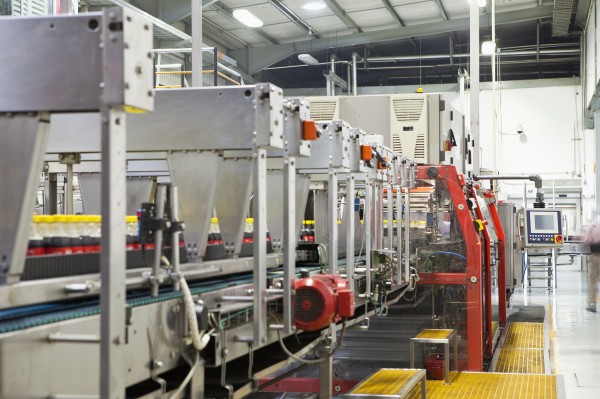

· Used in conveyors, presses, and mixers. (Click here to check case of cycloid reducer in mixer industry)
· Provide consistent torque and speed control for material handling and processing machines.

2. Chemical and Metallurgy Industries

· In chemical processing plants, cycloid reducers operate pumps, agitators, and extruders where steady torque and corrosion resistance are vital.

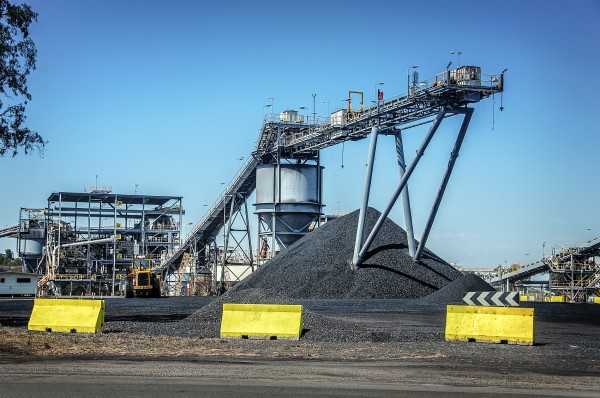

· In metallurgy, they handle heavy-duty operations such as rolling mills, crushers, and casting equipment, where impact resistance is critical.

3. Automation and Robotics

· Cycloid reducers are valued in robotics for high precision and backlash-free transmission.
· Their compactness and efficiency make them ideal for robotic arms, CNC machines, and automated assembly lines.

The adaptability of cycloid reducers means they can be found anywhere from small laboratory mixers to large industrial furnaces, proving their universal appeal.

Step-by-Step Selection Process

To simplify the selection of a cycloid reducer, engineers can follow a structured five-step process.

Step 1: Calculate Output Torque and Reduction Ratio

Use the torque formula and determine the exact reduction ratio required to achieve the desired output speed.

Step 2: Pre-Select Models Based on Parameters

Match torque and reduction ratio with manufacturer catalog data to shortlist suitable models.

Step 3: Choose Structure and Mounting

Decide whether the reducer will be horizontal, vertical, or flange-mounted, depending on installation conditions.

Step 4: Adjust for Operating Conditions

Factor in load type, safety factor, operating time, and environmental conditions. For example, continuous operation in a dusty environment requires a different model compared to intermittent use in a clean workshop.

Step 5: Verify with Manufacturer’s Data Sheet

Finally, confirm the selected model against the official specifications. Ensure it meets or exceeds torque, speed, and installation requirements.

This systematic process ensures that the selected reducer is reliable, efficient, and cost-effective.

Maintenance Tips for Cycloid Reducers

Proper maintenance ensures that a cycloid reducer delivers peak performance throughout its lifespan. Neglecting maintenance often leads to costly breakdowns.

Lubrication

· Always use the manufacturer-recommended oil type.
· For continuous operation, check oil levels every 500 hours.
· Replace oil regularly to prevent contamination and wear.

Noise and Vibration Monitoring

Excessive noise or vibration often signals misalignment, insufficient lubrication, or gear wear. Early detection can prevent major failures.

Temperature Monitoring

Cycloid reducers should operate within a normal temperature range. Overheating indicates overloading or lubrication failure. Installing a heat sink or cooling fan may be necessary for heavy-duty, continuous applications.

Sealing and Protection

In dusty or wet environments, inspect seals frequently. Damaged seals allow contaminants into the system, leading to rapid wear.

Preventive Servicing

Schedule preventive maintenance at least twice a year, even for intermittent-use machines. Regular inspection extends lifespan and avoids unexpected downtime.

With these best practices, a cycloid reducer can last well over 10 years of service, delivering consistent performance with minimal interruptions.

Conclusion

Selecting the right cycloid reducer is not just a technical decision—it is an investment in reliability, efficiency, and long-term cost savings. By considering parameters such as torque, speed, safety factor, operating conditions, and installation space, you ensure the reducer fits seamlessly into your system.

Cycloid reducers offer high efficiency, compact design, and durability, making them suitable for industries ranging from robotics to metallurgy. With proper selection and regular maintenance, they provide unmatched performance and service life.

In short, understanding how to correctly choose a cycloid reducer ensures your machinery runs smoothly, efficiently, and without costly interruptions.

FAQs

1. What is the lifespan of a cycloid reducer?

With proper lubrication and maintenance, cycloid reducers can last over 10–15 years in industrial applications.

2. Can a cycloid reducer handle shock loads?

Yes. Cycloid reducers are designed to withstand 3–5 times their rated torque in sudden shock load conditions.

3. How do I know if my reducer is overloaded?

Signs include overheating, unusual noise, vibration, and frequent lubrication breakdown. Torque calculations should always be verified before installation.

4. What is the main difference between cycloid and planetary reducers?

Cycloid reducers use rolling contact between cycloid gears and pins, while planetary reducers rely on spur or helical gears. Cycloid designs offer better shock load resistance and compact ratios.

5. How often should I service my cycloid reducer?

Routine inspections every 500 hours of operation and preventive maintenance every 6 months are recommended for optimal performance.
