Advantages and Disadvantages of Cyclo Drives
Views: 0 Author: Site Editor Publish Time: 2026-06-06 Origin: Site
When choosing a speed reducer for industrial machinery, many buyers compare cyclo drives with helical gearboxes, worm gear reducers, and planetary gearboxes. Each type has its own strengths, and the best choice depends on the application, load condition, output speed, torque requirement, installation space, and budget.
Among these options, the cyclo drive, also called a cycloidal reducer or cycloidal gearbox, is a very popular solution for heavy-duty transmission. It is widely used in conveyors, mixers, crushers, pellet mills, packaging machines, textile machines, chemical equipment, and many other industrial systems.
But is a cyclo drive always the best choice?
The answer is no.
Cyclo drives have many advantages, such as high reduction ratio, strong shock load resistance, compact size, and reliable torque transmission. However, they also have some disadvantages, including relatively higher noise, more complex internal structure, and specific requirements for lubrication and installation.
In this article, we will explain the advantages and disadvantages of cyclo drives in a practical way, especially from the perspective of B2B buyers, distributors, machinery manufacturers, and maintenance engineers.

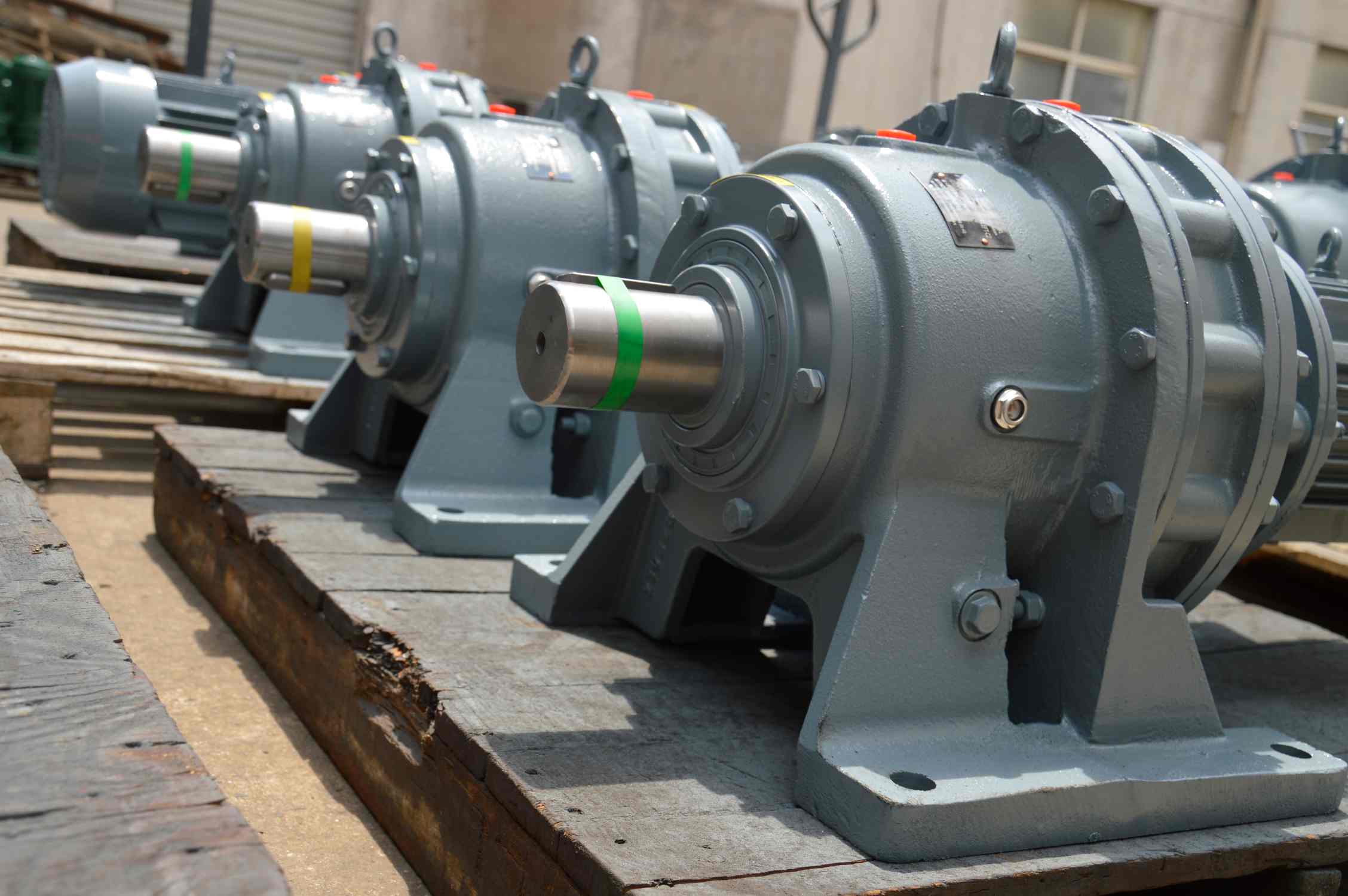

What Is a Cyclo Drive?
A cyclo drive is a type of mechanical speed reducer that uses cycloidal motion to reduce motor speed and increase output torque.
In simple words, it converts the high-speed rotation of an electric motor into low-speed, high-torque output. This makes it suitable for machines that need strong driving force but do not need very high output speed.

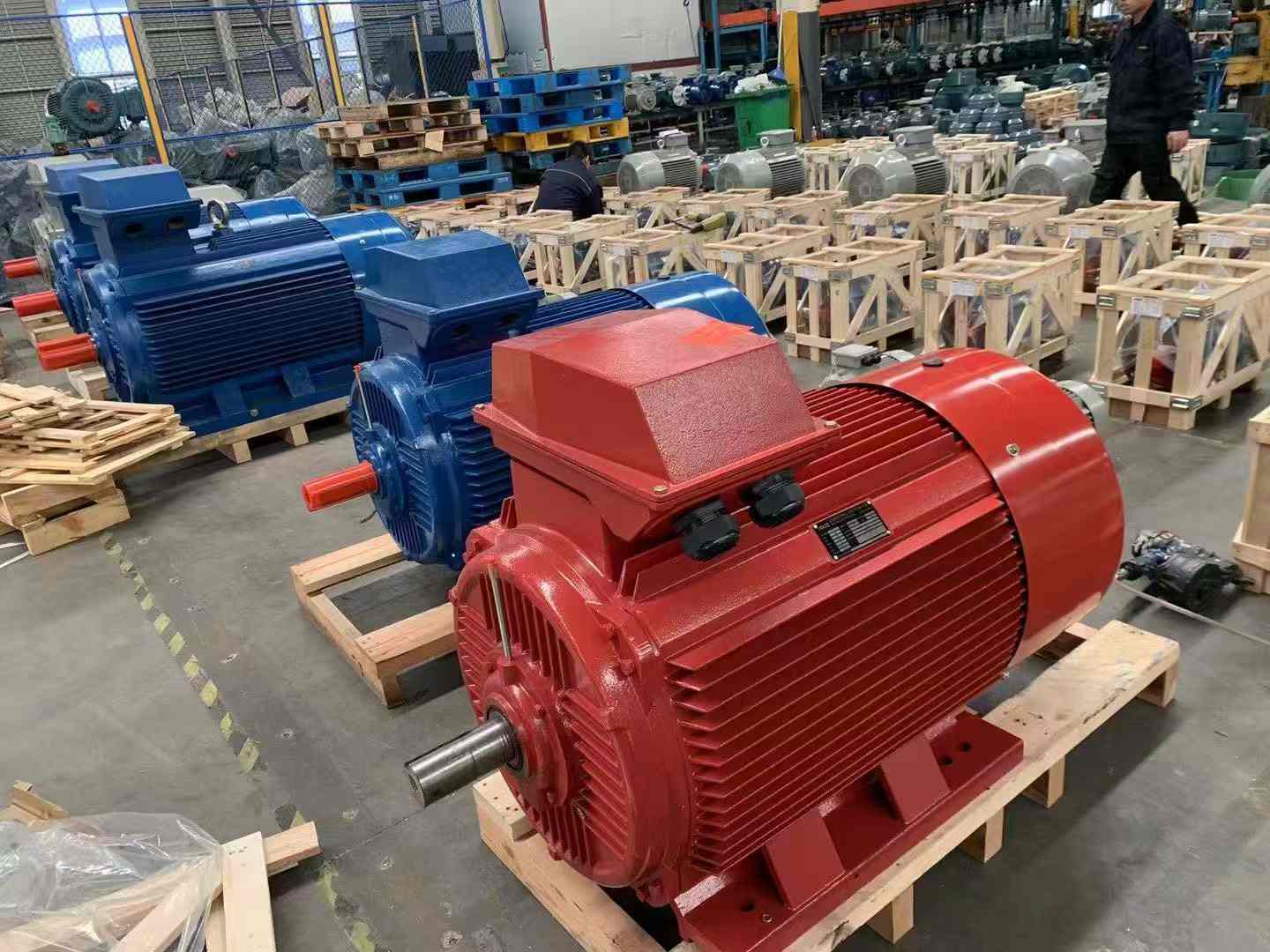

Cyclo drives are commonly matched with three-phase asynchronous motors, brake motors, explosion-proof motors, or variable frequency motors, depending on the working condition.
For example, a conveyor may need stable low-speed rotation. A mixer may need strong torque and shock load resistance. A crusher may need a reducer that can handle sudden load changes. In these cases, a cyclo drive can be a very practical choice.
Basic Working Principle of a Cycloidal Reducer
The working principle of a cycloidal reducer is different from a traditional gear reducer.
A cyclo drive normally uses an eccentric bearing to drive a cycloidal disc. The cycloidal disc moves in a special rolling motion against fixed pins. This motion reduces the input speed and transfers torque to the output shaft.
Because multiple teeth or pins are engaged at the same time, the load is distributed over a larger contact area. This is one of the reasons why cyclo drives can handle shock loads better than many ordinary gear reducers.
The structure may look more complicated than a worm gearbox or helical gearbox, but it provides strong torque transmission in a compact design.

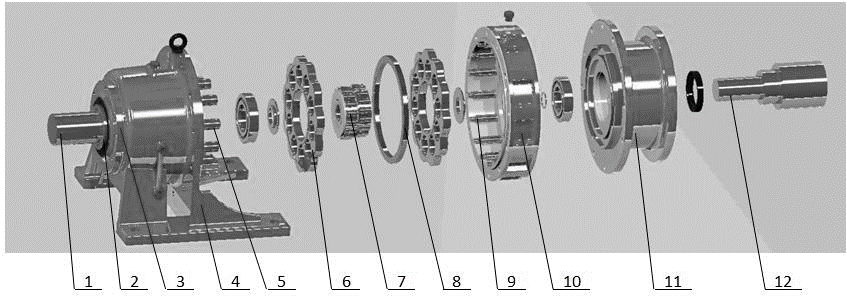

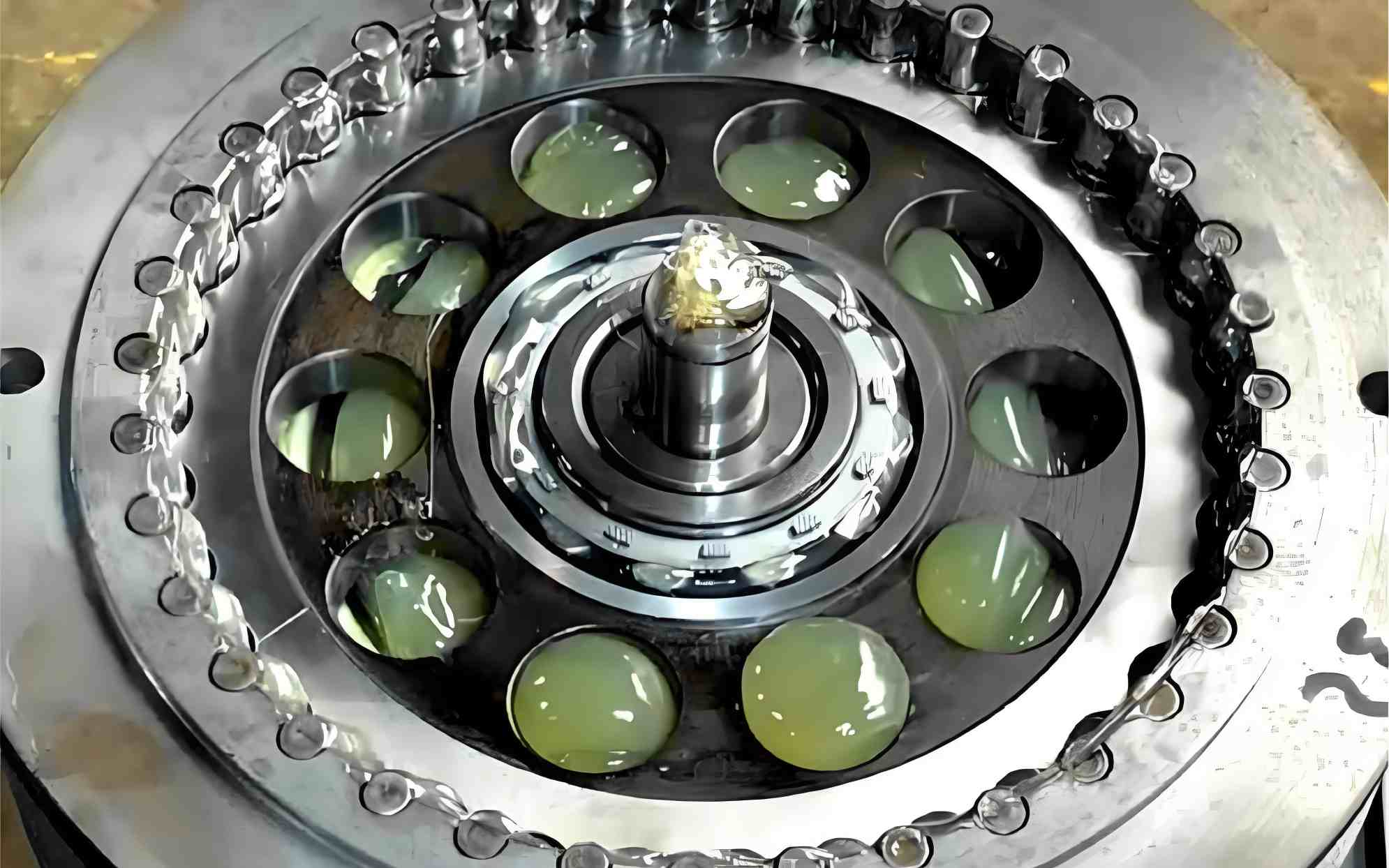

Main Components of a Cyclo Drive
A typical cyclo drive includes several important parts:
Input shaft or motor connection
This connects the electric motor to the reducer. In many applications, the motor and reducer are directly assembled as a cycloidal gear motor.
Eccentric bearing
This part creates the cycloidal motion inside the reducer.

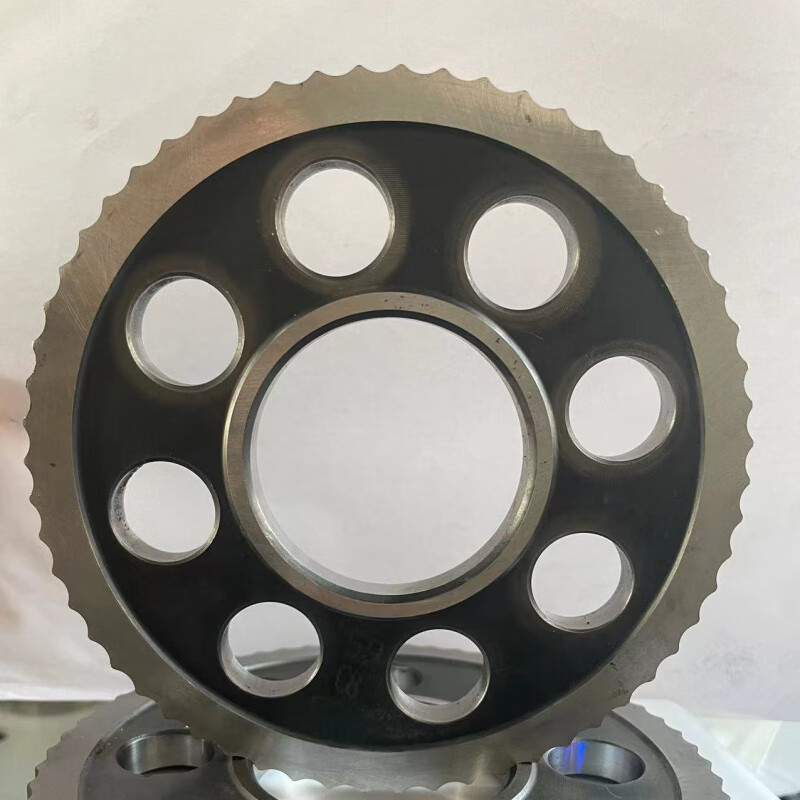

Cycloidal disc
The cycloidal disc is the core transmission component. It moves in a special curve and helps reduce speed.
Pin housing
The pins guide the cycloidal disc and transfer load during operation.
Output mechanism
This part transfers the reduced speed and increased torque to the driven machine.
Housing and lubrication system
The housing protects the internal parts, while proper lubrication reduces friction and extends service life.
Why Cyclo Drives Are Widely Used in Industrial Applications
Cyclo drives are popular because they solve a very common industrial problem: how to get high torque from a compact reducer.
Many industrial machines cannot use the motor speed directly. A standard 4-pole motor may run around 1450 rpm at 50Hz or around 1750 rpm at 60Hz. However, many machines only need output speeds such as 20 rpm, 40 rpm, 60 rpm, or 100 rpm.
A reducer is needed to lower the speed and increase torque.
Cyclo drives are especially useful when the machine requires:
This is why cycloidal reducers are often seen in conveyors, mixers, agitators, lifting equipment, food machinery, environmental equipment, and material handling systems.
High Reduction Ratio in a Compact Size
One of the biggest reasons buyers choose cyclo drives is that they can achieve a high reduction ratio in a relatively compact body.
For example, if a machine needs a large speed reduction, using a traditional gearbox may require a bigger housing or multiple stages. A cyclo drive can often provide a high ratio with a smaller structure.
This is very useful when the installation space is limited.
For machinery manufacturers, compact design can make the whole machine smaller and easier to install. For distributors, it also means easier stock planning because one reducer series can cover many speed requirements.
Strong Shock Load Resistance
Cyclo drives are well known for their shock load resistance.
In many real industrial applications, the load is not always stable. A conveyor may suddenly receive heavy material. A crusher may experience impact load. A mixer may face changing material density. A pellet mill may have temporary overload during feeding.
In these situations, a reducer must handle sudden torque changes.
Because the cyclo drive has multiple contact points during transmission, it can distribute the load more effectively. This helps reduce damage caused by impact and overload.
For heavy-duty applications, this is a very important advantage.
Stable Performance in Heavy-Duty Conditions
Cyclo drives are often selected for machines that work long hours.
In factories, many machines run 8 hours, 16 hours, or even 24 hours per day. A reducer used in these conditions must have stable performance, proper lubrication, and reliable internal parts.
A good-quality cyclo drive can provide long service life if it is selected correctly and maintained properly.
For B2B buyers, this means fewer maintenance problems, lower downtime, and better long-term value.
Main Advantages of Cyclo Drives
Cyclo drives have several clear advantages. Let’s look at them one by one.
High Torque Output
The first major advantage of a cyclo drive is high torque output.
When motor speed is reduced, torque increases. Cyclo drives are designed to transfer this torque efficiently and reliably. They are suitable for machines that need strong force at low speed.
For example, a 2.2kW motor with a proper cycloidal reducer can drive a conveyor, mixer, or feeding machine with much higher torque than the motor alone.
For customers who need strong torque but also want a compact design, a cyclo drive is often a good option.
Compact Structure
Cyclo drives offer a compact structure compared with some traditional gear reducers.
This is useful for machines where space is limited. In many production lines, the installation space for a motor and reducer is fixed. If the reducer is too large, it may not fit the machine frame.
A compact reducer can help simplify machine design.
For OEM machinery manufacturers, this is especially important. A smaller drive system can make the whole machine easier to ship, install, and maintain.
Excellent Overload Capacity
Cyclo drives usually have good overload capacity.
This does not mean the reducer can be overloaded all the time. Any reducer will fail if it is used beyond its design limit for too long. However, compared with many standard reducers, cyclo drives can better handle short-time overload and impact.
This makes them suitable for applications where the load is unstable.
For example:
• A crusher may face sudden hard material. • A mixer may start with heavy material inside. • A conveyor may receive uneven loading. • A pellet mill may have fluctuating feeding pressure.
In these situations, overload capacity is very valuable.
When selecting a cyclo drive, buyers should still check the service factor carefully. For heavy shock load or long working hours, it is better to choose a larger model with a higher safety margin.
Smooth and Reliable Transmission
Cyclo drives provide smooth and stable transmission when properly manufactured and installed.
The cycloidal motion reduces speed in a controlled way. With correct lubrication and quality components, the reducer can operate reliably for a long time.
For many industrial users, reliability is more important than the lowest purchase price.
A cheap reducer may save money at the beginning, but if it causes machine downtime, production loss, or repeated maintenance, the total cost can become much higher.
That is why many B2B buyers prefer to choose a stable factory supplier instead of only comparing price.
Long Service Life
A cyclo drive can have a long service life if three conditions are met:
• The model is selected correctly. • The reducer is manufactured with good materials and accuracy. • The user follows correct lubrication and maintenance requirements.
Cyclo drives are not maintenance-free, but they are durable when used properly.
For continuous operation, lubrication is especially important. Oil level, oil quality, and replacement intervals should follow the supplier’s instructions.
In many cases, reducer failure is not caused by the reducer design itself, but by wrong selection, insufficient lubrication, overload operation, or poor installation alignment.
Suitable for Frequent Start-Stop Operation
Some machines need frequent start and stop. This creates extra stress on the reducer.
Cyclo drives perform well in many start-stop applications because of their strong structure and good shock resistance.
Typical examples include:
• Packaging machinery • Material handling systems • Intermittent conveyors • Automatic production lines • Hoist auxiliary systems • Feeding machines
If the machine starts under load, the reducer must handle higher starting torque. In this case, choosing the correct motor power, reducer ratio, and service factor is very important.
Wide Application Range
Cyclo drives can be used in many industries, including:
This wide application range makes cycloidal reducers attractive for distributors and trading companies. They can serve many customer groups with one product category.
For factories and OEMs, cyclo drives are also flexible because they can be combined with different motors, mounting types, ratios, and output forms.
Main Disadvantages of Cyclo Drives
Although cyclo drives have many advantages, they are not perfect. Buyers should also understand their limitations before making a decision.
Higher Noise Compared with Some Gearboxes
One common disadvantage of cyclo drives is that they may produce more noise than high-quality helical gearboxes.
Helical gearboxes usually have very smooth tooth engagement, so they can run quietly. Cyclo drives have a different internal motion and structure, so the noise level can be higher, especially at higher input speeds or under certain load conditions.
For most industrial applications, this noise is acceptable. However, for applications that require very low noise, such as some indoor equipment or precision machines, a helical gearbox may be a better choice.
If noise is a key concern, buyers should discuss this with the supplier before ordering.
More Complex Internal Structure
Compared with a simple worm gearbox, a cyclo drive has a more complex internal structure.
This can bring two challenges.
First, manufacturing accuracy is important. Poor machining quality can lead to vibration, noise, heat, and shorter service life.
Second, repair may require more technical knowledge. If the reducer needs internal maintenance, the technician should understand the cycloidal structure.
For distributors, this means supplier quality is very important. A low-quality cyclo drive may look similar from the outside, but the internal accuracy and material quality can be very different.
Not Always the Best Choice for High-Speed Output
Cyclo drives are mainly used for speed reduction and torque increase.
If the application requires relatively high output speed, a cyclo drive may not always be the best choice. In some cases, a helical gearbox or direct motor drive may be more suitable.
For example, if the required output speed is close to motor speed, there is no need for a high-ratio reducer. Using a cyclo drive in this situation may increase cost and complexity.
The reducer should always be selected according to the actual speed and torque requirement.
Maintenance Requires Correct Lubrication
Cyclo drives need proper lubrication.
If the oil level is too low, internal parts may wear quickly. If the oil quality is poor, friction and heat may increase. If the reducer works in a high-temperature or dusty environment, lubrication maintenance becomes even more important.
For long service life, users should check:
• Oil level • Oil type • Oil replacement interval • Operating temperature • Seal condition • Possible leakage
For B2B buyers, it is also important to ask the supplier for maintenance instructions, especially when the reducer will be used in heavy-duty or continuous operation.
Installation Accuracy Matters
Like other industrial reducers, cyclo drives need correct installation.
Poor alignment between the reducer and driven equipment can cause vibration, bearing load, oil leakage, and premature failure.
Common installation problems include:
• Misaligned shaft connection • Loose foundation bolts • Incorrect coupling installation • Excessive radial load • Wrong mounting position • Insufficient ventilation space
Before operation, the user should check whether the reducer is installed firmly and aligned correctly.
For machines with high radial or axial load, the buyer should inform the supplier in advance. The supplier can help check whether the selected reducer shaft and bearing structure are suitable.
Cyclo Drive vs Other Gear Reducers
To choose the right reducer, it is useful to compare cyclo drives with other common gearbox types.

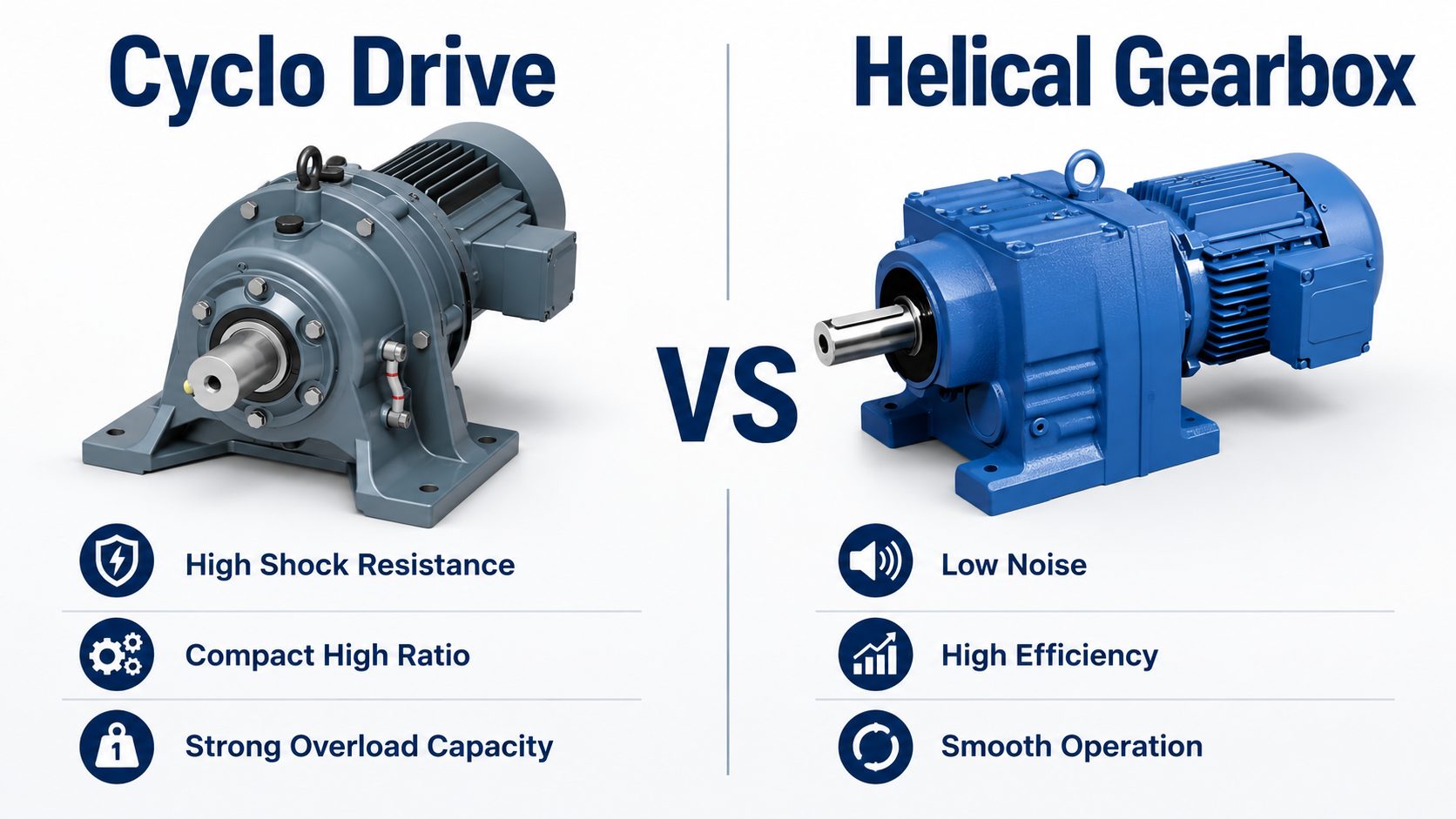

Cyclo Drive vs Helical Gearbox
A helical gearbox is known for high efficiency, smooth running, and low noise.
Compared with a cyclo drive, a helical gearbox is usually quieter and more suitable for applications that require smooth continuous transmission. It is widely used in conveyors, mixers, packaging machines, and general industrial equipment.
However, a cyclo drive may have better shock load resistance and can provide high reduction ratio in a compact structure.
Choose a cyclo drive when:
• The load has impact or shock. • The machine needs compact high-ratio reduction. • The application requires strong overload resistance. • The working condition is heavy-duty.
Choose a helical gearbox when:
• Low noise is very important. • High efficiency is required. • The machine needs smooth continuous operation. • The installation space allows a larger gearbox.
In many cases, both options can work. The final choice depends on the load condition, noise requirement, speed, torque, and budget.

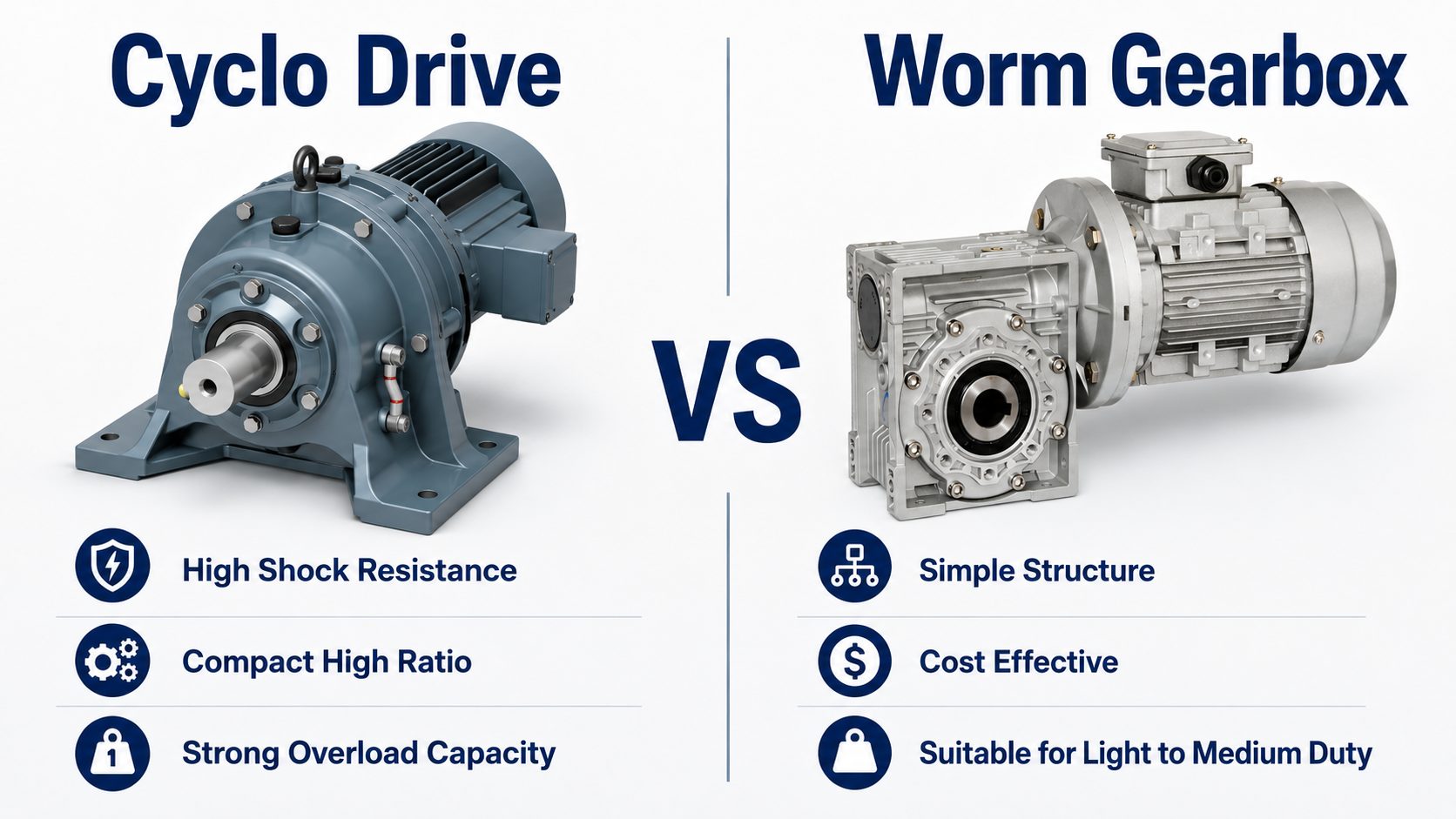

Cyclo Drive vs Worm Gearbox
A worm gearbox is simple, compact, and cost-effective. It is often used for light and medium-duty applications.
Compared with a worm gearbox, a cyclo drive usually has better overload capacity and longer service life under heavy load. Worm gearboxes may have lower efficiency, especially at high reduction ratios, because of sliding friction between the worm and worm wheel.
Choose a worm gearbox when:
• The load is light or medium. • The cost needs to be low. • The application is simple. • The required torque is not very high.
Choose a cyclo drive when:
• The load is heavier. • Shock load is common. • The machine works long hours. • Higher durability is required.
For many heavy-duty applications, cyclo drives are more reliable than worm gearboxes.

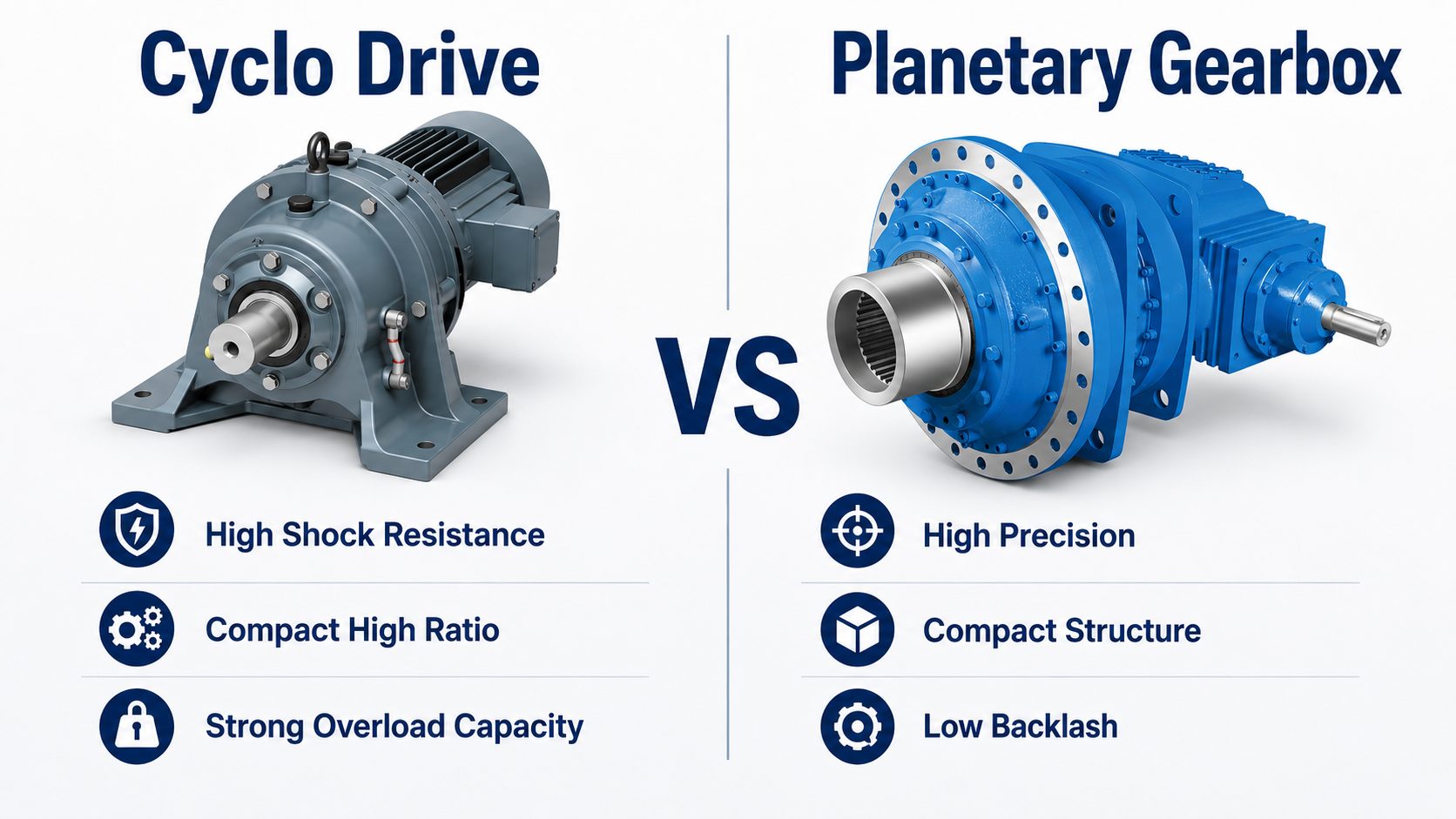

Cyclo Drive vs Planetary Gearbox
Planetary gearboxes are compact, efficient, and precise. They are widely used in servo systems, automation equipment, robotics, and high-precision machinery.
Compared with a planetary gearbox, a cyclo drive is often more suitable for general industrial heavy-duty applications where shock resistance and cost-effectiveness are more important than high precision.
Choose a planetary gearbox when:
• High precision is needed. • Low backlash is required. • The system uses servo motors. • The application is automation or robotics.
Choose a cyclo drive when:
• The machine needs strong torque. • The load has impact. • The budget is more practical. • The application is industrial power transmission.
Both reducers are strong, but their best applications are different.
Best Applications for Cyclo Drives
Cyclo drives are used in many industrial machines. Below are some common applications.

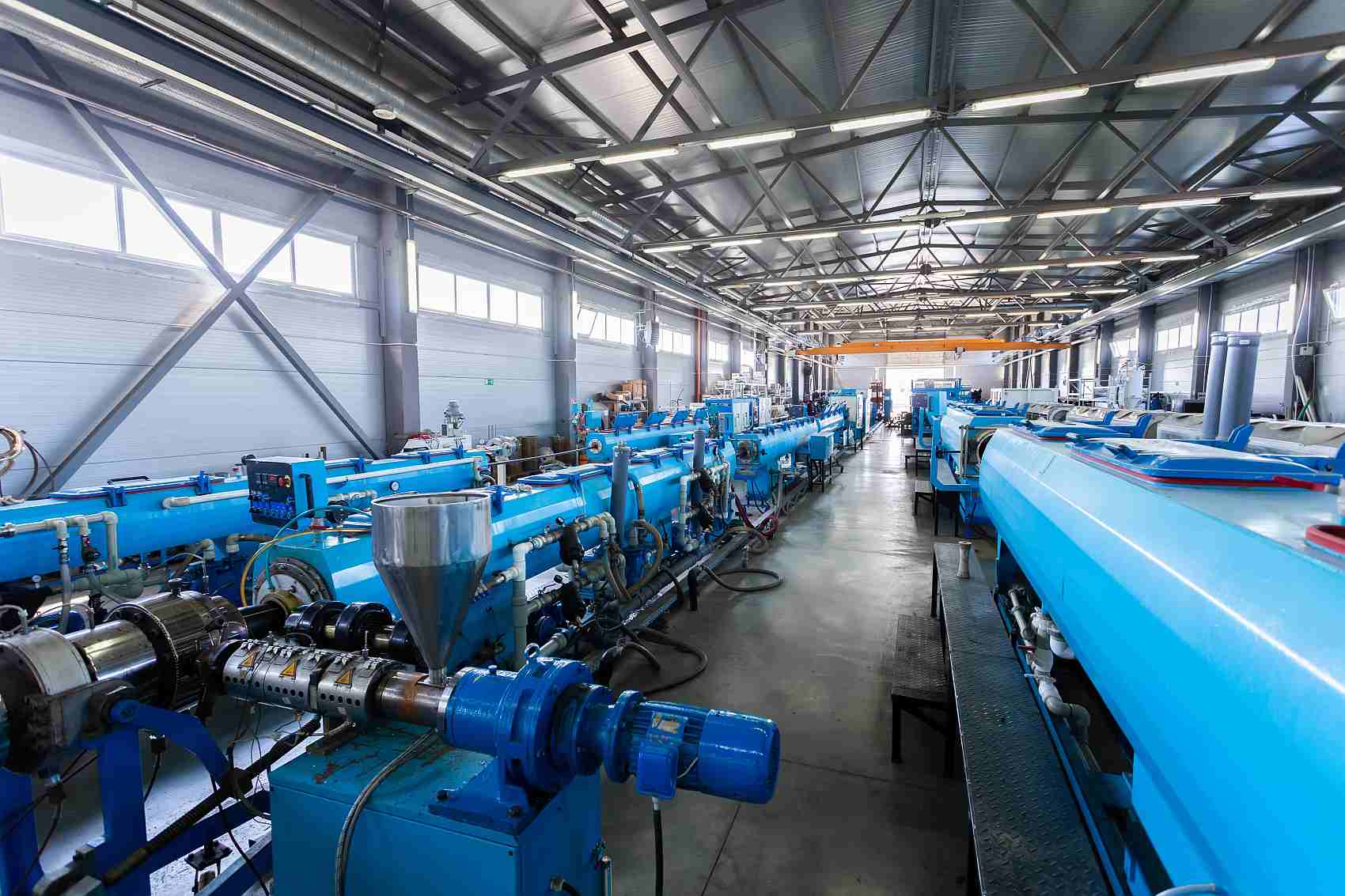

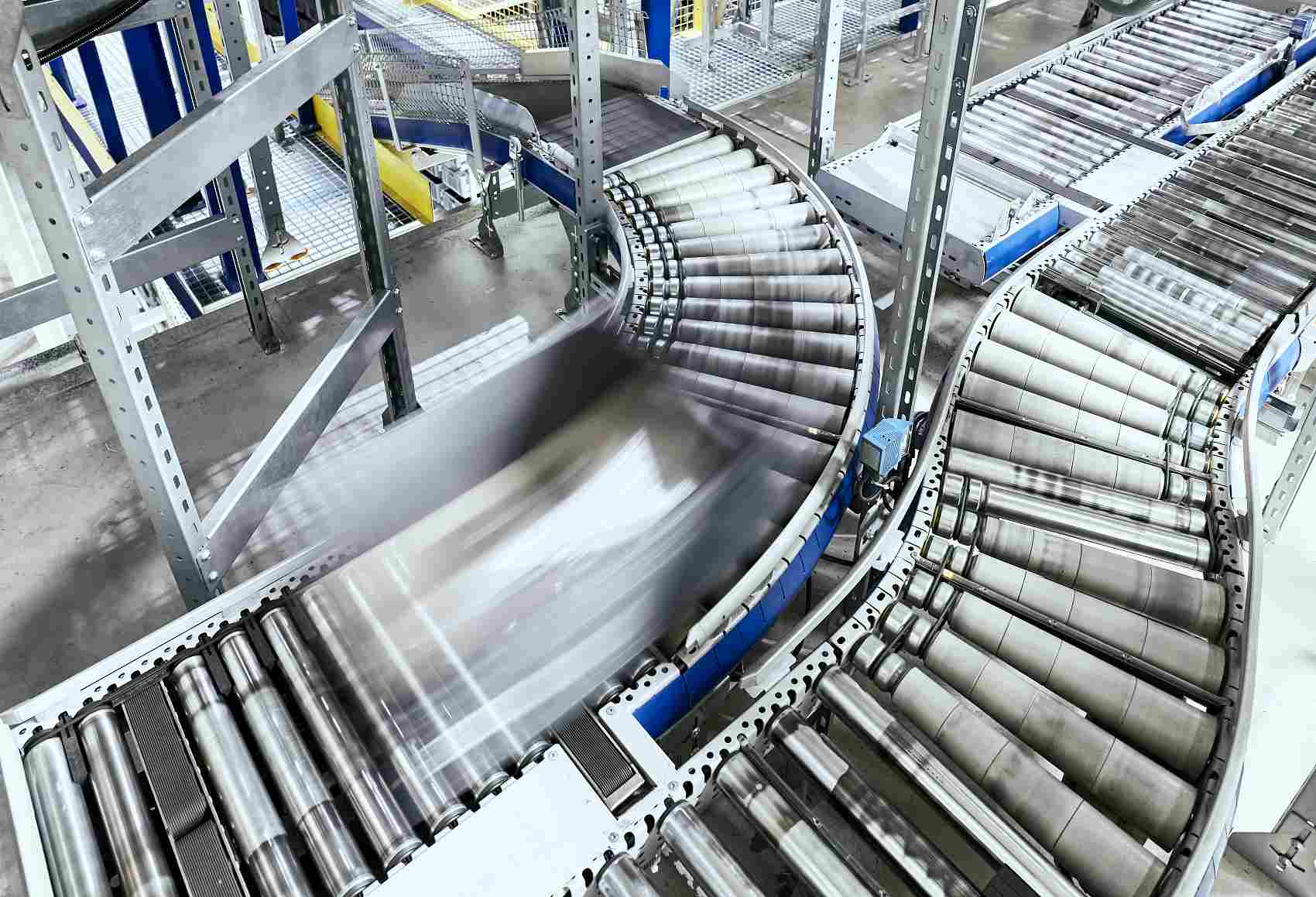

Conveyors
Conveyors need stable speed, reliable torque, and long working life.
Cyclo drives are suitable for belt conveyors, chain conveyors, screw conveyors, and material handling systems. They can handle load changes and provide stable output speed.
For conveyor applications, buyers should confirm:
• Material weight • Conveyor speed • Working hours per day • Starting frequency • Installation direction • Required output torque
A properly selected cyclo drive can help reduce downtime and improve production efficiency.

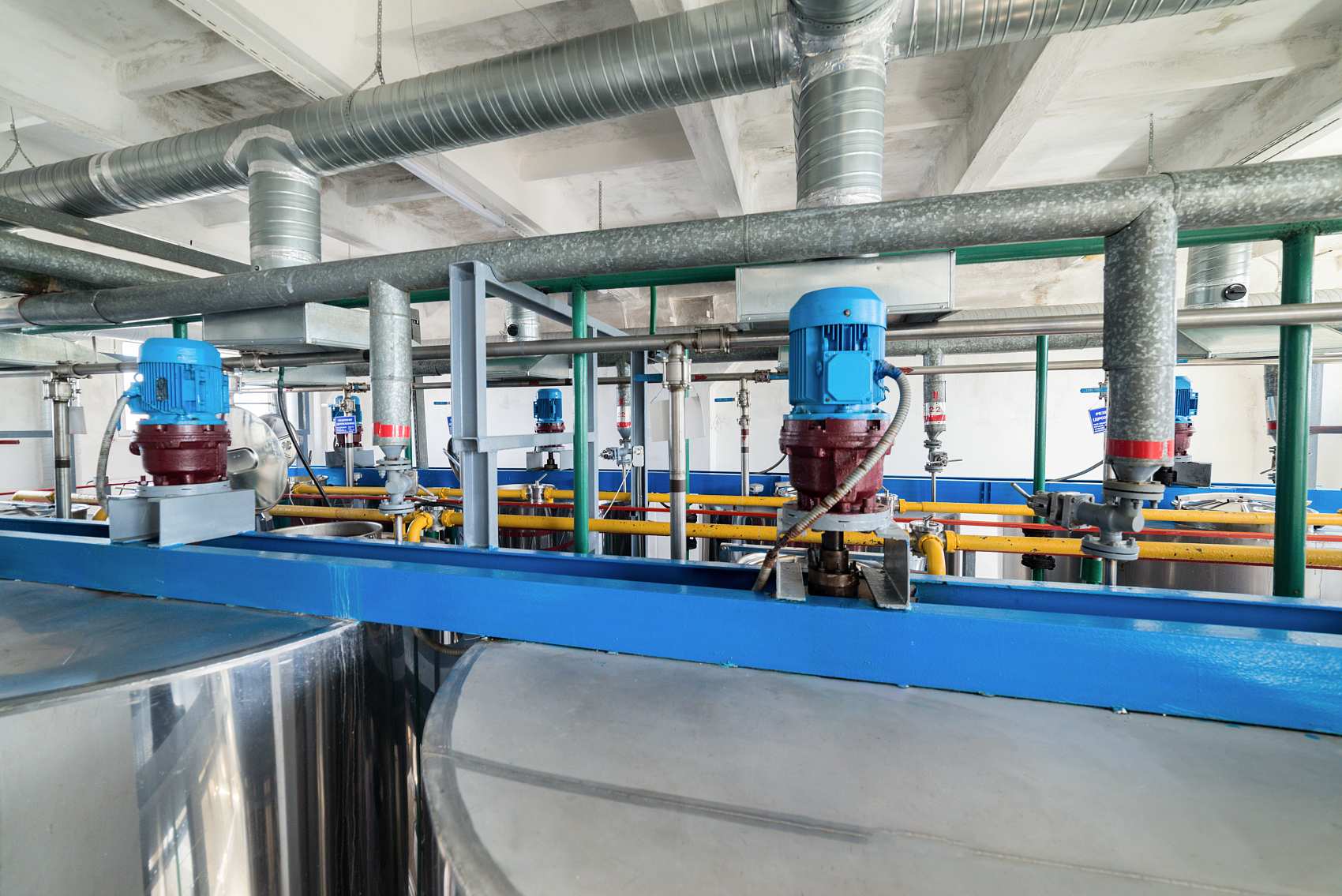

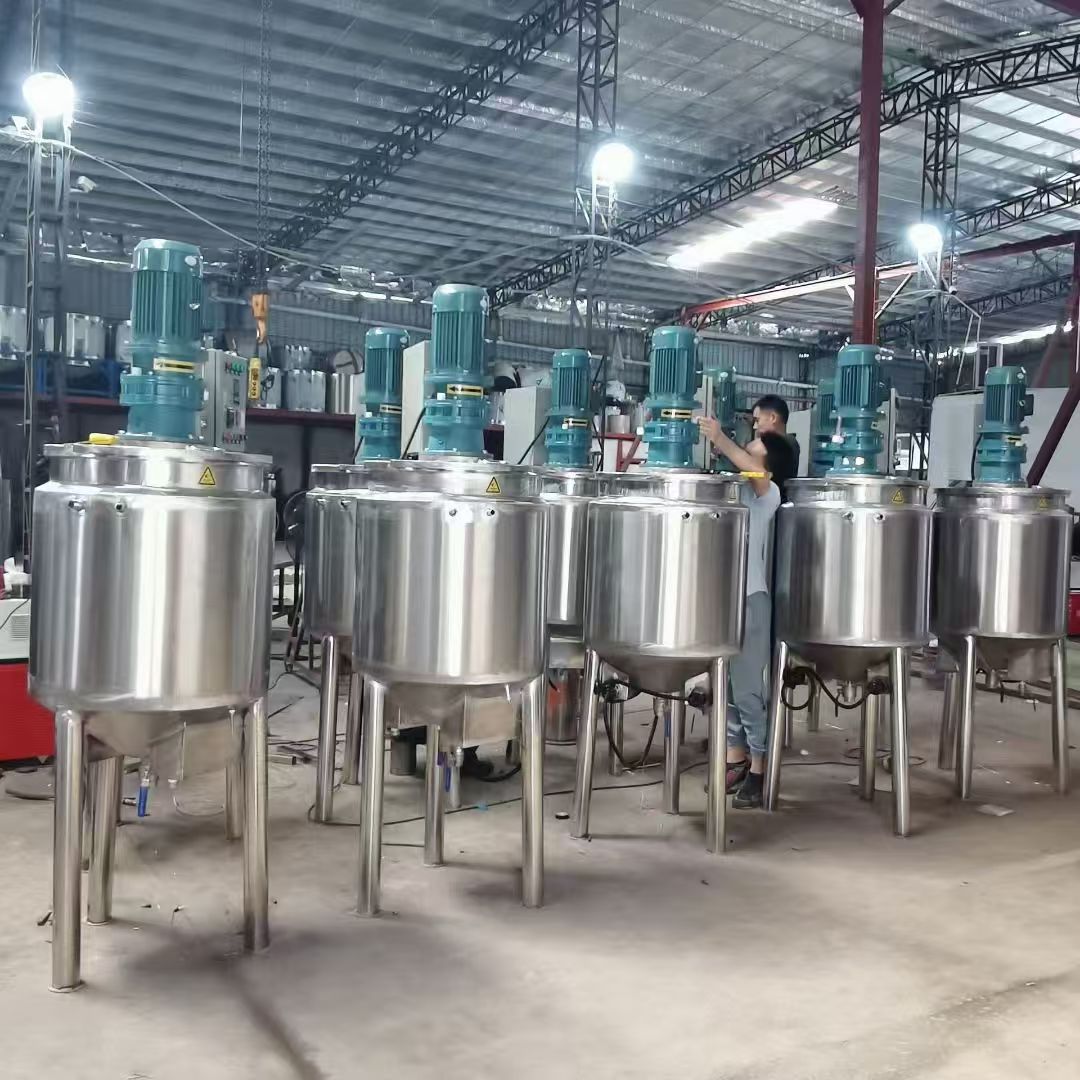

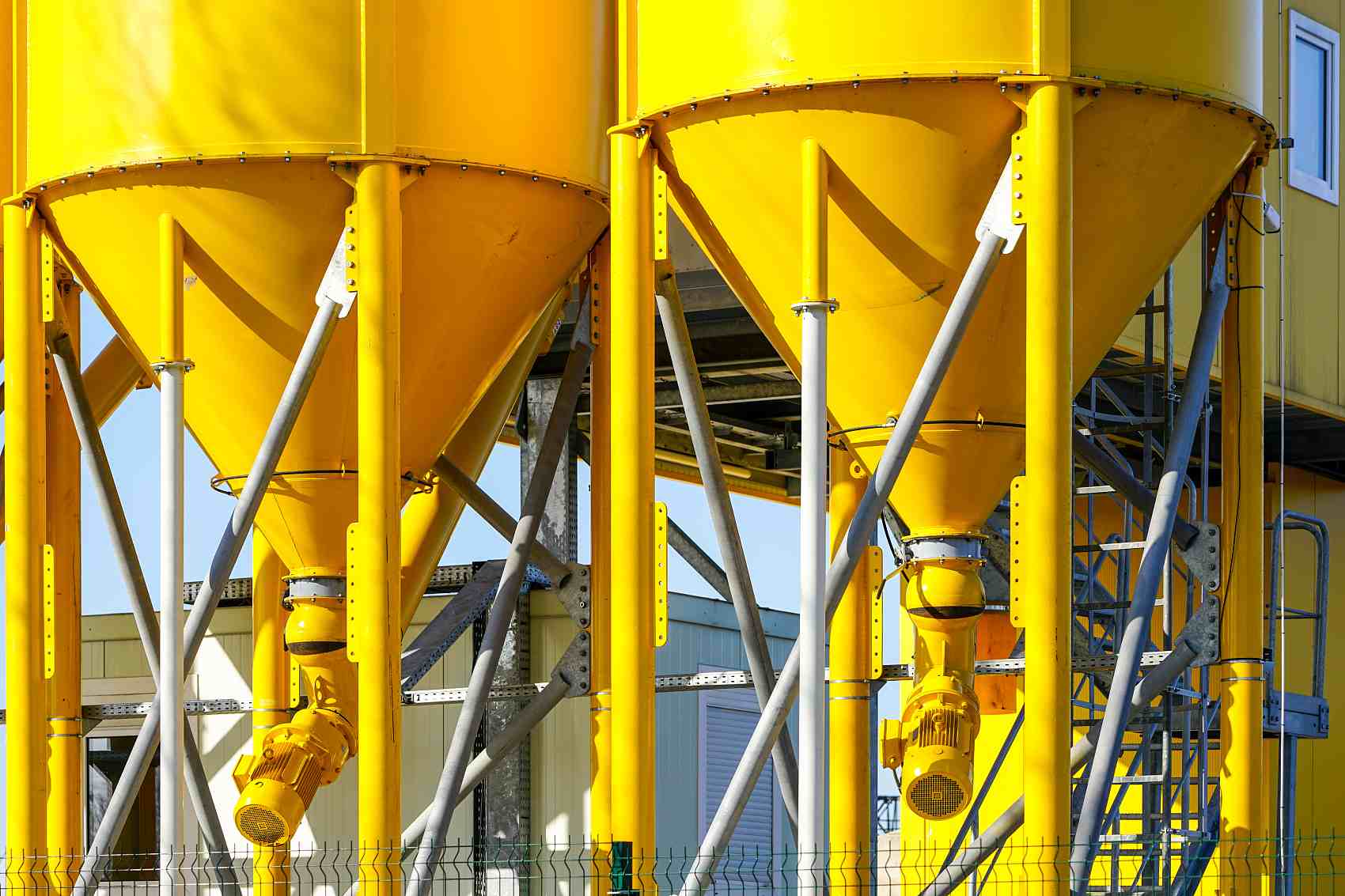

Mixers and Agitators
Mixers and agitators often face variable loads. When material density changes, the reducer must handle different torque demands.
Cyclo drives are suitable for many mixing applications because of their strong torque and shock resistance.
For heavy mixing applications, service factor is very important. If the material is thick or the mixer starts under load, the reducer should be selected with enough safety margin.

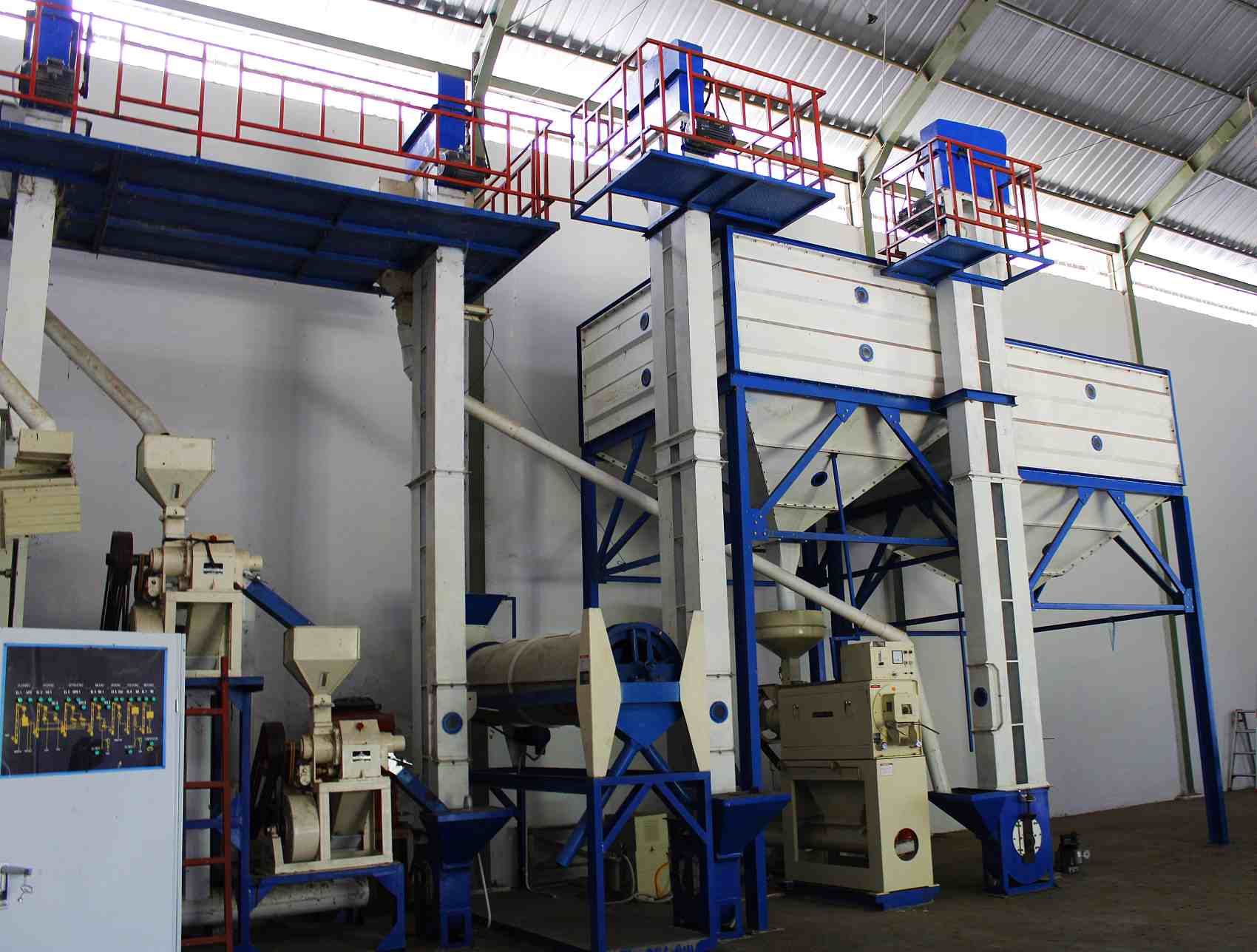

Crushers and Pellet Mills
Crushers and pellet mills have heavy impact loads. These applications require strong and durable transmission systems.
Cyclo drives can be used in some feeding, conveying, and auxiliary drive systems for crushers and pellet mills. They are especially useful where shock load and torque fluctuation exist.
However, for very heavy crushing equipment, buyers should provide full working data to the supplier, including torque, speed, material type, and working hours. This helps avoid undersizing the reducer.
Packaging and Textile Machinery
Packaging and textile machines often require frequent start-stop operation and stable speed.
Cyclo drives can provide reliable performance in these applications. They are suitable for machines where compact size and durability are important.
For packaging machines, speed accuracy and smooth operation should also be considered. If very low noise or high precision is required, a helical gearbox or servo planetary gearbox may be considered.
How to Choose the Right Cyclo Drive
Selecting the right cyclo drive is very important. A wrong model may cause overheating, oil leakage, abnormal noise, broken bearings, or short service life.
Here are the key points buyers should confirm.
Confirm Power and Output Speed
The first step is to confirm the motor power and required output speed.
For example:
• Motor power: 2.2kW • Motor speed: 1450 rpm • Required output speed: around 50 rpm
Then the required reduction ratio is about 1450 ÷ 50 = 29.
Based on the required ratio and torque, the supplier can select the suitable cycloidal reducer model.
If the buyer only knows the machine speed but not the reducer ratio, the supplier can help calculate it.
Check Required Torque and Service Factor
Torque is one of the most important selection factors.
The reducer must provide enough output torque for the machine. At the same time, the service factor should match the working condition.
For light-duty applications, a standard model may be enough. For heavy-duty applications, it is safer to choose a larger reducer.
Important working conditions include:
• Load type • Shock level • Working hours per day • Start-stop frequency • Ambient temperature • Dust or moisture • Installation position
For example, a conveyor with stable load is different from a crusher with impact load. Even if the motor power is the same, the reducer selection may be different.

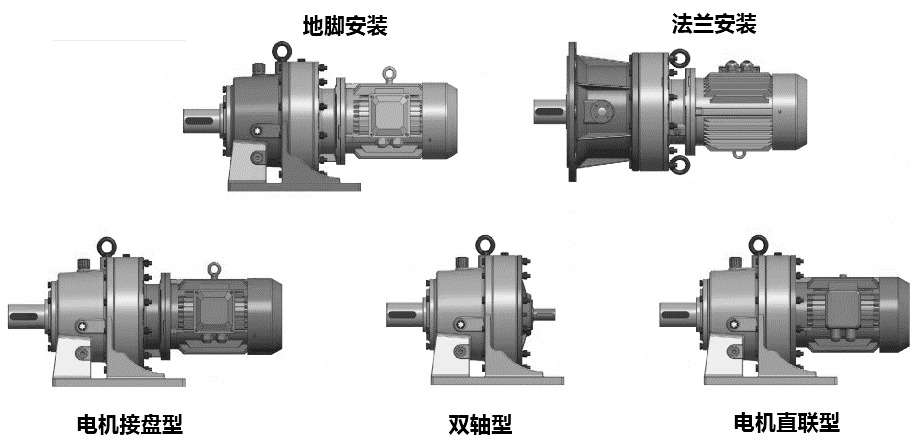

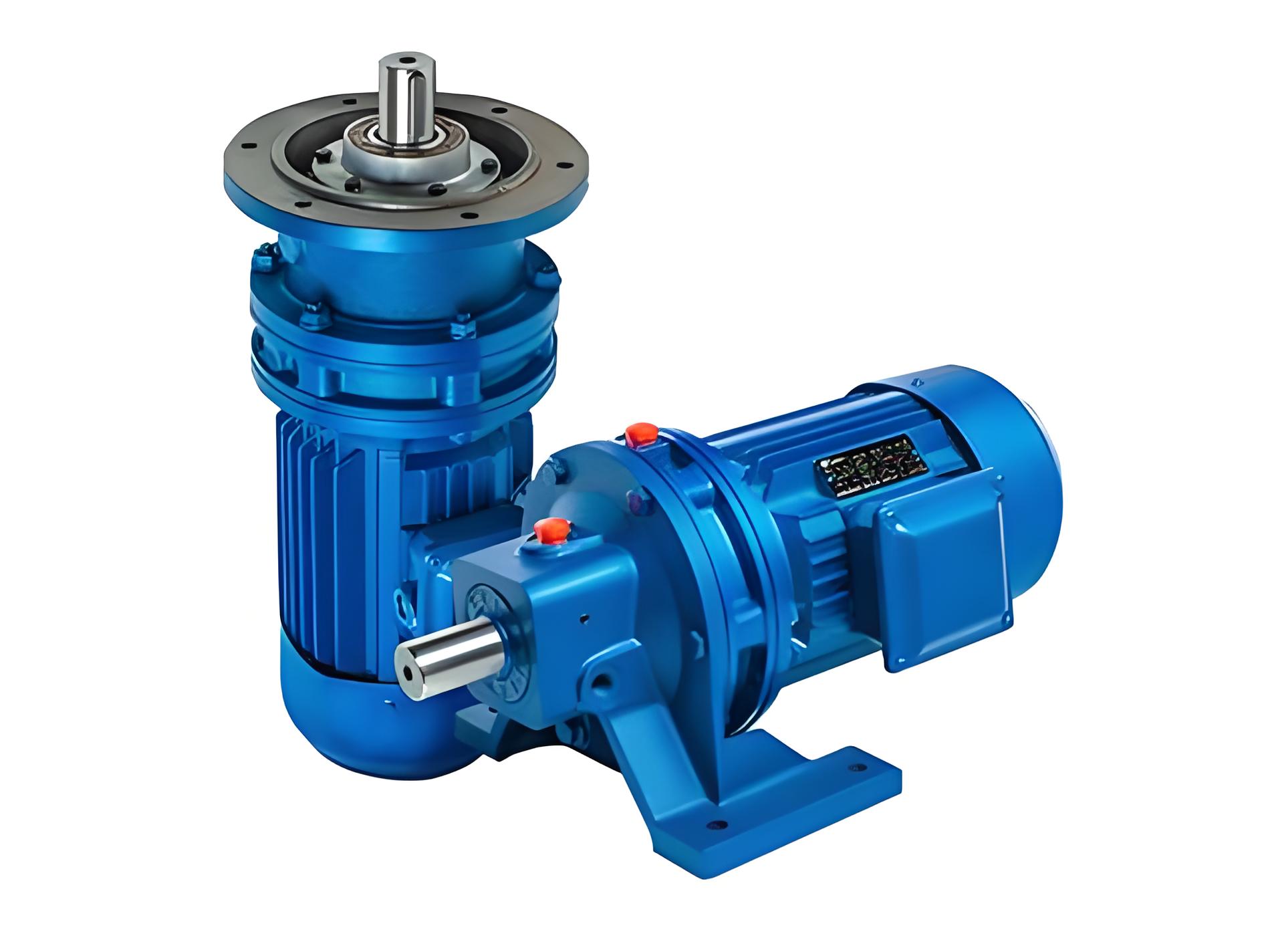

Choose the Right Mounting Type
Cyclo drives can be supplied with different mounting types.
Common options include:

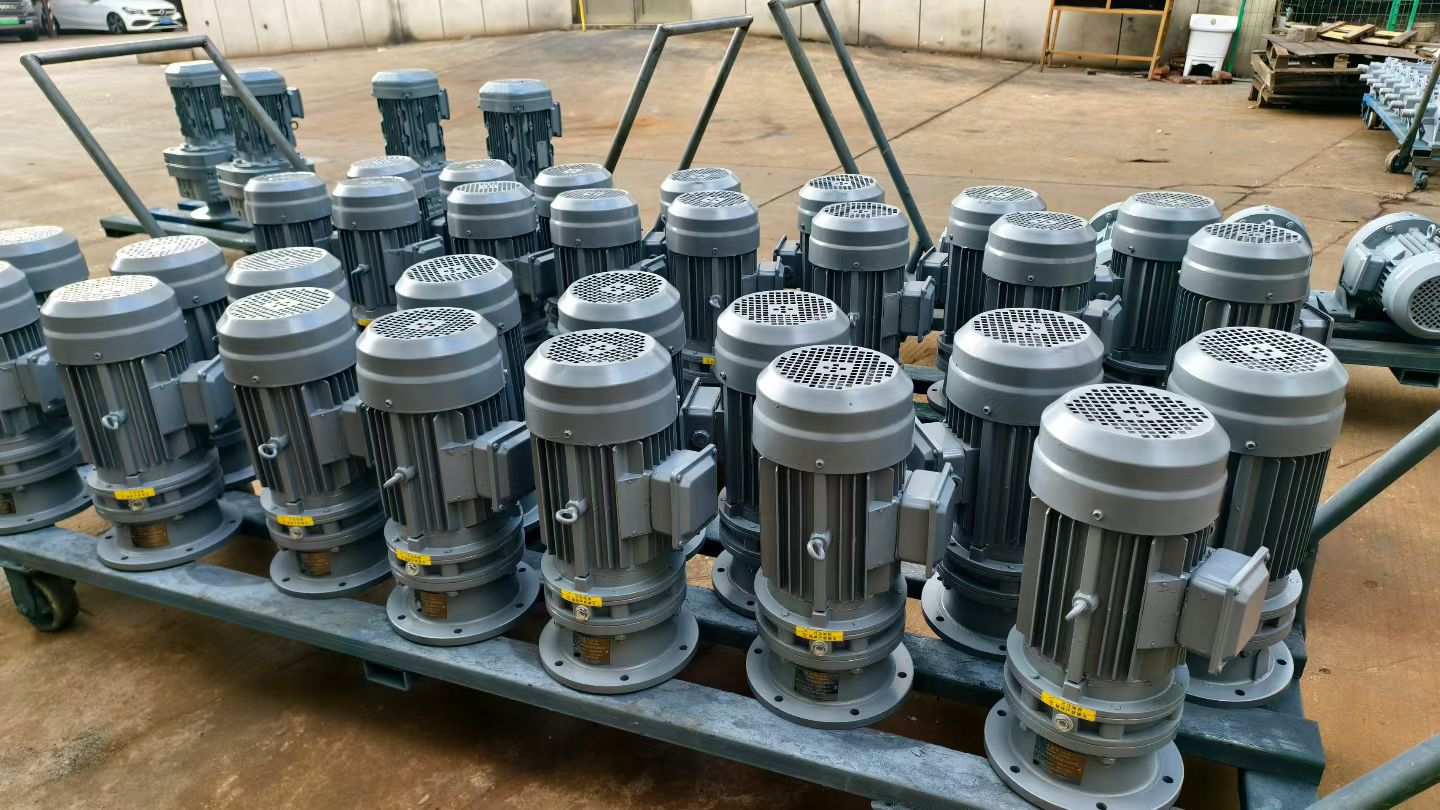

• Foot mounted • Flange mounted • Vertical mounted • Horizontal mounted • Input shaft type • Motor direct-coupled type
The mounting type should match the machine design.
Before ordering, buyers should confirm installation dimensions, shaft size, output direction, and available space. If replacing an old reducer, it is better to provide photos, nameplate, and drawings.
This helps the supplier check whether the new reducer can fit the existing machine.
Match the Correct Motor
A cyclo drive is often used together with an electric motor. The motor must match the reducer and the application.
For example, if the application uses a VFD, a variable frequency motor with an independent cooling fan may be recommended. If the machine needs fast stopping or holding, a brake motor may be needed. If the working area has explosive gas or dust, an explosion-proof motor may be required.
Voltage and frequency should also be confirmed, such as 380V 50Hz, 400V 50Hz, 220V 60Hz, or 460V 60Hz.
Why Choose Victory Cyclo Drives
For B2B buyers, choosing the right supplier is as important as choosing the right reducer.
Victory supplies electric motors and gear reducers for international industrial customers, including distributors, traders, OEM machinery manufacturers, and end users.
Our main products include three-phase asynchronous motors, single-phase motors, cycloidal reducers, helical gear motors, worm gear reducers, brake motors, and customized motor-reducer solutions.

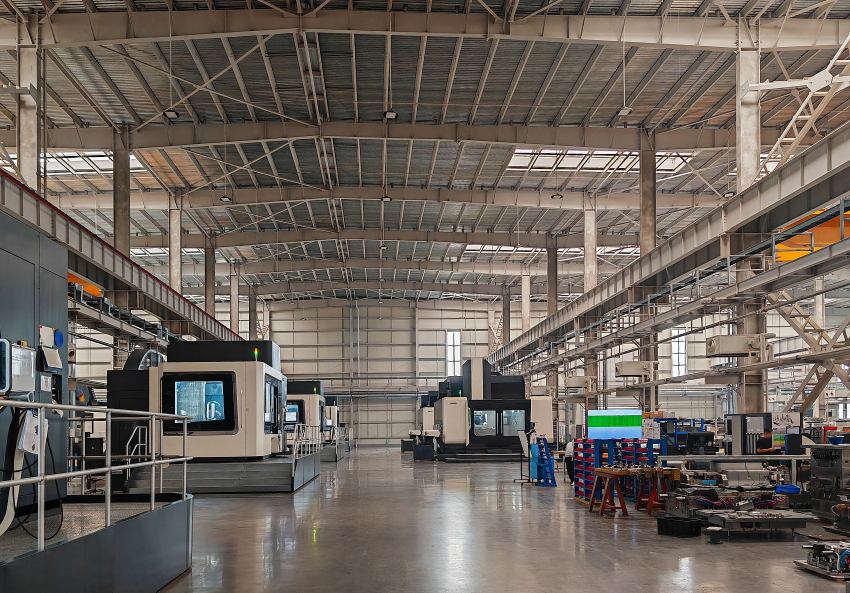

Direct Factory Supply
Victory offers direct factory supply for cycloidal reducers and gear motors.
This helps customers get competitive pricing, stable delivery, and direct technical communication. For distributors and machinery manufacturers, direct factory cooperation can reduce purchasing cost and improve response speed.
Instead of only selling standard models, we help customers confirm technical parameters and select a suitable solution according to the real application.
Custom Motor and Reducer Solutions
Many industrial projects are not completely standard.
Customers may need special voltage, frequency, shaft size, flange size, brake, VFD motor, terminal box position, mounting direction, or customized nameplate.
Victory can provide flexible solutions according to customer requirements.
Common customization options include:
• Voltage and frequency customization • Motor power matching • Brake motor matching • VFD motor matching • Special shaft or flange • Foot or flange mounting • Customer logo and nameplate • Technical drawings before production
This is especially helpful for OEM customers and replacement projects.

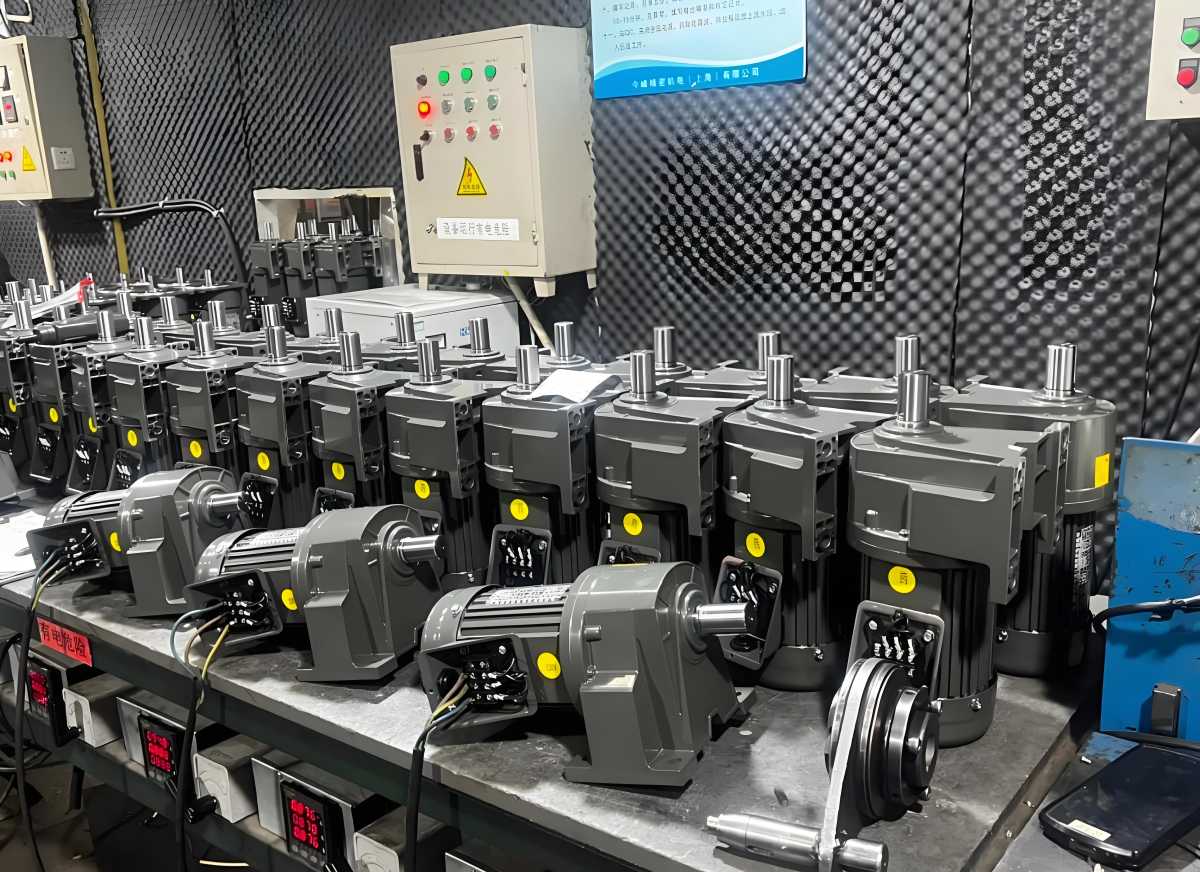

Stable Quality for B2B Buyers
For B2B buyers, stable quality matters more than one-time low price.
A reducer failure may stop the whole production line. This can create much higher cost than the price difference between two suppliers.
Victory focuses on practical industrial quality, reliable materials, and stable production. We can also support customers with product photos, drawings, technical data, and export documents.
For long-term distributors, we can help build a product line with motors, reducers, and gear motors together.
Conclusion
Cyclo drives are strong, compact, and reliable speed reducers for many industrial applications. Their main advantages include high torque output, compact design, good overload capacity, strong shock load resistance, and long service life.
However, cyclo drives also have some disadvantages. They may produce more noise than helical gearboxes, have a more complex internal structure, and require proper lubrication and installation.
In general, a cyclo drive is a good choice when the application requires high torque, compact size, shock load resistance, and stable heavy-duty operation. It is especially suitable for conveyors, mixers, agitators, crushers, pellet mills, packaging machines, textile machines, and general industrial equipment.
The key is not simply choosing the cheapest reducer. The key is choosing the right model for the actual working condition.
If you need a cyclo drive or cycloidal gear motor for your machine, Victory can help you check the motor power, output speed, torque, service factor, mounting type, and installation dimensions. With the right selection, a cyclo drive can provide reliable performance and long-term value for your equipment.
FAQ About Cyclo Drives
What is the main advantage of a cyclo drive?
The main advantage of a cyclo drive is its ability to provide high torque and strong shock load resistance in a compact structure. It is very suitable for heavy-duty industrial applications.
What is the main disadvantage of a cyclo drive?
The main disadvantage is that it may be noisier than some high-quality helical gearboxes. It also has a more complex internal structure and requires proper lubrication and installation.
Is a cyclo drive better than a worm gearbox?
For heavy-duty applications, a cyclo drive is often better than a worm gearbox because it usually has stronger overload capacity and better durability. However, for simple light-duty applications, a worm gearbox may be more economical.
Is a cyclo drive suitable for conveyors?
Yes. Cyclo drives are widely used for conveyors because they provide stable low-speed output and strong torque. They are suitable for belt conveyors, chain conveyors, screw conveyors, and material handling systems.
Can a cyclo drive be matched with a brake motor?
Yes. A cyclo drive can be matched with a brake motor when the machine needs quick stopping or holding position. This is common in lifting, packaging, conveying, and automation equipment.
Can a cyclo drive be used with a VFD motor?
Yes. If the machine needs speed control, a cyclo drive can be matched with a VFD motor. For low-speed or long-time variable frequency operation, a motor with an independent cooling fan is recommended.
How do I choose the right cyclo drive ratio?
You can calculate the ratio by dividing motor speed by required output speed. For example, if the motor speed is 1450 rpm and the required output speed is 50 rpm, the ratio is about 29:1.
What information should I provide before buying a cyclo drive?
You should provide motor power, input speed, required output speed, torque requirement, working hours, load type, mounting type, voltage, frequency, and photos or drawings if it is a replacement project.
