SEW Gearbox Alternative: How to Choose a Compatible Replacement
Views: 0 Author: Site Editor Publish Time: 2026-05-19 Origin: Site
When an industrial machine is already using a SEW gearbox, many buyers prefer to replace it with the same brand. This is easy in theory, but in real purchasing work, things are often different.
The original gearbox may have a long delivery time. The project budget may be limited. The customer may only need one or two replacement units, but the original brand price is too high. In some markets, spare parts and technical support are also not always convenient.
That is why many distributors, maintenance teams, OEM manufacturers, and project contractors start looking for a SEW gearbox alternative.
However, choosing a replacement gearbox is not just about finding a similar power and ratio. A truly compatible replacement must match the original gearbox in performance, installation, shaft size, mounting position, and working conditions.
This guide will explain how to choose a compatible SEW gearbox replacement step by step, especially from a practical B2B purchasing and engineering point of view.
Why Many Buyers Look for a SEW Gearbox Alternative
SEW is a well-known international brand in industrial gearboxes and gearmotors. Their products are widely used in conveyors, mixers, packaging lines, cranes, food machinery, wastewater equipment, and many other industrial applications.
But in many projects, buyers still search for a SEW gearbox equivalent for several practical reasons.
1. Original Brand Cost Is High
For many distributors and equipment manufacturers, gearbox cost directly affects project profit.
If the customer is replacing a gearbox on an old machine, they may not want to pay a high price for a complete original unit. If the project needs many gearboxes, the cost difference becomes even more important.
A compatible alternative gearbox can help buyers reduce purchasing cost while keeping the equipment running properly.
2. Delivery Time May Be Too Long
In maintenance projects, time is often more important than anything else.
If a production line is stopped because of gearbox failure, the customer cannot wait several weeks or months. They need a replacement solution quickly.
A reliable alternative supplier with flexible production can often provide a faster solution, especially for common gearbox types such as inline helical gearboxes, parallel shaft gearboxes, bevel helical gearboxes, and helical worm gearboxes.
3. Some Projects Only Need Functional Replacement
Not every project requires the original brand.
For many industrial applications, the key question is simple:
Can the replacement gearbox fit the equipment and meet the torque, speed, and duty requirements?
If the answer is yes, then a compatible gearbox replacement can be a very practical choice.
What Does “Compatible Replacement” Really Mean?
A common mistake is thinking that a gearbox replacement only needs the same power and ratio.
In reality, this is not enough.
A compatible replacement means the new gearbox can replace the original unit with minimum changes to the machine structure.
Same Ratio Does Not Mean Same Gearbox
Two gearboxes may have the same ratio, for example 15:1 or 30:1, but their dimensions can be completely different.
The output shaft diameter may be different. The mounting hole distance may be different. The motor flange may not match. The output torque capacity may not be enough.
So when choosing a SEW gearbox alternative, ratio is only one part of the selection.
Installation Compatibility Is Very Important
For replacement projects, installation compatibility is often the most important point.
You should check:
· Mounting type · Foot-mounted or flange-mounted design · Hollow shaft or solid shaft · Output shaft direction · Mounting hole dimensions · Center height · Motor adapter size · Oil position and mounting position
If these details are ignored, the gearbox may work technically, but it may not fit the machine.
Performance Compatibility Cannot Be Ignored
A gearbox must also meet the mechanical load.
For example, a conveyor may need stable continuous operation. A mixer may require higher service factor because of shock load. A crusher or heavy-duty machine may need stronger gears, bearings, and housing.
So the replacement gearbox should not only “look similar”. It must be strong enough for the actual working condition.
Key Information Needed Before Choosing a SEW Gearbox Replacement
Before asking a supplier for a quote, it is better to prepare enough technical information.
The more complete the information, the faster the supplier can confirm the right model.
1. Original SEW Gearbox Model Number
The original model number is the most useful information.

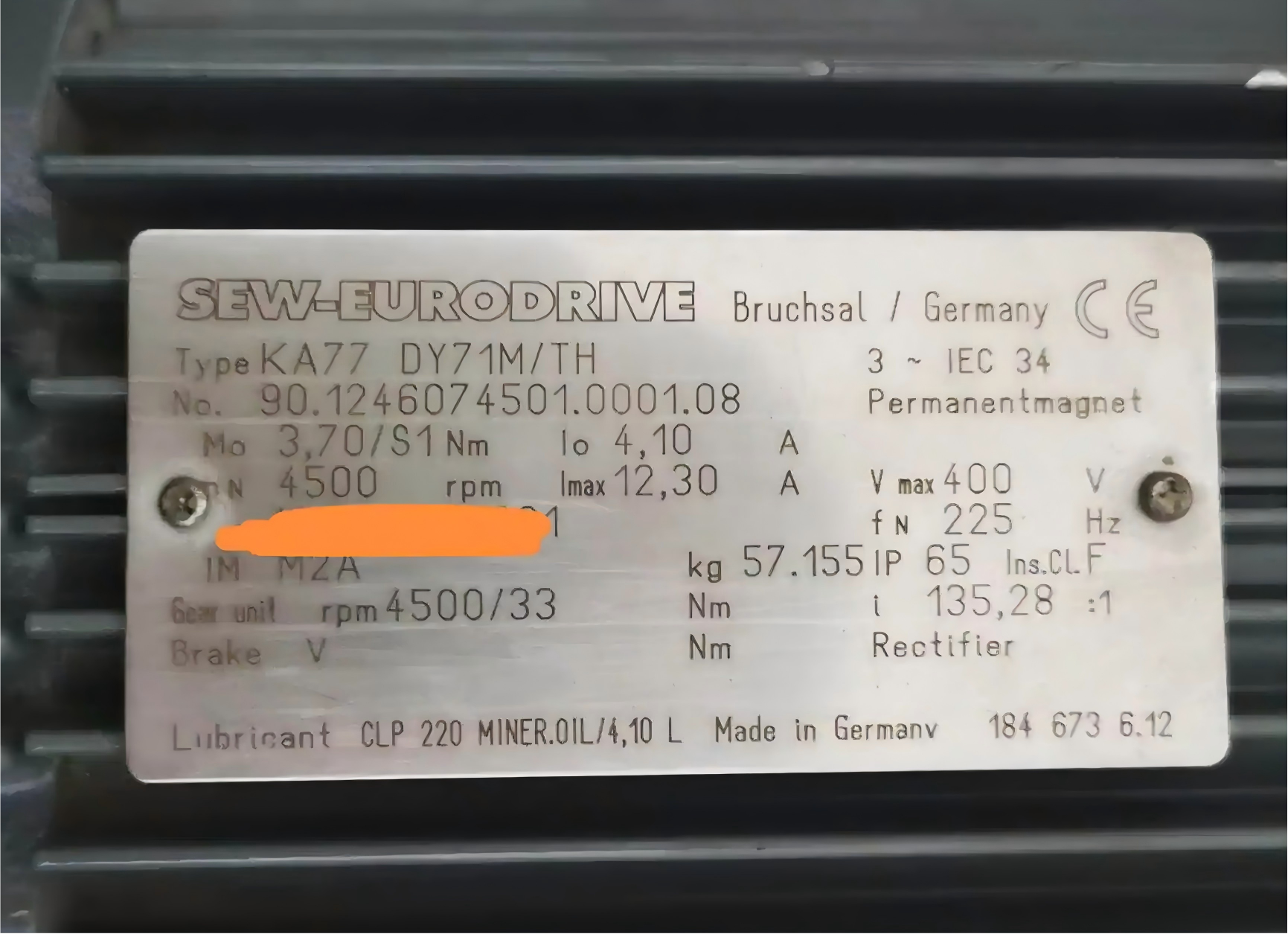

For example, the gearbox nameplate may show models such as:
A complete model number usually includes gearbox type, size, ratio, mounting form, motor power, and sometimes motor adapter or output shaft information.
If the nameplate is clear, take a photo and send it to the supplier.
2. Gear Ratio and Output Speed
The gear ratio decides the output speed.
For example, if a 4-pole motor runs around 1450 rpm at 50Hz and the gearbox ratio is 30:1, the output speed will be around 48 rpm.
When selecting a SEW gearbox equivalent, you need to confirm:
· Original ratio · Required output speed · Motor speed · Frequency: 50Hz or 60Hz · Whether speed is controlled by VFD
Sometimes the exact original ratio is not available from an alternative supplier. In this case, a close ratio can be selected if the output speed is acceptable for the equipment.
3. Motor Power and Input Type
You should confirm whether the gearbox is connected with:
· IEC motor · NEMA motor · Servo motor · Direct input shaft · Motor adapter flange
For many industrial gearboxes, IEC motor adapters are common. If the customer already has a motor, the replacement gearbox must match the motor frame size, shaft diameter, and flange.
For example, an IEC 100 motor and an IEC 132 motor have different shaft and flange dimensions. If the motor adapter is wrong, the motor cannot be installed.
4. Output Torque Requirement
Torque is more important than power alone.
A 2.2kW motor with a high ratio gearbox can produce much higher output torque than the same motor with a low ratio gearbox.
When checking torque, you need to consider:
· Motor power · Gear ratio · Gearbox efficiency · Load type · Service factor · Starting frequency · Shock load · Daily working hours
For heavy-duty applications, it is safer to choose a gearbox with higher torque capacity.

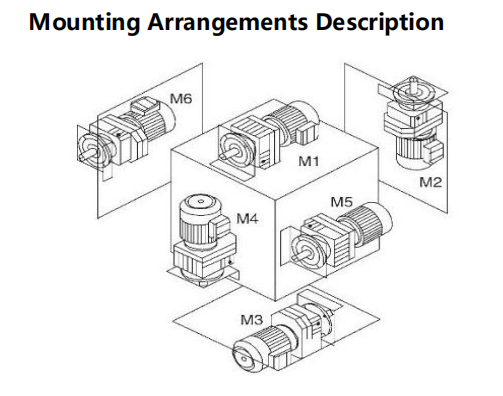

5. Mounting Position
Mounting position affects lubrication and oil level.
For example, a gearbox installed horizontally and a gearbox installed vertically may require different oil quantity or different oil plug positions.
Common mounting positions include M1, M2, M3, M4, M5, and M6, depending on gearbox type and installation direction.
When replacing a SEW gearbox, always confirm the actual installation position on the machine.
How to Understand Common SEW Gearbox Types

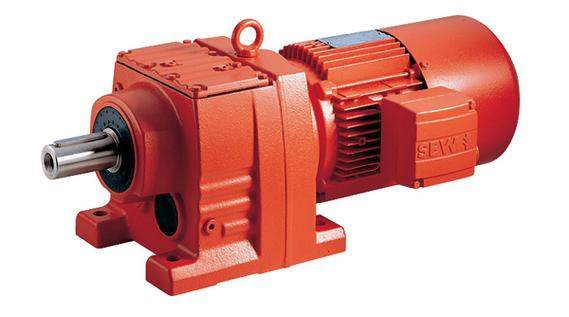

To choose the right alternative, you first need to know what type of gearbox you are replacing.
The input and output shafts are usually on the same axis or aligned direction. This type is widely used in conveyors, mixers, pumps, and general industrial machines.
For replacement, the key points are:
· Center height · Foot or flange dimensions · Output shaft diameter · Ratio · Motor adapter size · Output torque
Victory can provide inline helical gearbox alternatives for many standard industrial applications.
It is compact and suitable when the machine needs a parallel output shaft arrangement. It is often used in conveyors, material handling equipment, and production lines.
For replacement, you should check:
· Hollow shaft or solid shaft · Torque arm requirement · Foot-mounted or shaft-mounted design · Output bore size · Mounting dimensions
Its input and output are at 90 degrees. It has higher efficiency and better load capacity than many worm gearbox designs, so it is widely used in heavy-duty and continuous-duty applications.
Important selection points include:
· Hollow shaft bore · Solid shaft direction · Torque arm · Flange or foot mounting · Ratio · Output torque · Mounting position
A bevel helical gearbox replacement must be checked carefully because the installation direction is very important.
It combines helical gear and worm gear transmission. Compared with a simple worm gearbox, it can provide better efficiency and stronger performance in many applications.
It is often used where a compact right-angle drive is required.
When replacing this type, check the ratio, output shaft, mounting type, and required torque carefully.
Main Factors for Choosing a Compatible SEW Gearbox Alternative
Now let’s look at the most important technical factors one by one.
1. Gearbox Type Must Match the Application
Do not replace a bevel helical gearbox with a worm gearbox only because the output speed is similar.
Different gearbox types have different efficiency, torque capacity, heat performance, and service life.
The alternative gearbox should follow the original gearbox type as closely as possible unless the machine design allows changes.
2. Ratio Should Be Same or Very Close
The ratio controls the final speed of the machine.
If the ratio is too different, the conveyor speed, mixer speed, or machine output will change.
For some applications, a small difference is acceptable. For others, such as dosing equipment or synchronized production lines, the ratio must be very accurate.
Before confirming the replacement, ask the customer whether the output speed can have a small tolerance.
3. Output Shaft or Hollow Bore Must Match
This is one of the most common problems in gearbox replacement.
For example, if the original gearbox has a 60mm hollow bore, the replacement must also match the driven shaft. Otherwise, the customer may need to modify the equipment.
For maintenance projects, avoiding modification is a big advantage.
4. Mounting Dimensions Need Careful Checking
Even if the shaft size is correct, the gearbox may still not fit if the mounting dimensions are different.
You should compare:
· Foot hole distance · Flange diameter · Bolt hole size · Center height · Overall length · Output shaft position · Motor position

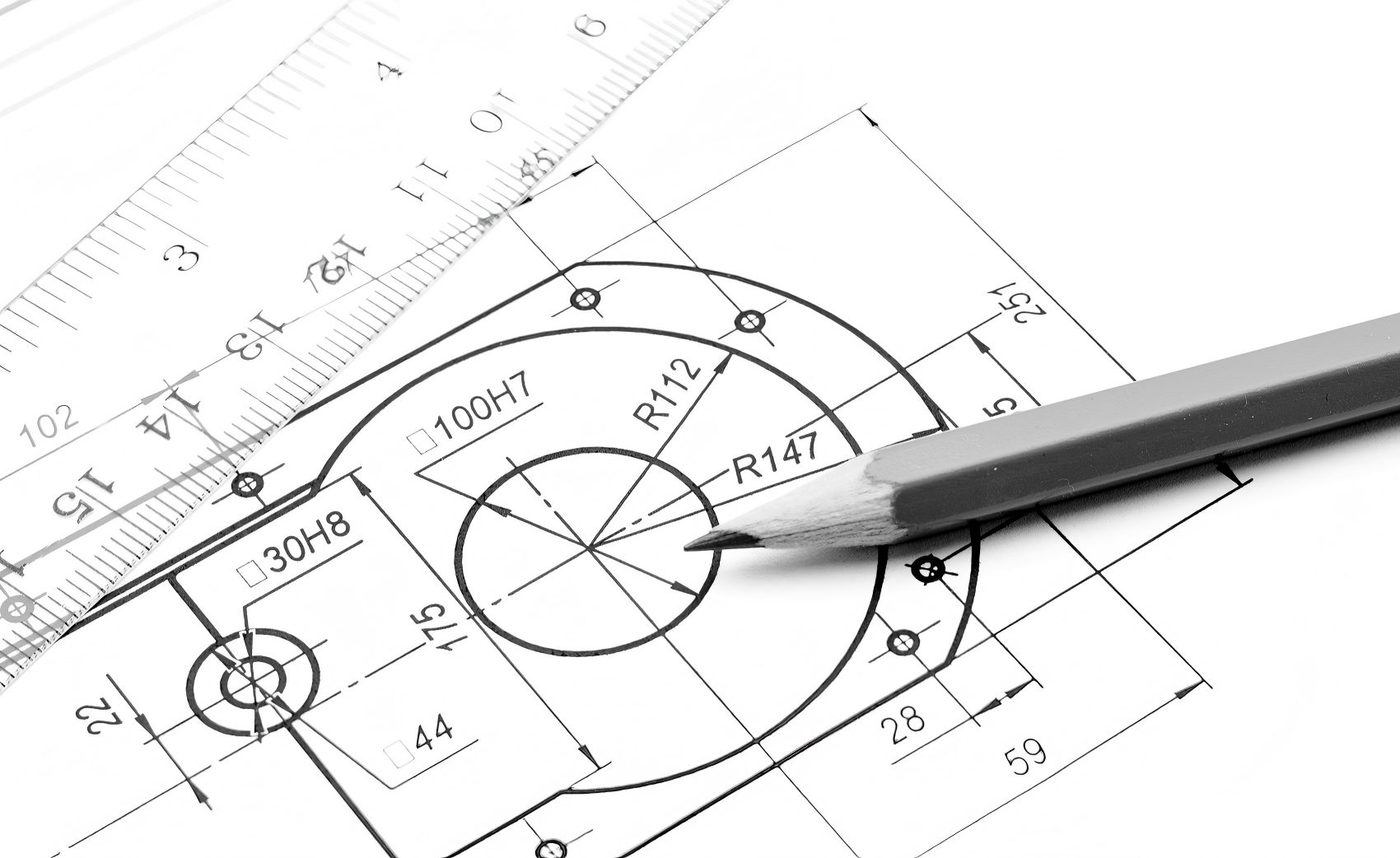

For important projects, it is better to ask the supplier for a drawing or 3D file before production.
5. Motor Adapter Must Match the Existing Motor
If the customer wants to keep the existing motor, the gearbox input must match the motor.
For IEC motors, check:
· Motor frame size · Flange size · Shaft diameter · Shaft length · Keyway · Motor power · Pole number
For example, a 2.2kW 4-pole IEC motor is often frame 100L, but this can vary by standard and design. Always confirm by motor nameplate or drawing.
6. Service Factor Should Match the Load
Service factor is very important for gearbox life.
A light conveyor and a heavy mixer may use the same motor power, but the gearbox load is very different.
For heavy-duty applications, consider:
· High shock load · Frequent start-stop · Long working hours · High radial load · High ambient temperature · Reverse operation · Overload risk
If the application is severe, choose a stronger gearbox instead of only matching the basic torque.
7. Lubrication and Mounting Position Must Be Correct
Gearbox oil level depends on mounting position.
If the gearbox is installed vertically, the lubrication condition may be different from horizontal installation.
Before shipment, the supplier should know the mounting position so they can prepare the correct oil plug position and lubrication suggestion.
This is especially important for replacement projects where the customer wants quick installation.
Common Applications for SEW Gearbox Alternatives
A compatible gearbox replacement can be used in many industries.
Conveyors
Conveyors are one of the most common applications for helical and bevel helical gearboxes.
In conveyor systems, the gearbox usually needs stable speed, reliable torque, and long working life. For heavy conveyor lines, service factor and output shaft strength are very important.

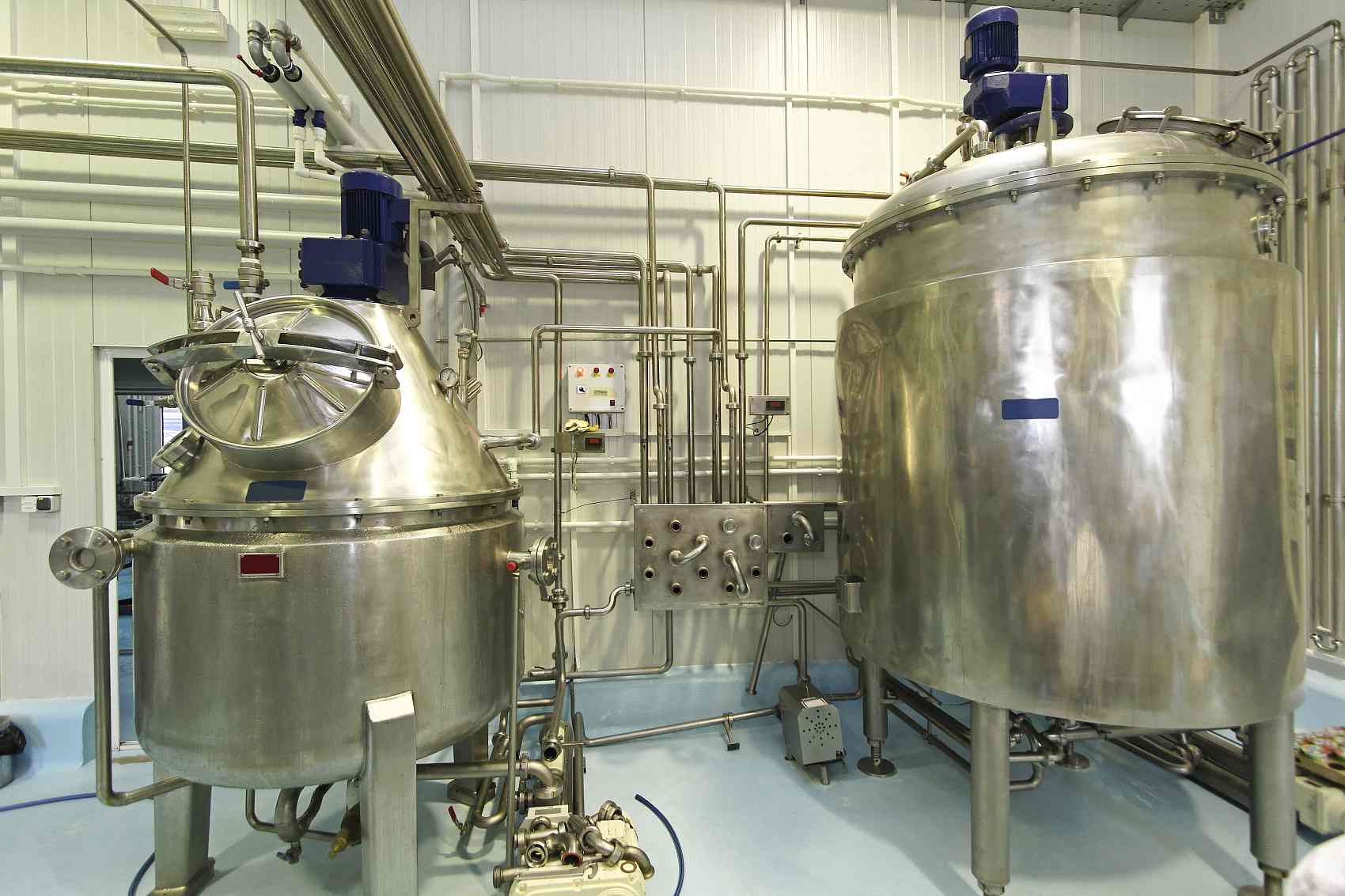

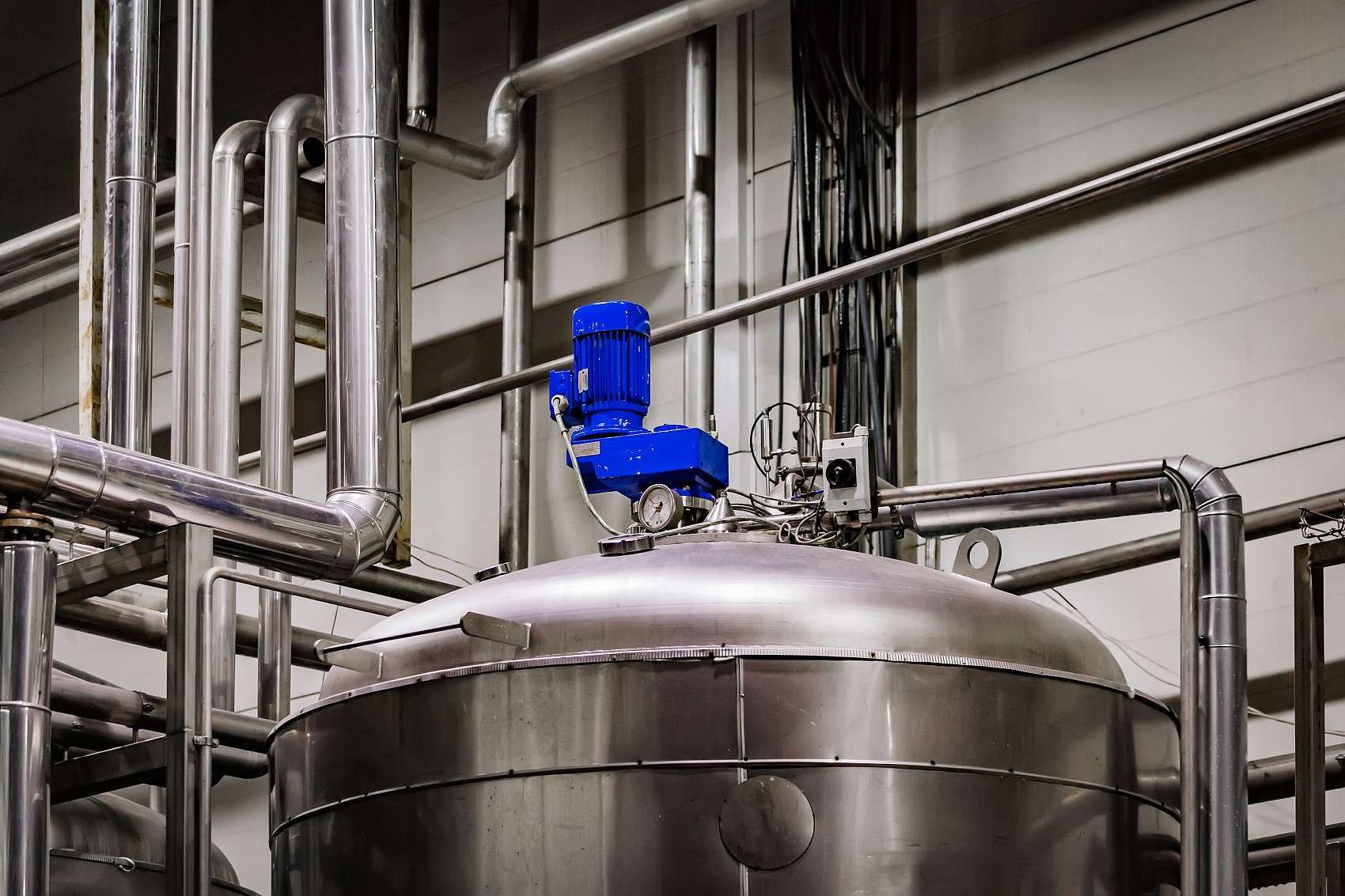

Mixers and Agitators
Mixers and agitators often have higher shock load, especially during startup.
If the material is thick or heavy, the gearbox must have enough torque reserve. For this application, it is not recommended to choose a gearbox only according to motor power.
The actual mixing material, working hours, and starting condition should be checked.

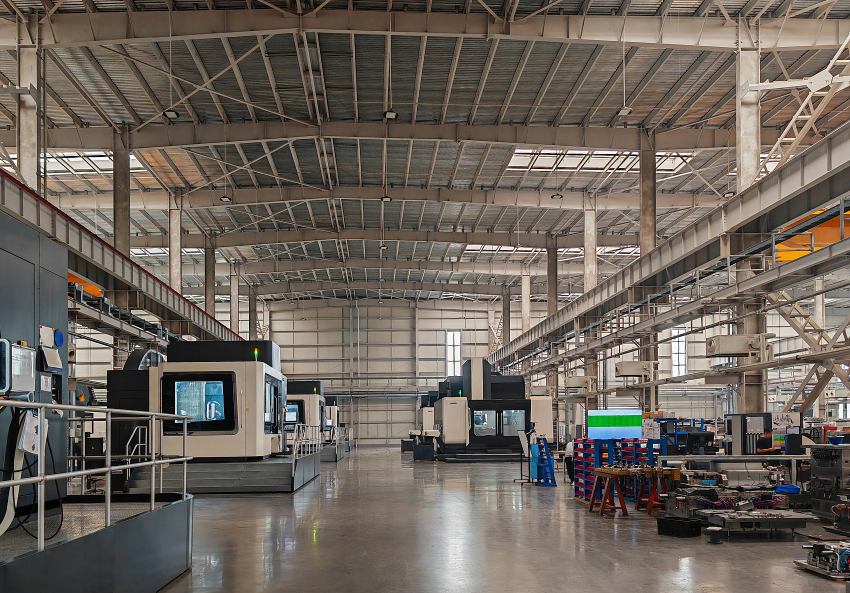

Crushers and Heavy-Duty Machines
Crushers, presses, and heavy-duty machinery require strong gearbox housing, gears, bearings, and shafts.
For this type of application, the replacement gearbox should be selected conservatively. A higher service factor is usually recommended.

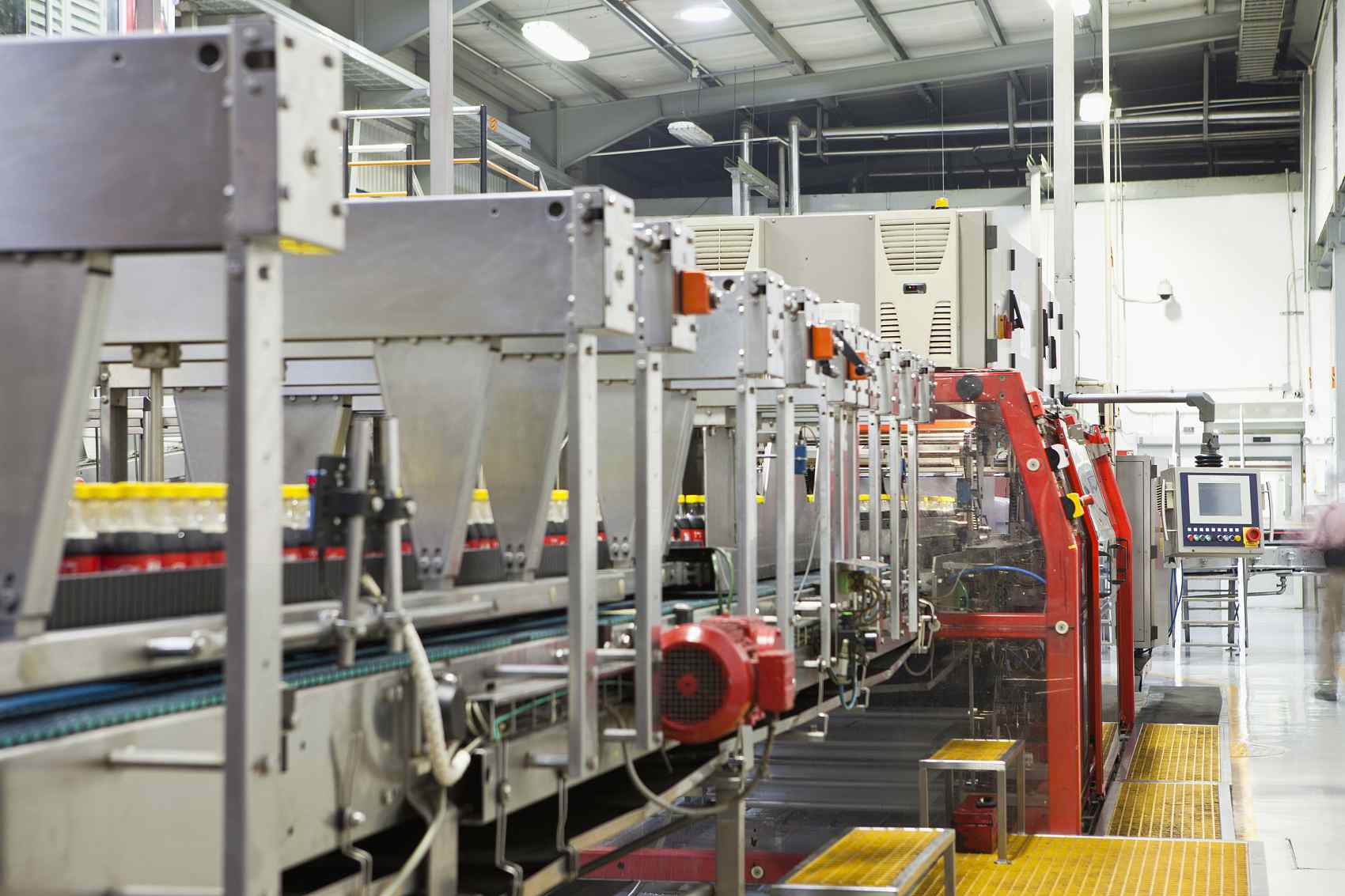

Packaging and Production Lines
Packaging machines and production lines often require stable speed and compact design.
For these applications, installation size and output speed are very important. If the gearbox does not fit exactly, the customer may need to change the machine layout.

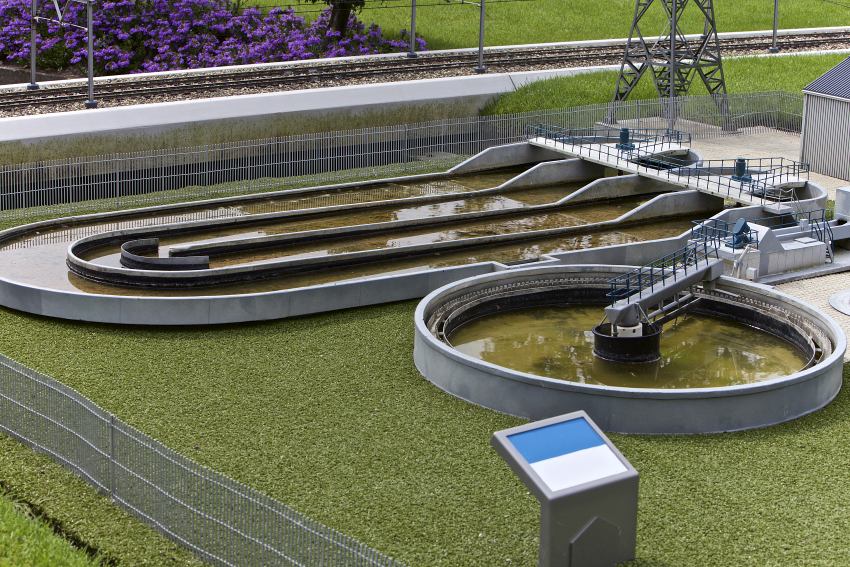

Wastewater and Environmental Equipment
Gearboxes are also widely used in wastewater treatment equipment, including scrapers, mixers, and sludge handling systems.
These applications may require anti-corrosion protection, long-duty operation, and stable torque output.

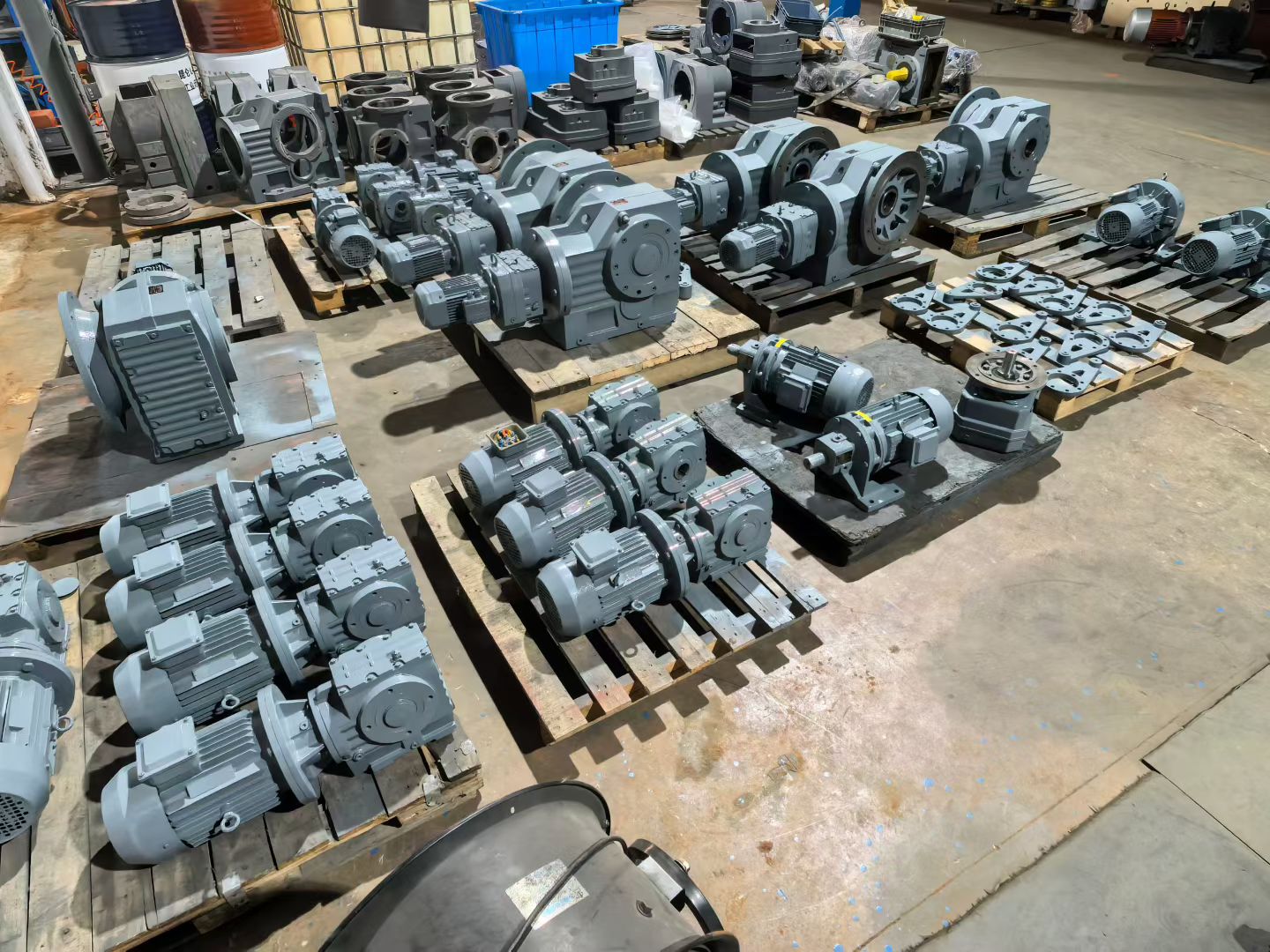

How Victory Helps Customers Replace SEW Gearboxes
Victory provides industrial gearbox and gearmotor solutions for B2B customers, including distributors, OEM manufacturers, engineering companies, and maintenance service providers.
For customers looking for a SEW gearbox alternative, our goal is not only to quote a cheaper product. Our goal is to help customers confirm a practical and compatible replacement solution.
1. Model Comparison Based on Original Gearbox Information
Customers can send us:
· Original SEW model number · Gearbox nameplate photo · Motor nameplate photo · Installation photo · Existing gearbox drawing · Output shaft or hollow bore size · Required quantity · Application information
Based on this information, we can recommend a corresponding Victory gearbox model.
2. Compatible Dimensions for Many Industrial Applications
For many common gearbox types, Victory can provide replacement solutions with similar installation dimensions.
This helps customers reduce machine modification and save installation time.
For special cases, we can also check drawings and confirm whether customization is needed.
3. Factory-Direct Pricing Advantage
Victory is a direct manufacturer. Compared with international brands, we can offer more competitive pricing for many industrial gearbox and gearmotor projects.
This is especially useful for:
· Distributors building local stock · OEM manufacturers controlling machine cost · Maintenance companies replacing old gearboxes · Project contractors working under limited budget
A compatible alternative can help customers stay competitive in their market.
4. Customization Ability
Not every replacement is standard.
Some projects require special shaft dimensions, special flange, special mounting position, different motor voltage, brake motor, or specific output speed.
Victory can support customization based on project needs, including:
· Output shaft customization · Hollow bore customization · Motor adapter matching · Brake motor matching · Special voltage motor · Different mounting positions · Nameplate customization · Color and branding options
For brand owners and distributors, customized nameplates and packaging can also help build their own product line.
5. Technical Support Before Production
For gearbox replacement projects, technical confirmation before production is very important.
Victory can provide drawings, technical parameters, and model suggestions to help customers check compatibility.
For important replacement projects, we recommend confirming the drawing before production to avoid installation problems.
Information You Should Send to Get a Fast Quotation
If you want a fast and accurate quotation for a SEW gearbox replacement, please prepare the following information:
· Original gearbox model number · Gearbox nameplate photo · Motor power and speed · Gear ratio or output speed · Mounting type · Mounting position · Output shaft or hollow bore size · Application equipment · Working hours per day · Load condition: light, medium, heavy, or shock load · Quantity · Destination country or port
With this information, the supplier can avoid guessing and provide a more reliable solution.
Mistakes to Avoid When Choosing a SEW Gearbox Alternative
Choosing a gearbox replacement is not difficult, but some mistakes can cause serious problems.
Mistake 1: Only Comparing Motor Power
Motor power alone cannot decide gearbox selection.
A 2.2kW motor can be used with different ratios and different output torque. Always check torque and ratio together.
Mistake 2: Ignoring Mounting Dimensions
If the mounting holes or shaft position do not match, the gearbox may need extra modification.
This can increase installation cost and delay the project.
Mistake 3: Choosing Too Small a Gearbox
Some buyers choose a smaller gearbox to save cost.
This may work for light-duty use, but in heavy-duty applications, it can lead to overheating, gear wear, oil leakage, or early failure.
Mistake 4: Not Checking Load Condition
A gearbox for a light conveyor and a gearbox for a heavy mixer should not be selected in the same way.
Always tell the supplier the real application.
Mistake 5: Not Confirming Motor Adapter
If the motor adapter does not match the existing motor, the customer may not be able to install the motor.
This is a common issue when replacing gearboxes from different brands.
FAQ About SEW Gearbox Alternative
1. Can Victory provide a gearbox to replace SEW?
Yes. Victory can provide gearbox alternatives for many industrial applications. Customers can send the original SEW model number, nameplate photo, drawing, or installation details, and we will help check the compatible model.
2. Can the replacement gearbox have exactly the same dimensions?
For many common models, we can provide similar or compatible dimensions. However, exact interchangeability depends on the original gearbox model, mounting type, shaft size, and application. We recommend checking drawings before production.
3. What information is needed to choose a SEW gearbox equivalent?
The most important information includes original model number, ratio, output speed, motor power, mounting type, output shaft or hollow bore size, and application condition.
4. Can I keep my existing motor and only replace the gearbox?
In many cases, yes. But the gearbox input adapter must match the motor frame, flange, shaft diameter, and shaft length. Please provide the motor nameplate and dimensions for confirmation.
5. Can Victory provide a gearbox with brake motor?
Yes. Victory can provide gearmotors with brake motors according to customer requirements. Brake voltage, brake type, motor power, and installation details should be confirmed before production.
6. Is a SEW gearbox alternative suitable for heavy-duty applications?
Yes, if the gearbox is selected correctly. For heavy-duty applications, we need to check output torque, service factor, shock load, working hours, and mounting condition. A stronger gearbox may be recommended.
7. Can Victory customize the output shaft or hollow bore?
Yes. Victory can support shaft and bore customization for many gearbox models. Please provide the required shaft diameter, shaft length, keyway size, or hollow bore dimensions.
8. How can I avoid buying the wrong replacement gearbox?
The best way is to provide the original nameplate, installation photos, drawings, and application details. Before production, confirm the technical drawing with the supplier.
Conclusion
Choosing a SEW gearbox alternative is not only about finding a lower price. A good replacement gearbox must match the original unit in ratio, torque, mounting type, shaft size, motor adapter, and working condition.
For B2B buyers, the most important goal is simple: the gearbox must fit the machine, run reliably, and help reduce total purchasing cost.
Victory can support distributors, OEM manufacturers, engineering companies, and maintenance teams with compatible gearbox replacement solutions. Whether you need an inline helical gearbox, parallel shaft gearbox, bevel helical gearbox, or helical worm gearbox, we can help check the original model and recommend a practical alternative.
If you are looking for a reliable SEW gearbox replacement, send us the original gearbox model number, nameplate photo, drawing, and application details. Our technical team will help you choose a compatible and cost-effective solution for your project.
CTA
Need a SEW gearbox alternative for your equipment? Send us the original gearbox model, nameplate photo, ratio, shaft size, and application details. Victory will help you check the compatible replacement model and provide a practical quotation for your project.
