Soft Starting Methods for Three-Phase Electric Motors

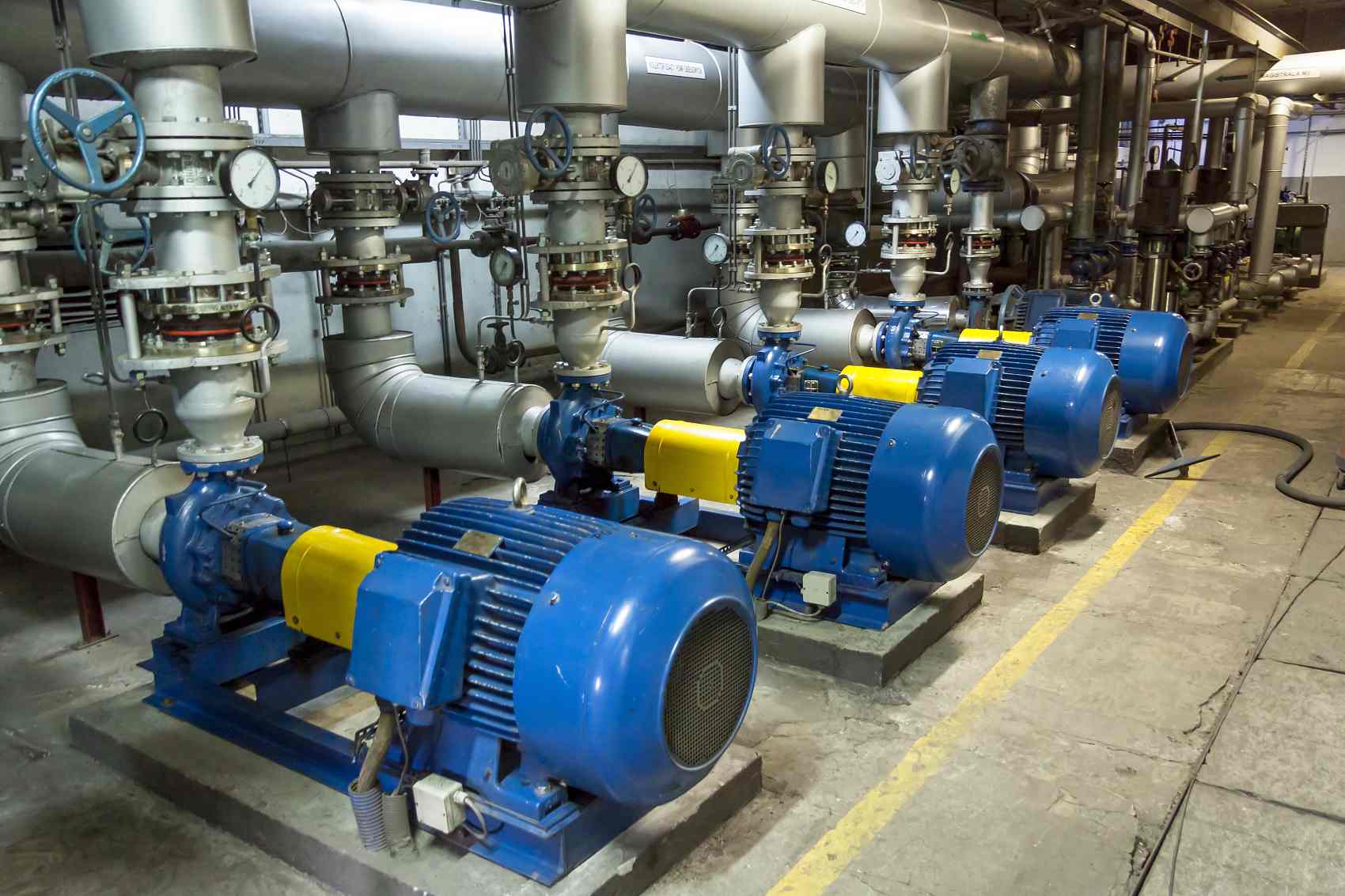

Three-phase electric motors are widely used in industrial equipment such as pumps, fans, conveyors, mixers, crushers, air compressors, hoists, pellet mills, and production lines. In many applications, the motor does not start under light-load conditions. It may start with material inside the machine, high inertia, liquid pressure, belt tension, or mechanical resistance.

If a three-phase motor starts directly at full voltage, it can produce high starting current and strong mechanical shock. This may cause voltage drop, contactor tripping, machine vibration, belt impact, gearbox damage, or shorter motor service life.

That is why many industrial systems use soft starting methods. A suitable soft starting solution can reduce electrical impact, protect the motor, and make the whole machine run more smoothly.

What Is Soft Starting for a Three-Phase Motor?

Soft starting means controlling the motor starting process so that the motor accelerates gradually instead of starting suddenly at full voltage.

The main purposes of soft starting include:

• Reducing starting current
• Reducing voltage drop
• Reducing mechanical shock
• Protecting motor windings
• Protecting bearings, shafts, couplings, belts, and gearboxes
• Improving production stability
• Extending equipment service life

When a three-phase induction motor starts directly, the starting current can be several times higher than the rated current. For small motors, this may not be a serious problem. But for medium and large motors, especially in frequent starting or heavy-load applications, the starting method becomes very important.

Why Do Three-Phase Motors Need Soft Starting?

Not every three-phase motor needs a soft starter or a variable frequency drive. The decision depends on motor power, power supply capacity, load type, starting frequency, and control requirements.

To Reduce Starting Current

Direct-on-line starting creates high inrush current. This current may affect the power supply and disturb other machines connected to the same electrical system.

For example, when a large motor starts directly, the site may experience voltage drop, light flickering, PLC alarm, contactor tripping, or protection shutdown.

Soft starting can limit starting current and make the starting process more stable.

To Reduce Mechanical Shock

When a motor starts directly, torque is produced suddenly. This can create strong impact on the transmission system and driven machine.

For example:

• A conveyor belt may be pulled suddenly.
• A mixer may shock the coupling and gearbox.
• A fan may create high inertia during acceleration.
• A pump may cause water hammer.
• A crusher may face sudden hard material.
• A pellet mill may have fluctuating feeding pressure.

Soft starting allows the motor to accelerate gradually. This helps reduce stress on mechanical parts and improves long-term equipment reliability.

To Extend Motor and Machine Life

Repeated electrical and mechanical shocks can shorten the life of motor windings, bearings, contactors, shafts, belts, and reducers. For industrial equipment that operates every day, soft starting is not only an electrical protection method. It is also a practical way to protect the whole machine.

Common Soft Starting Methods for Three-Phase Motors

There are several common soft starting methods for three-phase electric motors. Each method has different cost, starting performance, control ability, and suitable applications.

Common methods include:

• Direct-on-line starting
• Star-delta starting
• Auto-transformer reduced voltage starting
• Electronic soft starter
• Variable frequency drive starting
• Stator resistance or reactor starting
• Liquid resistance starting
• Rotor resistance starting for wound rotor motors

Direct-On-Line Starting

Direct-on-line starting, also called DOL starting, is the simplest motor starting method. The motor is connected directly to the full supply voltage through a contactor.

This method is simple, low cost, and easy to maintain. It is commonly used for small motors or applications where the power supply is strong enough.

Main advantages include:

• Lowest cost
• Simple wiring
• High starting torque
• Easy maintenance
• Suitable for small motors

However, DOL starting creates high starting current and strong mechanical shock. For larger motors, weak power grids, or machines with sensitive mechanical parts, this method may not be suitable.

DOL starting is often used for small pumps, fans, simple machines, and applications where starting impact is not a major concern.

Star-Delta Starting

Star-delta starting is one of the most common traditional reduced-voltage starting methods for three-phase induction motors.

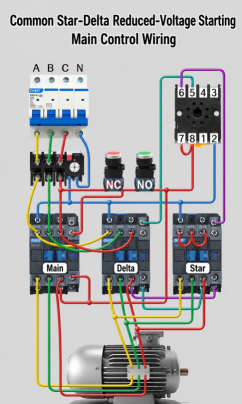

During starting, the motor winding is first connected in star connection. After the motor speed rises close to rated speed, the connection changes to delta for normal operation.

Features of Star-Delta Starting

Star-delta starting is simple, economical, and widely used. It can reduce starting current compared with direct starting.

Main features include:

• Low cost
• Simple control circuit
• Lower starting current than DOL starting
• Suitable for light-load or no-load starting
• Starting torque is also reduced
• Requires a motor suitable for delta running

The motor usually needs six terminals in the terminal box. If the motor does not support star-delta connection, this method cannot be used correctly.

Advantages and Disadvantages of Star-Delta Starting

The biggest advantage of star-delta starting is cost. It is a practical solution for many small and medium power motors.

Advantages include:

• Economical solution
• Mature technology
• Easy installation
• Simple maintenance
• Suitable for standard three-phase motors

However, the starting torque is reduced. If the machine starts with heavy load, the motor may not start smoothly.

Disadvantages include:

• Not suitable for heavy-load starting
• Current shock may occur during changeover
• Starting process is not very smooth
• Limited starting control
• Not ideal for frequent starting

Star-delta starting is usually suitable for fans, pumps, light-load conveyors, small machines, and applications without strict starting requirements.

Auto-Transformer Reduced Voltage Starting

Auto-transformer starting uses an auto-transformer to reduce the voltage supplied to the motor during start-up. After the motor reaches a certain speed, it switches to full voltage operation.

Compared with star-delta starting, auto-transformer starting can provide different voltage taps, such as 65% or 80%. This gives more flexibility in starting current and starting torque.

Main advantages include:

• Lower starting current
• Better starting torque than star-delta starting
• Suitable for medium and large motors
• Adjustable starting voltage
• Mature and reliable technology

Main disadvantages include:

• Higher cost than star-delta starting
• Larger control cabinet
• More components
• Switching shock may still occur
• Not ideal for very frequent starting

Auto-transformer starting is suitable for medium and large pumps, fans, air compressors, crushers, and large conveyors, especially when the power supply capacity is limited but the motor still needs better starting torque.

Electronic Soft Starter

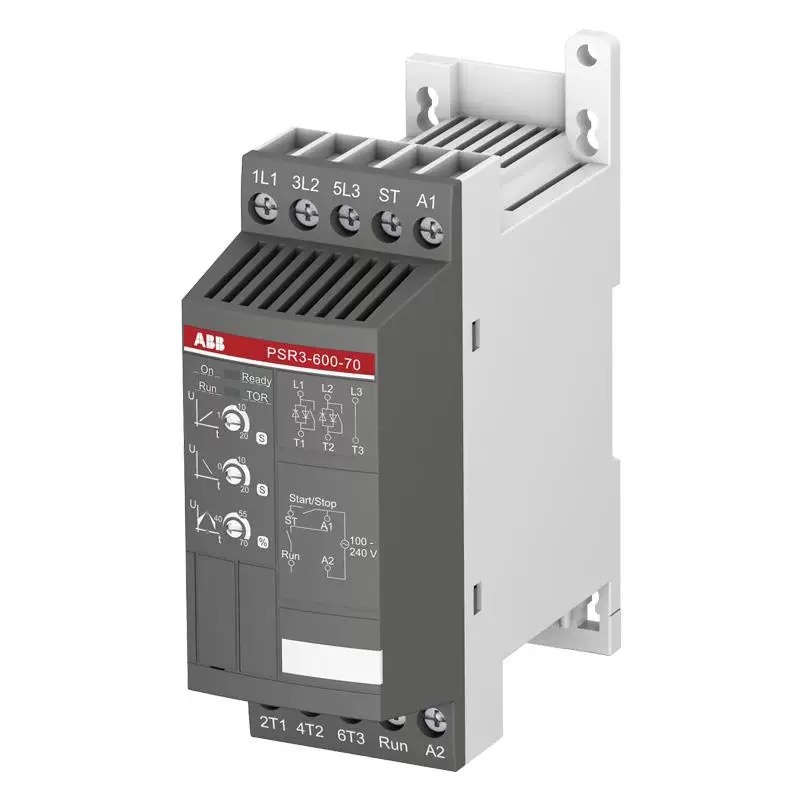

An electronic soft starter uses thyristors to control the voltage supplied to the motor. It gradually increases the motor voltage during start-up, allowing the motor to accelerate smoothly.

This is one of the most widely used soft starting solutions in modern industry.

How a Soft Starter Works

A soft starter controls the conduction angle of thyristors and increases the output voltage step by step. After the motor reaches normal speed, many soft starters use a bypass contactor to reduce heat and energy loss.

A soft starter can usually set:

• Start time
• Stop time
• Initial voltage
• Current limit
• Overload protection
• Phase loss protection
• Soft stop function

Advantages of a Soft Starter

Compared with star-delta and auto-transformer starting, an electronic soft starter provides smoother control and better protection.

Main advantages include:

• Smooth start-up
• Adjustable starting current
• Reduced mechanical shock
• Soft stop function
• Built-in protection functions
• Compact structure
• Easier installation than traditional starting cabinets
• Lower cost than a variable frequency drive

Limitations of a Soft Starter

A soft starter mainly controls voltage. It does not change frequency. Therefore, it cannot provide continuous speed control like a variable frequency drive.

Main limitations include:

• No continuous speed control
• Limited low-speed torque
• Not suitable for precise speed control
• May not be ideal for very heavy-load starting
• Must be selected according to motor and load condition

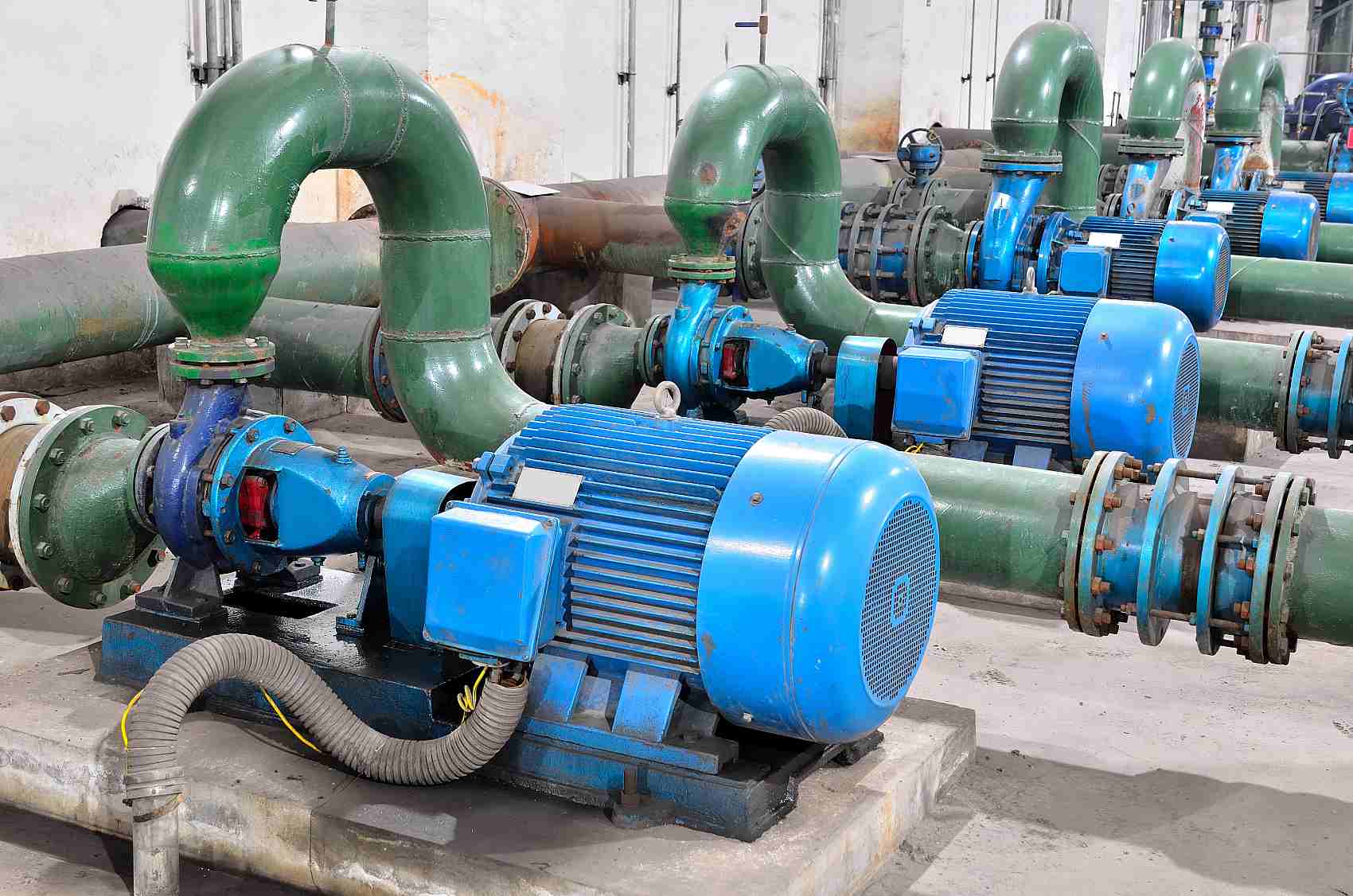

Soft starters are suitable for pumps, fans, conveyors, mixers, air compressors, crushers, centrifuges, and equipment requiring smooth stop.

For pump systems, soft stop can help reduce water hammer. For conveyors and mixers, soft starting can reduce shock to belts, couplings, gearboxes, and driven machines.

Variable Frequency Drive Starting

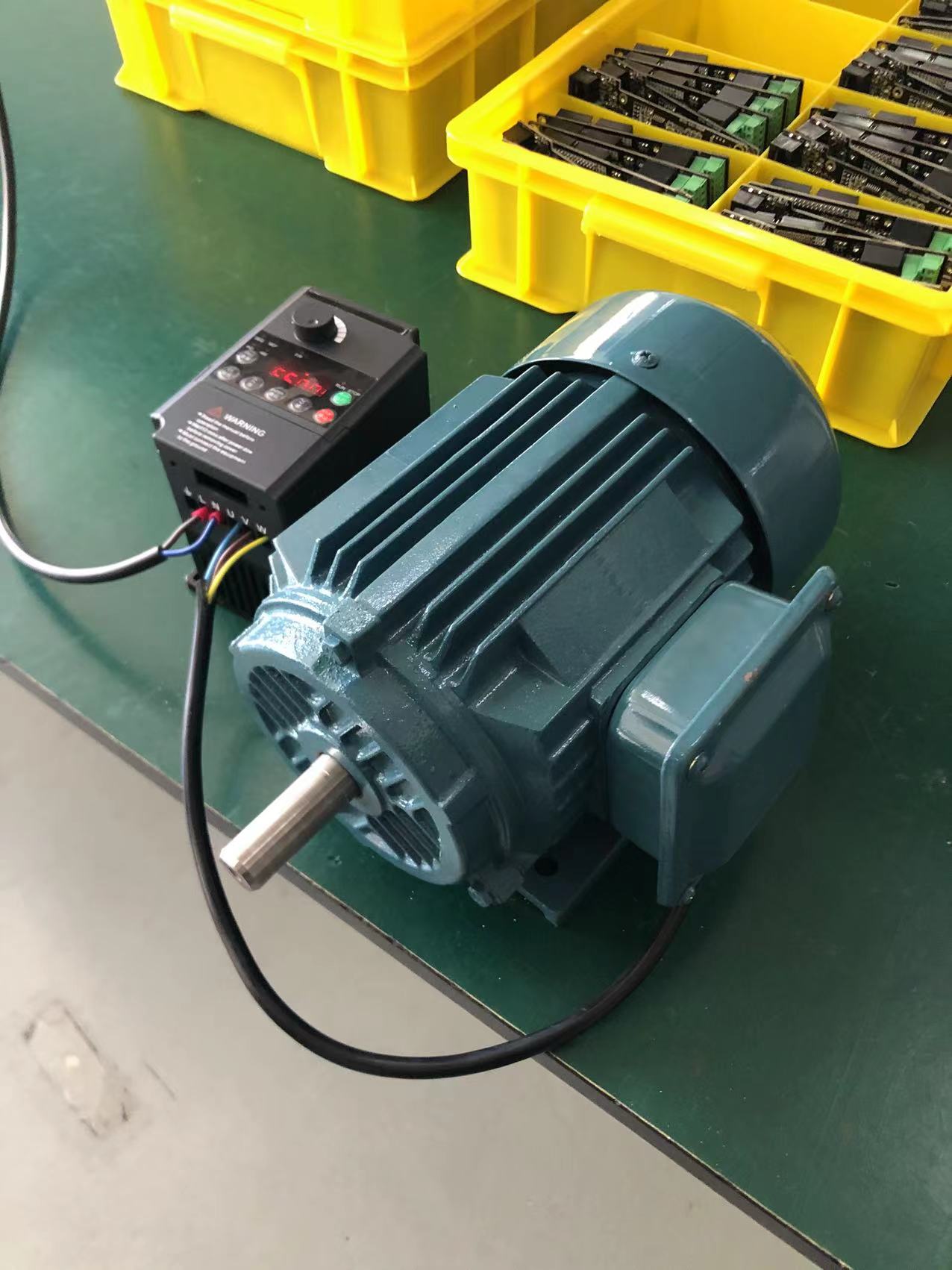

A variable frequency drive, also called a VFD, starts the motor by controlling both frequency and voltage. The motor starts at low frequency and low speed, then accelerates gradually to the target speed.

A VFD is not only a soft starting device. It is also a speed control and energy-saving device.

How a VFD Works

A VFD first converts AC power into DC power, and then converts it back into AC power with adjustable frequency and voltage. Since motor speed is related to supply frequency, the VFD can control motor speed accurately.

Advantages of VFD Starting

A VFD provides the best control among common soft starting methods.

Main advantages include:

• Very low starting current
• Very smooth start-up
• Adjustable speed
• Good energy-saving potential
• Forward and reverse control
• PLC and automation compatibility
• Adjustable acceleration and deceleration time
• Rich protection functions

For fans and pumps, VFDs can also help reduce energy consumption when the system does not need to run at full speed all the time.

Limitations of VFD Starting

A VFD is more expensive than a soft starter and requires proper installation, parameter setting, grounding, and cooling.

Main limitations include:

• Higher cost
• More complex parameter setting
• Requires good heat dissipation
• May generate harmonic and electromagnetic interference
• Long motor cables may require output reactors or filters
• Standard motors may overheat during long-term low-speed operation

If the motor runs at low speed for a long time, a VFD-duty motor with an independent cooling fan is recommended.

VFD starting is suitable for fans, pumps, conveyors, mixers, packaging machines, textile machines, winding machines, production lines, and equipment requiring speed control.

Stator Resistance or Reactor Starting

In this method, resistance or reactance is connected in series with the stator circuit during starting. This reduces the voltage and current supplied to the motor. After the motor starts, the resistance or reactor is removed.

Main features include:

• Reduced starting current
• Simple structure
• Moderate cost
• Reduced starting torque
• Higher energy loss
• Less smooth starting process

This method is usually found in older systems or applications with lower starting requirements. For new projects, soft starters and VFDs are more commonly selected.

Liquid Resistance Starting

Liquid resistance starting is often used for large high-voltage motors. It uses the changing resistance of liquid to control starting current and starting torque.

Main features include:

• Suitable for large motors
• Relatively smooth starting current
• Can be used for heavy-load starting
• Large equipment size
• Higher maintenance requirements
• Liquid condition needs regular inspection

Liquid resistance starting is commonly used for ball mills, cement equipment, mining machinery, large fans, large crushers, and high-voltage motors.

For ordinary low-voltage three-phase motors, liquid resistance starting is not a common choice.

Rotor Resistance Starting for Wound Rotor Motors

A wound rotor motor can start with external resistance connected in the rotor circuit. By changing rotor resistance, the motor can achieve higher starting torque and lower starting current.

Main features include:

• High starting torque
• Controlled starting current
• Suitable for heavy-load starting
• More complex motor structure
• Brushes and slip rings require maintenance
• Higher cost

This method is often used for cranes, hoists, crushers, ball mills, large-inertia loads, and heavy-load starting equipment.

In many modern applications, VFDs with squirrel cage motors are gradually replacing traditional wound rotor motor systems.

Comparison of Different Soft Starting Methods

Soft Starter vs VFD

Many users confuse soft starters with VFDs. Both can make the motor start smoothly, but their functions are different.

A soft starter mainly controls the start and stop process. After starting, the motor usually runs at fixed grid frequency. It is suitable when speed control is not required, starting current needs to be reduced, and the budget is lower than a VFD solution.

A VFD can control both starting and running speed. It is suitable when speed control, energy saving, automation control, low-speed operation, forward and reverse control, or precise acceleration and deceleration are required.

In simple terms, if the goal is only to reduce starting shock, a soft starter is usually more economical. If the machine needs speed control, a VFD is the better choice.

How to Choose the Right Soft Starting Method

The selection should not be based only on motor power. It should also consider load type, starting frequency, required torque, power supply capacity, control demand, and budget.

For small three-phase motors, such as 0.75 kW, 1.5 kW, or 2.2 kW, direct-on-line starting is often acceptable if the power supply capacity is sufficient. If the machine is sensitive to starting shock, a soft starter or VFD can also be used.

For motors such as 7.5 kW, 11 kW, 15 kW, and 22 kW, star-delta starting, soft starter, or VFD starting can be considered. If the load is light, star-delta starting may be enough. If smoother starting is required, a soft starter is better. If speed control is required, a VFD should be selected.

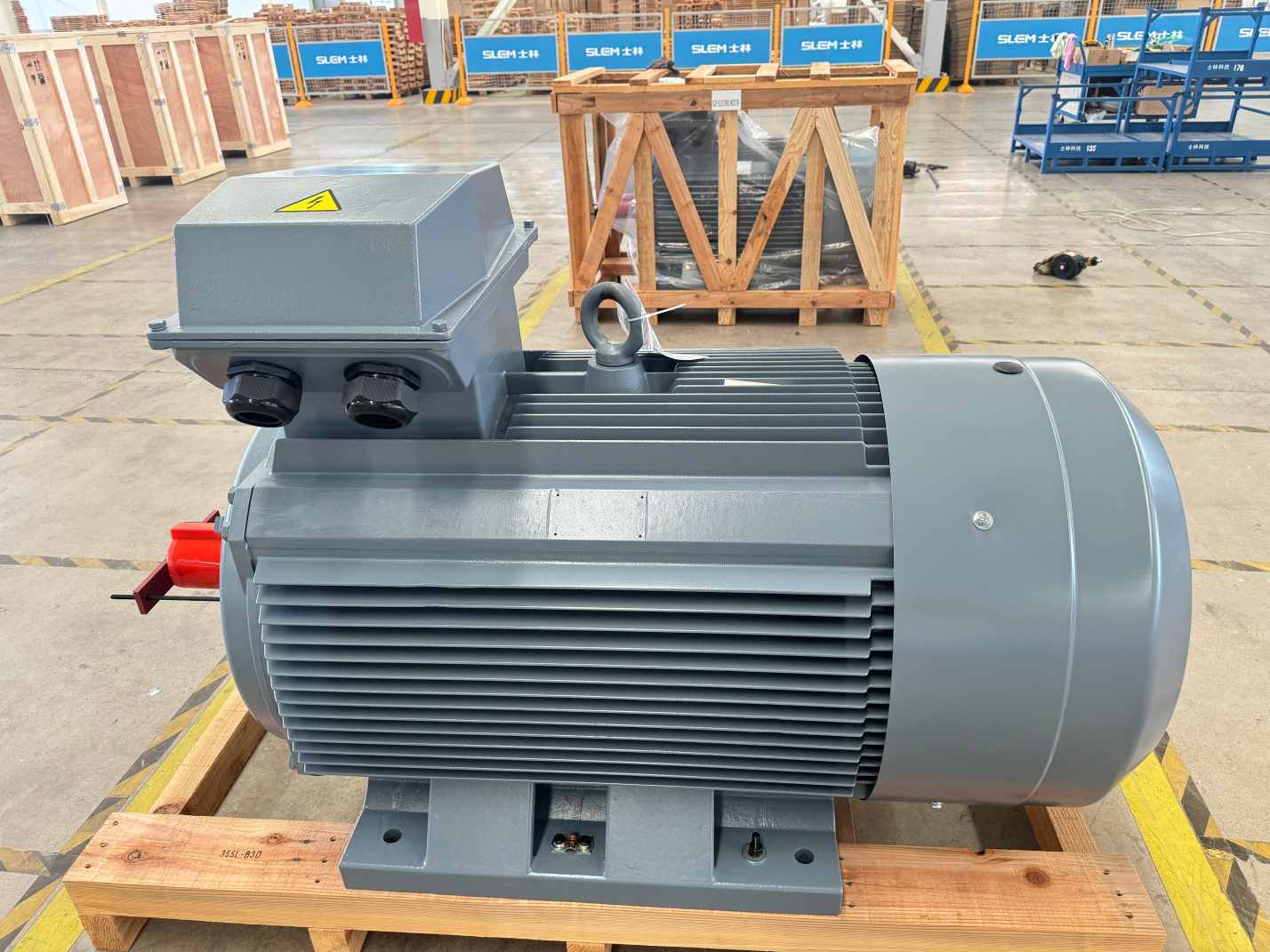

For motors such as 45 kW, 55 kW, 75 kW, 110 kW, and above, direct starting may create serious impact on the power supply. Common options include auto-transformer starting, soft starter, VFD, liquid resistance starting, or special high-voltage starting cabinet.

Selecting by Load Type

Different machines have different starting characteristics. Load type is very important when selecting the starting method.

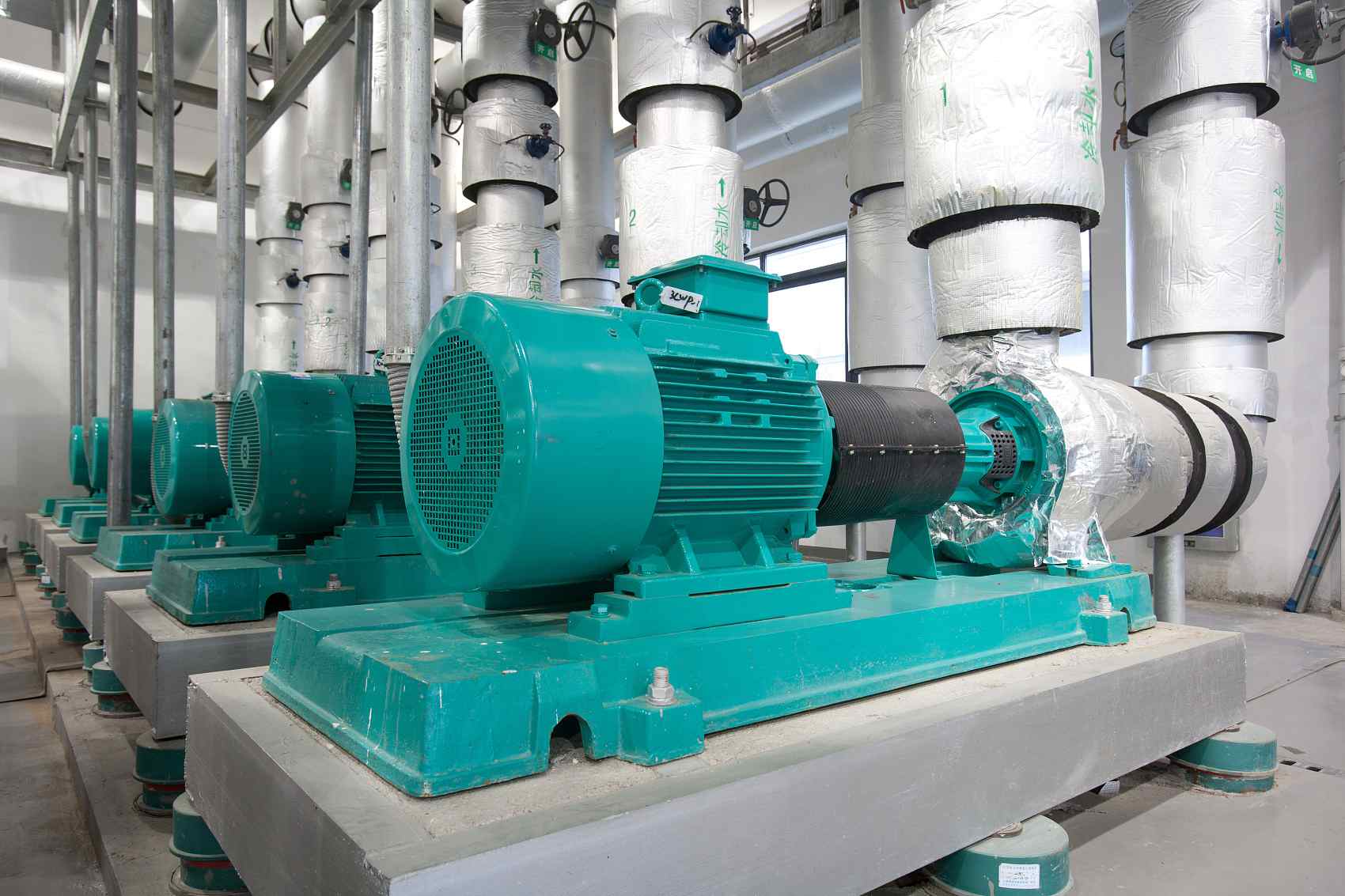

For fans, soft starters and VFDs are commonly used because fans usually have high inertia. If air volume needs adjustment, a VFD is recommended.

For pumps, soft starters and VFDs can both be used. If only smooth start and soft stop are needed, a soft starter is suitable. If constant pressure or flow control is required, a VFD is better.

For conveyors, direct starting may cause belt shock, especially when material remains on the belt. Soft starters or VFDs are recommended. If conveyor speed needs adjustment, a VFD is more suitable.

For mixers, the motor may start with material inside the tank. Starting torque can be high, so the selected starting method must be checked carefully. If low-speed starting or speed control is needed, a VFD is recommended.

For crushers and pellet mills, heavy-load starting is common. These machines may need VFDs, wound rotor motor systems, or special heavy-duty starting solutions.

For air compressors, star-delta starting, soft starters, and VFDs are common options. If energy saving is required, a VFD is usually more suitable.

Important Points When Using Soft Starting

Before selecting a soft starter or VFD, confirm the motor power, voltage, frequency, rated current, connection method, and load type.

Common motor parameters include:

• 380V / 50Hz
• 400V / 50Hz
• 415V / 50Hz
• 460V / 60Hz
• 220/380V
• 230/460V
• Three phase
• 2 poles, 4 poles, 6 poles, or 8 poles

Starting torque must be enough. Reduced-voltage starting reduces current, but it also reduces starting torque. For heavy-load machines, the motor may fail to start if torque is not enough.

Starting frequency should also be checked. If the motor starts frequently, both the motor and the starting device will generate heat. Motor temperature rise, soft starter capacity, contactor life, brake life, mechanical shock, and protection settings should all be considered.

For VFD operation, cooling is very important. A standard motor may not cool well at low speed because the shaft-mounted fan also runs slowly. For long-term low-speed operation, a VFD-duty motor with an independent cooling fan is recommended.

Cable, grounding, and interference should also be considered. VFD output may produce high-frequency components. Proper grounding, shielded cables, and anti-interference design are important. For long cable distances, output reactors or filters may be required.

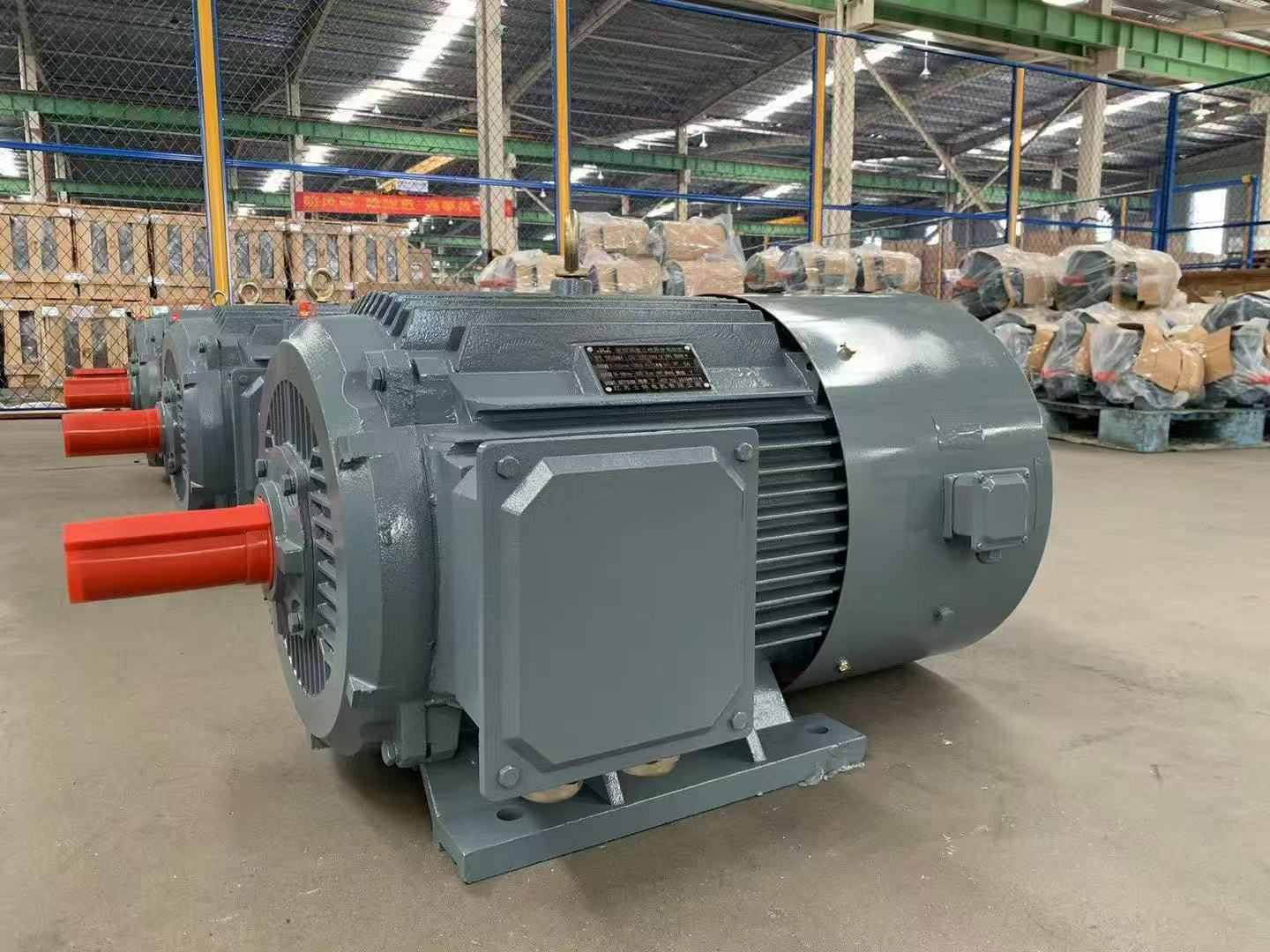

Victory Three-Phase Motor Solutions for Soft Starting Applications

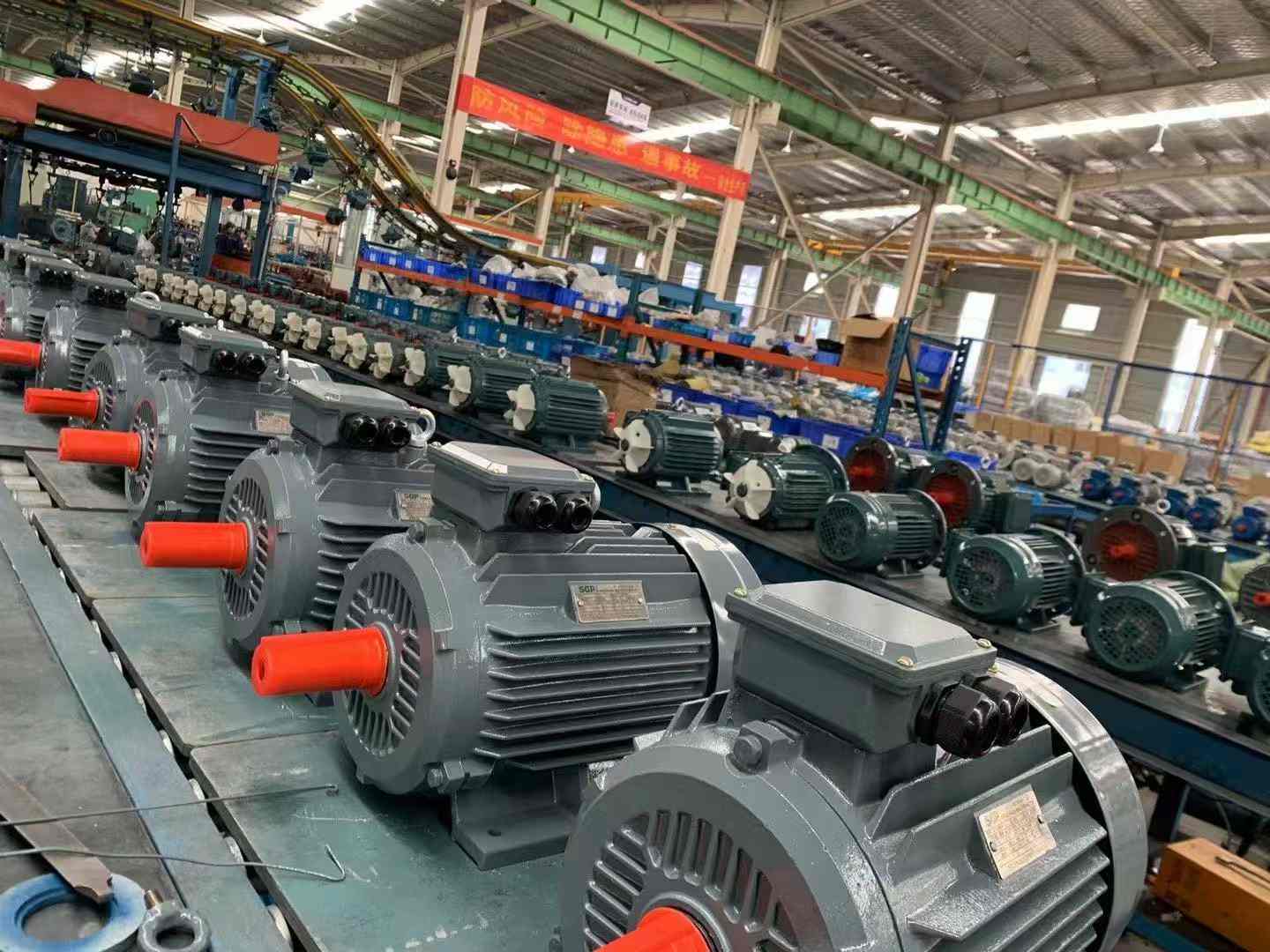

Victory provides three-phase electric motors for industrial equipment where soft starting, VFD operation, stable torque, and reliable continuous running are required.

When customers choose a motor for soft starter or VFD applications, the motor itself must be properly designed and matched to the working condition. A good starting device cannot fully solve the problem if the motor power, voltage, cooling method, insulation, or torque capacity is not suitable.

Victory can provide standard and customized motor solutions according to different equipment requirements.

Victory advantages include:

• Factory direct supply with competitive pricing
• IE2, IE3, and high-efficiency motor options
• Three-phase asynchronous motors for pumps, fans, conveyors, mixers, compressors, and gearboxes
• Standard voltages such as 220V, 380V, 400V, 415V, 440V, 460V, and 480V
• 50Hz and 60Hz motor customization
• Dual-voltage options such as 220/380V and 230/460V
• Motor power matching according to load torque and application
• VFD-duty motor options with independent cooling fan
• Brake motor options for hoists, conveyors, packaging machines, and lifting equipment
• Gear motor matching with cycloidal reducers, helical gearboxes, and worm gearboxes
• Special shaft, flange, and mounting customization

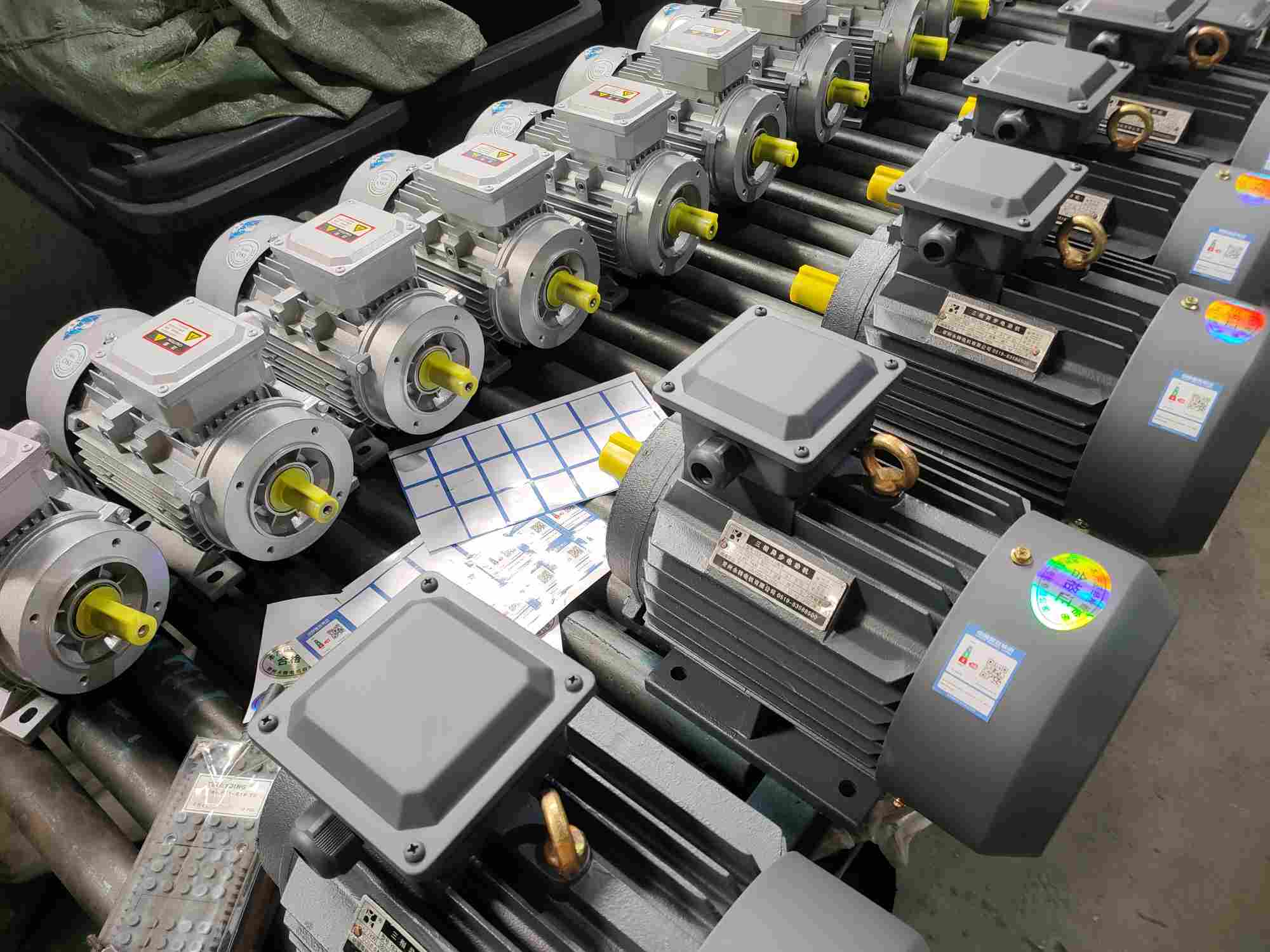

• Foot mounted, flange mounted, and foot-flange mounted structures
• Customer logo and nameplate customization
• Technical drawings before production
• ISO9001 quality management and CE motor options
• 18-month warranty after delivery

For applications using a soft starter, Victory can help confirm whether the selected motor has suitable rated current, insulation class, service factor, and starting torque.

For applications using a VFD, Victory can provide motors with independent cooling fans, suitable insulation options, and correct speed range according to the working condition.

Victory motors are commonly used in:

• Water pumps
• Industrial fans
• Belt conveyors
• Screw conveyors
• Mixers and agitators
• Crushers
• Pellet mills
• Air compressors
• Packaging machines
• Hoists and lifting systems
• Gear motor systems
• OEM machinery

For international customers, Victory can support flexible voltage and frequency requirements for different markets. For example, customers in Europe may require 400V 50Hz motors, while customers in North America may require 230/460V 60Hz motors. Customers in Southeast Asia, South America, Africa, and the Middle East may also have different local power standards.

How Victory Helps Customers Select the Right Motor

Choosing the right starting method is important, but choosing the right motor is equally important. If the motor is not correctly matched, the equipment may still face starting failure, overheating, low torque, or short service life.

Victory can help customers confirm key information before selection, including:

• Motor power
• Voltage and frequency
• Rated speed
• Mounting type
• Load type
• Starting condition
• Required starting torque
• Whether speed control is needed
• Whether brake is needed
• Whether a gearbox is required
• Ambient temperature and working environment
• Quantity and delivery requirement

For example, a pump may only need smooth start and soft stop, so a standard three-phase motor with a soft starter may be enough. A conveyor with adjustable speed may need a VFD motor. A mixer with heavy material may need higher starting torque and careful gearbox matching. A hoist may need a brake motor with reliable stopping performance.

By understanding the real working condition, Victory can recommend a more practical motor solution instead of only quoting a standard model.

Frequently Asked Questions

Can a three-phase motor start directly?

Yes. Small motors can often start directly if the power supply capacity is sufficient. However, medium and large motors may need soft starting to reduce current impact.

Is star-delta starting a soft starting method?

Yes. Star-delta starting is a traditional reduced-voltage starting method. It can reduce starting current, but it is not as smooth as an electronic soft starter.

Can a soft starter control motor speed?

Generally, no. A soft starter mainly controls the starting and stopping process. It cannot provide continuous speed control like a VFD.

Can a VFD replace a soft starter?

Yes. A VFD can provide soft starting and also control speed. However, if speed control is not required, a soft starter is usually more economical.

Is a soft starter suitable for heavy-load starting?

It depends on the load. Since reduced voltage also reduces torque, a soft starter may not be suitable for very heavy-load starting. A VFD or special heavy-duty starting solution may be better.

Can a standard motor work with a VFD?

Yes, but if the motor runs at low speed for a long time, a VFD-duty motor is recommended. Standard motors may have insufficient cooling at low speed.

Conclusion

There are many soft starting methods for three-phase electric motors, including direct-on-line starting, star-delta starting, auto-transformer reduced voltage starting, electronic soft starter, variable frequency drive, stator resistance or reactor starting, liquid resistance starting, and rotor resistance starting for wound rotor motors.

Each method has its own suitable applications. Star-delta starting is economical and suitable for light-load machines. Auto-transformer starting is useful for medium and large motors. Soft starters are widely used for pumps, fans, conveyors, mixers, and compressors where smooth start-up is required. VFDs are the best choice when speed control, energy saving, or automation control is needed. For large high-voltage motors or heavy-duty machines, liquid resistance or special starting systems may be required.

When choosing a soft starting method, users should consider not only motor power, but also starting torque, starting frequency, load inertia, power supply capacity, control requirements, and budget.

Victory can provide three-phase motor solutions for different soft starting and VFD applications. With flexible voltage and frequency customization, motor power matching, brake motor options, VFD-duty motor options, gearbox matching, special mounting customization, technical drawing support, and factory direct supply, Victory helps customers choose practical and reliable motors for industrial equipment.
